Features：
■ Overcurrent circuit breaker lockout protection
■ Individually adjustable operation delay/
Operation delay time
■ Wide setting range
■ Wide operating voltage range
■ Operation indicator and actual current identification (LED)
■ Manual/electric reset
■ Environmentally insensitive
■ Low consumption
■ (No-voltage release/fail-safe operation) → N type ※ Available in single-phase and three-phase versions (No-voltage release/fail-safe operation) → N
For - Low-voltage induction motor (600V class) protection relay
- Fault monitoring current relay
- Replacement for existing relays
Protection item Operation (trip) time
Overcurrent = O-time
Phase loss = O-time
Stuck rotor = D-time + O-time
Ammeter function:
After the motor is running smoothly, slowly turn the overcurrent setting knob counterclockwise until the red indicator lights up, indicating 100% of the actual operating current. Turn the knob clockwise again until the red light just turns off, indicating approximately 103% of the actual operating current. Operation/Operation Indicator:
Relay trip: Red LED;
Power/Normal Operation: Green LED
Manual/Electric Reset
Press and hold the test button, the red LED illuminates, and the product will trip after the O-TIME period.
Pressing the RESET button or disconnecting the control power will de-energize the relay.
After installation, set the following settings:
D-TIME (delay time) 2-3 seconds longer than the motor start-up time.
O-TIME (overcurrent operation time) 10 seconds shorter than the motor overcurrent withstand time.
Load (rated current) 110% or higher and below 120% of the motor's rated current.
Test Instructions:
Press the test button, the red LED illuminates, and the product will trip after the O-TIME period.
Pressing the RESET button or disconnecting the control power will de-energize the relay.
Use a 05-type for CT (secondary side 5A) for CTs exceeding 60A.
Specifications:

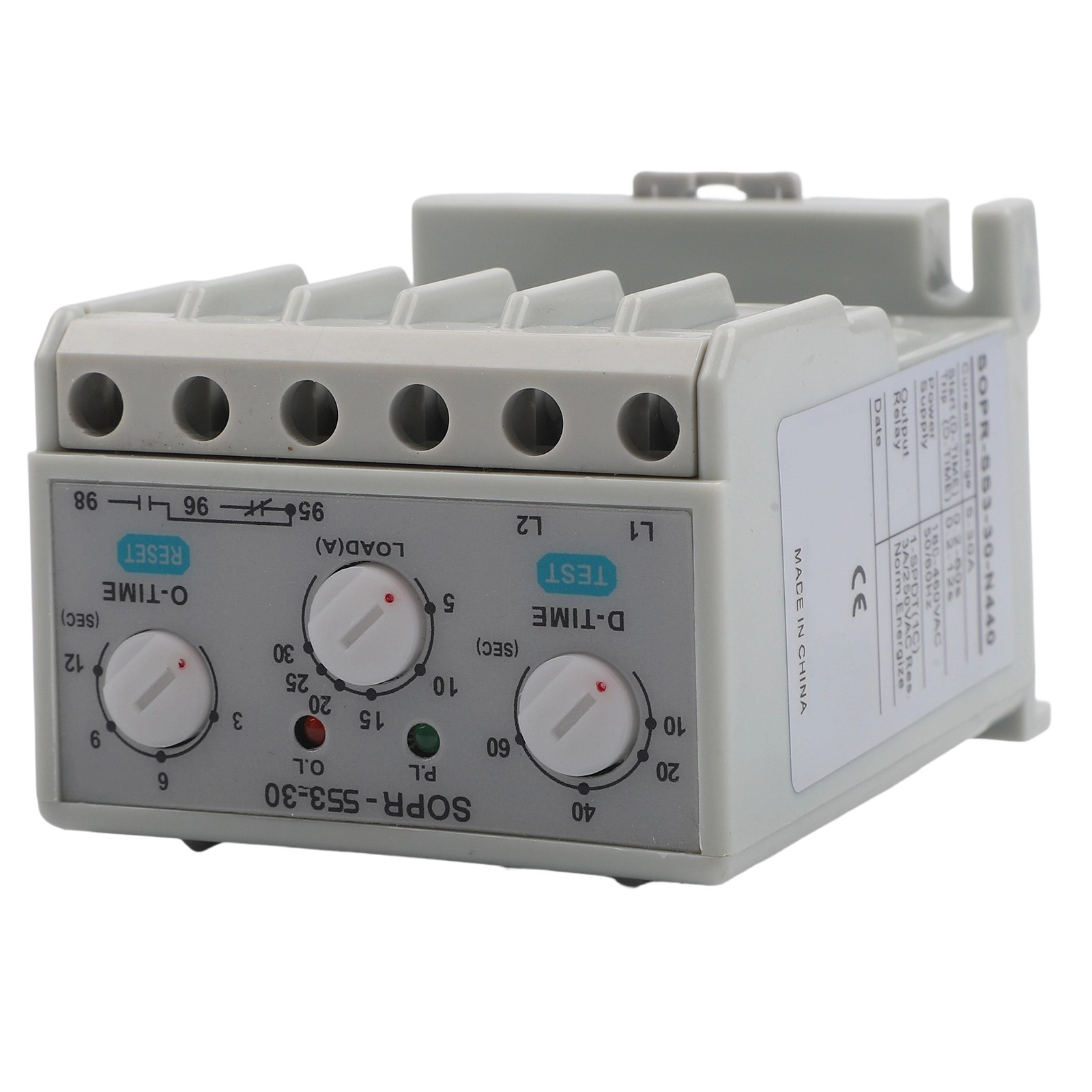

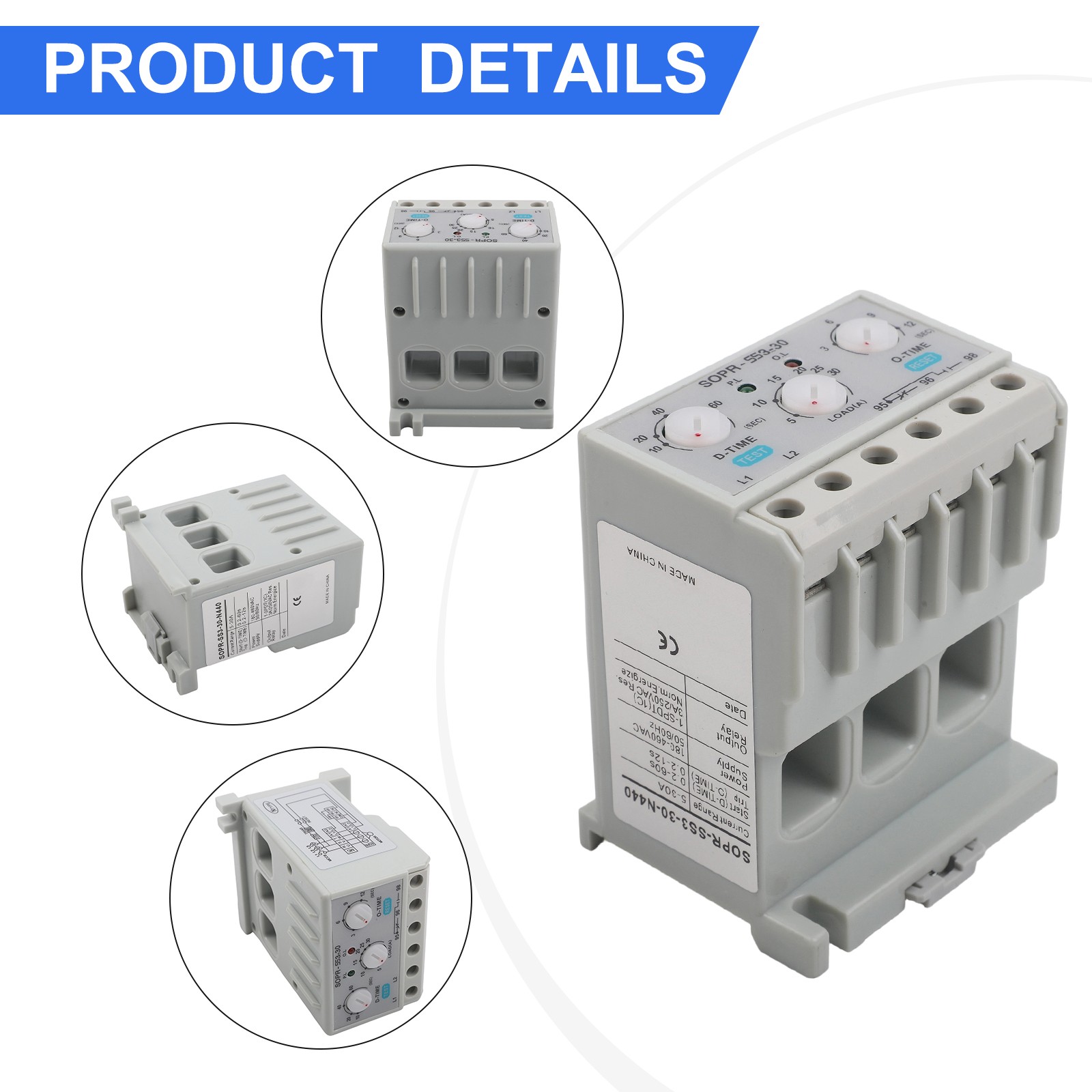

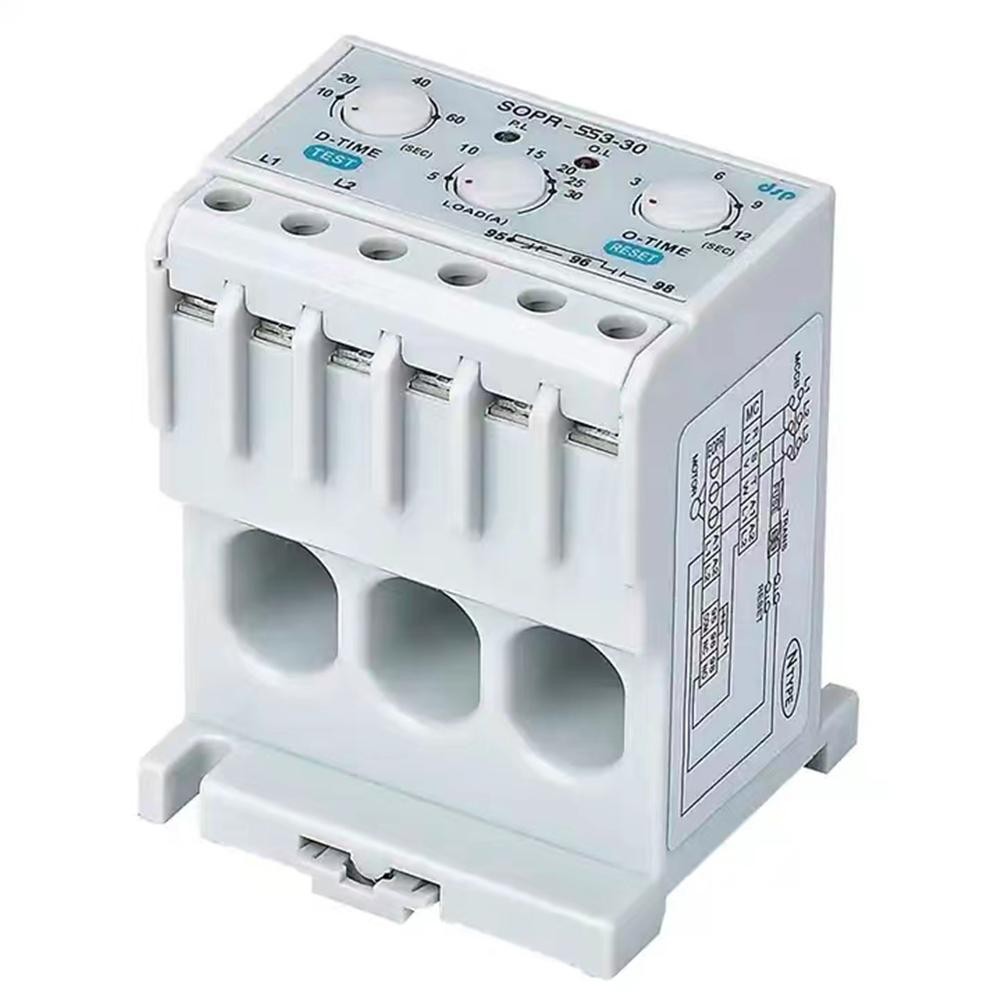

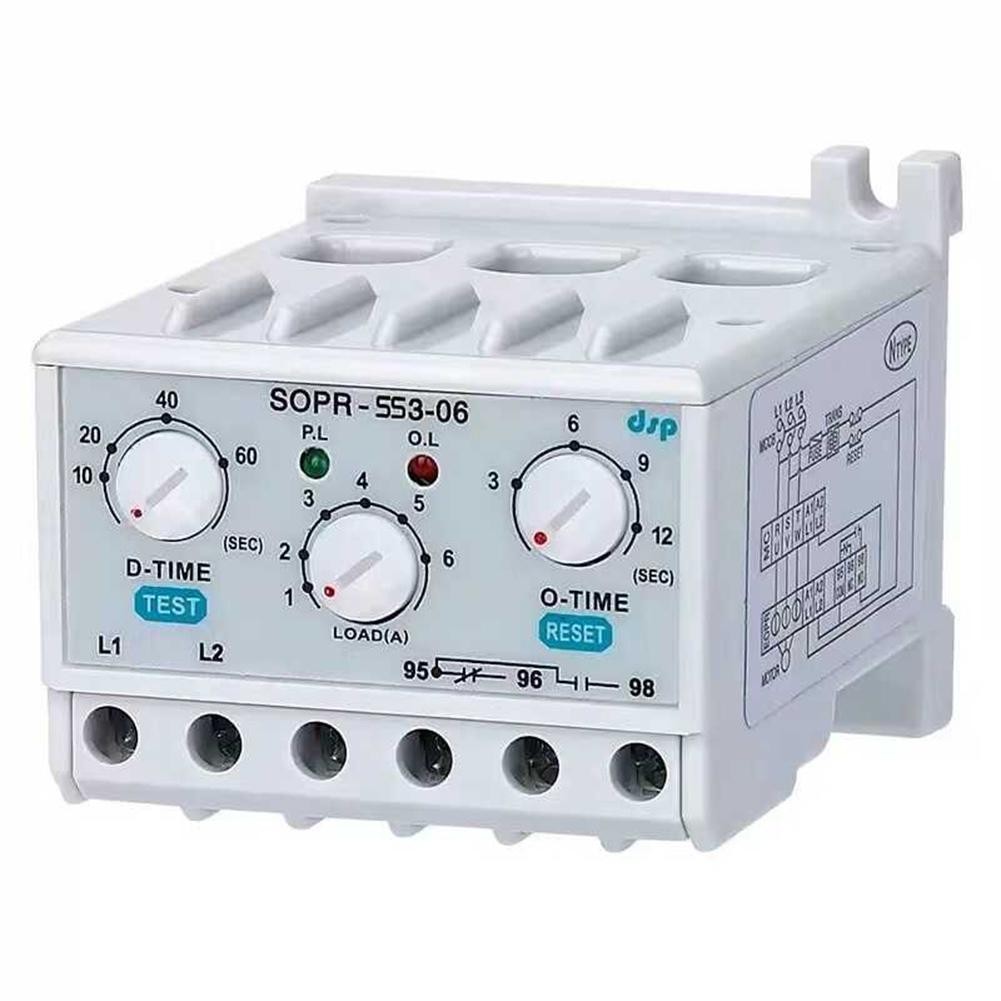

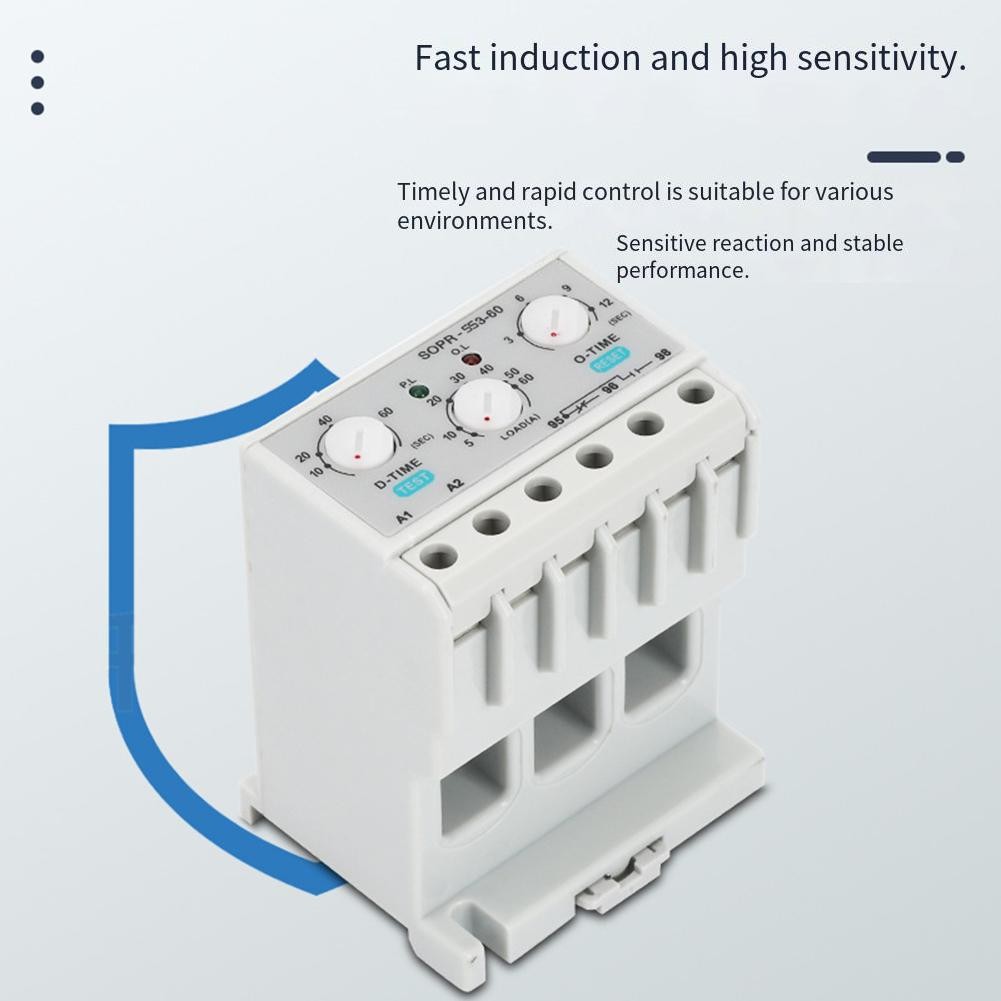

Part Name: SOPR-SS3-220 Electronic Overload Relay
Material: ABS
Color: White

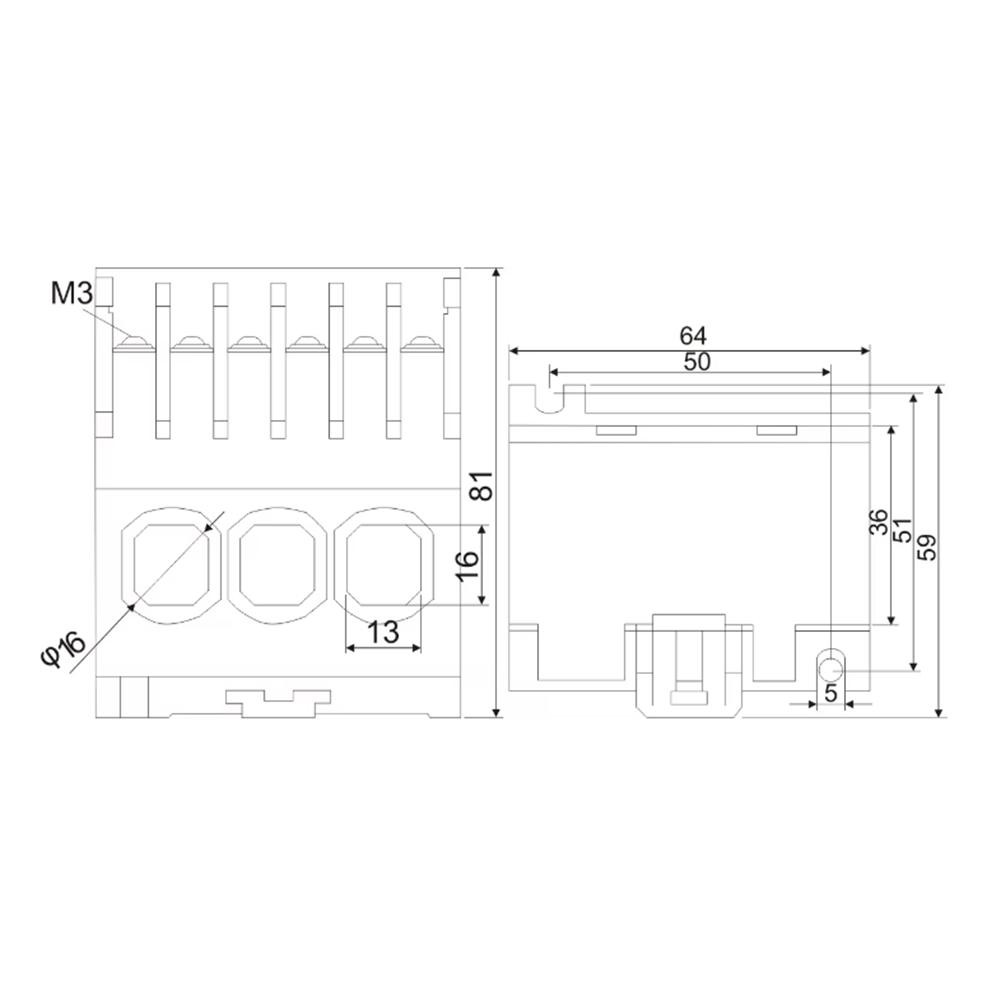

size: As shown
Specifications: 220V: 1-6A, 220V: 5-30A, 220V: 5-60A, 220V: 10-120A, 380V: 1-6A, 380V: 5-30A, 380V: 5-60A, 380V: 10-120A
Operating Voltage (Un): Type 110 110VAC
Type 220 90-260VAC
Type 380 180-460VAC
Operating Frequency: 50/60Hz
Operating Power: <2W
Operating Temperature: -20°C to +55°C
Wait Time (t): D - Time 0.2-60s
O - Time 0.2-12s
Asymmetry Setting: ±10%
Rating: 5A 250VAC resistive load

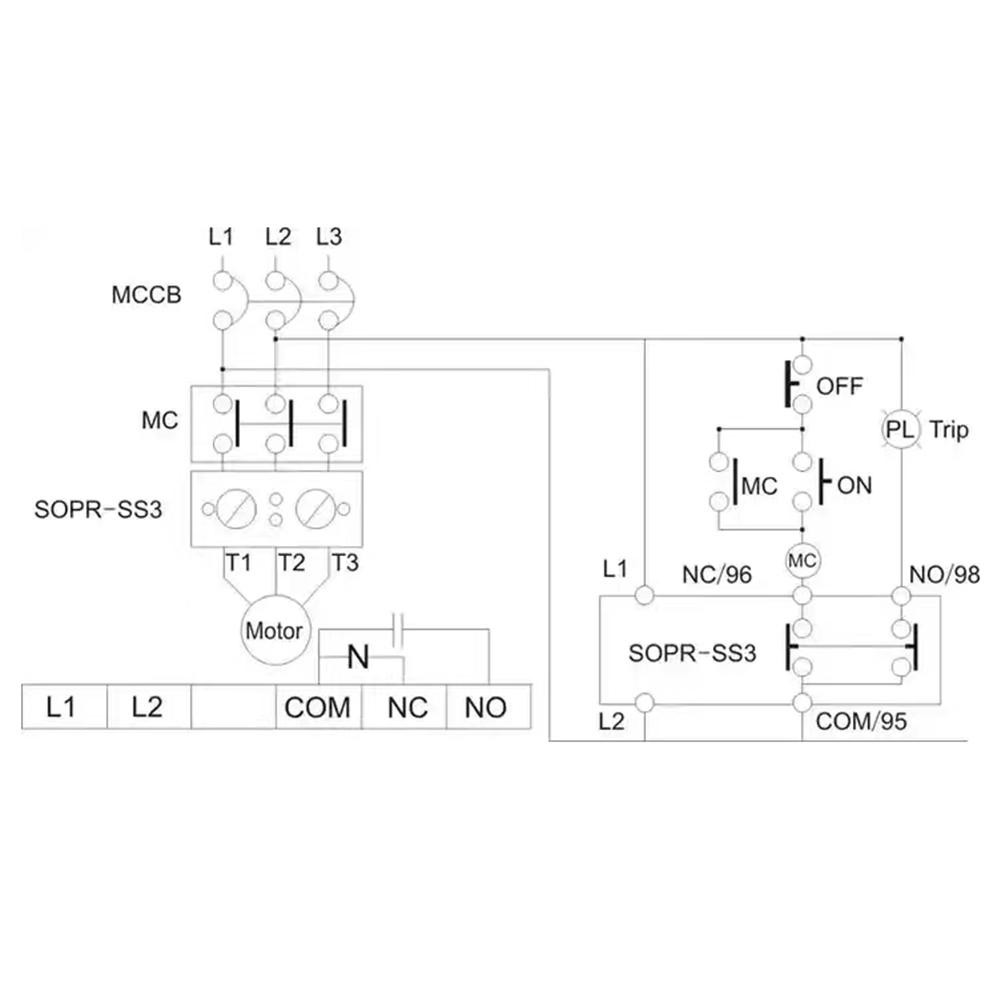

Connection Diagram: 35mm DIN Rail (D)
Package Contents:
1 x SOPR-SS3-220 Electronic Overload Relay
Note:
Due to differences in monitors and lighting effects, the actual color of this item may be slightly different from the color shown on the picture. Thank you!
Please allow 1-2cm measurement deviation due to manual measurement.
