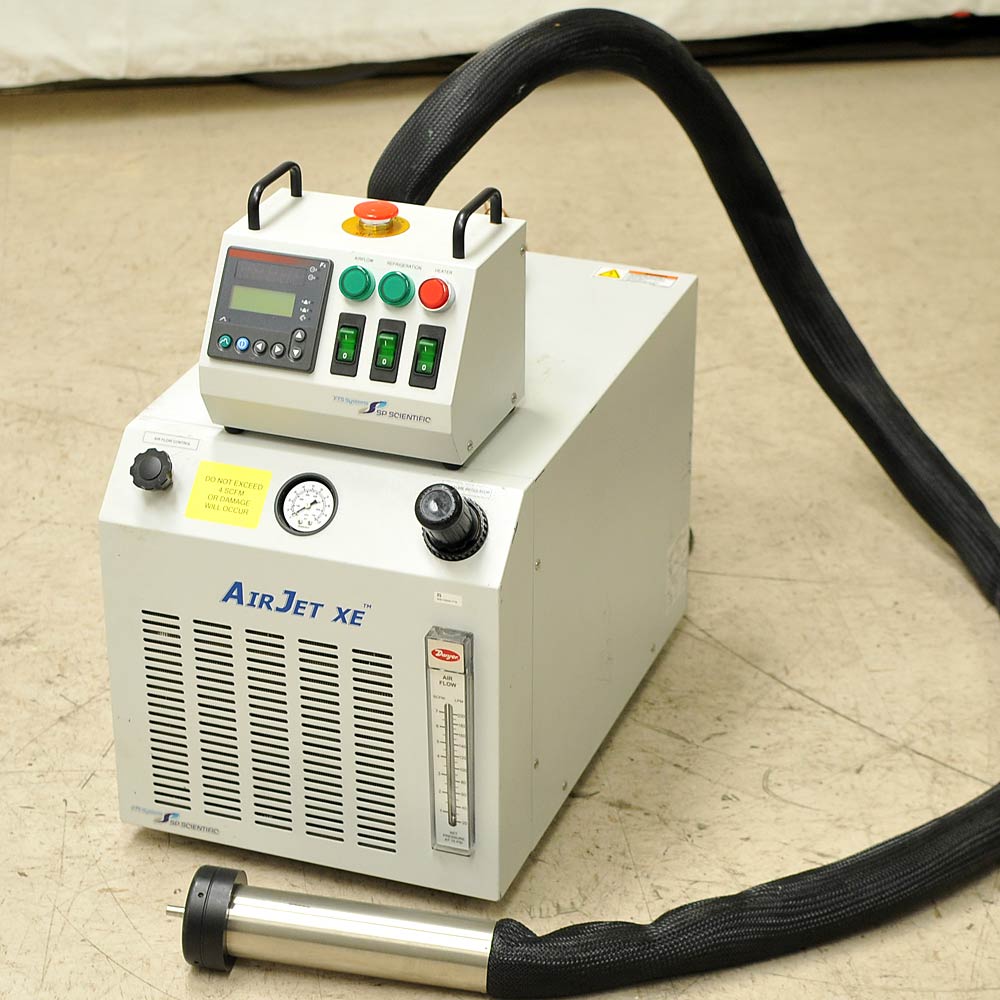

SP Scientific XE75 Temperature Cycling System FTS Air-Jet Cool/Heat No High Temp
Manufacturer: FTS Systems
Model: XE753
Condition: For Parts or Not Working
- Residential area?
- Dock or forklift?
- Zip code?
*Shipping to be arranged by seller
Manufacturer: FTS Systems
Condition: For Parts or Not Working. This system is in Fair cosmetic condition. There are lots of small scuffs/scratches/dings especially in the bigger cabinet that make it look a little rough from close up. The rear panel is especially dented-up. The plastic cover on the air gauge is missing.
Notes: This unit is in PARTIAL working condition. There is a grumbly noise from the refrigeration, and cooling takes about 150% as long as the rated 20 seconds from 125 to -55 degrees. When set to 225 degrees the heater overshoots and sets off the Overtemperature Safety. Maximum temperature it can attain is about 180 deg. This may be as simple to fix as retuning the PID values in the controller, we are not sure. No manuals, cords/cables, or additional items are included if not listed or shown.
Included:
- (1) Refrigeration Unit with Output Hose attached
- (1) Controller
- (1) Connection Cable
Specifications:
- Manufacturer: FTS Systems
- Model: XE753_01
- Air-Jet XE Precision Temperature Cycling System
- Temperature range: -75ºC to +225ºC
- Thermal forcing unit fits on the benchtop
- Self-contained only requires dry air, NO nitrogen required!
- Monitor and control from an internal or external (sample-mounted) thermocouple
- Save multi-step profiles in the Watlow F4 digital controller
- RS-232 or GPIB (IEEE_488) programmability to interface with automated test equipment
- Flow rates ajustable from 1.0 to 4.0 SCFM (2.0 SCFM gives best temperature control range)
- Small enough to be rack-mounted
- Refrigeration unit dimensions: 24" x 15" x 16"H (approximately)
- Built-in overtemperature safety
- Built-in low-flow safety
- PID digital controller
- Rated for +/-0.5º stability and repeatability (please read testing notes!)
- Control unit dimensions: 10" x 8" x 7" (approximately)
-
Transition specifications @ 2SCFM (please read testing notes!)
- -55ºC to +125ºC <10 seconds
- +125ºC to -55ºC <20 seconds
- Power: 220V 50Hz (compatible with 230V 60Hz)
- Requires clean dry air, 7SCFM with -80ºC dewpoint
- NO thermal caps (sample enclosures) are included
