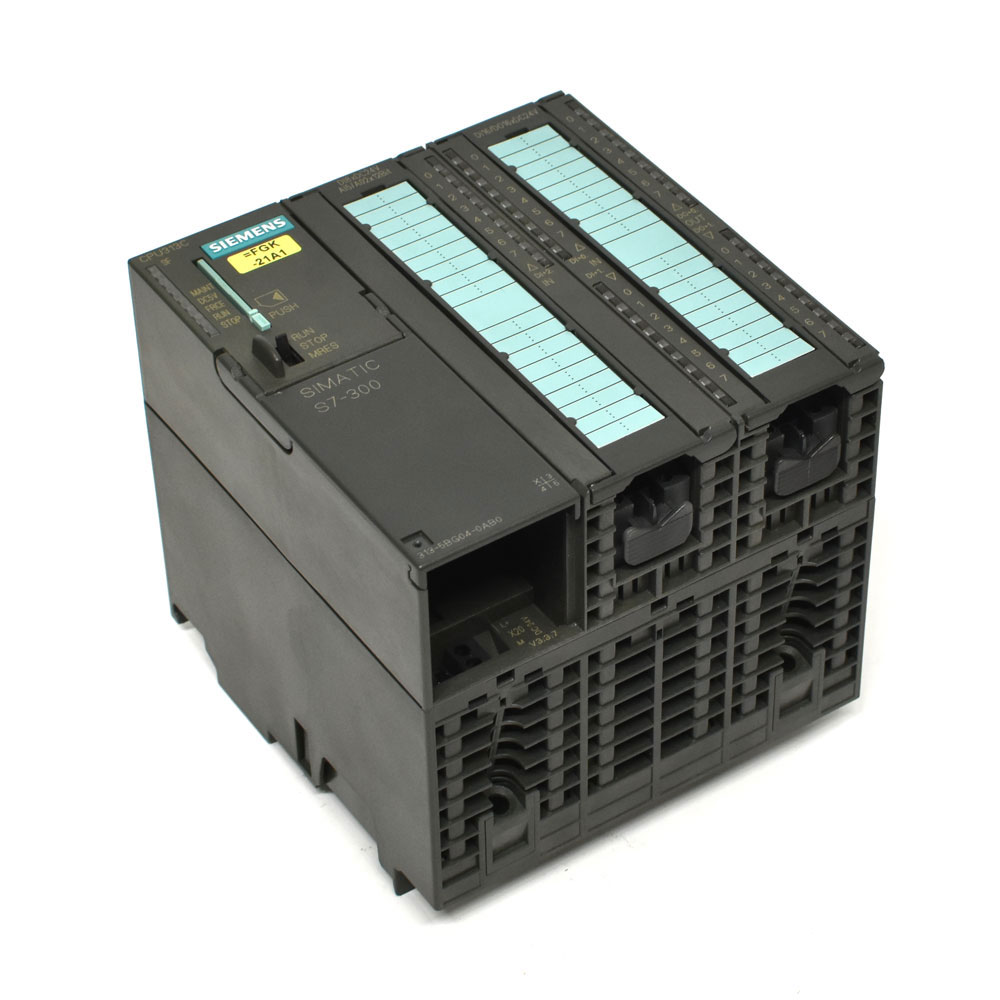

Siemens 6ES7 313-5BG04-0AB0 Simatic CPU Module with MPI S7-300 24VDC PLC 128 KB
Manufacturer: Siemens
Model: 6ES7 313-5BG04-0AB0
Condition: Used
Manufacturer: Siemens
Condition: Used. Comes in non-original packaging. This CPU module is in good condition with minor scuffs and scratches from previous use, but nothing that would affect functionality.
Notes: We powered the CPU module on with 24VDC and observed its startup. No further testing was performed.
No manuals, cords/cables, or additional items are included if not listed or shown.
Included:
- (1) Siemens 6ES7 313-5BG04-0AB0 Simatic CPU Module with MPI
Specifications:
- Manufacturer: Siemens
- Model: 6ES7313-5BG04-0AB0
- Description: SIMATIC S7-300 Compact CPU module
- CPU Family: SIMATIC S7-300
- Firmware Version: V3.3
- Work Memory: 128 KB
- Memory Card: Micro Memory Card required
- Supply Voltage: 24 V DC
- Permissible Voltage Range: 19.2 V DC to 28.8 V DC
- Recommended External Protection: Circuit breaker 2 A to 4 A
- Mains/Voltage Failure Buffering: Minimum 5 ms
-
Digital Inputs:
- Rated Value: 24 V DC
- Reverse Polarity Protection: Yes
-
Digital Outputs:
- Rated Value: 24 V DC
- Reverse Polarity Protection: No
-
Input Current (Module):
- Rated: 650 mA
- No-load: 150 mA
- Typical Inrush: 5 A
- I²t: 0.7 A²·s
- Power Loss: Typ. 12 W
- Memory Expandability: Micro Memory Card up to 8 MB
- Data Retention on MMC: Minimum 10 years
-
CPU Processing Times:
- Bit operations: 0.07 µs
- Word operations: 0.15 µs
- Fixed-point arithmetic: 0.2 µs
- Floating-point arithmetic: 0.72 µs
-
Digital I/O Addressing:
- Digital Inputs: 24 channels
- Digital Outputs: 16 channels
-
High-Speed Counters: 3 (30 kHz)
- Analog Inputs: 4 channels
- Analog Outputs: 2 channels
- Resistance/RTD Input: 1 channel (Pt100)
-
Analog Input Ranges:
- Voltage: 0-10 V
- Current: 0-20 mA, ±20 mA, 4-20 mA
- Resistance: 0-600 Ω
- RTD: Pt100
-
Analog Output Ranges:
- Voltage: 0-10 V, ±10 V
- Current: 0-20 mA, ±20 mA, 4-20 mA
Questions? Click on the "Contact" button below.
Monday to Friday 8:00 am - 5:00 pm CST. Se habla espanol!
