Package Include:
1 X AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
1 X 16" Fans (Includes mounting kits)
1 X Thermostat Relay Kit
Fitment:
For Bennche Bighorn 500, 700X-HD，700, 700HD
For Excalibur UTV500-4, UTV700-4, UTV700-5
For Massimo MSU-500, MSU-700, MSU700-4
For Massimo Alligator 500, 700, 700-4
For Menards Yardsport YS500, YS700
For Qlink Front Runner 500 EFI, 700 EFI, 700XL EFI
For Supermach UTV500-BF-TL, UTV700-BF-TL
For TSC, Q LINK, CUB CADET and MANY MORE
Why choose us? What are the advantages of our product?
1. Made from Aircraft AA5052 grade aluminum for prolonged lifespan and with raw aluminum finish.
2. Brazed core technology to guarantee optimum performance and dependability.
3. All AA5052 Aluminum 2mm thick tanks and fitting, ensure it's hard and durable.
4. Billet Aluminum CNC machined fill neck rugged and durable.
5. Ergonomic design CNC machined cap with Engraved craftsmanship, anodized treatment.
6. Carefully crafted to exceptional OE standards for precise fit.
Fan Specification:
Diameter : 16'' (Blade to Blade)
Voltage: DC 12 Volts
Wattage: 120W
Number of Blades: 10 S-Type blades
Maximum Fan CFM（Cubic Feet per Minute）: 3,000 cfm
Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%
Amp Draw: 10amp
Fan Thickness: 2.95"
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect
Powerful 120 watt motor will keep your engine cool.
AA5052 Aluminum Shroud and Fans:
The New Design fan and the AA5052 fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
1. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.
2. Additional with thermostat,professional matching advice, consider for every detail and needed.
Thermostat Kit:
Work with any 12 volt system.
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
Probe typically threads into radiator, water outlet or manifold.

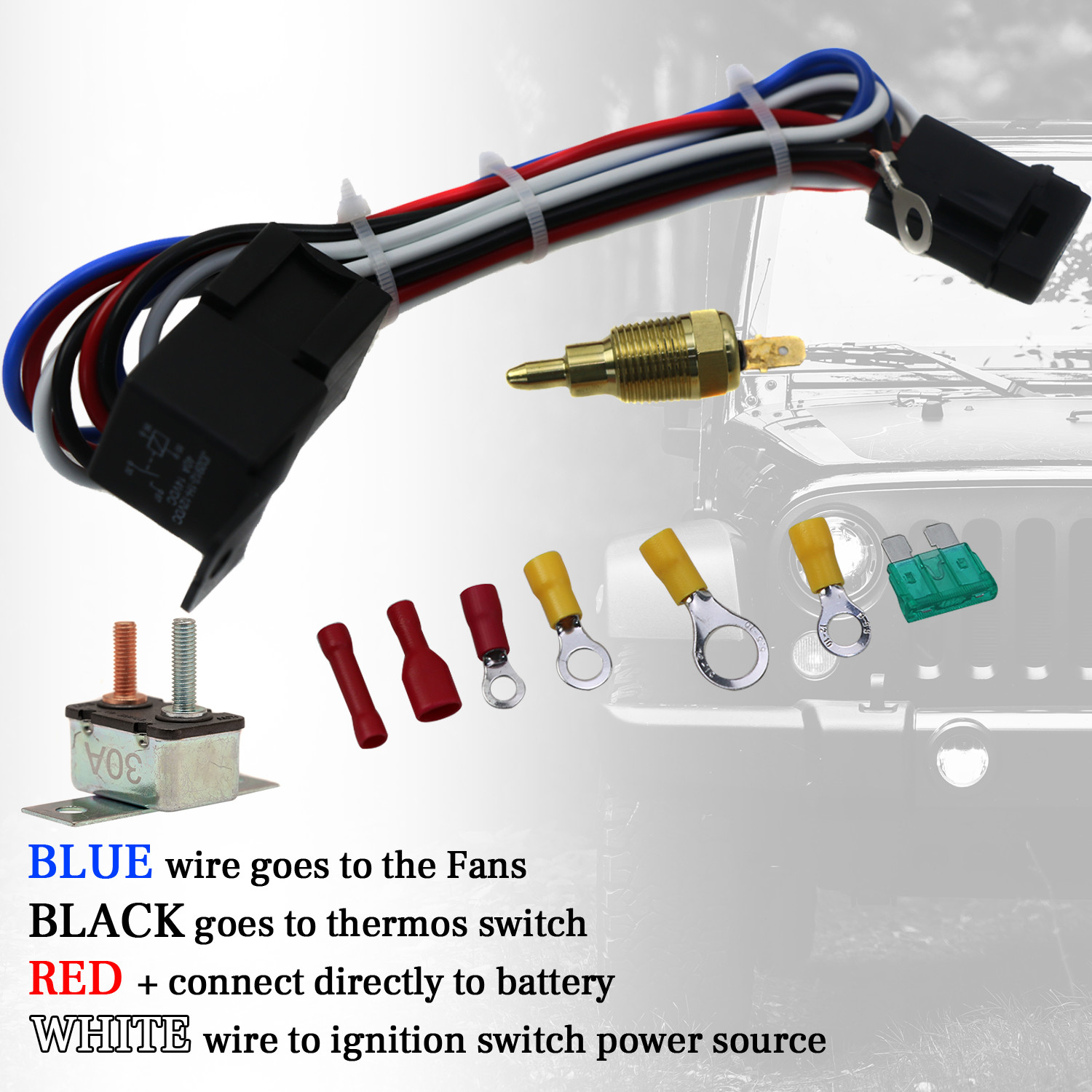

Thermostat Relay Kit Instructions：
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
About "AA5052" upgrading aluminum materials:
Our Radiator is made of AA5052 aircraft aluminum. It’s different from other sellers T-3303 Series. In fact, AA5052 series Aluminum is much better than T-3303 series. More than 90% of aftermarket manufacturers use the T-3303 series Aluminum, because it is cheaper and easier to get the material. However, T-3303 aluminum has many disadvantages, such as poor polishing effect, softness, easiness to scratch and corrode, poor heat dissipation effect. If the T-3303 aluminum radiator is operated in high pressure and high temperature for a long time, the leaking problem would occur very soon.
This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
