Note

*Please follow the steps below to confirm that the product is suitable for your vehicle.

*The VIN code is a 17-digit number composed of letters and numbers. It is usually behind the car's windshield or on the car's nameplate.
*No Instruction Included, professional installation is highly recommended.

Crankshafts are coated with hard oil film for Anti-Rust Coating.

To clean hard oil film from a crankshaft, use strong solvents (like brake cleaner or degreaser) with brushes to scrub surfaces and flush oil passages, then follow up with hot water and detergent for stubborn spots, and always finish by blowing everything dry with clean compressed air to remove all moisture and residue, paying special attention to internal oil galleys by removing plugs if possible.

Application

For Hyundai KIA G4NC Engine 2.0L Only!!!

For Hyundai Elantra (MD) (2013–2015)
For Hyundai Elantra Coupe (JK) (2014)
For Hyundai i30 (GD) (2014–2016)
For Hyundai i30 (PD) (2016–present)
For Hyundai i40 (2012–2019)
For Hyundai Tucson (LM) (2013–2015)
For Hyundai Tucson (TL) (2015–2020)
For Kia Carens (RP) (2013–2019)
For Kia Forte (YD) (2012–2018)
For Kia KX5 (2015–2021)
For Kia KX7 (2016–2022)
For Kia Soul (2012–2019)
For Kia Sportage (QL) (2015–2021)
For Kia Sportage Ace (NP) (2021–present)

OE/Part number

-Crankshaft Oe#: 23110-2e501 623v6-2eh00

-Connecting Rods Oe#: 23510-2e001 23510-2e410 23510-2e400 23500-2e400 23510-2e001s

-Gasket Seal Kit Oe#:

20910-2ea00 21356-2e021 28313-2e050 21355-2e021 21443-2e000 22443-2e000 22311-2e000 22224-2e000 28521-2e000 21421-2e000 25124-2e000 22441-2e000 28313-2e050 21144-2e000 24655-2e000 28312-2e050

-Pistons & Rings Set Oe#: 23040-2e000，23040-2e050 23041-2e020，23041-2e010 23041-2e000，23413-2e000 23412-2e000

-Timing Chain Kit Oe#: 24350-2E001, 918-795, 24370-2E000, 24321-2E000, 24410-2E000, 24420-2E000, 24430-2E000, 243212E000, 244102E000, 244202E000, 24350-2E001, 918-795, 24370-2E000, 24321-2E000, 24410-2E000

-Main Bearing Oe#: 21020-2e000

-Rods Bearing Oe#: 23060-2e000

-Thrust Washer Oe#: 21030-2e000

-Head Bolts Oe#: 22321-2e000

-Intake Valve Oe#：22211-2e000

-Exhaust Valve Oe#：22212-2e000

Specification

Condition：New
Type: Engine Rebuild Kit
Fitment Type: Direct Replacement

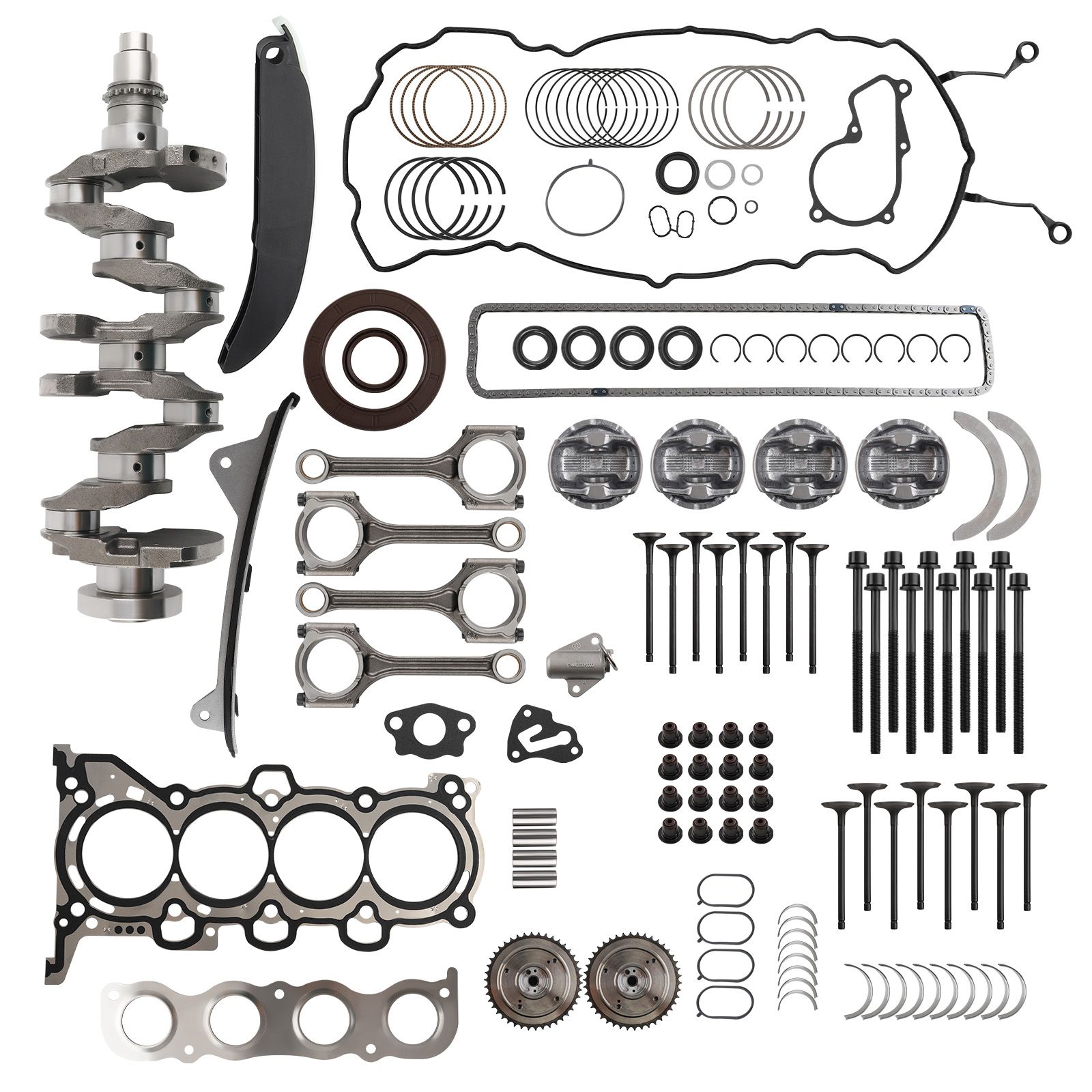

Package Includes:

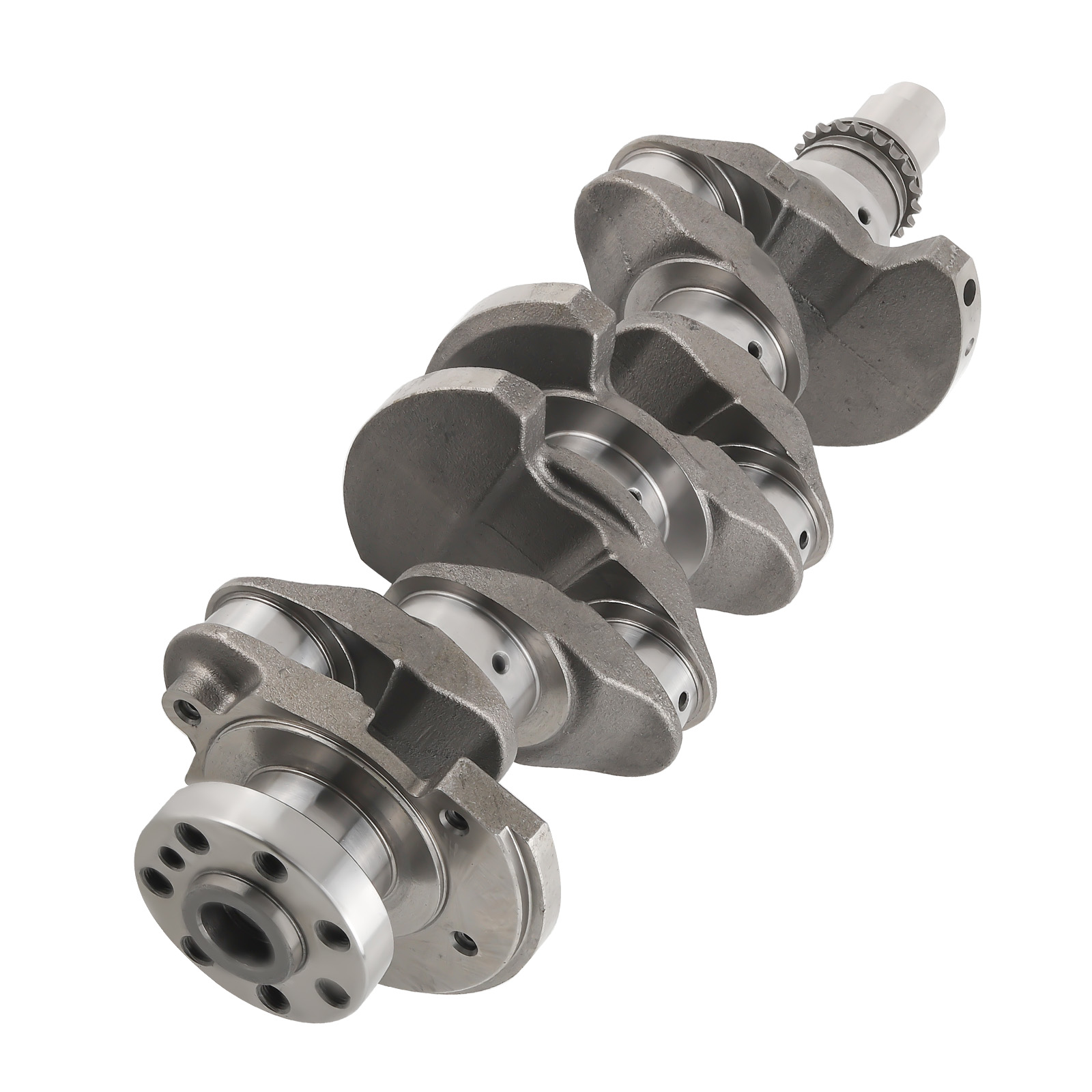

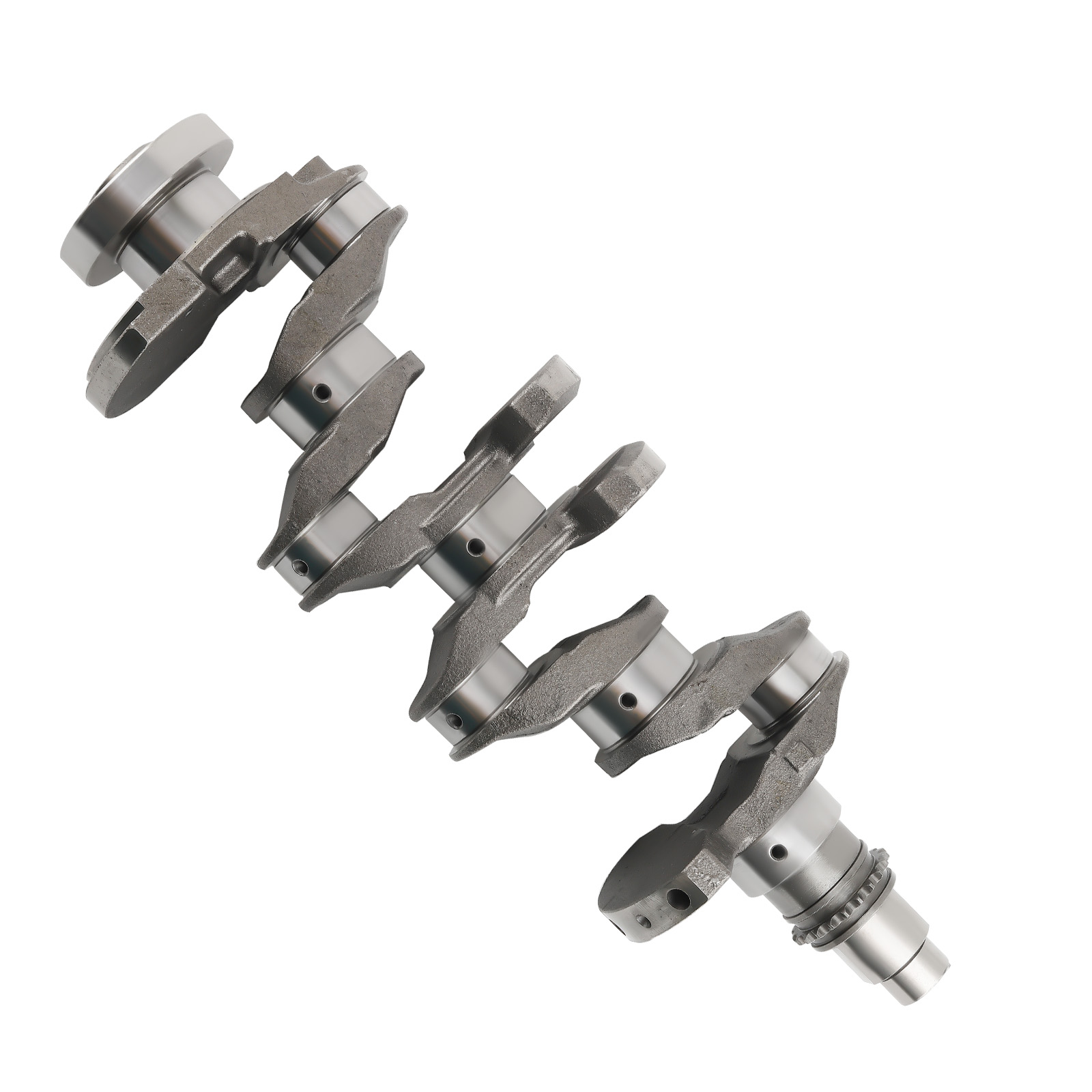

1x Crankshaft

4x Conncting Rods

1 Set x Pistons & Rings Kit

1 Set x Main & Rod Bearing w/ Thrust Washer

1 CHAIN 9-178L

1 TENSIONER

1 GUIDE LEFT

1 GUIDE RIGHT

1 CVVT Intake Camshaft Gear Sprocket

1 CVVT Exhaust Camshaft Gear Sprocket

1 Set x Head Bolts

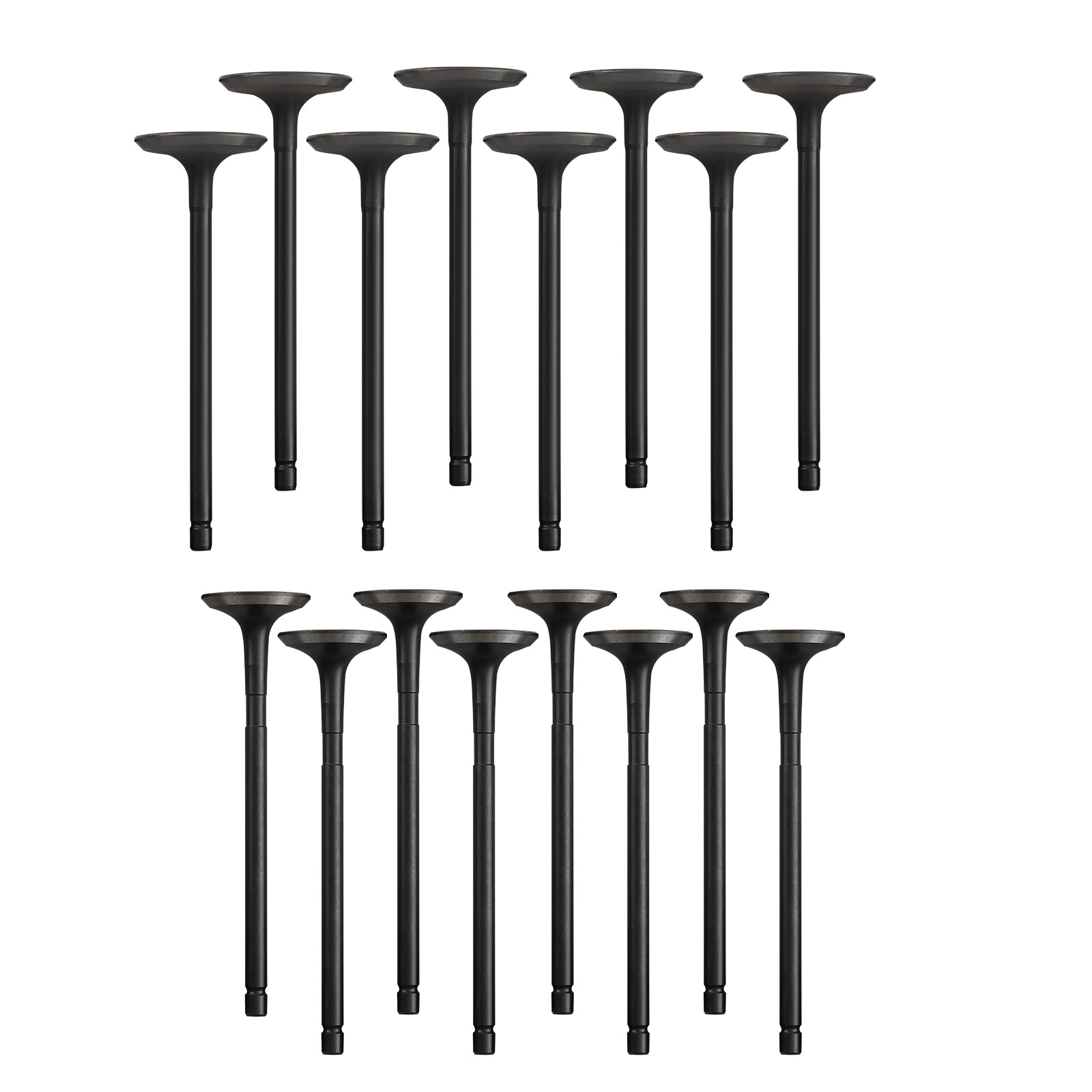

8x Intake Valve

8x Exhaust Valve

(Showing as the picture)

Feature

* High quality Metal and constructed for Anti-rust and Anti-corrosion.
* Fully tested under extreme condition for heat resistance and long-life use.
