TECHNICAL SPECIFICATIONS
Input: 110V/50Hz , 220V/60Hz
Output: 24V DC (2A)
Temperature Range: RT ±5℃ – 100℃
Temperature Control Accuracy: ≤ ±0.30℃
Preset Temperature Modes: 36℃ | 45℃ | 70℃ | 100℃
Heating Time (to reach set temp): 20″ | 50″ | 2 min | 3 min 50″ (respectively)
Monitor Power: 26W
Main Unit Dimensions (L×W×H): 75 × 75 × 60 mm
Net Weight: 1.17 kg
Shading Range (Light Blocking): <500 nm
Ambient Operating Temperature: 5℃ – 35℃
KEY FEATURES & BENEFITS
4 PRESET TEMPERATURE MODES: Quickly select 36℃, 45℃, 70℃, or 100℃ for different composite resins and procedures.
HIGH PRECISION CONTROL: Maintains temperature within ±0.30℃ for consistent, predictable viscosity and handling properties.
FAST HEATING PERFORMANCE: Reaches target temperatures in as little as 20 seconds, minimizing chairside wait time.

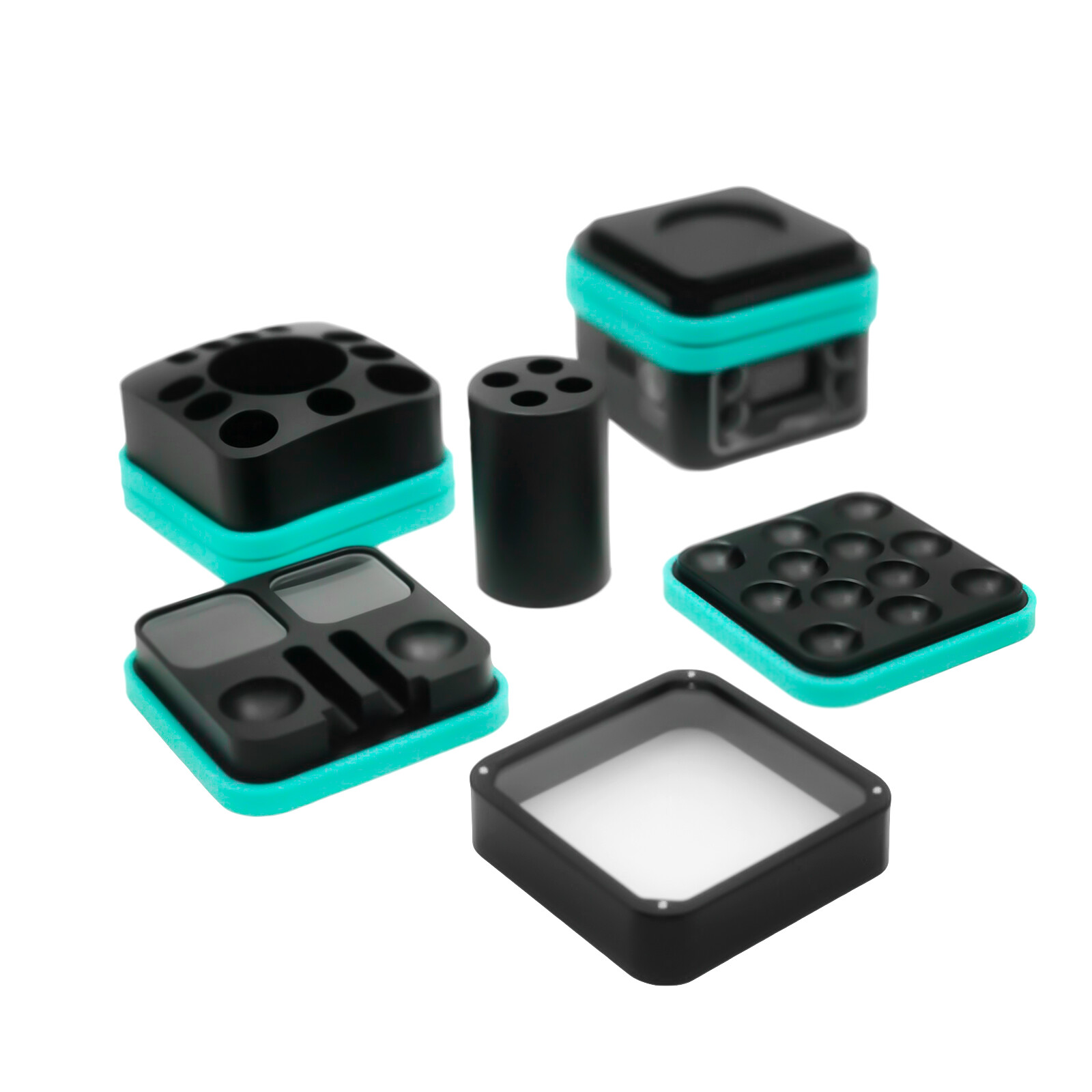

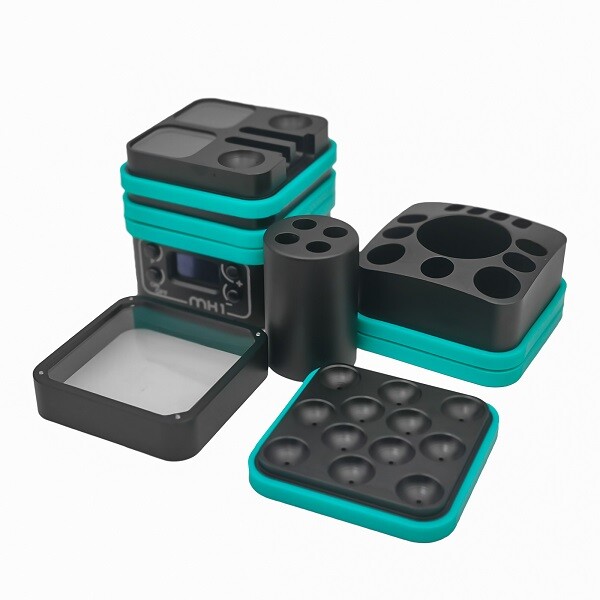

VERSATILE INTEGRATED TRAYS: Includes dedicated trays for bulk resin, resin capsules, patches, and anesthetics – all-in-one organization.
COMPACT & PORTABLE: Small footprint (75×75×60 mm) and lightweight (1.17 kg) design saves operatory space and allows easy positioning.

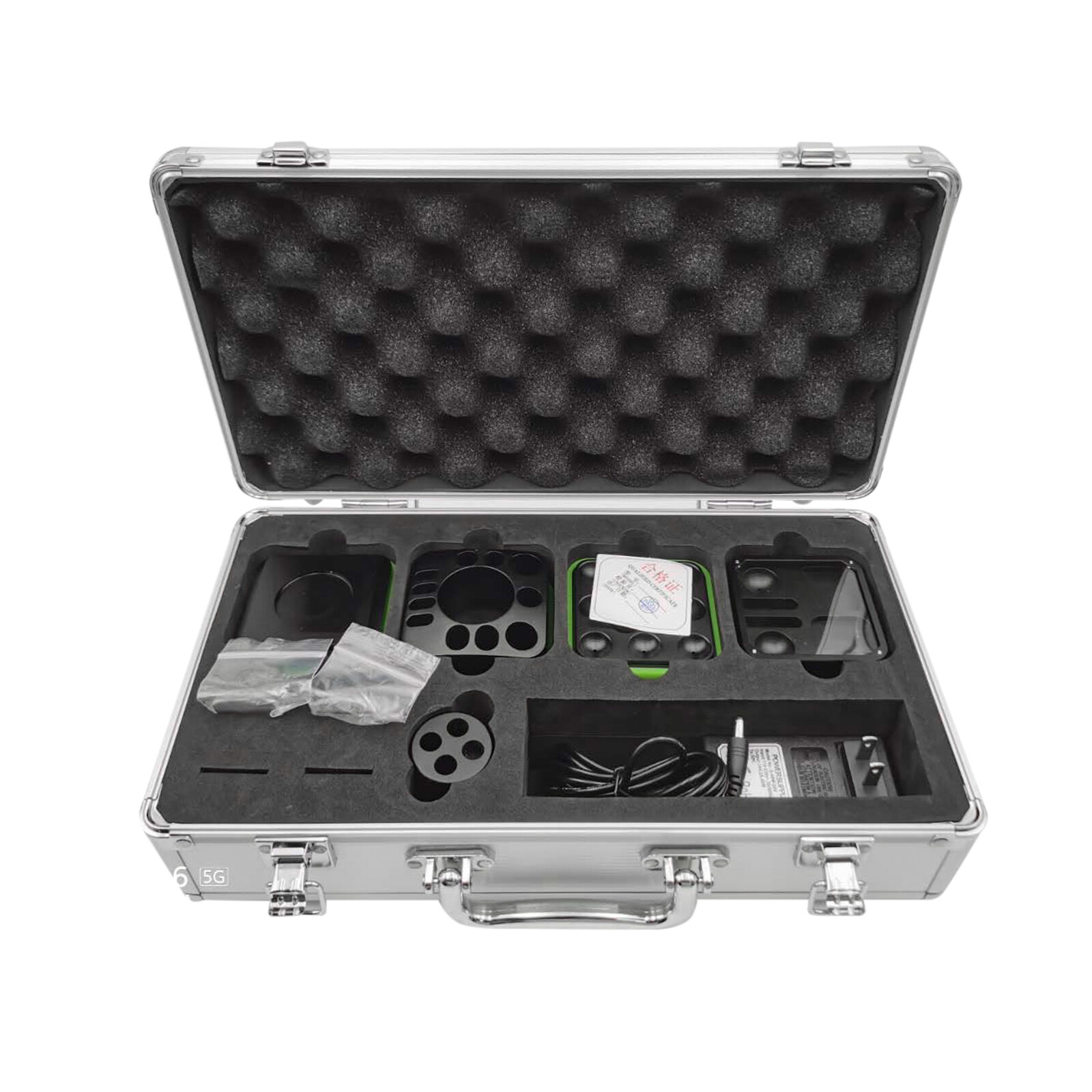

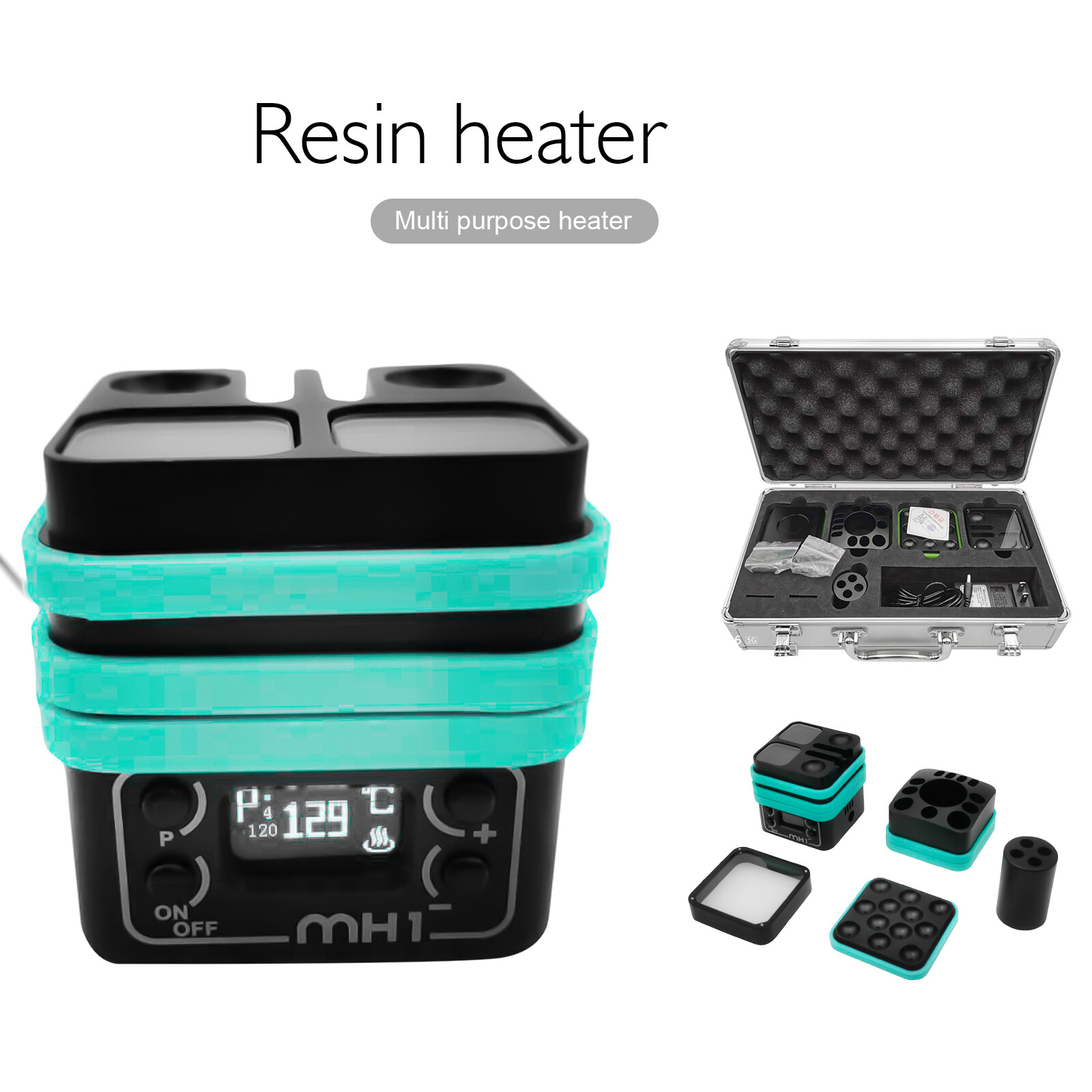

INCLUDED COMPONENTS

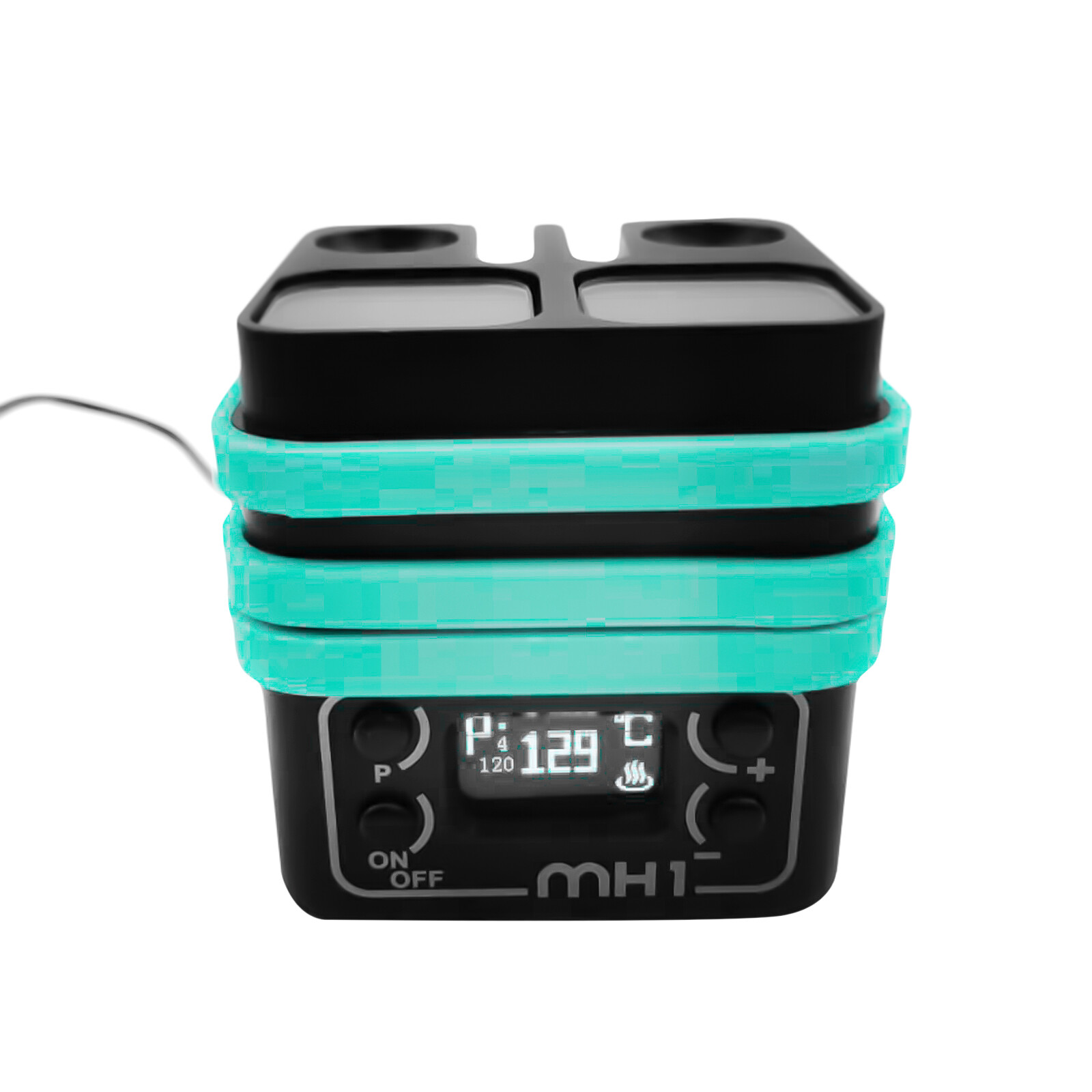

1 × Main Heating Unit
1 × Filter Cover
1 × External Temperature Probe
1 × Integrated Tray (Bulk Resin & Capsule)
1 × Patch Tray
1 × Anesthetic Tray
1 × Power Adapter (24V/2A)
1 × External Temperature Probe (spare/replacement)
1 × Tempered Glass Sheet
