PRODUCT OVERVIEW
A professional‑grade, multi‑sensor electronic stethoscope with adjustable amplification (0‑100 dB) and tunable frequency filters (200 Hz – 3 kHz). Designed for detailed acoustic diagnostics in automotive, mechanical, HVAC, and industrial applications to isolate and pinpoint sounds from various sources.
TECHNICAL SPECIFICATIONS
Amplification Range: 0 – 100 dB (continuously adjustable)
Frequency Range: 200 Hz – 3,000 Hz (4‑grade adjustable filter)
Power Supply: 9V DC (battery/included charger)
Operating Current: 60 mA
Operating Temperature: -10°C to +50°C
Continuous Operation: >30 hours
Weight:
Main Unit: 900 g
Outdoor Sensor: 405 g
Large Indoor Sensor: 140 g
Small Indoor Sensor: 75 g
Handle: 160 g
Main Unit Dimensions: 45 × 30 × 15 mm (likely refers to a core component; overall host size may differ)
KEY FEATURES & BENEFITS
HIGH‑PRECISION SOUND ISOLATION: Four adjustable frequency bands (200 Hz – 3 kHz) allow you to filter out background noise and focus on specific sound signatures (e.g., bearing wear, valve ticks, airflow, electrical arcing).
EXTREME AMPLIFICATION: 0‑100 dB adjustable gain makes even the faintest mechanical or acoustic signals clearly audible.
MULTIPLE SPECIALIZED SENSORS: Includes:
External (Outdoor) Sensor: For general external engine or machinery inspection.
Large & Small Indoor Sensors: For confined spaces, panels, or different surface areas.
Handle Grip: For comfortable, extended use.

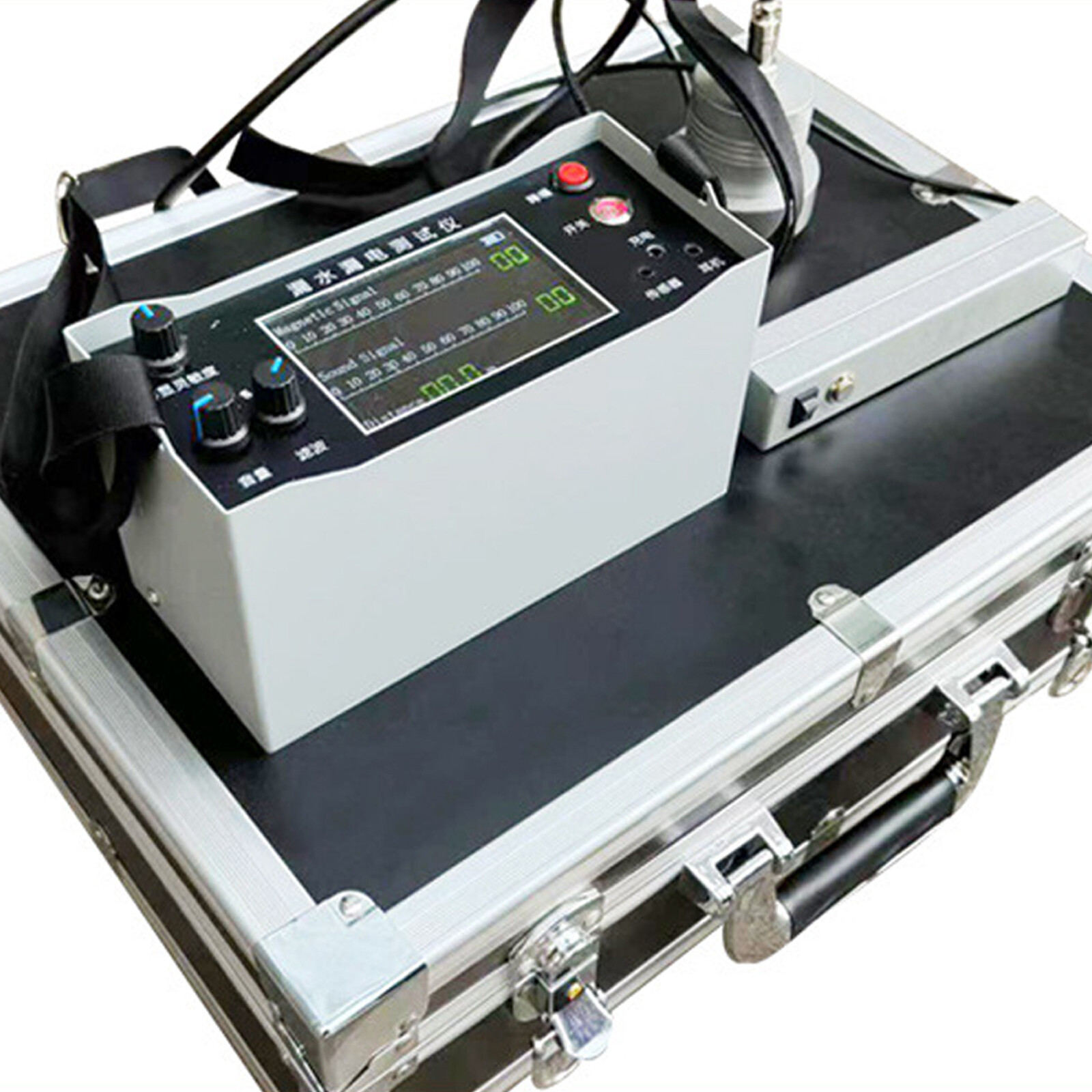

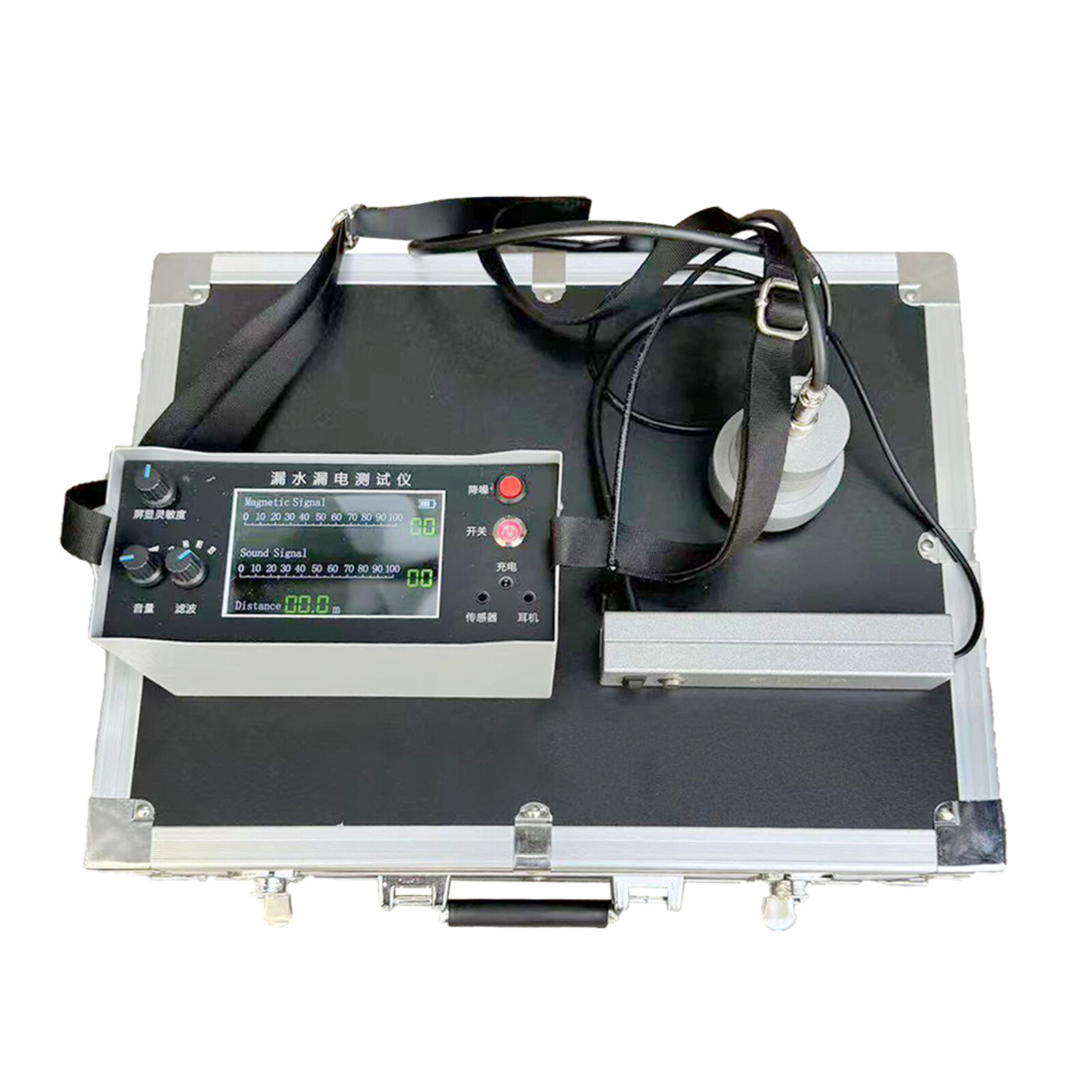

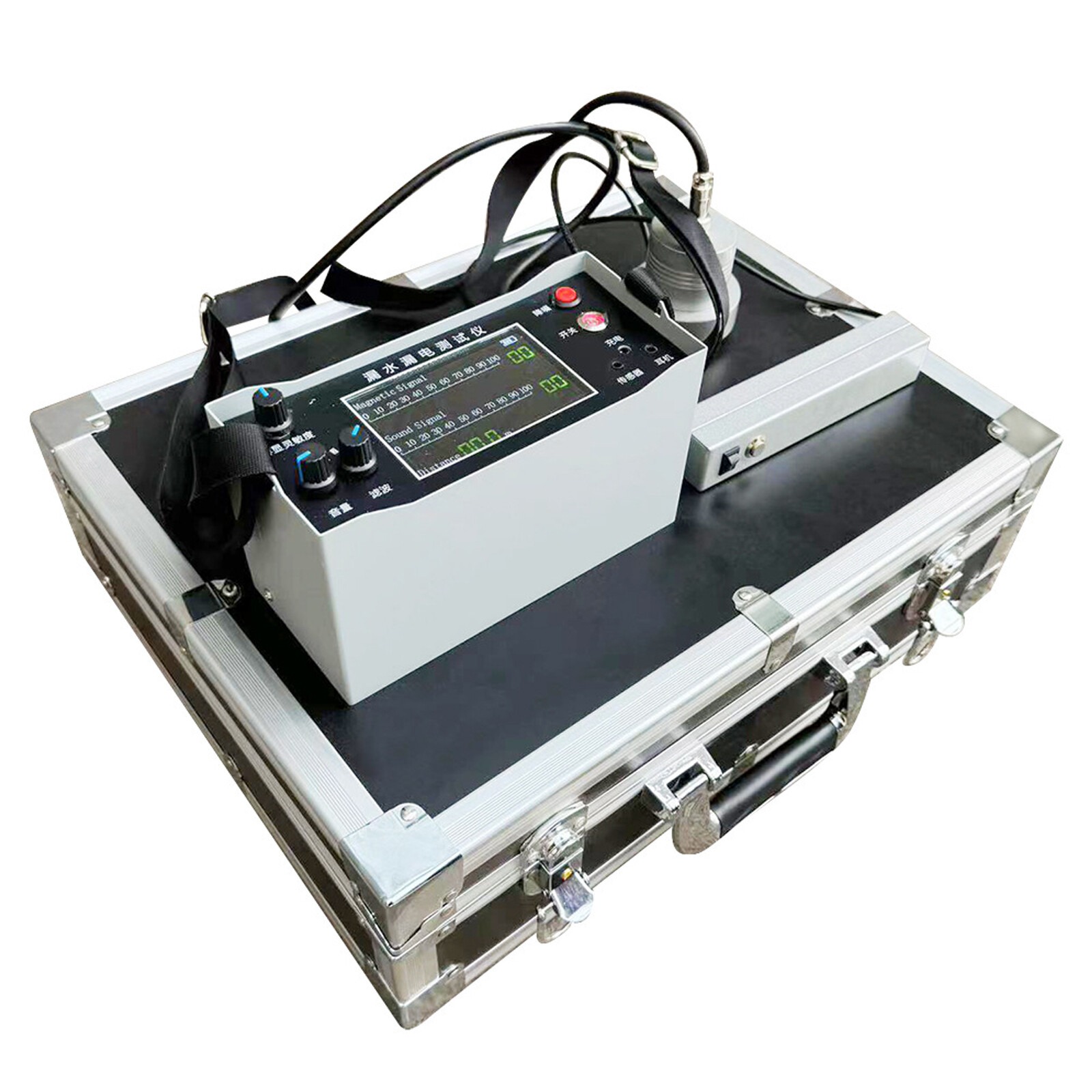

COMPLETE PORTABLE KIT: Comes in a protective aluminum alloy case with all components, a charger, and headphones for private listening.
LONG BATTERY LIFE: Over 30 hours of operation on a single charge for extended fieldwork.
VERSATILE DIAGNOSTIC TOOL: Ideal for automotive repair, industrial maintenance, HVAC system checks, leak detection, and electromechanical troubleshooting.
TYPICAL APPLICATIONS
Automotive: Diagnosing engine knocks, timing chain noise, bearing wear, transmission issues, exhaust leaks.
Industrial: Pinpointing bearing faults in motors, pumps, and gearboxes; detecting valve leaks or airflow irregularities.
HVAC: Identifying compressor problems, refrigerant leaks, or blower wheel imbalances.
General Maintenance: Locating electrical arcs, loose components, or abnormal vibrations in machinery.

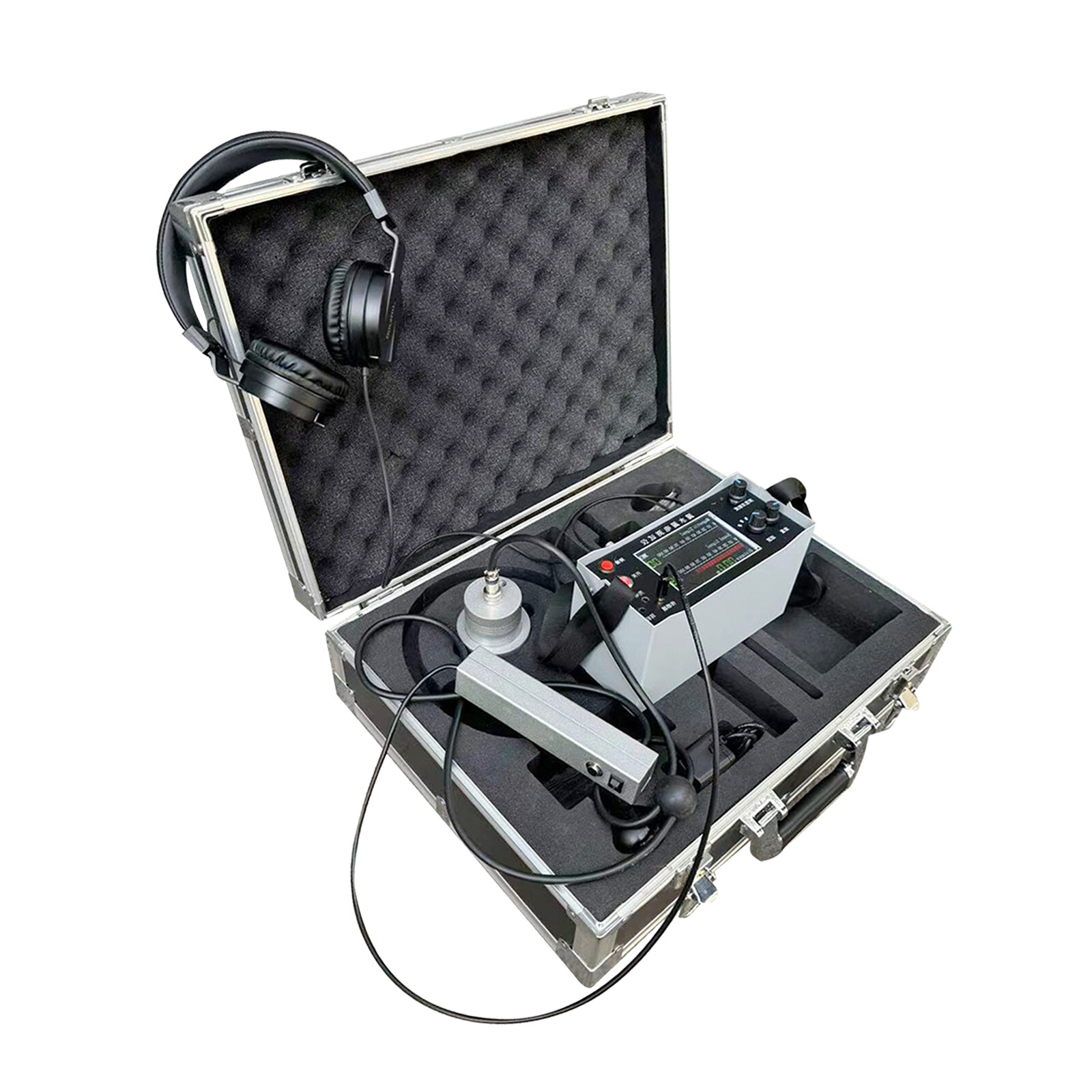

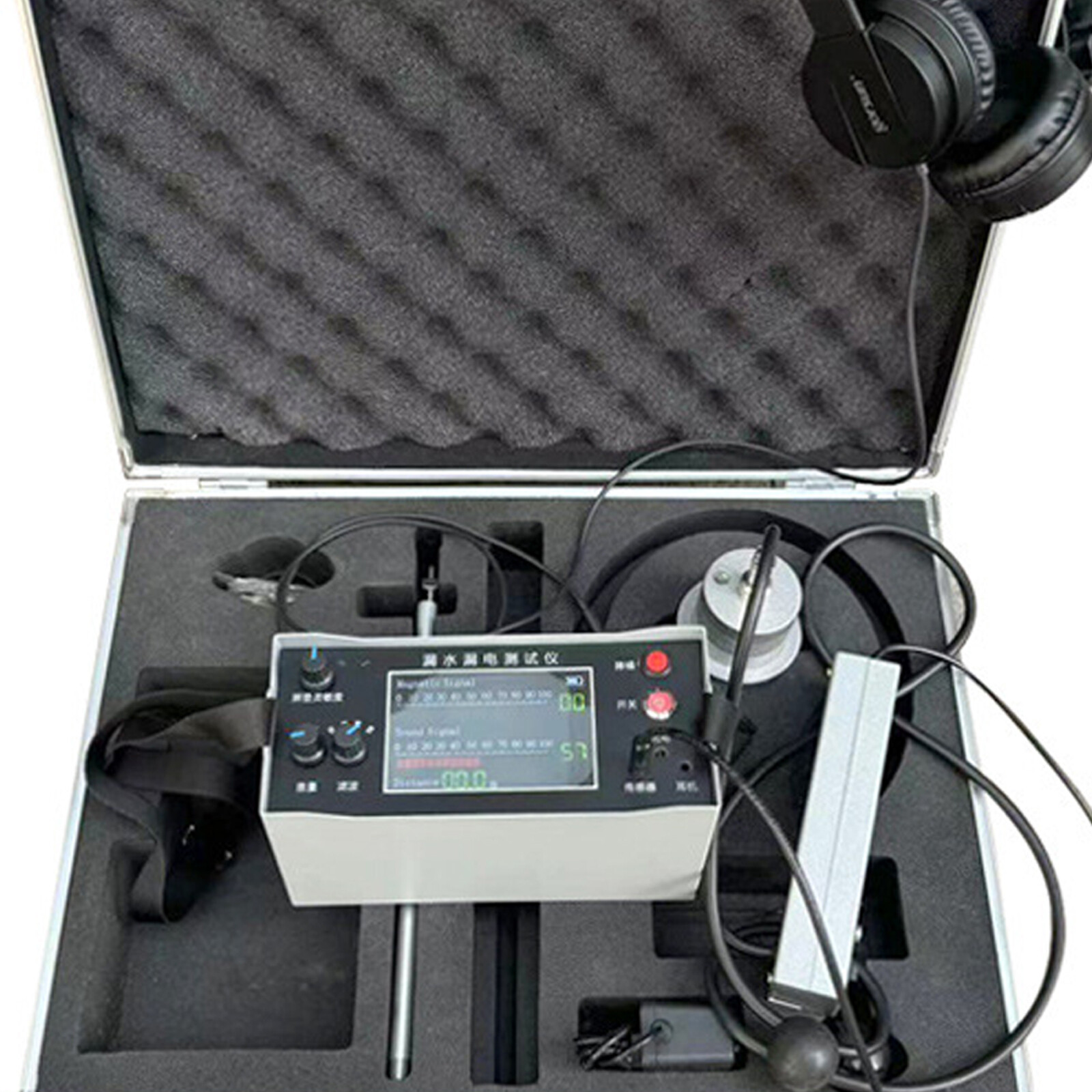

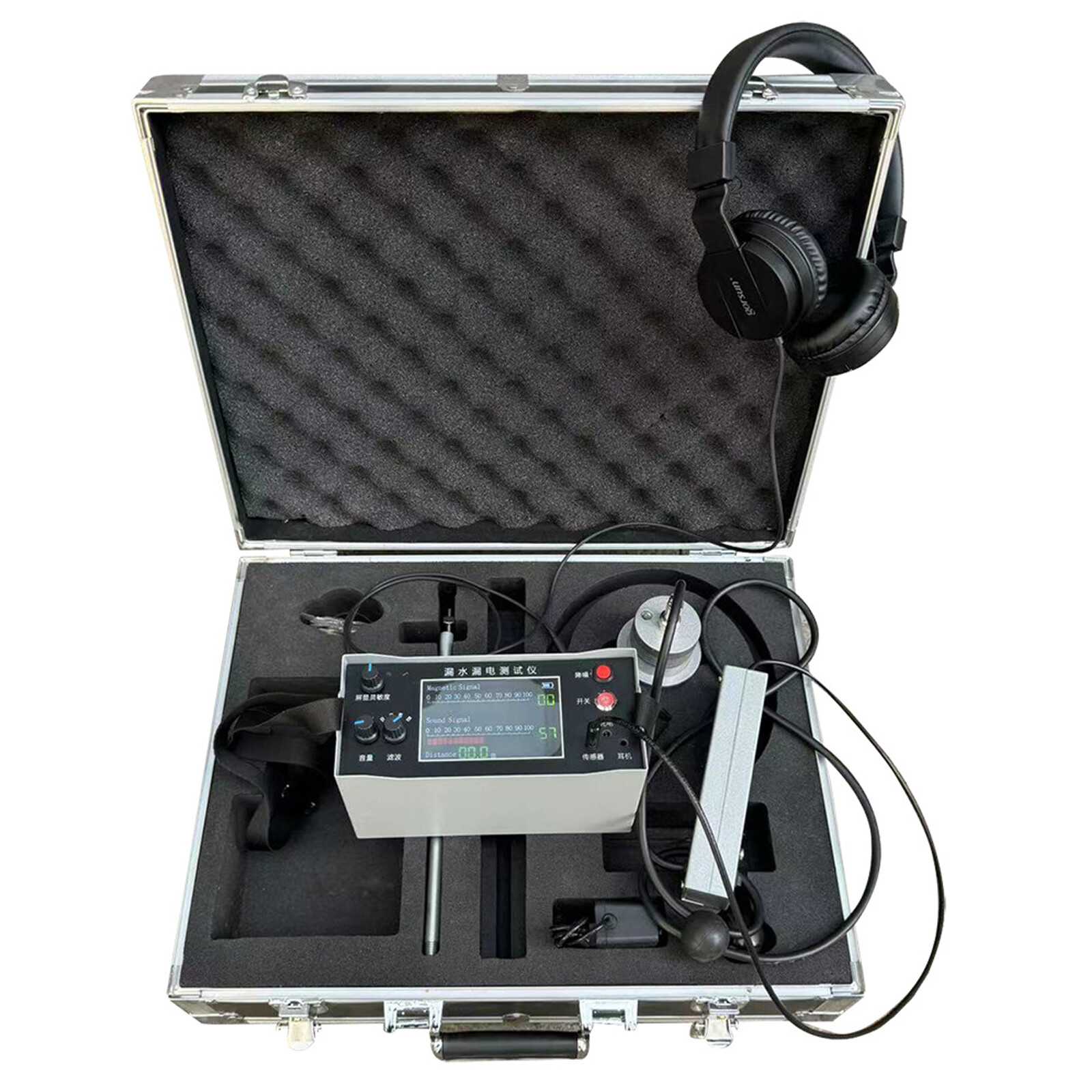

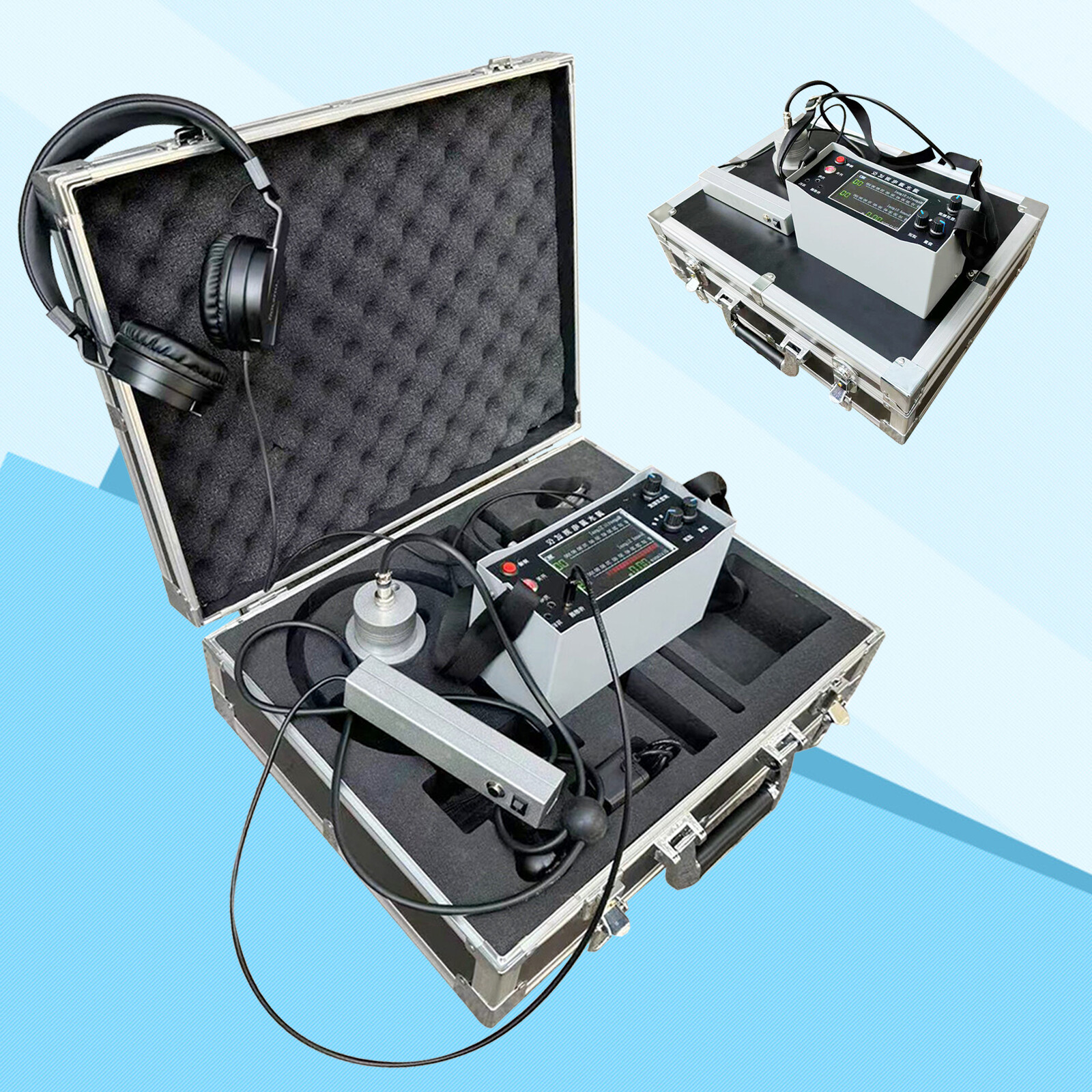

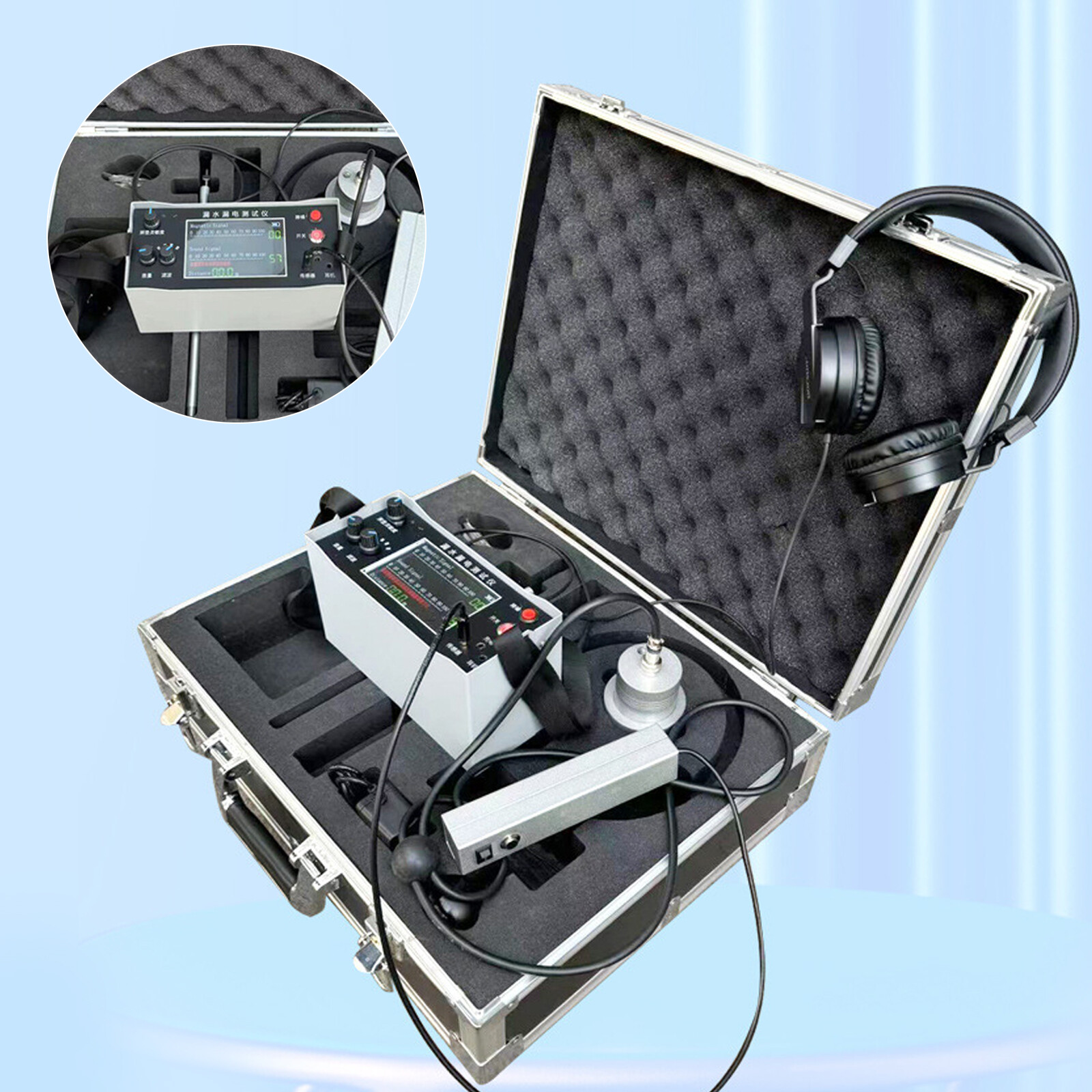

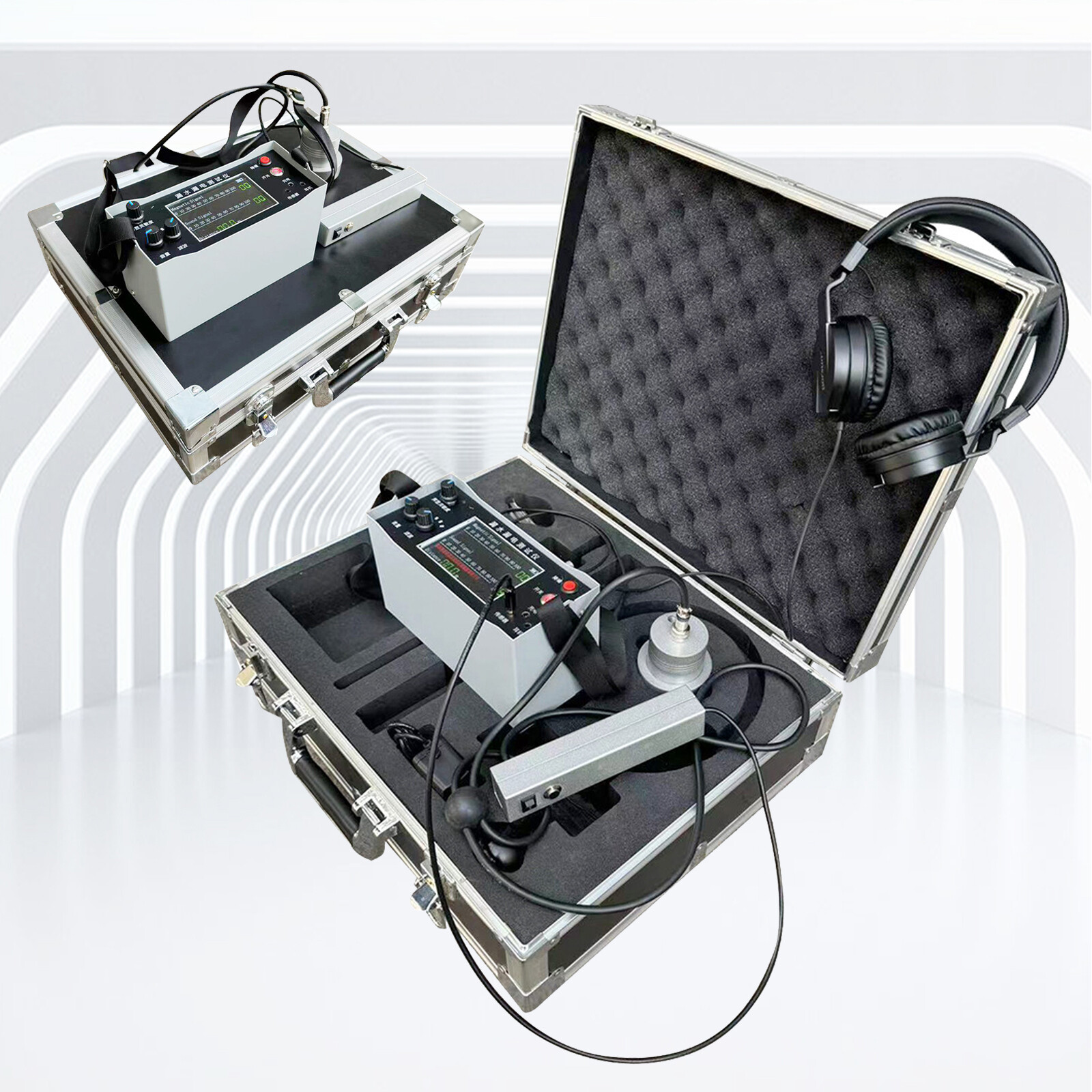

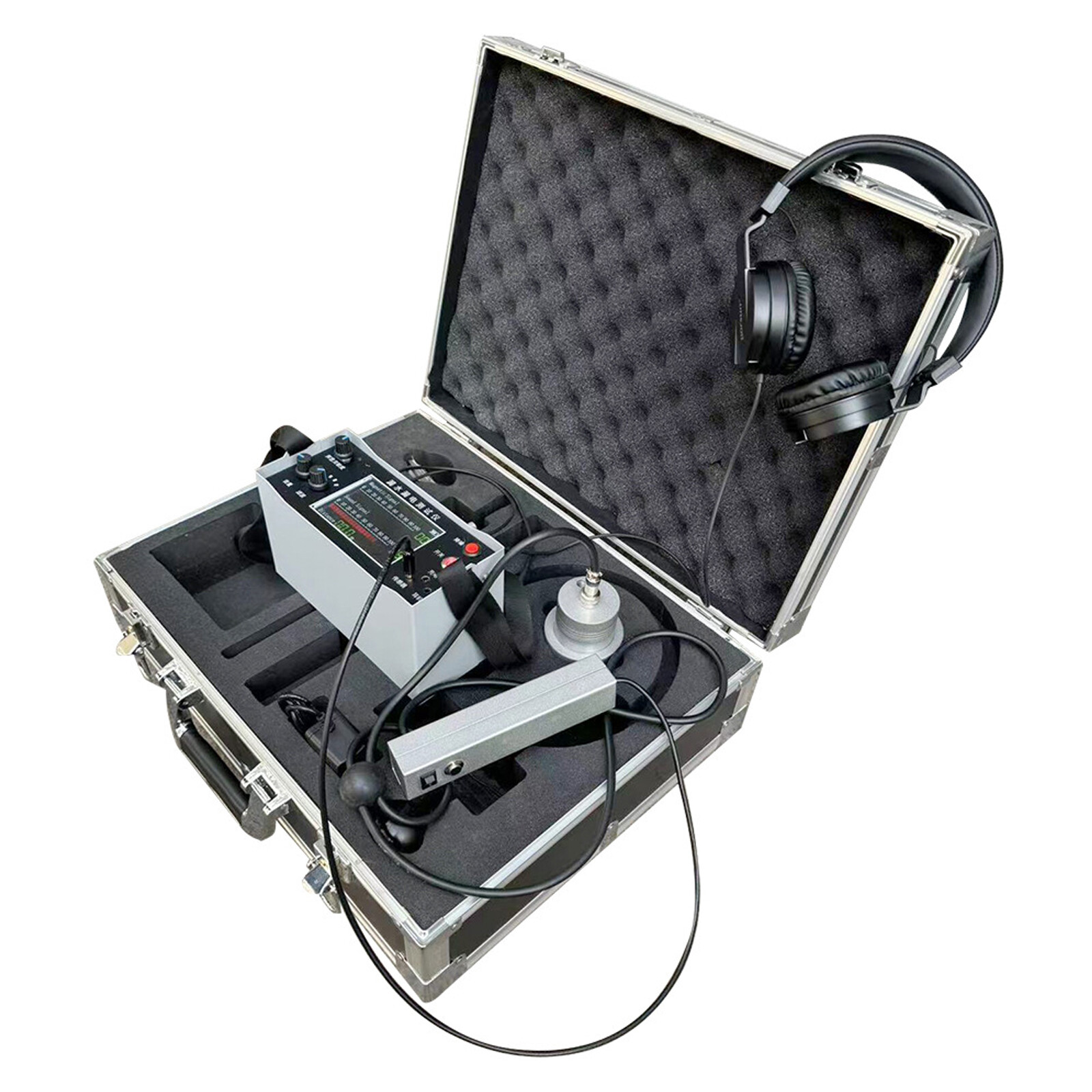

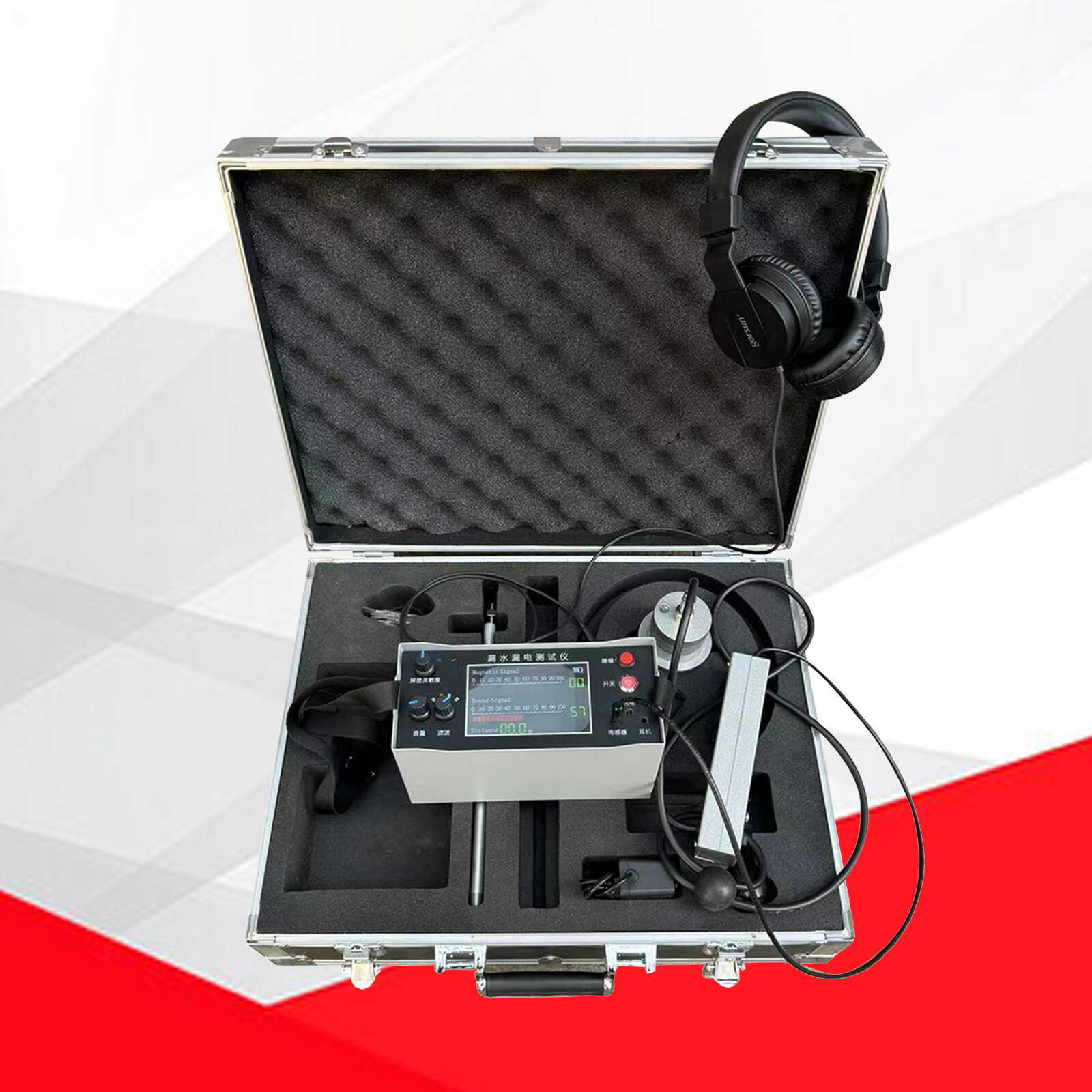

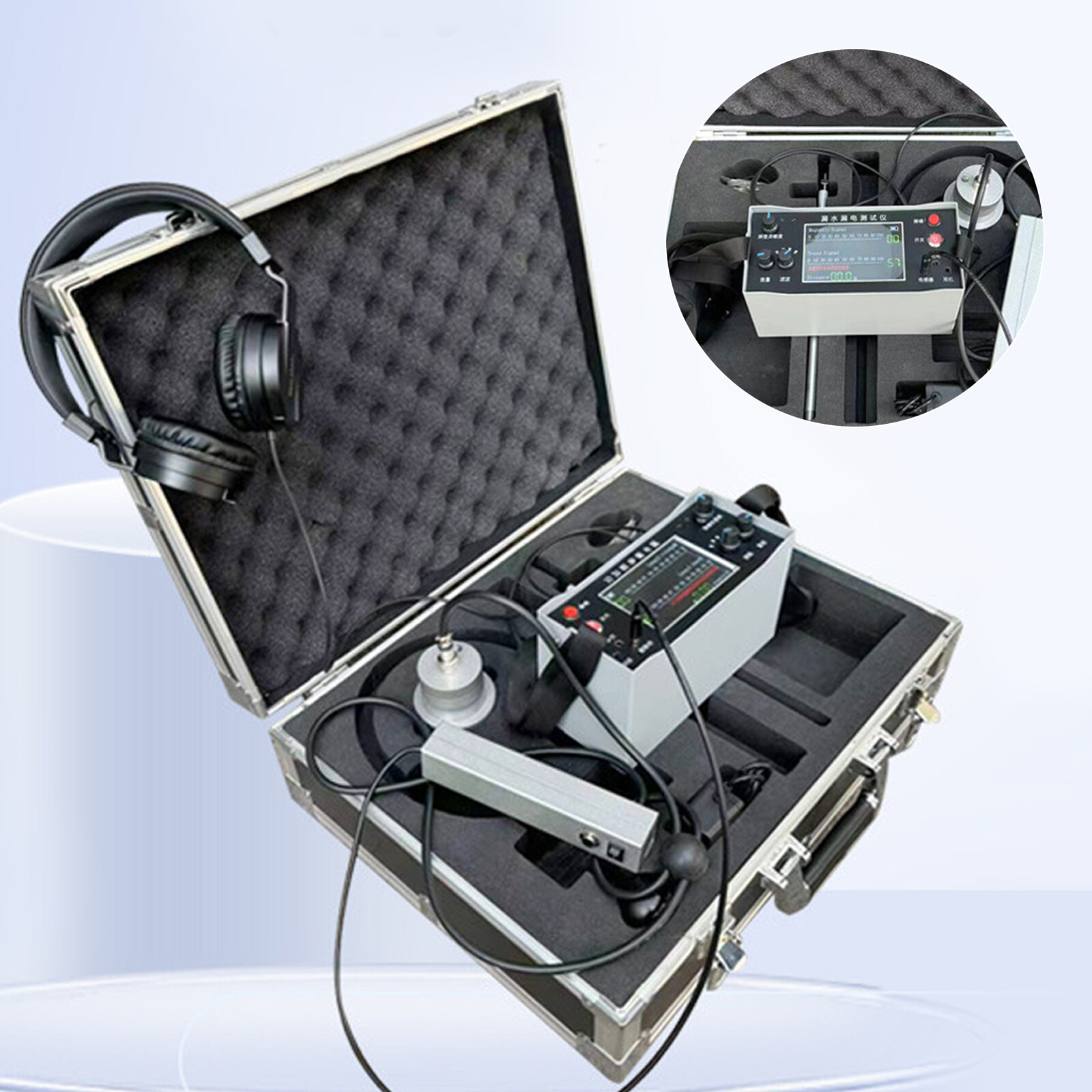

PACKAGE INCLUDES
1 × Main Host Unit
1 × External (Outdoor) Sensor
2 × Indoor Sensors (1 Large, 1 Small)
1 × Handle
1 × Earphone/Headset
1 × Charger (for 9V battery/unit)
1 × Portable Aluminum Alloy Carrying Case
