Rackmount 1U Intelligent PDU 8 Outlet 5-15r 125V L5-30P

Features:
Remote Control Access Network Remote Managed, Intelligent, Smart PDU

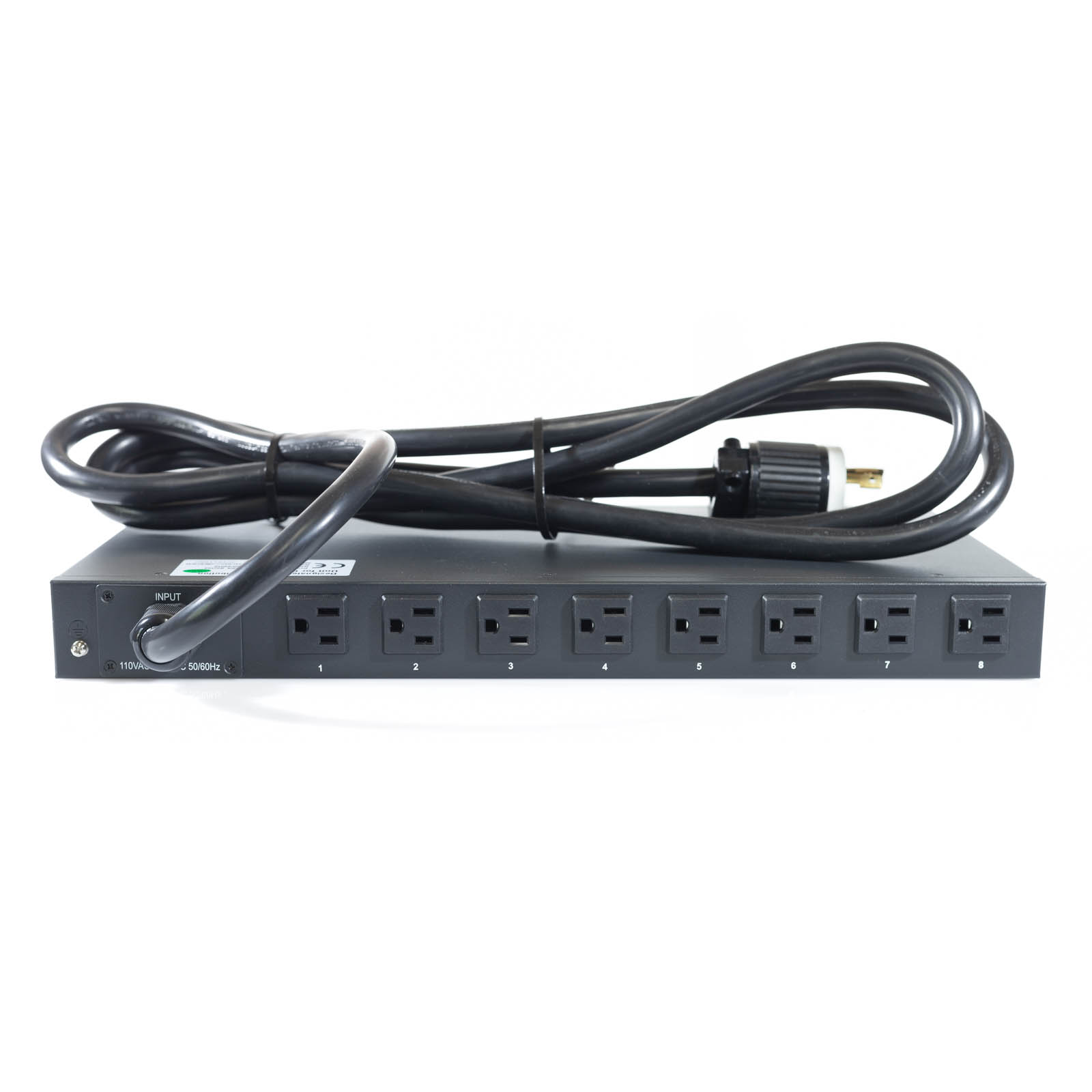

8 x 5-15r outlet receptacles with LED indicators
Horizontal design and rack mount capable, Standard 19"" cabinet size

Specially designed for servers, computers, datacenters and crypto mining devices where you can control remotely from your PC and mobile each power plug by shutting them off or on. Also controls Temperature and Humidity with included sensor reader

100V,110V, 120V, 125V 50/60Hz 30A Switched PDU with SNMP Network interface
32 amp Schneider Electric Circuit Breaker protection
Controllable Receptacles - 8 NEMA 5-15r (8 Back) - LED Digital Display - 1U rack mount

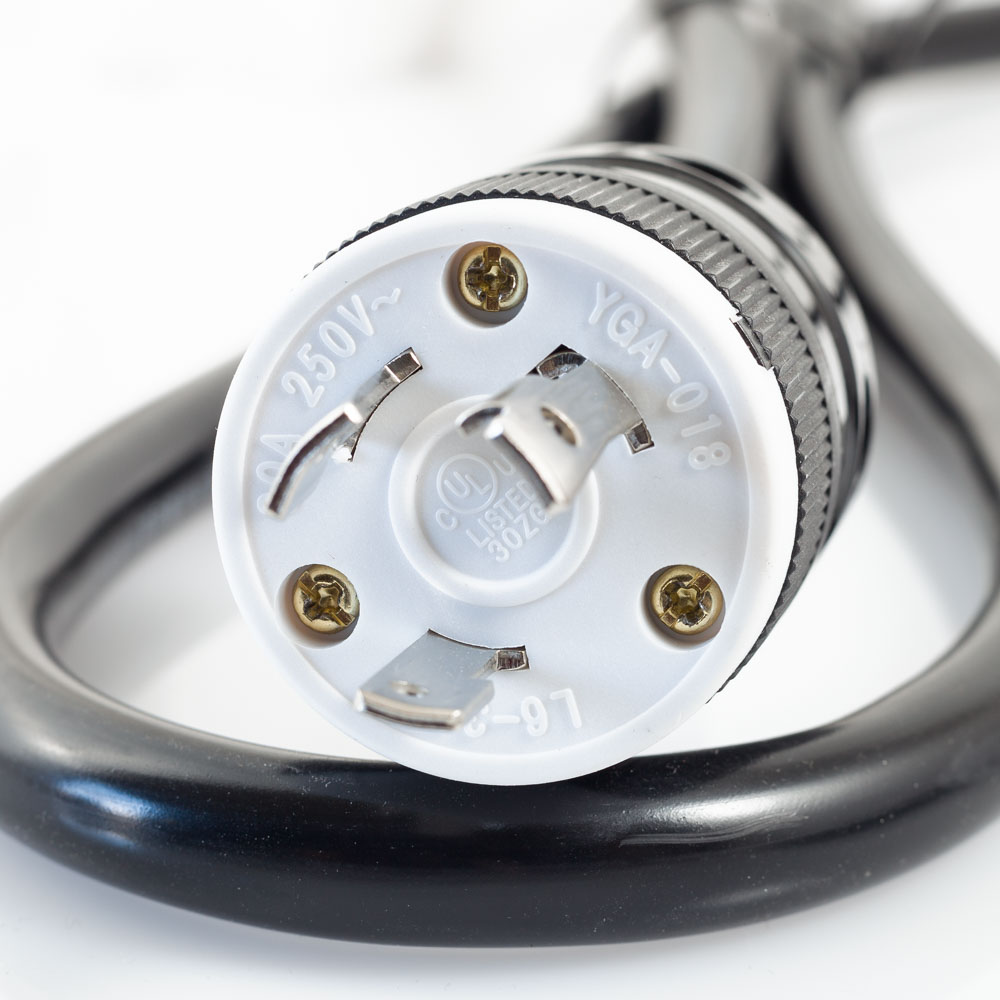

10-ft. power cord / Requires L5-30R Power receptacle like the power plug shown in listing images

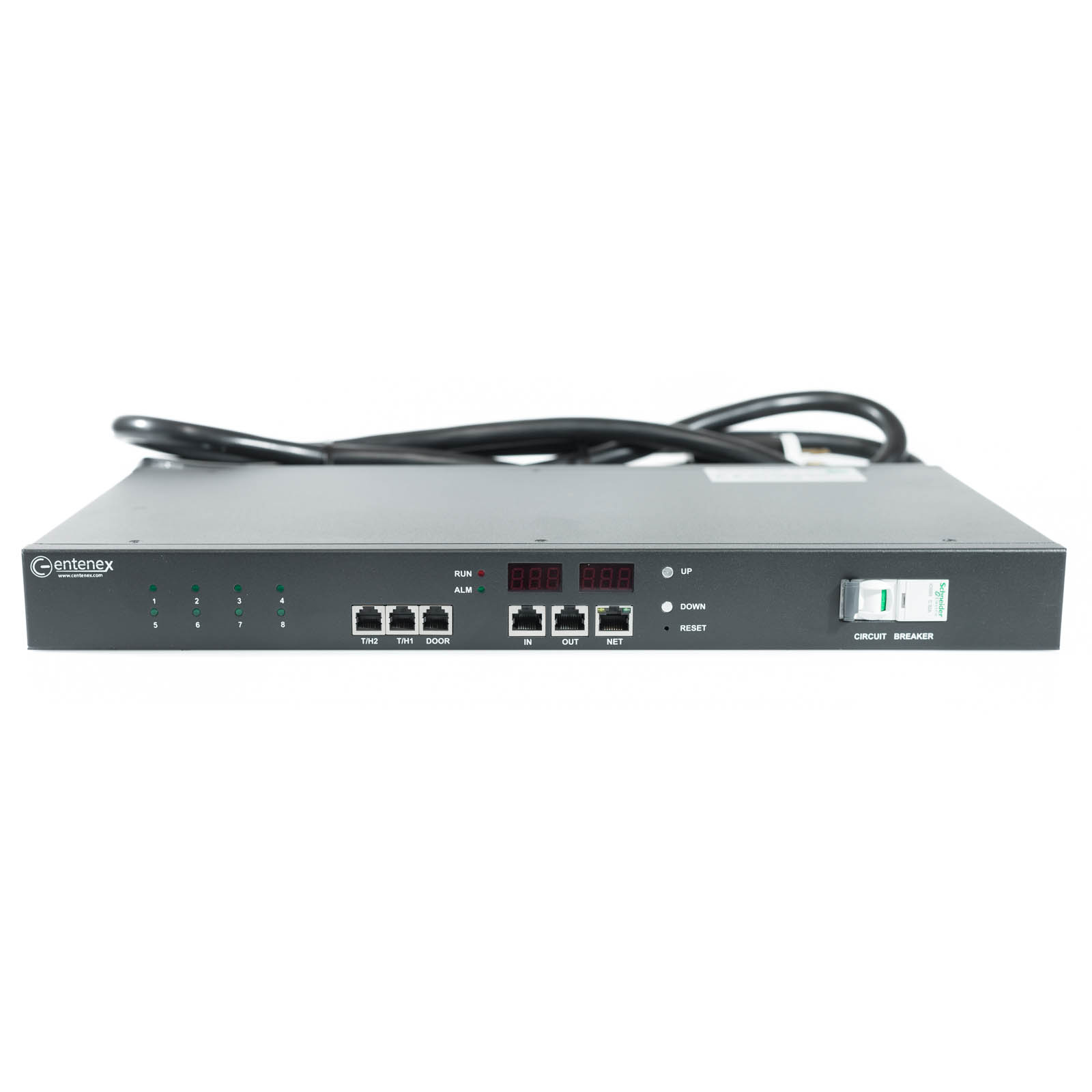

LCD Screen: Displays the total input voltage, total current, total power etc.

Display properties:
Total voltage - Full scale:300V accuracy: plus or minus 1% +2 character resolution ratio: 0.1V Response Time:400ms
Total current - Full scale:32A Accuracy: plus or minus 1%+1 character resolution ratio:0.1A Response Time:400ms

Main monitor and control functions:
The total load current monitoring
The total input voltage monitoring
The total load power monitoring
The total power factor monitoring
The total electricity consumption monitoring
The output unit current monitoring
The output unit power monitoring
Each port remote control ON/OFF
The environmental temperature and humidity monitoring

Setting Function:
The total load current upper and lower limit settings
Each port load current upper and lower limit settings
Temperature and humidity upper and lower limit settings
Address setting of email alarm
HTTP Network service settings
SNMP(V1) setting
Network parameter settings (IP,gateway,mask,DNS)

System alarm:
When the total load current/voltage exceeds the rated value.
When temperature, humidity exceeds the upper and lower limits
Customized Email Alarms
Access Methods Web access control through IE + SNMP(V1) via standard network management workstation access control + Telnet command line

Package Includes: 1x PDU and rack mount accessories, instructions guide



Tech Specs

PDU Specs

Connection: 1x L5-30P Input 30A, 8x NEMA 5-15r Outlet on PDU output 15A
Dimensions: Input Cable length 10 Foot. PDU is 1U Rackmount
Condition: Brand New
Type: Basic PDU
Color: Black
