Development Board Overview

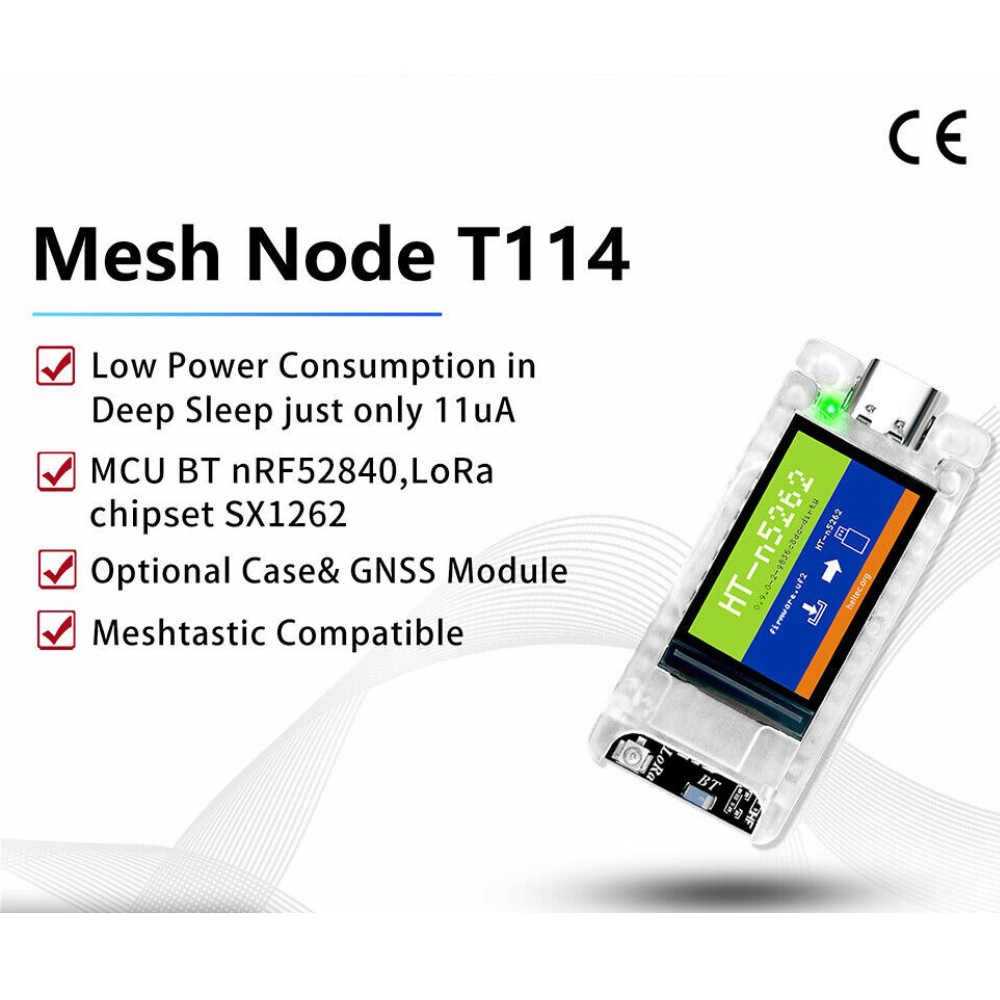

Mesh Node T114 is a low-power development board based on nRF52840 and SX1262 with support for LoRa and Bluetooth 5.0. Integrated with various power interfaces (5V USB, Li-Ion battery, and solar panel) optional 1.14-inch TFT display and GPS module as an accessory, it features powerful remote communication capabilities, scalability, and low-power design.
Use the Heltec nRF52 development environment and library. You can use it for LoRa/LoRaWAN development work or you can use it to run some open source projects.

Development Board Features
1. Excellent performance and easy operation
2. MCU nRF52840 (Bluetooth), LoRa chip SX1262
3. Low power consumption, deep sleep 11μA
4. Powerful display (optional), on-board 1.14-inch TFT-LCD display
5. 135 (H) RGBx240 (V) can display 262K colors
6. rich interface (2 * 1.25mm LiPo connector, 2 * 1.25mm solar panel connector)
7. 8 * 1.25mm GNSS module connector) greatly increases the board's expandability

Development Board Specification
Microcontroller: nRF52840
LoRa node chip: sx1262
Frequency:
470-510mhz; 863-928mhz* (optional)
Maximum TX power: 21±1dBm
Maximum receive sensitivity: -135dBm@SF12 BW=125KHz
Bluetooth: Bluetooth LE: Bluetooth 5, Bluetooth mesh
Hardware resources: USB 2.0, 4*SPI, 2*TWI, 2*UART, 4*PWM, QPSI, 12S, PDM, QDEC and so on.
Storage: 1M ROM
256KB SRAM
Interface: Type-C USB
2*1.25 Li-ion battery connector
2*1.25 solar panel connector
LoRa ANT (IPEX1.0)
8*1.25 GPS module connector
2*13*2.54 plug pins
Battery: 3~4.2V battery power supply and charging. (Product does not come with battery)
Operating Temperature: -20 ~ 70 ℃
Size: 50.80*22.86mm
Electrical Characteristics:
Deep Sleep: ~11uA
Tracker mode sleep: ~22uA
GPS off, TFT off: ~9mA
GPS off, TFT on: ~20mA
GPS on, TFT on: ~51mA
Display: On-board 1.14-inch TFT-LCD display (optional)

GPS module description:
L76K is a GNSS module that supports multi-satellite systems (GPS, BDS, GLONASS, QZSS), joint multi-system positioning and single-system independent positioning, AGNSS function, built-in low-noise amplifiers and acoustic surface filters, and provides users with a fast, accurate, high-performance positioning experience.
The multi-satellite system makes the number of visible and available satellites increase dramatically compared to a single GPS system, which improves positioning accuracy and enables stable and highly accurate positioning even in complex urban environments. Supports AGNSS function, which can greatly reduce the time of first-time positioning. Built-in low noise amplifier can realize high sensitivity, high accuracy positioning and fast signal capture and tracking, which can ensure the positioning performance even under weak signal conditions. Built-in acoustic surface filter, can greatly enhance the module's anti-interference ability. Internal integrated active antenna detection circuit and protection circuit, can protect the module and active antenna from damage.

List
1 x Development Board
2 x Pinouts
2 x Terminal Cables
1 x Antenna

or

1 x Development Board
1 x Housing
1 x Antenna

or
1 x GPS Module
