ITEM DESCRIPTION
- Mirror-polished, ground, and chrome-plated worktable for rust, abrasion, and impact resistance.
- Burr-free punching; smooth cutting surface without indentation or burrs; single-bend forming with high precision.
- 700-bar electric hydraulic system provides sufficient pressure with low operational noise.
- 1000 kg/cm² oil-filled hydraulic gauge enables pressure-index-based operation, preventing equipment overload damage.
- Pure copper-core motor ensures long-term stable operation; high-quality sealed rubber hoses prevent hydraulic oil leakage.
This bus processing machine integrates shearing, punching, and bending units. It is designed for processing copper and aluminum busbars of various specifications. Each unit performs its respective operation quickly and accurately. Essential for sheet metal fabrication, it significantly enhances productivity and is widely used across multiple industries.
ITEM PARAMETERS
| Parameter | Specification |
|---|---|
| Model: | HHM-200H |
| Voltage: | AC110V |
| Power: | 1.2 HP (900 W) |
| Output Cutting Force: | 35 ton |
| Output Punching Force: | 35 ton |
| Output Bending Force: | 16 ton |
| Cutting Max (Width × Thickness): | 7.87" × 0.47" (200 mm × 12 mm) |
| Punching Max (Thickness): | 0.47" (12 mm) |
| Bending Max (Width × Thickness): | 7.87" × 0.47" (200 mm × 12 mm) |
| Throat Depth of Punching: | 4.33" (110 mm) |
| Punching Dies: | 3/8", 5/8", 1/2", 3/4" |
| Hydraulic Pump Pressure Max: | 700 bar (10152 psi) |
| Tank Capacity of Hydraulic Pump: | 2.11 gal (8 L) |
| Flow Rate of Hydraulic Pump: | 0.7 L/min – 5 L/min |
| Package Size: | 35.4" × 26.0" × 48.0" (90 cm × 66 cm × 122 cm) |
| Net Weight / Gross Weight: | 378.1 lb (171.5 kg) / 456.3 lb (207 kg) |
ITEM DETAILS

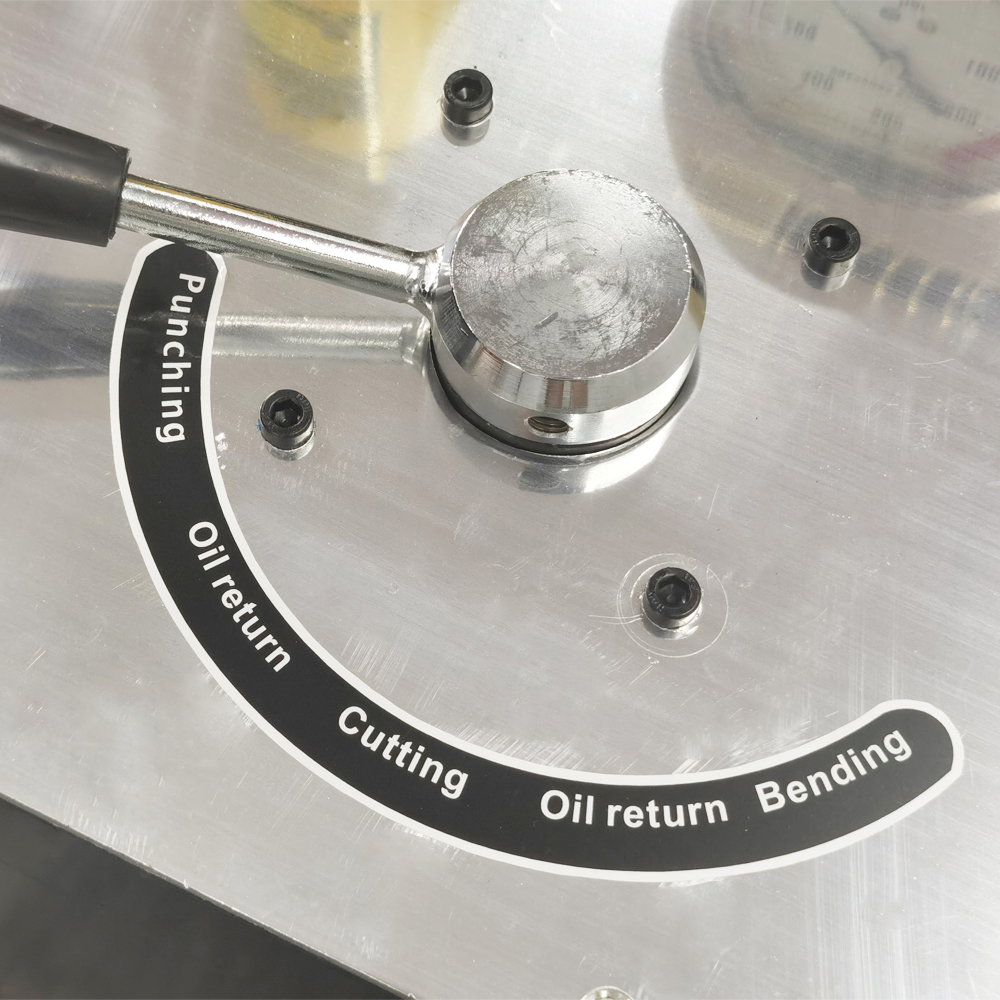

Reversing Valve
Adjusts to select punching, cutting, flat, or vertical bending functions. Enables oil return after electric pump operation.

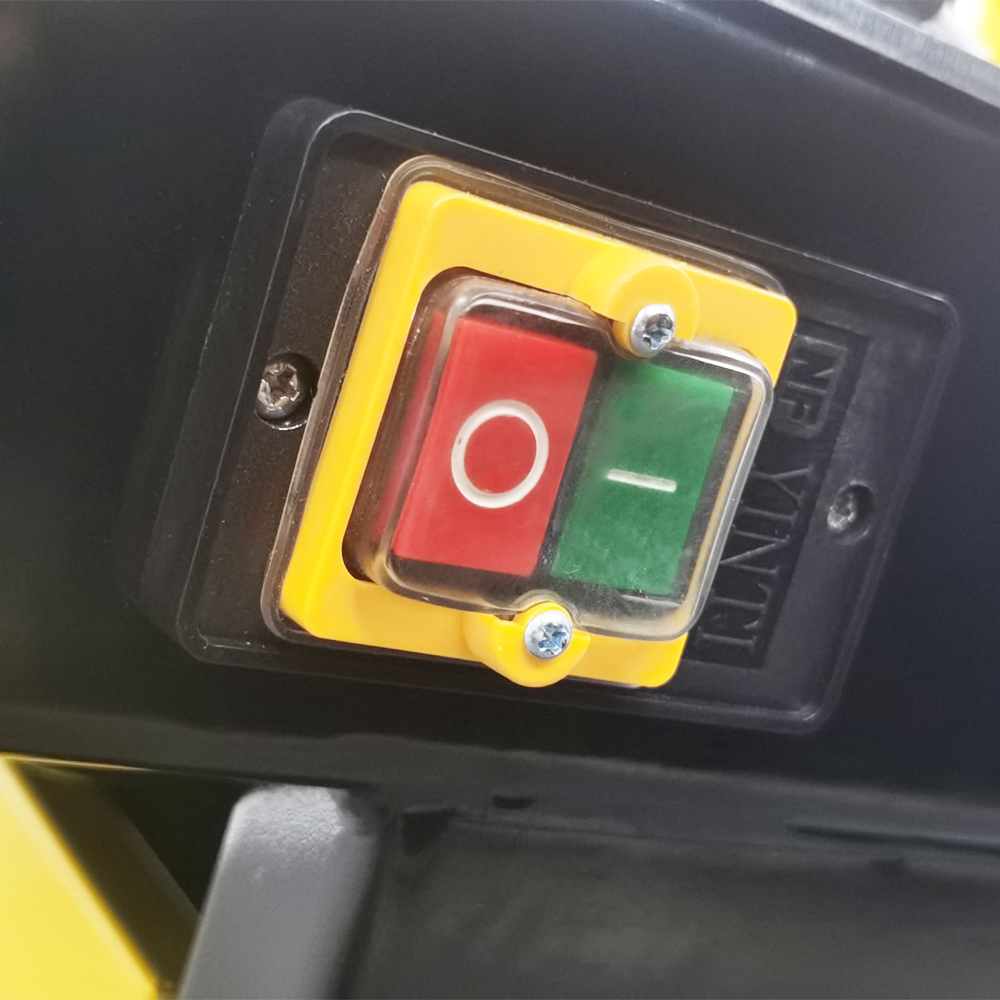

Safety Switch
Emergency stop button for immediate start/stop. Waterproof and dirt-resistant design ensures safe, easy operation.

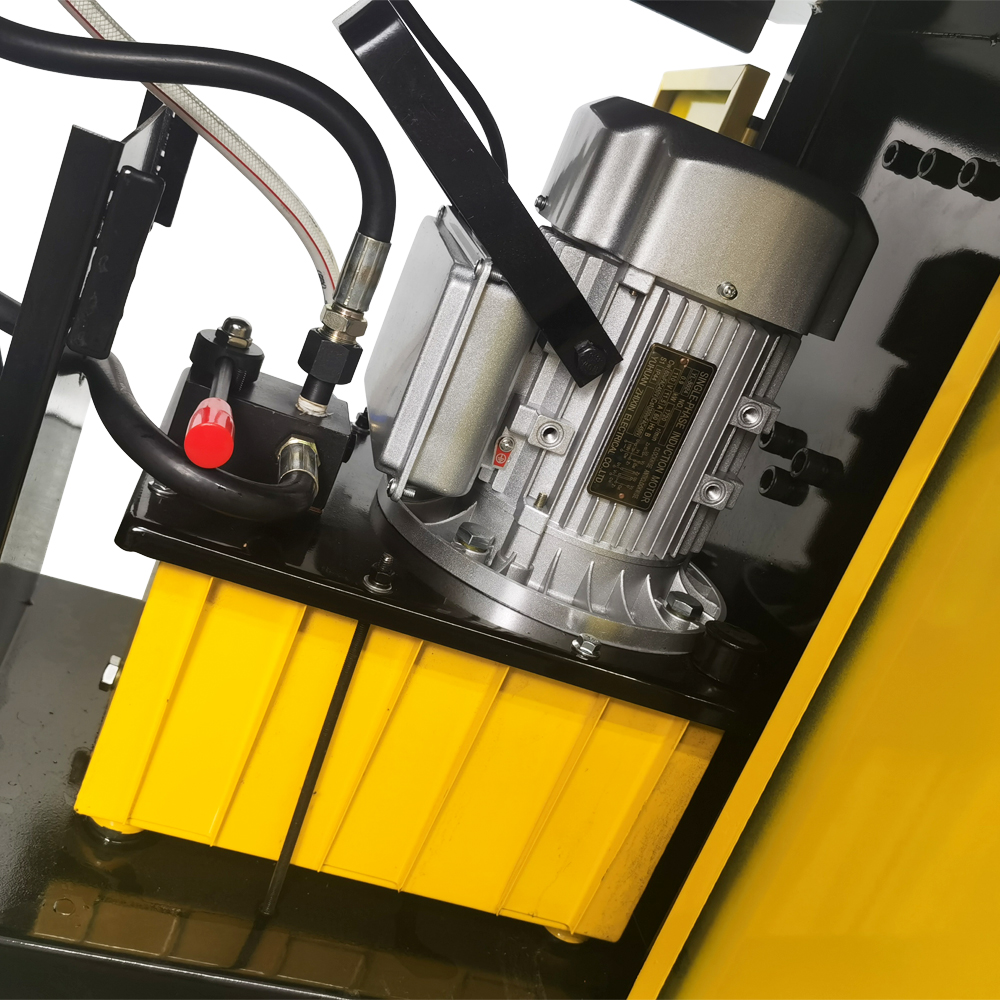

Hydraulic Pump
Single-loop electric hydraulic pump with max 700-bar pressure. Built-in safety valve for overload protection. Two-stage design enhances efficiency.

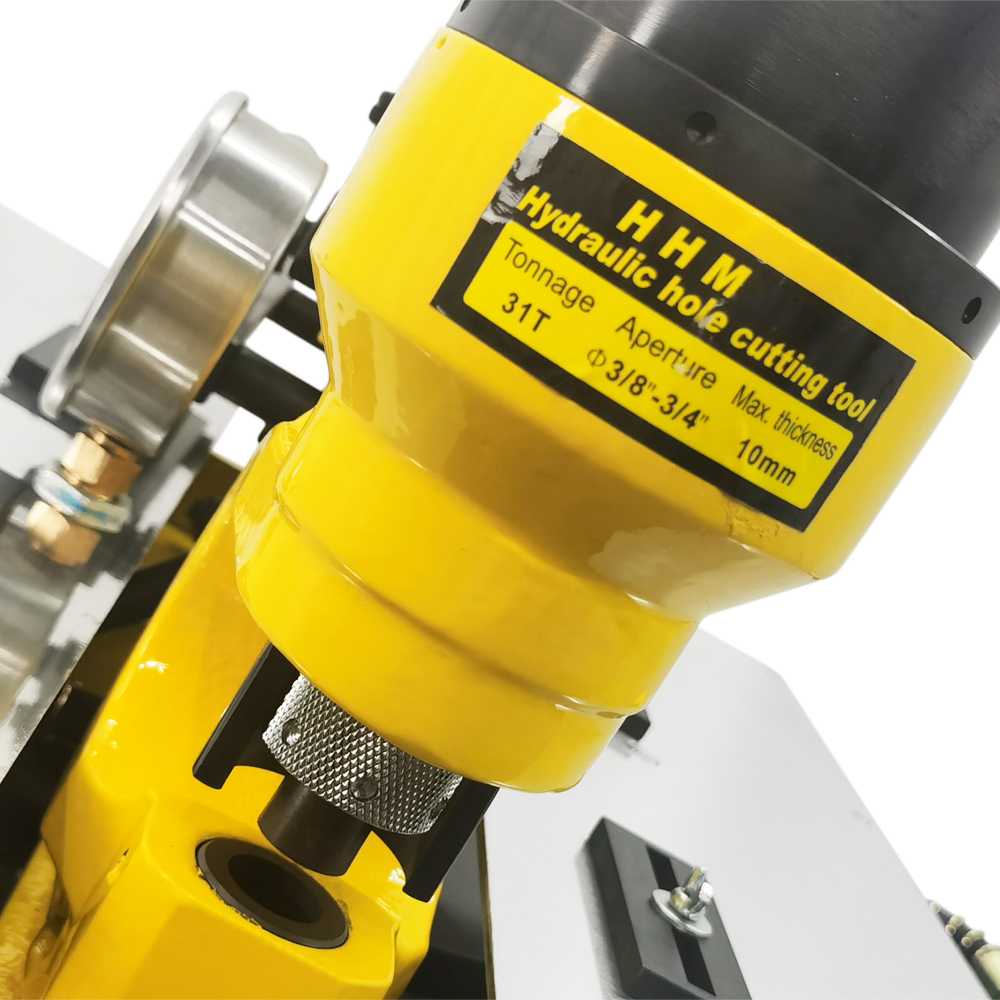

Punching Tool
Split punching tool with high-strength alloy steel C-type head. Suitable for low-carbon steel, copper, aluminum plates. Precise positioning, burr-free.
Bending Tool
Split bending tool with alloy steel components. Multiple angle indicators prevent over-bending. 16-ton force bends up to 10 mm thickness.

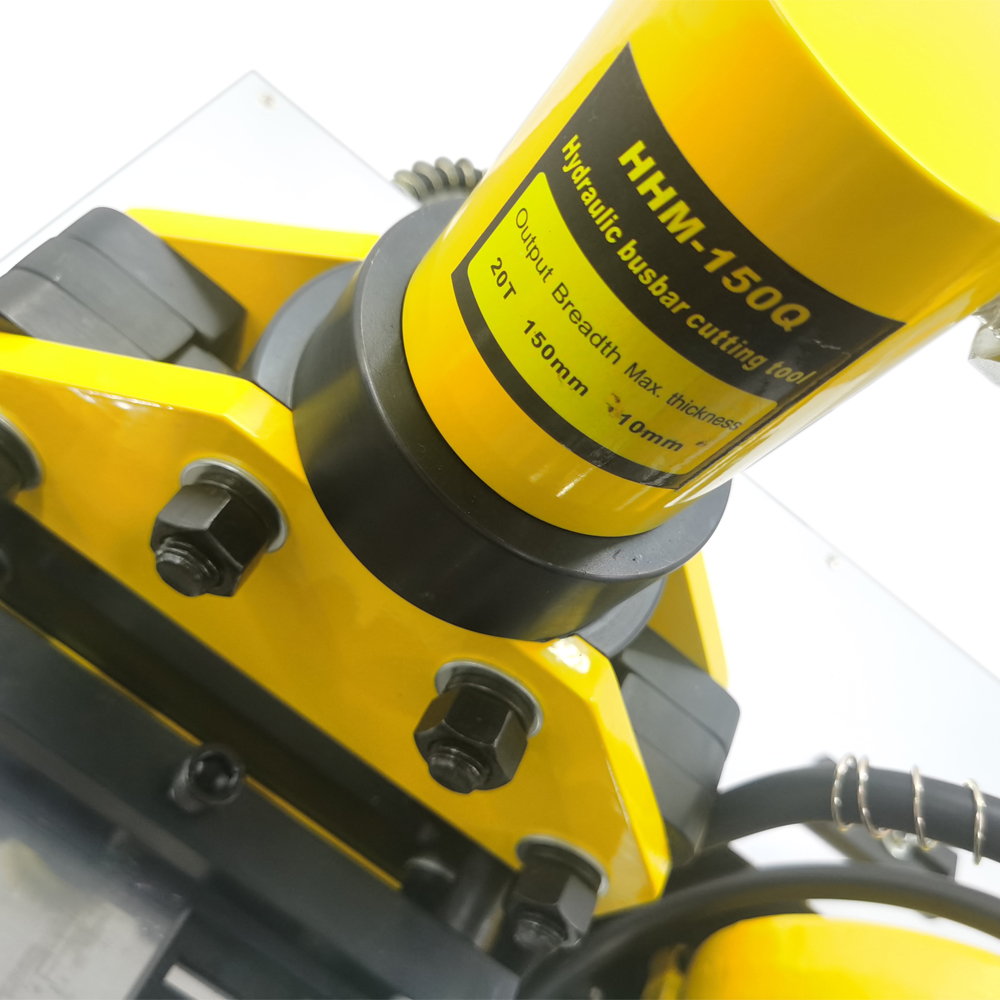

Cutting Tool
Split cutting tool with 35-ton force. Cuts up to 12 mm thickness. Flat, deformation-free incision. Adjustable positioning screw prevents warping.

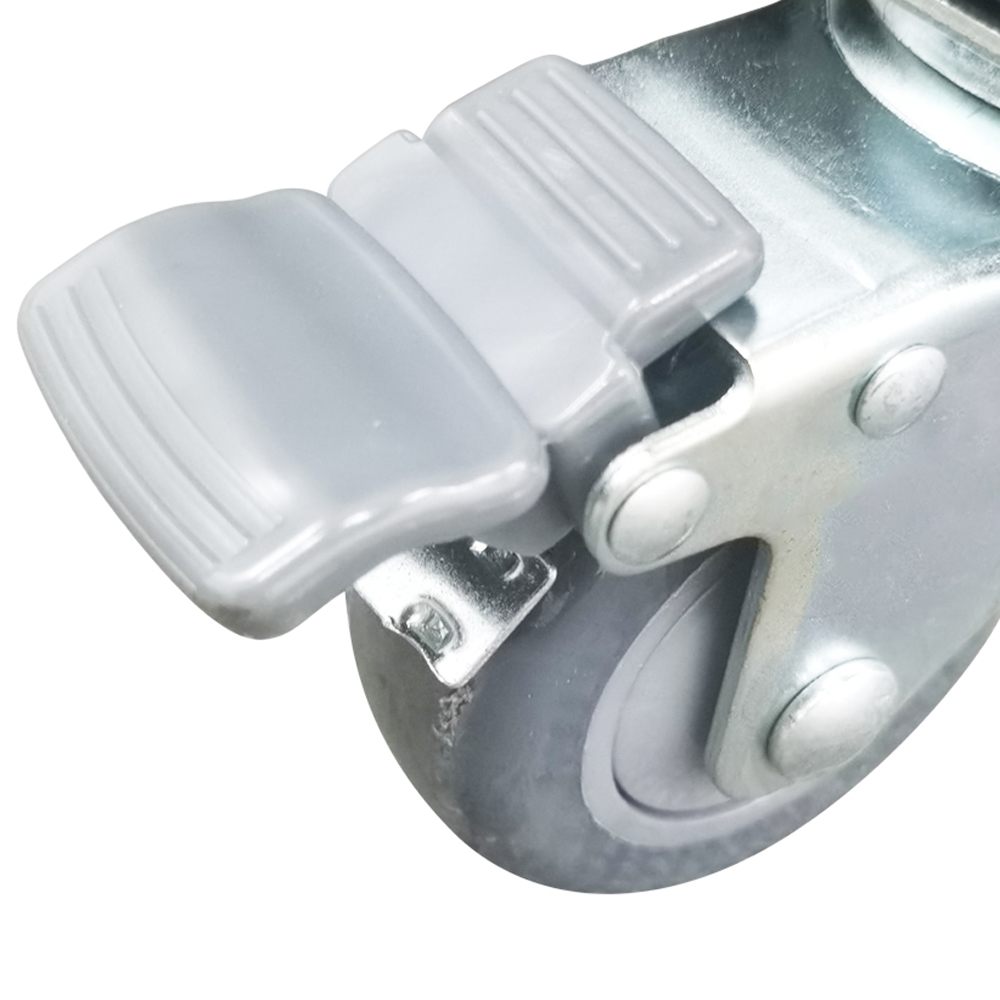

Universal Wheel
Four swivel casters with lock function. Wear-resistant rubber material for flexible, convenient mobility.

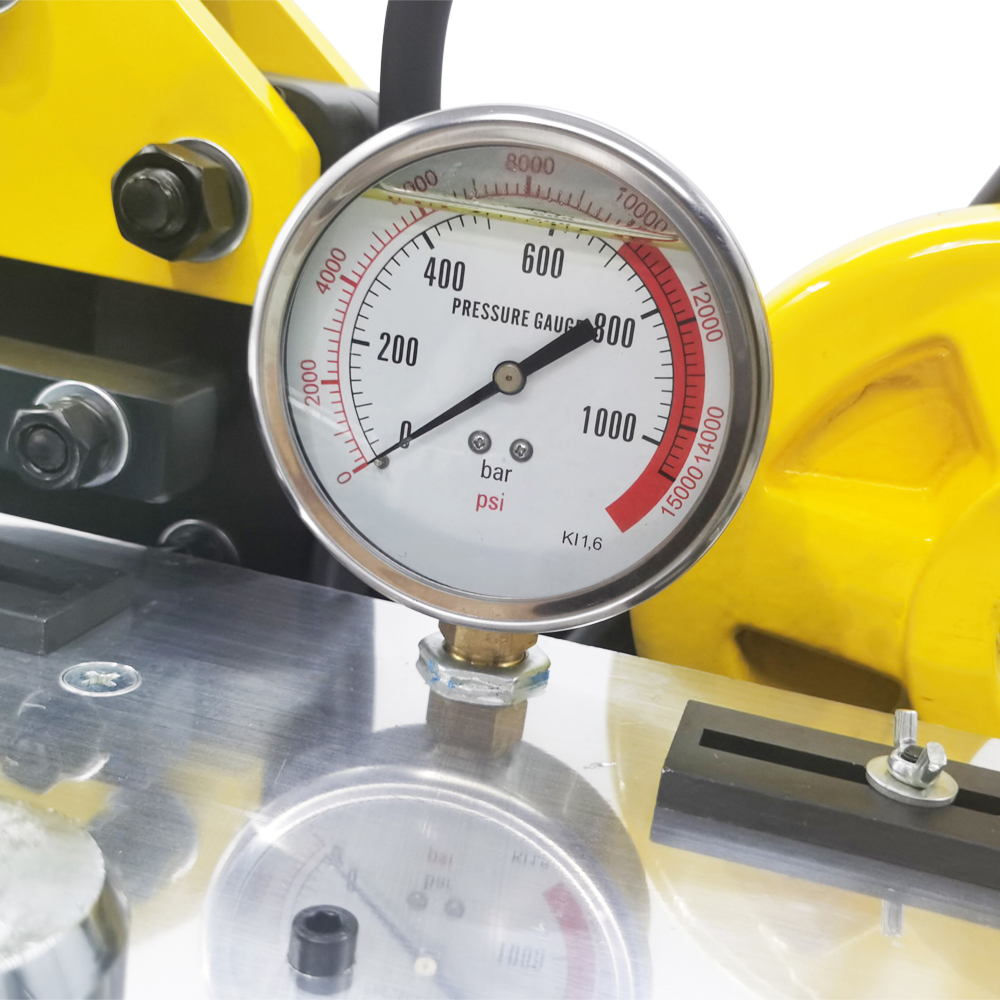

Pressure Gauge
Shockproof pressure gauge, durable and easily replaceable. High accuracy for clear monitoring of hydraulic pump pressure changes.

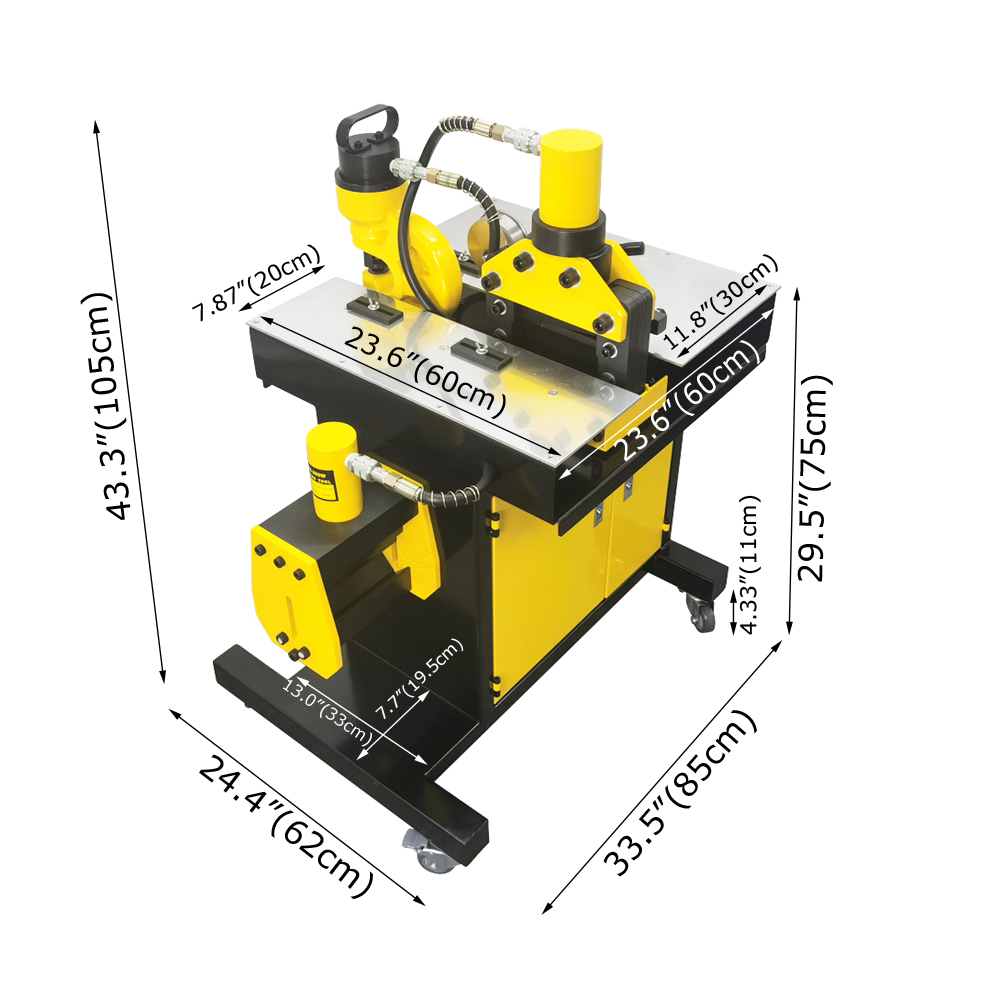

ITEM SIZE DISPLAY
ITEM INCLUDED (056508)
Busbar Processor × 1
Punching Dies × 6 (Three sets)
Dowel × 1
Wrench × 1
English Manual × 1
