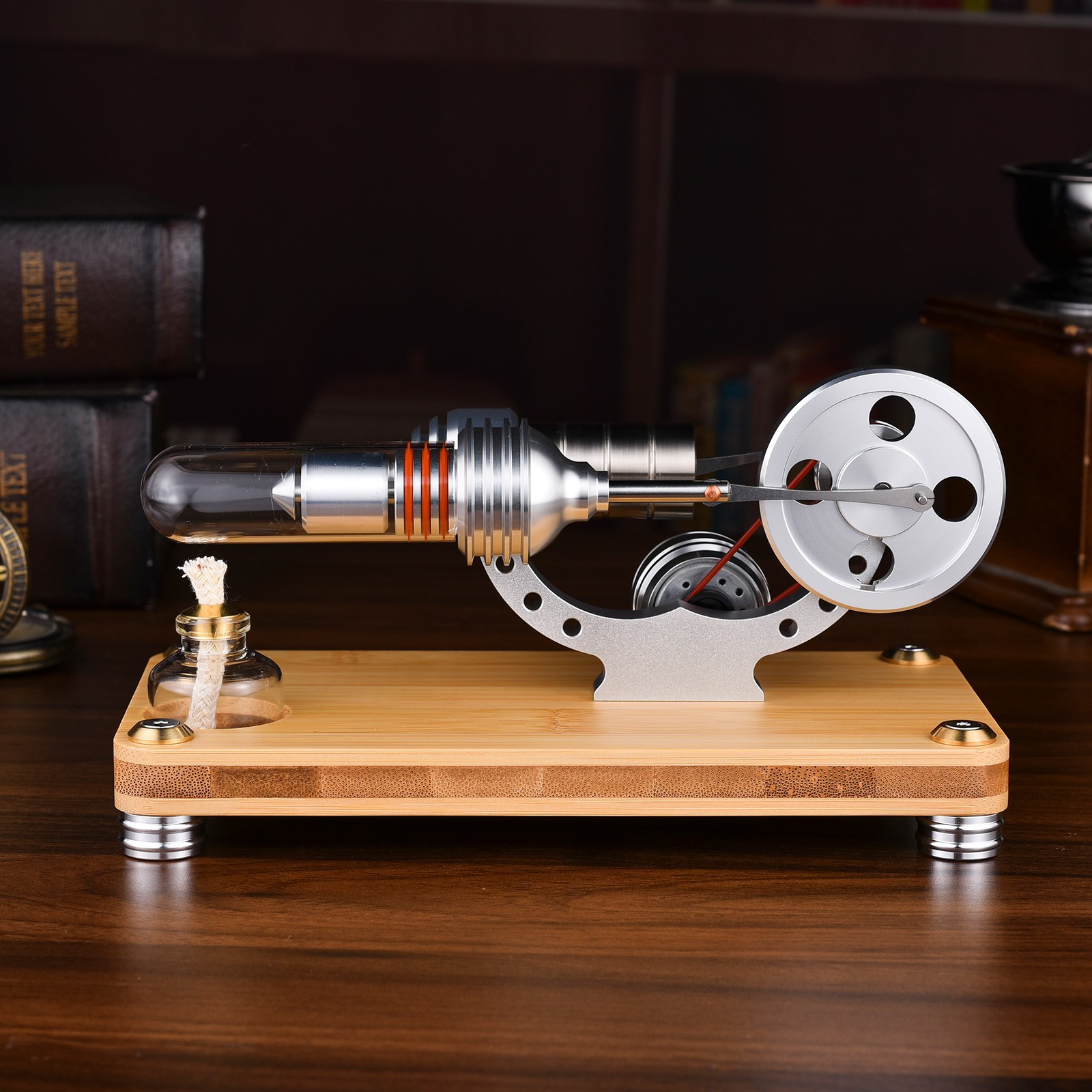

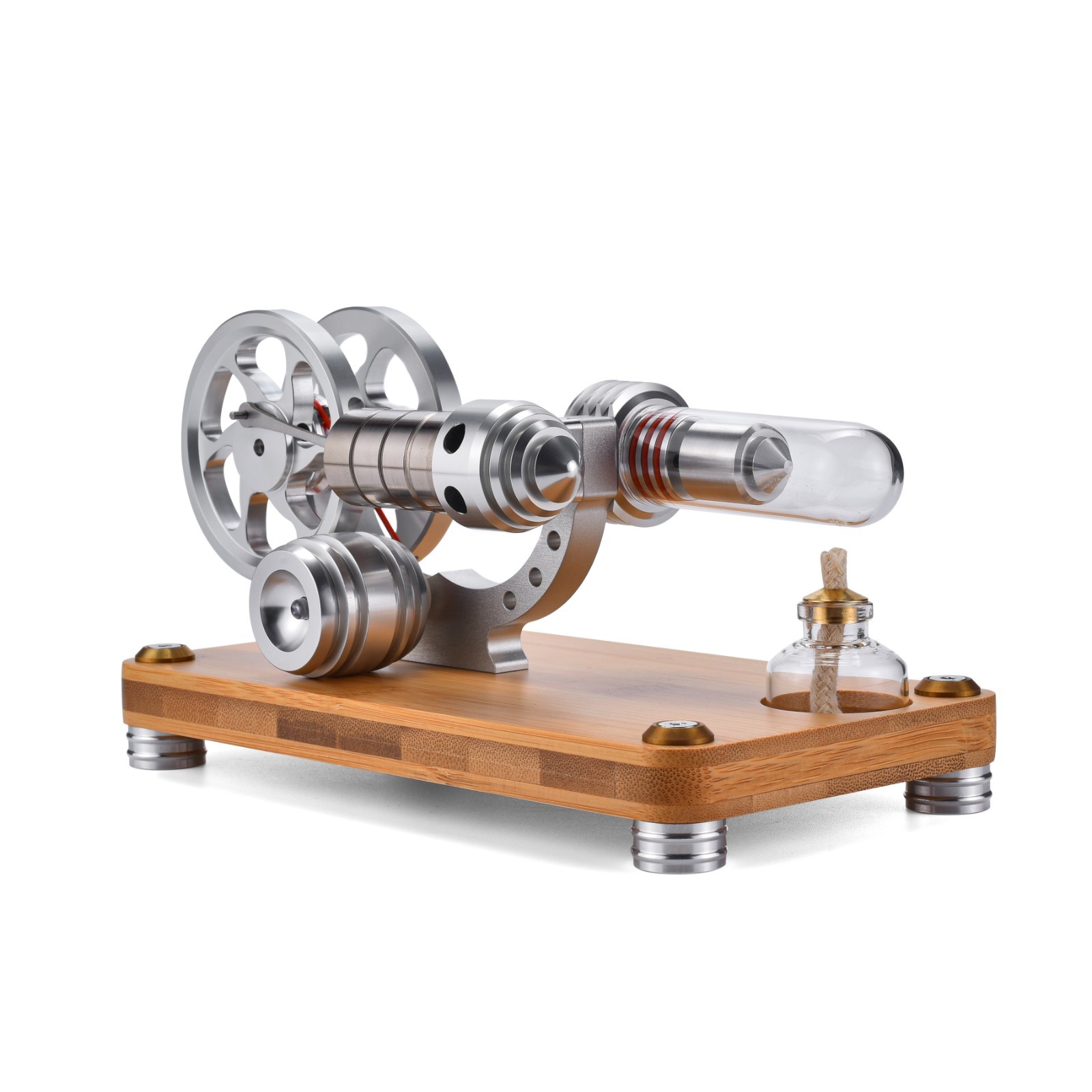

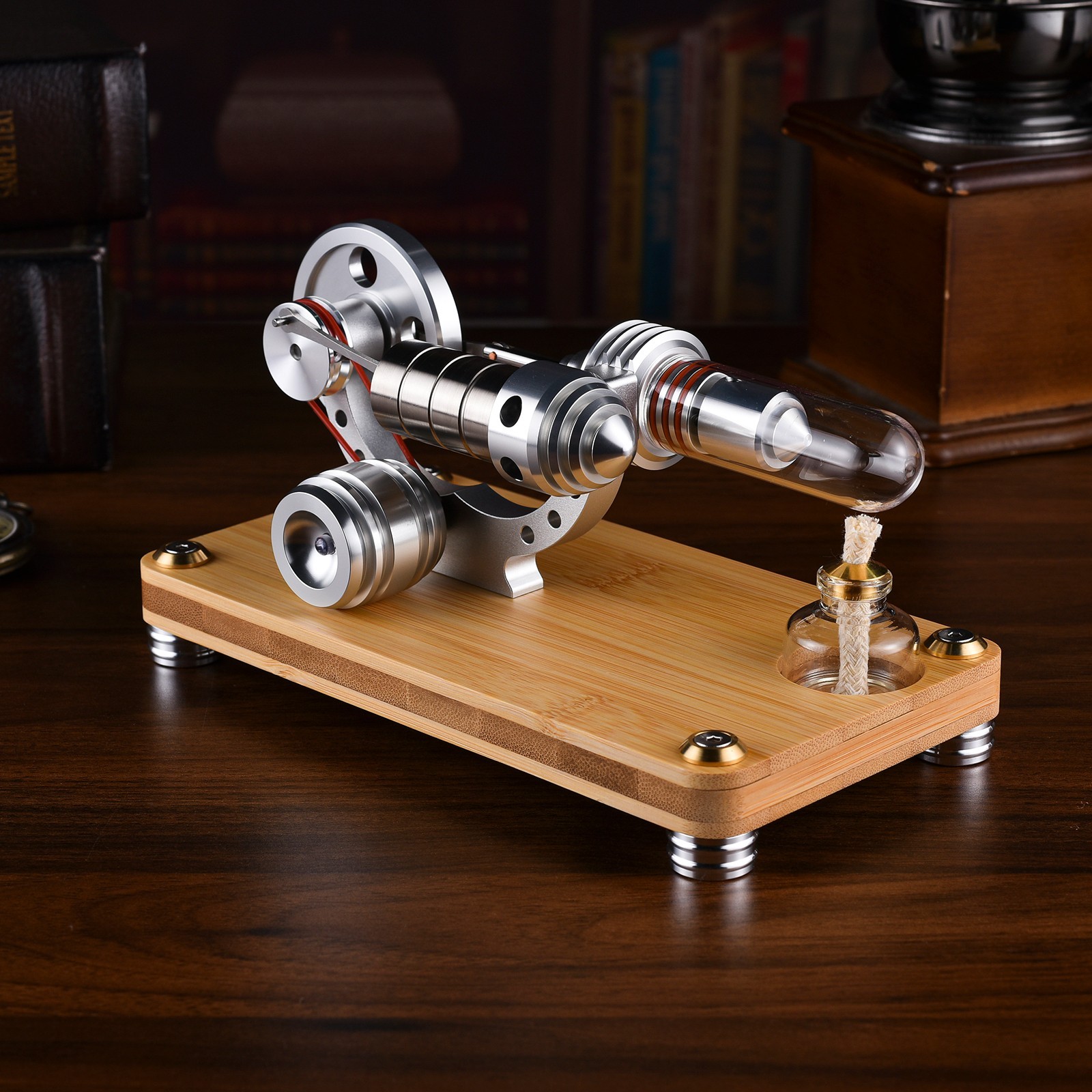

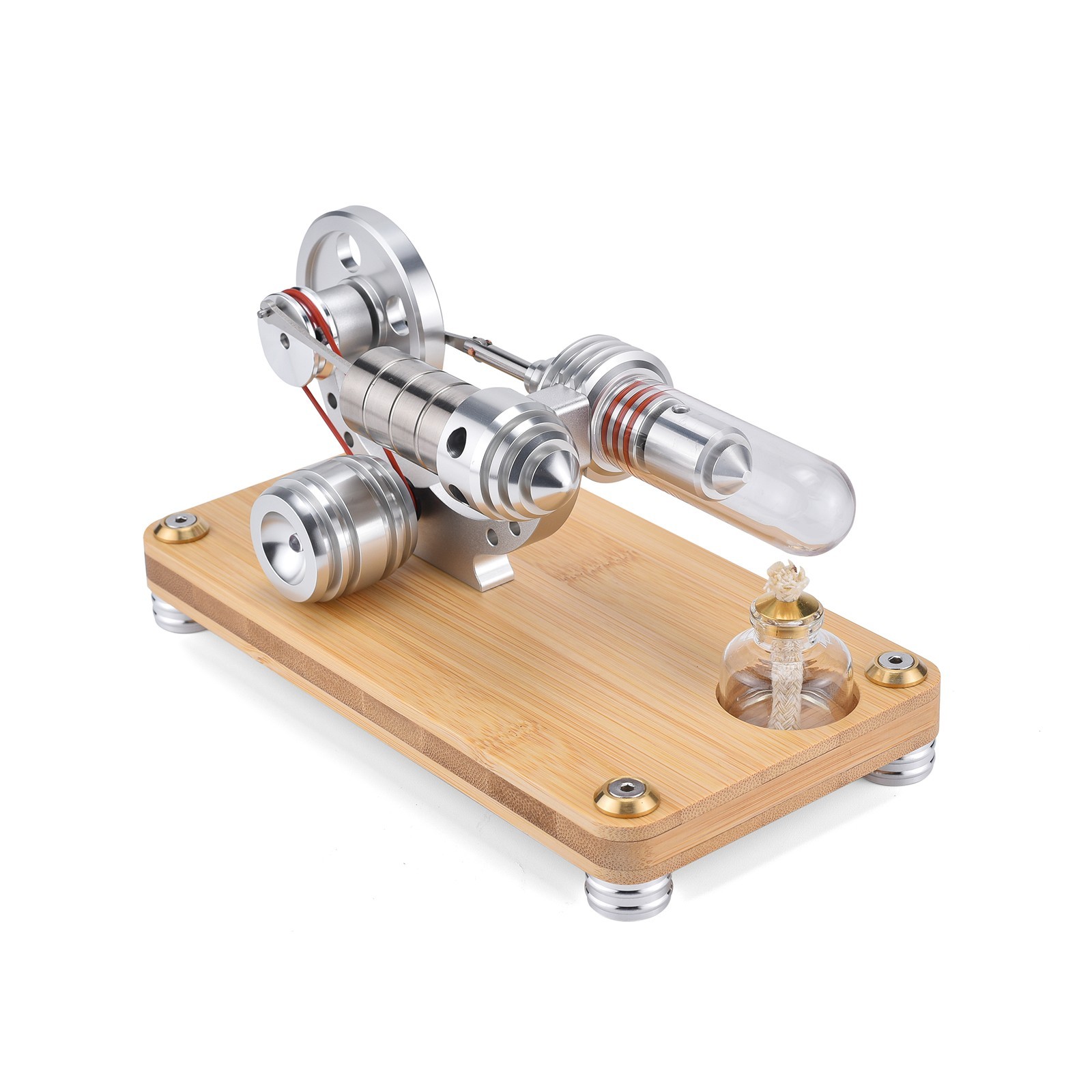

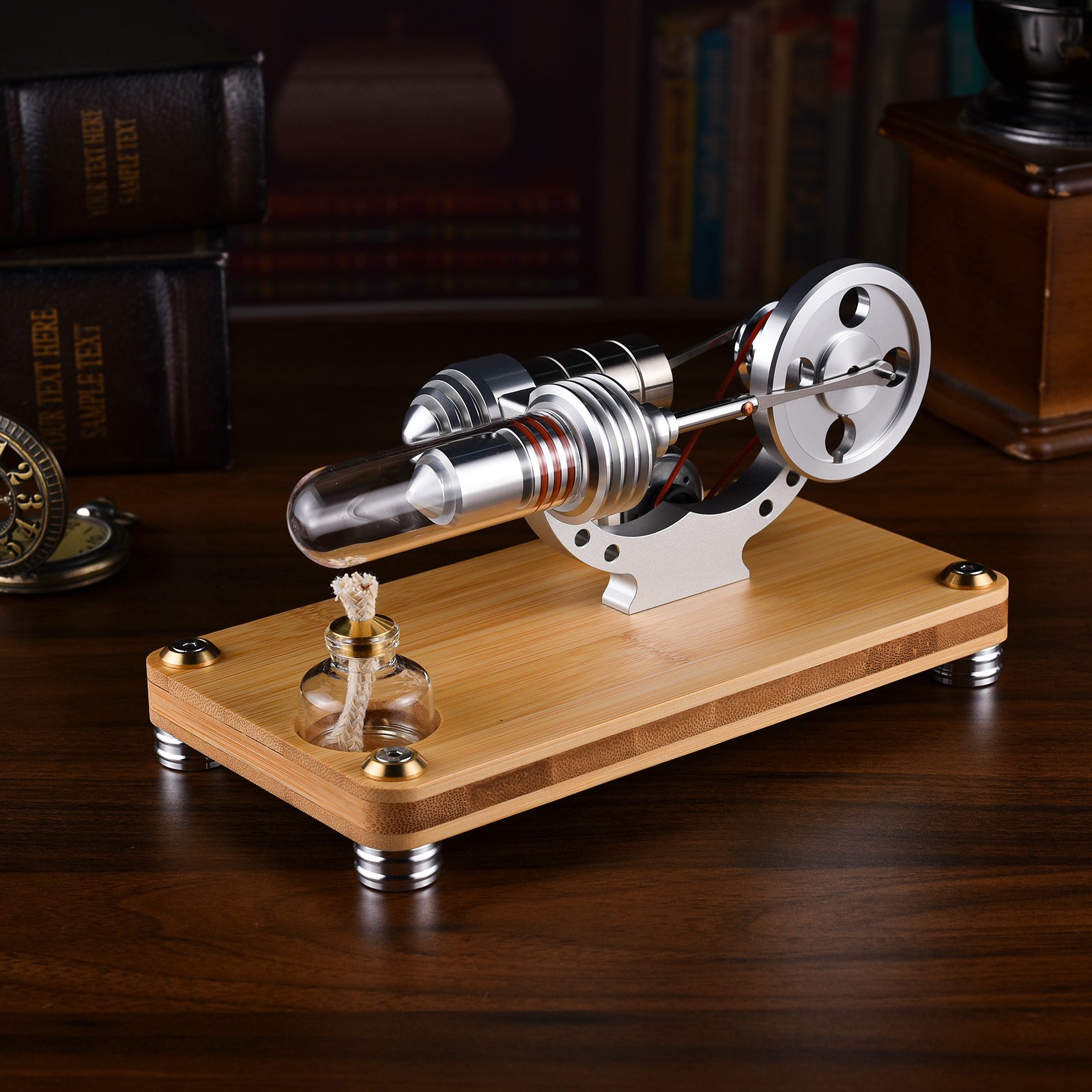

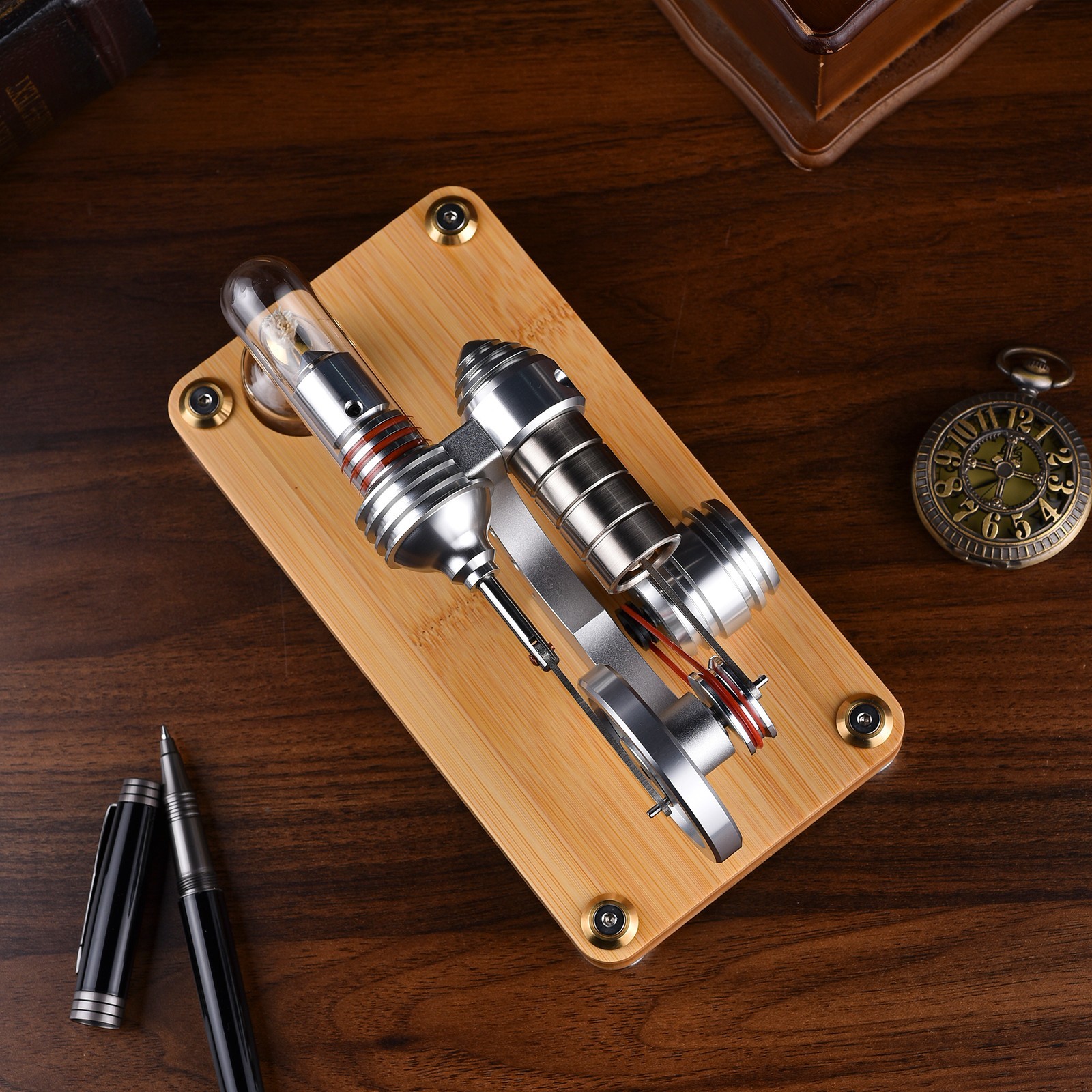

Model: M14-S
Dimensions: 190 × 100 × 98 mm
Base Material: Natural Bamboo
Total Weight: 0.77 kg
Heater Tube: 19 mm high-temperature quartz
Flywheel: 6061 aluminium alloy, Ø55 mm
Pulley: 6061 aluminium alloy, Ø25 mm
Power Piston: H59 brass, stroke × bore 16 × 16 mm
Cylinder Liner: SUJ alloy steel (hardened & ground)
Displacer Piston: 6061 aluminium alloy (tapered front)
Cylinder Head: 6061 aluminium alloy
Support Frame: 6061 aluminium alloy, 10 mm thick
Generator: Brushed motor with integrated LED indicator
KEY FEATURES & HIGHLIGHTS
High-Temperature Quartz Heater: Equipped with a 19 mm high-temperature quartz tube for efficient heat transfer and reliable operation.
Precision Brass Power Piston: Features a H59 brass piston (16x16mm) and a hardened & ground SUJ alloy steel cylinder liner for smooth, durable performance.
Integrated Power Generator: Includes a brushed motor that acts as a generator, powering an integrated LED indicator to visually demonstrate work output.
Sturdy & Aesthetic Build: Main structure uses 10 mm thick 6061 aluminium alloy for stability, paired with a natural bamboo base for a classic look.
Educational Demonstrator: An excellent tool for illustrating thermodynamic principles, heat engines, and energy conversion in an engaging way.
PACKAGE INCLUDES
1 x Single Cylinder Stirling Engine Model (M14-S)
