Description
Looking for the most helpful and professional engraving tools?
OMTech's 50W fiber laser marking machine is your ultimate resource for engraving words, logos, pictures, barcodes, and more on metal (including personalized gold and silver jewelry!) and other materials with quick turnaround and perfect accuracy. Our device's state-of-the-art air-cooled fiber laser avoids the tetchiness, fragility, and water-based mess of CO2 laser tubes. Instead, it provides solid-state efficiency, quality, stability, and durability for its entire service life of 100,000 hours. The autofocusing feature allows you to easily find the exact focus at the push of a button. The fiber engraving machine is controlled by its included copy of EzCad2, compatible with LightBurn software. For all your projects marking and cutting metal, rubber, leather, and more, you can do no better.
Get the most out of your laser engraving equipment with OMTech!
Features

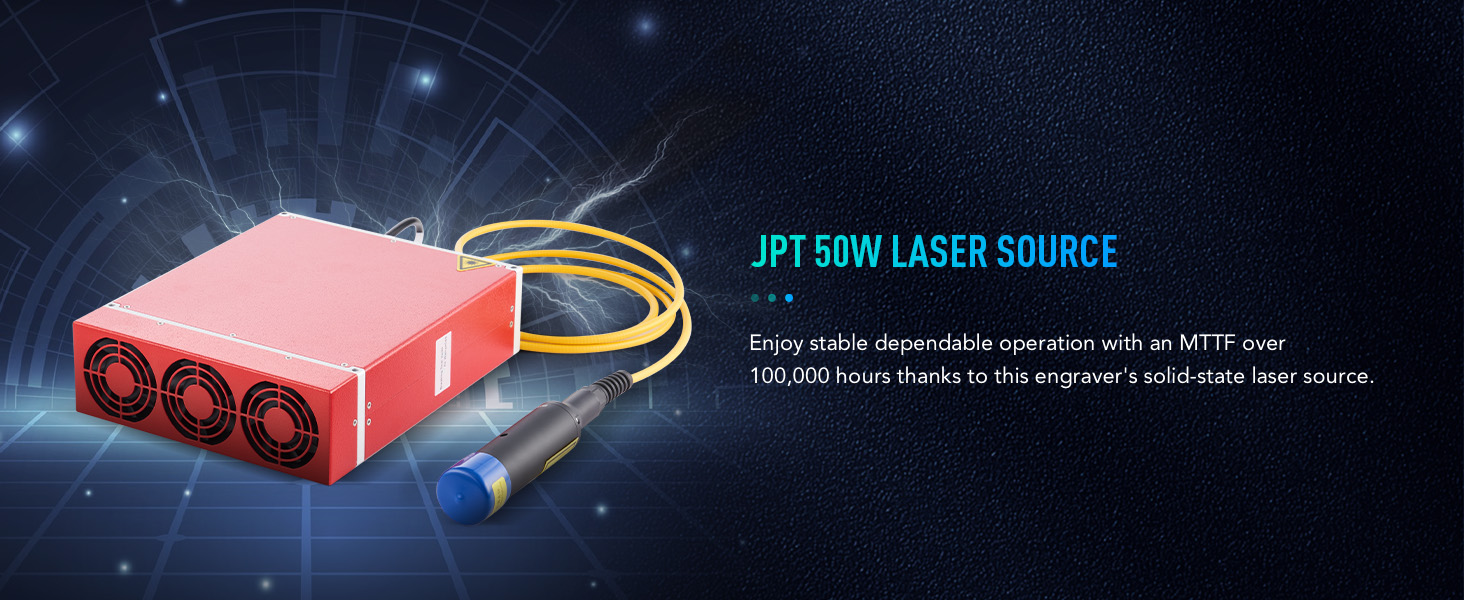

- 50W Solid-State Laser: OMTech's 50W fiber laser marking machine combines high-speed metal marking, precise results, and exceptional durability with a maximum marking depth of 0.1 mm and an ultra-durable JPT laser source lasting over 100,000 hours

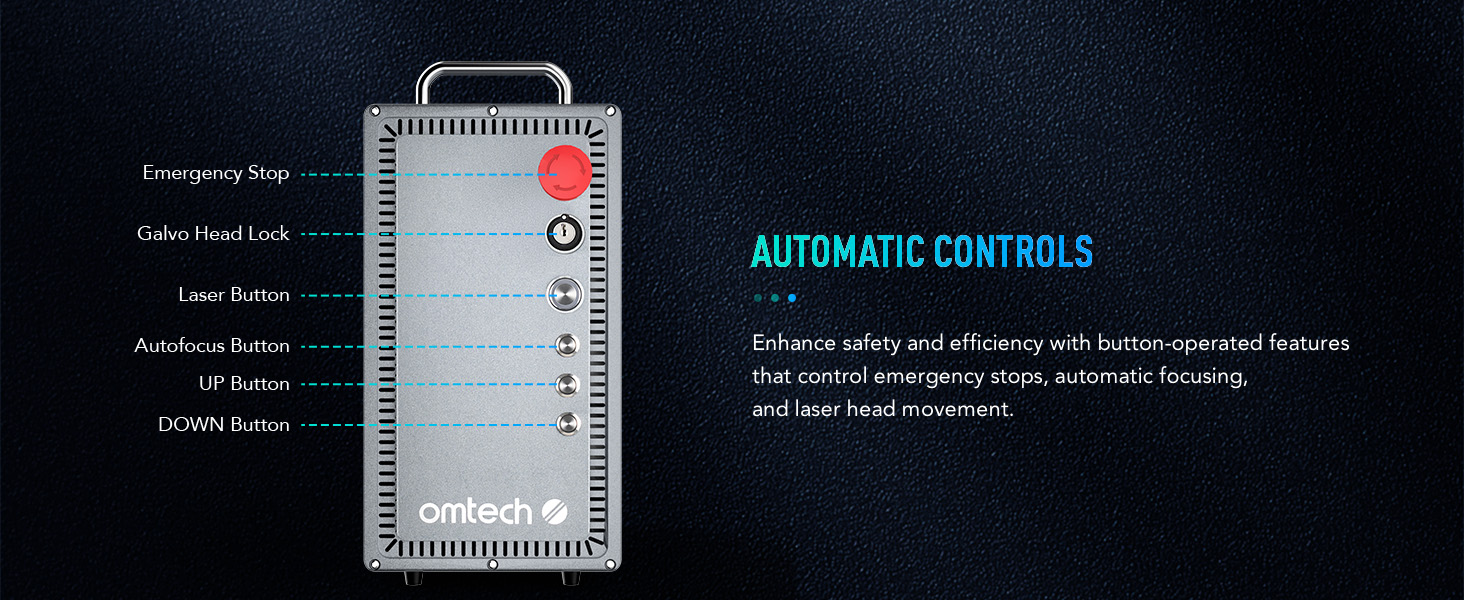

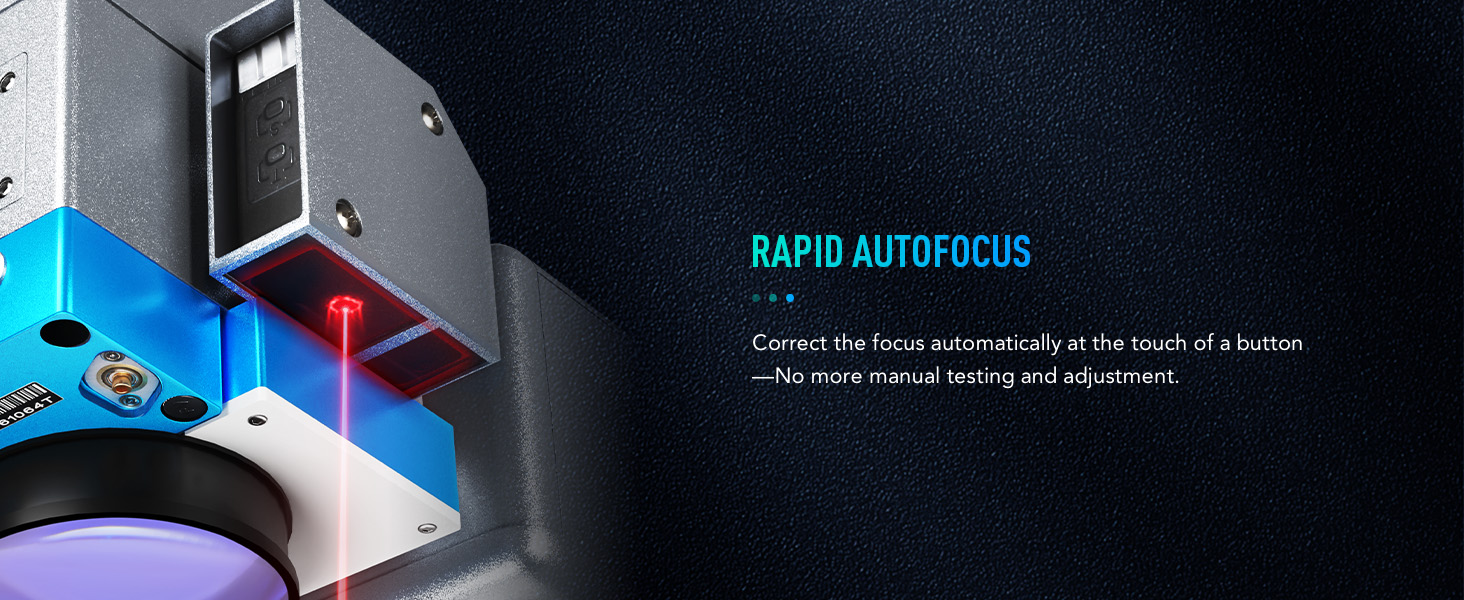

- Effortless Focusing: Achieve ultimate precision easily by choosing your preferred focusing method. Simply place the object on the workbed and press the autofocusing button or adjust the laser arm using the UP and DOWN buttons

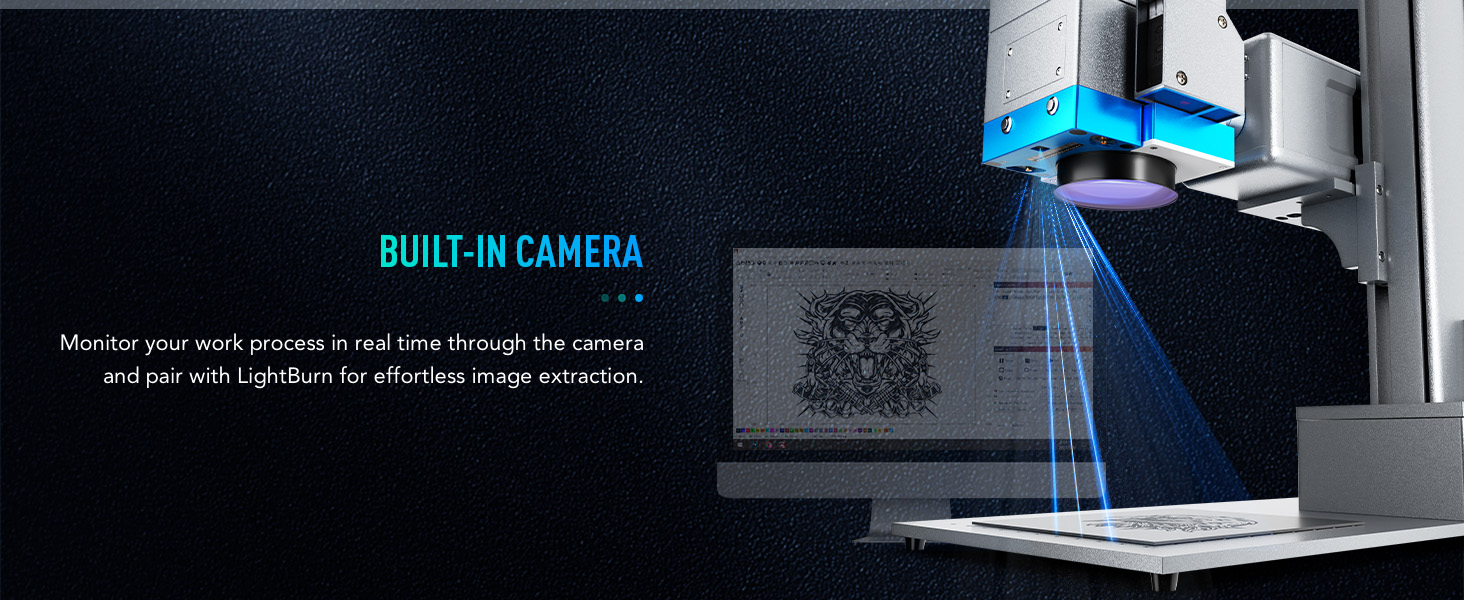

- See Clearly, Mark Perfectly: Experience real-time visibility with our built-in camera and achieve flawless marks with the galvanometer head, enhanced by supplementary lighting for optimal brightness in your work area

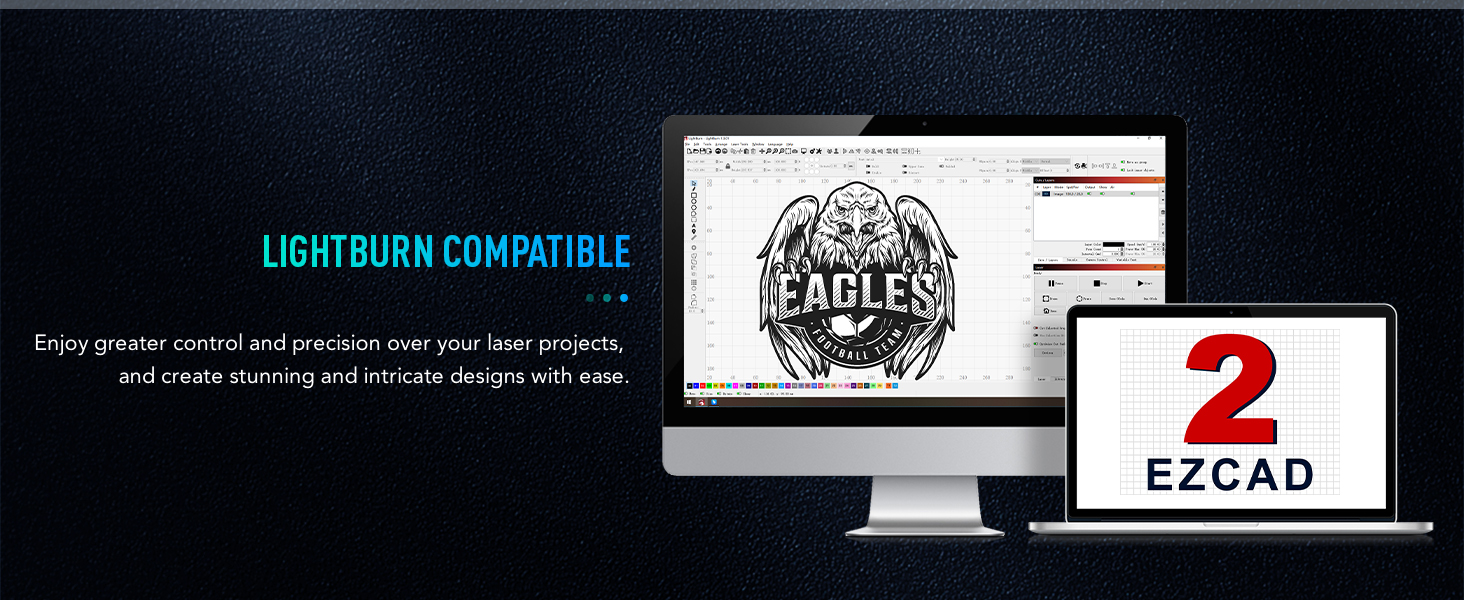

- LightBurn Compatible: Our fiber laser engraver includes the EZCad 2.0 software and is fully compatible with LightBurn software, providing a wide range of customizable features and user-friendly controls for a seamless marking experience
- Lightning-Fast Marking Speed: Equipped with the G3pro-Vision galvanometer, our laser class 2 (874 mW output power) fiber laser machine offers a remarkable marking speed of 7000 mm/s, significantly saving working time for time-sensitive projects

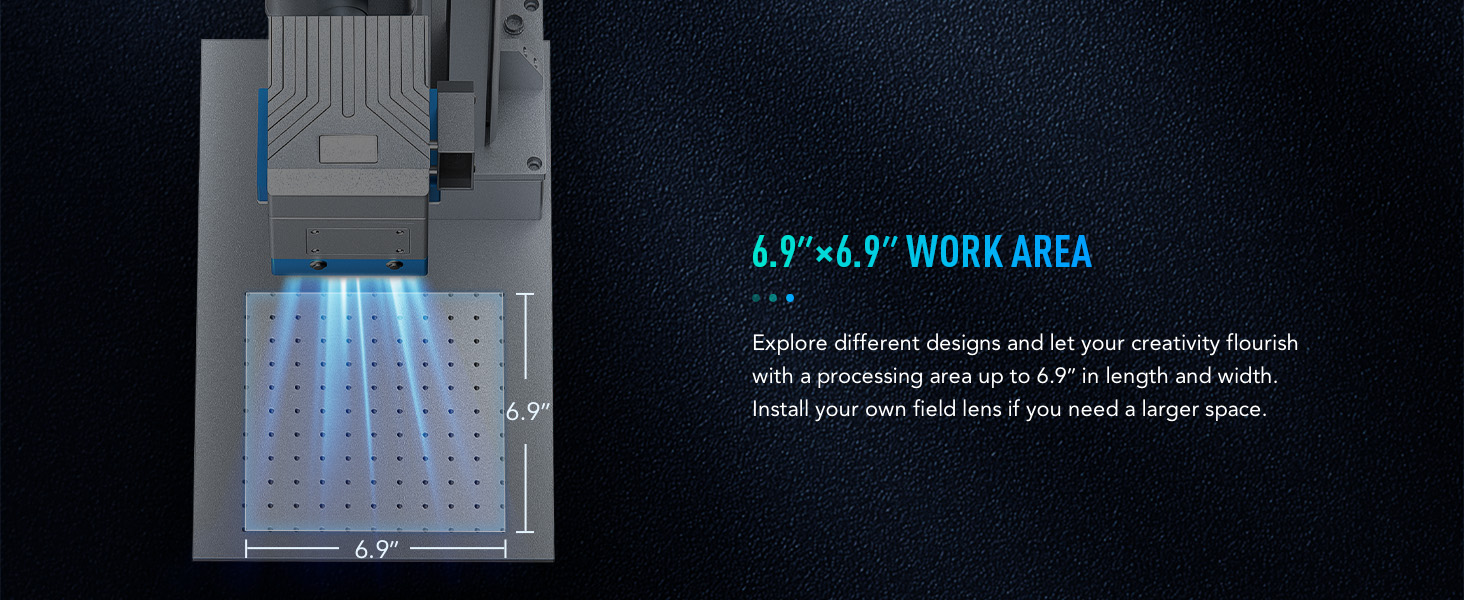

- Spacious Work Area: Our fiber laser marker features a 6.9x6.9 inch (17.5x17.5 cm) bed with a built-in workspace grid, providing ample room for a wide range of projects, from intricate jewelry to personalized electronics
Specifications
Laser Source: JPT
Galvanometer Source: G3pro-Vision
Output Power: 50W
Laser Wavelength: 1064 nm
Frequency Range: 1-600 kHz
Marking Area: 6.9 x 6.9 in. (175x175 mm)
Max. Marking Speed: 275.6 ips (7000 mm/s)
Max. Marking Depth: 0.004 in. (0.1 mm) on a single pass
Autofocus Height Range: 3.2-19.6 in. (80-500 mm)
Laser Precision Accuracy: ±0.000004 in. (±0.1 μm)
Autofocus Precision Accuracy: ±0.004 in. (±0.1 mm)
Est. Laser Service Life (MTTF): 100,000 hr.
Operating Software: EzCad2 or LightBurn
Mounting Bracket VESA Sizes: 50x50, 75x75, 100x100
Mounting Bracket Capacity: 17.6 lb. (8 kg)
Overall Dimensions: 15.2 x 27.6 x 28.3 in. (385x700x720 mm)
Net Weight: 106 lb. (48 kg)
Warranty: 1-year warranty on machine parts and hardware (3-month warranty on laser tubes and power supplies)
Package List
1x 50W Fiber Laser Marking Machine
1x Tool Box
1x Monitor Mounting Bracket
1x Ruler
1x Instructional Manual
