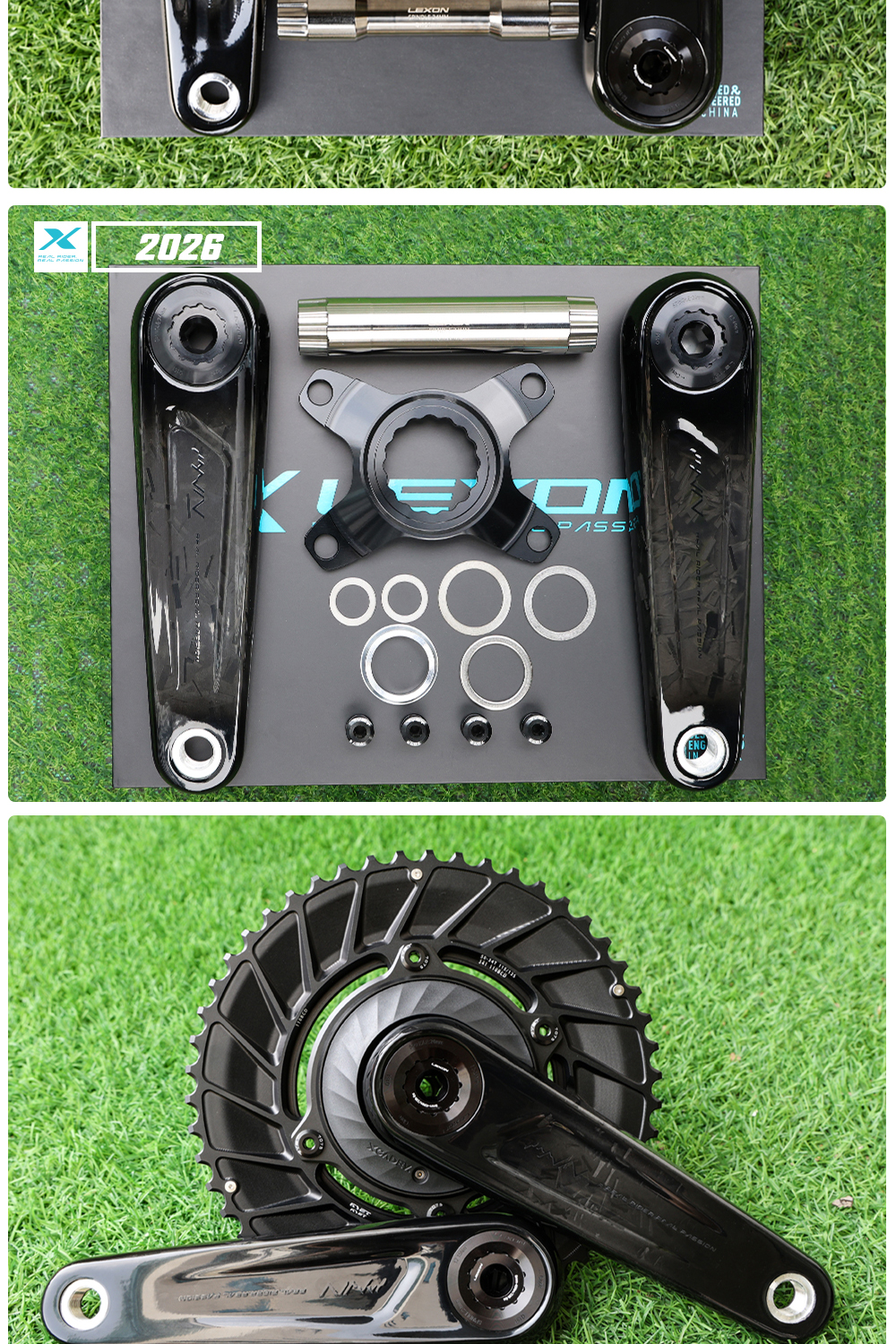

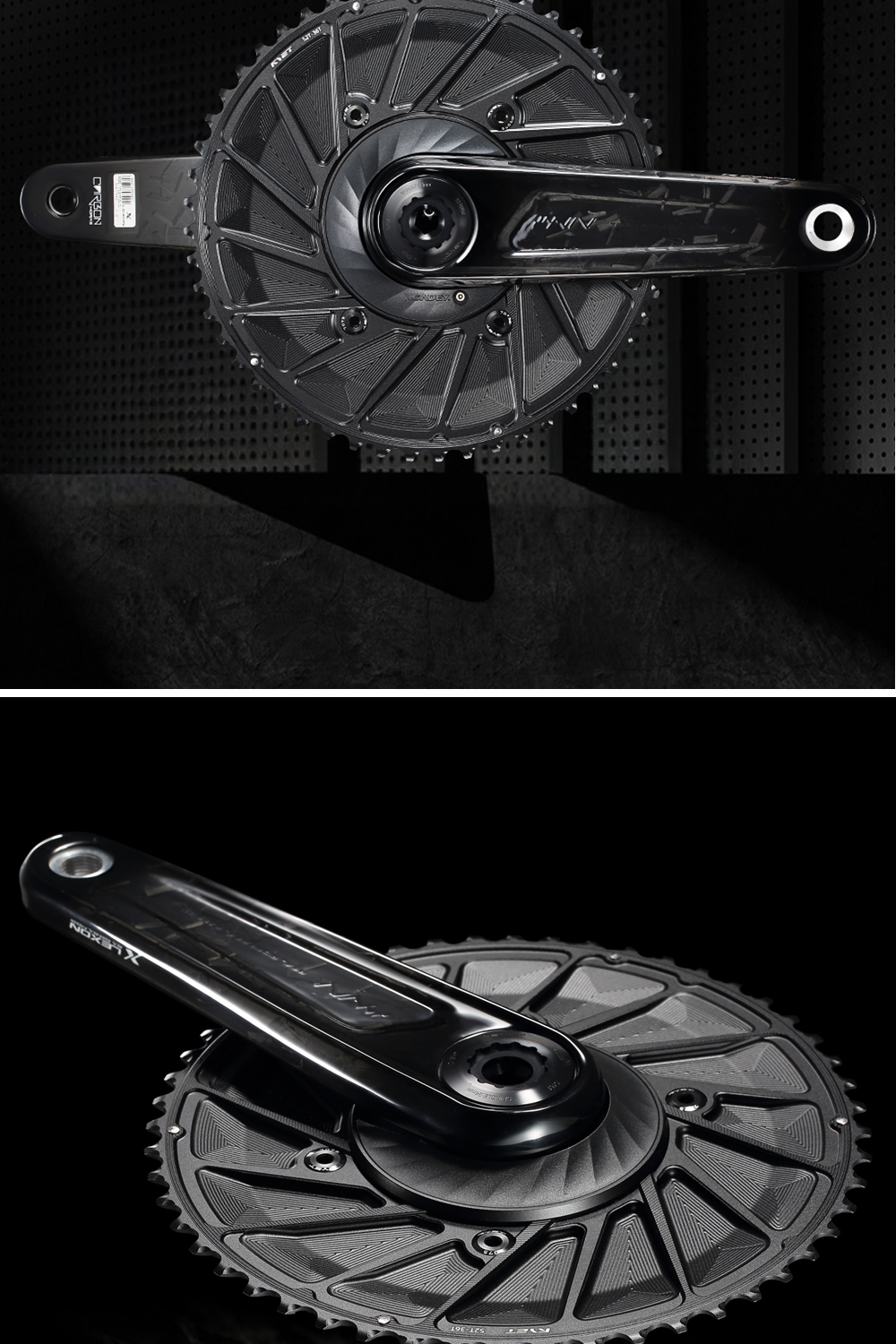

LEXON Road Full Carbon Cranksets Superlight Bicycle Cranks 325g 24mm Titanium Spindle 165/167.5/170/172.5/175MM Cycling Parts

• Brand:LEXON

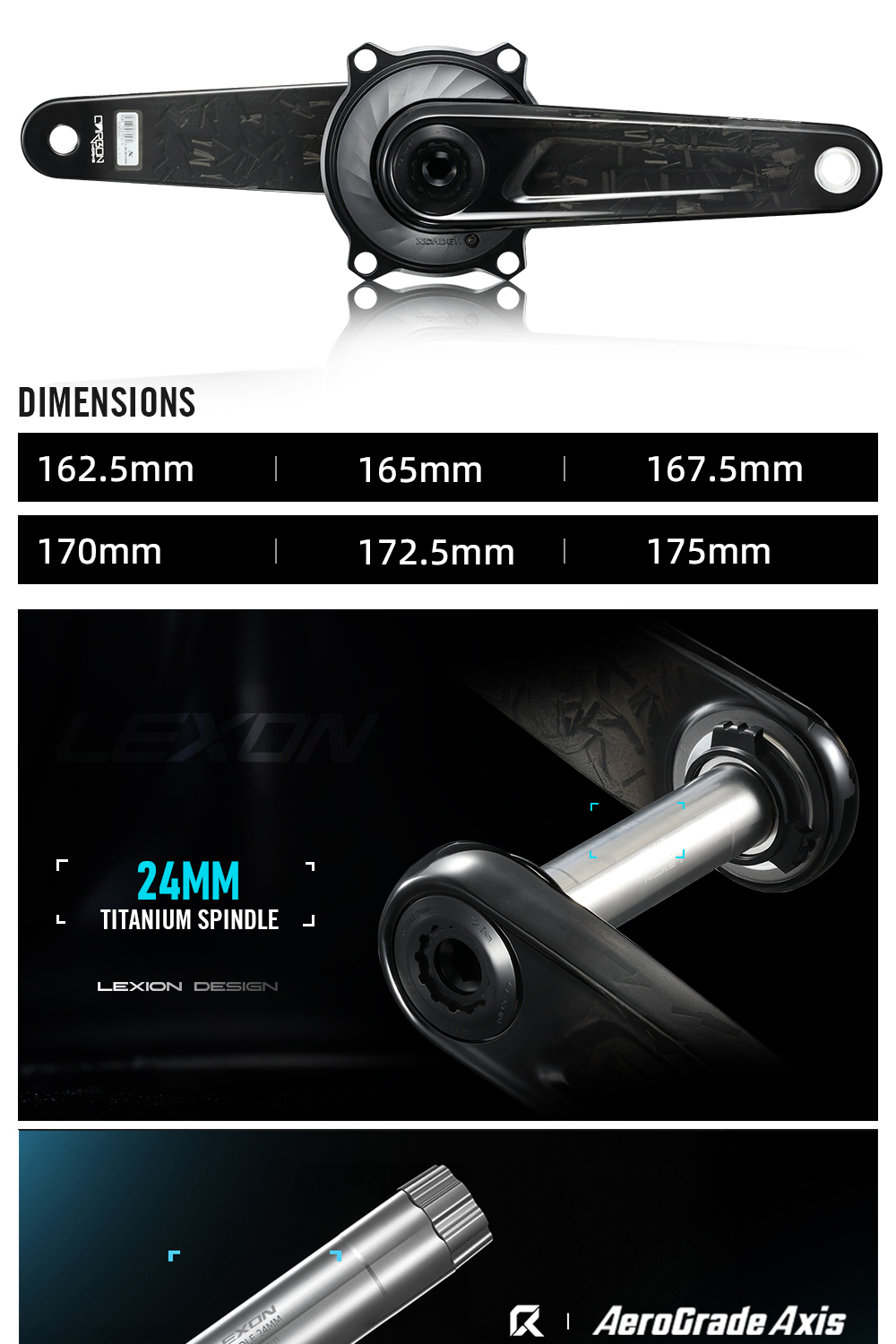

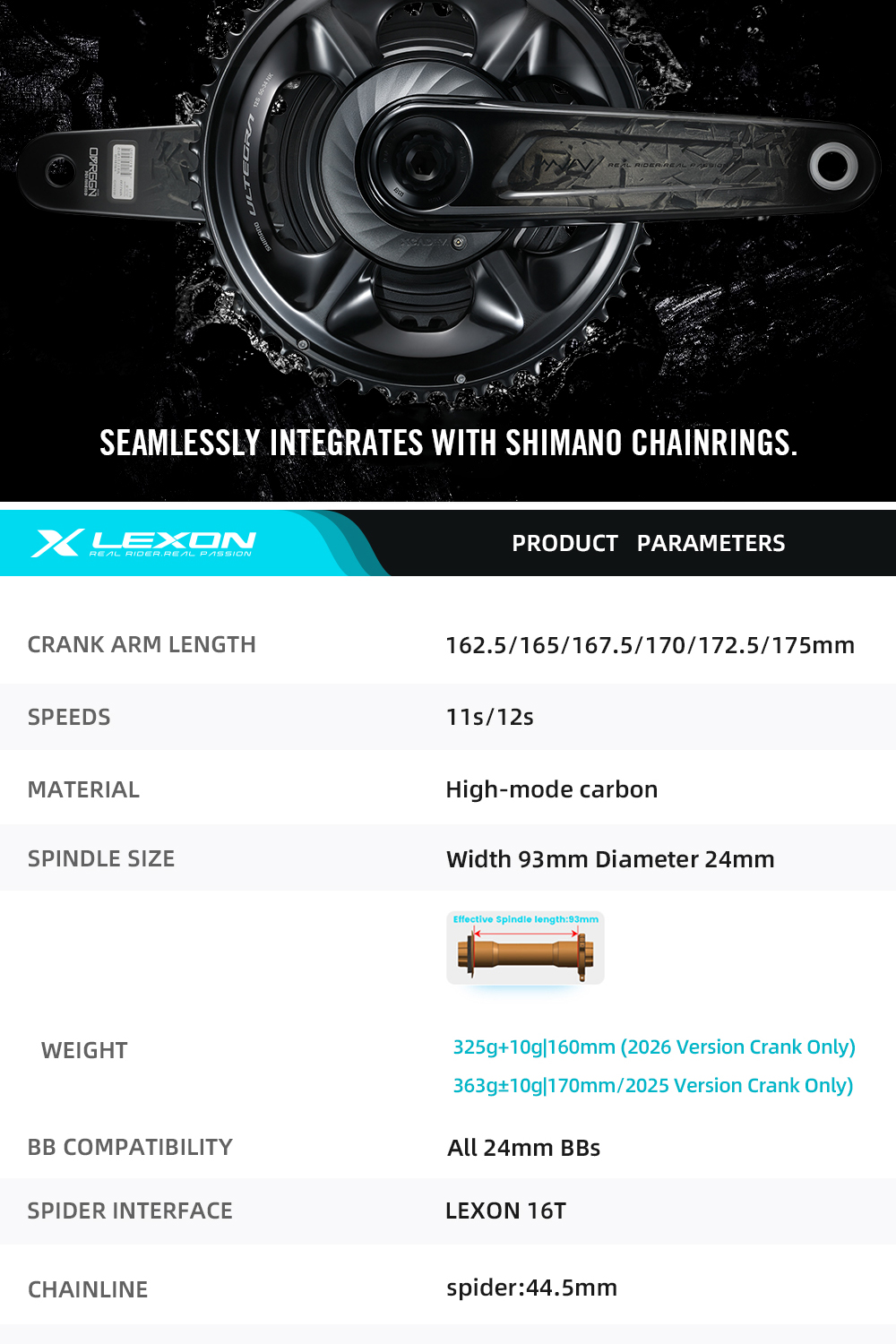

• Crank Arm Length: 162mm/165mm/167.5mm/170mm/172.5mm/175mm

• Crankset Speed: 11S/12S

• Bike Crank Materials: High-Mode Carbon

• Crank Spindle Size: Width 93mm Diameter 24mm

• BB Compatibility: All 24mm BBs

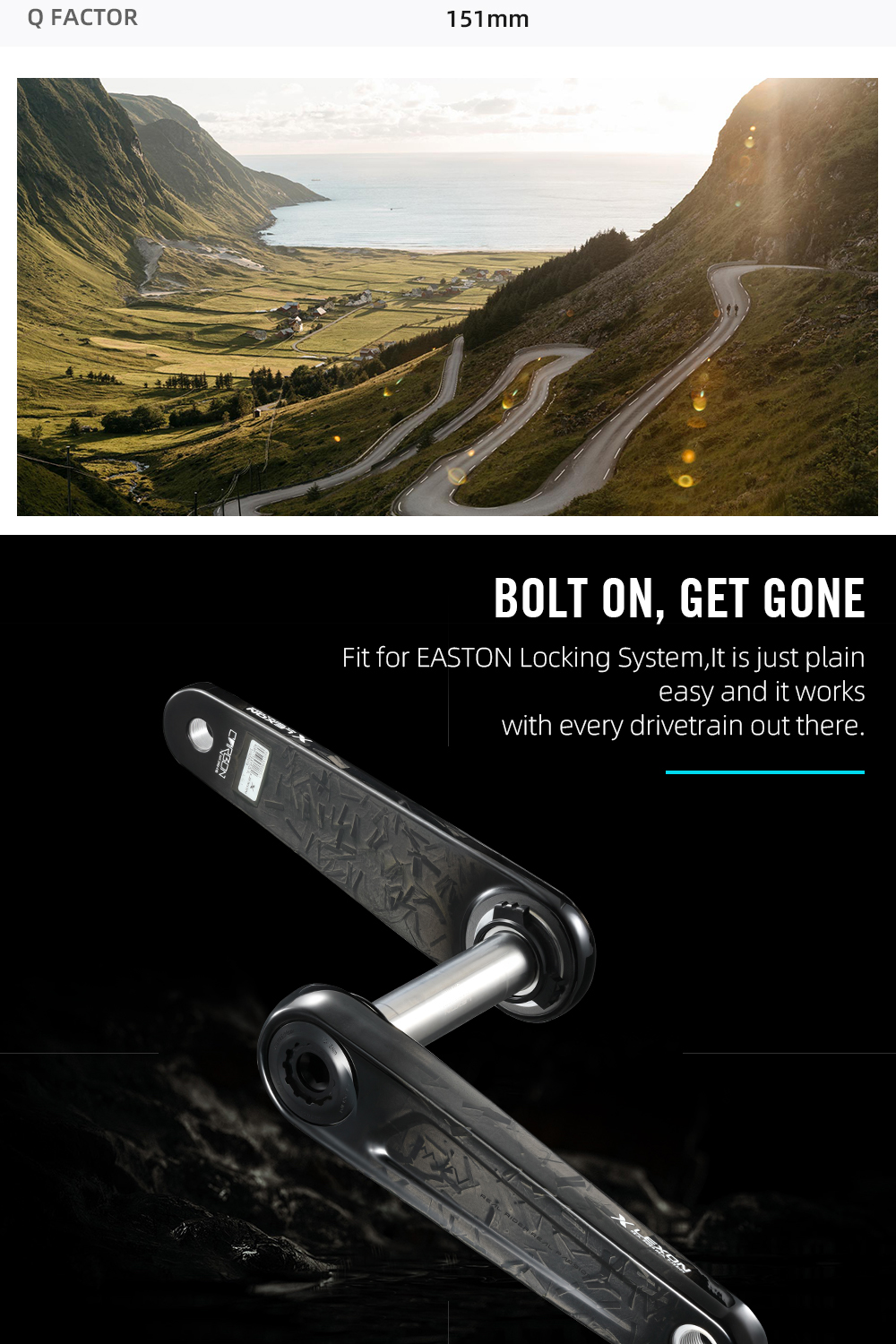

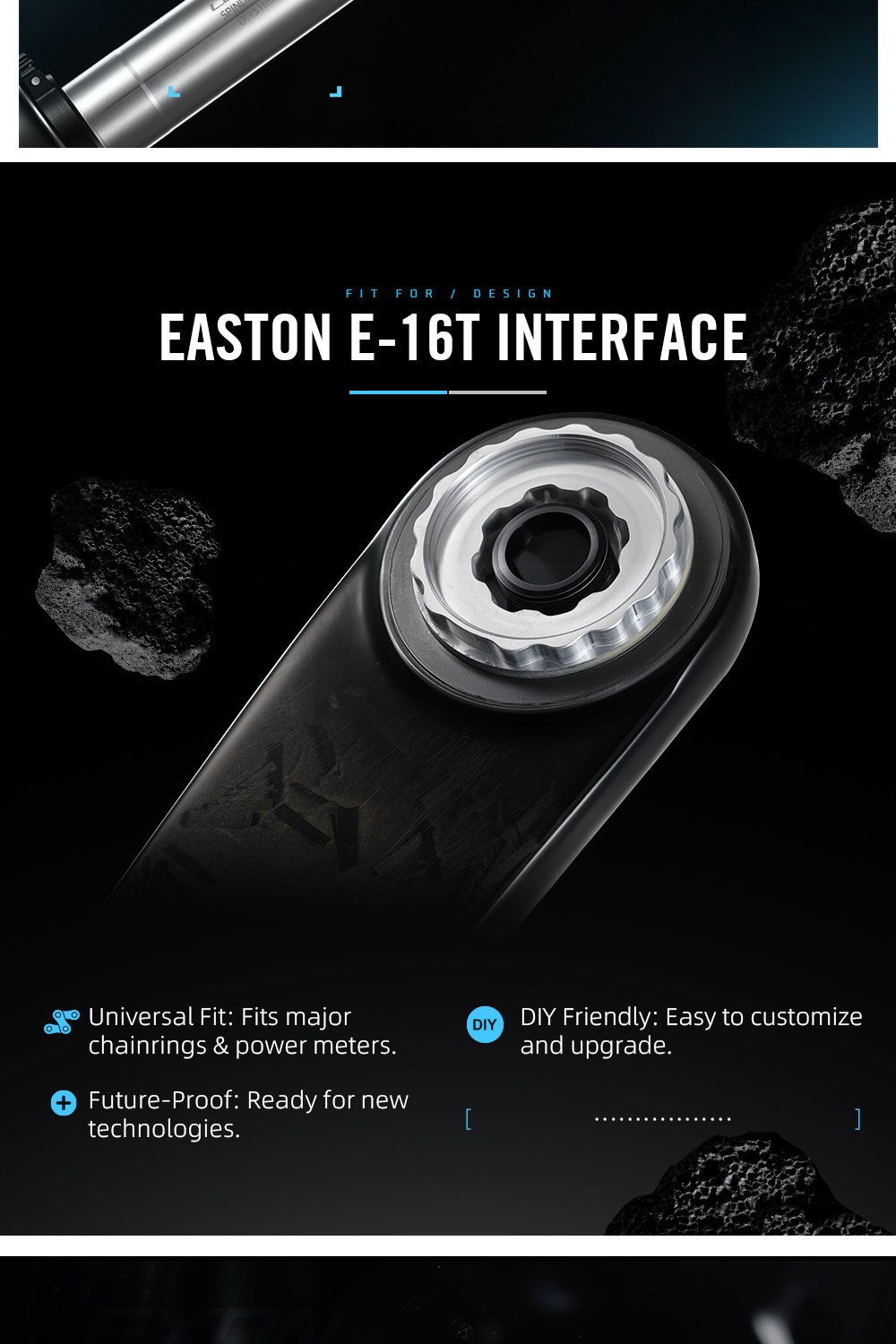

• Spider Interface: LEXON 16T,Fits for Easton

• Cranksets Chainline:44.5mm

• Spider:  LEXON 16T

• Bike Crank Q Factor: 151mm

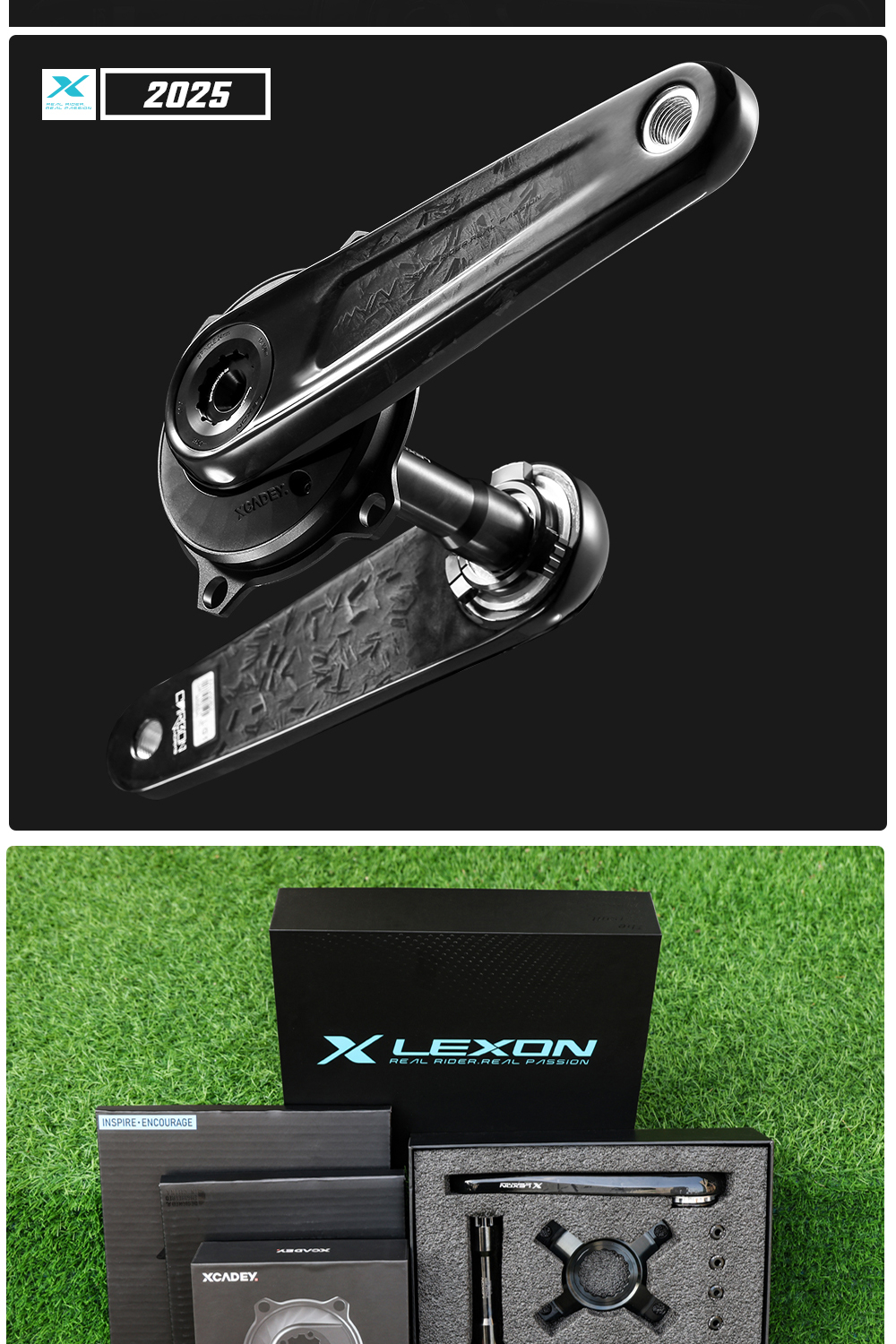

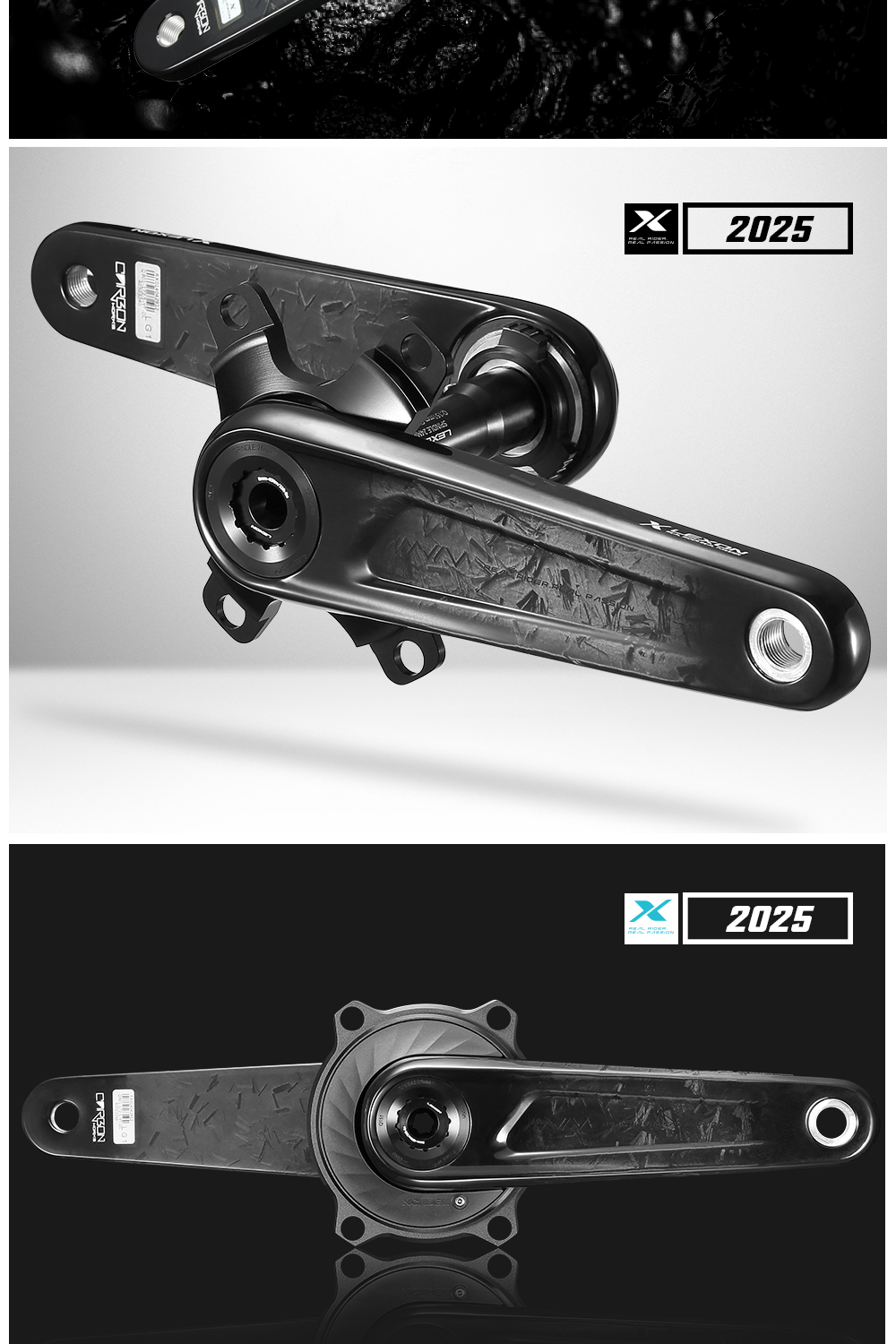

• 2025 R2: Titanium Alloy, Black coated

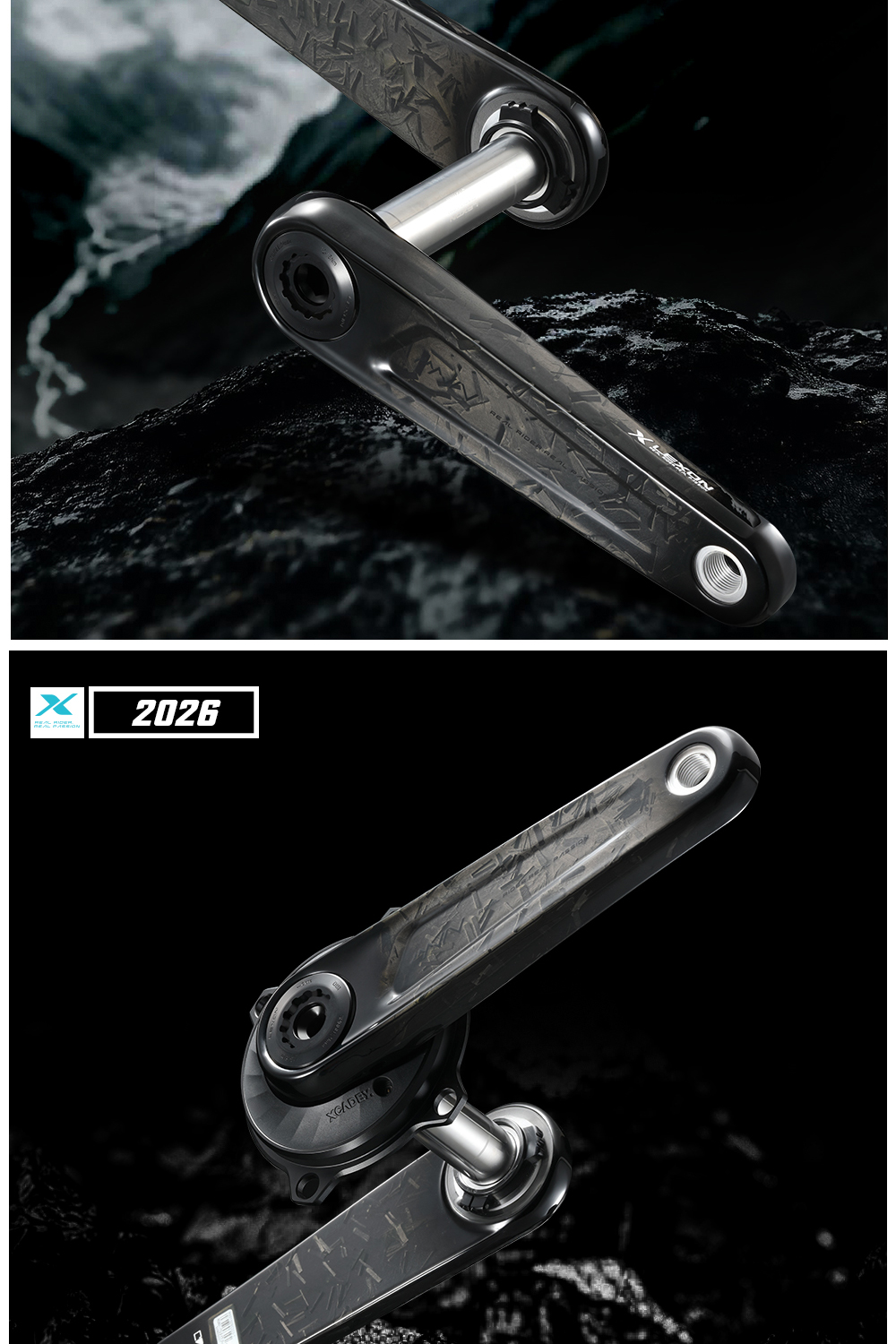

• 2026 R2SRaw titanium,optimized lightweight design

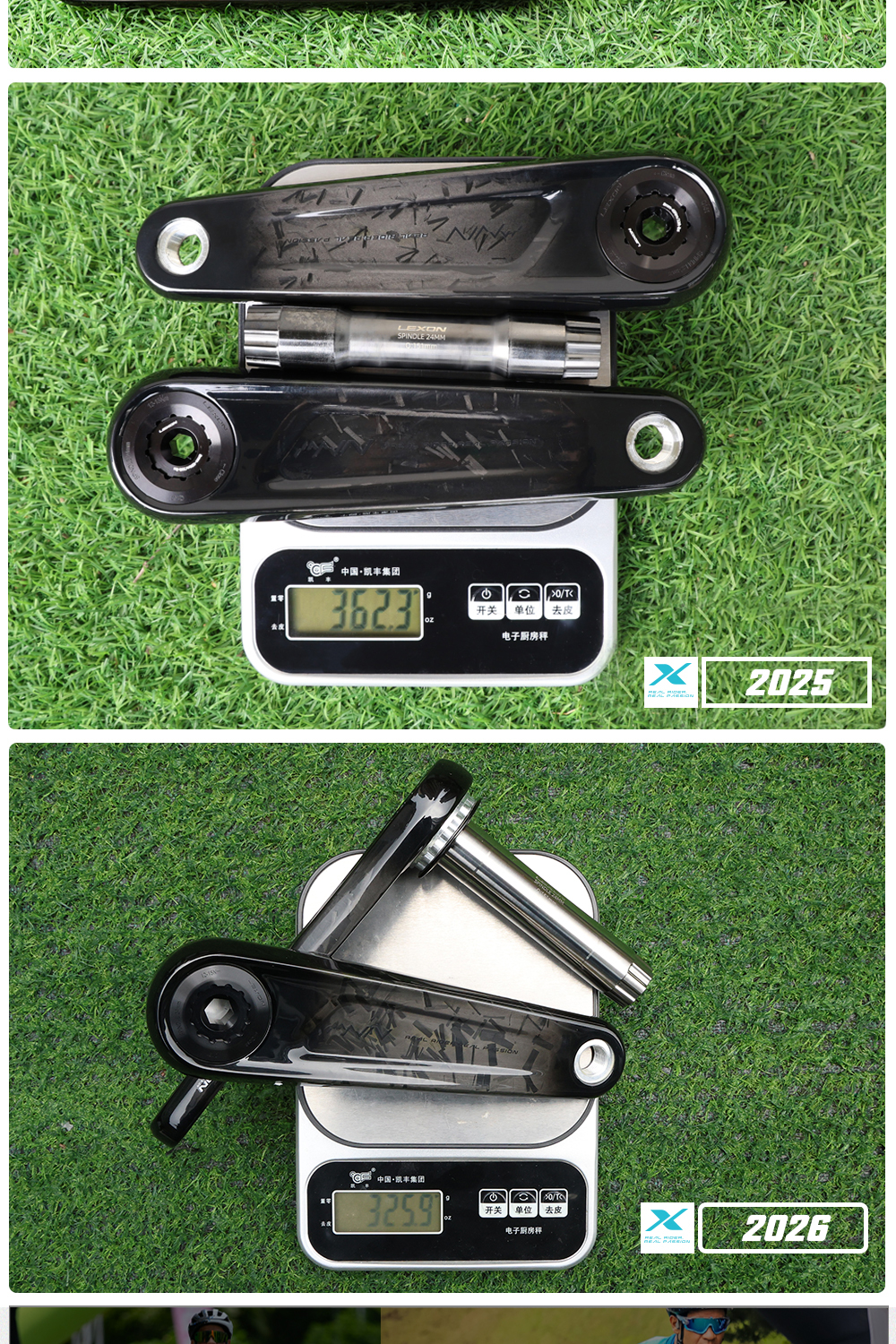

• Weight:  2025 R2 365g  (165mm Cranksets only,Spider not inclued )

                        2026 R2S 325g (165mm Cranksets only,Spider not inclued )

• Warranty:1-Year

Cranksets Feature

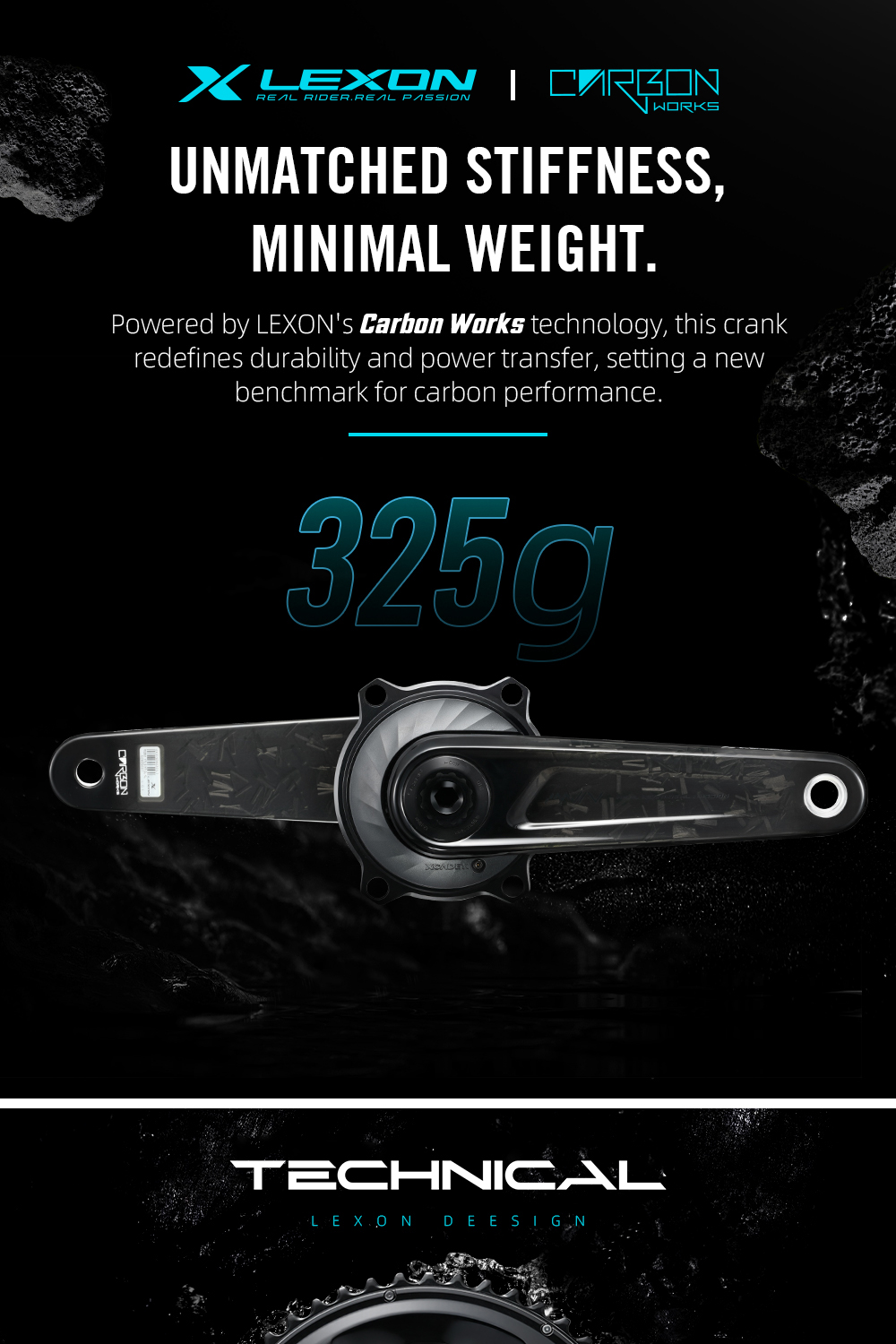

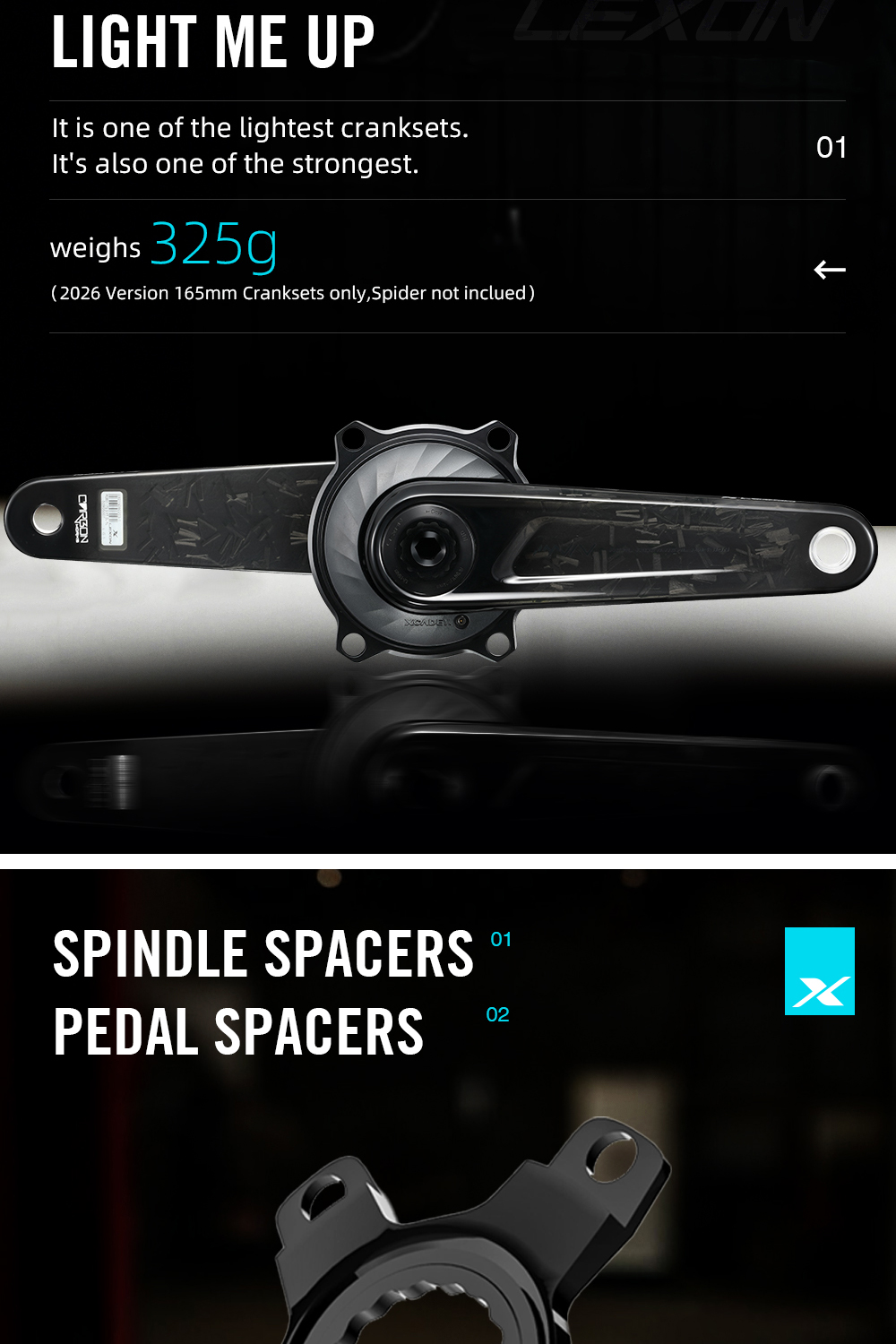

• Using Toray high modulus carbon fiber, crankset only 325g (2026 R2S 165mm Cranksets only,Spider not inclued )

• Super high rigidity, the second generation of dual-channel technology improves crank rigidity by 12%

• Highly compatible 24mm axle, adaptable to more frames

• Titanium axle core brings unimaginable rigidity and durability

• Passed 1800N 14w crank fatigue test and 5600N crank damage test, far exceeding EU standards

2026 R2S CRANKSETS SIGNIFICANCE :

• A reduction of 40g. Achieved through comprehensive design

• The 2026 spindle features a new surface finish and redesigned geometry, contributing significantly

• The 2026 model's refined design yields an improved strength-to-weight ratio while maintaining stiffness.

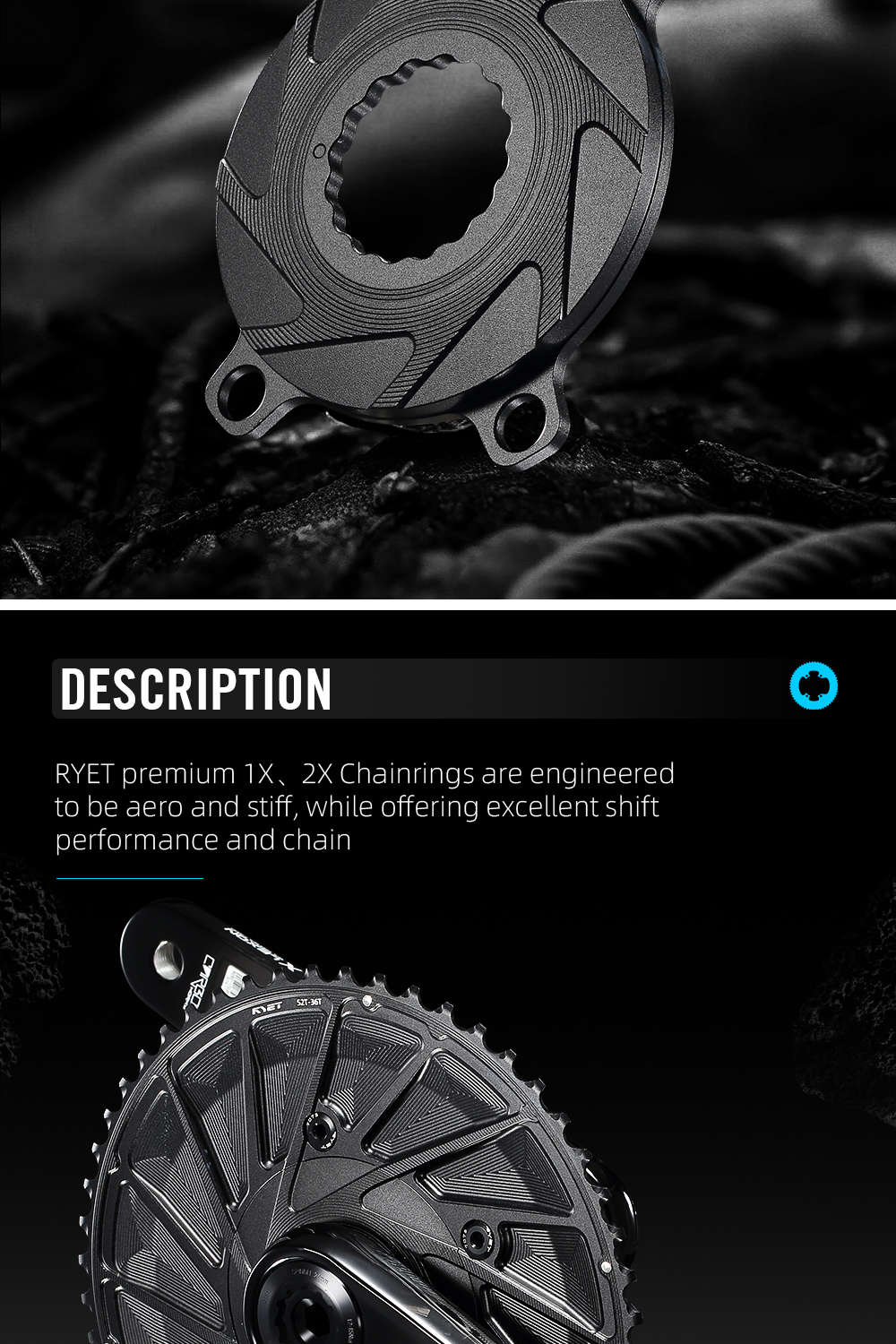

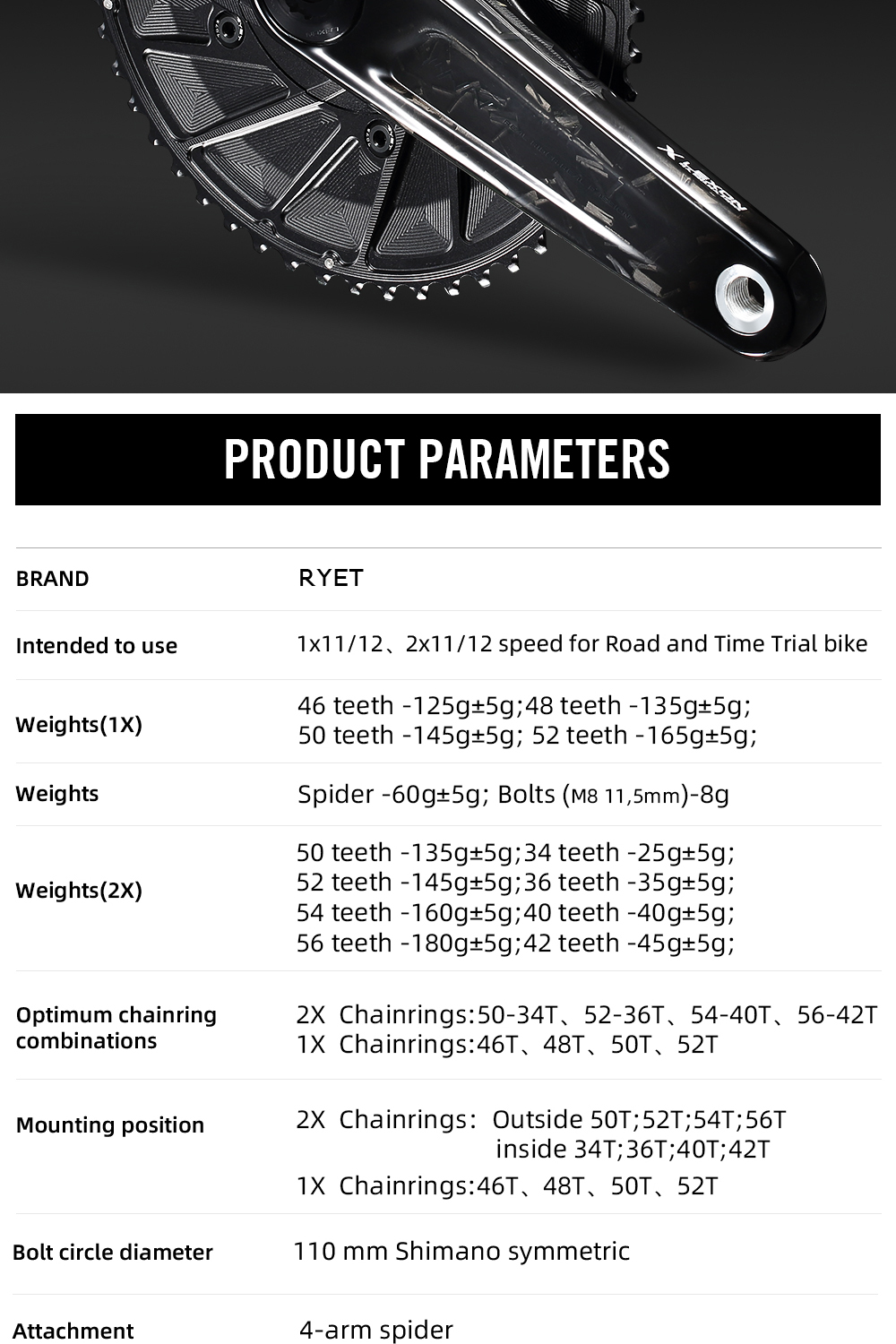

LEXON EVO CHAINRINGS

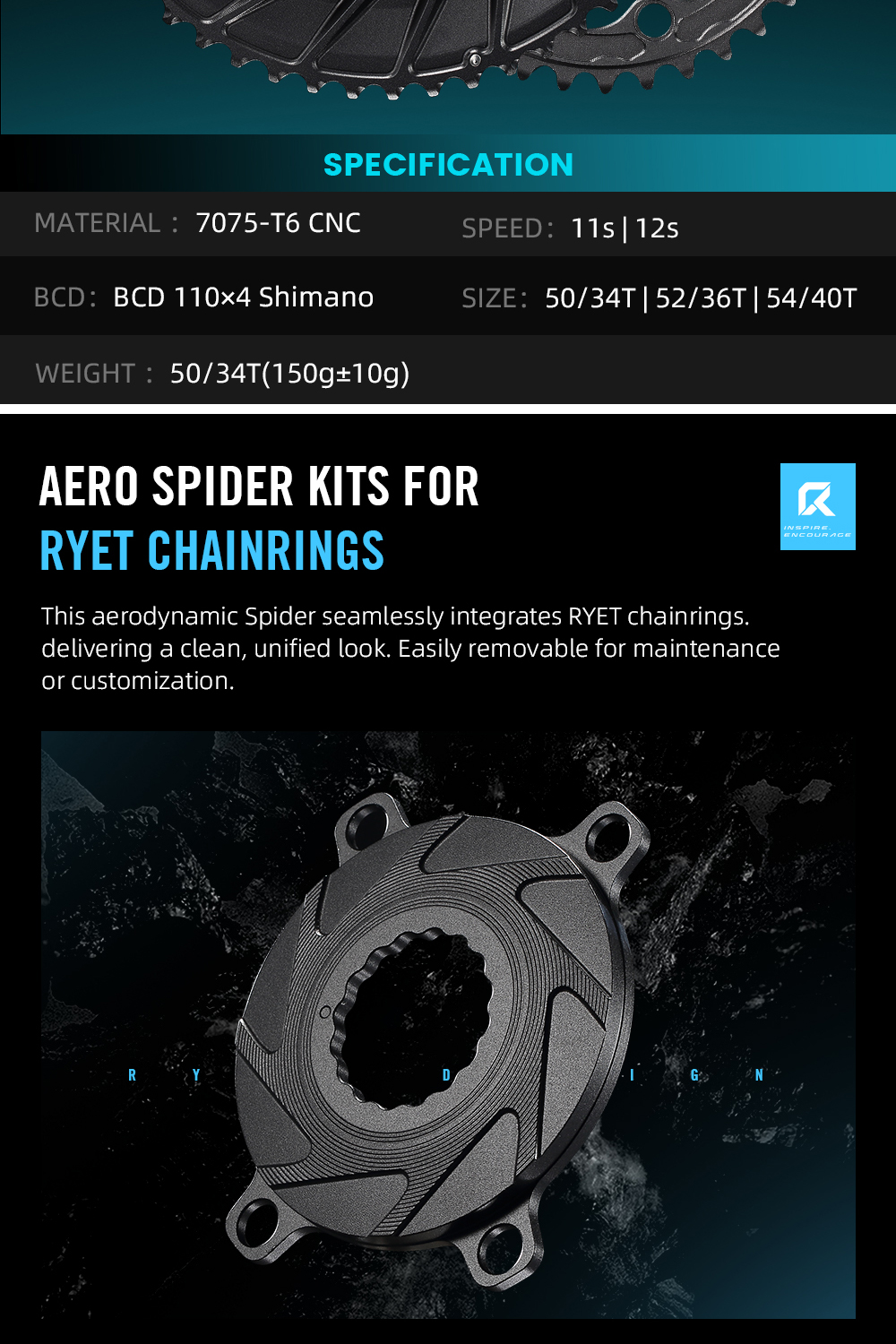

• MATERIAL:AL 7075-T6 CNC

• SPEED:11s; 12s

• BCD BCD 110×4 Shimano®

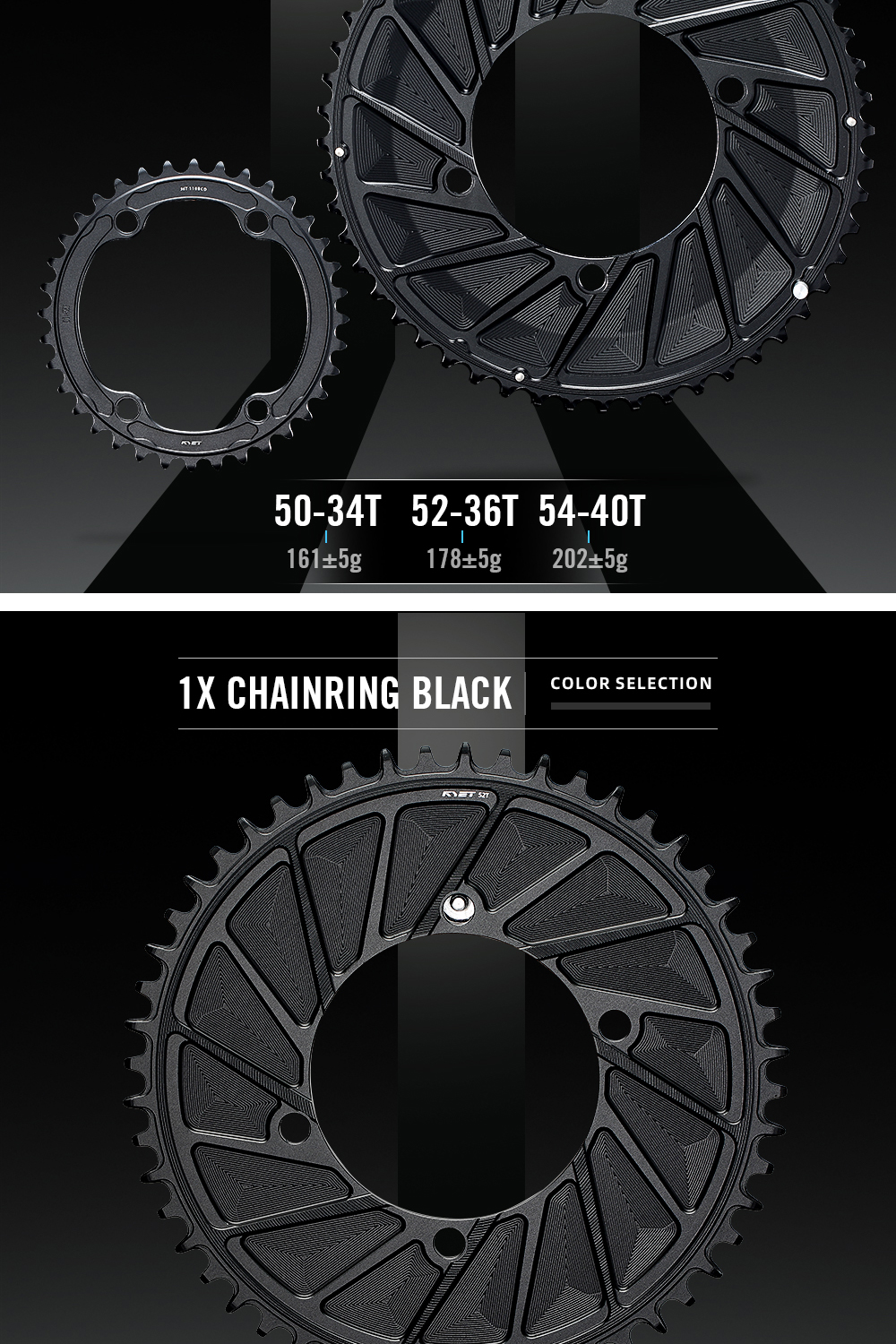

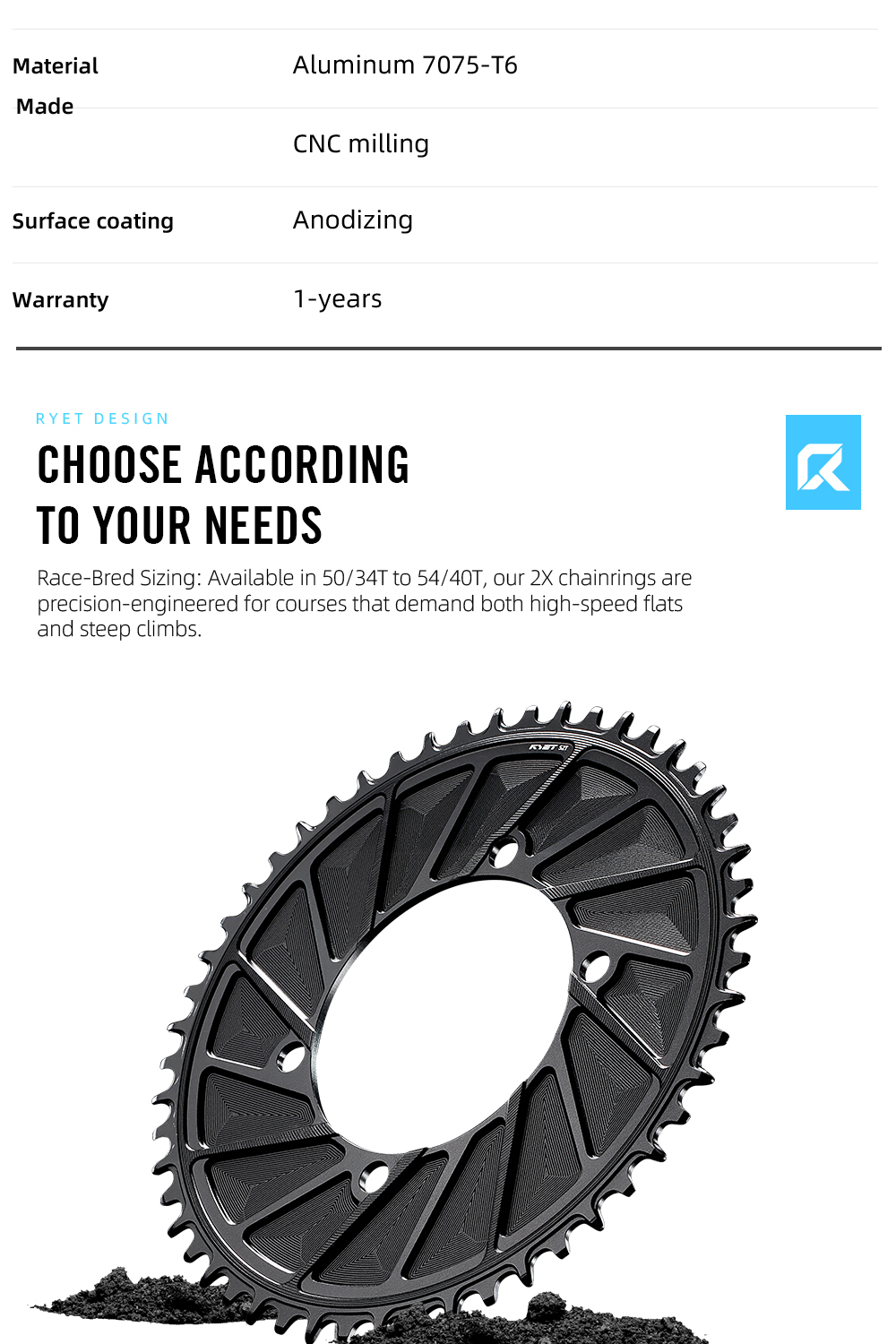

• Chainring SIZE:50-34T\52-36T \54-40T

• WEIGHT: 50-34T (150g±10g);
  52-36T (170g±10g);
  54-40T (175g±10g)
  (Chainring Only)

• Note:Not Fit with SHIMANO Cranksets Directly

*(Use LEXON Chainring Bolt Sets because the chainring is thicker)

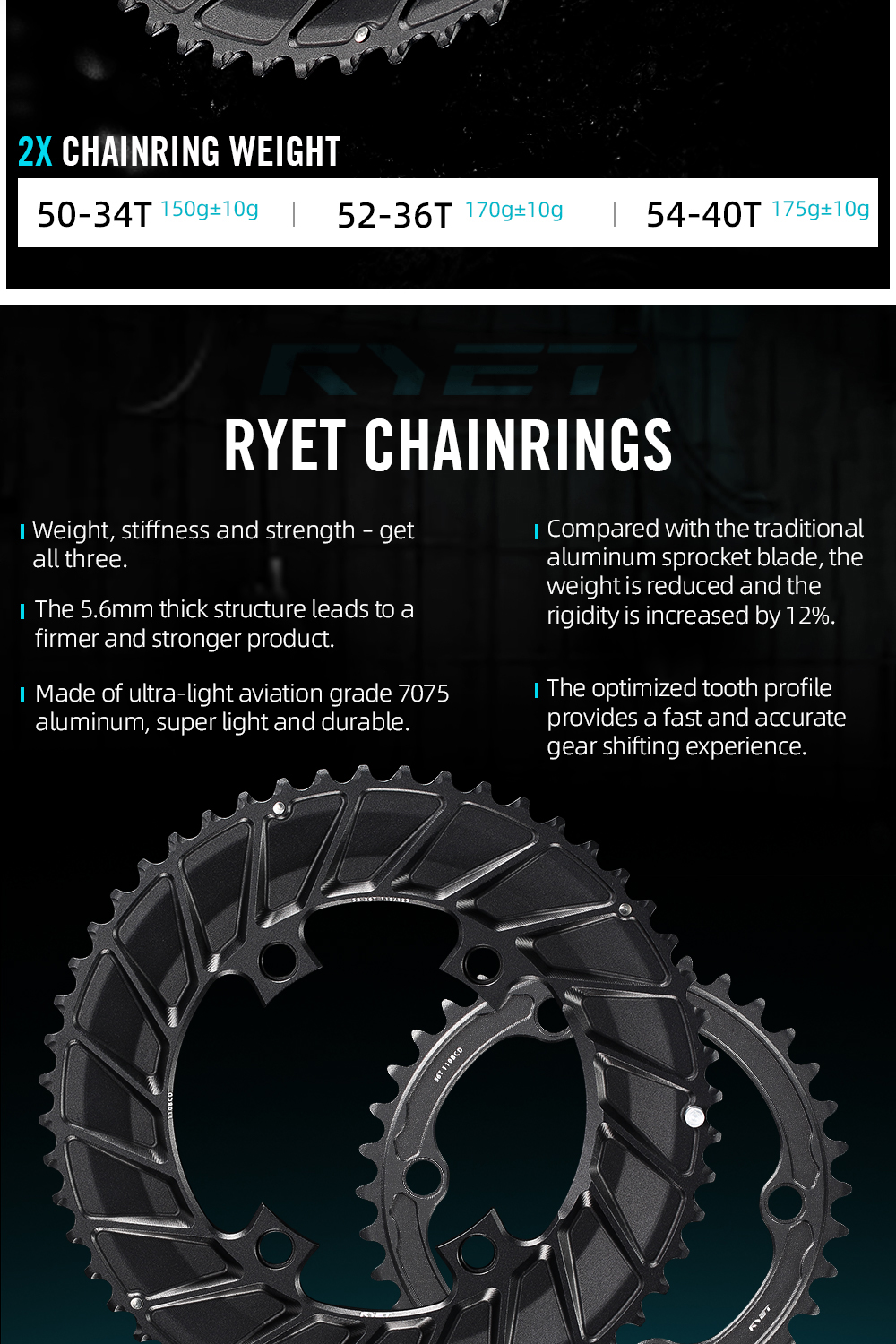

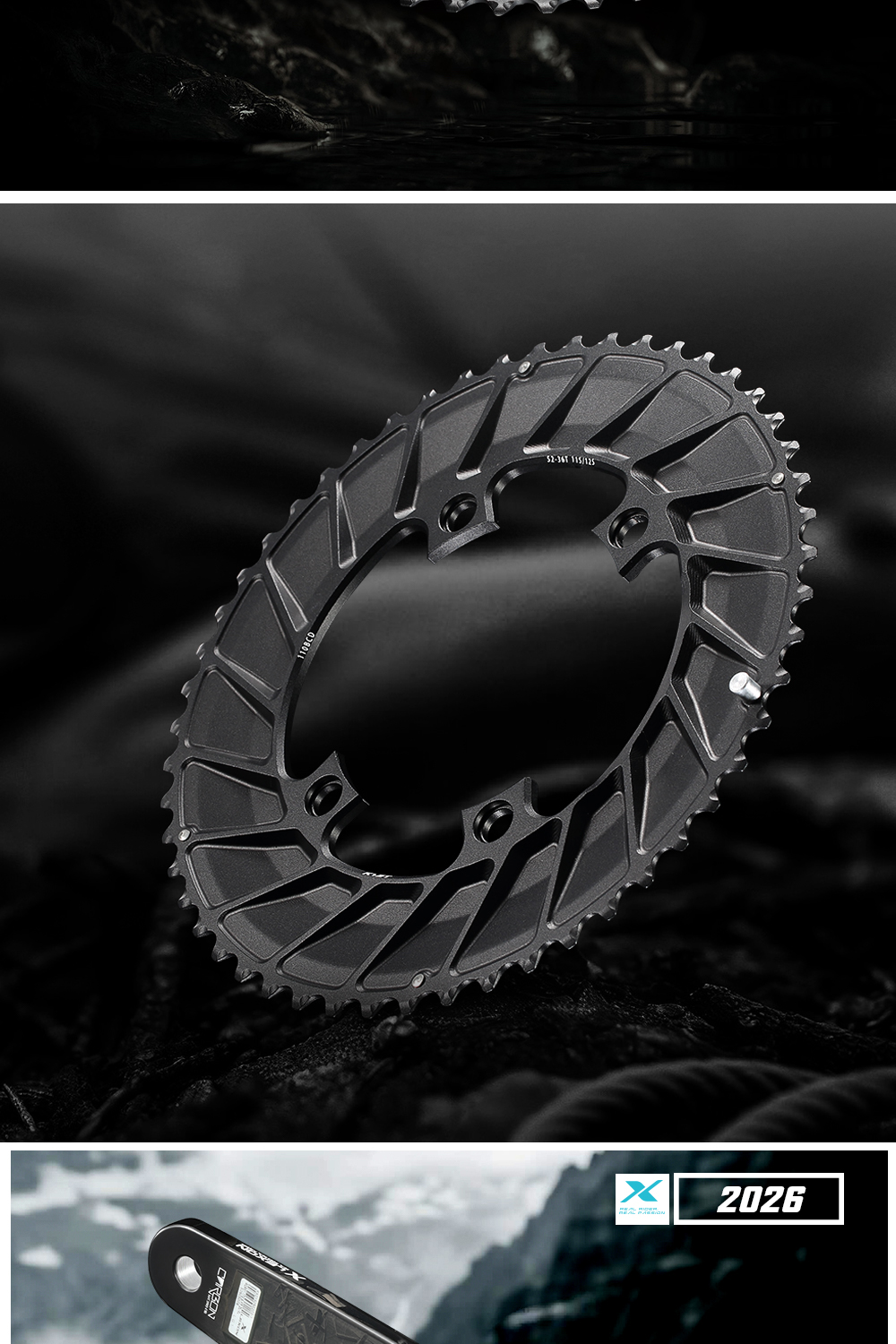

EVO CHAINRINGS 110×4 BCD

• Weight, stiffness and strength – get all three

• The 5.9mm thick structure leads to a firmer and stronger product

• The combination of high modulus carbon fiber and ultra light 7075 aviation grade aluminum is perfect

• Compared with the traditional aluminum sprocket blade, the weight is reduced and the rigidity is increased by 31%

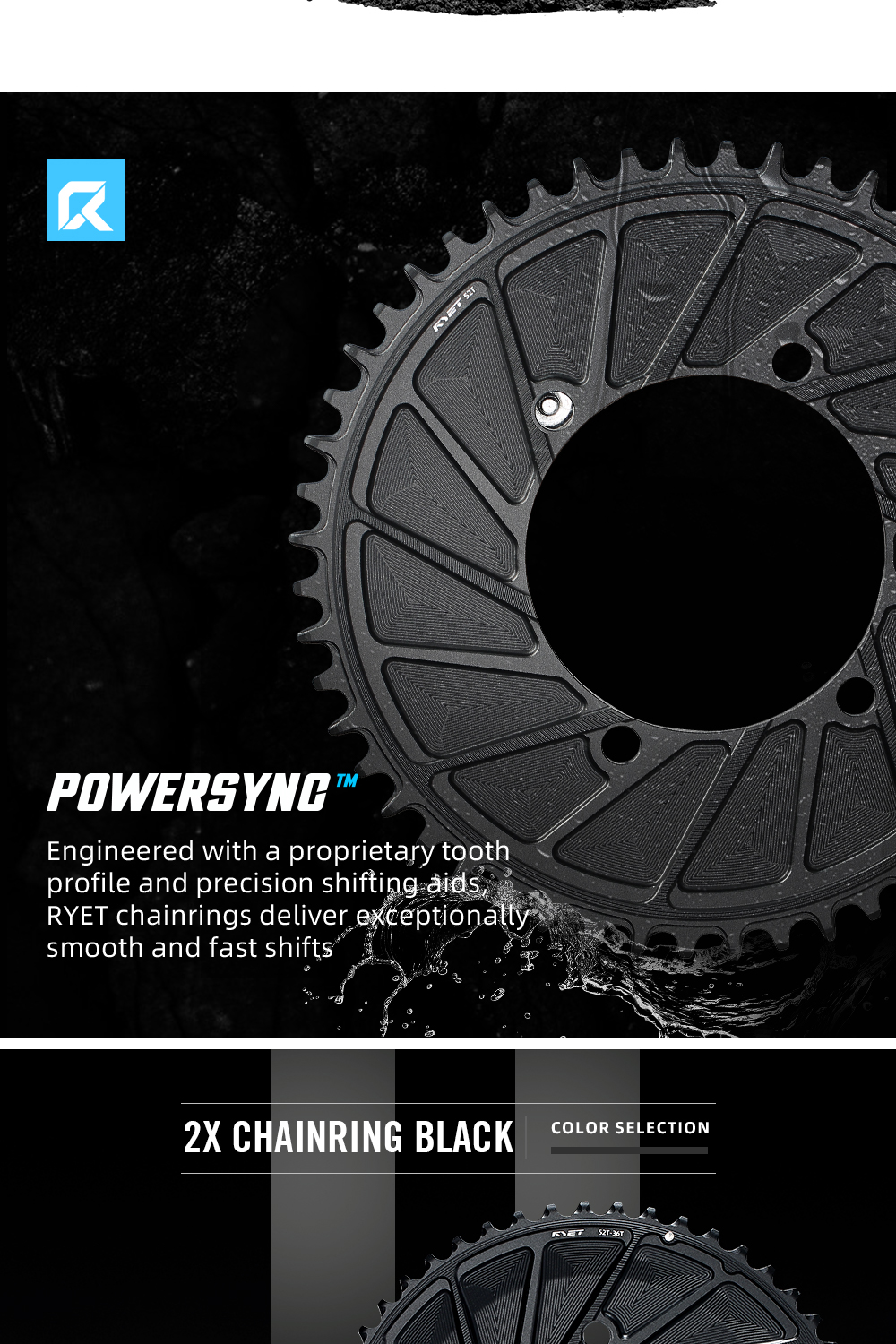

• The optimized tooth profile provides a fast and accurate gear shifting experience
