Road Bike Carbon Cranksets 11/12 Speed R1 29mm 162.5/167.5/170/175mm Superlight

Product Description

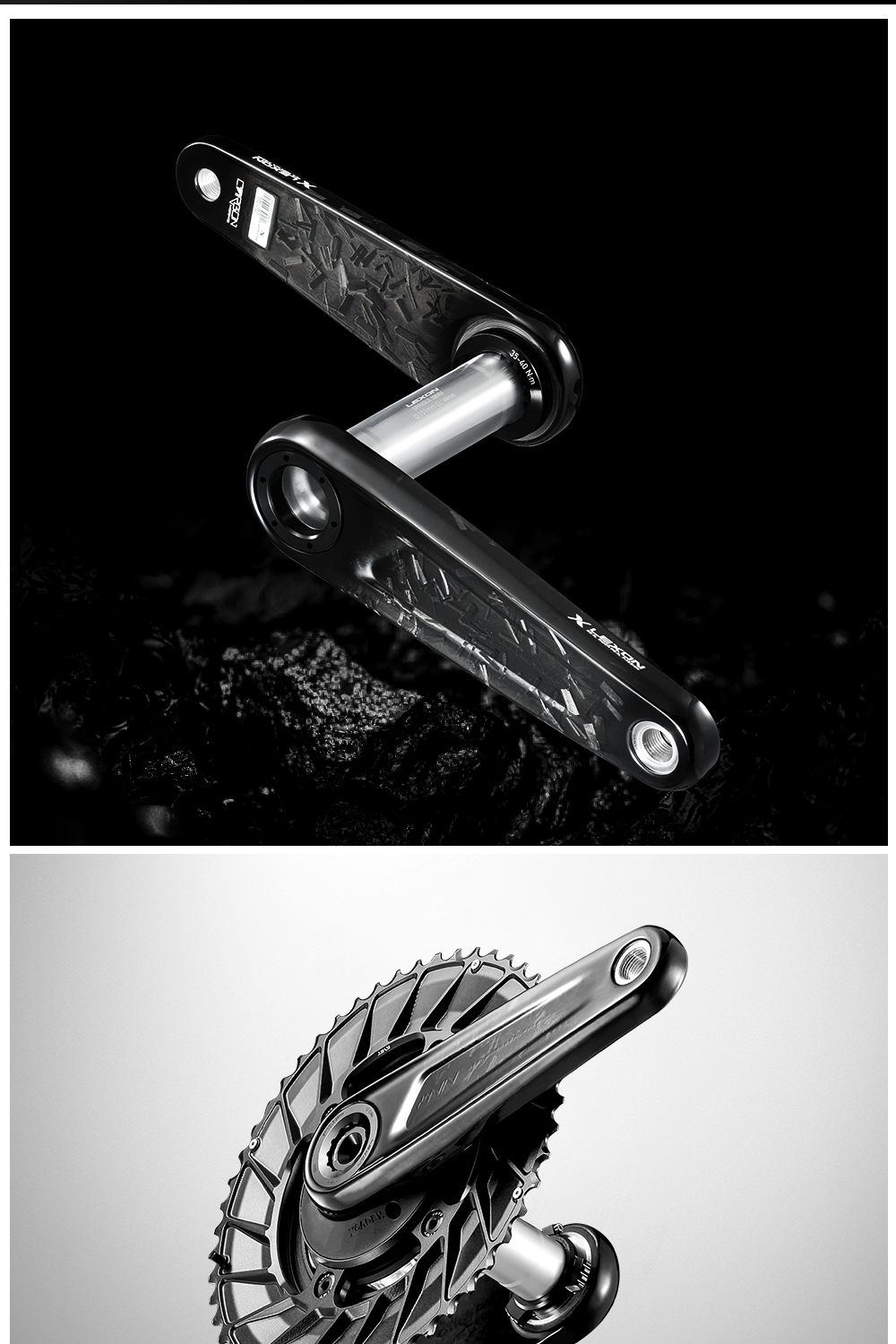

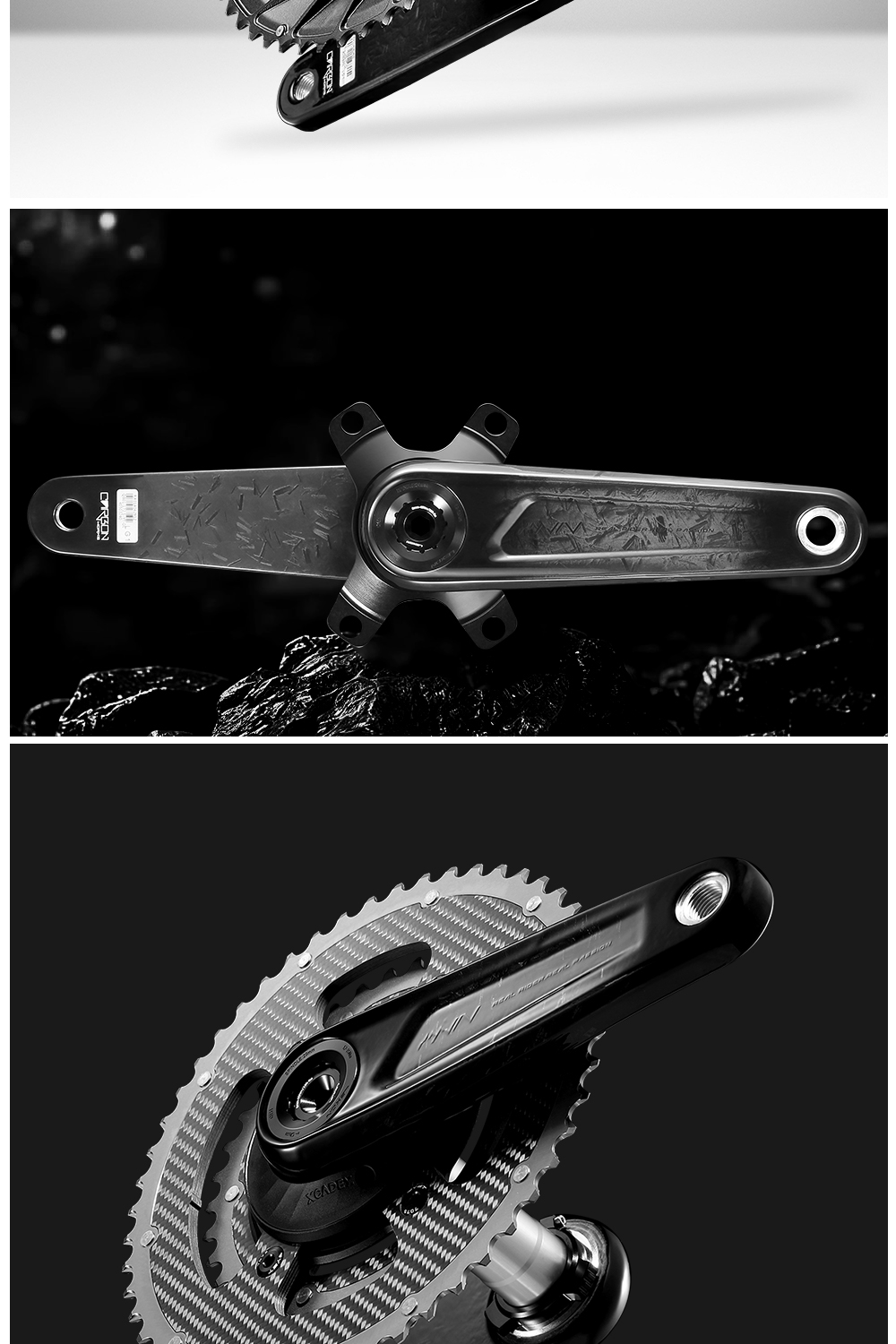

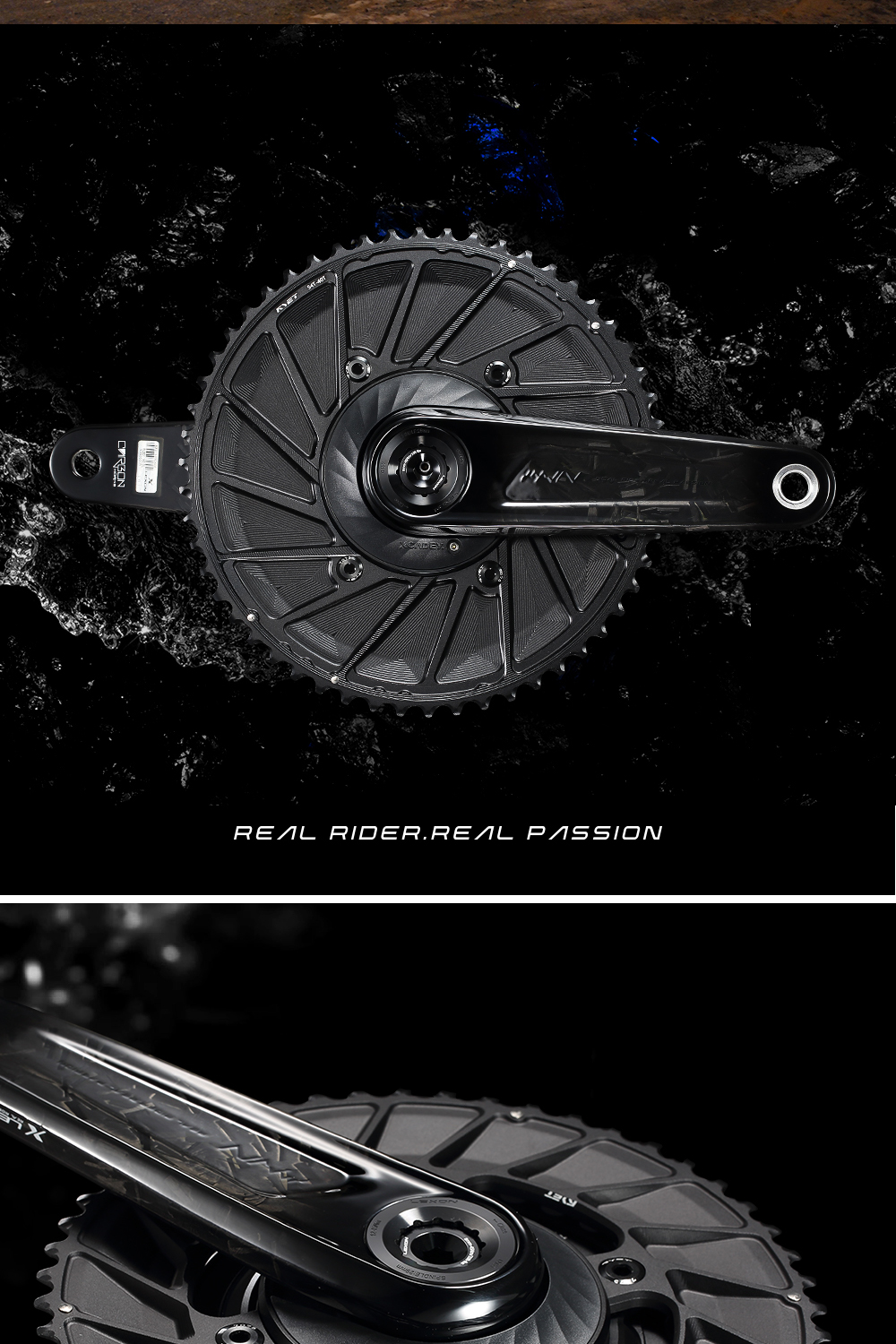

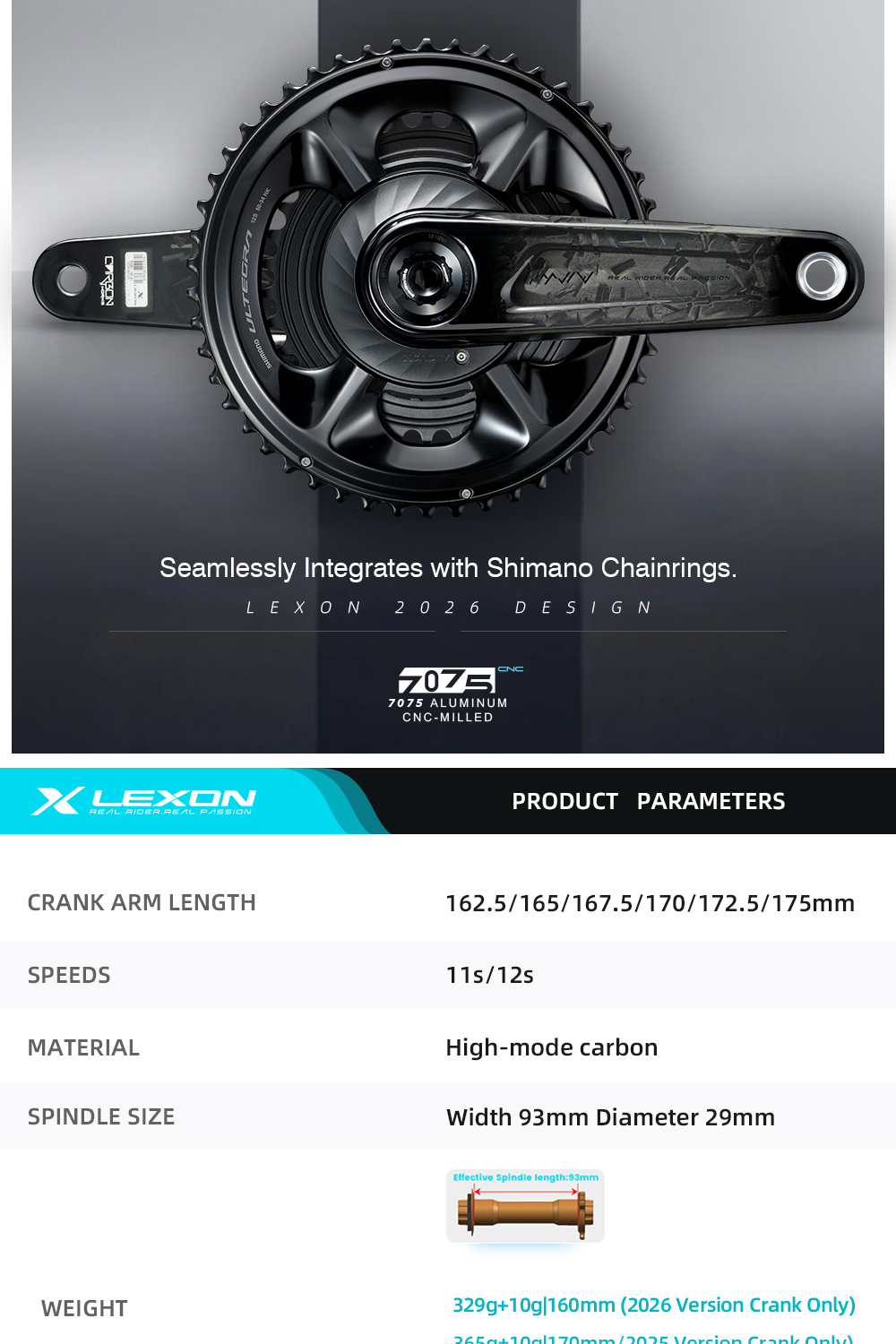

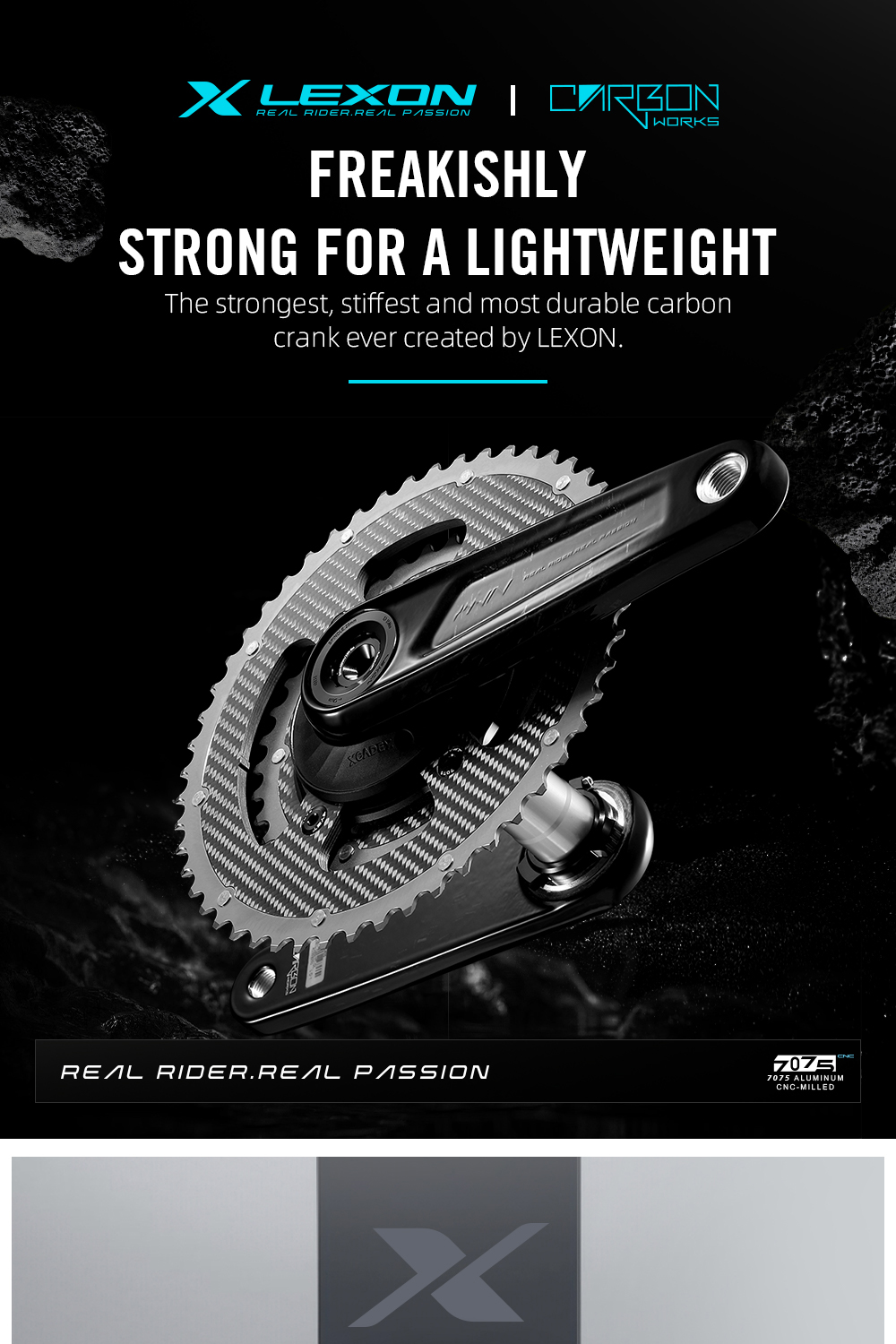

LEXON Superlight Carbon Road Crankset 329g – Full Carbon Cranks 29mm Spindle – 162.5/167.5/170/172.5/175mm Length Options – Ultra Lightweight Racing Crankset

  • Brand:LEXON

  • Crank Arm Length: 162.5mm/165mm/167.5mm/170mm/172.5mm/175mm

  • Crankset Speed: 11S/12S

  • Bike Crank Materials: High-Mode Carbon

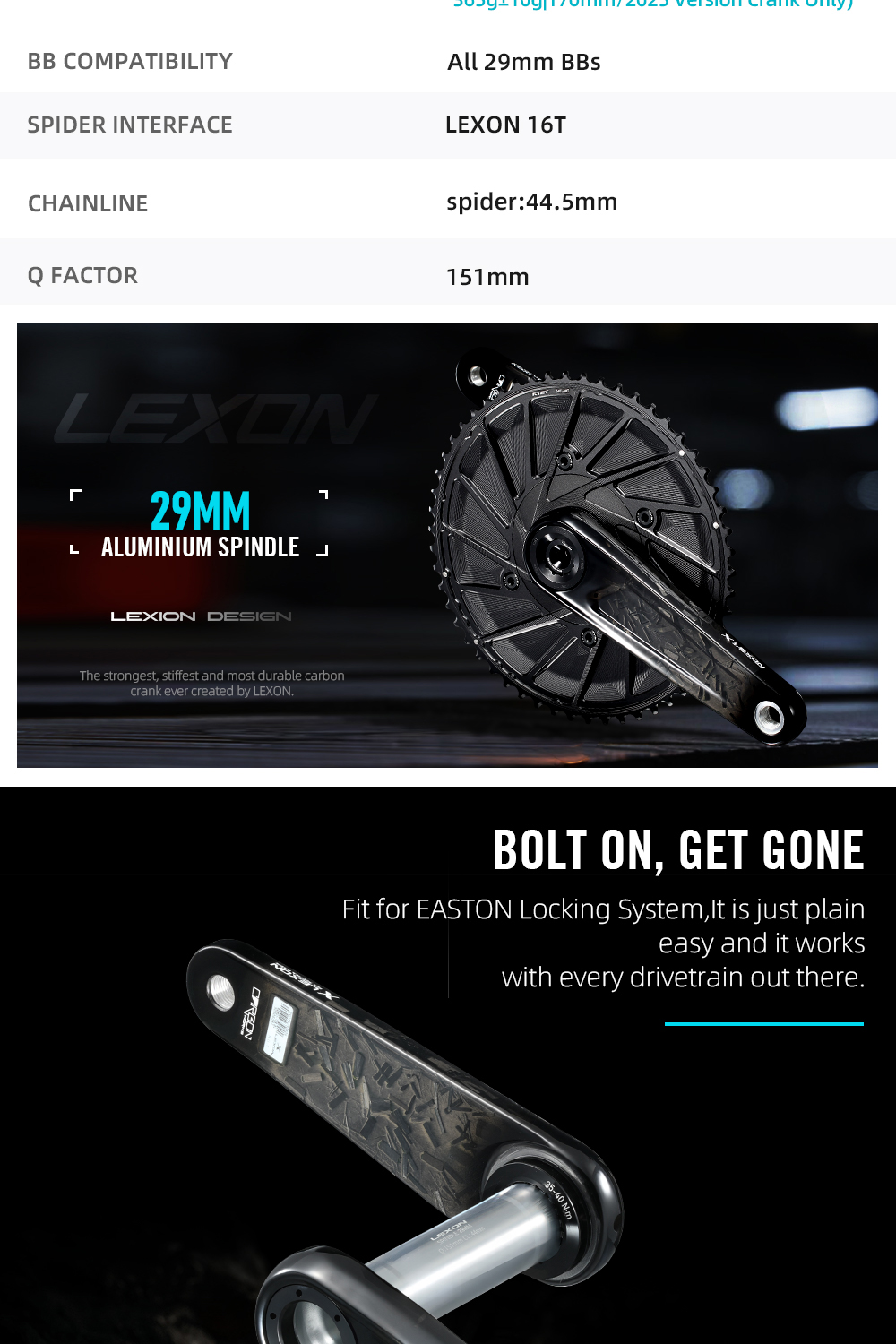

  • Crank Spindle Size: Width 93mm Diameter 29 mm

  • BB Compatibility: All 29mm BBs

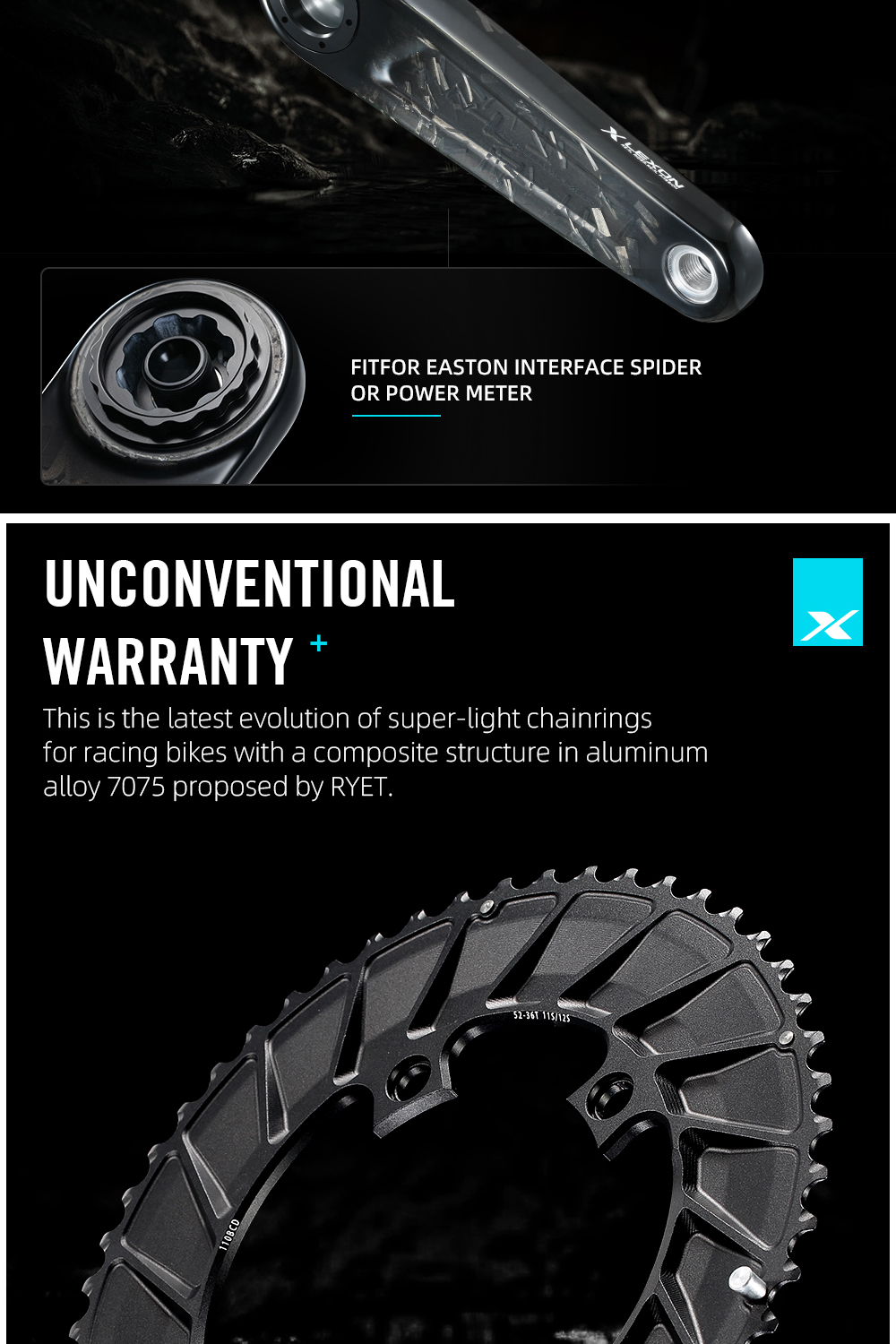

  • Spider Interface: Fit for Easton Interface

  • Cranksets Chainline: R1/R1S Spider 44.5MM

  • Bike Crank Q Factor: 151mm

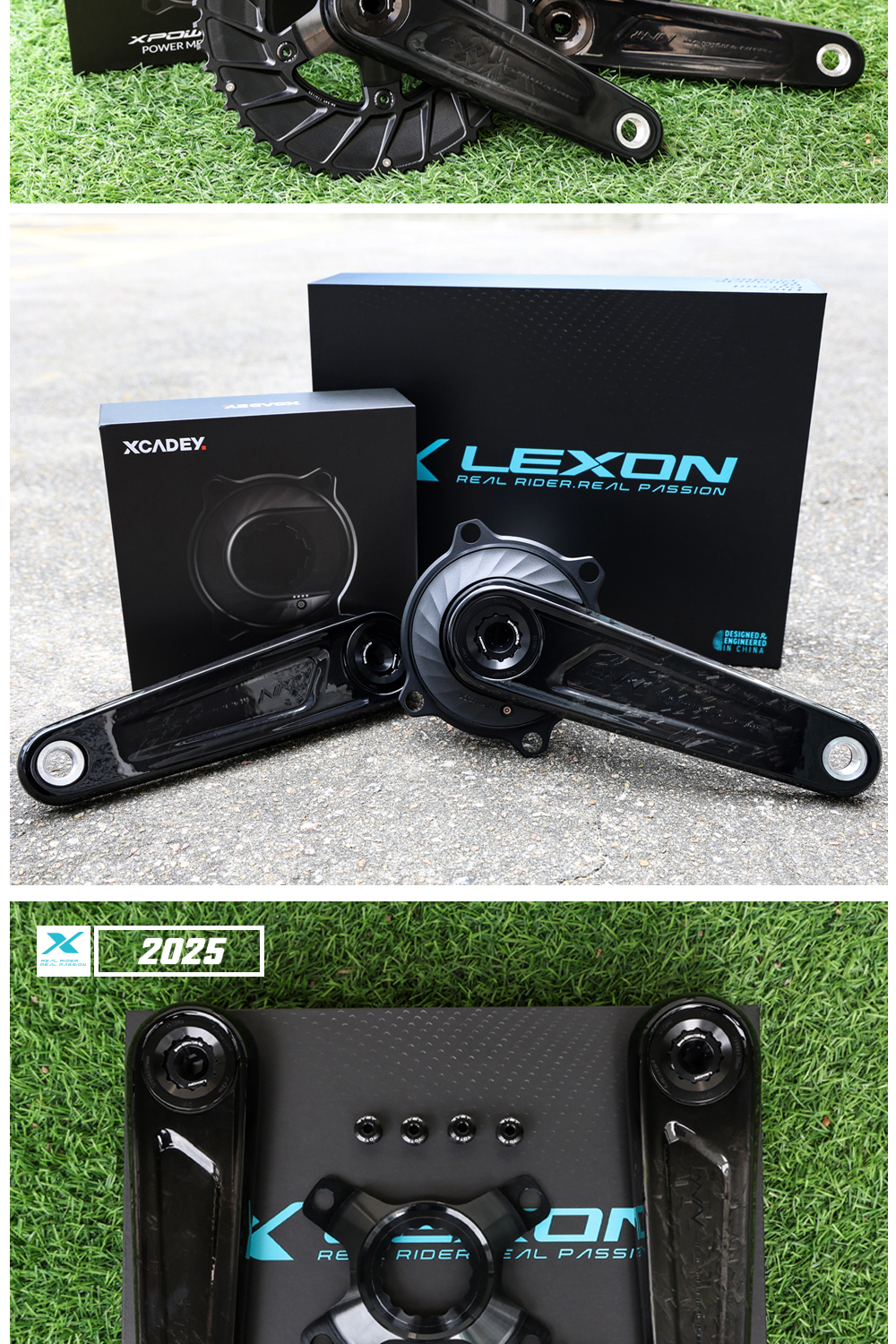

  • 2025 R1:  Secure dual-side bolt interface

  • 2026 R1S: Single-Side Bolt Fixation

  • Weight: 2025 R1 365g( 165mm Cranksets only,Spider not included )

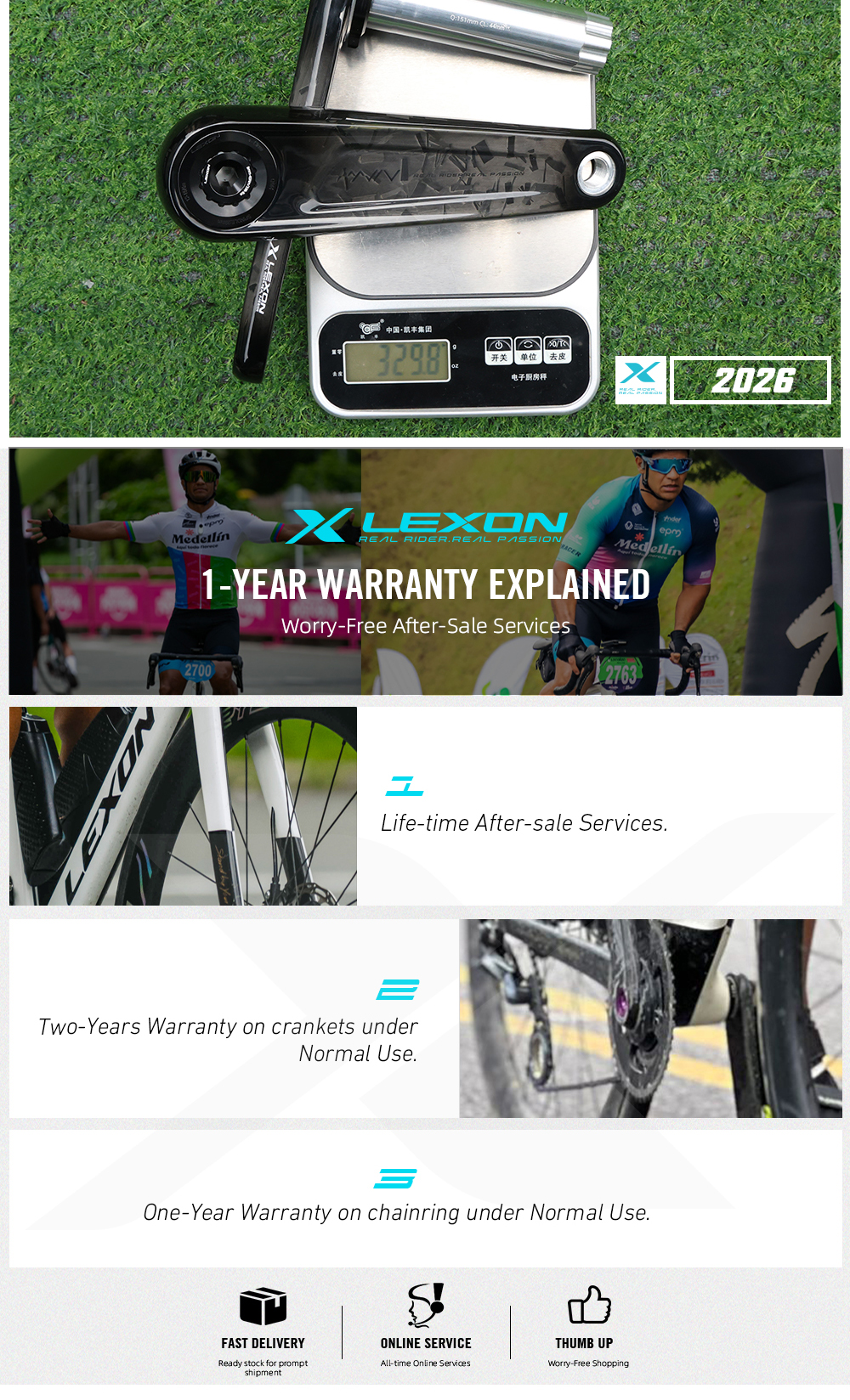

                      2026 R1S 329g (165mm Cranksets only,Spider not included)

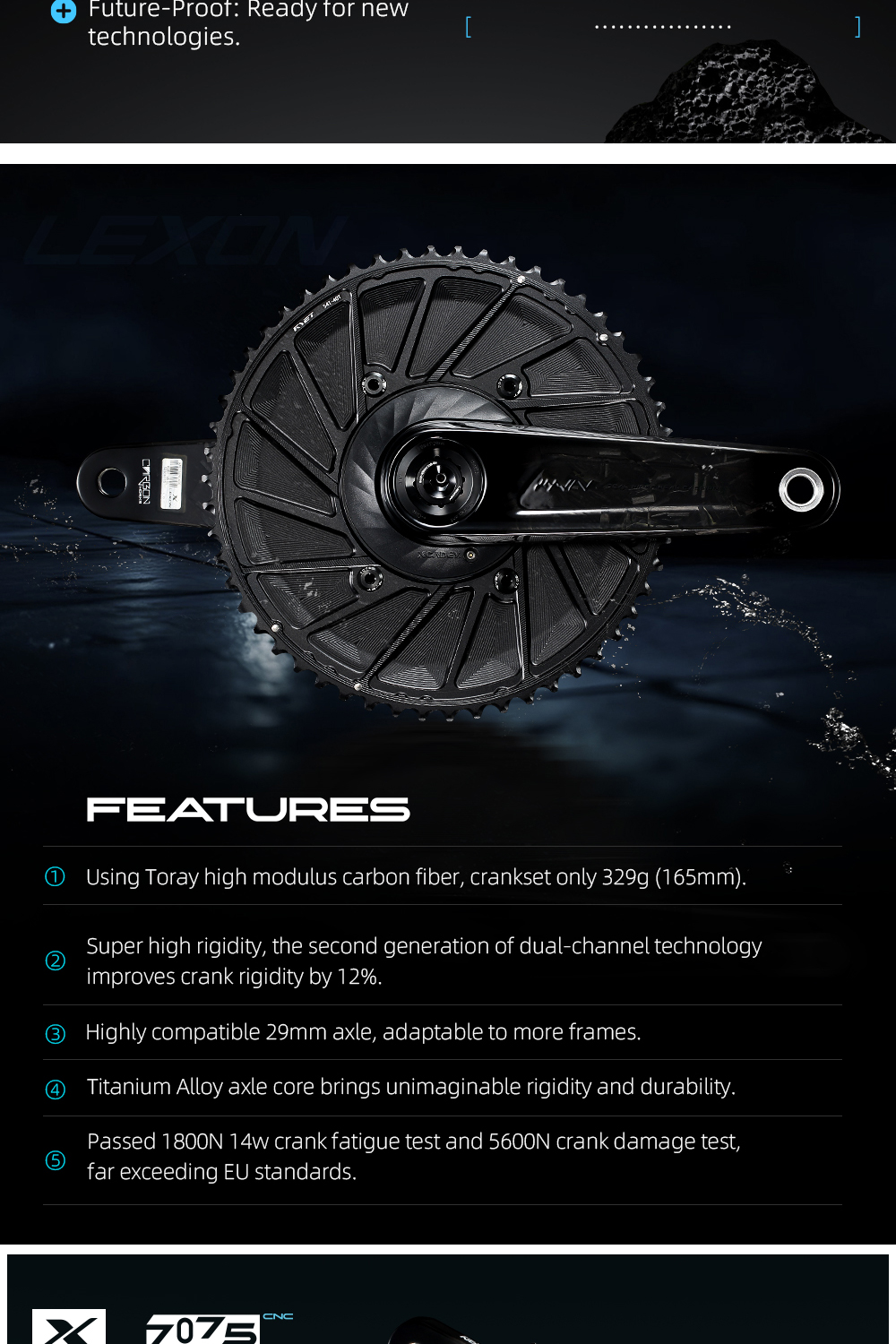

Cranksets Feature

  • Using Toray high modulus carbon fiber, crankset only 329g (2026 R1S 165mm Cranksets only,Spider not included )

  • Super high rigidity, the second generation of dual-channel technology improves crank rigidity by 12%

  • Highly compatible 29mm axle, adaptable to more frames

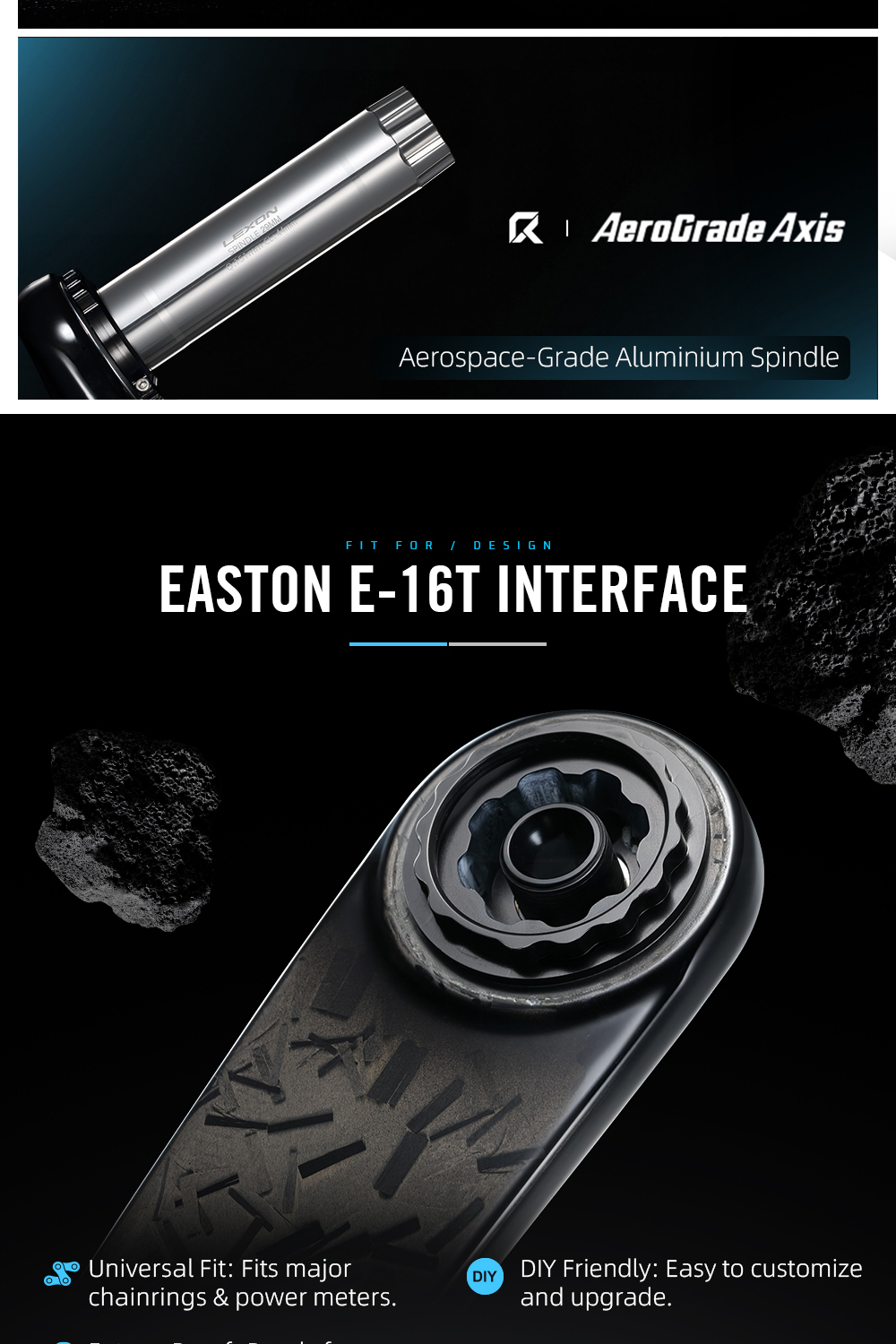

  • Cold forged 7075 aluminum alloy axle core brings unimaginable rigidity and durability

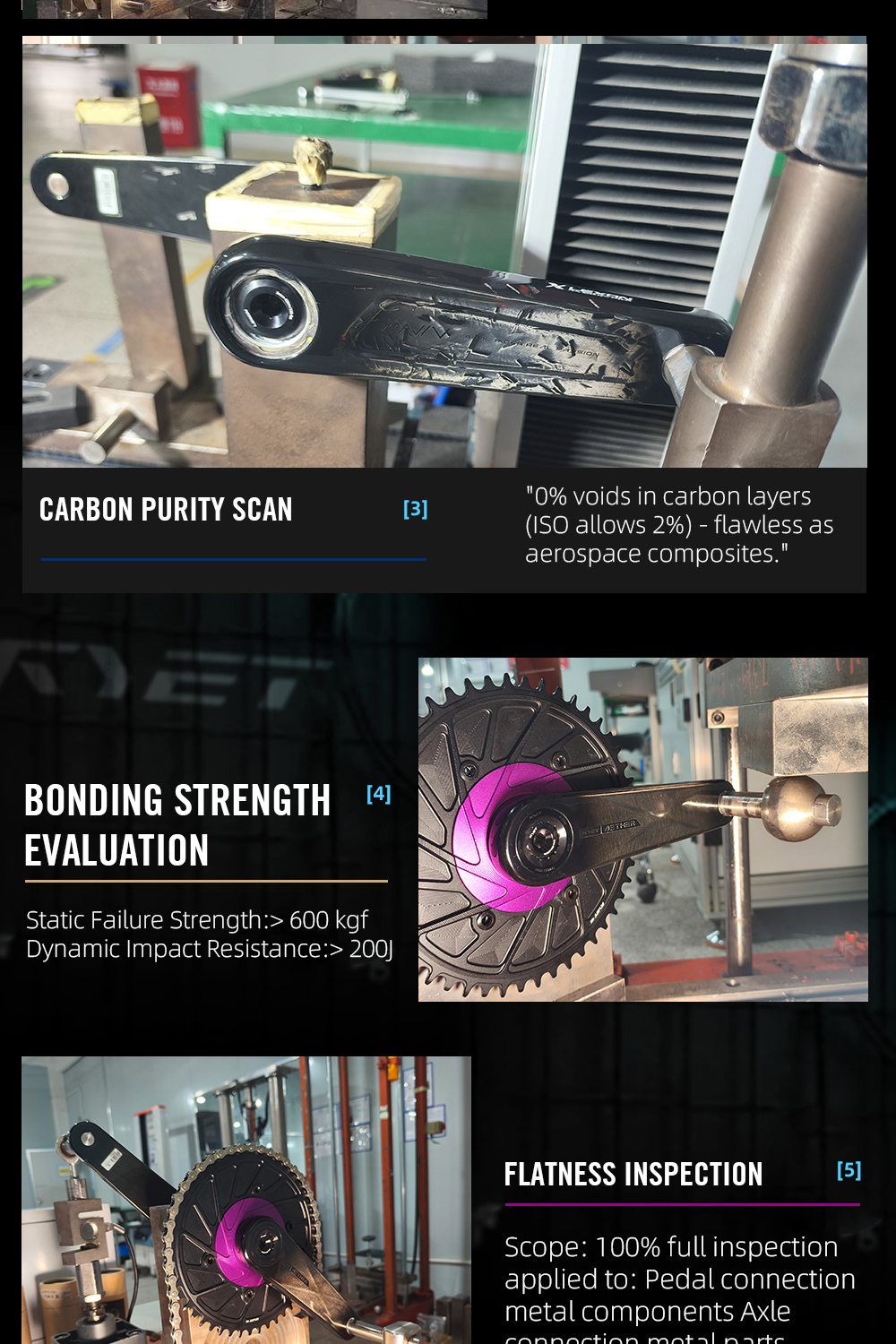

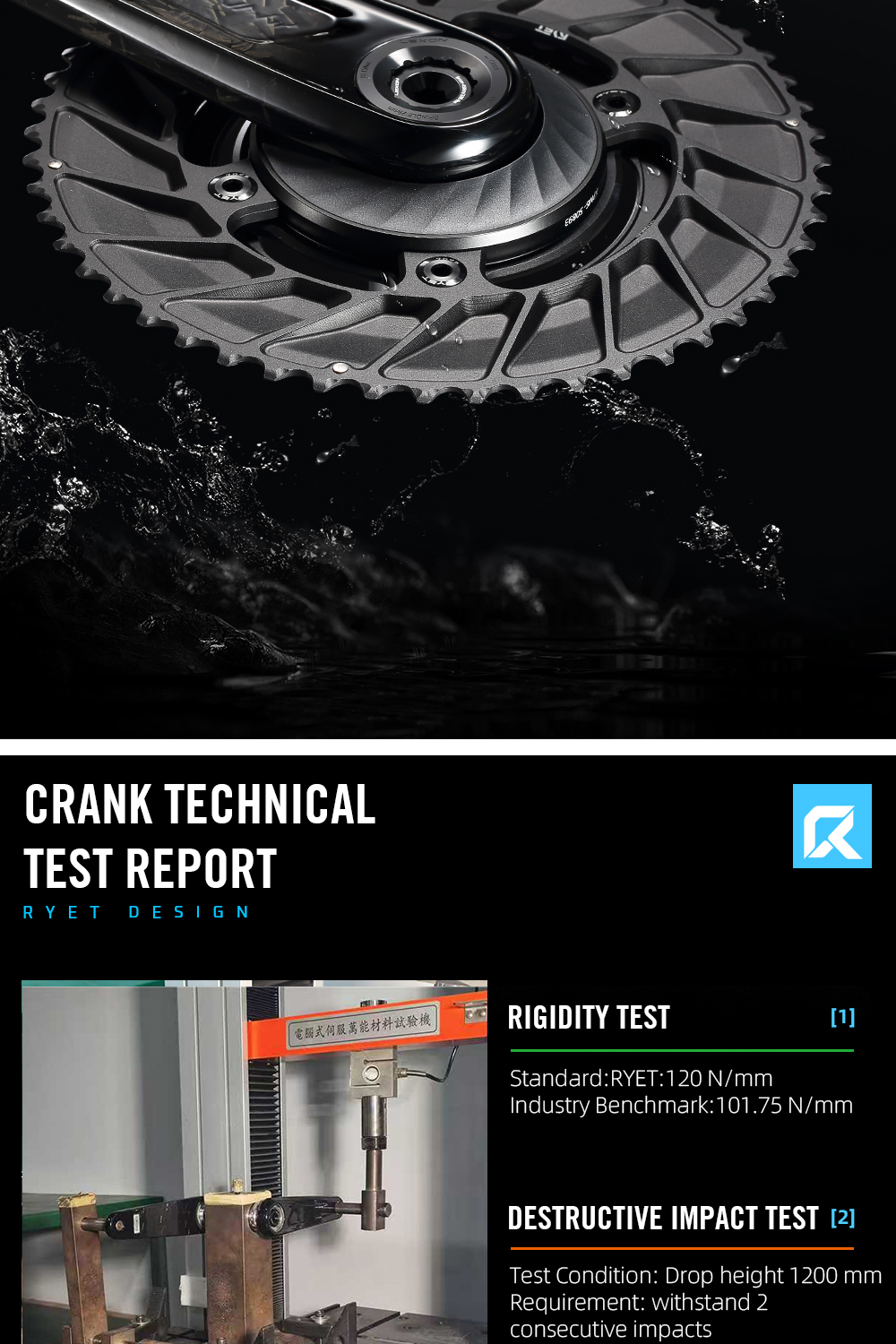

  • Passed 1800N 14w crank fatigue test and 5600N crank damage test, far exceeding EU standards

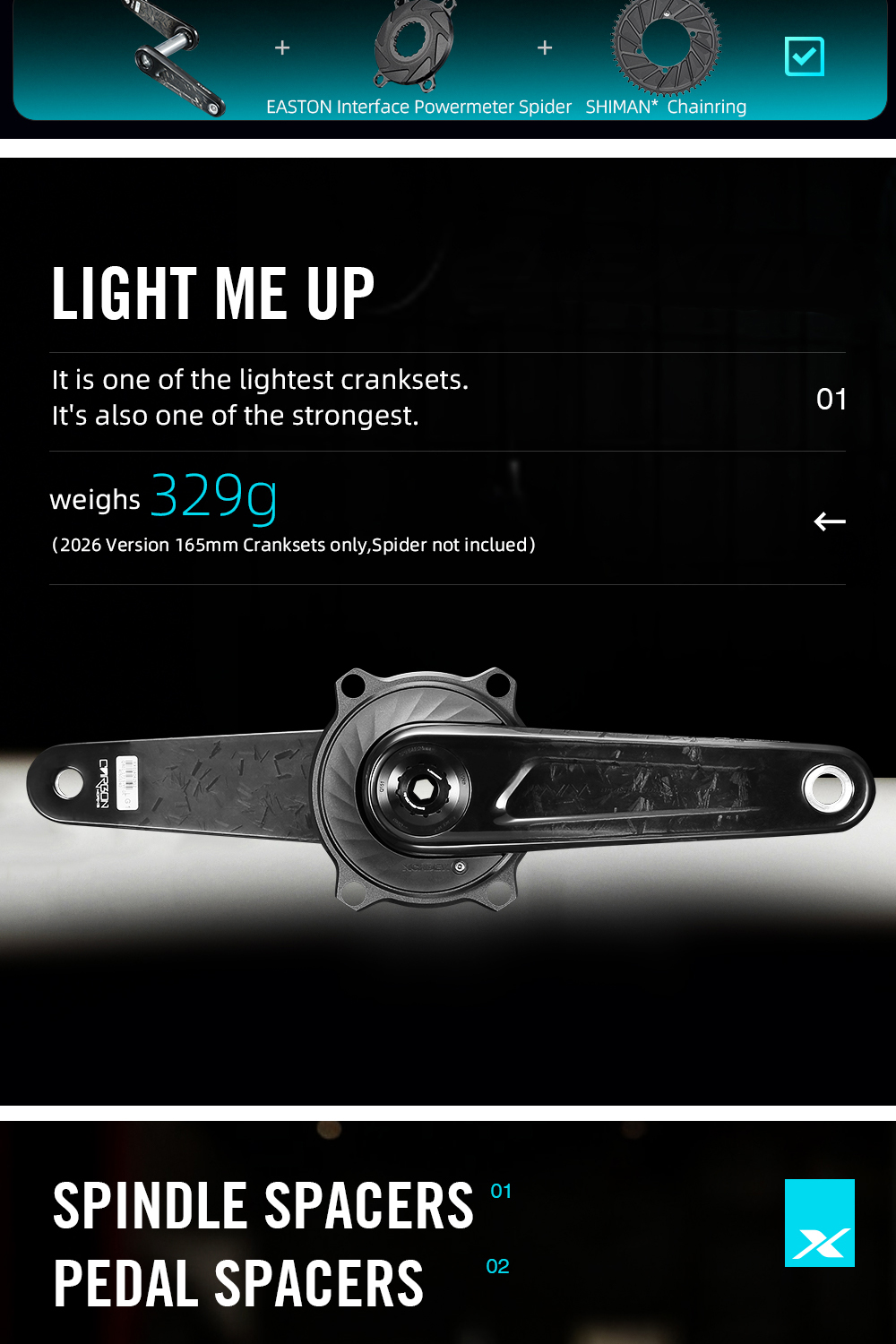

THE 2026 R1S Cranksets ADVANTAGE:

  • More Direct Power Path

  • A reduction of 40g (2026 R1S Weight: 329g) Achieved through comprehensive design

  • Simplified Installation

  • Evolved for Peak Stiffness

RYET EVO ALLOY CHAINRINGS

  • MATERIAL:AL 7075-T6 CNC

  • SPEED:11s; 12s

  • BCD BCD 110×4 Shimano®

  • Chainring SIZE:50-34T\52-36T \54-40T

  • WEIGHT:50-34T (150g±10g);
    52-36T
    (170g±10g);
    54-40T
    (175g±10g)
    (Chainring Only)

  • Note:Not Fit with SHIMANO Cranksets Directly

*(Use LEXON Chainring Bolt Sets because the Chainring is thicker)

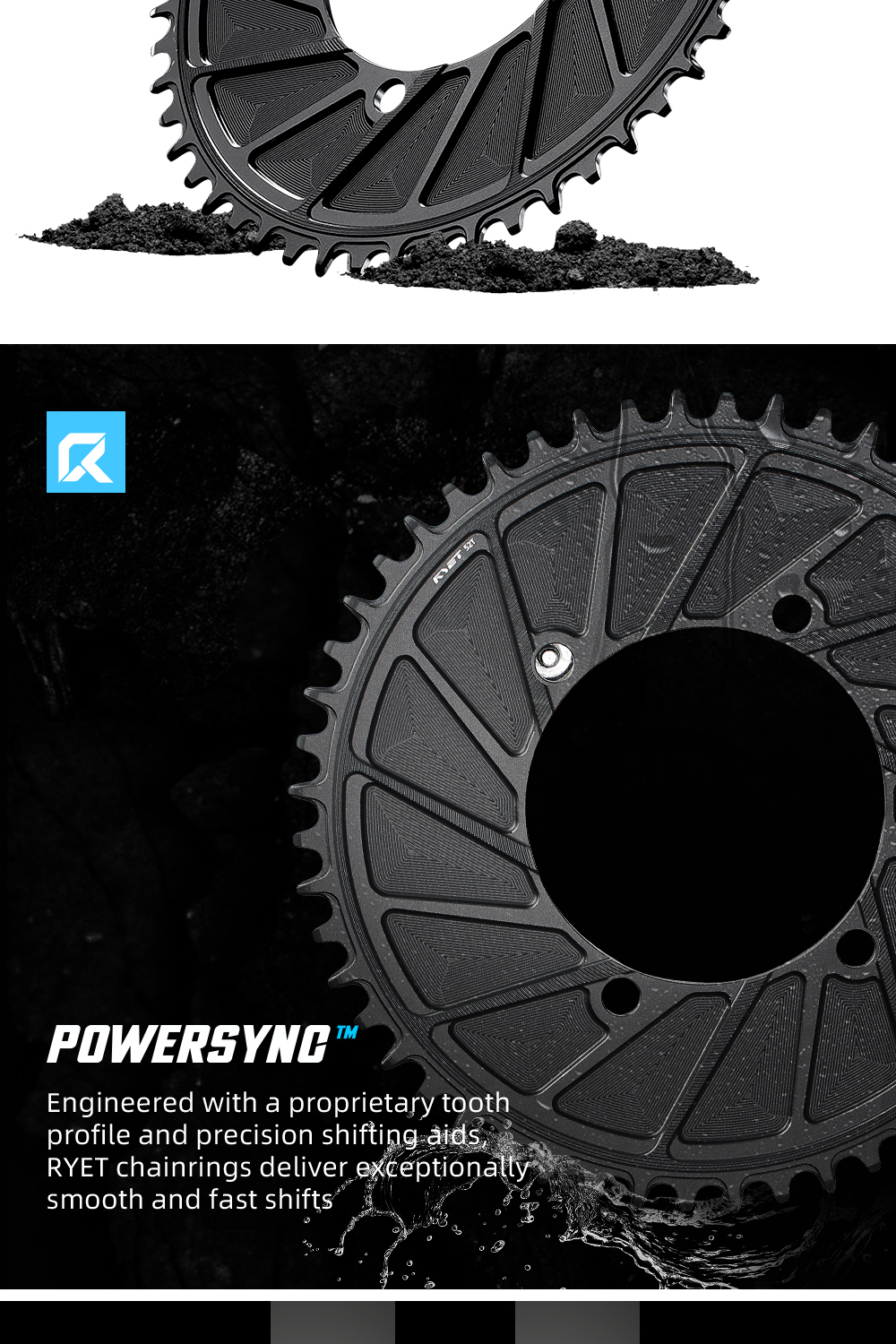

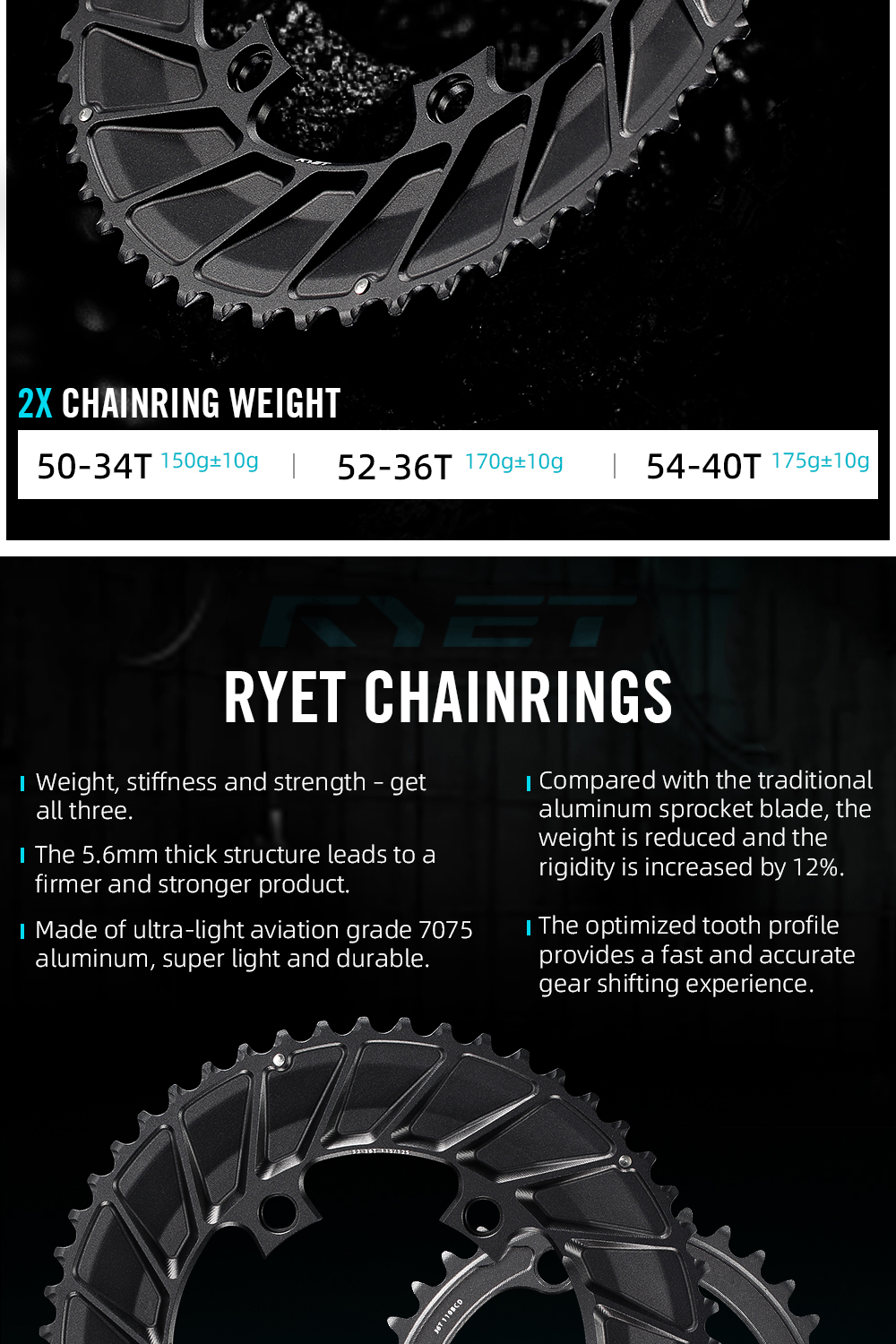

RYET EVO Alloy CHAINRINGS 110×4 BCD

  • Weight, stiffness and strength – get all three

  • The 5.9mm thick structure leads to a firmer and stronger product

  • The combination of high modulus carbon fiber and ultra light 7075 aviation grade aluminum is perfect

  • Compared with the traditional aluminum sprocket blade, the weight is reduced and the rigidity is increased by 31%

  • The optimized tooth profile provides a fast and accurate gear shifting experience

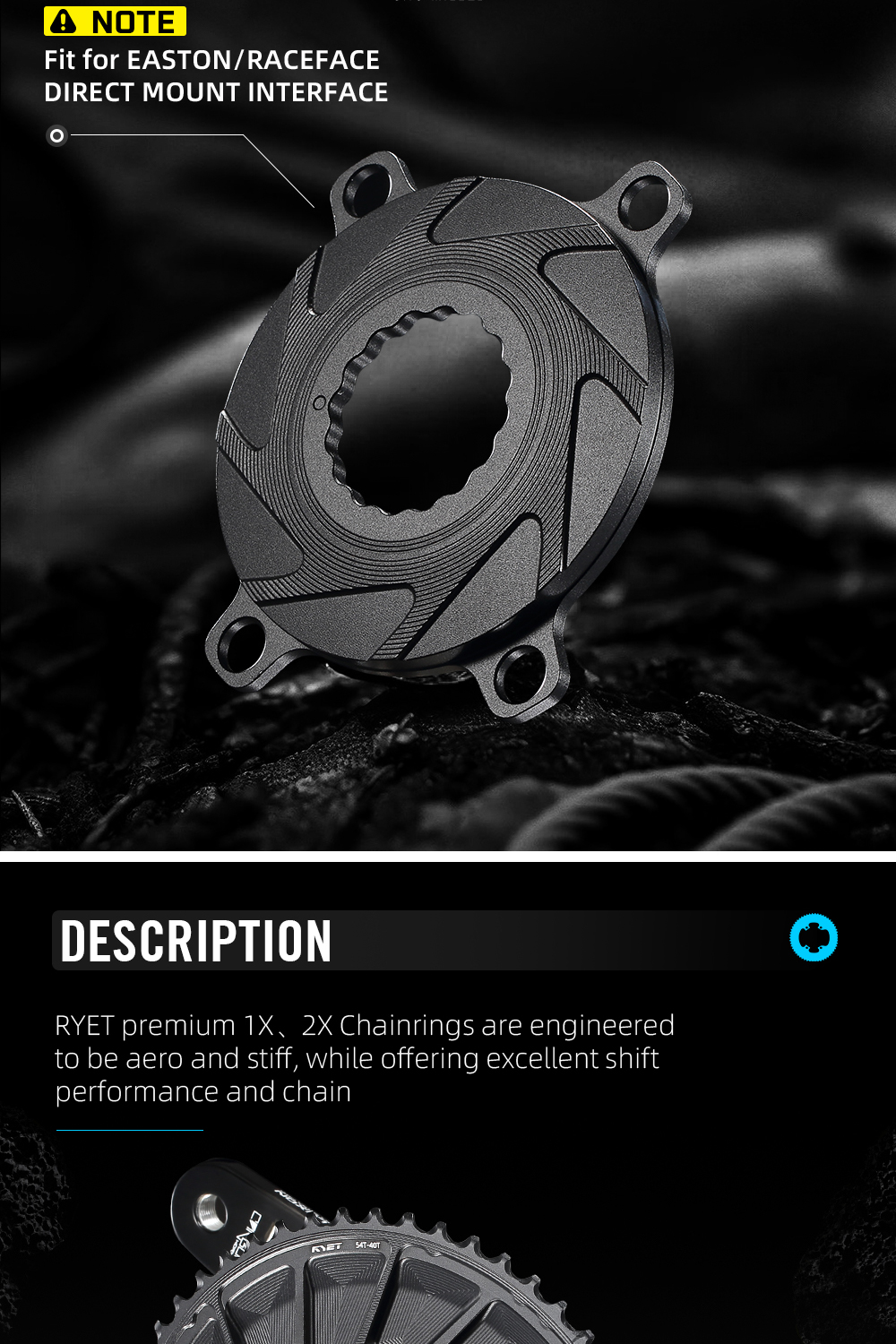

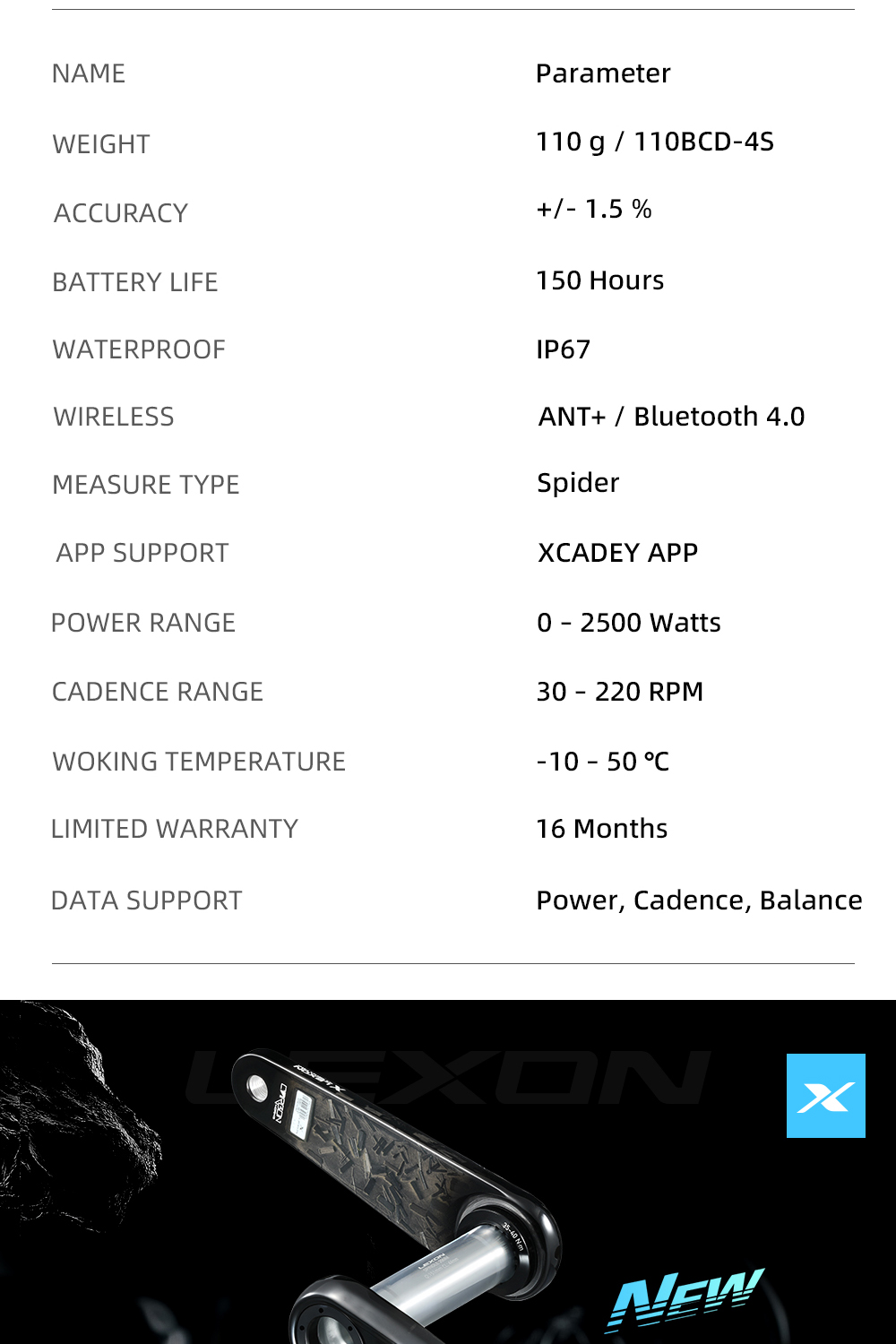

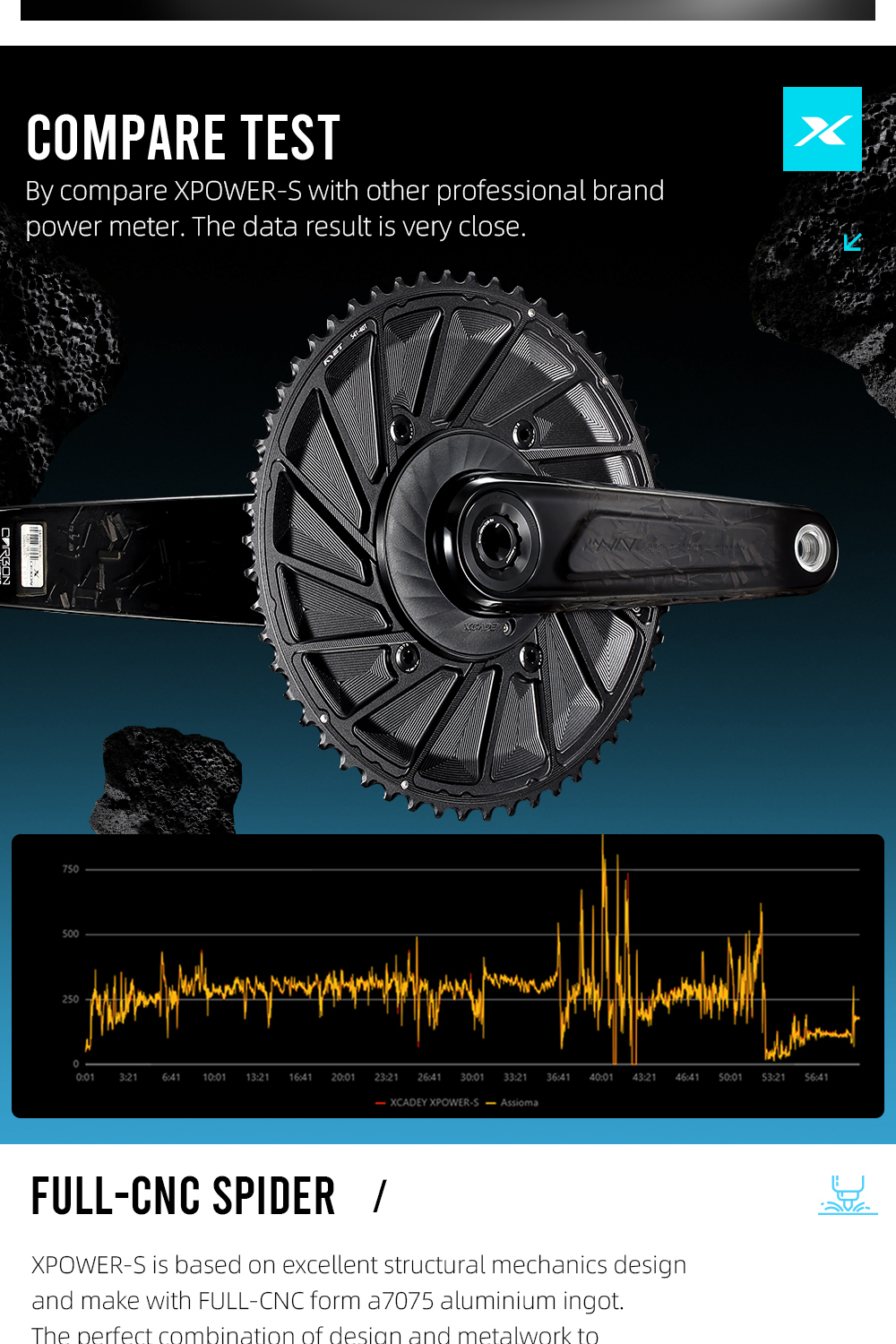

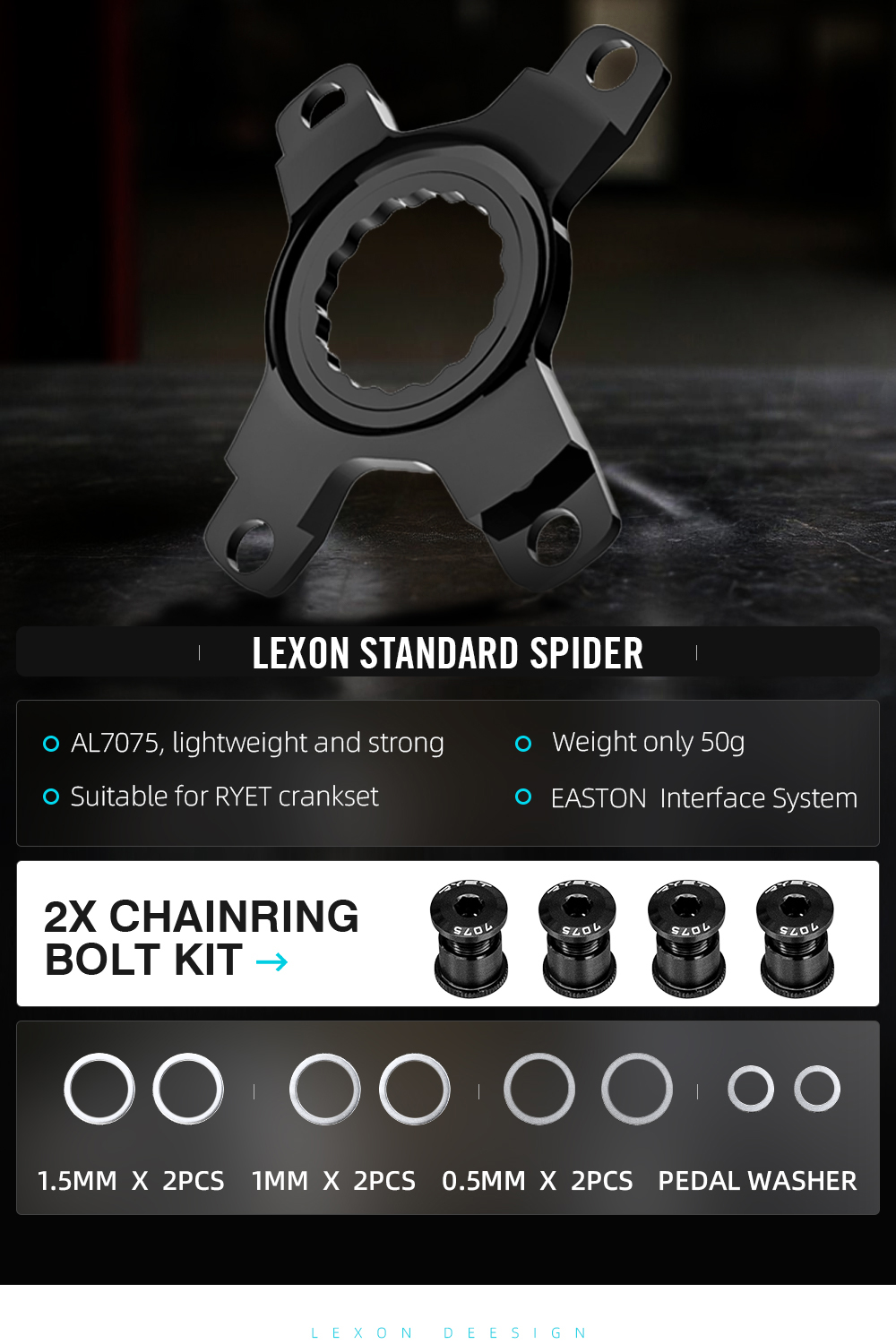

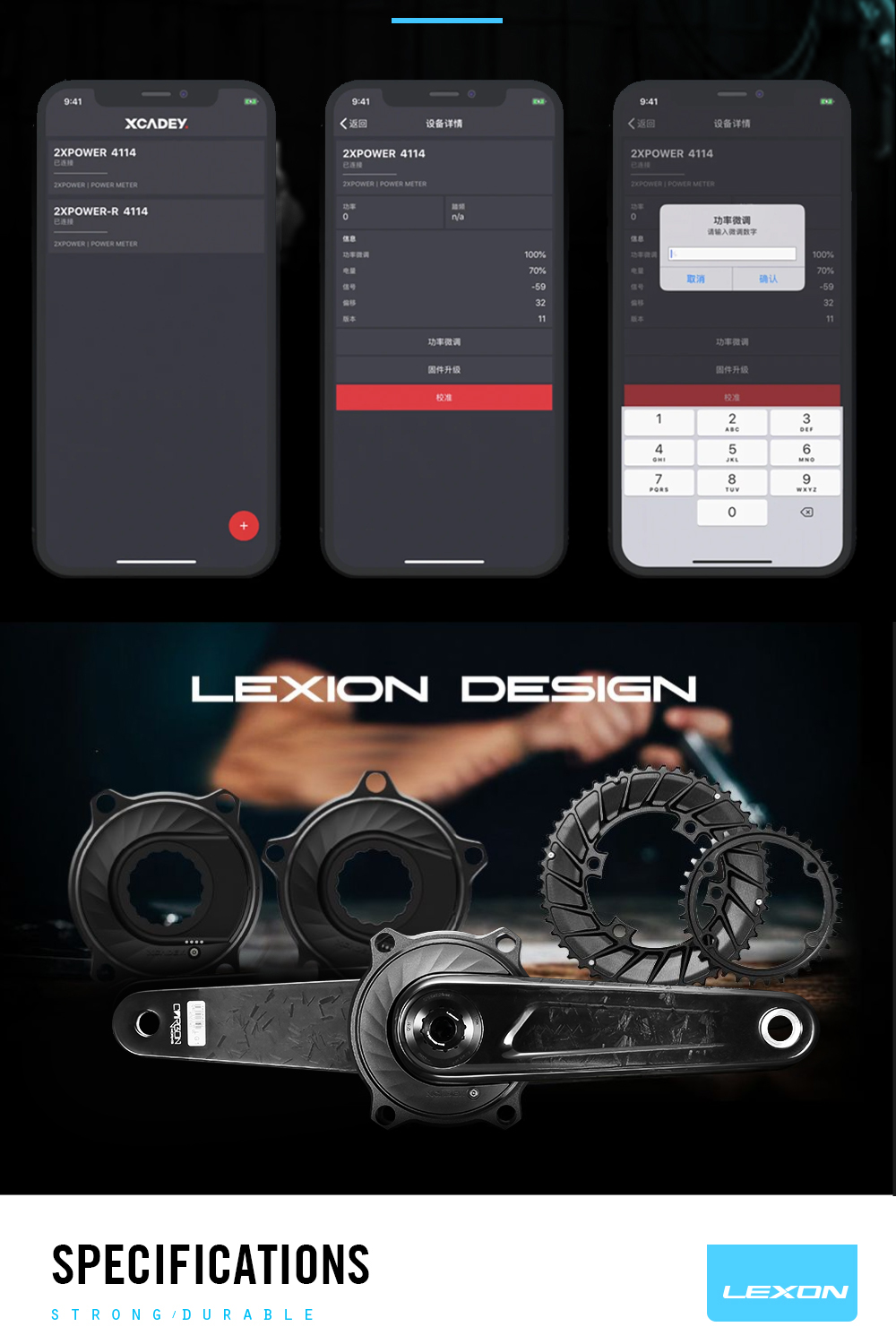

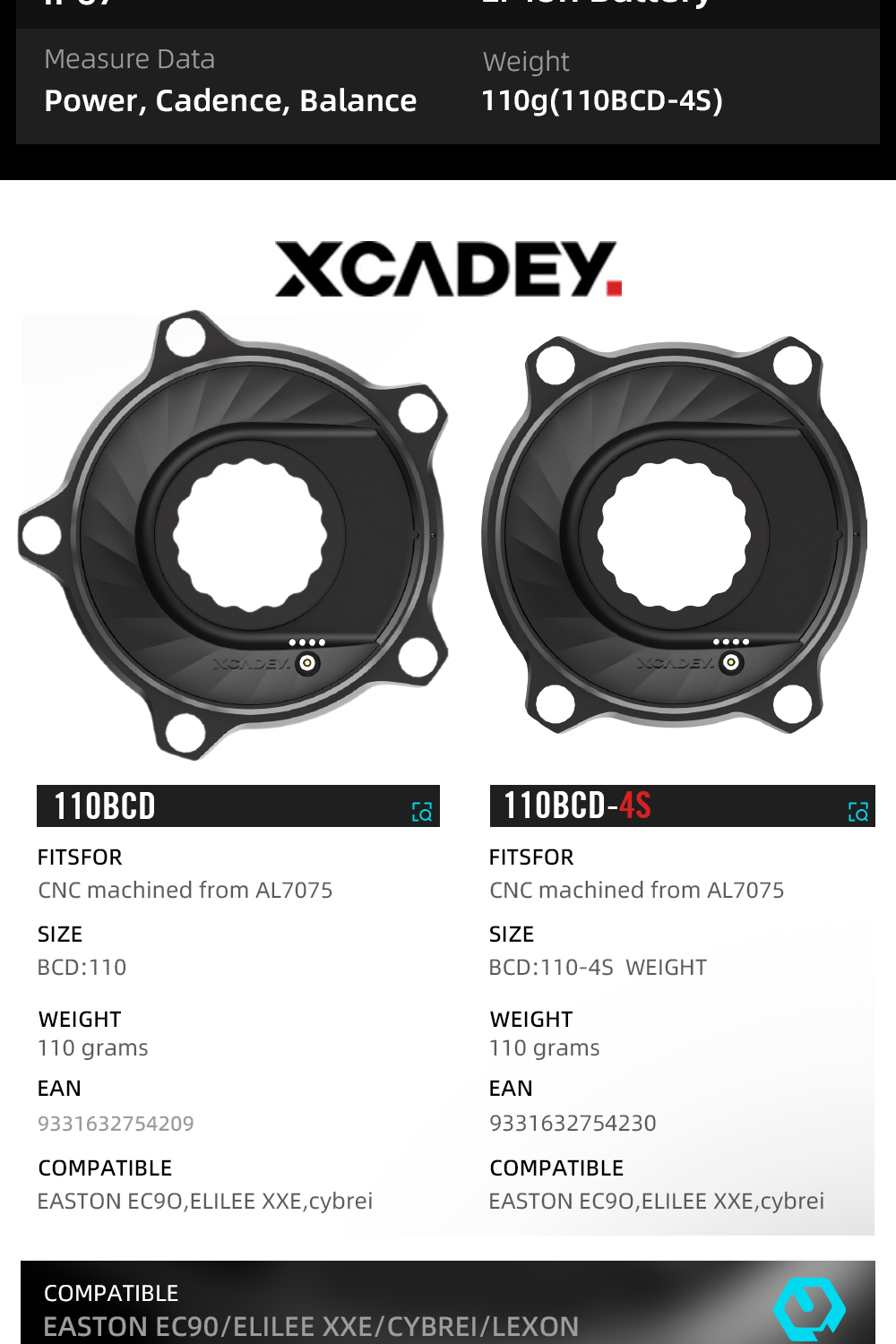

XCDEY EASTON 110BCD-4S

  • CNC machined from AL7075

  • SIZE:BCD 110

  • WEIGHT:110 grams

  • EAN 9331632754230

  • Compatible :EASTON EC9O,ELILEE XXE,cybrei, LEXON,RYET

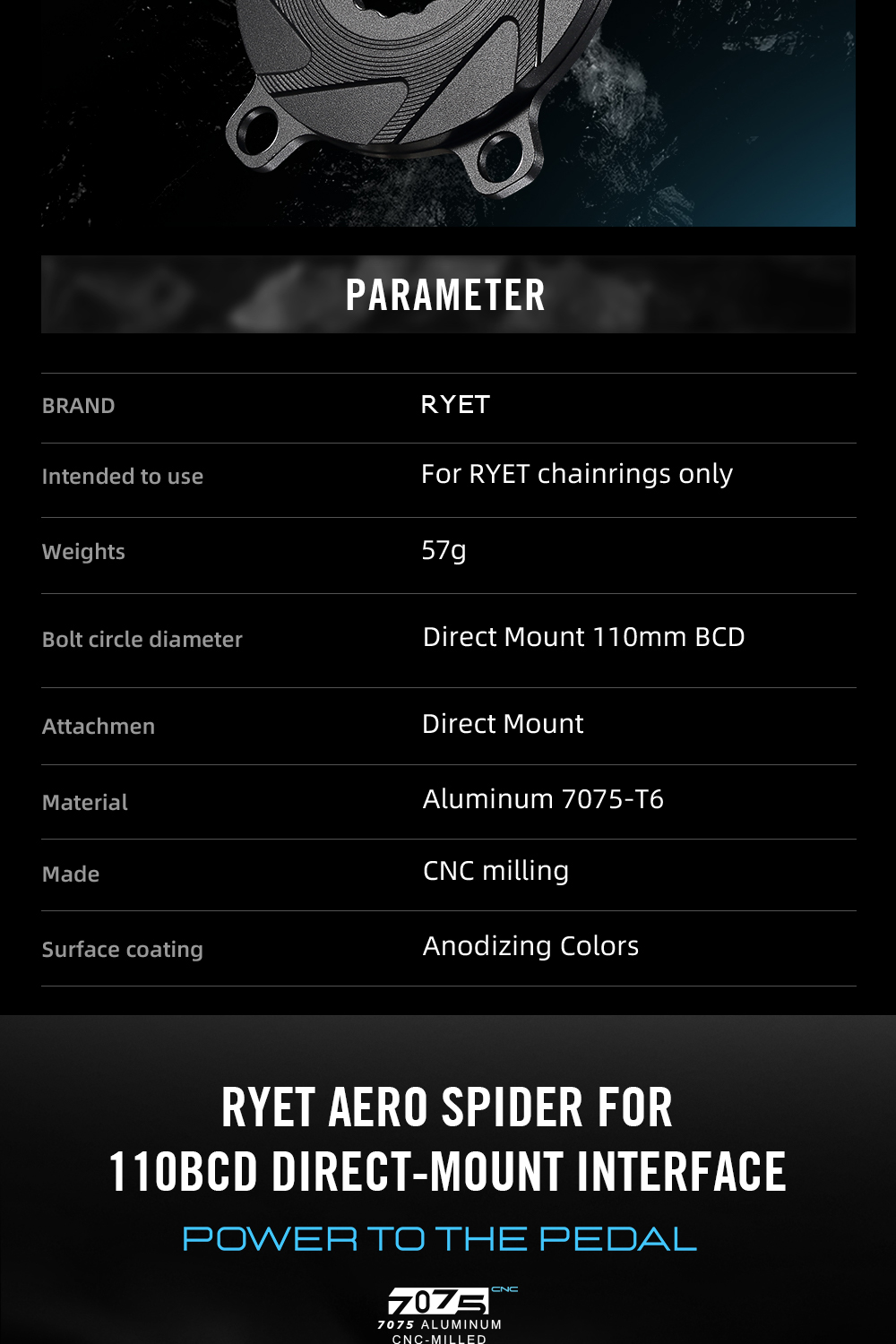

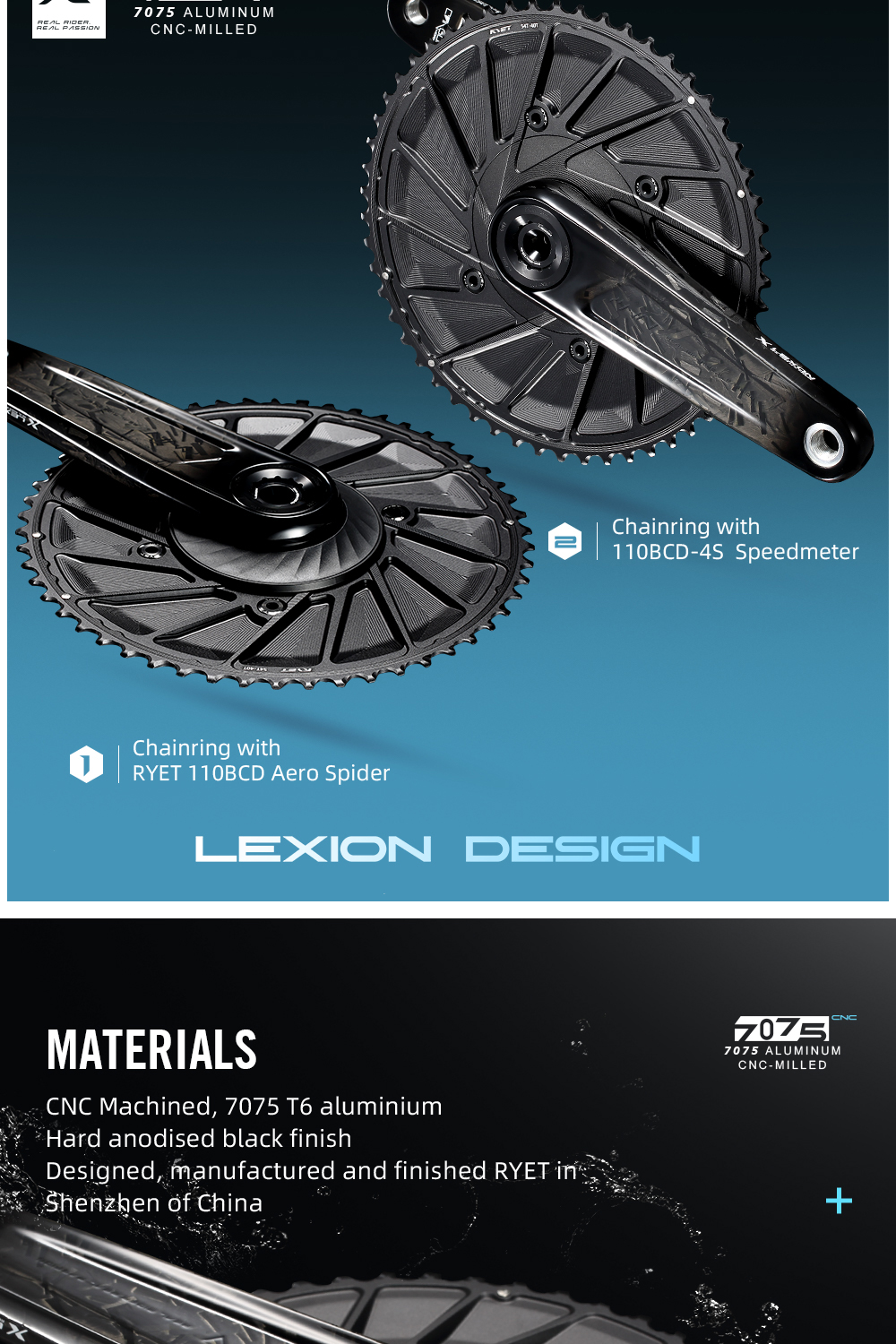

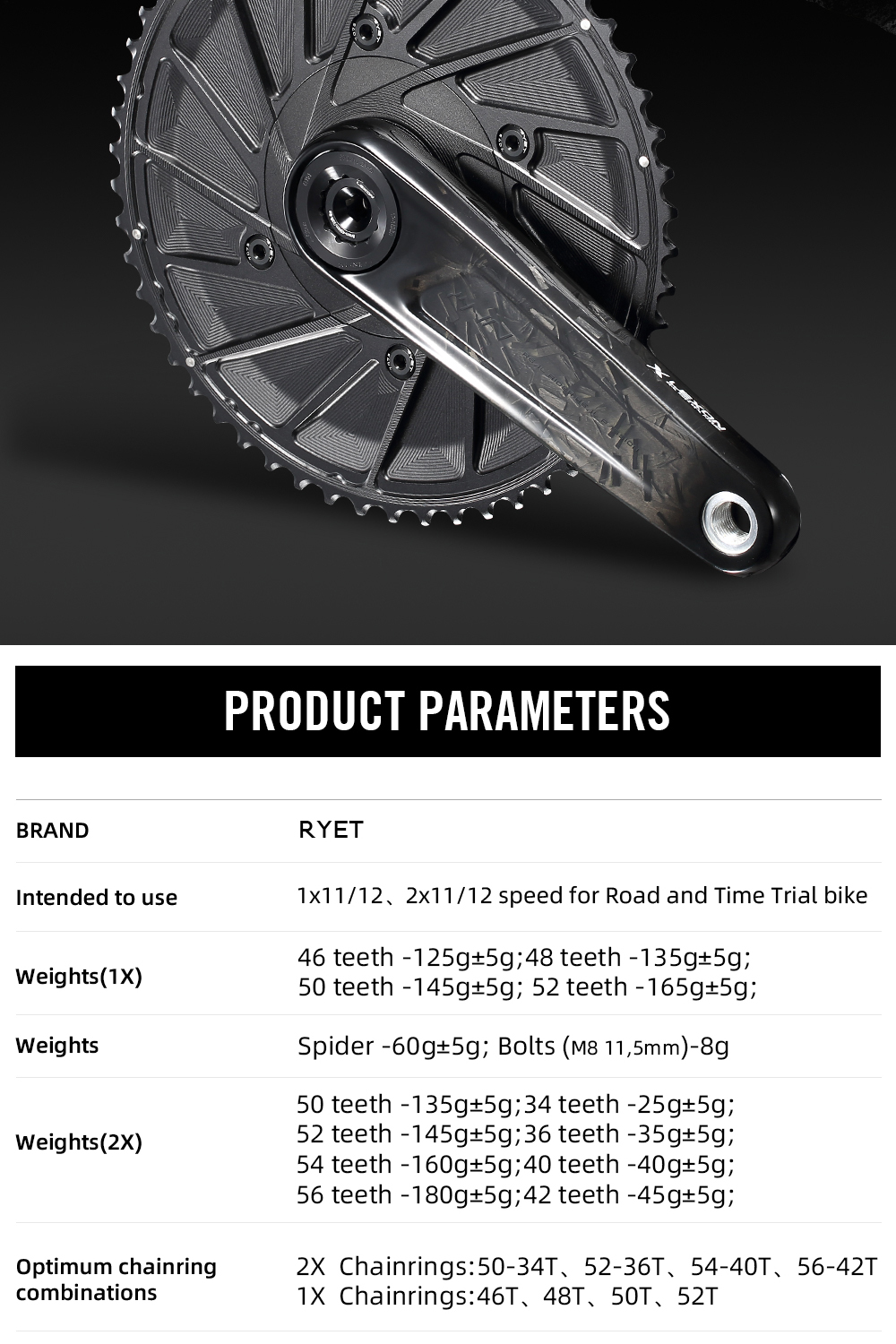

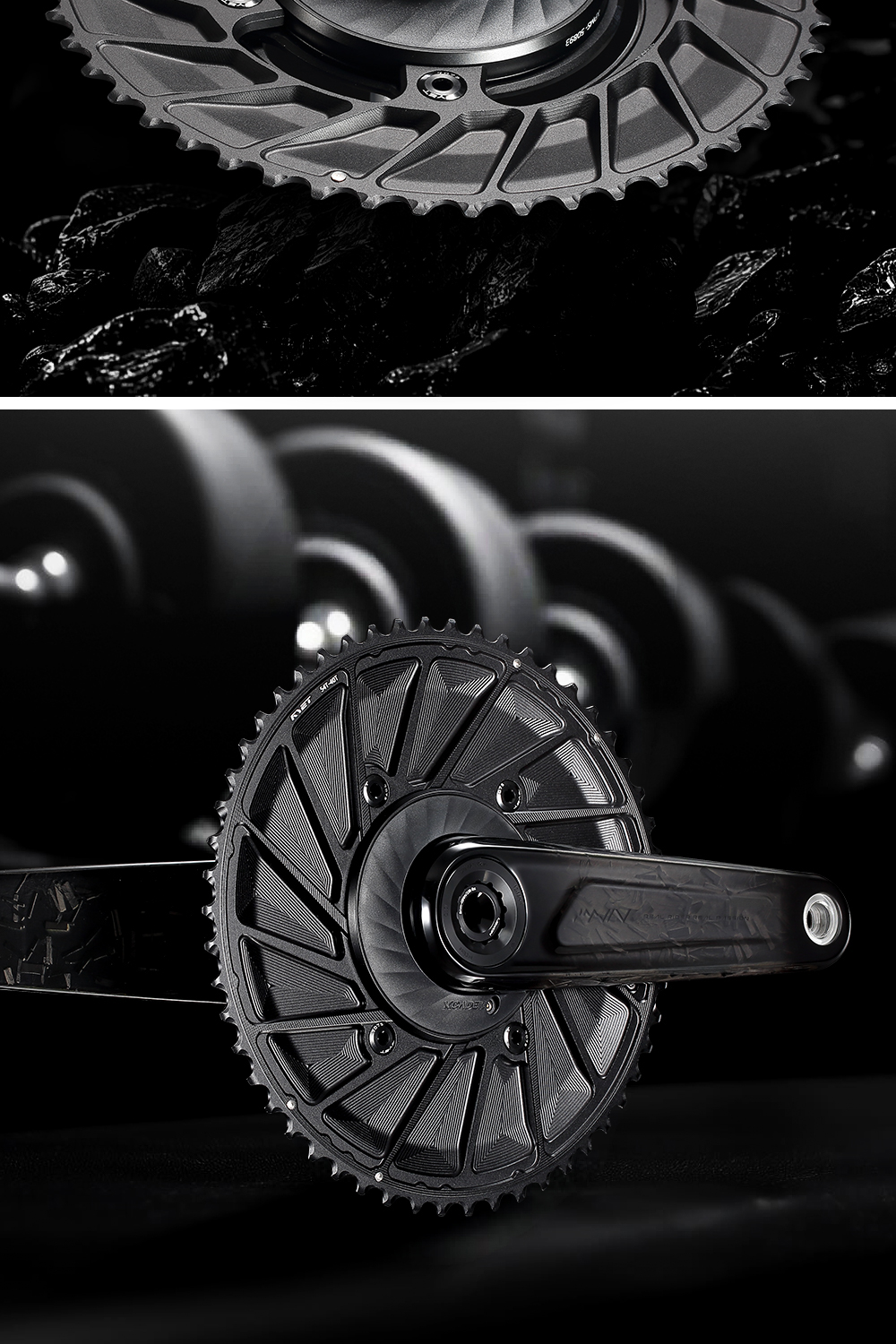

AERO SPIDER 2X/1X CHAINRINGS:

  • BRAND: RYET

  • Intended to use :1x11/12、2x11/12 speed for Road 、Gravel and Time Trial bike

  • Weights 1X:

              46 teeth-125g±5g;

              48 teeth-135g±5g;

              50 teeth-145g±5g;

              52 teeth-165g±5g;

Spider -60g±5g; Bolts (M8 11,5mm)-8g

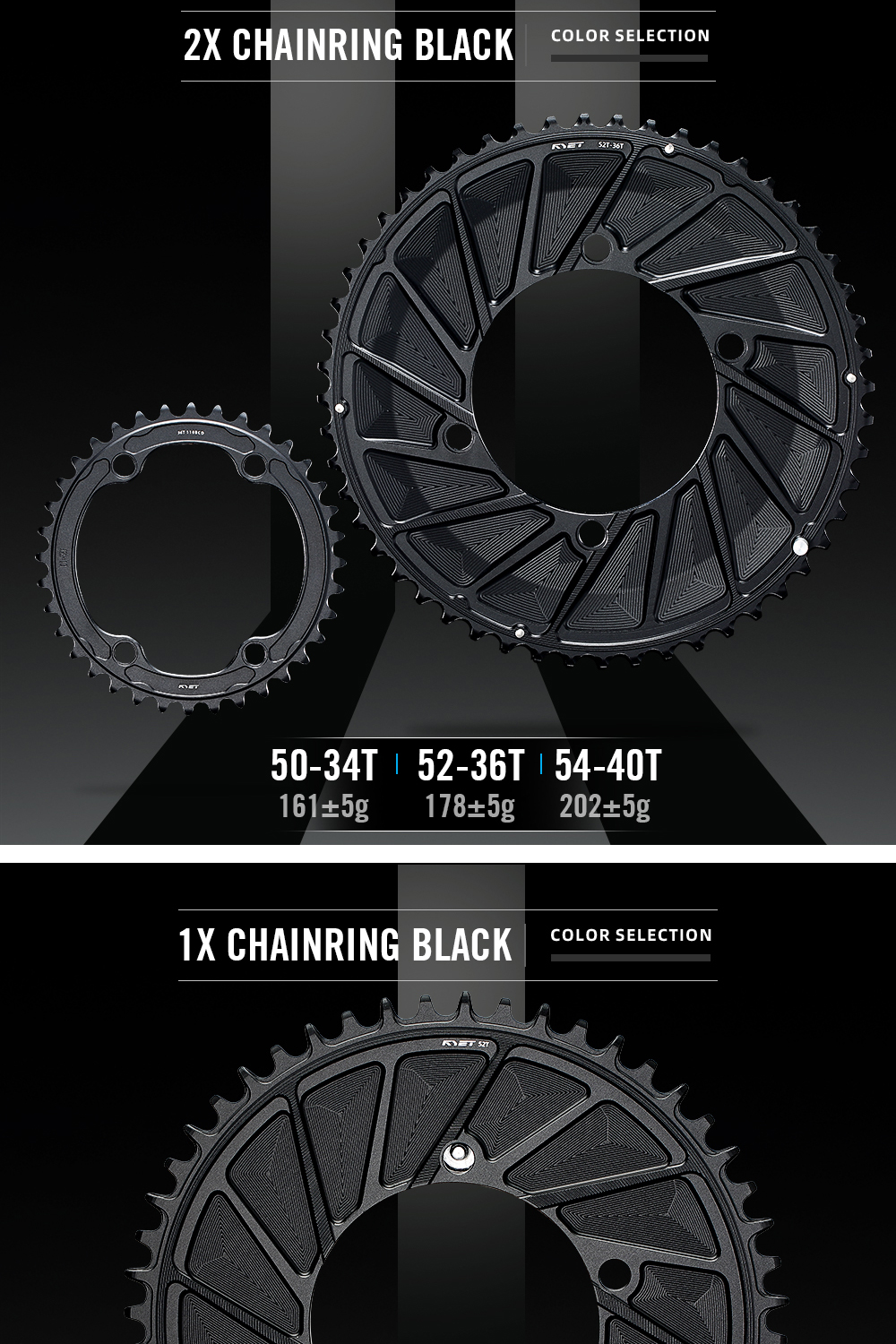

  • Weights 2X:

         50T-135g±5g；34t-25g±5g

         52t-145g±5g；36t-35g±5g

         54t-160g±5g；40t-40g±5g

         56t-180g±5g；42t-45g±5g



  • Optimum Chainring Combinations

  1. 2X Chainrings: 50-34T、52-36T、54-40T、56-42T

  2. 1X Chainrings: 46T、48T、50T、52T

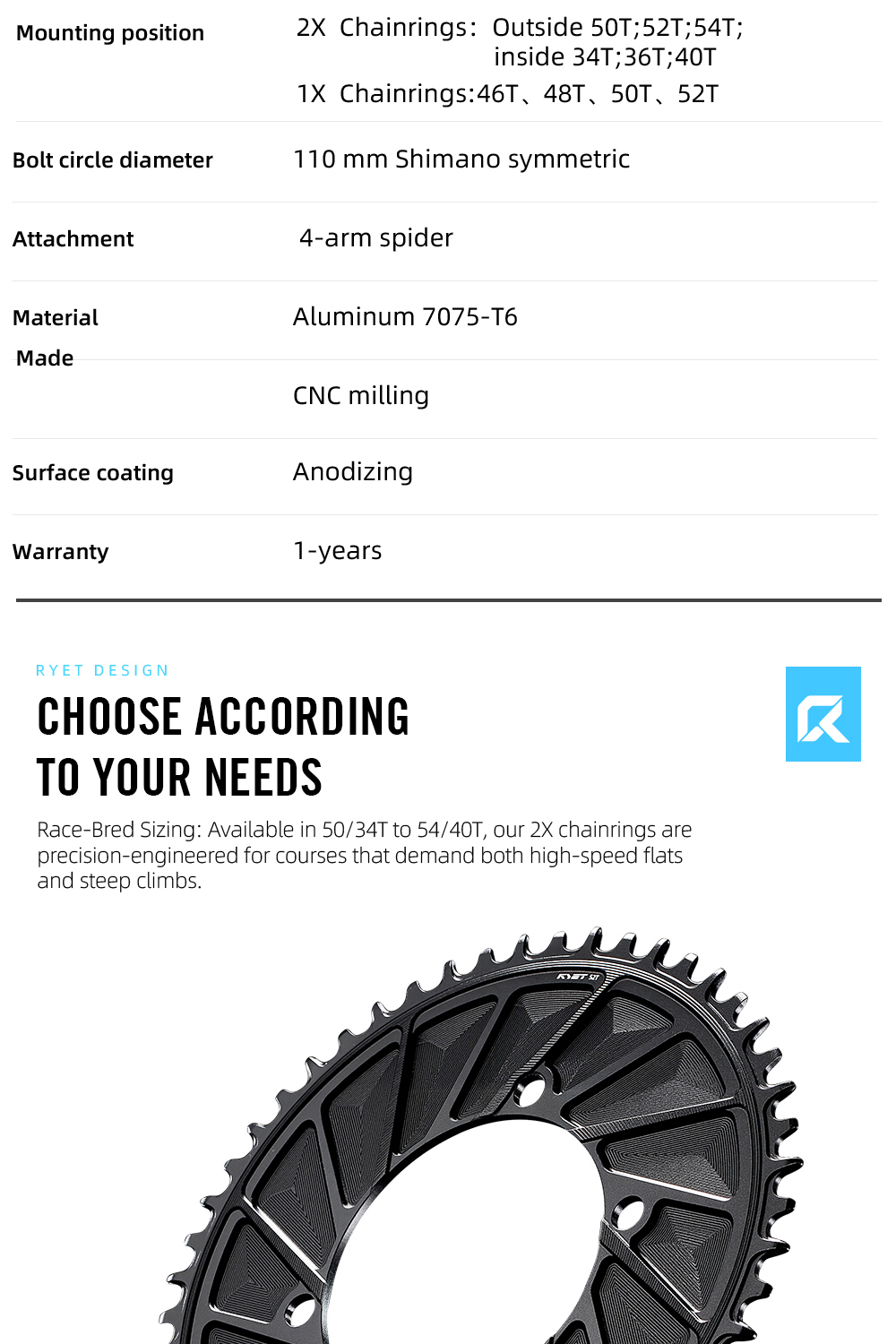

  • Mounting position :

  1. 2X Chainrings : Outside 50T; 52T; 54T; 56T ,Inside 34T;36T;40T;42T

  2. 1X Chainrings:46T、48T、50T、52T

  • Bolt circle diameter:110 mm Shimano symmetric

  • Attachment:4-arm spider

  • Material:Aluminum 7075-T6

  • Made:CNC milling

  • Surface coating:Anodizing Colors

  • Warranty:1-years


Important Notice Before Purchase:

  • Please Double-Check: Ensure the crank model, specifications (e.g., arm length), and compatibility match your bike and needs before ordering.

  • Contact Us for Support: If you have any questions regarding product selection or compatibility, please contact our customer service team prior to purchase.
