rpw

4" Lowering Kit with Drop Hangers for Ford F100 Ranger 2WD 1973-1979 Gas Charged



Dust Defender

Triple-layered dust cover with abrasion-resistant fabric

"Stops grit at the gate — no more ruined seals or gritty grinding."

Dust Defender

Triple-layered dust cover with abrasion-resistant fabric

"Stops grit at the gate — no more ruined seals or gritty grinding."

maXpeedingrods G1 Shock
Specification

Product type: lowering kit

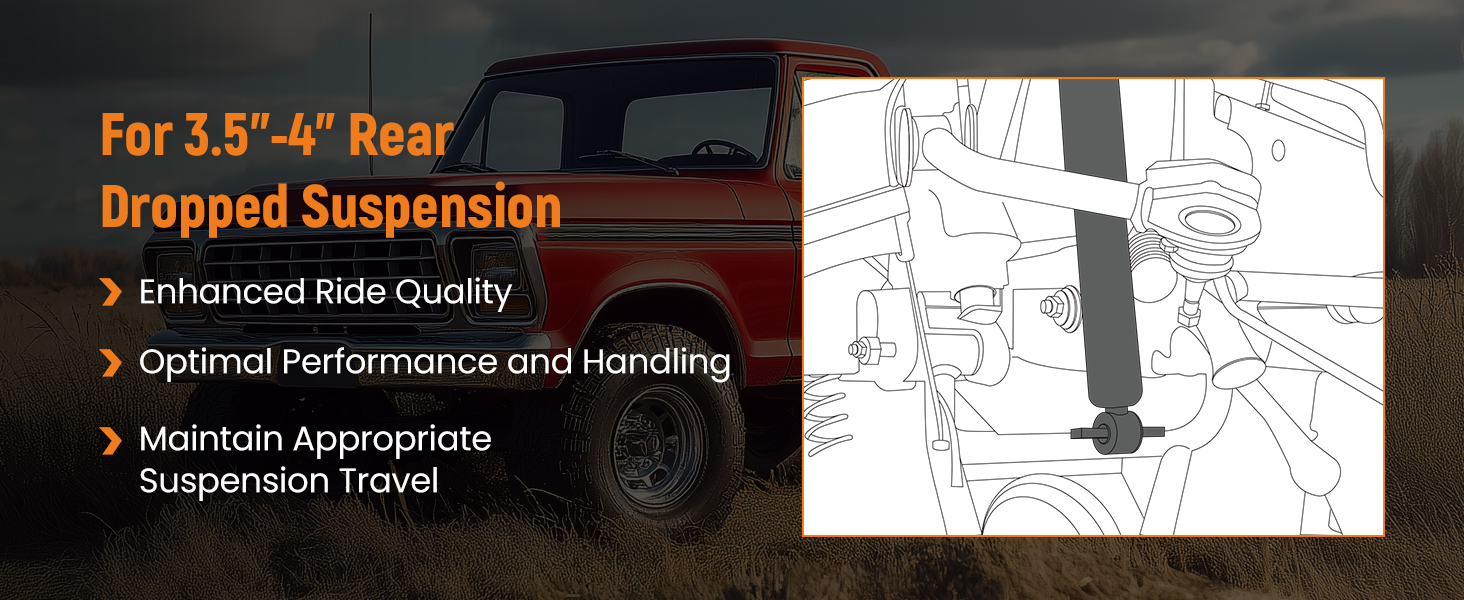

Lowering height: rear  4" or 3.5"

Material: steel

Finish: powder coated

Nitrogen charged：yes

Dust cover equipped: yes

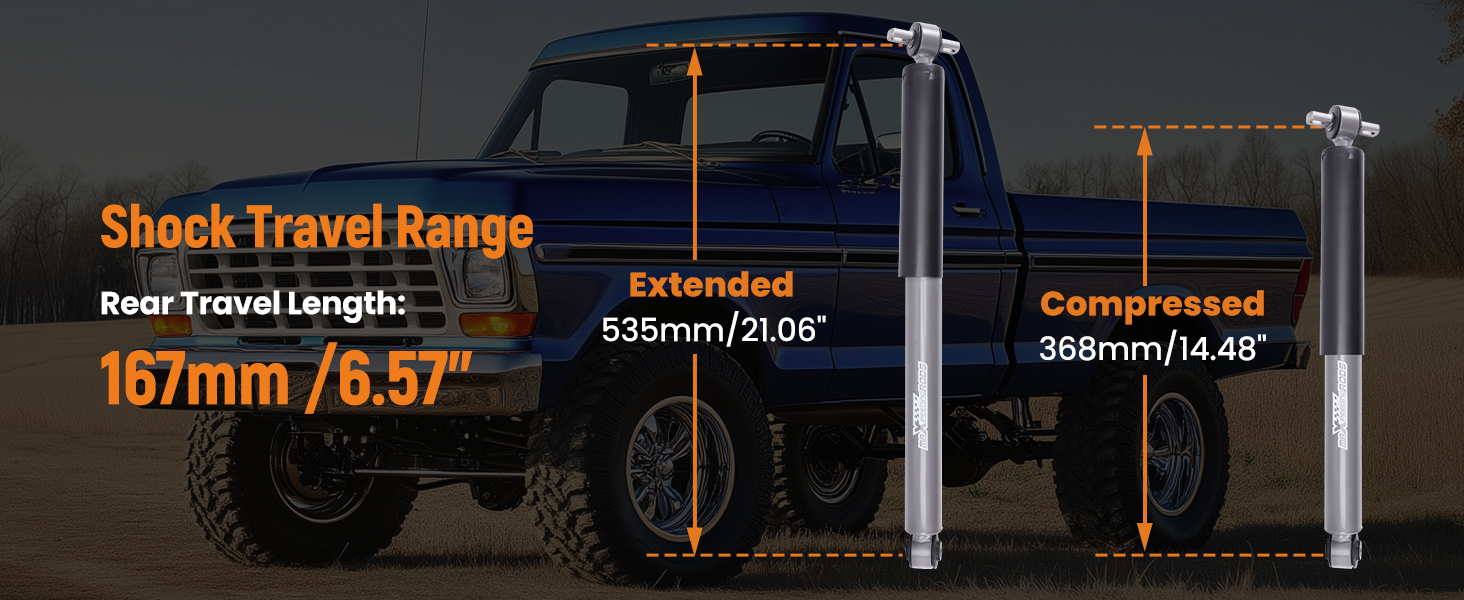

Travel:  167mm /6.57"

Extended length: 535mm/21.06"

Collapsed length: 368mm/14.48"

Shock Structure
  • Diameter of piston rod: 12.5mm/0.49"
  • Piston diameter: 30mm/1.18"
  • Outer cylinder diameter: 45mm/1.77"
Application

for Ford F100 Ranger 2WD 1973-1979

G1 Shock

Feature

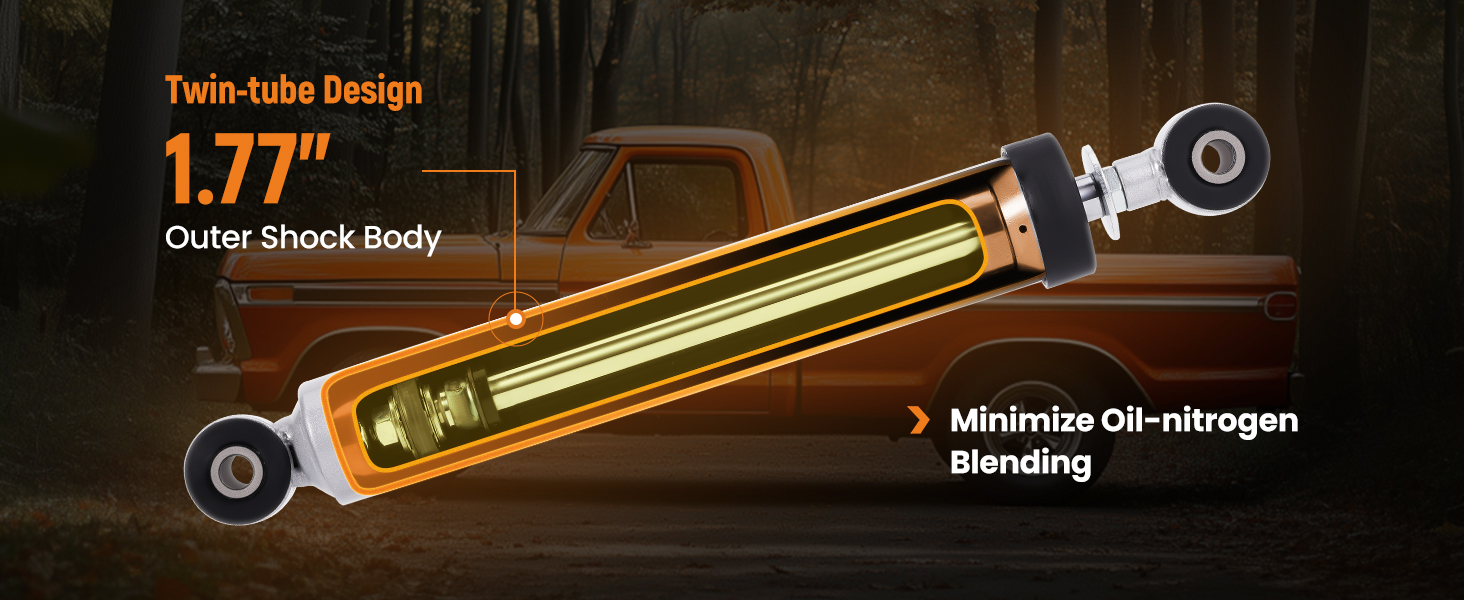

High-pressure nitrogen charged twin-tube shock absorber with high durability.

12.5mm Chromed Hardened Piston Rod.

30mm Diameter Sintered Iron Piston.

36KN Tensile Strength.

Precision Welding.

Easy bolt-on installation

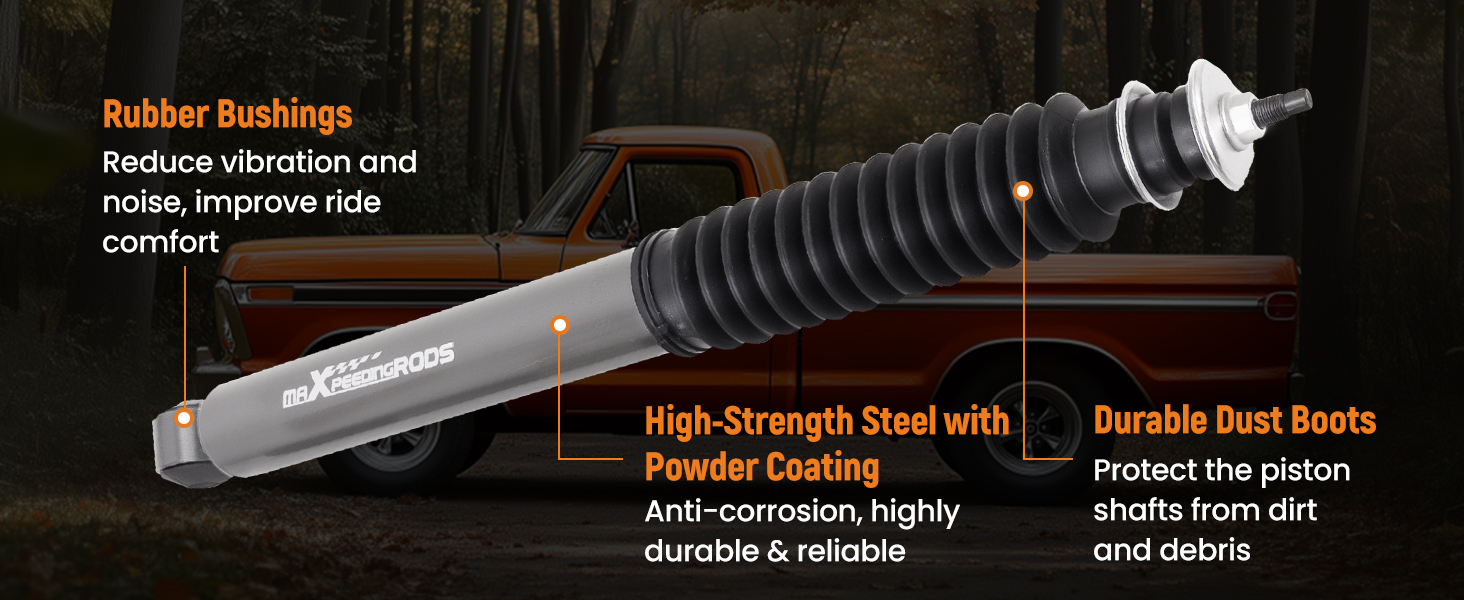

Power coated surface：provides superior corrosion resistance.

High Tensile Strength Carbon Steel for optimal durability and fitment.

Dust cover included prevent the shaft rod and oil seal from damaging.

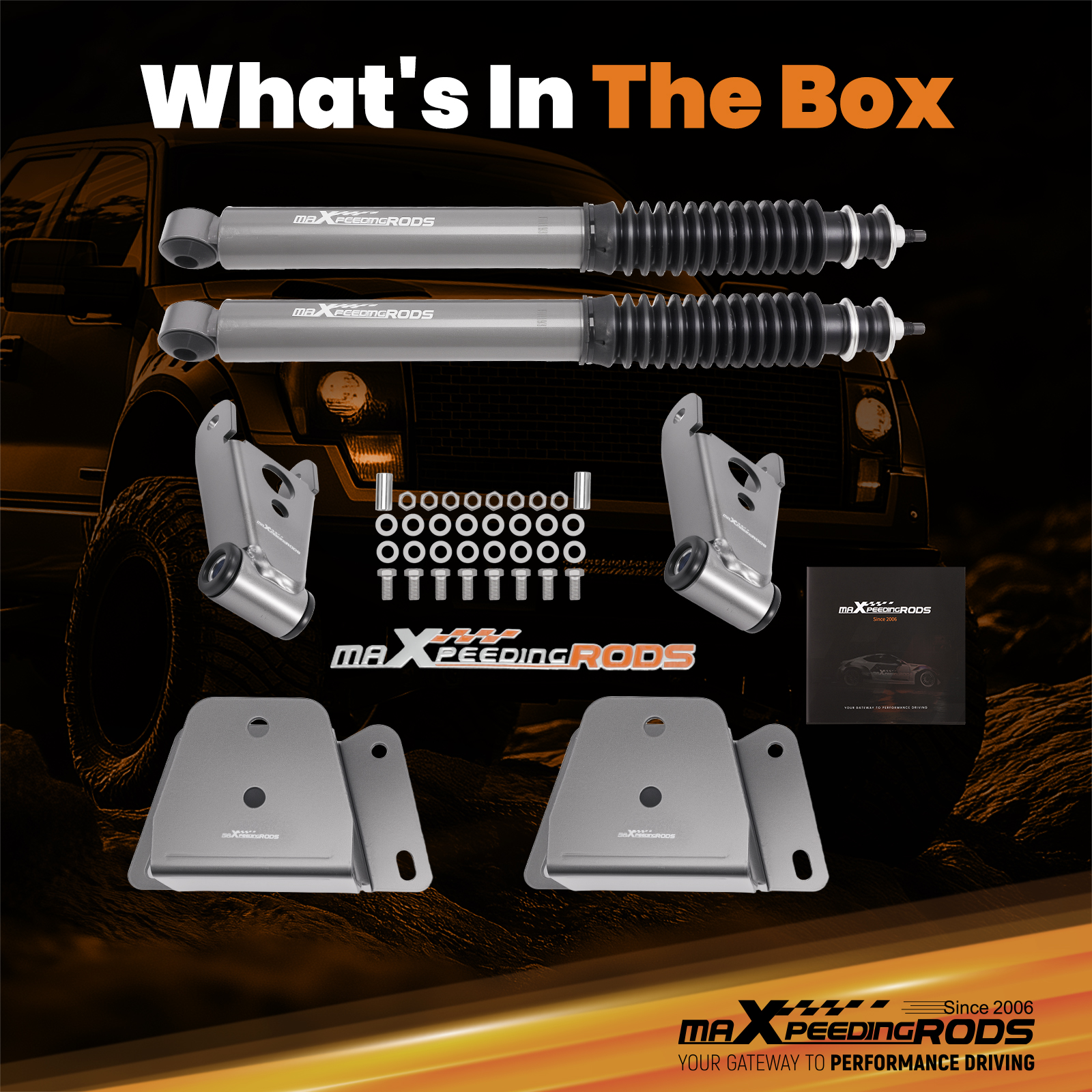

Package included

Package included

2x Rear drop shocks

2x Rear drop hangers

2x 1.5" / 2" Adjustable rear drop shackles

Necessary hardware

Why Chosse US?

Why Chosse US?



Other items you might also like

  • Carburetor Carb YFA 1 Barrel for Ford F100 F150 F250 4.9L 300 Cu Electric Choke Carburetor Carb YFA 1 Barrel for Ford F100 F150 F250 4.9L 300 Cu Electric Choke
  • 351CFM Carburetor 2100A800 for Ford F100 F150 F250 F350 289 302 351 1964-1979 351CFM Carburetor 2100A800 for Ford F100 F150 F250 F350 289 302 351 1964-1979
  • Universal Intercooler 27 Universal Intercooler 27"x7"x2.5" 2.5"O.D. Inlet and Outlet Tube & Fin set

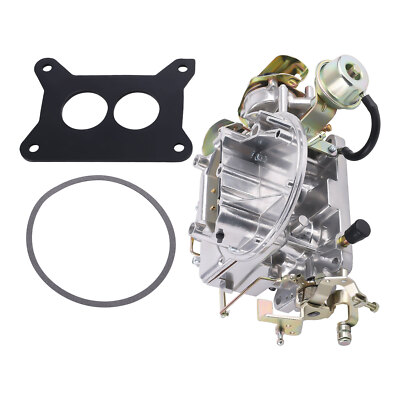

  • Carburetor Carb Engine 289 302 351 For Ford F150 F250 F350 1968 2100 A800 64-78 Carburetor Carb Engine 289 302 351 For Ford F150 F250 F350 1968 2100 A800 64-78
