| SKU: GEJB-175 | EAN: 6970620554907 | MPN: T7 BLACK |
| STATUS: In Stock | WARRANTY: 1 Year | RETURNS: 30 Days |

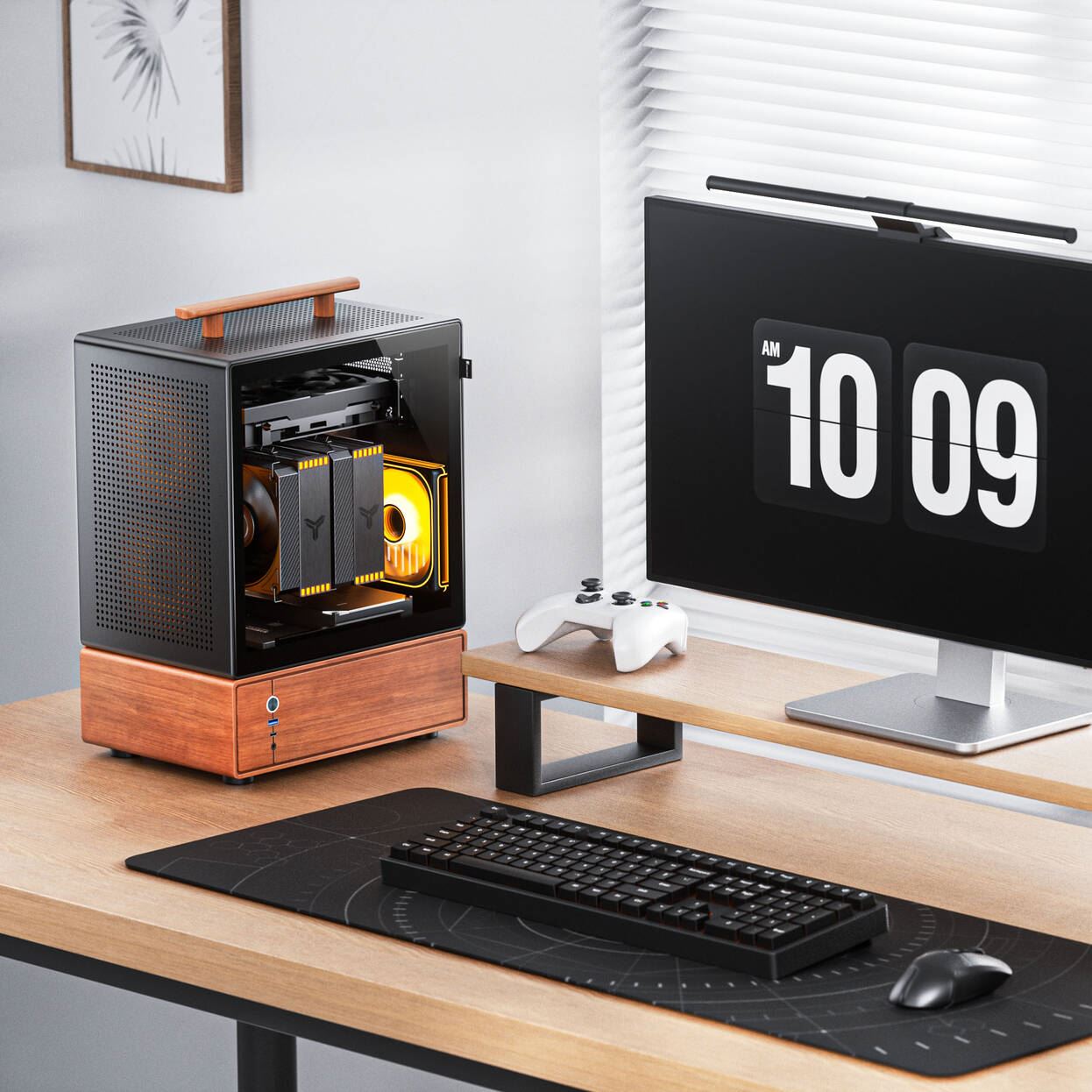

The JONSBO T7 Black is a stylish case for compact gaming and office systems. It is aimed at users seeking a portable setup with high-quality materials and efficient use of space.
Features:
– Striking design with real wood handle and aluminum structure
– Compact build with full Micro-ATX compatibility
– Supports GPUs up to 280mm and CPU coolers up to 165mm
– Thoughtful dual-chamber layout for clean airflow
– Modern front ports including USB-C for maximum connectivity
– Design & Materials

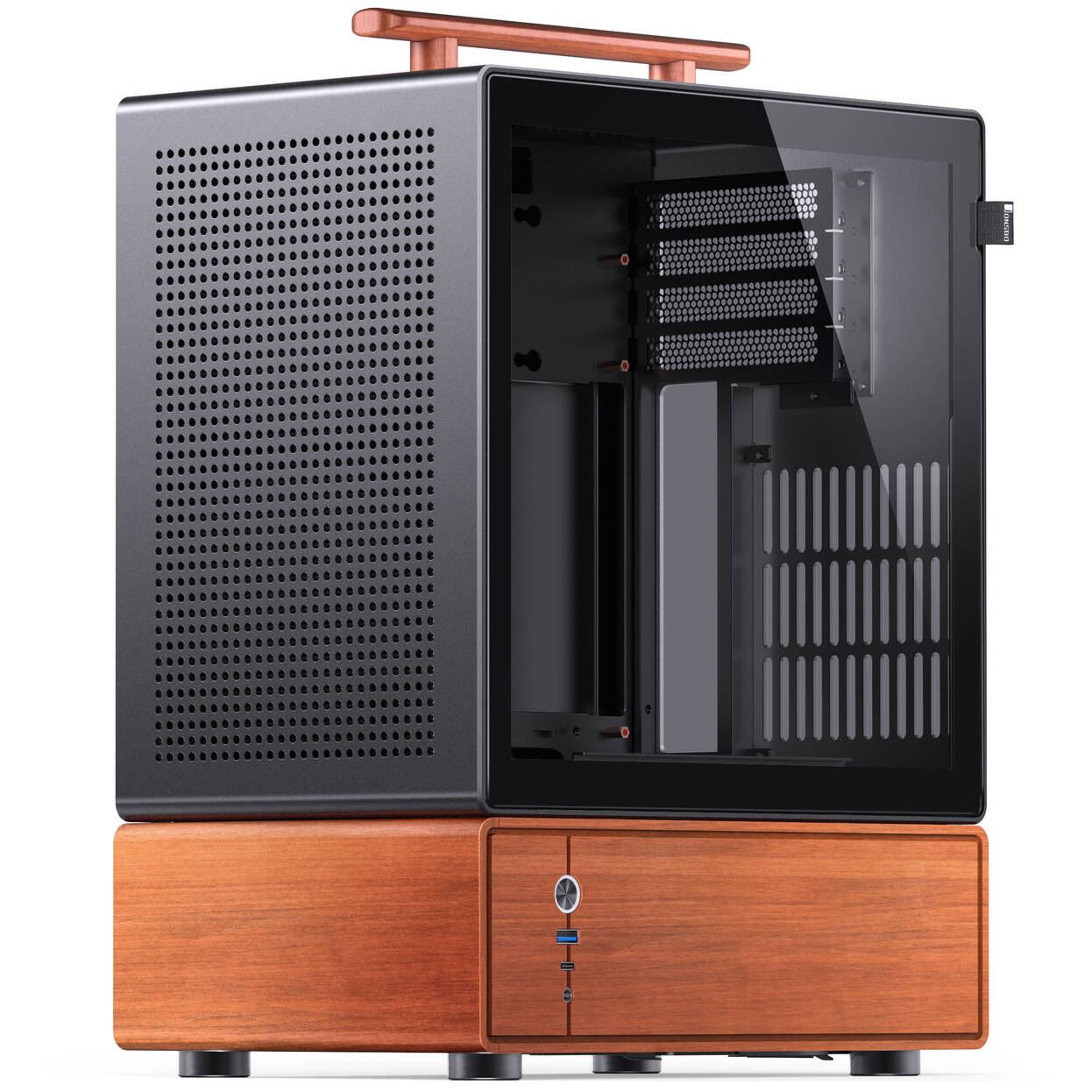

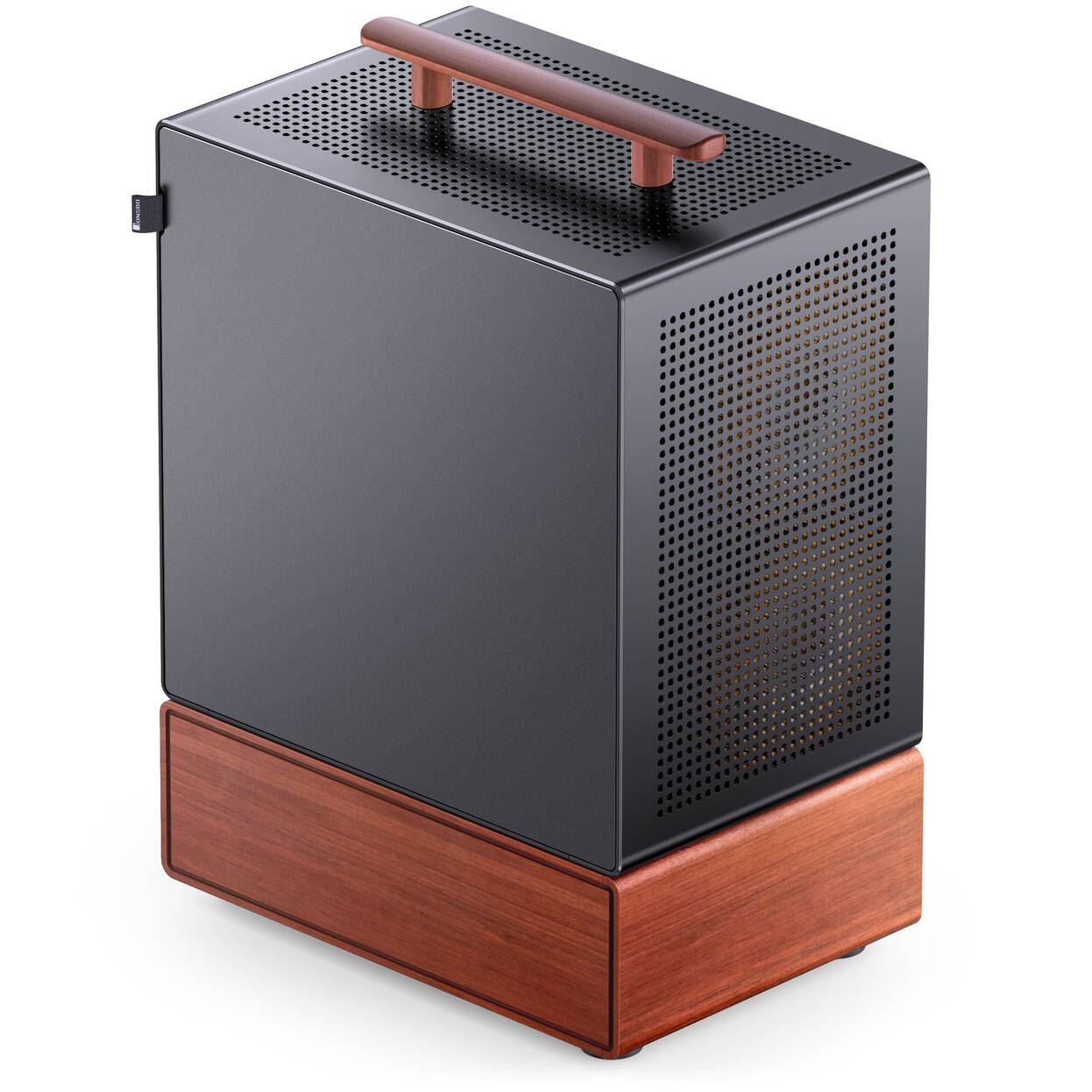

The case combines 3 mm thick aluminum with fine wood accents, offering a successful blend of technology and design. The integrated handle makes transport easier and emphasizes the case’s mobile focus.
Space & Hardware Support
The T7 supports graphics cards up to 280mm in length and CPU coolers up to 165mm in height. Power supplies up to 220mm deep also fit inside. Two 2.5-inch SSDs and an additional 3.5- or 2.5-inch drive can be integrated.
Efficient Cooling & Connectivity

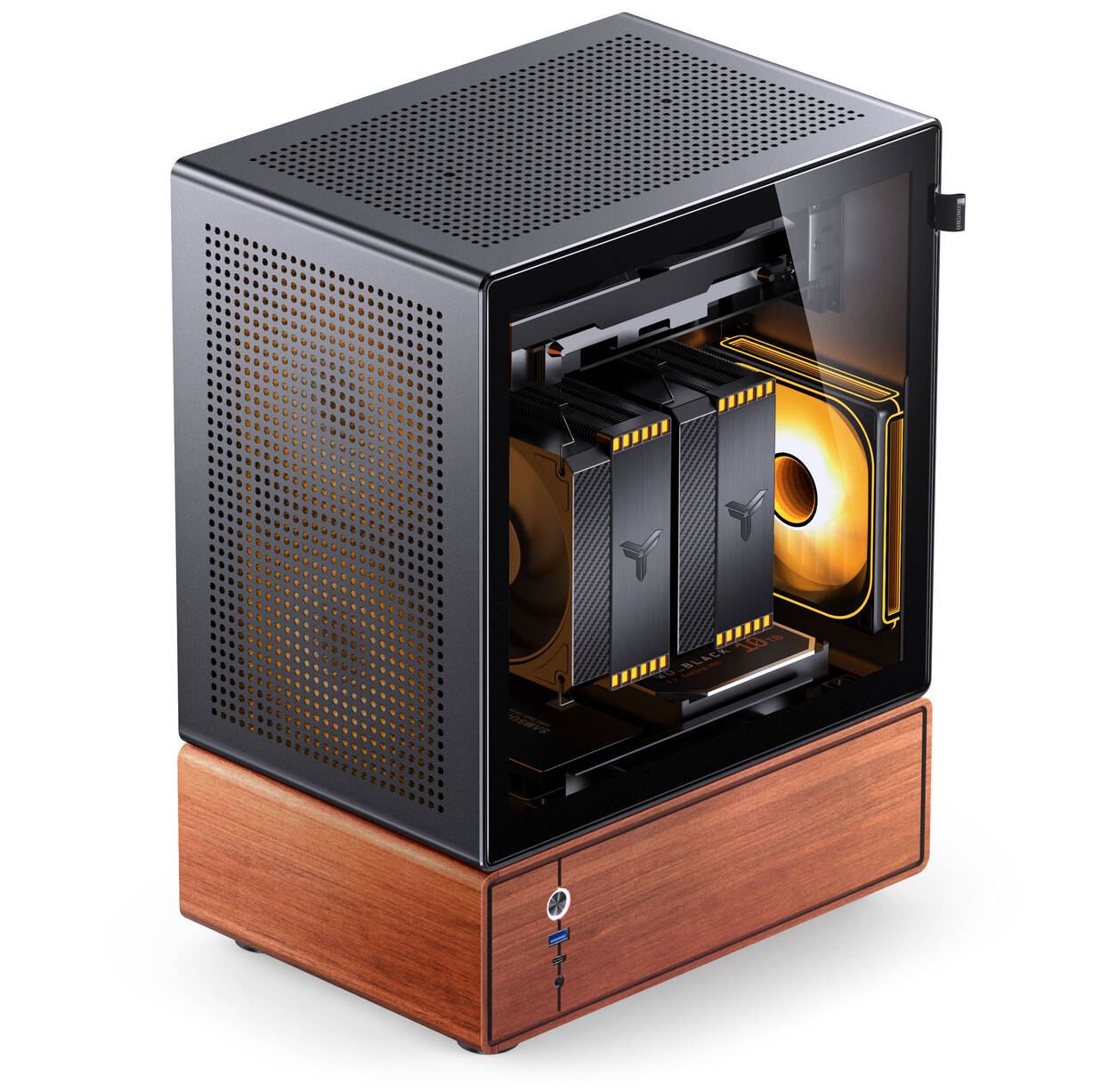

Up to three 120mm fans provide effective cooling, while the dual-chamber layout separates heat sources. The I/O panel offers USB 3.0 and audio as well as a modern USB-C port for fast data connections.
| Specification | |
|---|---|
| Colour | Primary: Black, Secondary: Brown |
| Dimensions | 305 x 210 x 403 mm (L x W x H), Weight: 5.85 kg |
| Case Type | Mini Case |
| Motherboard Support | Micro-ATX, Mini-ITX (Max: Micro-ATX) |
| Internal Dimensions | Max CPU Cooler: 165 mm, Max GPU Length: 280 mm, Max PSU Length: 220 mm |
| Display | No display included |
| Power Supply | Not included, Format: ATX, Position: Rear Bottom |
| Cable / Riser | Riser cable not included |
| Fan Support | Up to 3x 120 mm fans |
| Drive Bays | 3x 2.5″, 1x 3.5″, 0x 5.25″, Hot-swap: No |
| External Ports | 1x USB 3.1 Type-C, 1x USB 3.0 Type-A Audio: 1x combo 3.5 mm jack (TRRS) |
| Card Reader | No |
| Case Features | I/O: Side, Side Panel: Window, Vertical GPU: No, Cable Mgmt: No, Filters: Yes, Noise Dampening: No |
| Mounting & Transport | VESA Mount: No, Internal Monitor Mount: No, Transport System: Yes |
| Materials | Aluminium, Steel, Wood |
| Lighting | No RGB |
| Included Fans | None |
