Many customers use manual mechanical pipe benders and find it very difficult to bend pipes!
Different batches, random colors
There is no difference in the functional appearance and structure of the product, only the color is different
Therefore, we have newly developed a new hydraulic pipe bender, which is easy to use and effortless! Suitable for pipe diameter 10-25mm, wall thickness 1.5-5mm.

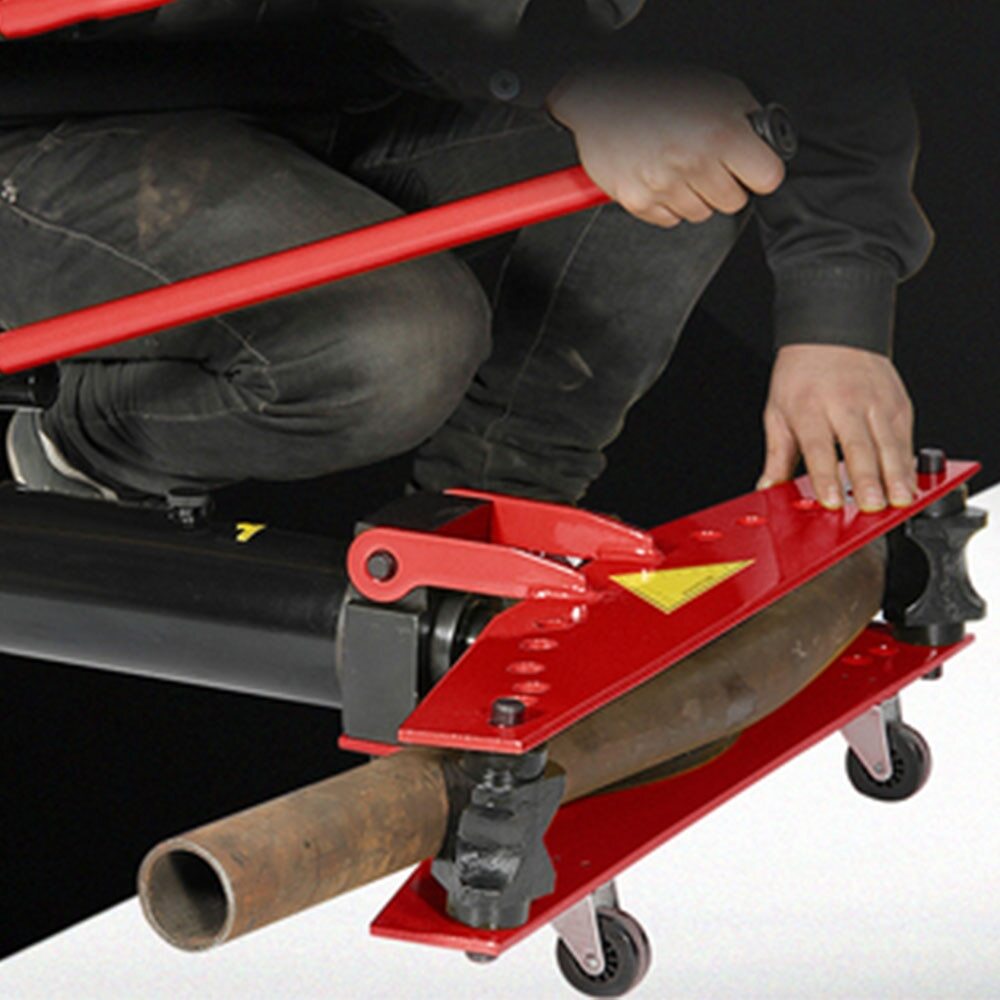

The tube is not deformed, up to 90 degrees.

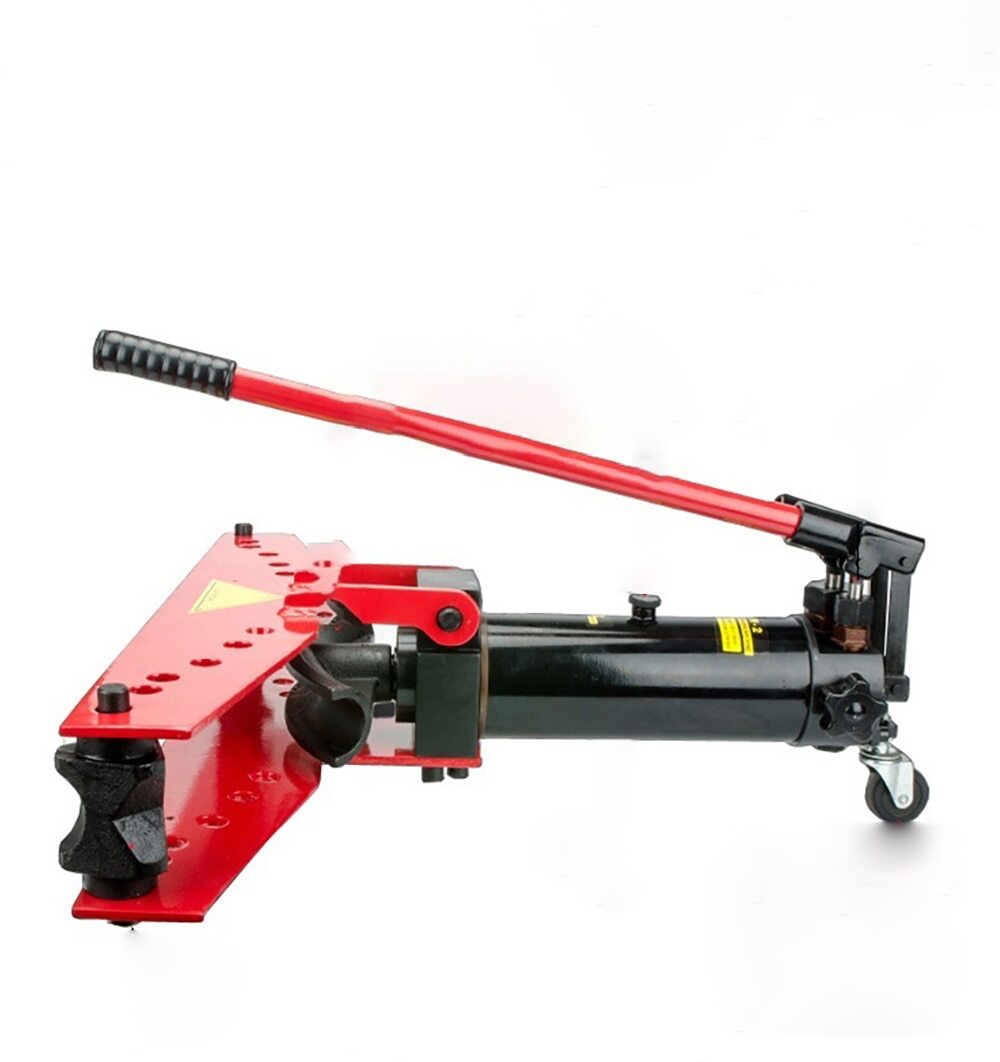

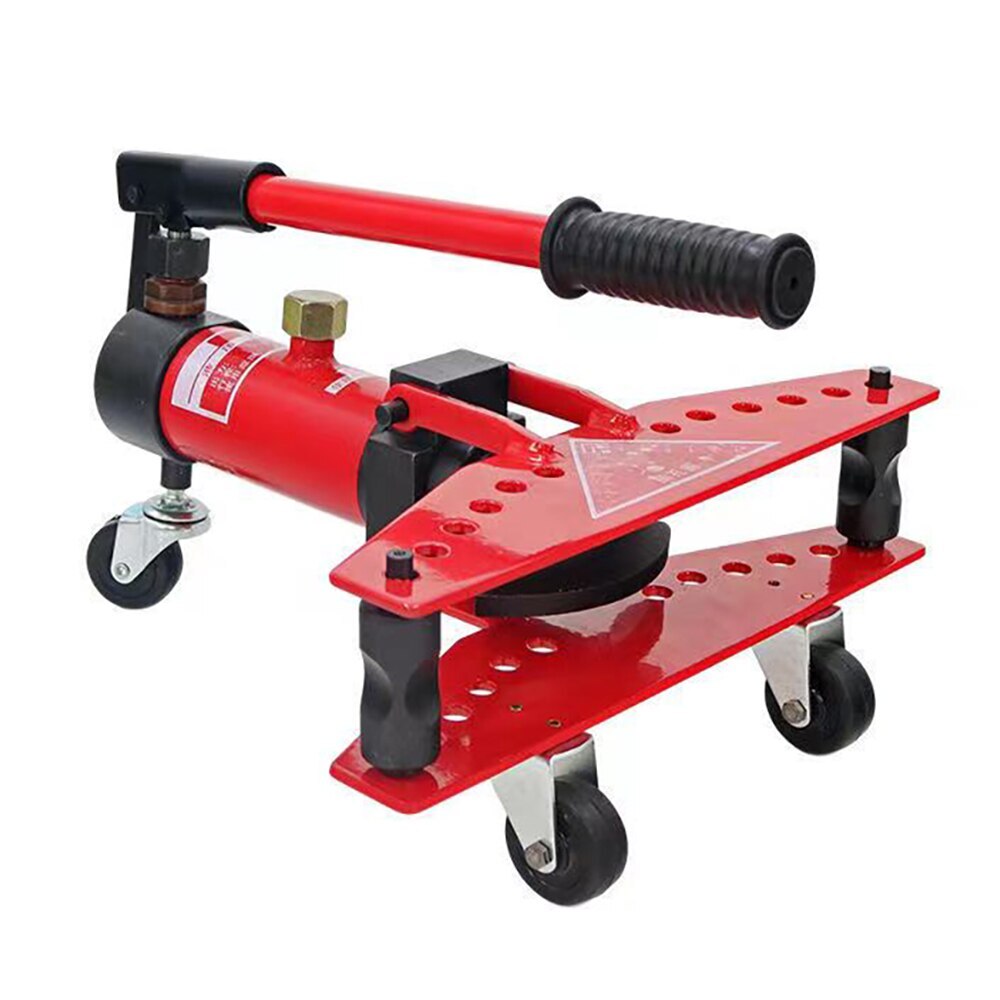

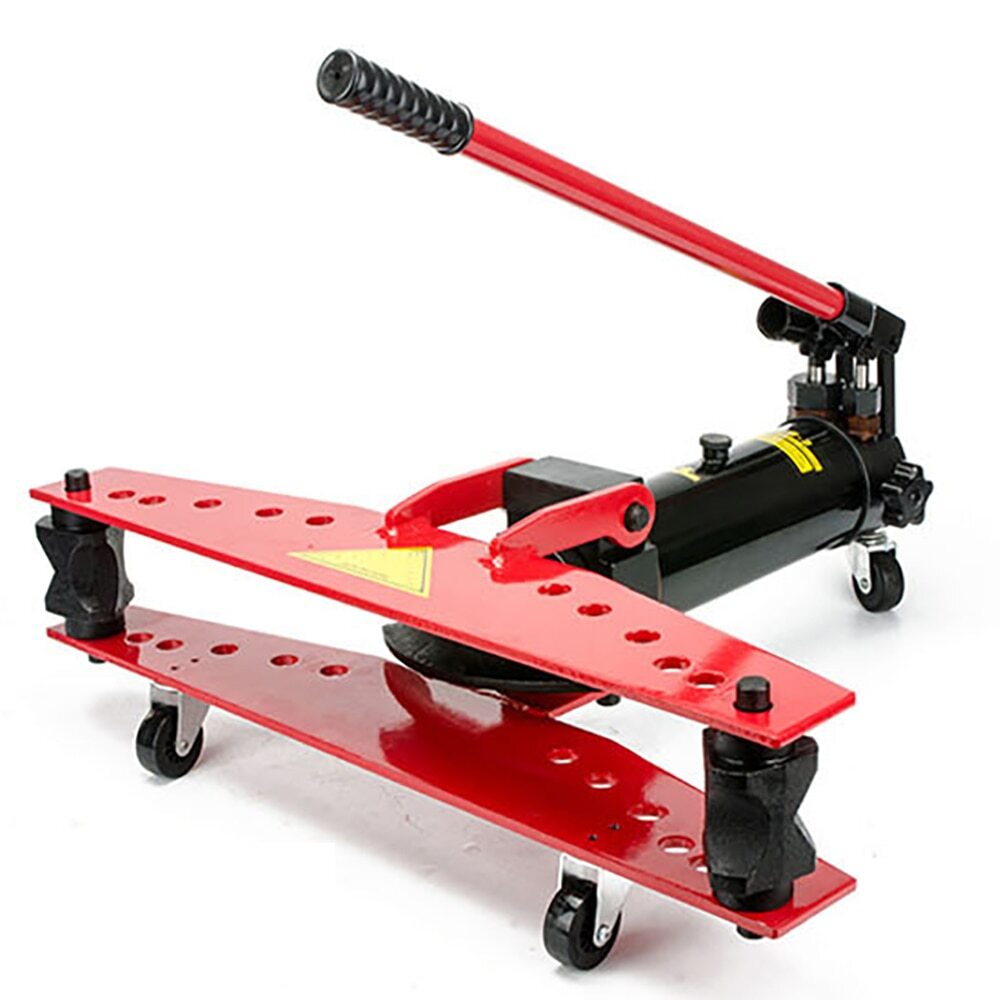

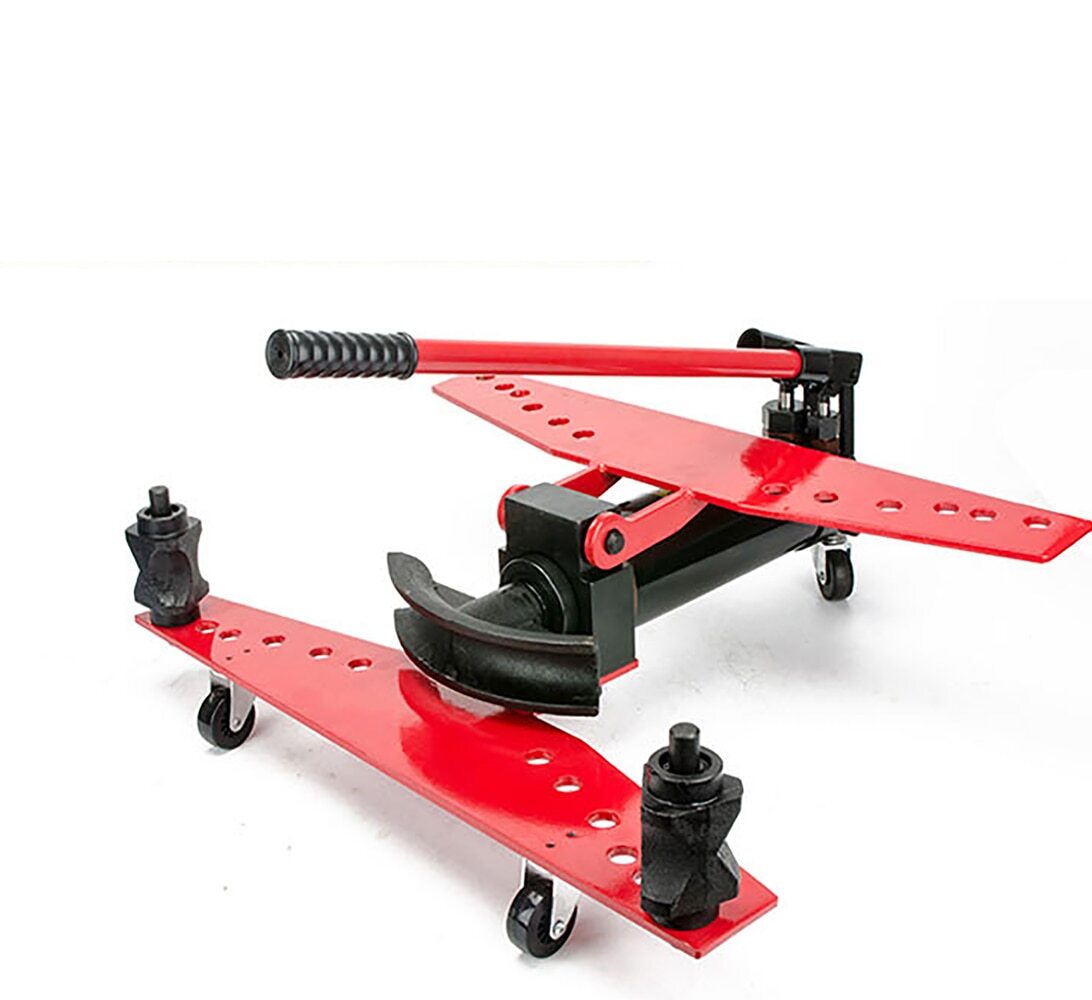

Model: SWG-25
Name: Integral hydraulic pipe bender
Output: 6T
Stroke: 120mm
Outer diameter: Φ10mm-Φ25mm
Pipe wall thickness: 1.5-3.5mm

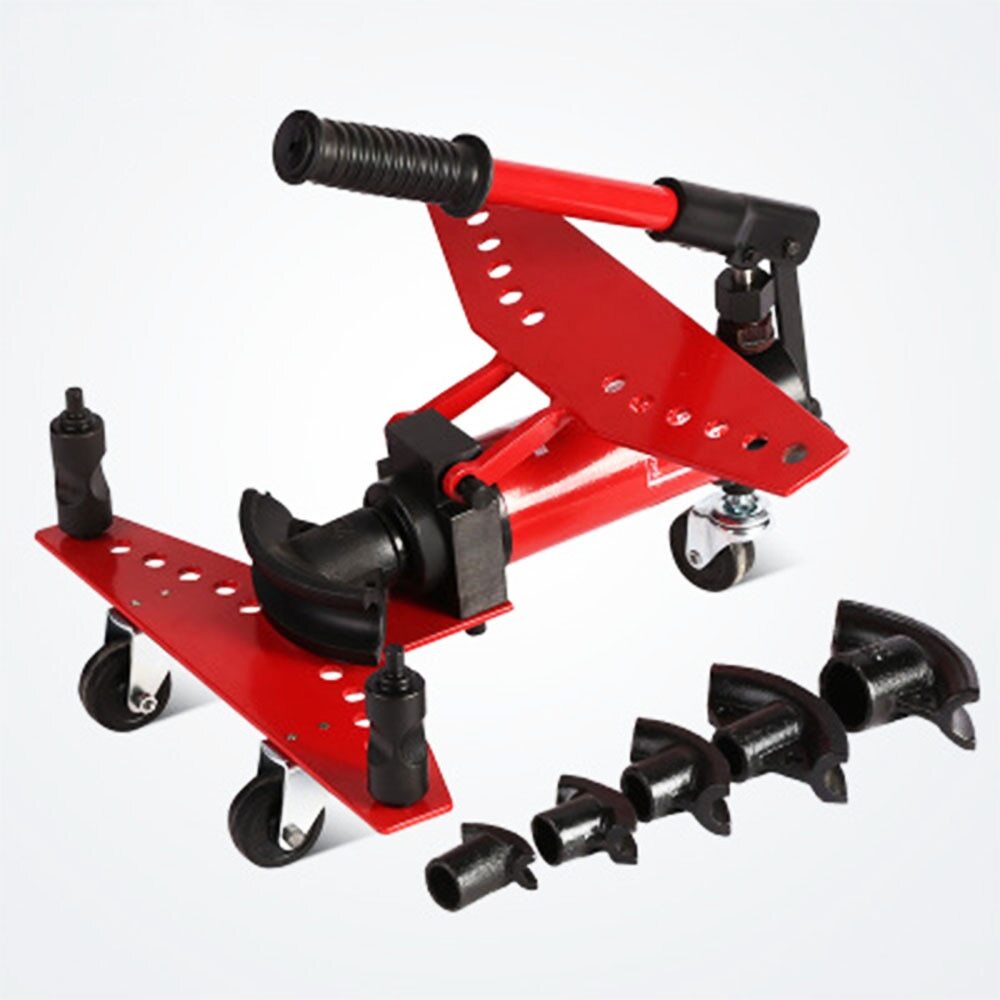

Configuration mold: Φ10, Φ13, Φ16, Φ19, Φ22, Φ25
Weight: 16kg
Scope of application: suitable for general water pipes, conduits, gas pipes, thick steel pipes, etc., with a maximum angle of 90 degrees.
The molds are made of nodular cast iron, which has higher strength, better toughness and plasticity than ordinary gray cast iron, and is more durable and not easy to break.
