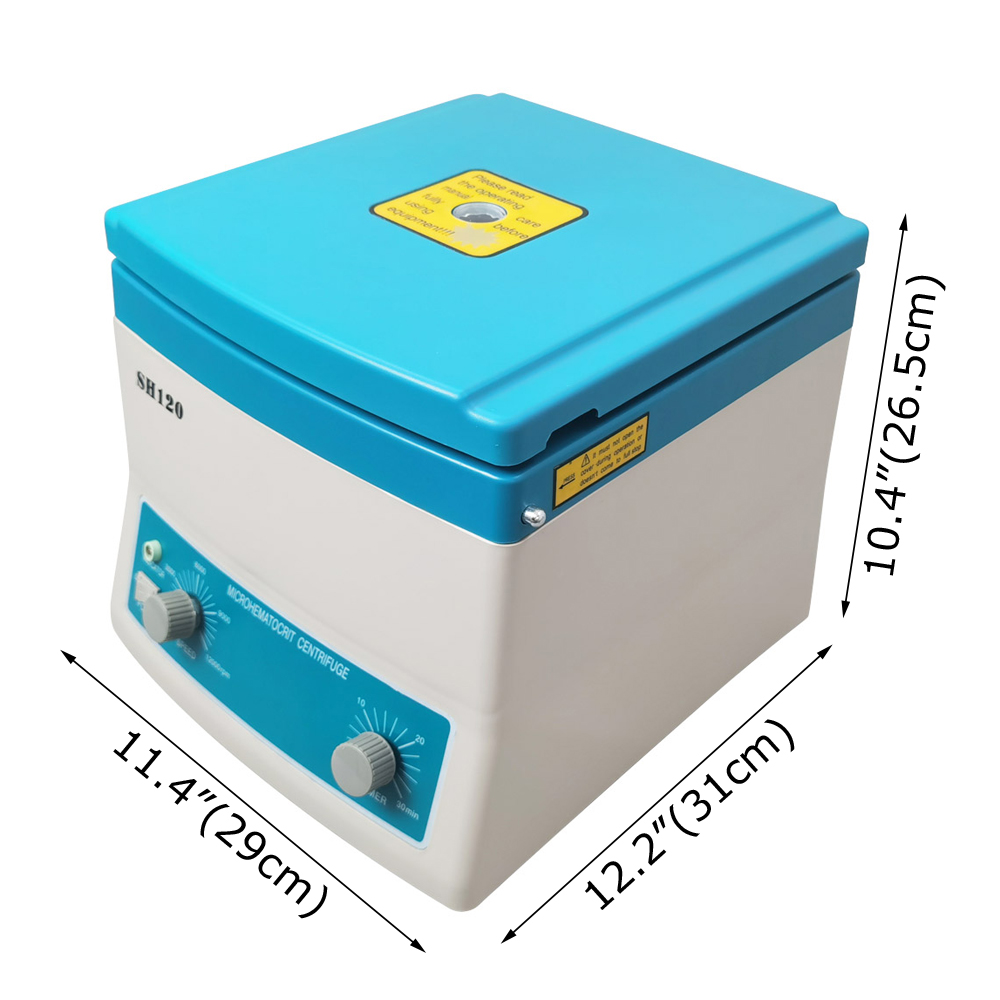

110V SH-120 Microhematocrit Electric Lab Centrifuge

INTSUPERMAI®

ITEM DESCRIPTION

  • High-strength plastic case with metal cover, compact design with minimal footprint
  • Integrated safety switch with mechanical door lock - cover opens at any position, ensures operational safety
  • Precise hematocrit measurement and micro-sample separation capability
  • Minimal blood volume requirement (capillary samples from earlobe or fingertip)
  • Rapid centrifugation cycle with high throughput efficiency
  • Angle rotor design generates high relative centrifugal force (RCF) for effective separation
https://topseller365.com/data/prd/056/439/2.jpgTechnical Overview: The SH-120 Microhematocrit Centrifuge provides precise determination of blood cell ratios and separation of micro-volume samples. Utilizing capillary action for sample collection, the system achieves rapid separation through high-RCF centrifugation. Balanced capillary placement in the angle rotor ensures optimal separation of components based on density differentials.

ITEM PARAMETERS

Parameter Specification
Voltage AC110V/60Hz
Power 100W
Maximum Rotational Speed 12,000 rpm
Relative Centrifugal Force (RCF) 15,300 ×g
Capacity 24 tubes: φ1.5mm × 75mm (φ0.06" × 2.95")
Timer Range 0-30 minutes (continuous operation not recommended)
Acceleration Time < 1 minute to maximum speed
Deceleration Time < 2 minutes to complete stop
Operating Environment 0-30°C, <80% relative humidity
Package Dimensions 36 × 35 × 34 cm (14.2" × 13.8" × 13.4")
Weight Net: 7.9 kg (17.4 lb) / Gross: 8.65 kg (19.1 lb)

ITEM DETAILS

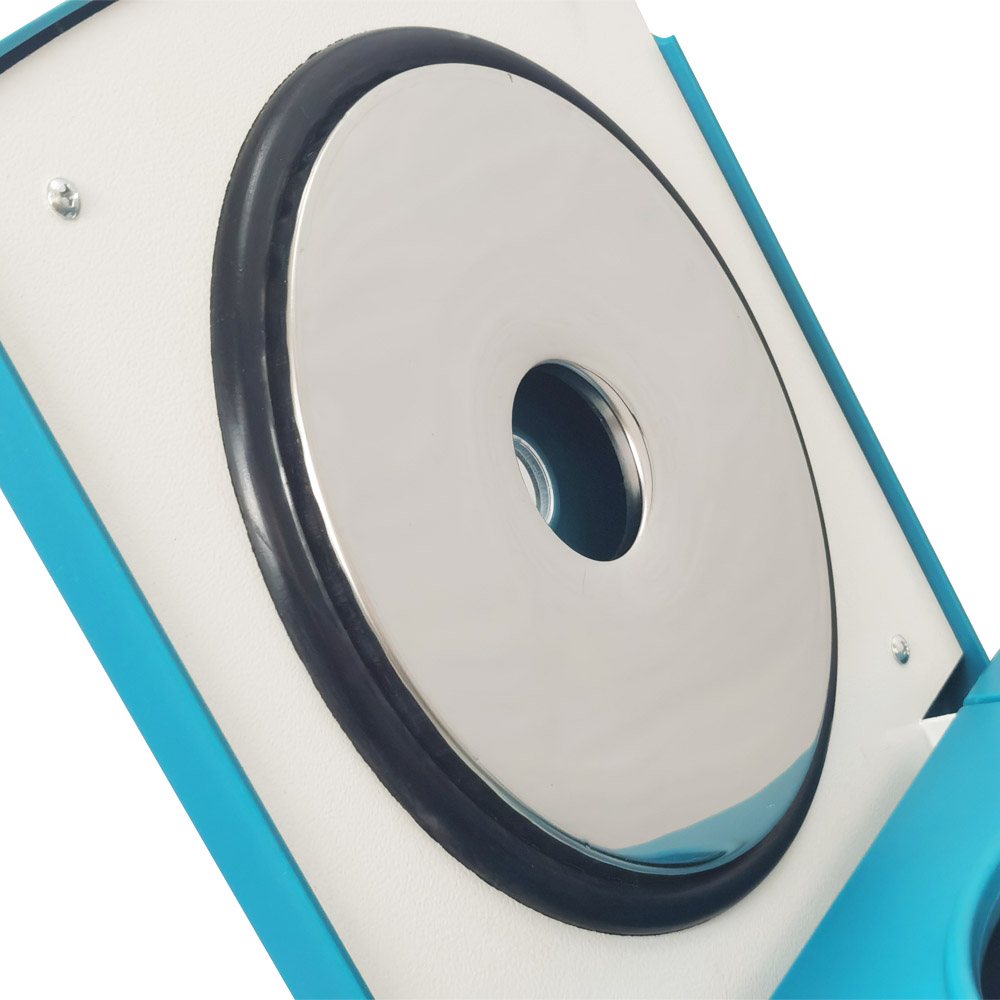

Sound Arrester

Acoustic Damping System

Integrated rubber muffler on centrifuge cover significantly reduces operational noise. Provides low-noise operation for comfortable laboratory environments.

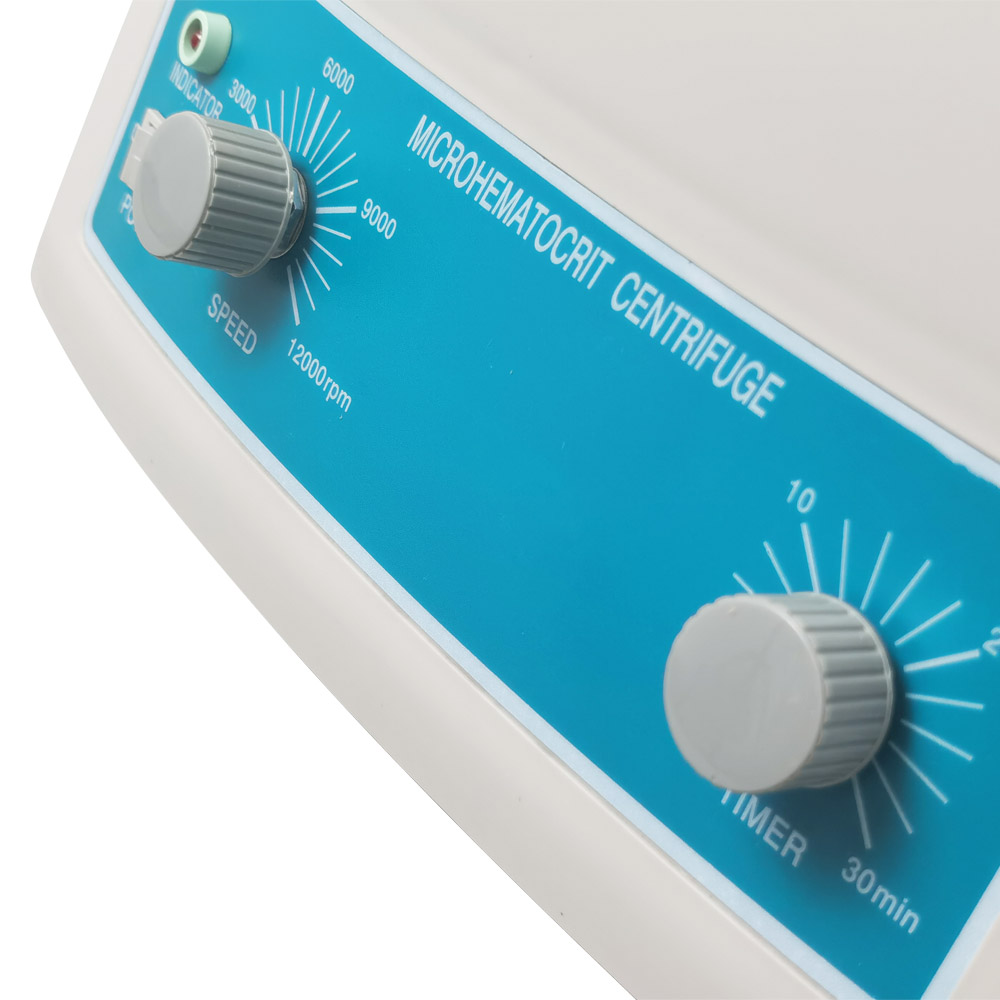

Control Panel

Integrated Control Interface

Consolidated panel with power switch, speed control knob, and digital timer. Visual indicator lights provide immediate operational status feedback.

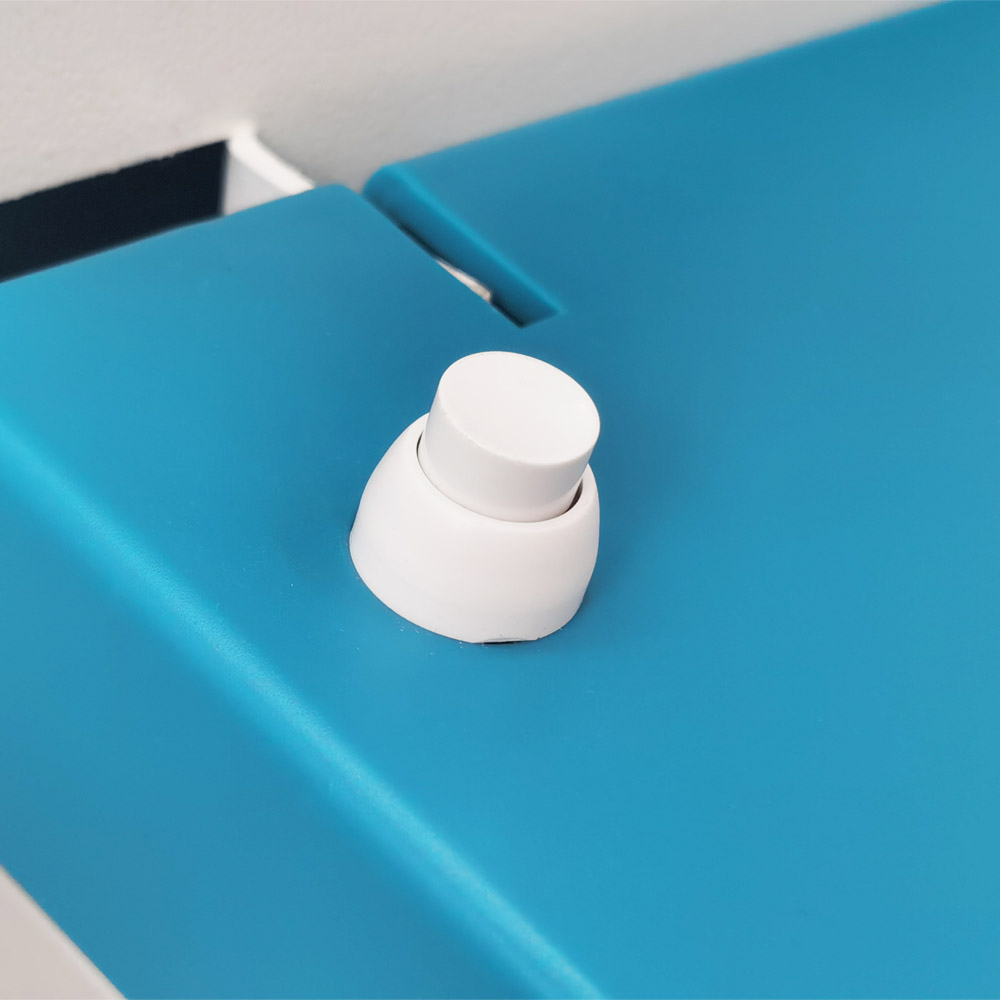

Protection Switch

Safety Interlock System

Pressure-activated safety switch immediately disengages power when cover is opened. Prevents accidental exposure to rotating components.

Heat Emission

Thermal Management

Optimized ventilation system with strategically placed heat dissipation ports. Maintains operational temperature for extended running periods.

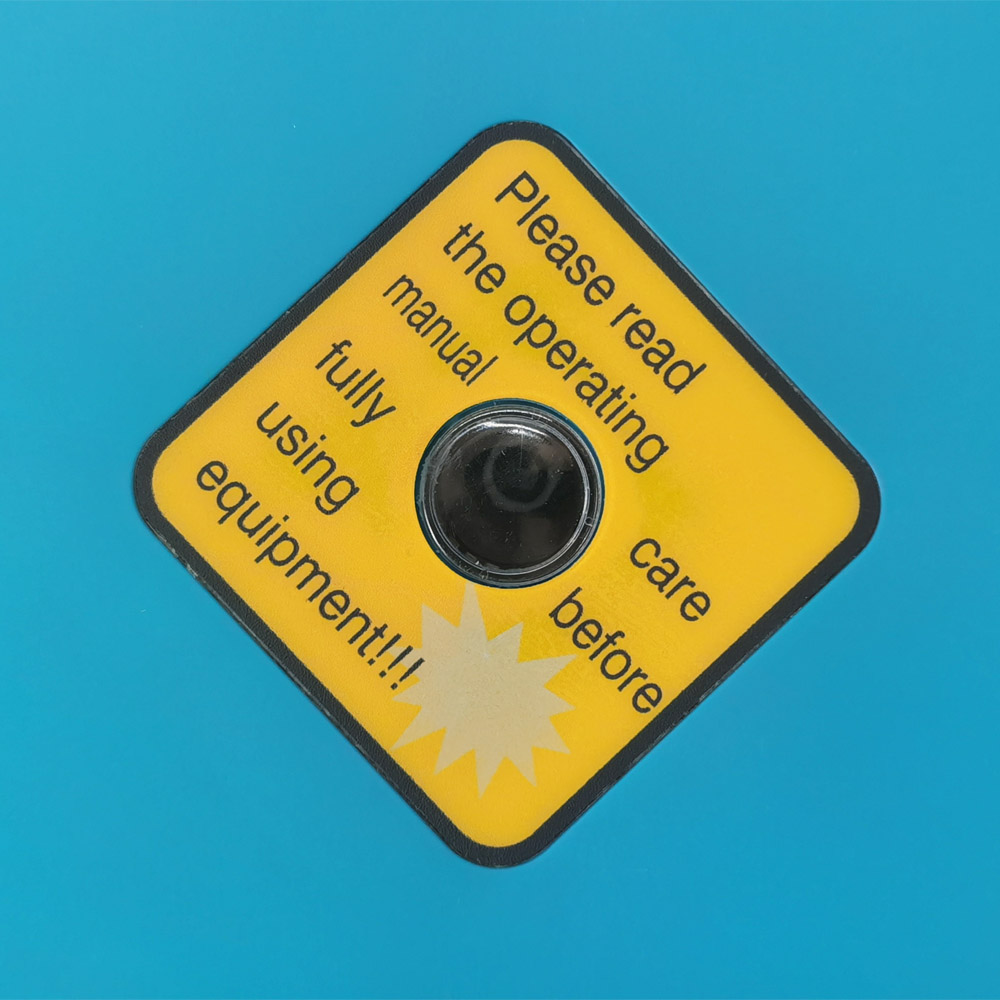

Observation Port

Visual Monitoring Port

2.5 cm acrylic observation window allows real-time monitoring of centrifugation process without interrupting operation.

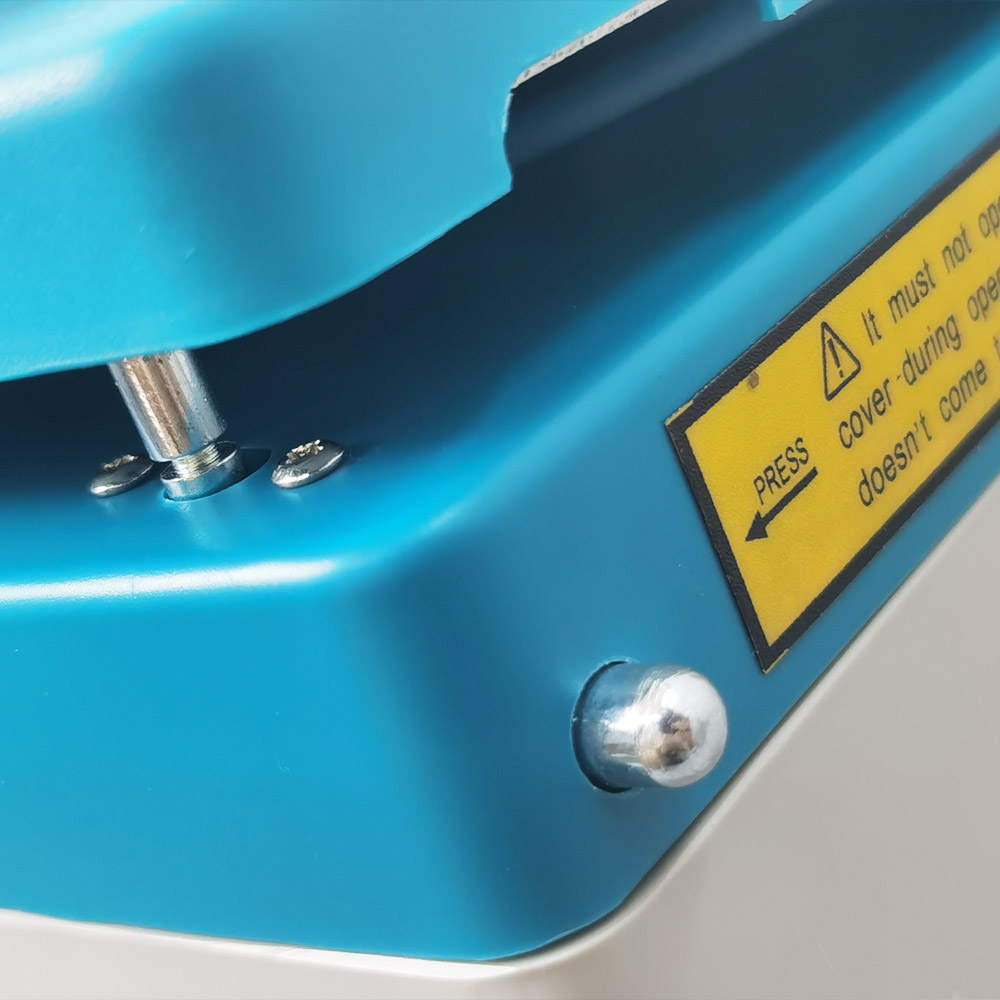

Cover Mechanism

Secure Latch Mechanism

Spring-loaded cover latch with automatic engagement. Ergonomic design ensures secure closure with minimal effort.

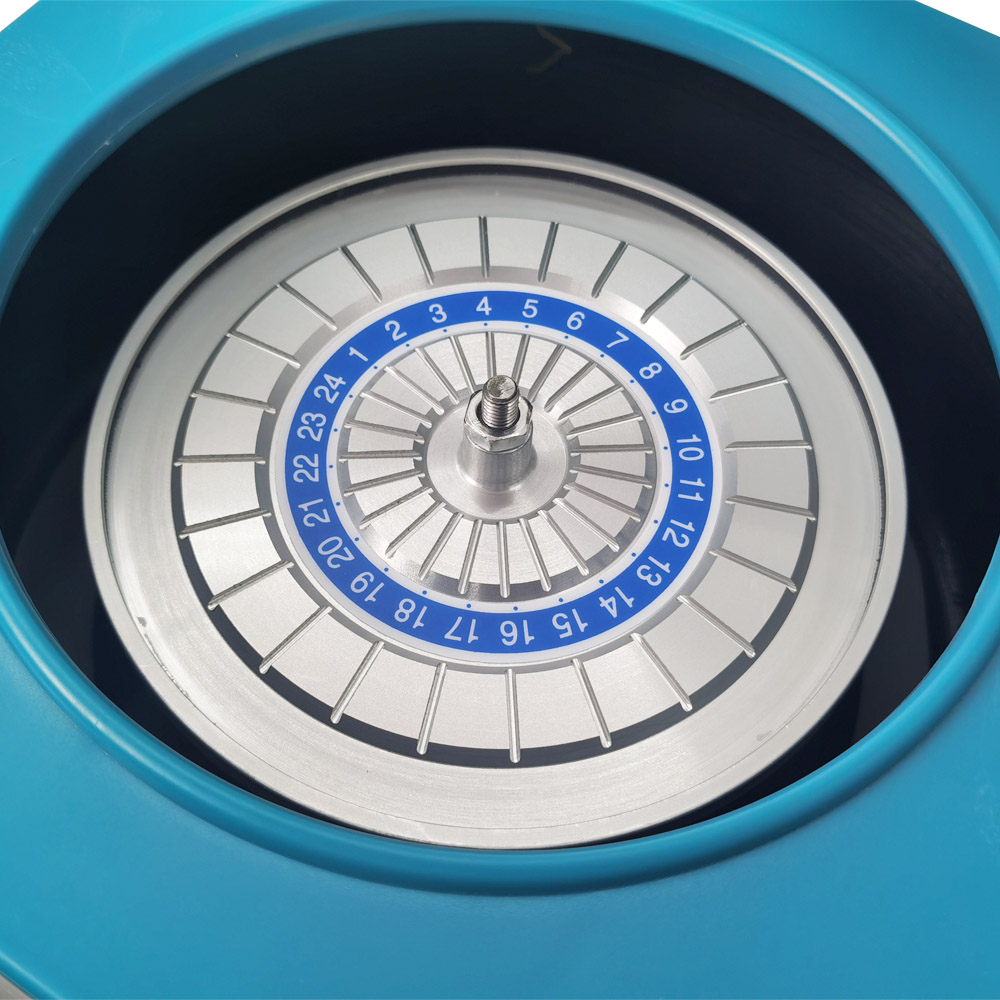

Rotor Assembly

High-Efficiency Rotor

Aluminum alloy angle rotor with 24-position capacity. Lightweight construction maximizes rotational efficiency and sample throughput.

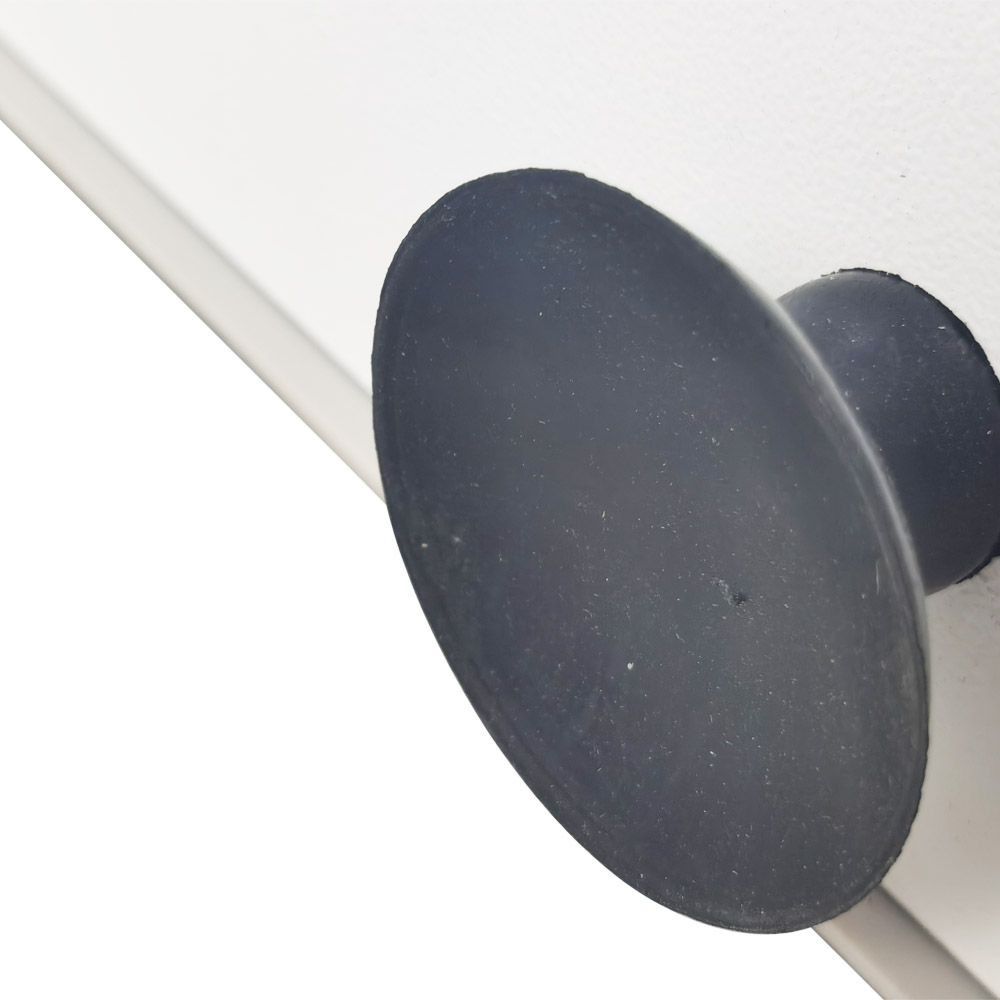

Stabilization System

Vibration Dampening Base

Four-point rubber isolation system provides stable operation on laboratory surfaces. Prevents instrument migration during high-speed runs.

ITEM INCLUDED (056439)

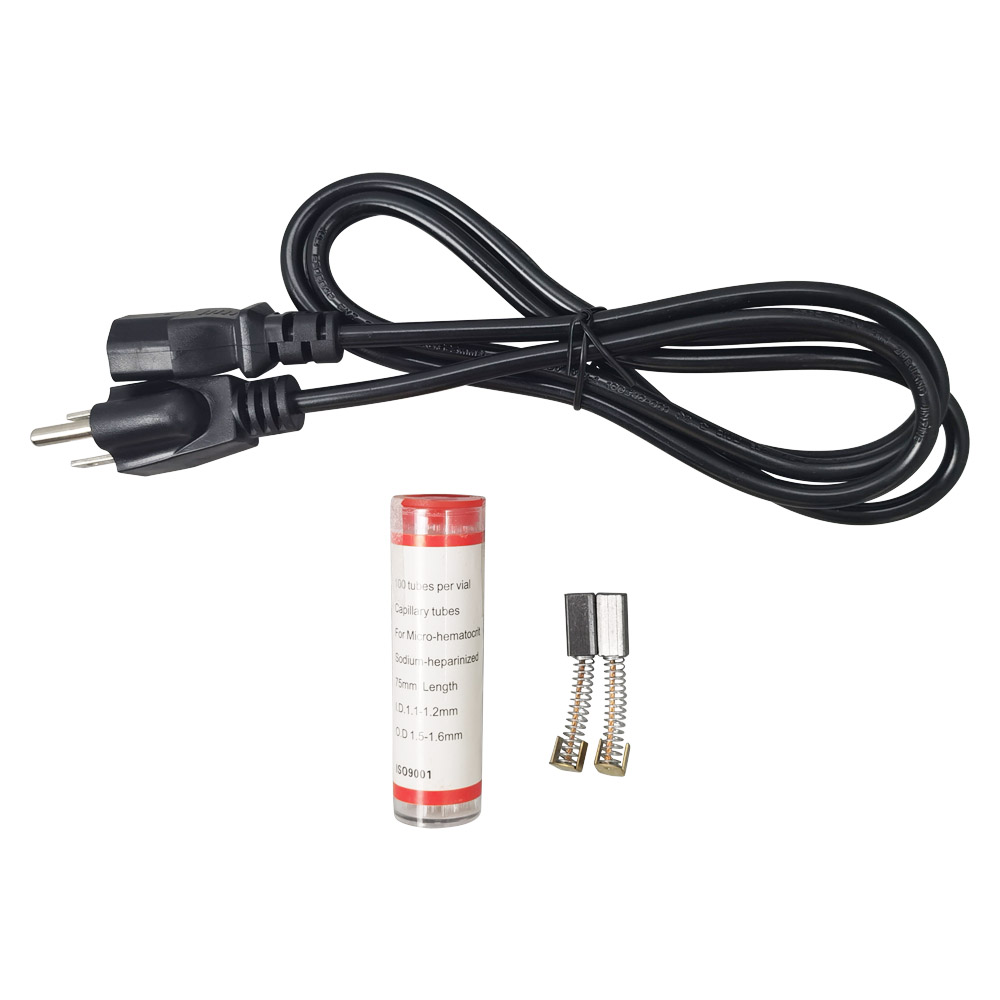

Package Contents Accessories
SH-120 Centrifuge × 1
Power Cable × 1
Capillary Tubes × 24
Carbon Brushes × 2
English Manual × 1
