Techtongda Solder Paste Mixer

110V Single Tank 1000ml Automatic Solder Paste Mixer Suitable For Large Volume Solder Paste Cans


INTSUPERMAI®
ITEM DESCRIPTION
  • Paste container positioned at 45° angle, rotating along axis. Prevents adhesion to lid.
  • Time-relay controlled operation. Simple interface, high reliability.
  • Efficient bubble removal during mixing process.
  • Sealed mixing chamber prevents oxidation and moisture absorption.
  • Optimized speed ratio minimizes tin impact and temperature rise.

Microprocessor-controlled automatic mixer. Ensures homogeneous blending of tin and solder paste without opening container. Eliminates oxidation and humidity issues. Significantly improves efficiency and consistency over manual stirring.

ITEM PARAMETERS
Voltage: AC110V
Motor power: 60W
Volume of single mixing tank: 0.26gal (1000ml)
Fixture clamping diameter range: 3.94" - 4.49" (10cm - 11.4cm)
Mixing material: Tin paste, ink, glue, etc.
Display mode: LED digital display
Motor speed: 1350rpm
Revolution speed of stirring tank: 1000rpm
Rotation speed of stirring tank: 500rpm
Timing range: 1s - 99h99s
Noise: <20dB
Packing: New wooden cases
Packing dimensions: 25.2" × 24" × 28.7" (64×61×73cm)
Net weight / Gross weight: 92.6lb (42kg) / 116.8lb (53kg)

Custom fixture specifications available upon request. Contact for customization.

ITEM DETAILS

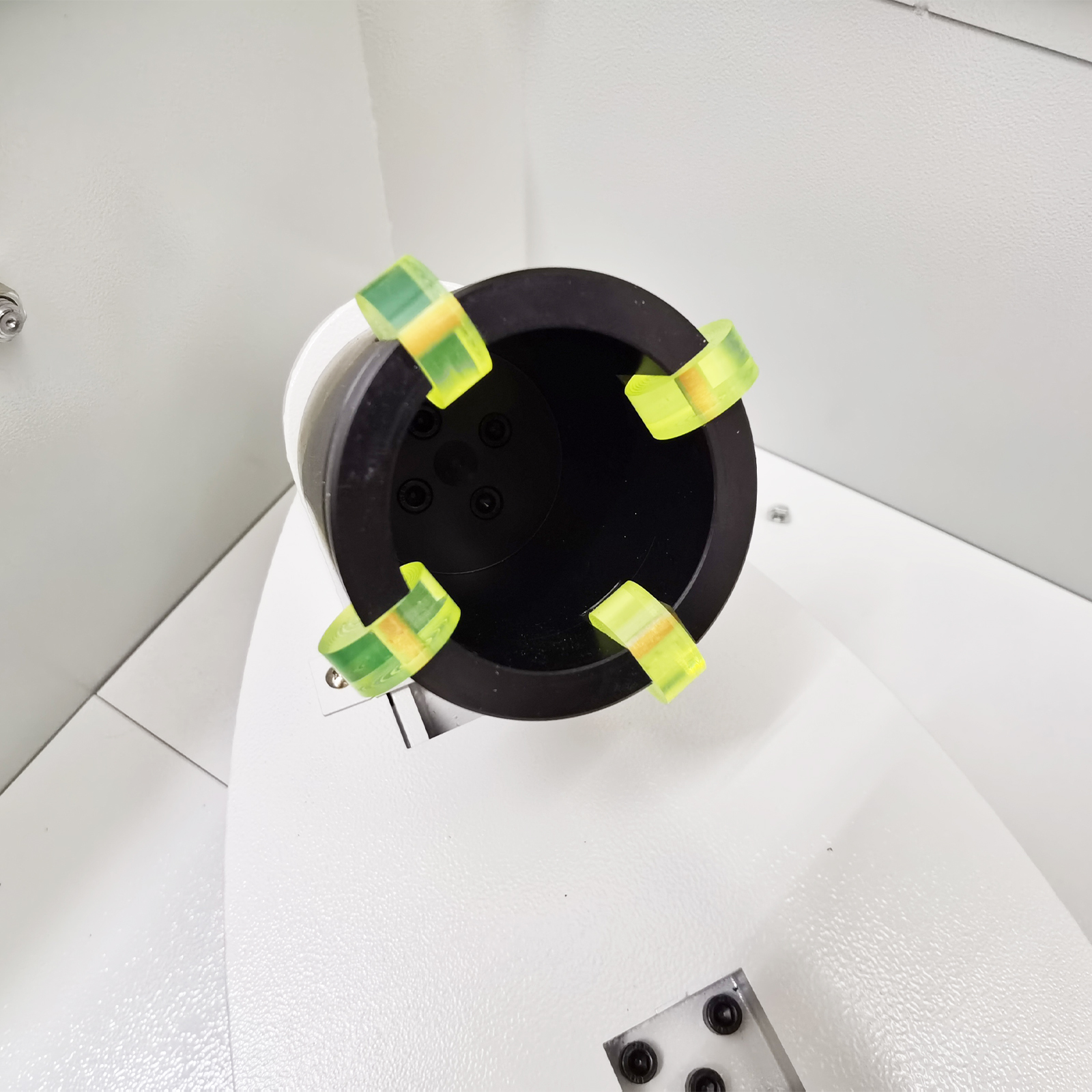

Stirring Apparatus
Stirring Apparatus

Planetary motion principle ensures thorough mixing. Elastic clamping device securely holds mixing tank.

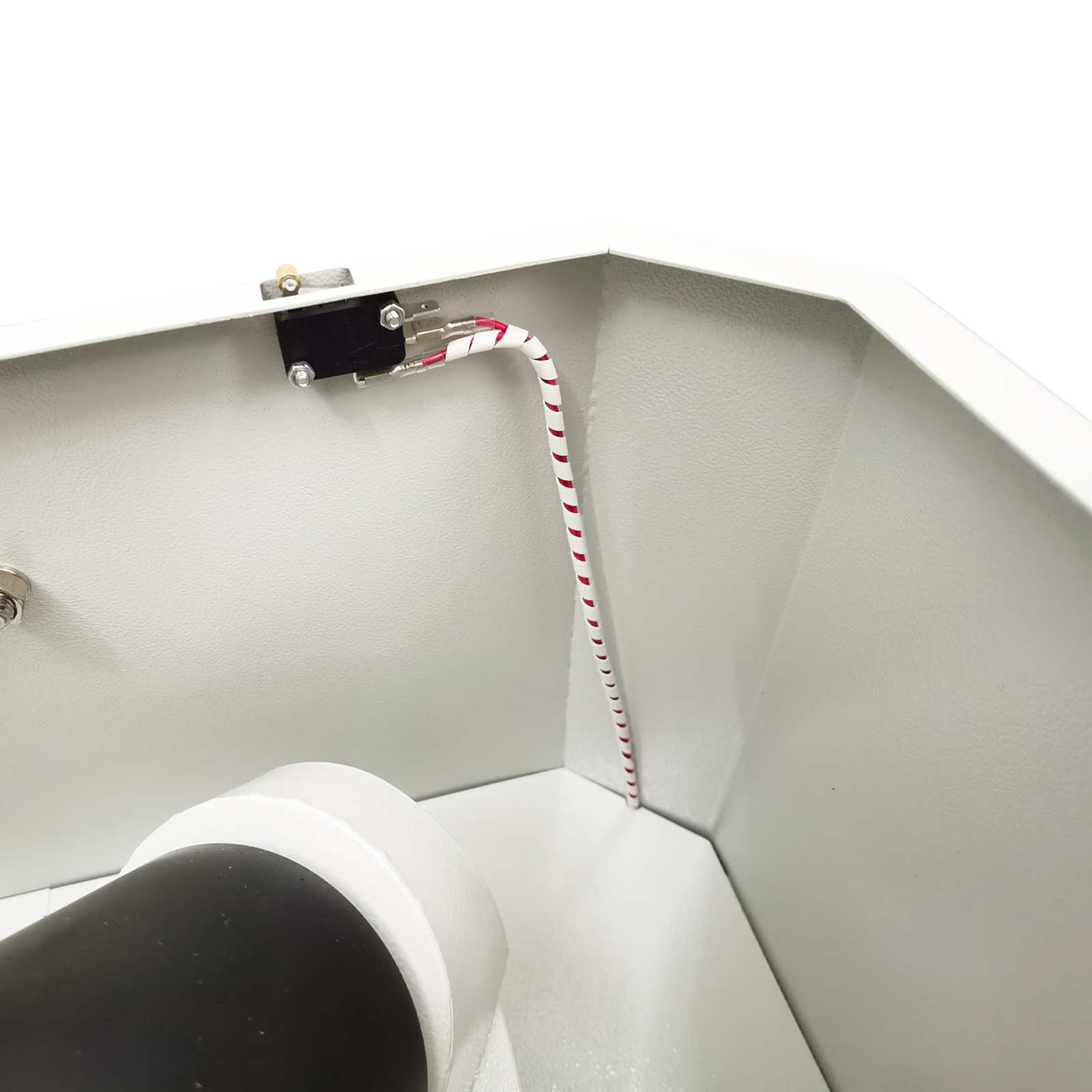

Travel Switch
Travel Switch

Lid-activated safety switch cuts power when opened, restores when closed. Enhances operational safety.

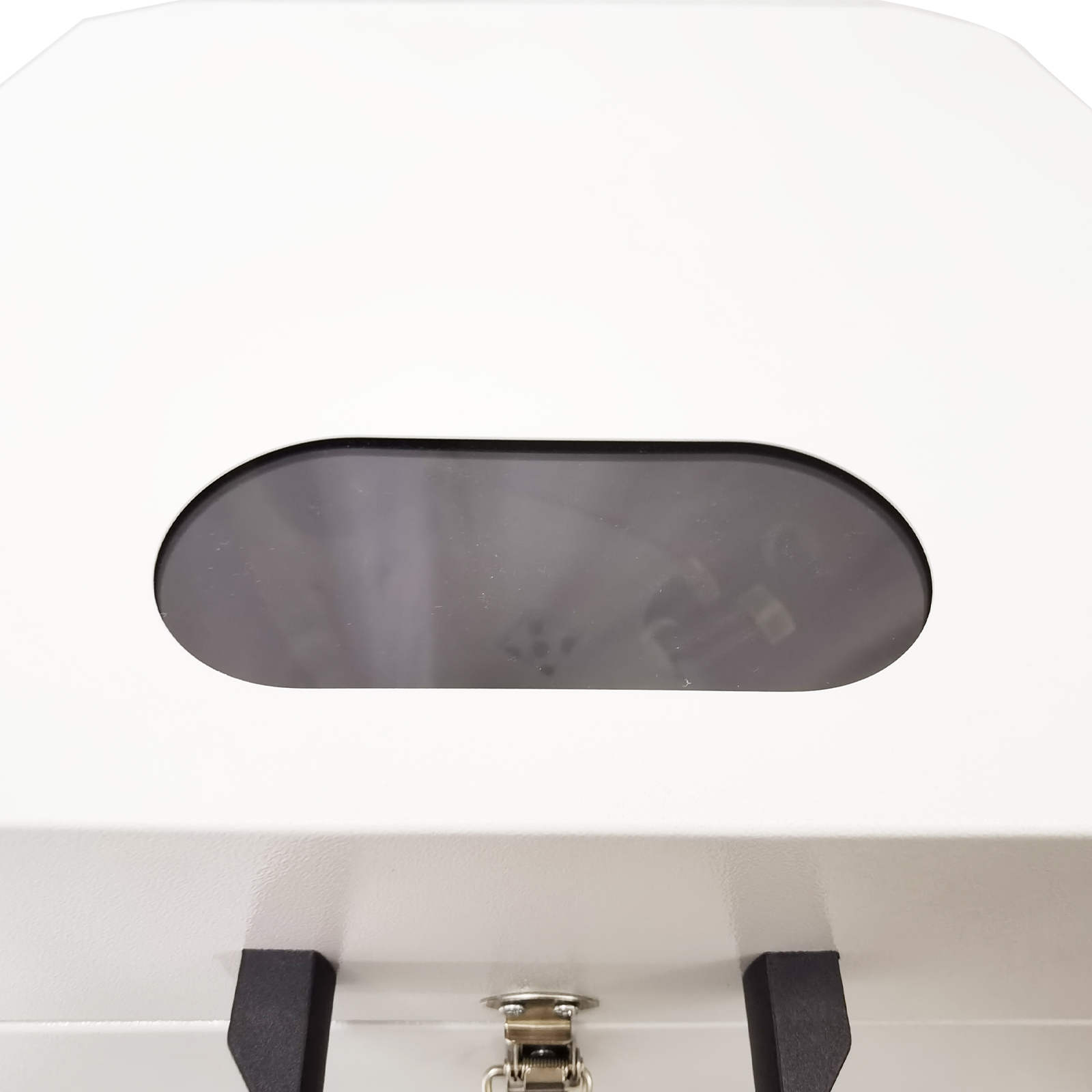

Observation Window
Observation Window

Transparent window allows real-time monitoring of mixing process and internal machine status.

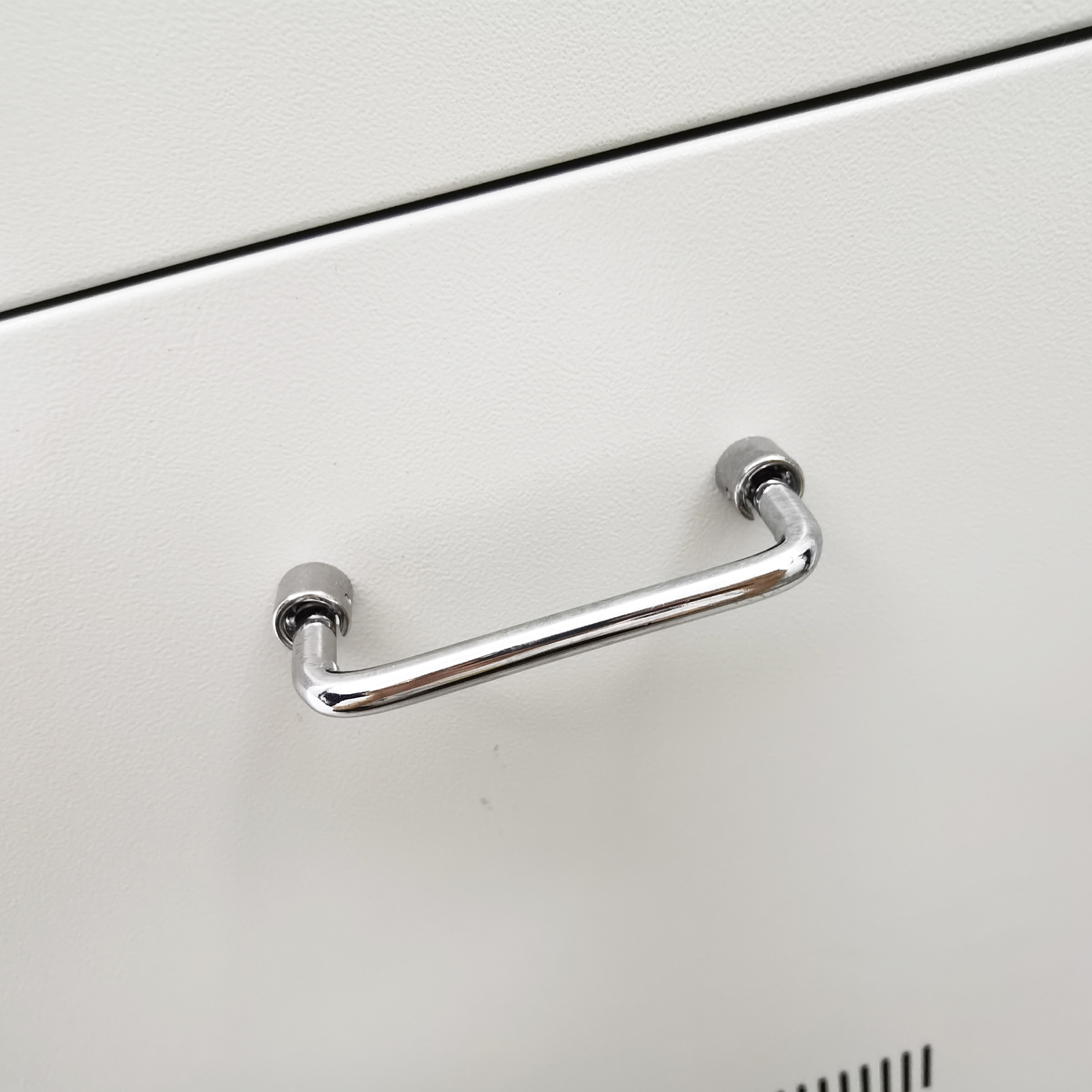

Carry Handle
Carry Handle

Ergonomically designed side handles facilitate safe and convenient machine relocation.

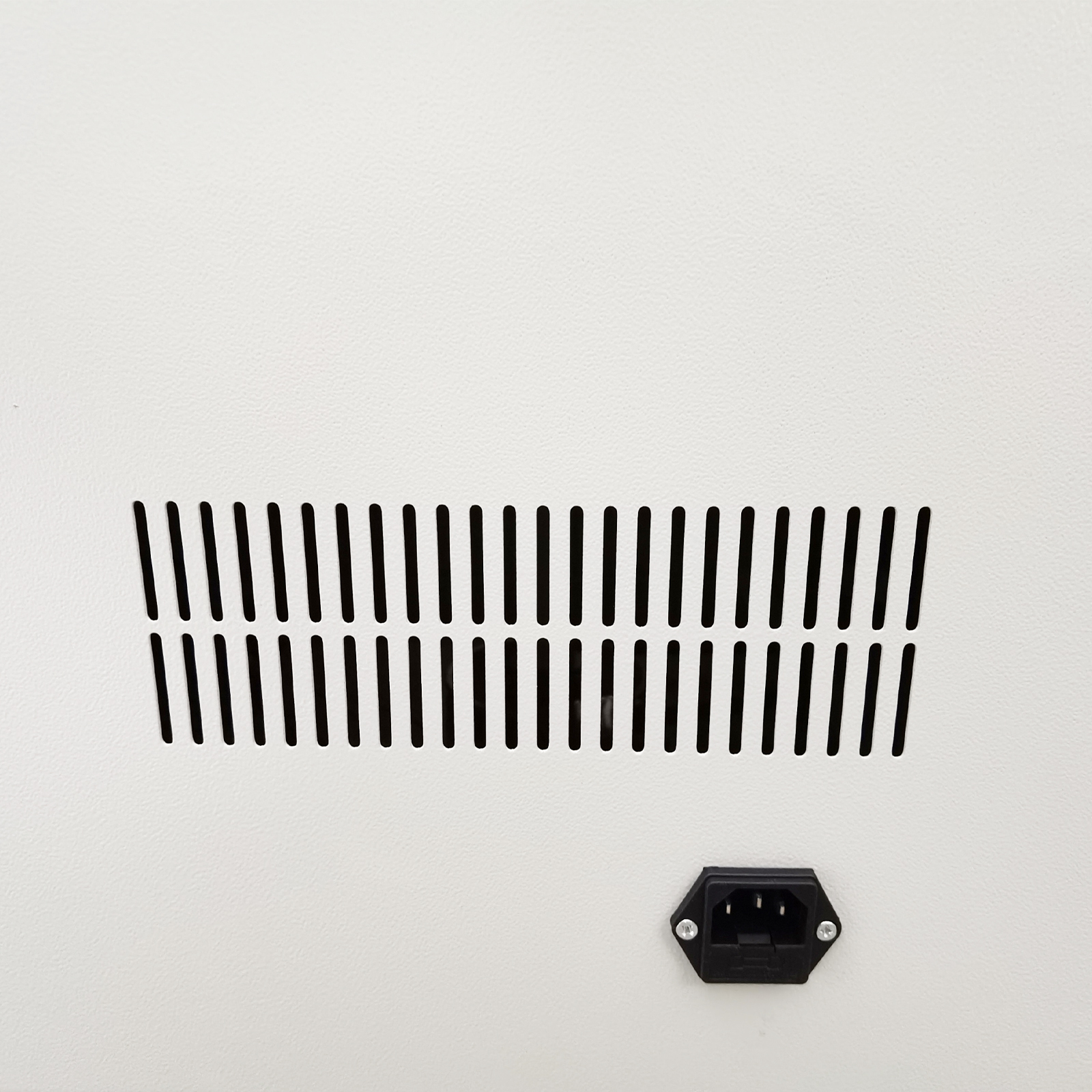

Ventilation
Ventilation

Strategically placed vents dissipate excess heat, preventing overheating and protecting components.

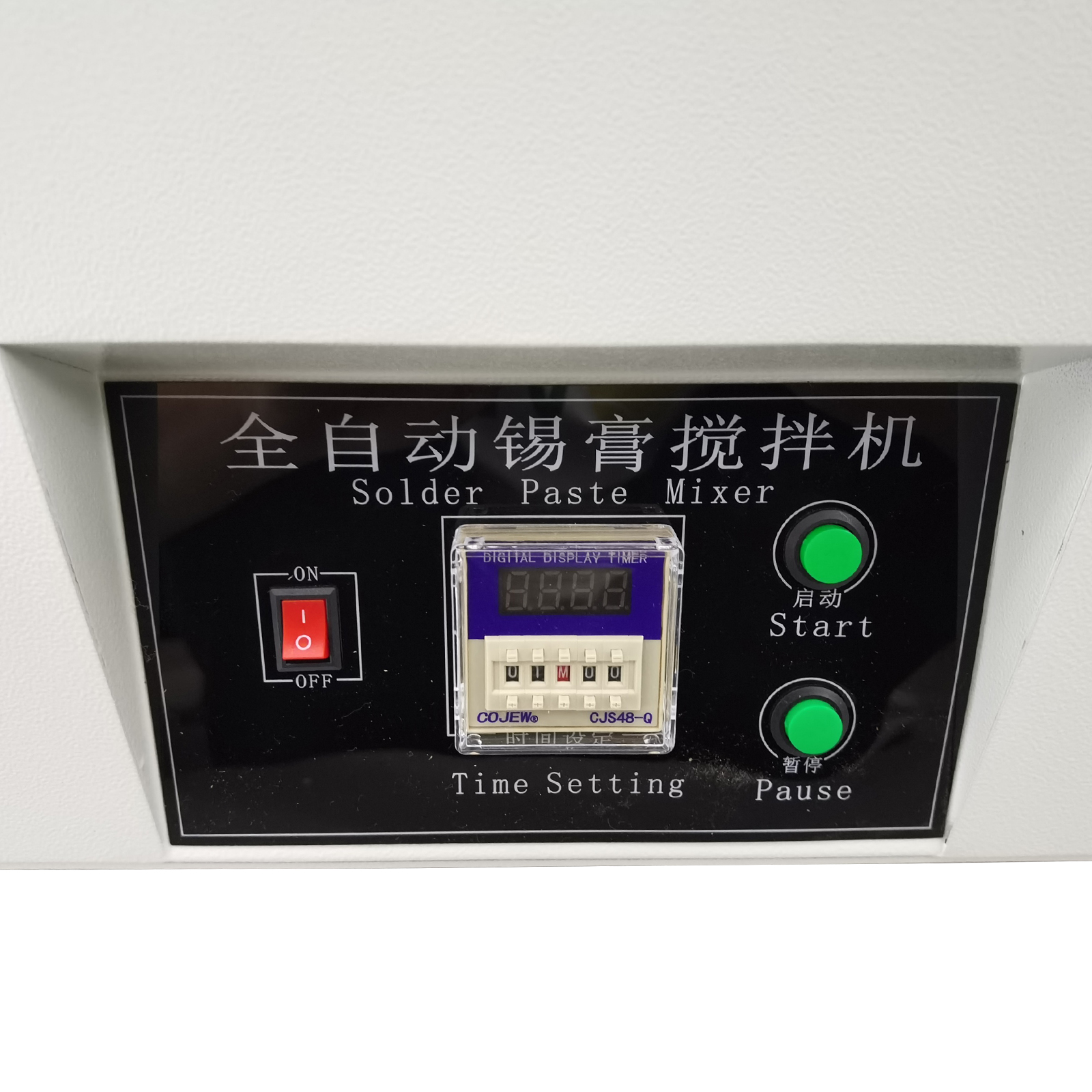

Timer Function
Timer Function

Programmable timer with range up to 99h99s. Enables precise process control and efficiency.

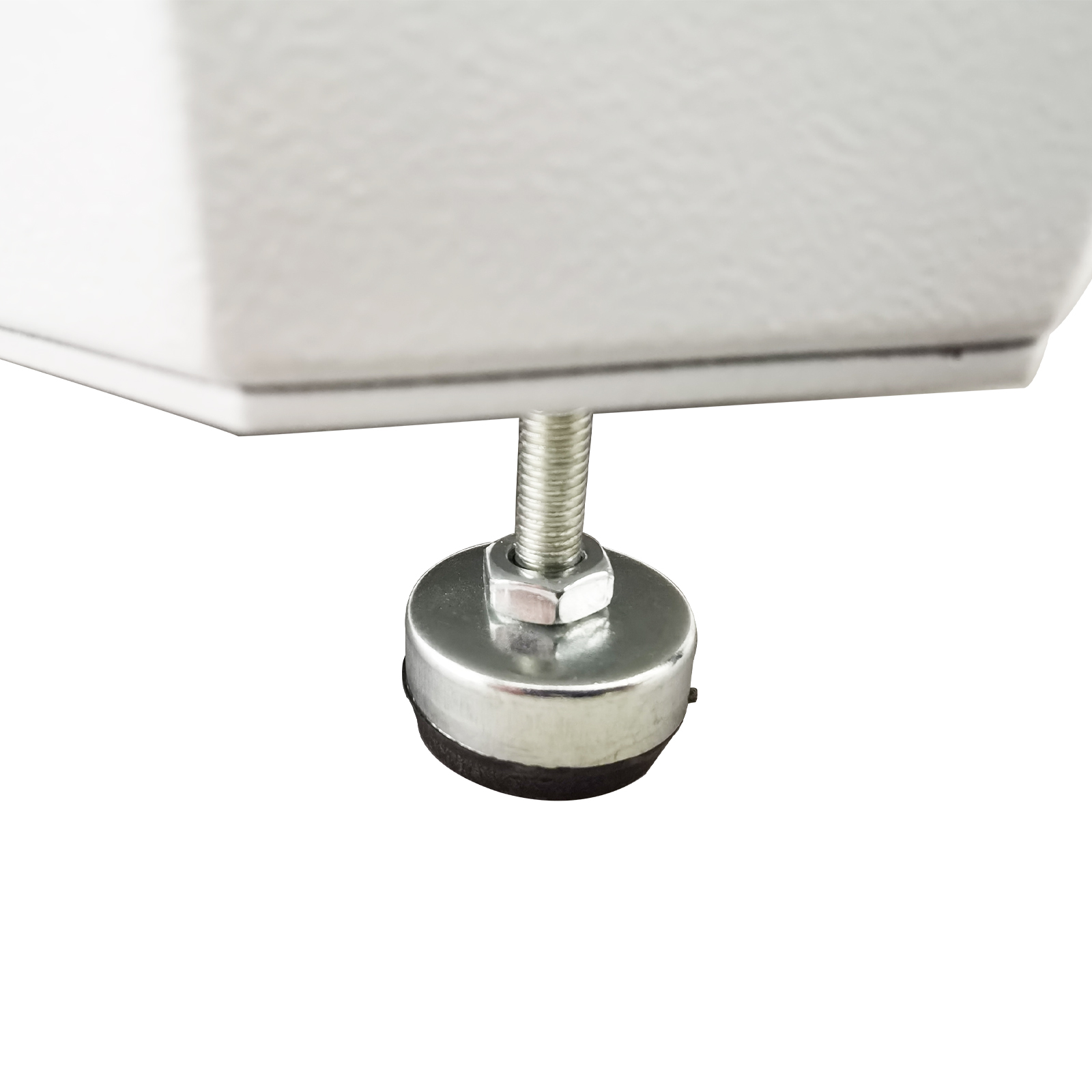

Support Feet
Support Feet

Four non-slip rubber feet provide stability, reduce vibration, and prevent bottom moisture ingress.

Mixing Performance
Mixing Performance

Ensures uniform dispersion of tin and paste. Maintains paste softness and activity without oxidation.

ITEM INCLUDED (057012)
Mixer ×1
Support legs ×4
Counterweight iron ×1
Plastic can ×1
Power cord ×1
English manual ×1
