SURPASS HOBBY Brushless Sensored System 2IN1 1800KV Motor 40A ESC Brushless Sensored 2-3S LiPo IP67 Waterproof GECKO 3660 FUSION FOC For 1/10 Cars

Features:

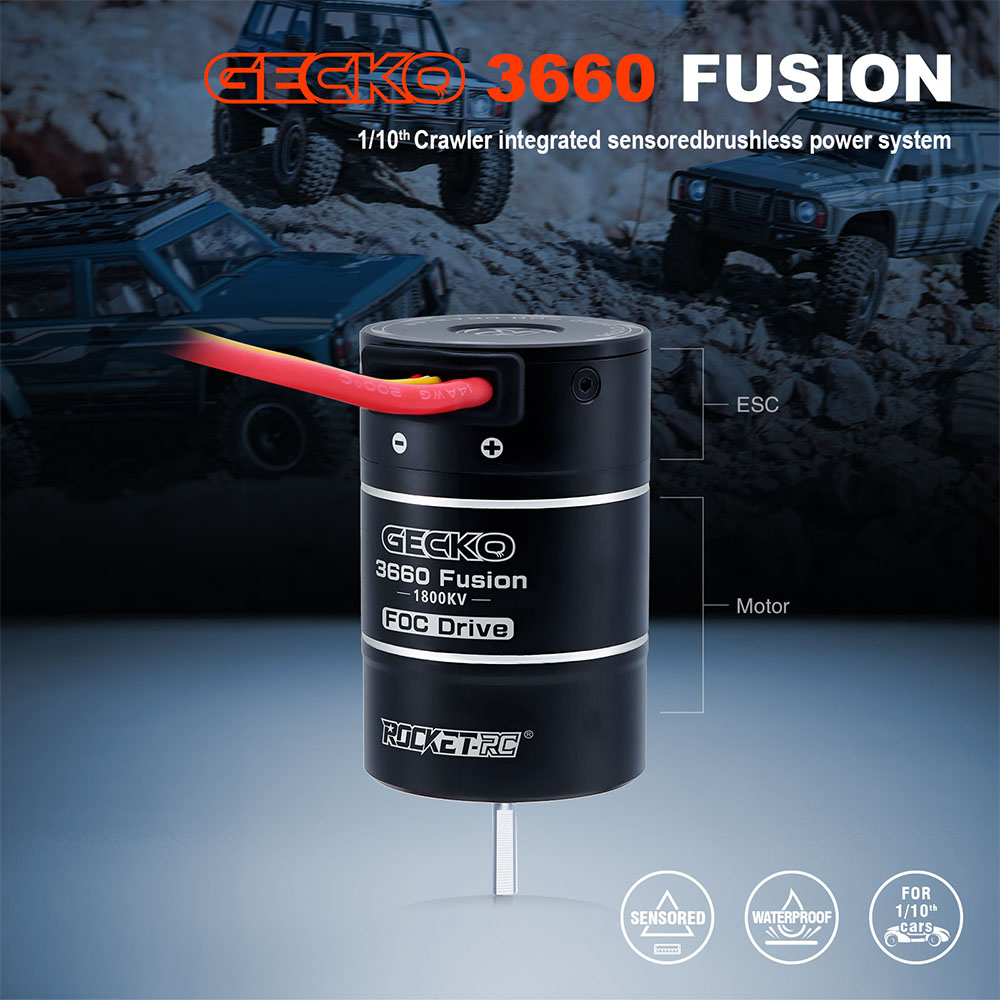

1. 1/10 Crawler integrated sensored brushless power system

2. 1800kV motor and 40A ESC 2-in-1, greatly saving internal space

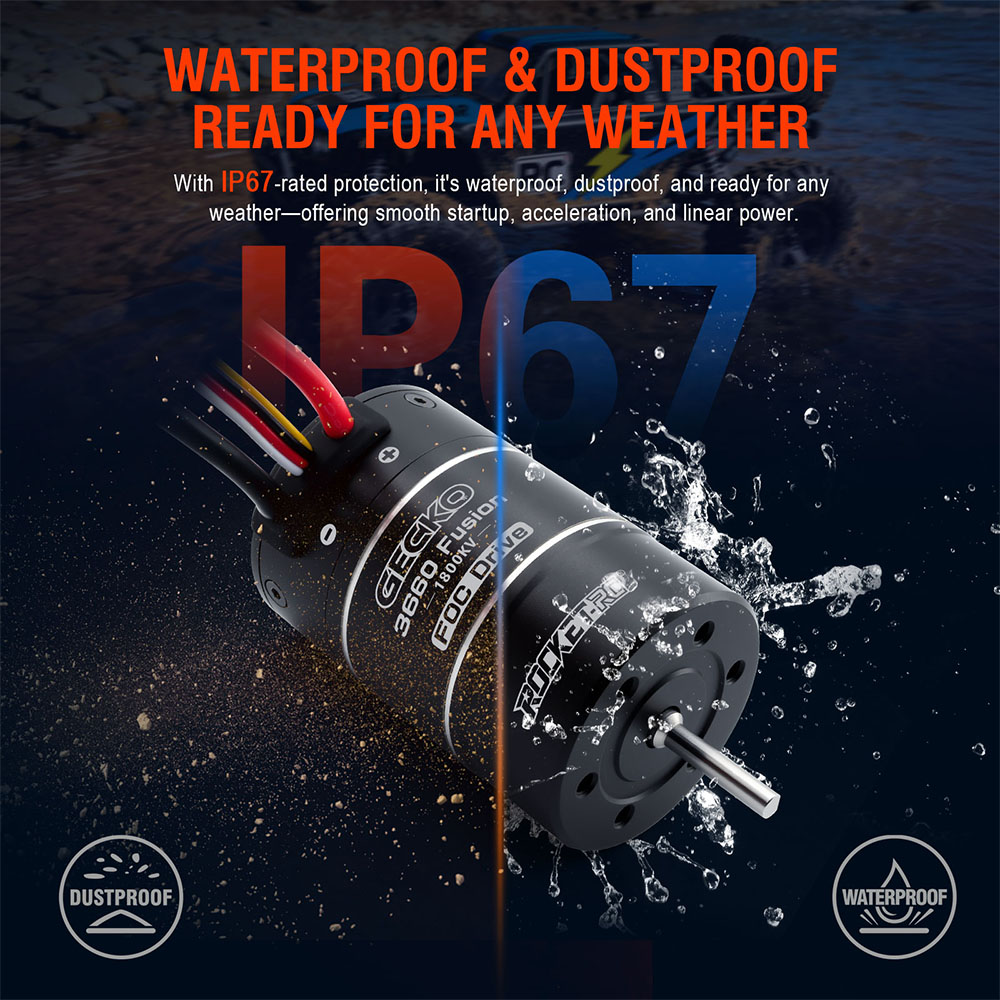

3. With lP67-rated protection, it's waterproof, dustproof

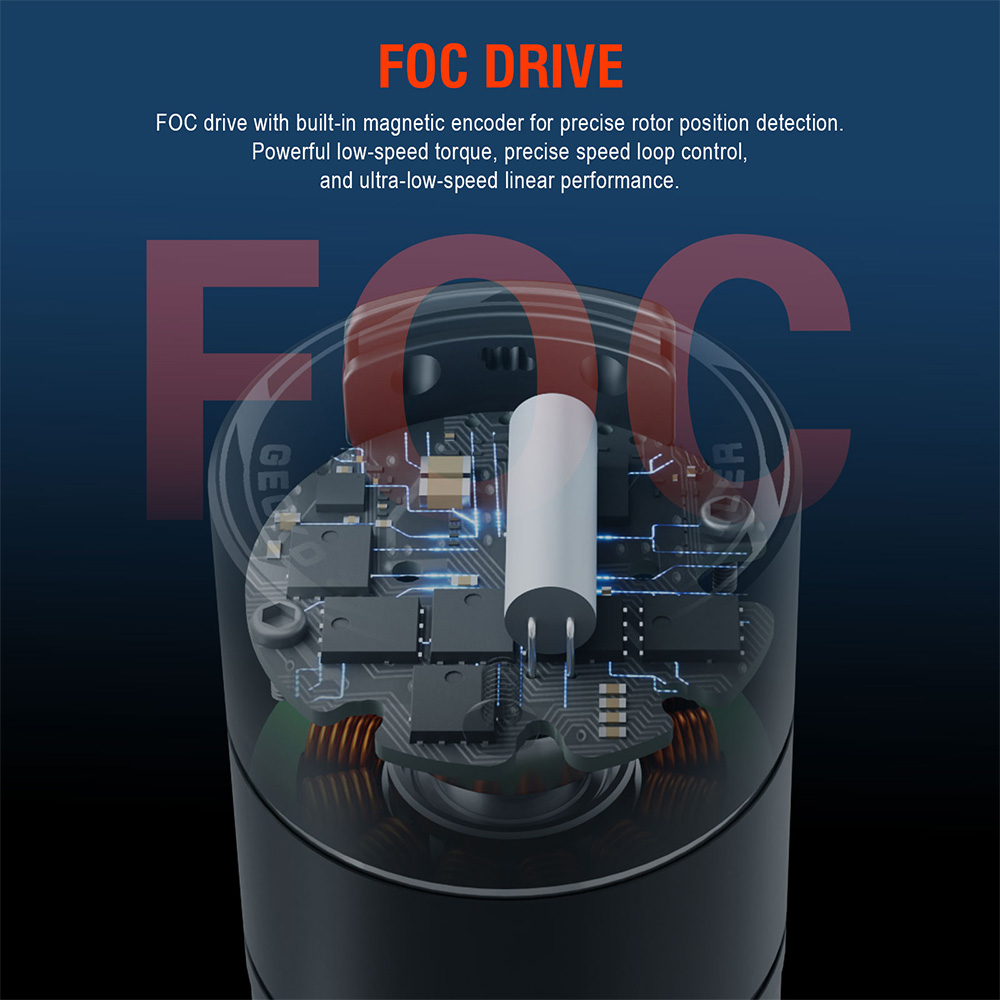

4. FOC drive with built-in magnetic encoder for precise rotor position detection

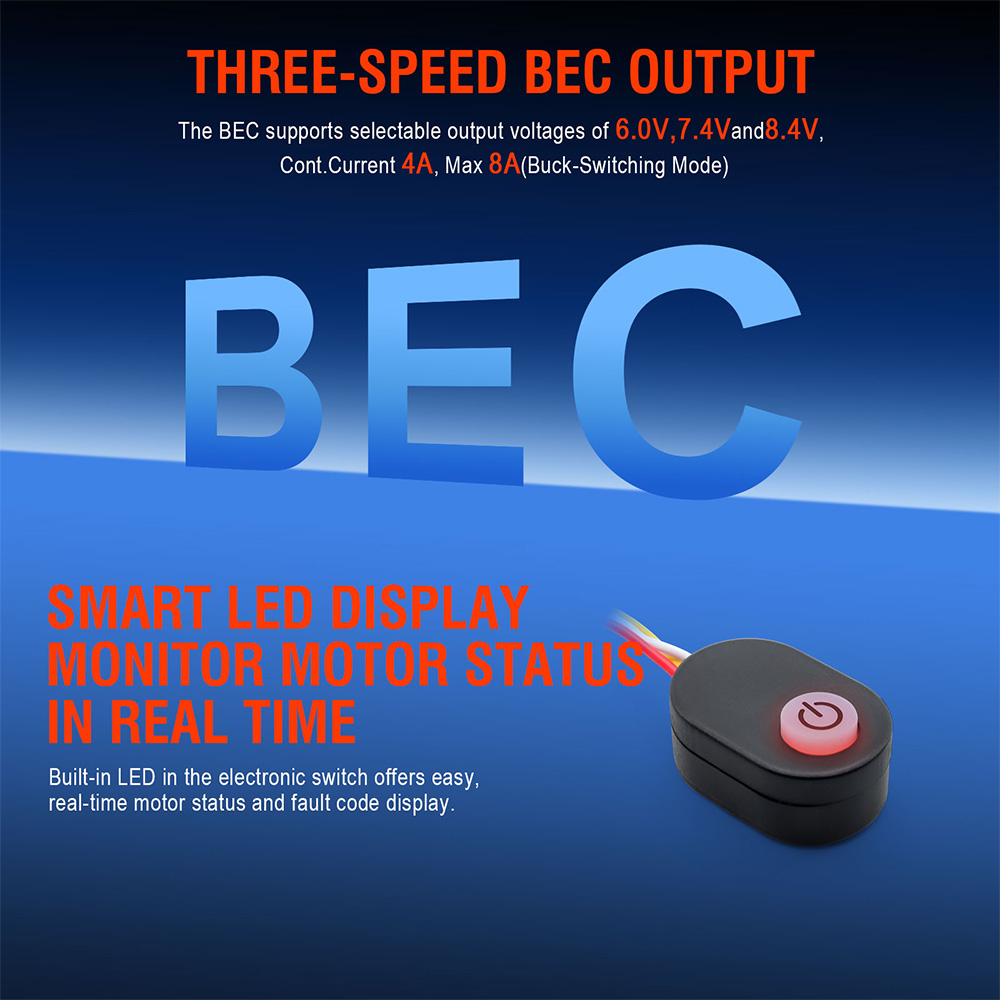

5. The BEC supports selectable output voltages of 6.0V,7.4Vand8.4VCont.Current 4A, Max 8A(Buck-Switching Mode)

6. Built-in LED in the electronic switch offers easy,real-time motor status and fault code display

7. three modes: Forward with Brake,Forward/Reverse with Brake,Forward/Reverse

Description:

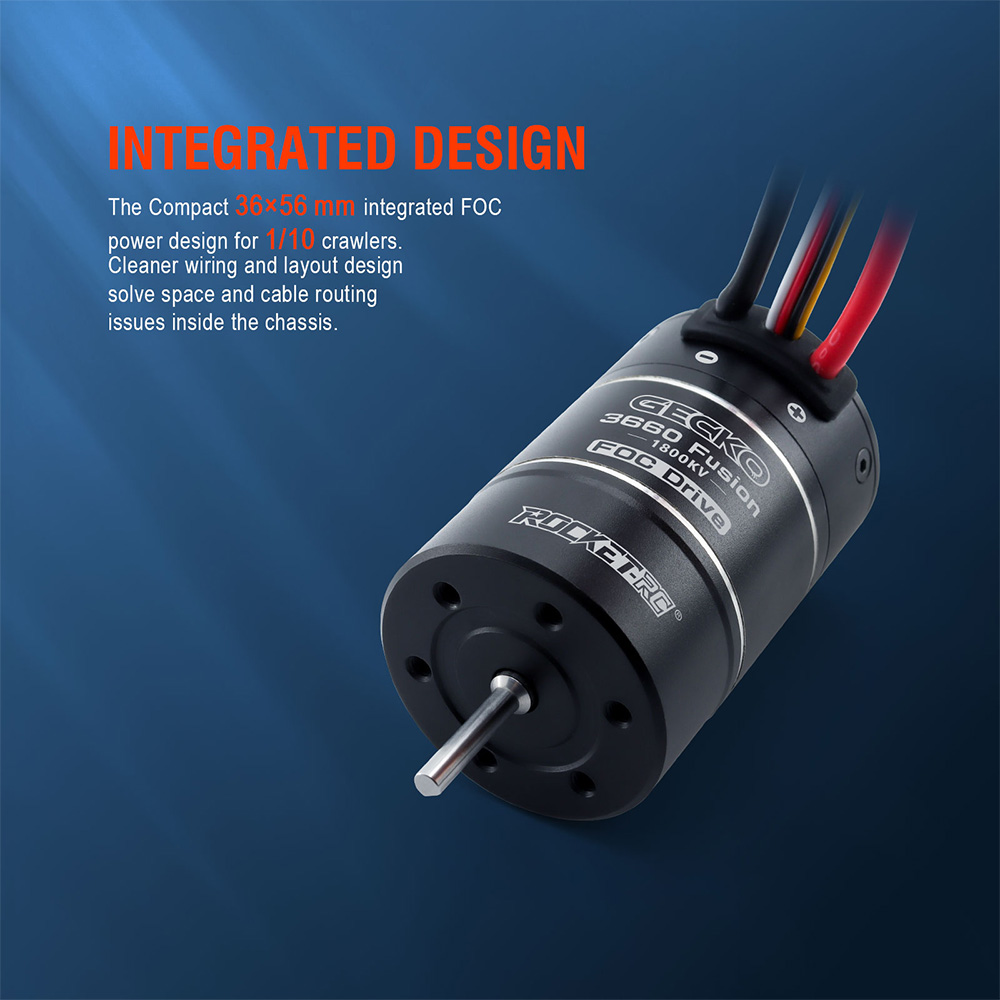

Powerful low-speed torque, precise speed loop control,and ultra-low-speed linear performance.The Compact 36x56 mm integrated Foc,Cleaner wiring and layout designsolve space and cable routingissues inside the chassis.

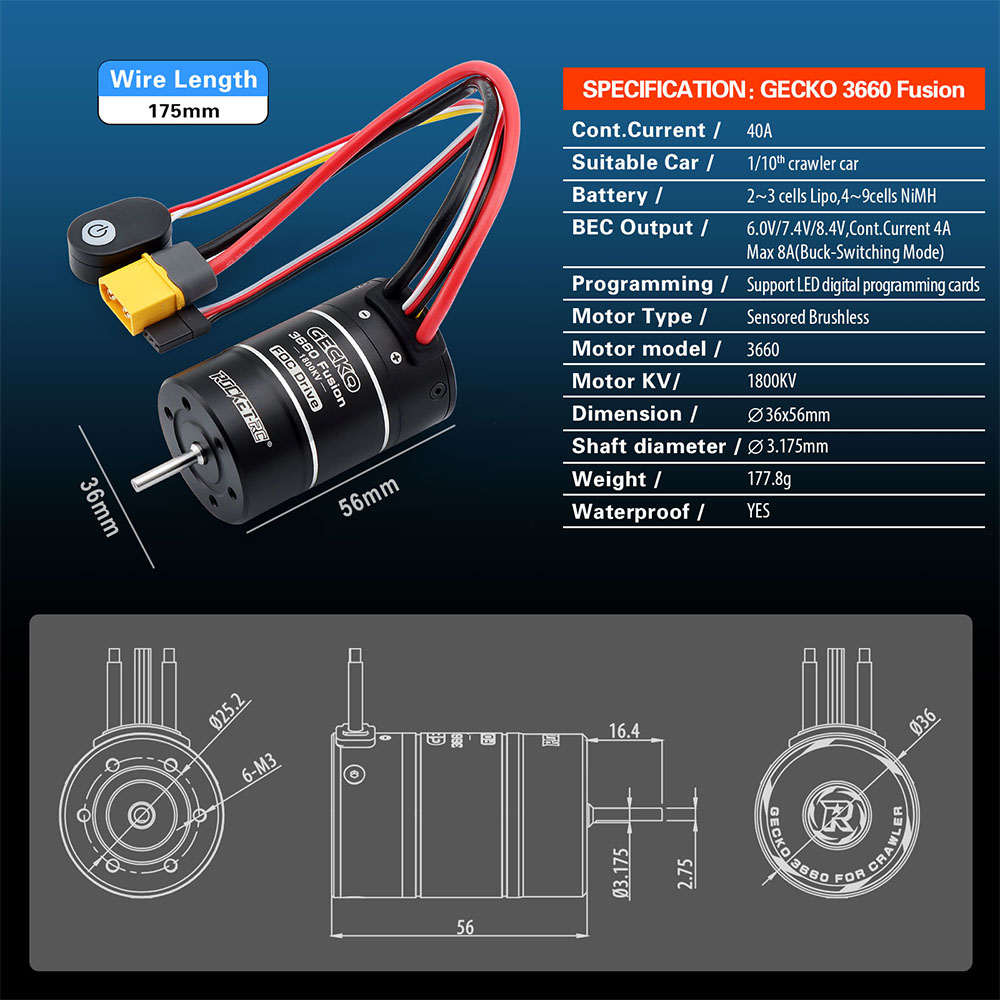

Specifications:

Specification: GECKO 3660 Fusion

Cont.Current: 40A

Motor KV: 1800KV

Waterproof: IP67

Suitable Car: 1/10" crawler car

Battery: 2~3 cells lipo,4~9cells NiMH

BEC Output: 6.0V/7.4V/8.4V Cont.Current 4AMax 8A(Buck-Switching Mode)

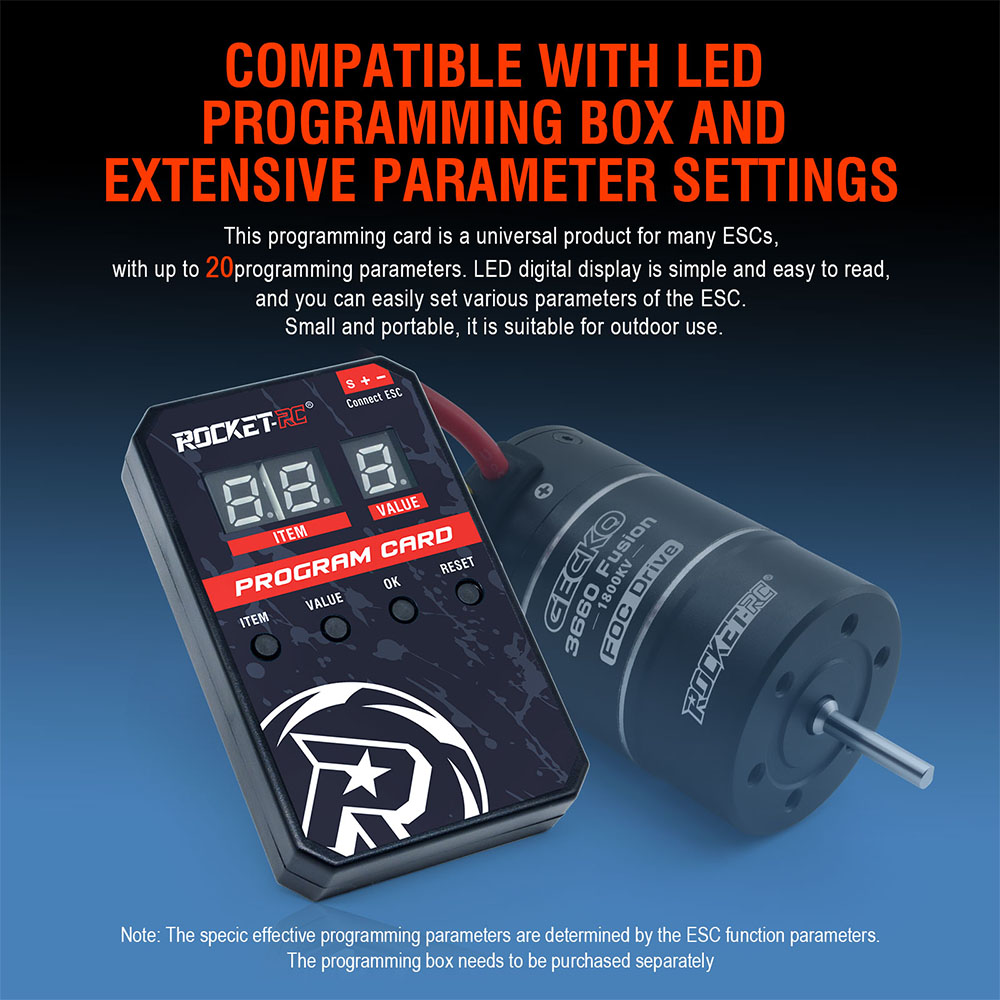

Programming: Support LED digital programming cards

Motor Type: 3660 Sensored Brushless

Dimension: 36x56mm

Shaft diameter: 3.175mm

Weight:177.8g

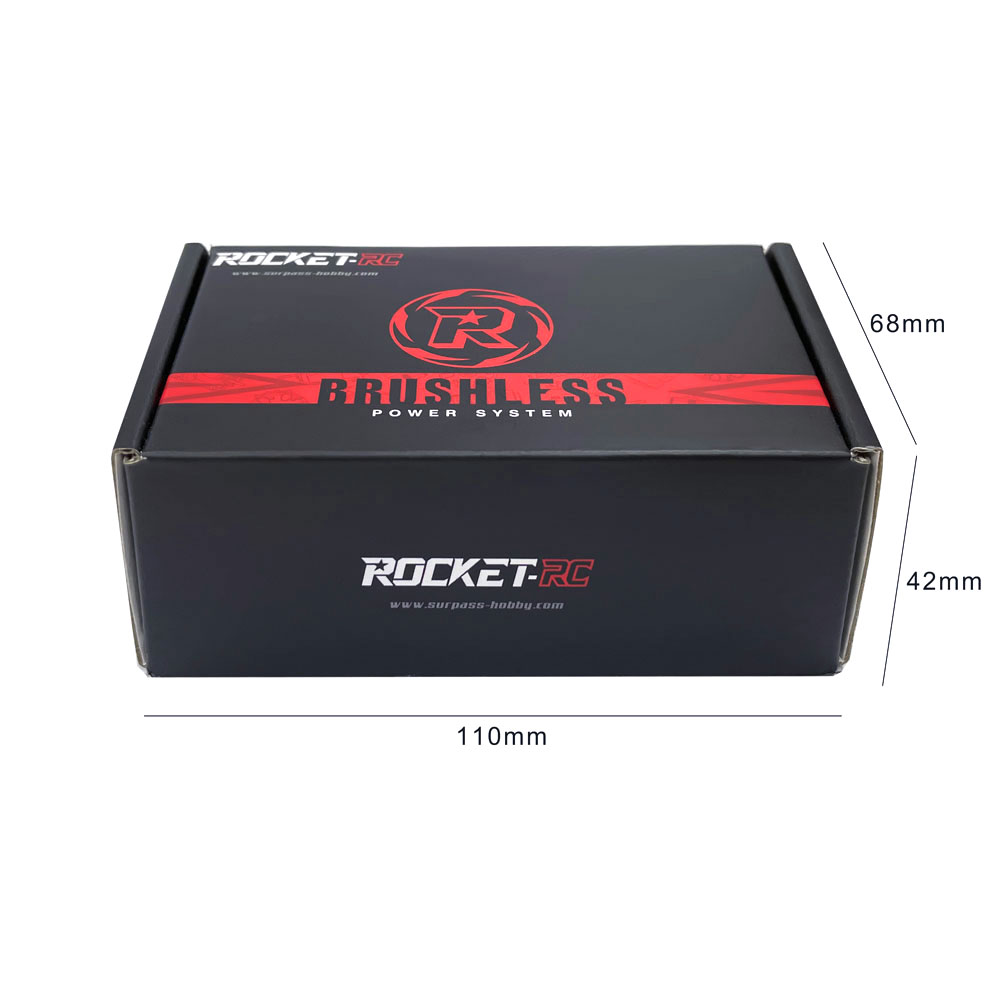

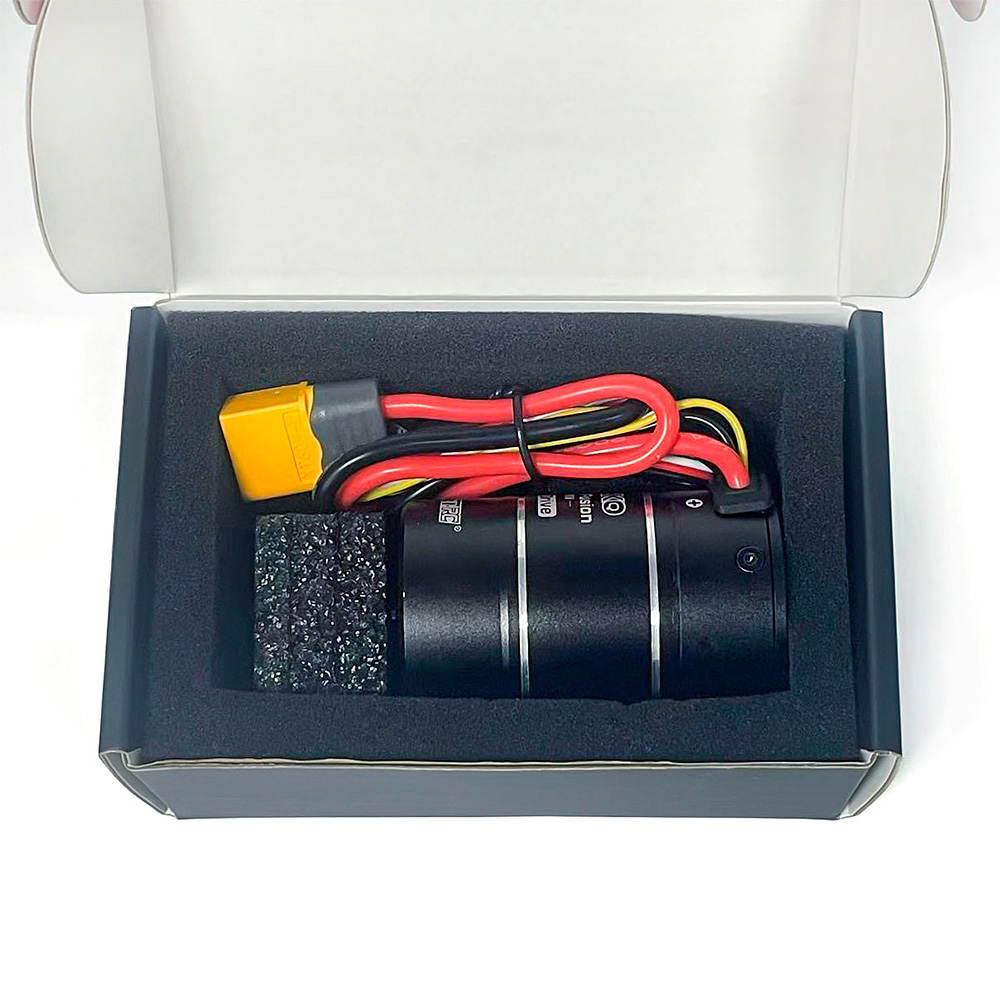

Package contents:

1* GECKO 3660 Fusion
