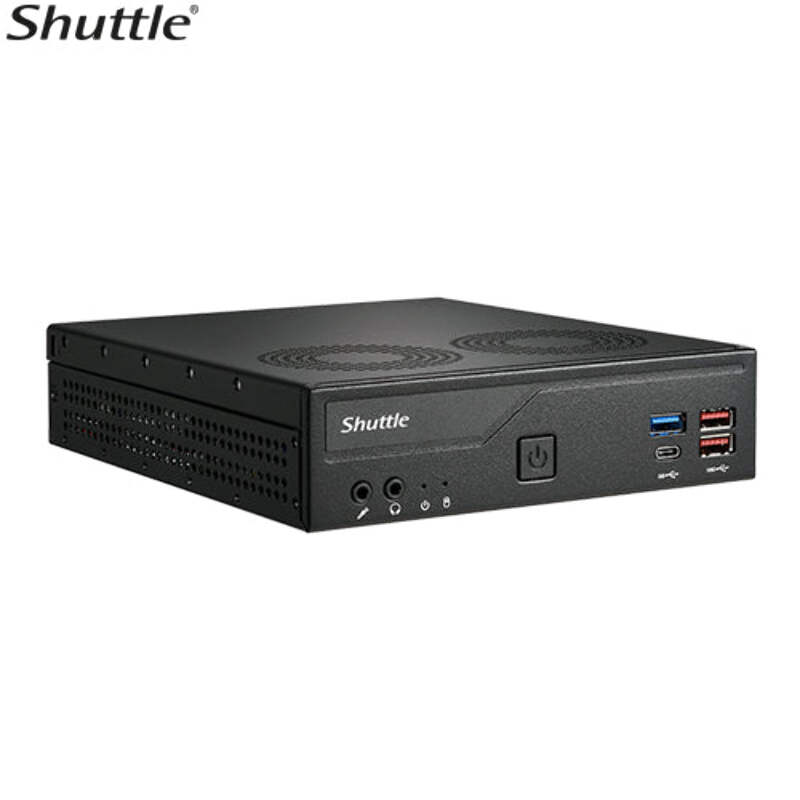

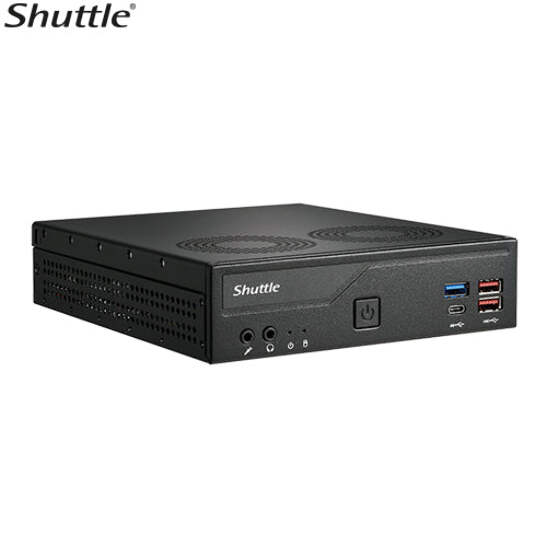

Shuttle DH770 Slim Mini PC, Intel ® 14th/13th/12th Gen LGA1700 socket, 1L, H770, 2x DDR5, 2x 2.5G LAN, 2x COM, 4x USB 3.2 Gen 1, 4x USB 3.2 Gen 2, 2x • LCH-DH770

Shuttle DH770 Slim Mini PC, Intel ® 14th/13th/12th Gen LGA1700 socket, 1L, H770, 2x DDR5, 2x 2.5G LAN, 2x COM, 4x USB 3.2 Gen 1, 4x USB 3.2 Gen 2, 2xThe Shuttle XPC Slim DH770 is a 1.3-liter Barebone Mini-PC featuring the H770 chipset, designed to support Intel® 12th, 13th, and 14th generation LGA1700 processors with a maximum TDP of up to 65W. Thanks to Intel® UHD graphics and dual DDR5-5600 support, the DH770 delivers enhanced graphics performance, faster memory access, and robust multitasking capabilities. It excels in AIoT Edge tasks, crystal-clear video streaming, and various demanding applications. Its compact design houses a wide array of I/O interfaces, including HDMI 2.0, DisplayPort 1.4, USB 3.2, COM (RS232/422/485), SATA 3.0, M.2 SSD, dual 2.5G LAN, and WLAN expansion. Whether utilized for a 4-display TV wall, interactive digital signage, NVR stations, or automation control, the DH770 offers exceptional versatility and reliability across various industries. FORM FACTOR 1.3L chassis PROCESSOR Support Intel® 12th/13th/14th Generation Core™ i3/i5/i7/i9, Pentium®, Celeron® LGA1700 CPU max. TDP 65W CHIPSET Intel H770 Express chipset MEMORY 2 x DDR5 SODIMM slots,32GB per DIMM (Max 64GB) DDR5 5600 MHz VIDEO OUTPUT HDMI 2.0 x 2+ DisplayPort x 2, Quad video outputs 4K playback (Dual channel memory recommended) Integrated in CPU AUDIO Realtek ALC 888S High Definition Audio ETHERNET (2)Intel 2.5GbE LAN Supports 10/100/1000 Mb/Sec. Support wake ON LAN (WOL) feature STORAGE INTERFACE SATA 6.0Gb/s interface NVMe interface Support SATA RAID 0,1 ONBOARD CONNECTORS (1) 4pin fan connector (1) VGA(For PVG01 use) (1) 1x4 pin USB header(For WWN03 use) (1) SATA connector w/power (1) Front audio header (1) Auto power on header (1) RS232 voltage switch FRONT PANEL (2) USB 3.2 Gen1 ports (Include Type C x1) (2) USB 3.2 Gen2 ports (1) Microphone-In (1) Line-Out (1) Power-On button (1) Power LED (1) HDD LED BACK PANEL (2) RJ45 LAN port w/LED (2) HDMI port (2) Display port (2) USB 3.2 Gen1 ports (2) USB 3.2 Gen2 ports (1) RS232 (1) RS232/RS422/RS485 (1) External 4pin header (1) DC-in (2) Wireless Antenna fixture (1) Kensington lock DRIVE BAYS (1) 2.5' HDD / SSD bay DIMENSIONS 190(L) x 165(W) x 43(H) mm Dimension drawing POWER 120W Power Adapter Input:100- 240V AC 19V 6.32A ACCESSORIES XPC Multilanguage Quick User Guide XPC DVD Driver VESA mount VESA Screw pack Power cord Thermal Grease HDD Screw pack 120W adapter EXPANSION SLOT (1) M.2 2280 Type M key socket (1) M.2 2230 Type E key socket OS SUPPORT Windows 11 64 bit O.S Linux REMARK RS232 ports support 0/5/12V output. Voltage setting please refer to Quick Guide. OPERATING TEMPERATURE 0℃~50℃

Shuttle DH770 Slim Mini PC, Intel ® 14th/13th/12th Gen LGA1700 socket, 1L, H770, 2x DDR5, 2x 2.5G LAN, 2x COM, 4x USB 3.2 Gen 1, 4x USB 3.2 Gen 2, 2x • LCH-DH770

Shuttle DH770 Slim Mini PC, Intel ® 14th/13th/12th Gen LGA1700 socket, 1L, H770, 2x DDR5, 2x 2.5G LAN, 2x COM, 4x USB 3.2 Gen 1, 4x USB 3.2 Gen 2, 2x

The Shuttle XPC Slim DH770 is a 1.3-liter Barebone Mini-PC featuring the H770 chipset, designed to support Intel® 12th, 13th, and 14th generation LGA1700 processors with a maximum TDP of up to 65W. Thanks to Intel® UHD graphics and dual DDR5-5600 support, the DH770 delivers enhanced graphics performance, faster memory access, and robust multitasking capabilities. It excels in AIoT Edge tasks, crystal-clear video streaming, and various demanding applications. Its compact design houses a wide array of I/O interfaces, including HDMI 2.0, DisplayPort 1.4, USB 3.2, COM (RS232/422/485), SATA 3.0, M.2 SSD, dual 2.5G LAN, and WLAN expansion. Whether utilized for a 4-display TV wall, interactive digital signage, NVR stations, or automation control, the DH770 offers exceptional versatility and reliability across various industries. FORM FACTOR 1.3L chassis PROCESSOR Support Intel® 12th/13th/14th Generation Core™ i3/i5/i7/i9, Pentium®, Celeron® LGA1700 CPU max. TDP 65W CHIPSET Intel H770 Express chipset MEMORY 2 x DDR5 SODIMM slots,32GB per DIMM (Max 64GB) DDR5 5600 MHz VIDEO OUTPUT HDMI 2.0 x 2+ DisplayPort x 2, Quad video outputs 4K playback (Dual channel memory recommended) Integrated in CPU AUDIO Realtek ALC 888S High Definition Audio ETHERNET (2)Intel 2.5GbE LAN Supports 10/100/1000 Mb/Sec. Support wake ON LAN (WOL) feature STORAGE INTERFACE SATA 6.0Gb/s interface NVMe interface Support SATA RAID 0,1 ONBOARD CONNECTORS (1) 4pin fan connector (1) VGA(For PVG01 use) (1) 1x4 pin USB header(For WWN03 use) (1) SATA connector w/power (1) Front audio header (1) Auto power on header (1) RS232 voltage switch FRONT PANEL (2) USB 3.2 Gen1 ports (Include Type C x1) (2) USB 3.2 Gen2 ports (1) Microphone-In (1) Line-Out (1) Power-On button (1) Power LED (1) HDD LED BACK PANEL (2) RJ45 LAN port w/LED (2) HDMI port (2) Display port (2) USB 3.2 Gen1 ports (2) USB 3.2 Gen2 ports (1) RS232 (1) RS232/RS422/RS485 (1) External 4pin header (1) DC-in (2) Wireless Antenna fixture (1) Kensington lock DRIVE BAYS (1) 2.5' HDD / SSD bay DIMENSIONS 190(L) x 165(W) x 43(H) mm Dimension drawing POWER 120W Power Adapter Input:100- 240V AC 19V 6.32A ACCESSORIES XPC Multilanguage Quick User Guide XPC DVD Driver VESA mount VESA Screw pack Power cord Thermal Grease HDD Screw pack 120W adapter EXPANSION SLOT (1) M.2 2280 Type M key socket (1) M.2 2230 Type E key socket OS SUPPORT Windows 11 64 bit O.S Linux REMARK RS232 ports support 0/5/12V output. Voltage setting please refer to Quick Guide. OPERATING TEMPERATURE 0℃~50℃
