T-System Foot Pedal Fishing Rod Wrapping and Dryer (TMSV160) and for Rod Building Repair

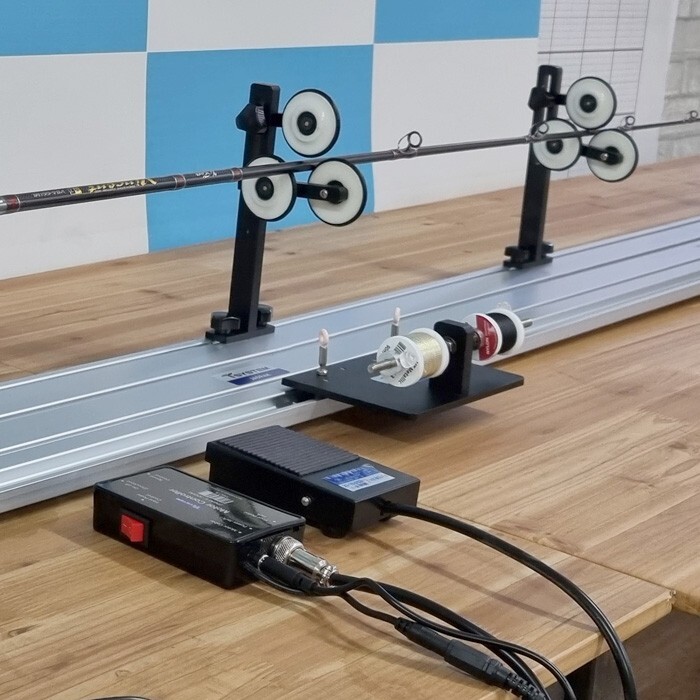

TMSV160 / TMSV240 Multi-Function Rod Wrapping Machine
Brand: Duri Fishing / Models: TMSV160, TMSV240 / Condition: New
■ Product Description
This is a multi-function machine with adjustable speed for wrapping, epoxy application, and drying functions.
With the on/off function using the foot pedal, you can work with both hands free.
Two lengths (160cm, 240cm) can be selected depending on the length of the workpiece, suitable for both 2PCS and 1PCS rod work.
■ Specifications (TMSV160 / TMSV240)
Model name: TMSV160, TMSV240
Material: Aluminum
Length: 800mm × 2 (TMSV160), 800mm × 3 (TMSV240)
Motor: 12V (110~240V pressure reducer included), 1A DC
Speed: 0~210 RPM (no-load basis)
Dry function: 10~20 RPM
Epoxy application work: 40~80 RPM
Wrapping function: 150~200 RPM
Wire length: Controller–Motor 1.5m / Controller–Foot Pedal 2m
■ Characteristics of TMSV160/240
  • By adjusting the rotation speed and direction, wrapping, epoxy application, and drying functions can be performed in one place.
  • By using a coupling, the durability of the motor is improved and noise caused by vibration is reduced.
  • By improving the mobility of the controller, convenient control is possible across all sections.
  • Stable operation is possible by reducing the main voltage in the range of 110V to 240V to 12V.
  • The controller, motor, and foot pedal cables are of sufficient length, making it easy to use in any position.
  • It is compatible with voltages around the world. Type A (USA, Japan) is standard, and Type C (Korea, Europe) and Type I (Australia, New Zealand) conversion plugs are provided as standard.
* Please select the correct length/model option (TMSV160 or TMSV240) before purchase. Import duties/taxes may apply depending on the destination country.
■ Detailed Description of Components
CHUCK
Consists of a DC motor, mounting bracket, and TCK-C 3-jaw interlocking chuck. Suppresses coupling vibration and noise.
The wrapping tensioner (TTB), which can be mounted on the station, has four rollers that can be changed with light hand movements.
Includes 2 aluminum profile bases (TAP800 x 2), connecting parts and anti-slip stickers.
With the motor controller, speed and rotation control can be transferred to the main body or foot pedal.
Controller
TMSV160
TMSV240
