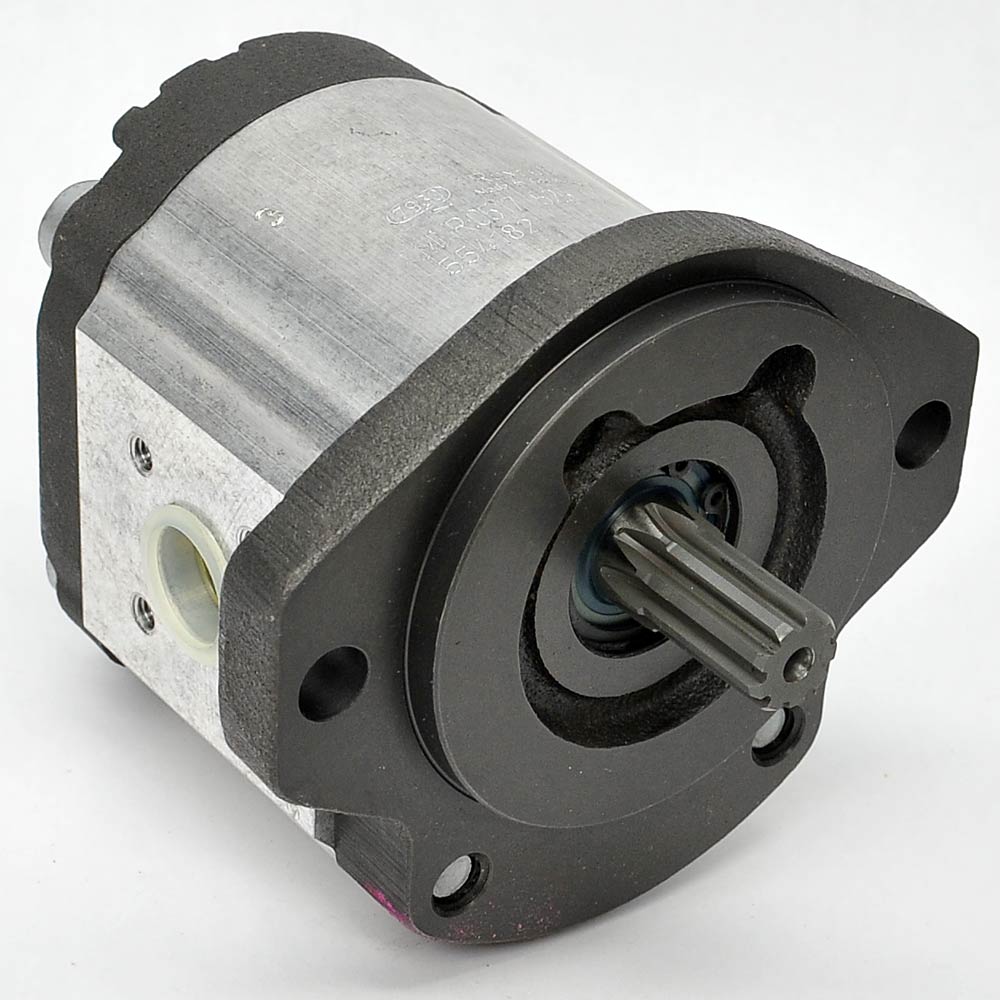

NEW Rexroth AZPS-11-014RRR20MB External Gear Pump MNR 0517 525 004 14cc/rev
Manufacturer: Rexroth
Model: AZPS-11-014RRR20MB
Condition: New Other
Manufacturer: Rexroth
Condition: New Other. Comes in non-original packaging. This pump is in good cosmetic condition with minor scuffs from "shelf wear". There was a pink piece of paper stored next to this, which is where the pink residue on one corner came from. The insides look clean with a light coating of oil.
Notes: This pump is in good working condition. The input shaft can be turned with moderate hand pressure, and you can feel slight cogging as the gears engage during rotation. No other testing was done.
No manuals, cords/cables, or additional items are included if not listed or shown.
Included:
- (1) Rexroth MNR0517525004 Gear Pump
Specifications:
- Manufacturer: Rexroth
- AZPS-11-014RRR20MB
- MNR: 0517 525 004
- External Gear Pump Unit "Silence" Series
- Displacement: 14 cc/revolution
- Splined shaft SAE J744 16-4 9T
- 2-bolt flange 82.55mm diameter SAE J744 82-2A
- Line connection: square flange
- Without pressure relief valve
- Pressure at suction port: 0.7 ... 3 bar
- Maximum continuous pressure: 250 bar
- Maximum intermittent pressure: 280 bar
- Maximum peak pressure: 300 bar
- Minimum rotational speed at 12 cc/s
- <100 bar 500 RPM
- 100...180 bar 800 RPM
- 180 ... max 1000 RPM
- Minimum rotational speed at 25 cc/s at maximum pressure: 500 RPM
- Maximum rotational speed: 3000 RPM
- Installation position: no restrictions
- Flange mount
- Ambient temperature range: -30 ... +80 ºC
- Standard bearing
- Phosphated version (ready for painting), high precision cover fixation,
- Clockwise direction viewed on drive shaft
- Nitrile rubber NBR seals
- Designed for use with HLP mineral oil
- Platform F
- Fixed displacement
- Optimized pressure pulsations, reduces noise emissions and oscillations in the system
- Long service life
- Slide bearings for high loading
