Operating instructions for electric gear lubrication pump:

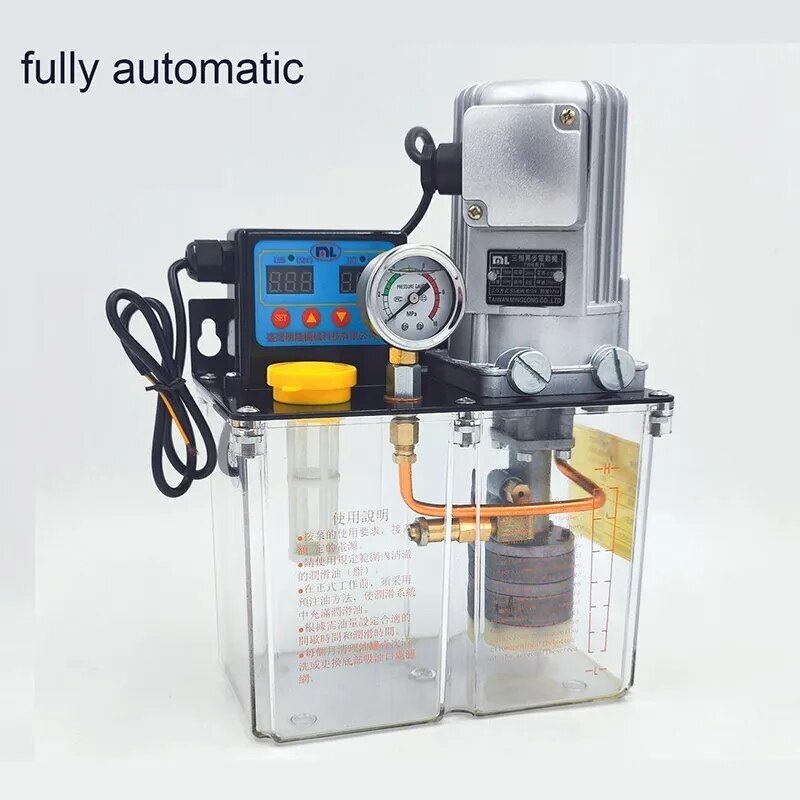

1. Fully automatic model: With dual digital display, the oiling time and interval time can be set;

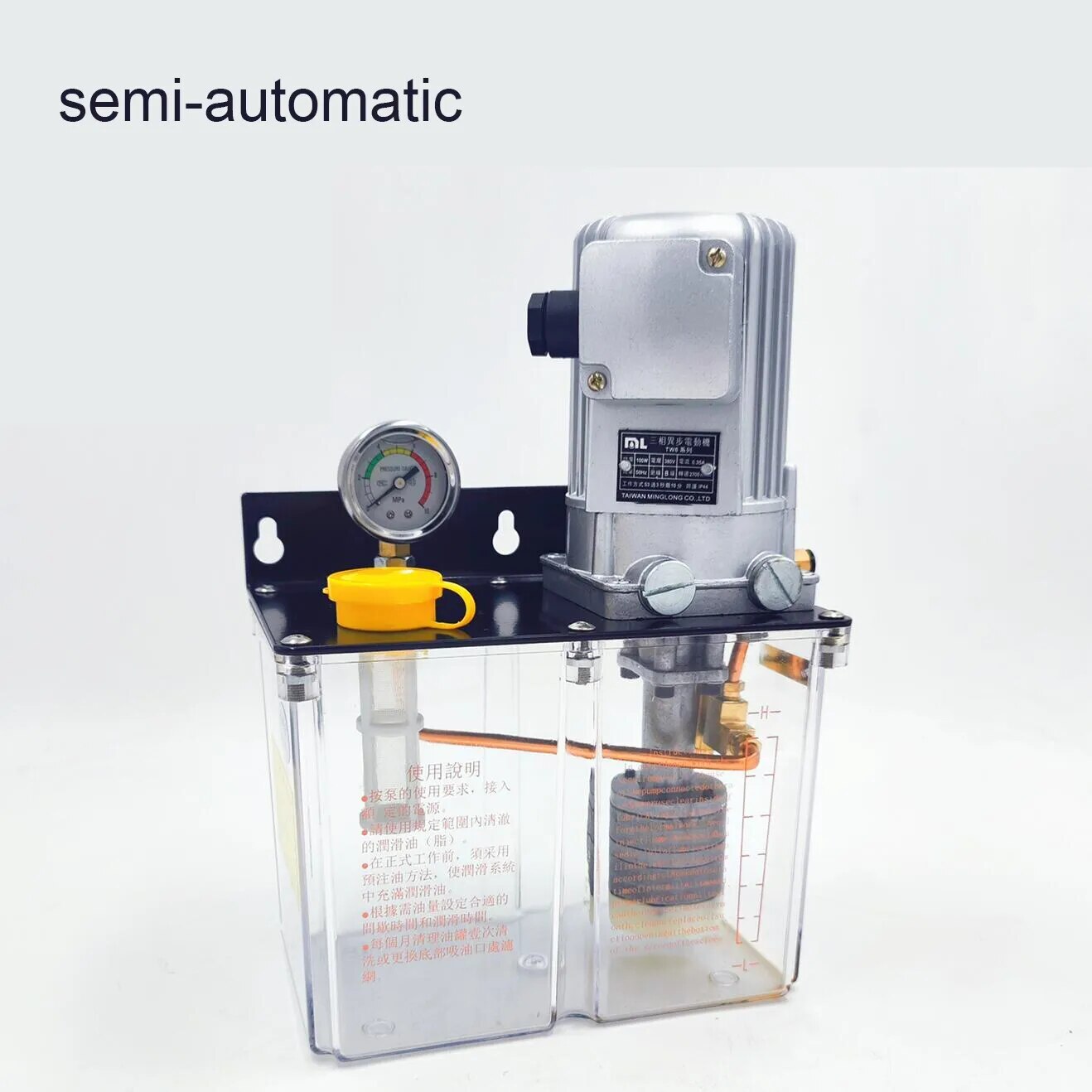

2. Semi automatic version: without time control, it works when powered on and stops when powered off;
3. This oil pump is suitable for: 32 # -420 # engine oil; 000 # -00 # grease

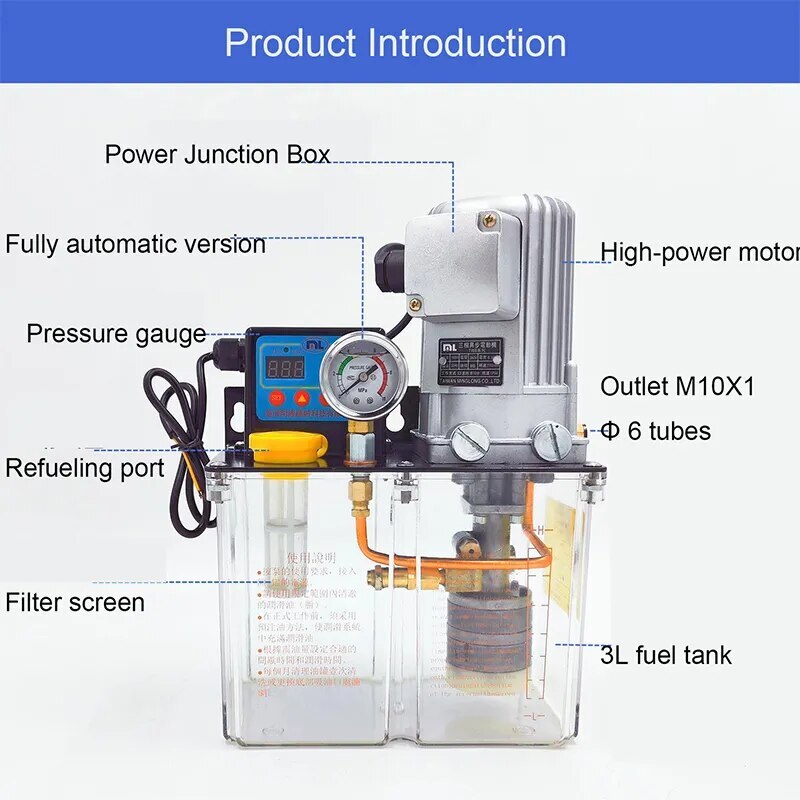

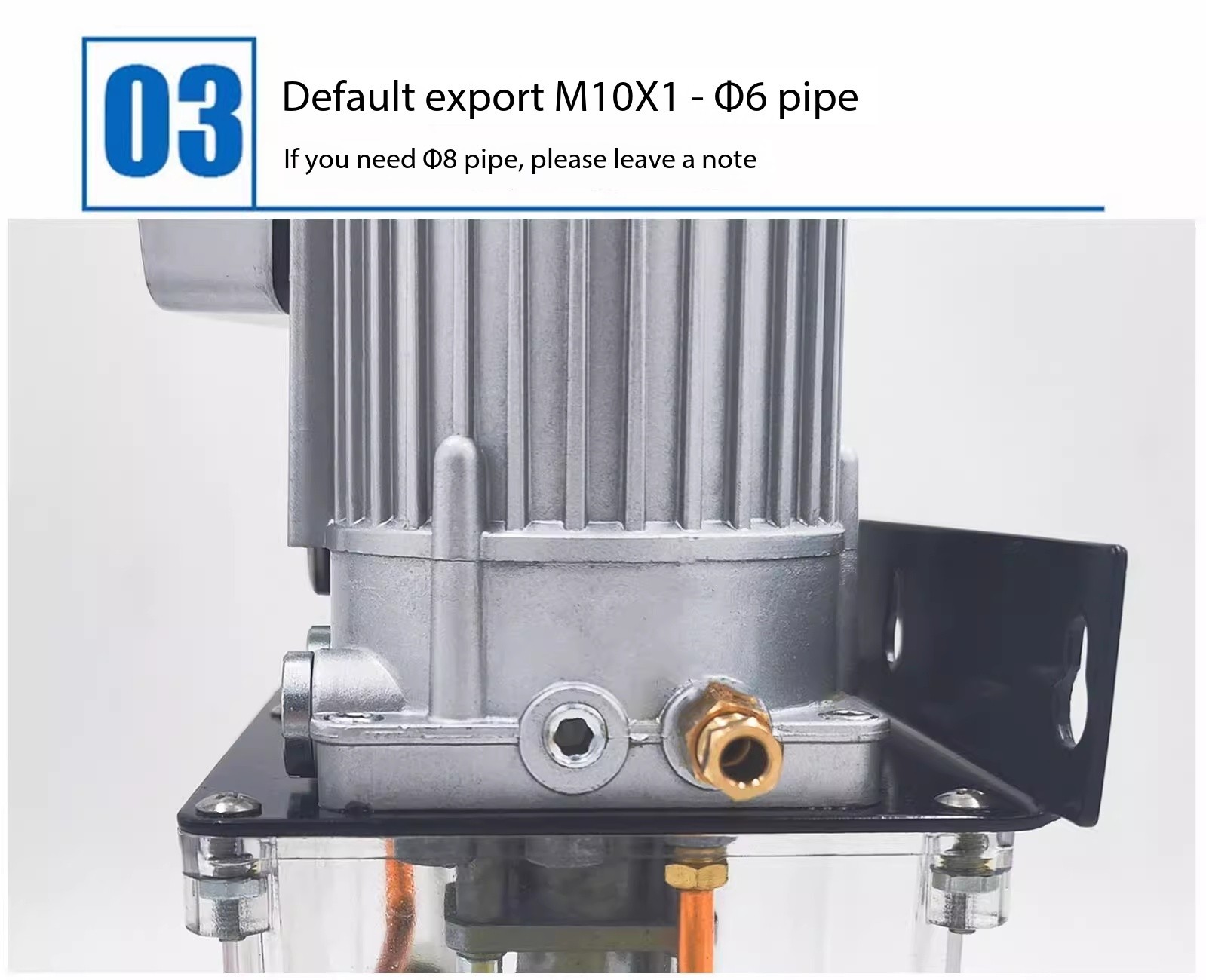

4. The default outlet of this oil pump is connected to a 6mm pipe The 5 fully automatic model comes with dual digital display, and the lubrication time and interval time can be set by oneself. The LUB green light is on as the lubrication time, with a setting range of 1-999 seconds The INT red light is on as the interval time, with a range of 10-999/minute
Press and hold the SET key for 6 seconds, and after the number in the display bar flashes, pressing ▲ or down can increase
or decrease the lubrication time.
Press the STE key again for 6 seconds. After the NE display flashes,press ▲ or down to increase or decrease the interval time. After setting
it, press the SET key once for 3 seconds to use.
Product parameters:
Product name: Electric gear lubrication pump
Operating voltage: 380V/220V
Discharge flow rate: 500ml/min
Product capacity: 3L
Discharge diameter: 6mm

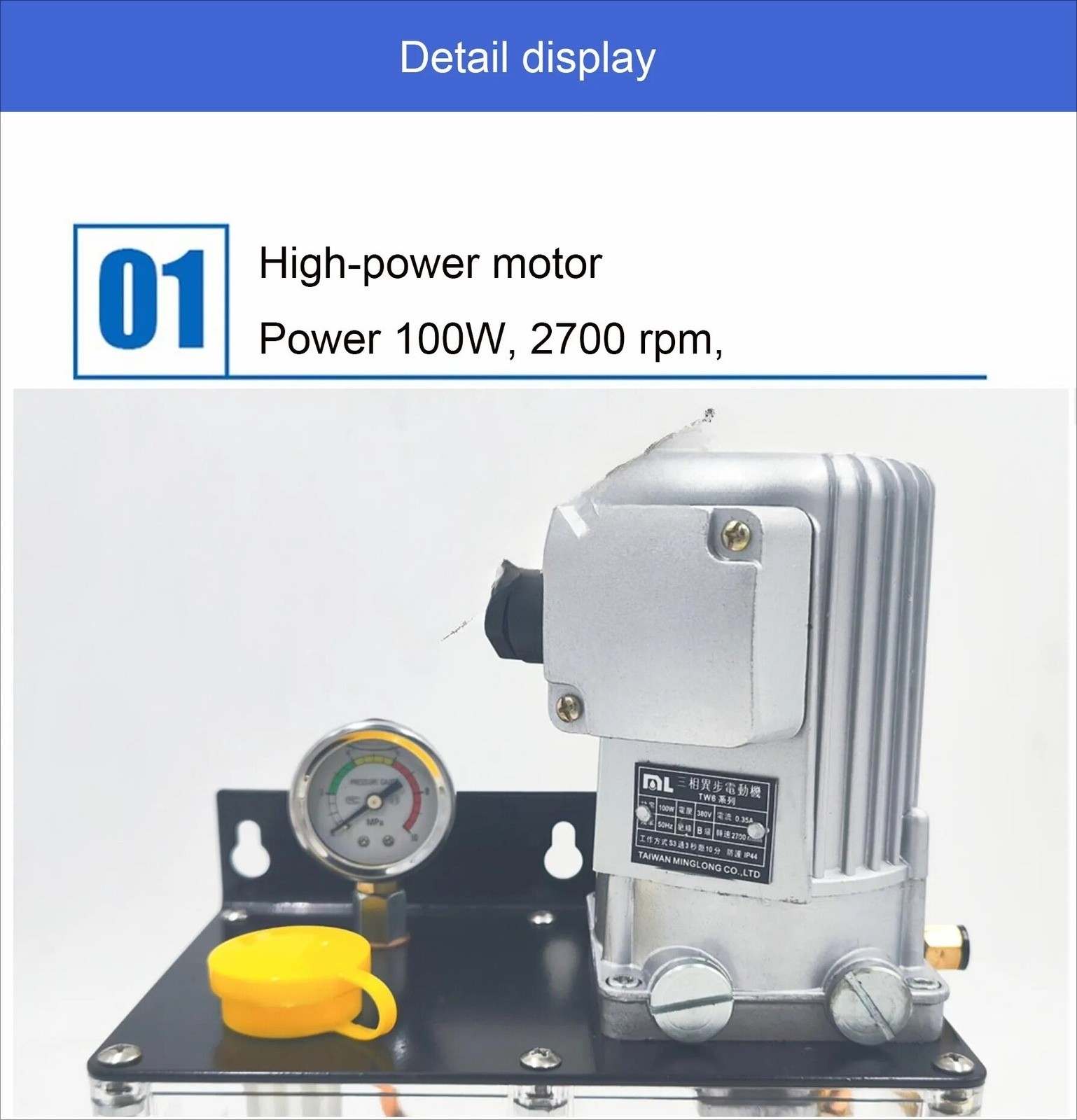

Motor power: 90-100W
Applicable oil: thin oil N32-N420
Grease 000 # 00#
