Wireless compatibility
Compatible with Sony and Blackmagic Design cameras with wireless control capability, this monitor features a built-in wireless module that enables select camera functions, and a separately available control cable also allows you to connect your device to the monitor.
Advanced monitoring & control features
Other features include 3D LUT support, vertical shooting stretching, anamorphic correction on HDMI output, cropping, and a variety of image monitoring tools, including peaking, color temperature, waveform, histogram, and more.
Wireless Camera Control Functions
Camera control is available via the integrated wireless module for Blackmagic Design cameras such as the Pocket Cinema Camera 4K/6K/6K Pro and Sony cameras, including the a1, a9, a7C, FX3, FX10, a7S III, a7 IV, RX0, and a7 III. Control functions include iris, shutter, zoom, frame rate, ISO, color temperature, focus, and more.

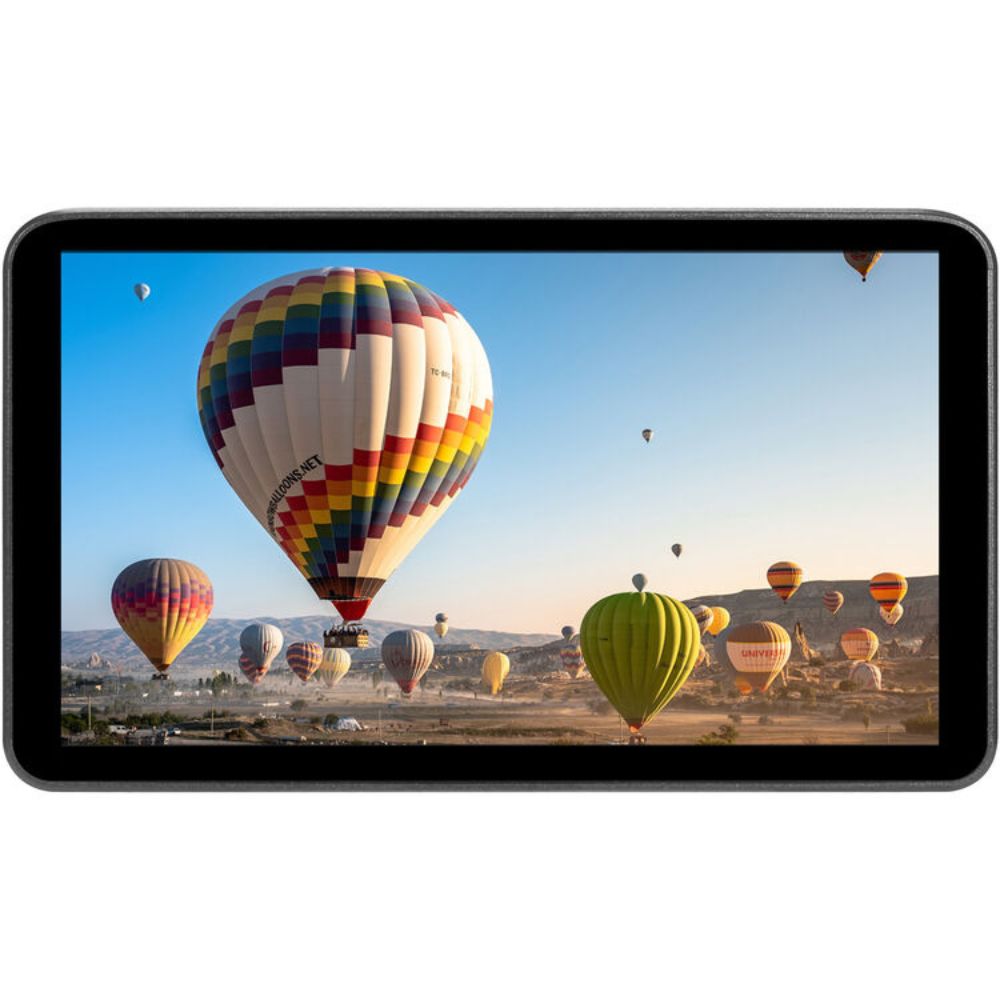

High-Bright 7" Touchscreen Monitor
This 7" LCD on-camera monitor features 1000 cd/m² brightness and a 1000:1 contrast ratio for daylight visibility.
DCI/UHD 4K Video
Supports HDMI input and output up to DCI 4K24 or UHD 4K30.
Sony L-Series Battery Plate
Power with the built-in L-Series battery plate or power your camera with a separately available dummy battery using the DC output.
Image tools
- 3D LUT support: Load custom LUTs via USB
- Focus aids: Peaking, real-time eye focus
- Exposure tools: False color, zebra, luma, waveform
- Framing: Frame guides, crosshairs, grids
- Anamorphic: De-squeeze and lens calibration
- Color & detail: Color temperature, brightness, sharpness, custom RGB
- Monitoring: Luma histogram, audio meters
- Formats: HDR/HLG support
- Output options: Anamorphic correction on HDMI output
- Utility: Cropping, check field, vertical shooting stretching
- PORTKEYS LH7P 7" High-Bright Touchscreen Monitor with Wireless Control (Black)
- Micro-USB Flash Drive
- HDMI Type A Cable
- Cleaning Wipe
- 2 x Screen Protector
- MH-2 Mount
- Storage Box
- PORTKEYS LH7P 7" High-Bright Touchscreen Monitor with Wireless Control (Black)
- Micro-USB Flash Drive
- HDMI Type A Cable
- Cleaning Wipe
- 2 x Screen Protector
- MH-2 Mount
- Storage Box
| Brand | PORTKEYS |
| Model | PORTKEYS LH7PB |
| MPN | POLH7PB |
| Type | Touchscreen Monitor |
| Display Size | 7.0 / 17.8 cm |
| Native Resolution | 1920 x 1080 |
| Touchscreen | Yes |
| HDR Support | No |
| Video Format | HDMI DCI 4K: 24 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29. |
| Battery | 1x L-Series Mount on Fixed Plate |
| Power Consumption | 9 W |
| Panel Type | LCD |
| Maximum Brightness | 1000 nits / cd/m2 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 170° (85/85) Vertical: 170° (85/85) |
| Contrast Ratio | 1000:1 |
| Color Support | 1.07 Billion Colors (8-Bit+FRC) |
| LUT Support | Yes |
| Image Controls | Anamorphic De-Squeeze, Check Field, Color Temperature Selection, Focus Peaking, Histogram, Image Fli |

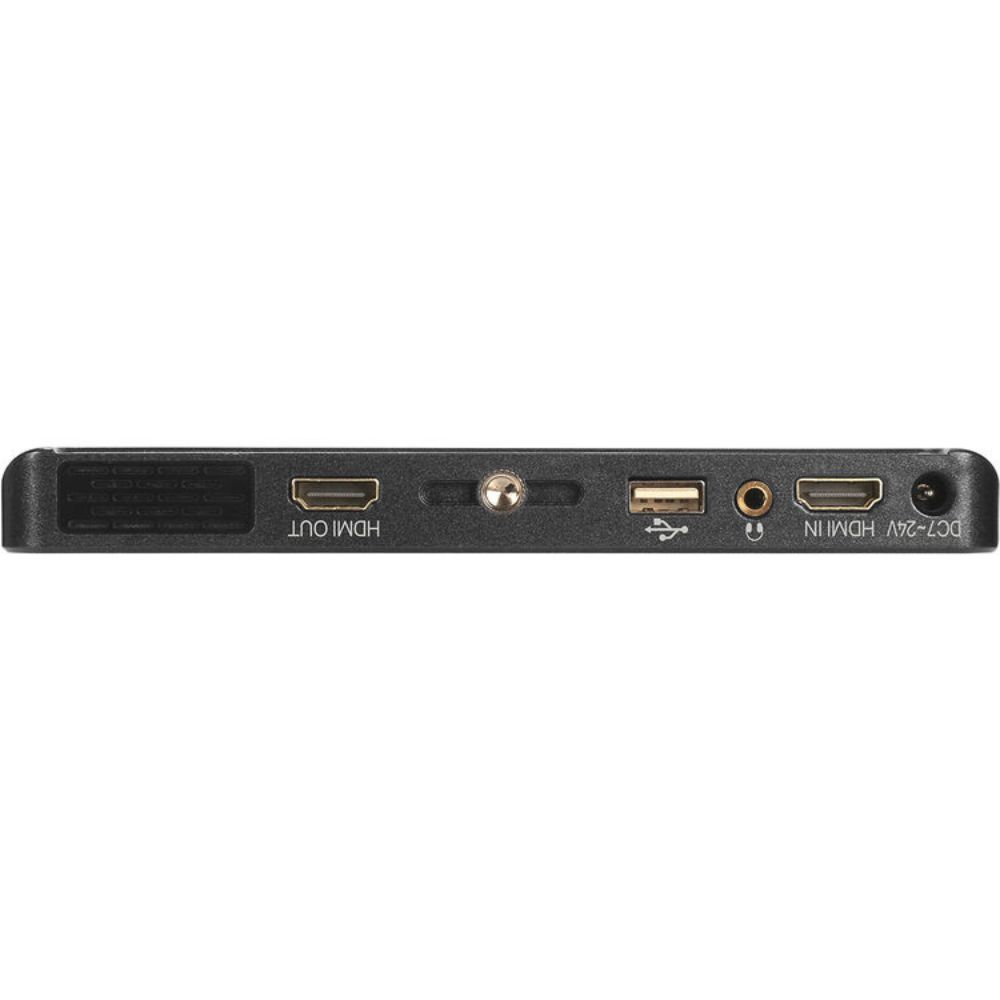

| Video I/O | 1x HDMI 1.4 Input 1x HDMI 1.4 Output |
| Embedded Audio | HDMI |
| Audio I/O | 1x 1/8 / 3.5 mm Headphone Output |
| Built-In Speaker | No |
| Power I/O | 1x Barrel (24 VDC) Input 1x USB-A (5 VDC / 2 A) Input |
| Other I/O | 1x USB-A (Firmware/LUT Upload) [Shared with USB-A Power Input] |
| Media/Memory Card Slot | No |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Mobile App Compatible | No |
