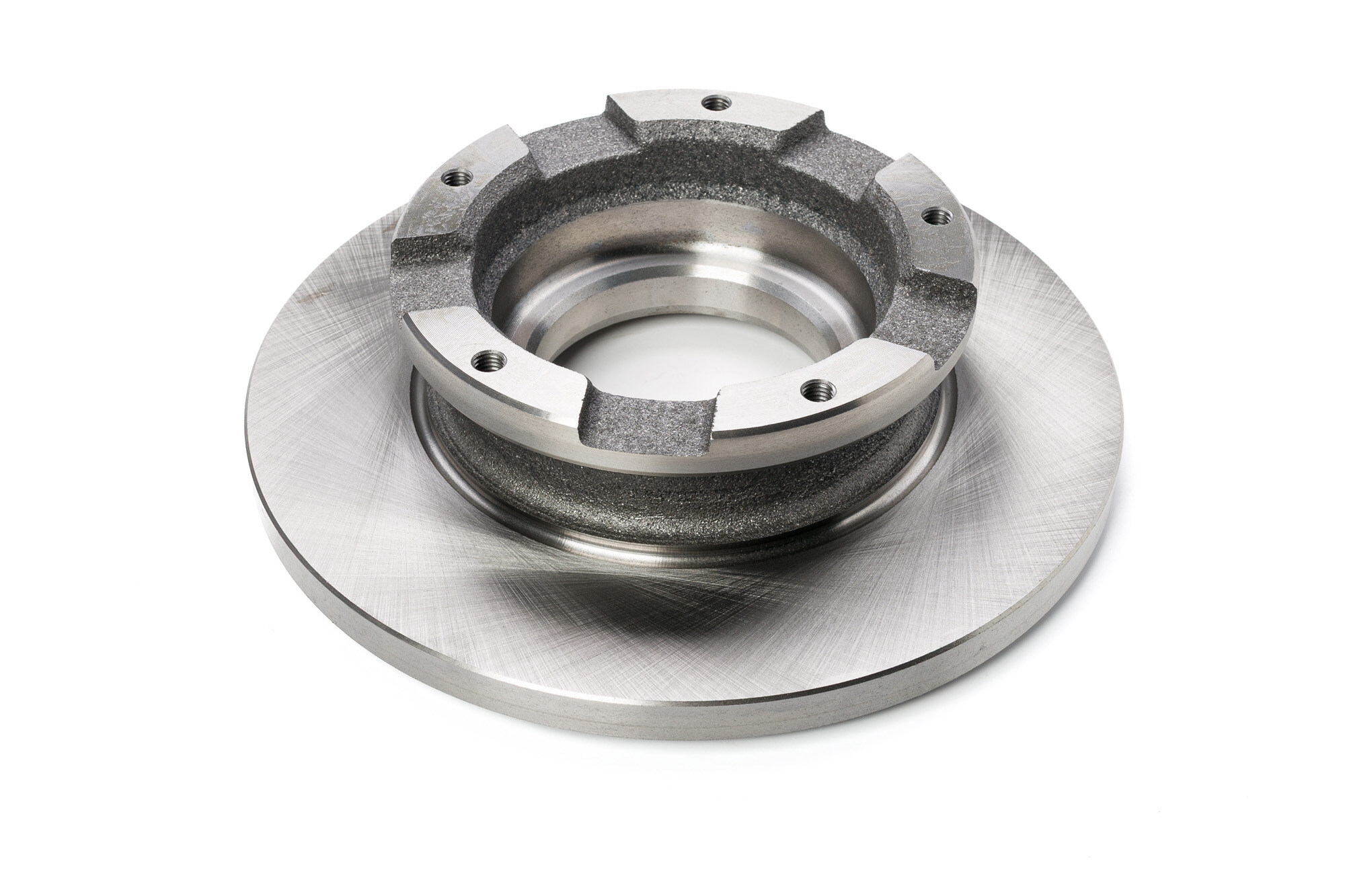

2 PCS Dr!ve+ DP1010.11.0298 Brake Disc

PRODUCT SPECIFICATION:
Part No DP1010.11.0298
Manufacturer Dr!ve+
Rim Hole Number5
Fitting PositionRear Axle
Height [mm]68,8
Brake Disc Typesolid
Brake Disc Thickness [mm]16
Minimum thickness [mm]13
Outer Diameter [mm]280
Centering Diameter [mm]96

CROSS-REFERENCE NO:

Manufacturer Code
A.B.S.08A73020
A.B.S.17786
A.P.14984
A.P.15061
AKEBONOBN0309
AKEBONOBN0309E
AKRON-MALÒ1110264
AP14984
AP15061
APECDSK2426
ASHIKA61000327
ASHIKA61000327C
ATE24011601162
ATE24011602161
BENDIX522052
BENDIX562638BC
BLUE PRINTADF124318
BORG & BECKBBD5932S
BOSCH0986479389
BOSCH0986479401
BOSCH0986AB5696
BOSCHF026A09570
Brake ENGINEERINGDI956961
BRAXISAE0210
BRECOBS6053
BRECOBS7775
BREMBO08A73010
BREMBO08A73020
CAR1421427
CHAMPION562638CH1
COMLINEADC1241
DBA AustraliaDBA2135
DELPHIBG4008
DENCKERMANNB130335
DONPCD18421
DT Spare Parts1331006
EUROBRAKE5815202579
EUROBRAKE5815312579
EUROREPAR1642778880
FASTFT31114
FEBI BILSTEIN40783
FERODODDF15731
FERODODDF1573
FERODODDF1573C
FTE9071221
FTE9081105
FTEBS7161
FTEBS7403S
FTEBS7403SB
HELLA PAGID8DD355113811
HELLA8DD355113811
ICER78BD56332
JAPANPARTSDP0327
JAPANPARTSDP0327C
JAPANPARTSDP0327JM
JAPKO610327
JAPKO610327C
JURID562638J1
JURID562638JC
KAWE6110700
KEY PARTSKBD5932S
LPRF1020PA
LPRF1020PRA
MAGNETI MARELLI360406080300
MAGNETI MARELLI360406111200
MAGNETI MARELLI360704013600
MAGNETI MARELLI361302040345
MAGNETI MARELLI361302040347
MANDOMBC035040
MAPCO25829
MAPCO47687
MASTER-SPORT GERMANY201602160
MASTER-SPORT GERMANY201602160P
MASTER-SPORT GERMANY24011601162PCSMS
MASTER-SPORT GERMANY24011601162PCSMSP
MASTER-SPORT GERMANY24011601162SETMS
MASTER-SPORT GERMANY24011601162SETMSP
MASTER-SPORT GERMANY24011602161PCSMS
MASTER-SPORT GERMANY24011602161PCSMSP
MASTER-SPORT GERMANY24011602161PRPCSMS
MASTER-SPORT GERMANY24011602161PRPCSMSP
MASTER-SPORT GERMANY24011602161PRSETMS
MASTER-SPORT GERMANY24011602161PRSETMSP
MASTER-SPORT GERMANY24011602161SETMS
MASTER-SPORT GERMANY24011602161SETMSP
MAXGEAR191237
MAXGEAR191237MAX
MAXGEAR191237SPORT
MERITORMBR6024
METELLI231547
METZGER6110205
MEYLE7155230013
MEYLE7155230013PD
MGAD1987
MINTEXMDC1808
MINTEXMDC1808C
MOTAQUIPLVBD1291Z
NAPANBD5007
NationalNBD1419
NK202579
NK312579
OPEN PARTSBDA241110
OPTIMALBS8266
OPTIMALBS8266C
PAGID54591
PAGID54591PRO
PILENGA5286
PILENGA5286K1
QUAROQD5089
QUINTON HAZELLBDC5585
QUINTON HAZELLBSF5585
RAICAMRD00278
RAP BRAKESRD0287
REMSA6110700
REMYRAD1299C
RIDEX82B0435
ROADHOUSE6110700
SASIC6106145
sbs1815202579
sbs1815312579
SKFVKBD90045S1
ST-TEMPLIN031102600170
ST-TEMPLIN031102600180
ST-TEMPLIN0311084990
ST-TEMPLIN0311084995
STELLOX60201098KSX
STELLOX60201098SX
SWAG50940783
TEXTAR92159100
TEXTAR92159103
TOMEX BrakesTX7217
TOPRAN303971
TRISCAN812016149
TRISCAN812016149C
TRUSTINGDF1187
TRWDF4821S
VAICOV2540012
VALEO197765
VALEO672917
WOKINGD6110700
ZIMMERMANN250135800
ZIMMERMANN250135820

REFERENCE OEM NO:

Manufacturer Code
FORD1371421
FORD1387152
FORD1451161
FORD2256895
FORD6C112A097AB
FORD6C112A315BB
FORDME6C1J2A097AB

COMPATIBILITY:

Make Model Engine Years Kw HP ccm Note
FORDTRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)2.2 TDCi[200604-201408]63Kw85PS2198ccm
FORDTRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)2.2 TDCi[200604-201408]81Kw110PS2198ccm
FORDTRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)2.2 TDCi[200604-201408]96Kw130PS2198ccm
FORDTRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)2.2 TDCi[200710-201408]103Kw140PS2198ccmBraking/Driving Dynamics : for vehicles with ABS, Vehicle type : Transit 330
FORDTRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)2.2 TDCi[200810-201408]85Kw115PS2198ccmVehicle type : Transit 280, Vehicle type : Transit 300, Vehicle type : Transit 330, Vehicle type : Transit 350
FORDTRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)2.2 TDCi[201110-201408]74Kw100PS2198ccm
FORDTRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)2.2 TDCi[201110-201408]92Kw125PS2198ccm
FORDTRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)2.2 TDCi[200604-201408]63Kw85PS2198ccm
FORDTRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)2.2 TDCi[200604-201408]81Kw110PS2198ccm
FORDTRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)2.2 TDCi[200604-201408]96Kw130PS2198ccm
FORDTRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)2.2 TDCi[200710-201109]103Kw140PS2198ccmVehicle type : Transit 300, Vehicle type : Transit 350
FORDTRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)2.2 TDCi[200810-201408]85Kw115PS2198ccmVehicle type : Transit 300, Vehicle type : Transit 330, Vehicle type : Transit 350
FORDTRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)2.2 TDCi[201110-201408]74Kw100PS2198ccm
FORDTRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)2.2 TDCi[201110-201408]92Kw125PS2198ccm
FORDTRANSIT TOURNEO Bus2.2 TDCi[200607-201408]81Kw110PS2198ccm
FORDTRANSIT TOURNEO Bus2.2 TDCi[200607-201408]96Kw131PS2198ccm
FORDTRANSIT TOURNEO Bus2.2 TDCi[200710-201408]103Kw140PS2198ccm
FORDTRANSIT TOURNEO Bus2.2 TDCi[200810-201408]85Kw115PS2198ccm
FORDTRANSIT TOURNEO Bus2.2[201110-201408]92Kw125PS2198ccm
FORDTRANSIT Van (FA_ _)2.2 TDCi[200604-201408]63Kw85PS2198ccm
FORDTRANSIT Van (FA_ _)2.2 TDCi[200604-201408]81Kw110PS2198ccm
FORDTRANSIT Van (FA_ _)2.2 TDCi[200604-201408]96Kw130PS2198ccm
FORDTRANSIT Van (FA_ _)2.2 TDCi[200710-201408]103Kw140PS2198ccmBraking/Driving Dynamics : for vehicles with ABS, Vehicle type : Transit 330
FORDTRANSIT Van (FA_ _)2.2 TDCi[200810-201408]85Kw115PS2198ccmVehicle type : 260, Vehicle type : 280, Vehicle type : 300, Vehicle type : 330
FORDTRANSIT Van (FA_ _)2.2 TDCi[201110-201408]74Kw100PS2198ccm
FORDTRANSIT Van (FA_ _)2.2 TDCi[201110-201408]92Kw125PS2198ccm
