Model:AH3-3
Delay Range: 1 Second~60 Minutes

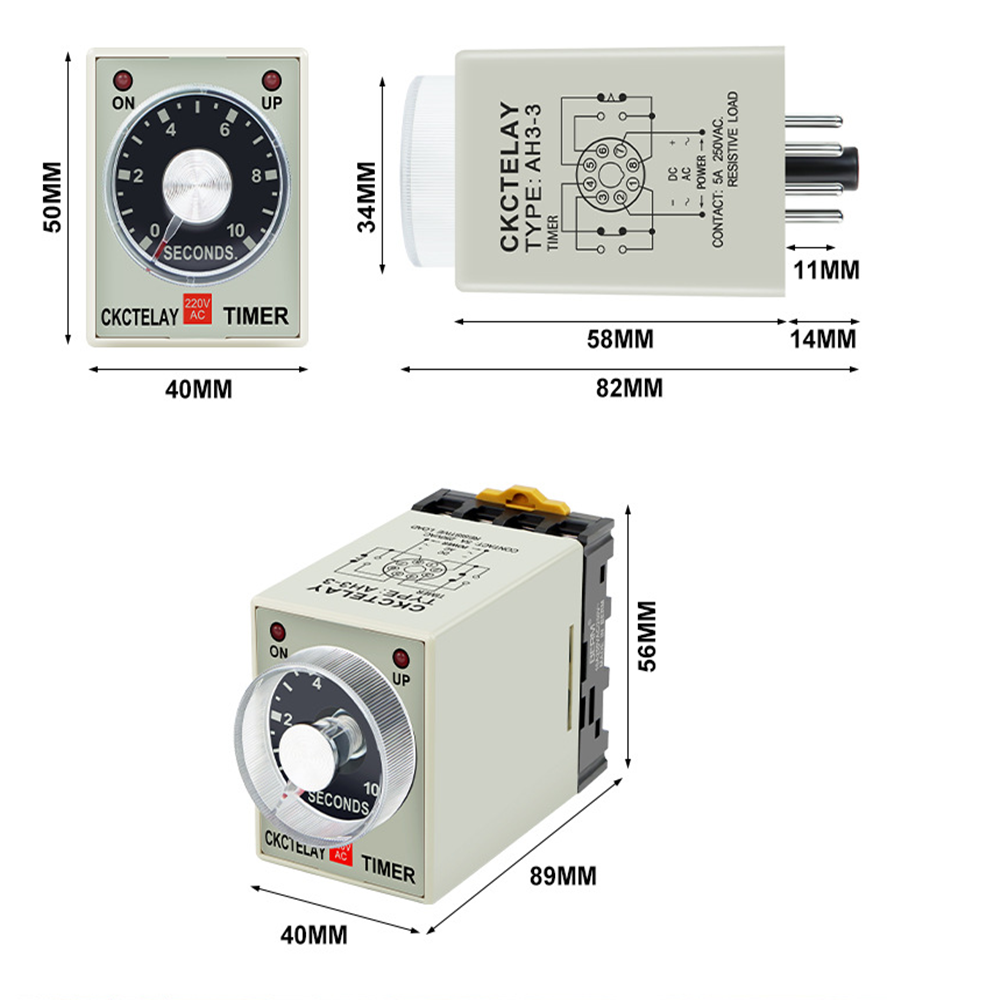

Opening Hole Size: 40 * 50mm
Contact: 5A 250VAC
Number Of Contacts: 8
Rated Voltage Of The Line (V):DC12V, DC24V, AC110V, AC220V, AC380V
The Packaging Includes:1PCS Time Delay Relays+Base
Product Overview:
The Timer is a high-quality, precision timing device designed for
various applications. It features an 8-pin terminal block with
coil-controlled contact points and uranium-plated zinc pins for secure,
rust-resistant connections.
Key Features:
-
Environmental Durability: Made with eco-friendly materials.
-
Precision Timing: Accurate timing control with automatic power-off.
-
Self-Resetting Button: Convenient for repeated use.
-
Versatile Operation: Can be set to normally open (NO) or normally closed (NC) modes.
Installation Instructions:
-
Unboxing: Carefully remove the timer from its packaging.
-
Placement: Choose a suitable location for the timer, ensuring it is easily accessible.
-
Wiring: Connect the wires to the 8-pin terminal block as per the wiring diagram provided.
Operation Guide:
-
Power On: Connect the timer to a power source.
-
Setting the Timer: Use the control interface to set the desired time interval.
-
Start/Stop: Press the start button to begin the countdown. The timer will automatically power off or switch states based on the configured mode.
Maintenance:
-
Regularly check the timer for any signs of wear or damage.
-
Clean the surface with a soft, dry cloth to maintain its appearance.
Troubleshooting:
-
Timer Not Starting: Ensure the power source is connected properly.
-
Inaccurate Timing: Reset the timer and reconfigure the settings.
Safety Information:
-
Do not expose the timer to water or other liquids.
-
Keep the timer away from extreme temperatures and direct sunlight.
