ITEM DESCRIPTION
- Equipped with premium variable frequency drive system and inverter, enabling stepless adjustment of washing/dehydration speed with convenient speed control. Features stable performance, low noise, ultra-low vibration, significant energy-saving effect, and simple/reliable transmission structure.
- Full suspension (bottom suspension) vibration absorption system. The entire washing drum system is mounted on large-diameter springs and hydraulic dampers with strong anti-fatigue performance and high shock absorption rate. Can be safely placed on any floor without floor anchoring.
- High-quality sealing ring with V-type water seal for excellent sealing performance.
- Fully computerized large LCD screen with smart functions: automatic water filling, pre-wash, rinsing, bleaching, final rinse, etc. Offers 5 programmable washing cycles.
- New large-diameter rapid water inlet/drainage system significantly reduces washing cycle time.
- Built-in water heating function for cold water heating and high-temperature disinfection washing.
- Both machine housing and inner drum are made of 304 stainless steel for acid/alkali resistance and corrosion prevention.
Applications
Our industrial washing machine features a robust yet simplified design for stable, high-performance operation, integrating washing and spinning functions in a single unit. Its versatile applications include:
- Automotive care: Seat covers, mats, and detailing cloths
- Industrial facilities: Workshop uniforms and heavy-duty fabrics
- Healthcare sector: Hospital linens and scrubs
- Hospitality industry: Motel bedding and staff uniforms
- Food service: Catering workwear and kitchen linens
Performance Benefits
30% faster cycle times compared to conventional models
Energy-saving operation with smart water recycling
Heavy-duty construction (304 stainless steel drum)
User-friendly controls for effortless operation
ITEM PARAMETERS
| Voltage: | AC220V |
| Phase number: | 1 |
| Capacity(dry clothes): | 33lbs(15kg) |
| Drum size: | Φ27.5"*16.9"(Φ700*430mm) |
| Motor power: | 1.5KW |
| Inverter power: | 1.5KW |
| Heating power: | 6KW |
| Cold/hot water pipe: | Φ0.8"(Φ20mm) |
| Drain-pipe: | Φ1.97"(Φ50mm) |
| Steam pipe size: | Φ0.6"(Φ15mm) |
| Steam pressure: | 0.4~0.5MPA |
| Housing material: | 304 Stainless steel |
| Drum material: | 304 Stainless steel |
| Package size: | 47.6"*47.6"*68.1" (121cm*121cm*173cm) |
| Net weight/Gross weight: | 1120lbs(508kg)/1279.8lbs(580.5kg) |
Please note: Apply grease every 6 months to ensure smooth operation.

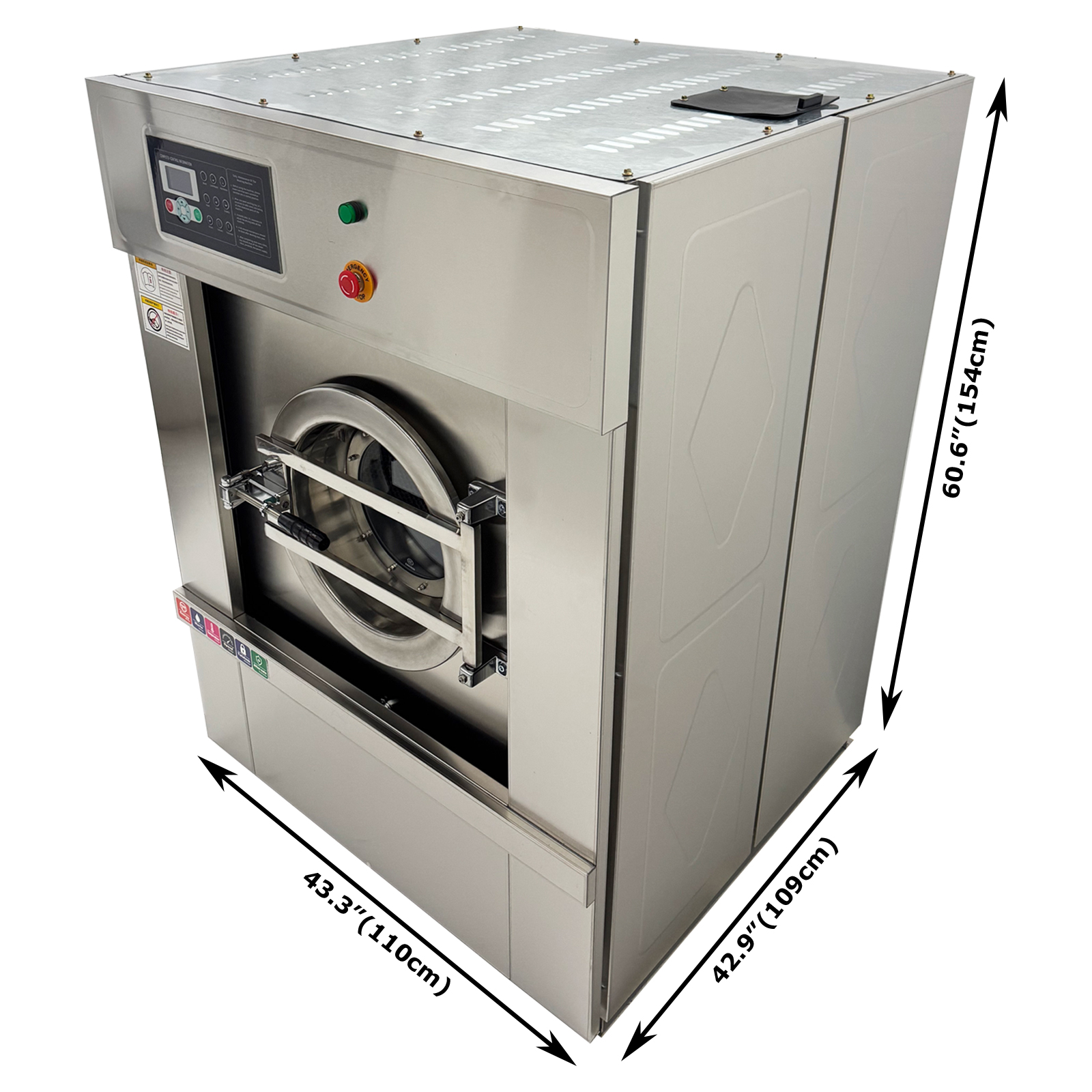

ITEM DETAILS
Control Panel
The control panel integrates multiple functions, including start, stop, wash, cold water, hot water, heat, drain and more. It features a fully intelligent LCD display with clear data visualization and user-friendly operation.
Emergency Switch
There is an emergency switch on the front of the machine, which can stop the operation of the machine immediately in case of emergency to ensure the personal safety of the operator.
Belt Drive
The belt drive system delivers smooth power transmission with minimal noise, offering exceptional reliability, enhanced wear resistance, and extended durability. Its maintenance-friendly design ensures effortless operation.
Drain Outlet
Equipped with a large-diameter drainage port, it enables rapid and efficient discharge of high-volume wash wastewater, enhancing drainage efficiency and reliability. Featuring a straight-through design, it prevents blockages during drainage to ensure smooth water flow.
Water Inlet
The washing machine features a rear-mounted water inlet, designed for easy pipeline connection, space-saving installation, and convenient water access, ensuring effortless operation.
Detergent Dispenser
The detergent compartment features a top-loading design for effortless pouring of powder or liquid detergent, with an extra-wide and deepened tray that accommodates bulk quantities of cleaning agents to meet industrial-scale washing demands.
Stainless Steel Wash Drum
The machine's outer casing and inner drum are precision-crafted from premium 304 stainless steel, delivering exceptional corrosion resistance that prevents rust formation and withstands acid/alkaline detergents. The dense holes are greatly increase the efficiency of dehydration.
Safety Lock
The washer features an stainless steel door with a reinforced safety lock and tempered glass window, allowing full visibility during operation. Its large drum maximizes load efficiency while ensuring thorough cleaning performance through optimized tumbling action.
ITEM INCLUDED (057027)
Commercial Washer *1
Drain Hose *1
