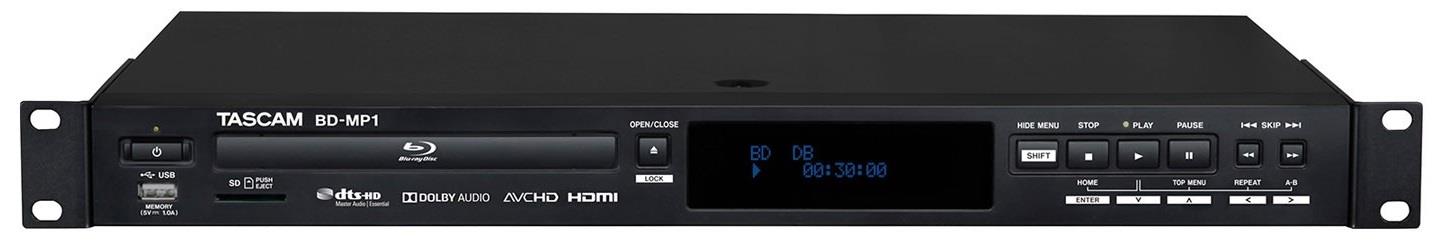

Tascam BD-MP1 MKII Professional Blu-Ray Multi-Media Player – 1U Rackmount
The Tascam BD-MP1 MKII is a robust, professional 1U media player designed for permanent installations and high-demand environments. Ideal for commercial AV, education, boardrooms, houses of worship and live touring, it delivers reliable playback of Blu-ray, DVD, CD, SD and USB media with full remote-control capability.
This updated MKII model supports LAN (Telnet), RS-232C and IR remote operation, making it a perfect fit for integrated media systems. With wide format support, NTSC/PAL conversion, 7.1 surround outputs and HDMI CEC functionality, it provides a powerful, flexible playback solution for any professional setup.
Key Features
1U rackmount Blu-ray / DVD / CD / USB / SD media player
Remote control options: LAN (Telnet), RS-232C & IR remote
Plays BD25/50, DVD±R/RW, CD-DA, SD cards (up to 512GB) & USB drives (up to 2TB)
Supports 3GP, MP4, MKV, WMV, FLAC, AAC, WAV, MP3, JPEG, PNG and more
HDMI output with CEC for automatic display power sync
7.1 surround outputs, XLR balanced & RCA unbalanced stereo outputs
Coaxial digital audio (SPDIF) with Dolby/DTS support
Power-on play, resume, repeat, instant replay (10 sec)
Lock functions for panel/tray/remote
Dimmable front display & on-screen info toggle
Firmware update via disc or USB
Supplied with IR remote, rack kit & AC power cable
Technical Highlights
Video Resolutions: 480i/p, 576i/p, 720p, 1080p, Auto
Colour: NTSC / PAL / Multi
HDMI Colour Space: RGB, YCbCr 4:4:4 / 4:2:2
Audio Performance:
20Hz–20kHz ±0.5dB
S/N ≥ 96dB | THD ≤ 0.03%
Dynamic range ≥ 96dB

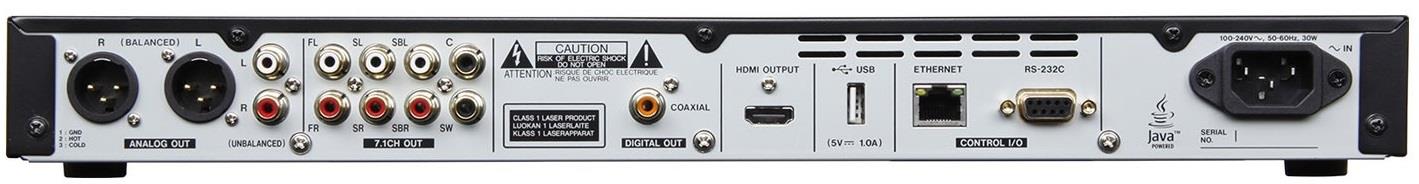

Connectivity:
HDMI, Coaxial SPDIF
XLR balanced + RCA stereo outputs
8-channel RCA (7.1)
RS-232C, Ethernet, USB (front + rear)
Power: AC 100–240V, 30W typical
Dimensions: 483 × 44 × 281 mm (1U)
Weight: 3 kg
Included in the Box
Tascam BD-MP1 MKII player

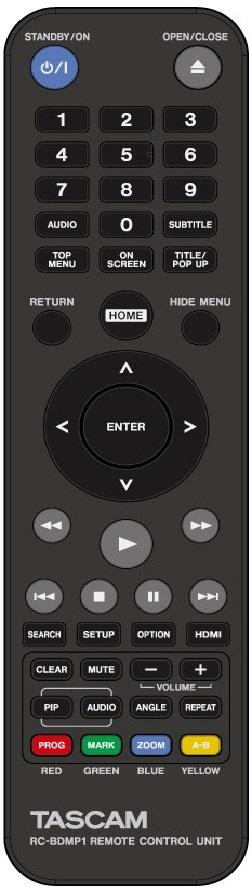

IR remote control (RC-BDMP1)
AC power cable
Rack-mounting kit
Owner’s manual
