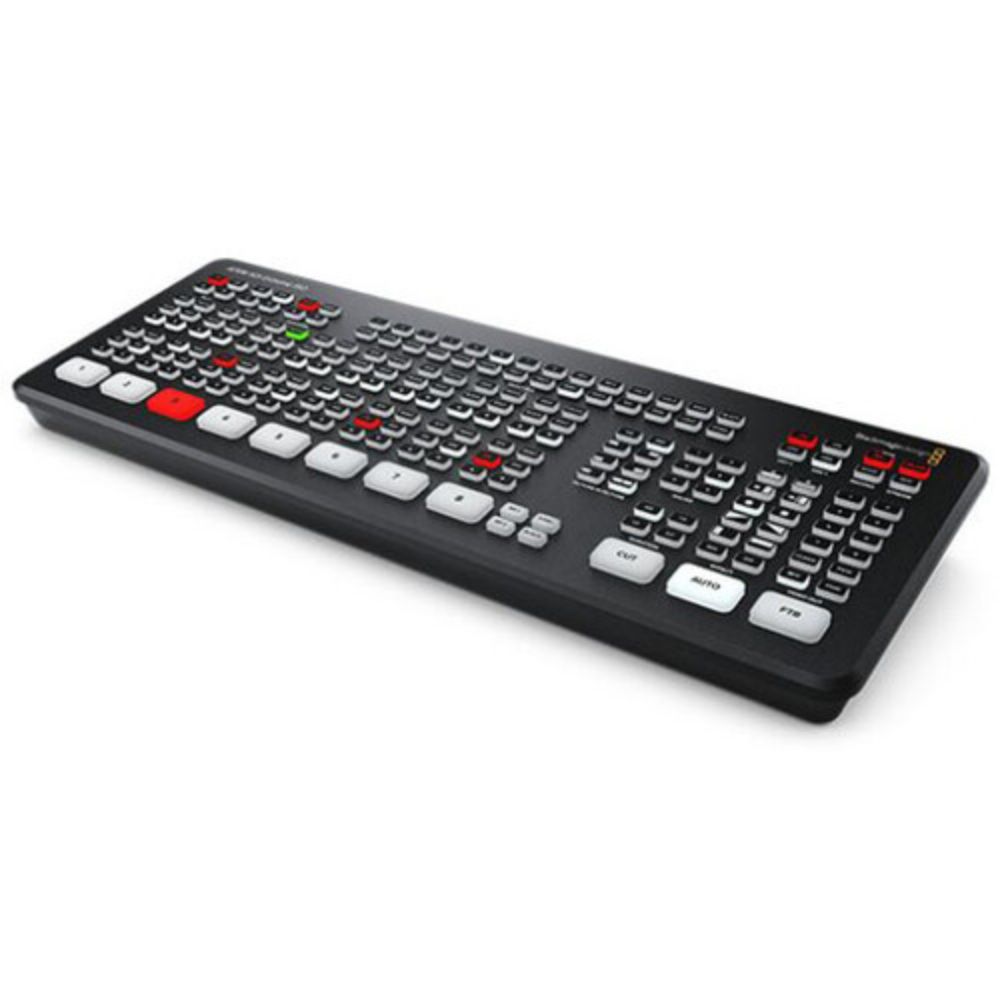

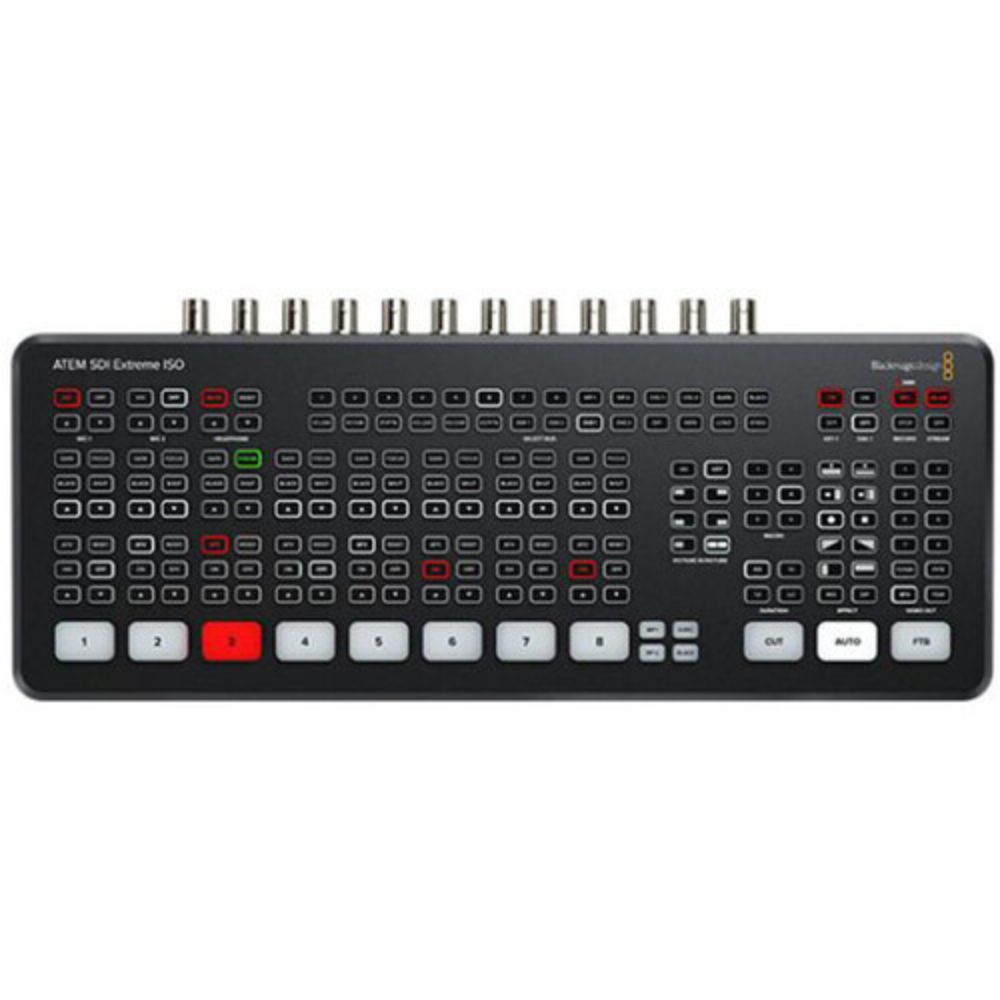

The Blackmagic Design ATEM SDI Extreme ISO Switcher is an 8-input live production switcher for live streaming. It features an integrated control panel and has advanced broadcast features. In addition to live streaming using RTMP protocols, you can also output your program as if it was a webcam over USB. The switcher's ISO label means you can individually record each of the eight input videos as an MP4, as well as the program output via one of the USB Type-C ports. The switcher automatically generates a DaVinci Resolve project file, so you can clean it up and make changes later. This versatile switcher's eight independent 3G-SDI inputs accept all popular HD signals up to 1080p60. Each input has discrete frame rate and format converters, and it supports re-syncing for seamless switching between a variety of pro and consumer cameras, game consoles, and computer feeds.

Switch, add effects, color grade, and key in real time using the control surface's buttons, or via the software control panel. CCU functions are available for controlling Blackmagic Studio and URSA Mini/Broadcast/Micro Studio cameras from the switcher. The ATEM Mini Extreme ISO supports up to nine layers, with four upstream and two downstream keyers, up to four chroma keyers, up to four linear keyers, two DVE with borders and drop shadow, five pattern generators, and two color generators. Designed for live streaming or webcam, the Mini Extreme ISO has four 3G-SDI outputs to feed monitors and supports up to 16-screen multiview.

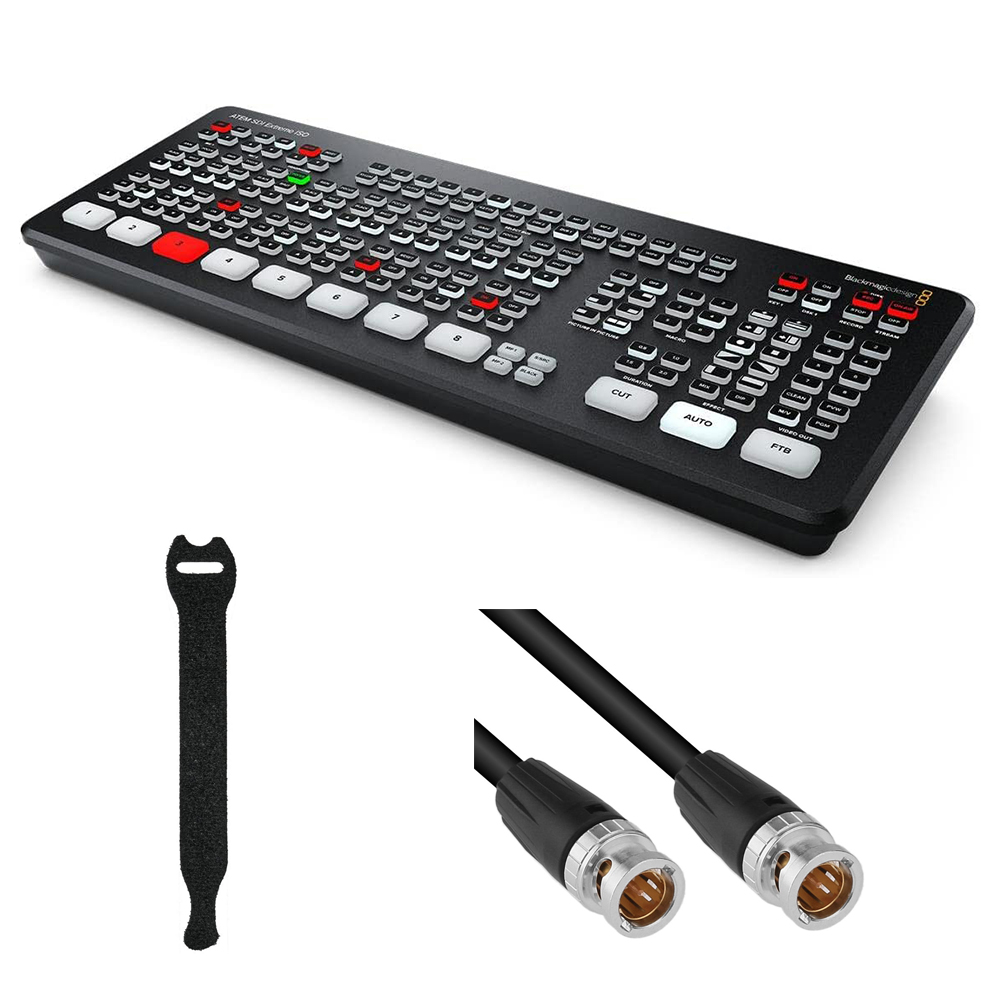

Box Contains

Blackmagic Design ATEM SDI Extreme ISO Live Production Switcher

• 1x Kopul Premium Series 3G-SDI Cable BNC to BNC (50 ft)
• 1x 10-Pack Fastener Straps

Box Contains

Blackmagic Design ATEM SDI Extreme ISO Live Production Switcher

• 1x Kopul Premium Series 3G-SDI Cable BNC to BNC (50 ft)
• 1x 10-Pack Fastener Straps

Brand	Blackmagic Design
Model	Blackmagic Design ATEM SDI Extreme ISO Switcher
MPN	BMD-SWATEMMXEPCEXTISO
Type	Switcher
Available M/E Layers	9 M/E
Effect Types	DVE, Transition, Chroma Key, Luma Key
Generators	5 x Pattern 2 x Color
Audio Mixing	2-Channel Mixing
Switching Type	IR Remote, Pushbutton, Software
Number of Video Input Sources	8

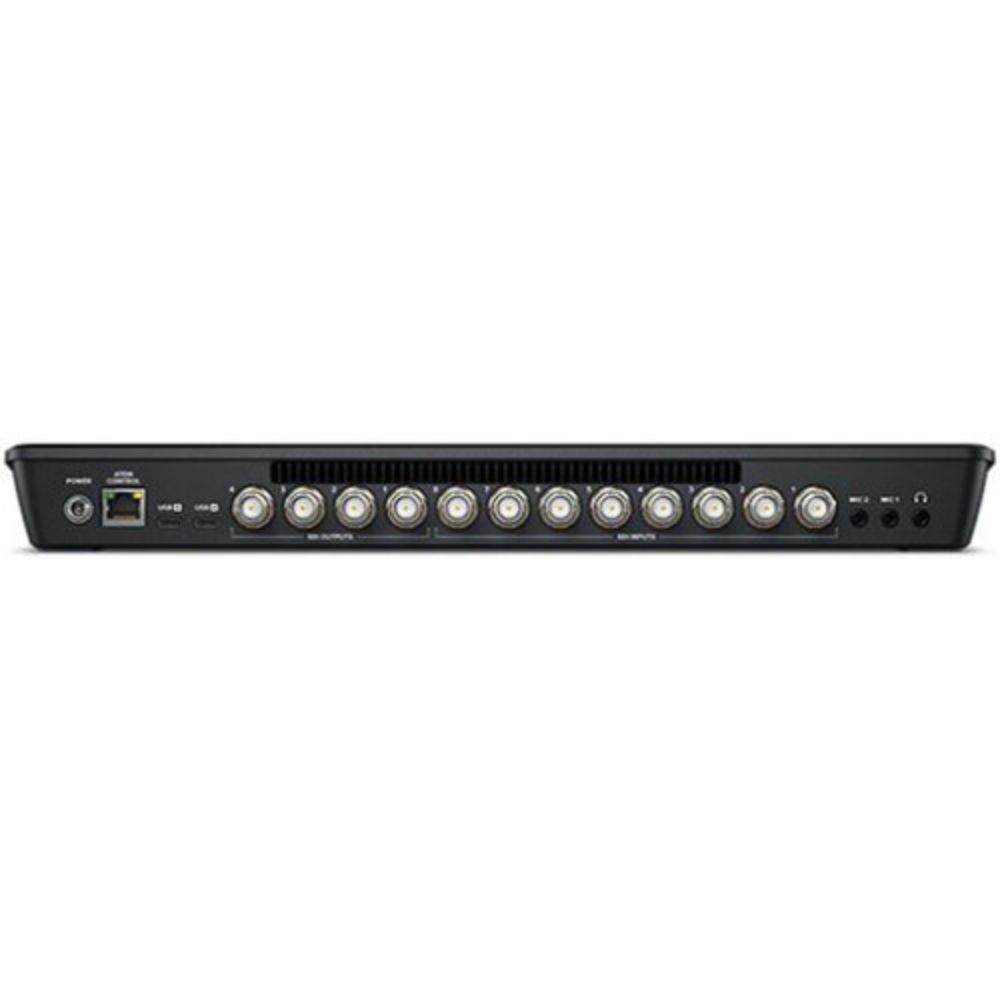

Video Input Connectors	8 x BNC (3G-SDI)
Input Video Format	SDI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 56/59.94/60 fps 720p a
Audio Input Connectors	2 x 1/8 / 3.5 mm TRS Stereo Analog Female
Input Audio Format	Analog
Embedded Audio Input	SDI: 2-Channel (per Input)
Video Output Channels	6
Video Output Connectors	4 x BNC (3G-SDI) (Program) 2 x USB Type-C
Output Video Format	SDI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps USB Type-C (10-Bit 4:2:2 YUV) 1
Audio Output Connectors	1 x 1/8 / 3.5 mm TRS Analog
Output Audio Format	Analog
Embedded Audio Output	SDI: 2-Channel (per Output)
Multiview Output	None
Other I/O	1 x RJ45 Control Input/Output
HDCP Support	None
IP Video	1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding
OS Compatibility	macOS 11 macOS 12 or Later Windows 10 Windows 11 *As of July, 2022: check with manufacturer for the
Power Connector	1 x Barrel (12 VDC) Input
Power Consumption	Device: 36 W
Operating Temperature	41 to 104°F / 5 to 40°C
Storage Temperature	14 to 140°F / -10 to 60°C
Operating Humidity	0 to 90% (Non-Condensing)
