8 Channel Digital Input Output Controller for Industrial For automation Systems
DESCRIPTION

Features:

*Wide Voltage Compatibility: This module supports a DC power supply range of 7 to 36V, making it for versatile for various industrial applications and stable operation in diverse environments.

*Robust Communication Protocol: Utilizing the for MODBUS RTU protocol over interface, it enables reliable data exchange, crucial for effective automation control in complex industrial systems.

*Advanced for Protection Features: With built-in power isolation, magnetic coupling isolation, and self-restoring fuses, this module is designed to withstand harsh conditions, operational reliability and safety.

*Flexible InputOutput Modes: It accommodates both NPN and PNP types for digital inputs, while the open-drain output supports a maximum sink current of 500mA per channel, providing flexibility for different sensor and actuator configurations.

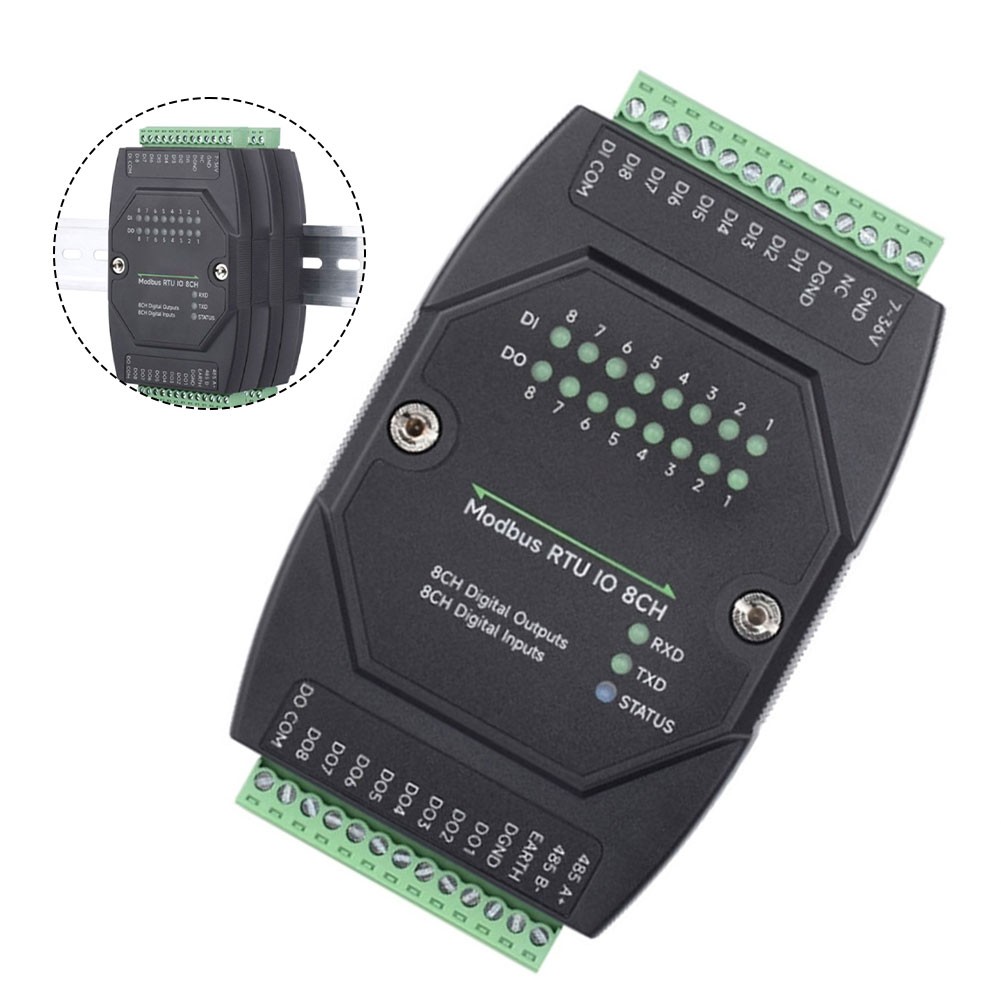

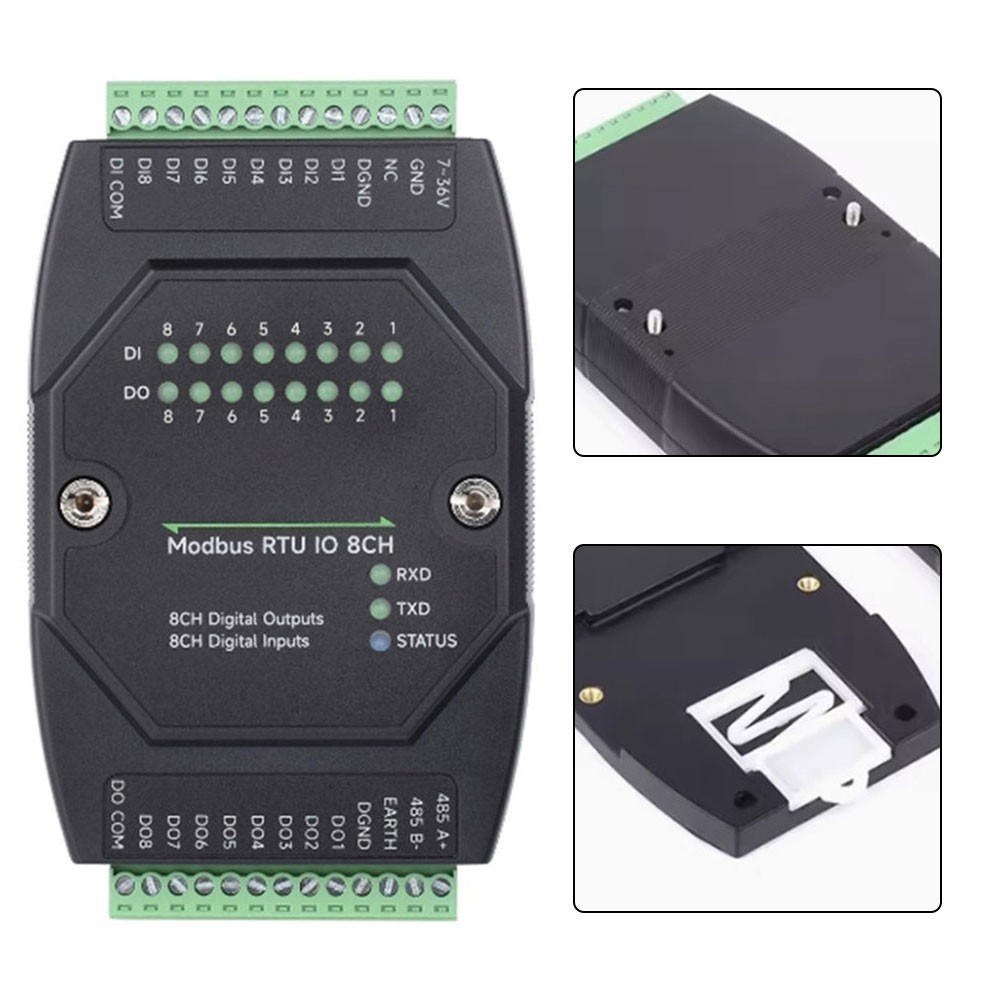

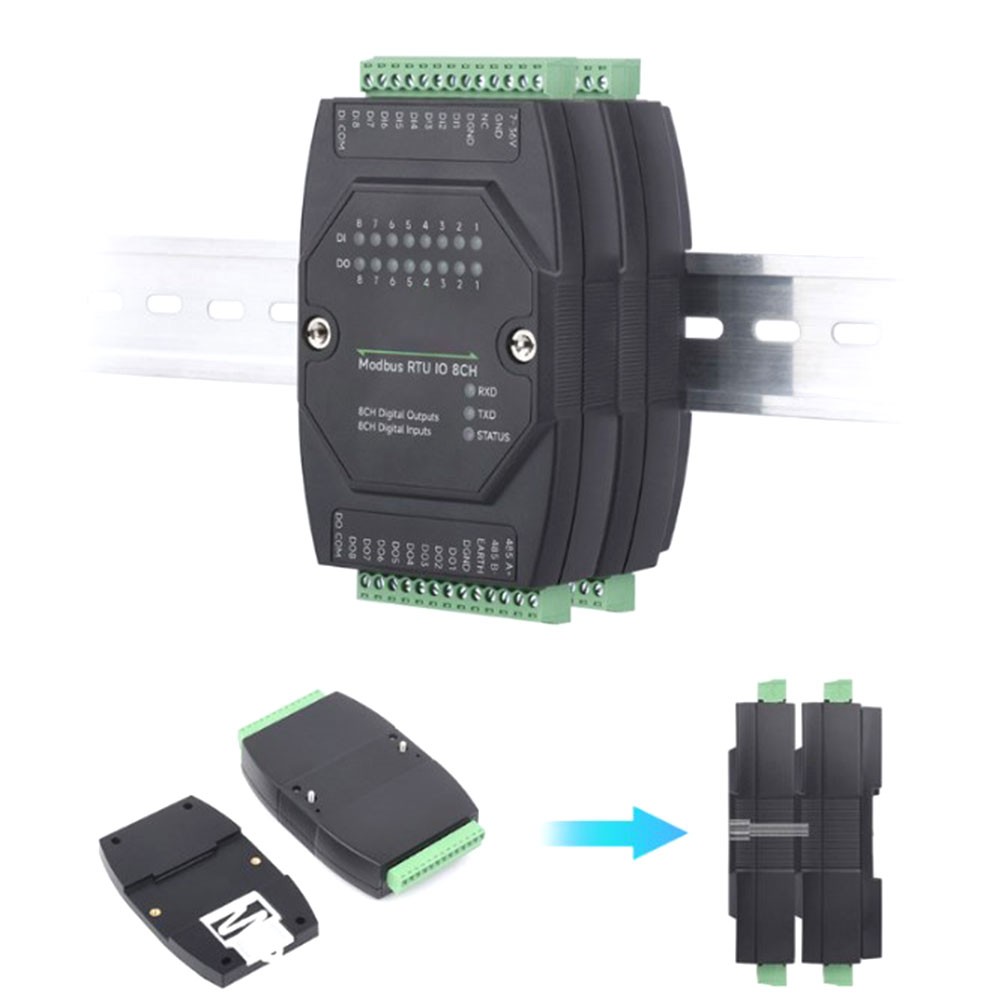

*Convenient Installation: Designed for standard DIN rail mounting, it features a stackable design and external LED indicators for easy installation and real-time monitoring of inputoutput status, enhancing usability in industrial settings.


Specifications:

*Part Name: 8-Channel I/O Controller Module

*Material: ABS

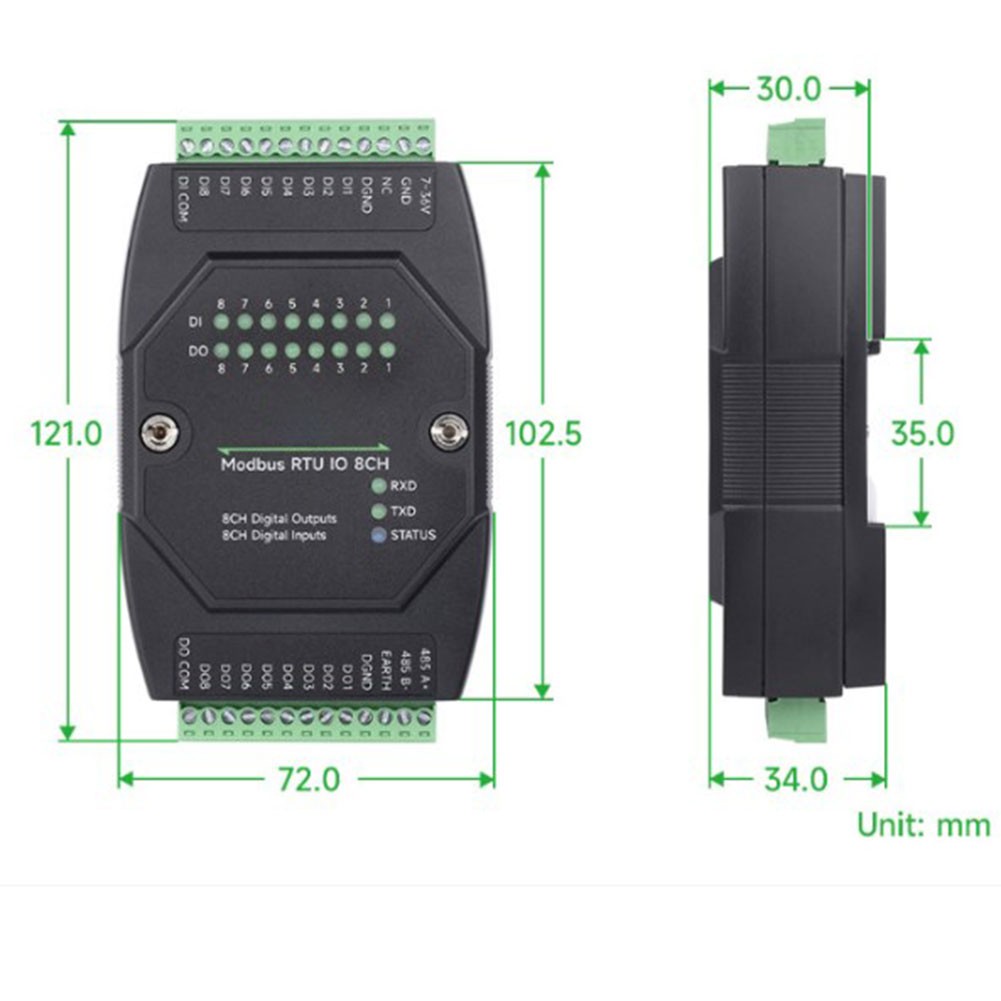

*Size:As shown

*Color: Black + Green

Communication Baud Rates: 4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000

Default Communication Format: 9600, N, 8, 1

Supply Voltage: DC 7-36V

Digital Inputs: 8DI, 5-36V, passive/active (NPN or PNP), with built-in bidirectional optocoupler.

Digital Outputs: 8DO, 5-40V, open-drain, output load 500mA/channel (max).

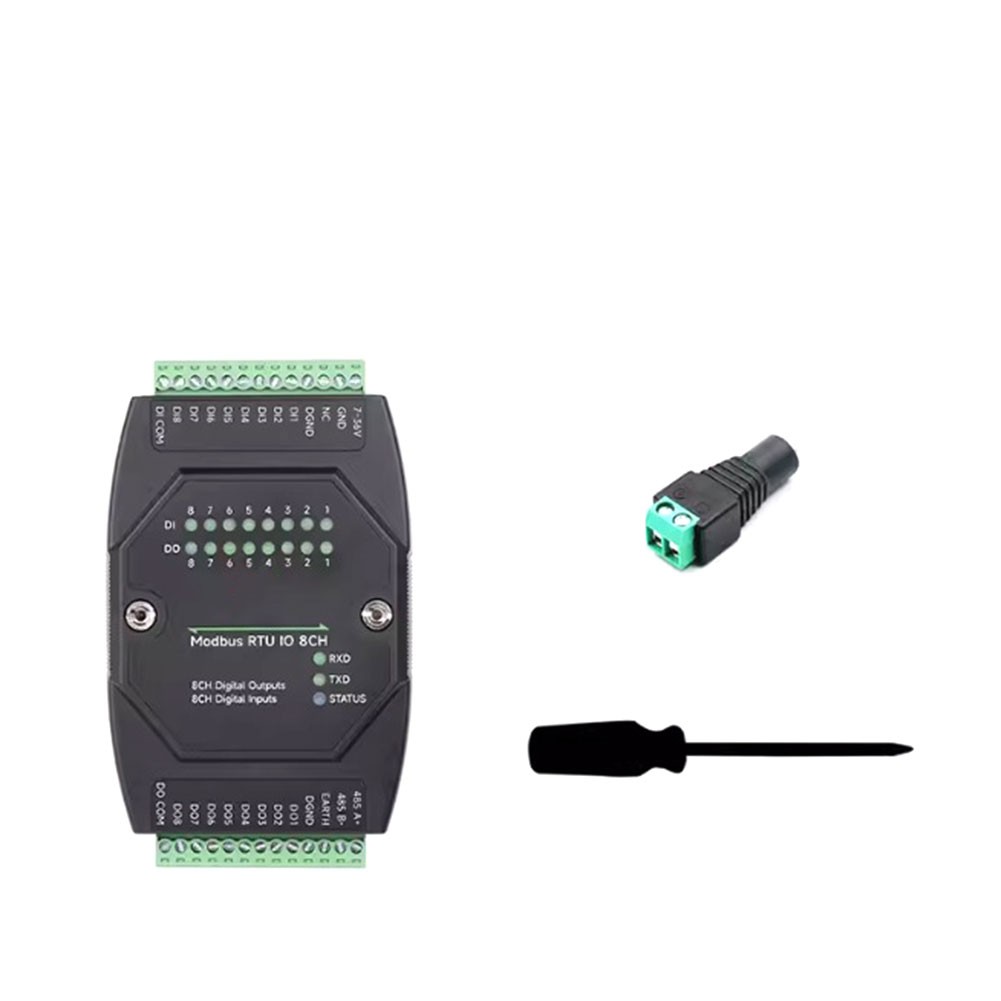

Package Content:

1*Controller Module

1*Power Adapter

1*Screwdriver




Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
