8 Channel Heating Controller for Multi Zone Floor Hot Water Valve Actuators
DESCRIPTION

Features:

The CCT-28 is an 8-channel smart hub controller for multi-zone central heating systems with indicator lights.

Thermostats correspond to zone valves, which are indirectly connected to actuators. Up to three normally closed actuators can be connected to each zone.

In a zone heating system, actuators open and close valves based on the zone thermostat settings.

Each thermostat independently controls heating, providing heating to different zones of the house.

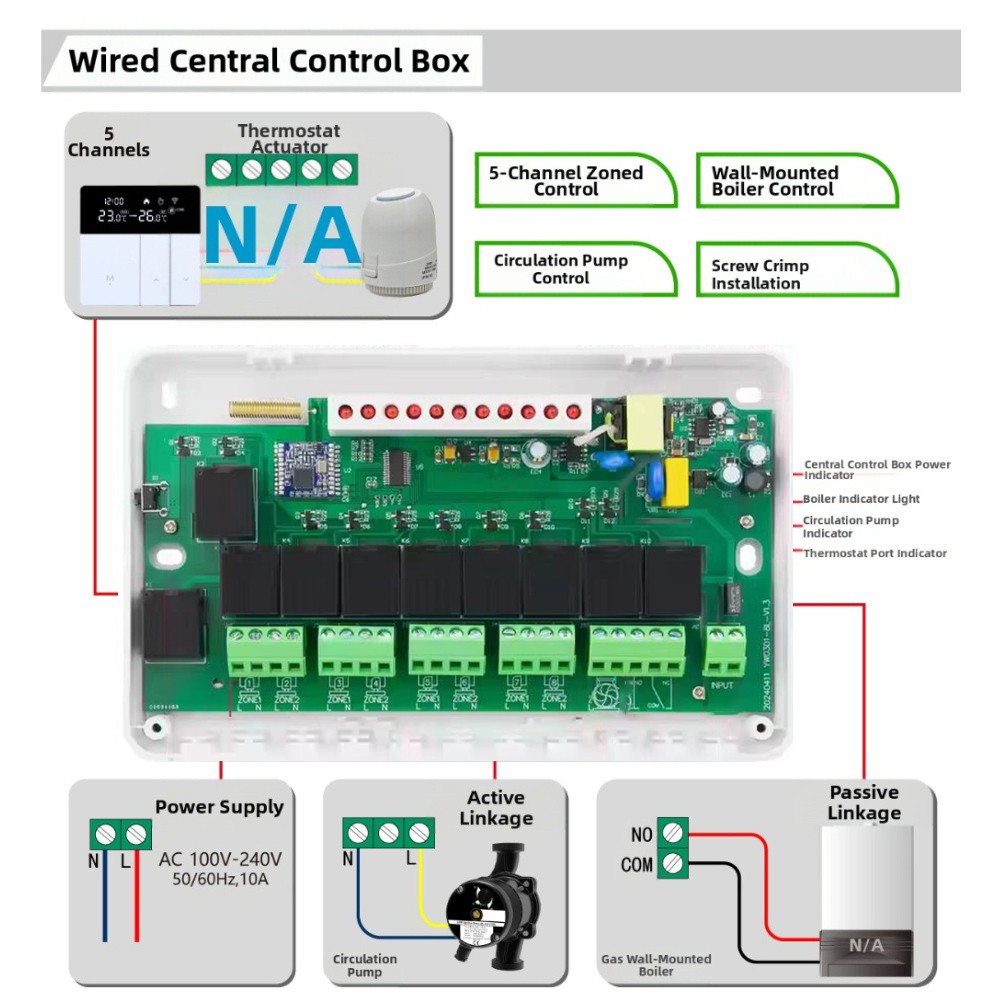

The smart multi-zone central heating system controller is a 5/8-channel thermostat controller with indicator lights.

This controller centrally processes floor heating or thermostat signals, sending commands to open or close floor heating electric valves, achieving zone control.

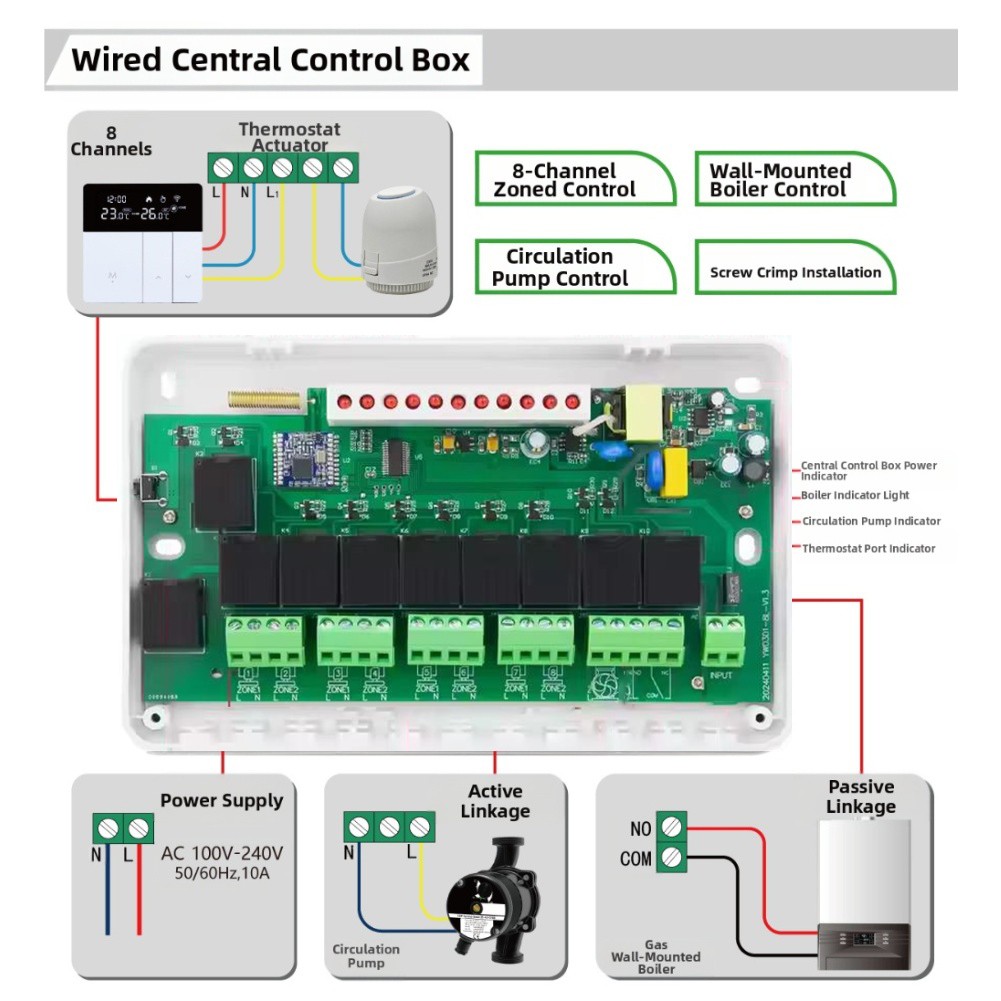

In addition to controlling electric actuators, it can also control passive connections to heat pump units, boilers, and external water pumps (mixing centers).


Specifications:

Part Name: 8-Channel Heating Controller

Material: ABS

Color: White

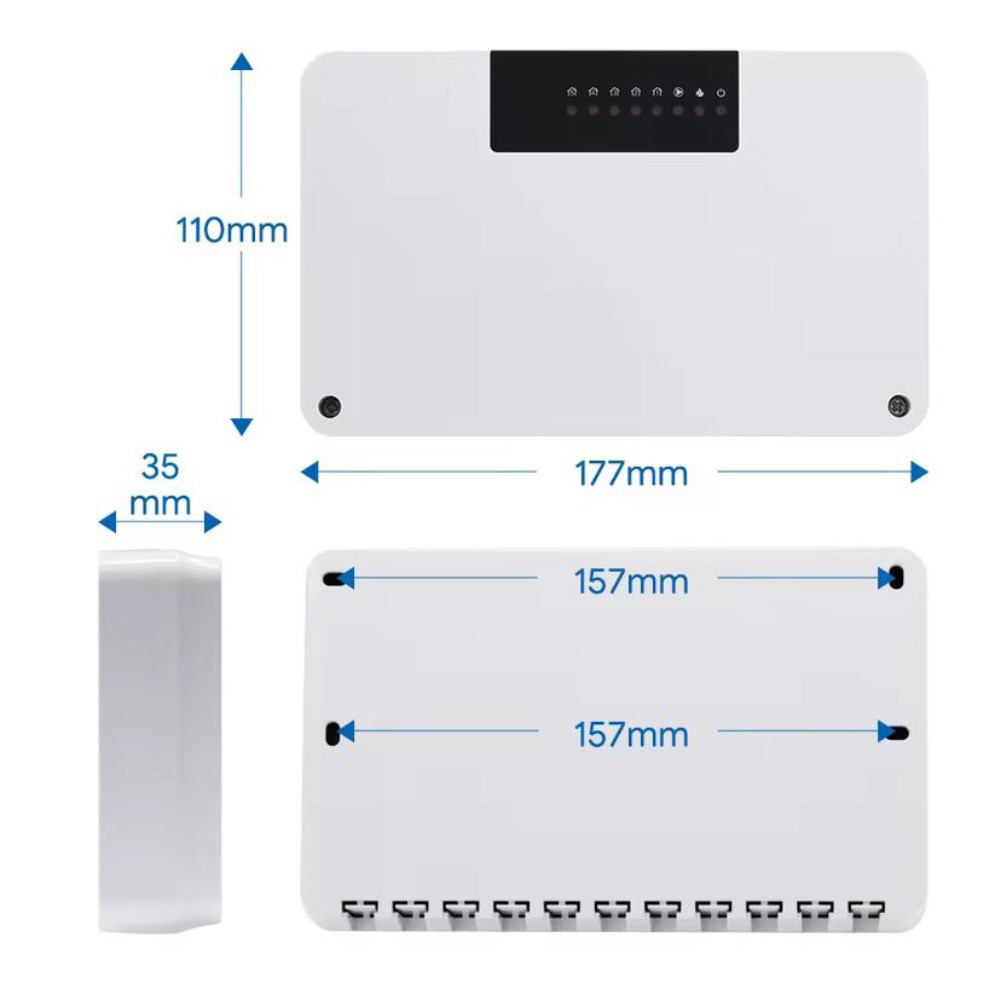

Size: 177*110mm

Power Supply: 100-240VAC, 50/60Hz, 10A

Passive Output (Boiler): 8A

Circulating Pump Output: 250VAC, 8 (5) A

No Electrical Connection: 1 Normally Open (Common)

Number of Circuits: 8 Circuits. Maximum Number of Actuators per Circuit: 3. Exit Delay: 200 Seconds.

Thermostats correspond to zone valves, which are indirectly connected to actuators. Up to 3 normally closed actuators can be connected to each zone.

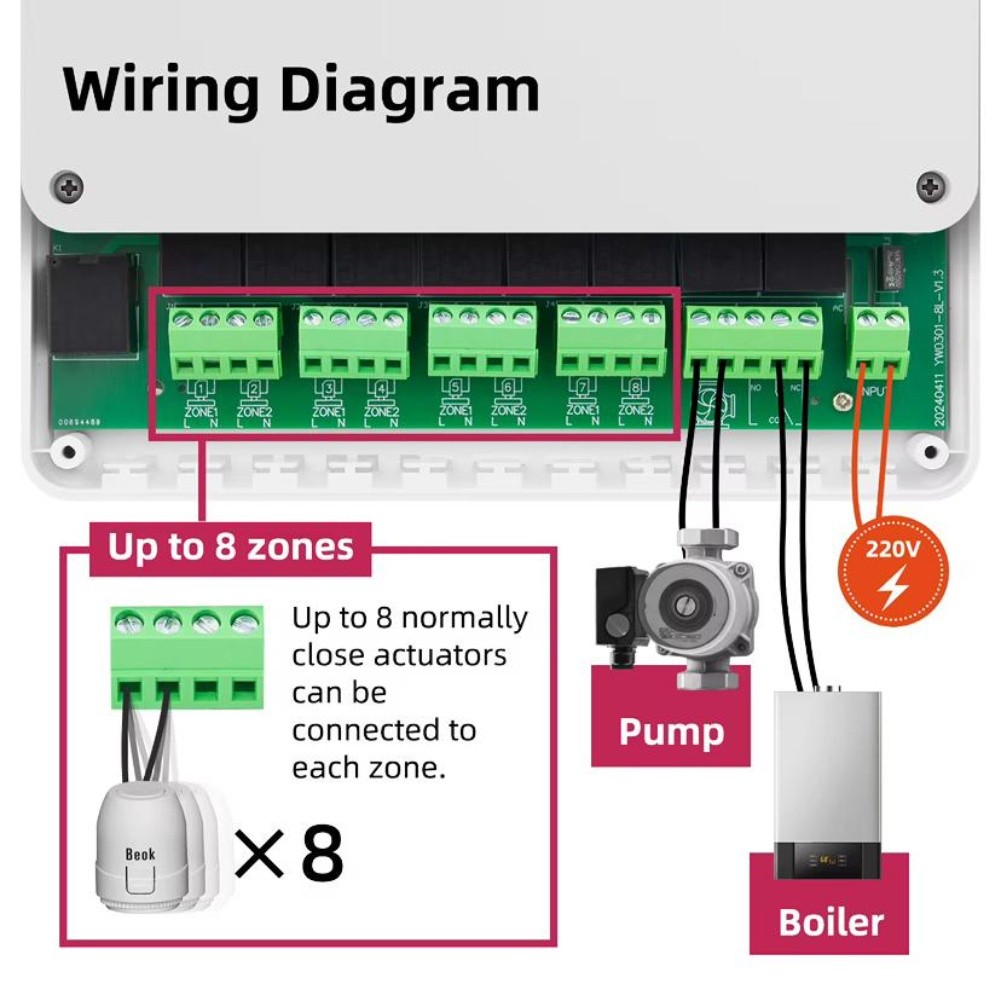

CCT-28: 8 thermostats can be connected. 1 thermostat corresponds to 1 zone valve, and up to 3 normally closed actuators can be connected to 1 zone.


Package Contents:

1 * Heating Controller


Note:

1: Due to manual measurement, there may be an error of 1-2 cm. Please confirm before placing an order.

2: Due to the display differences between different monitors, the picture may not reflect the actual color of the item.
