36V 48V 22A Controller for 500W Brushless Motor Suitable for JN For Ebike
DESCRIPTION

Features:

* More stable, higher efficiency, lower current consumption, long life time.

* Efficient power management: Maximum current up to 22A, compatible with 500W power systems. Power is efficiently delivered to the motor to achieve optimal performance.

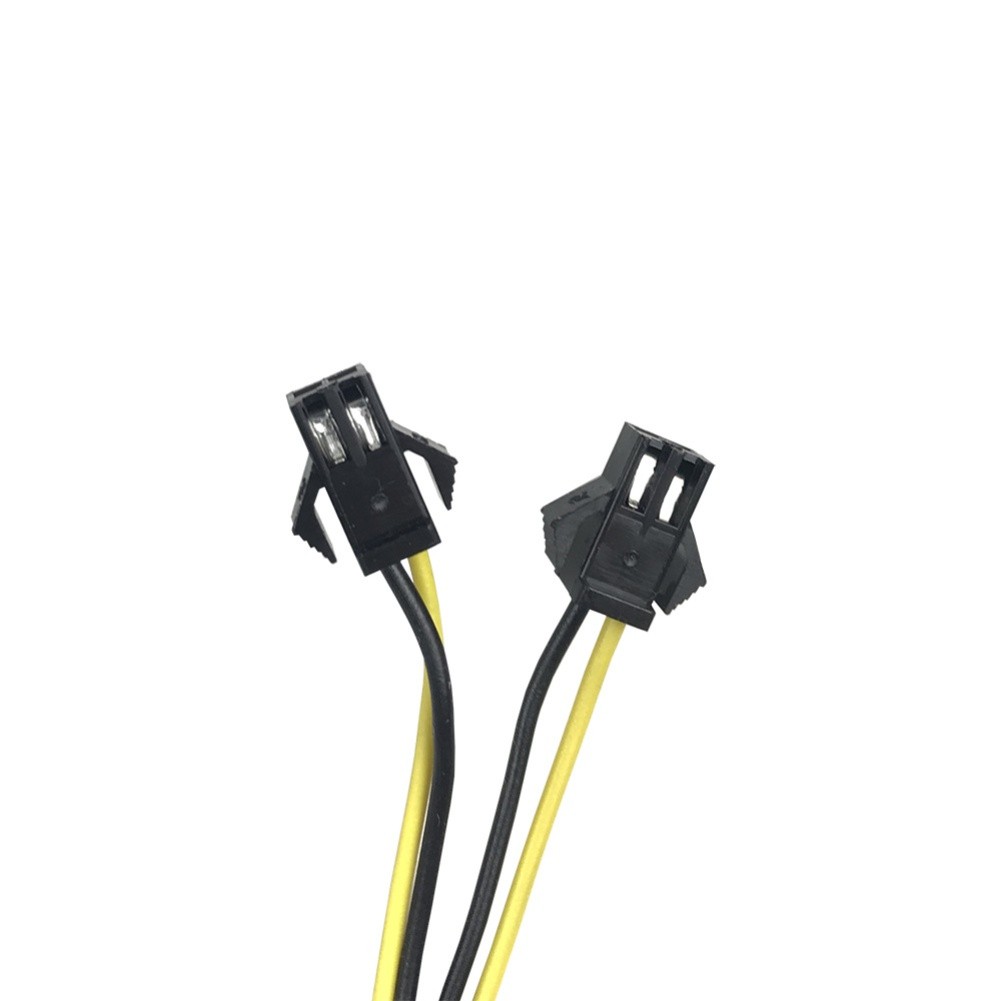

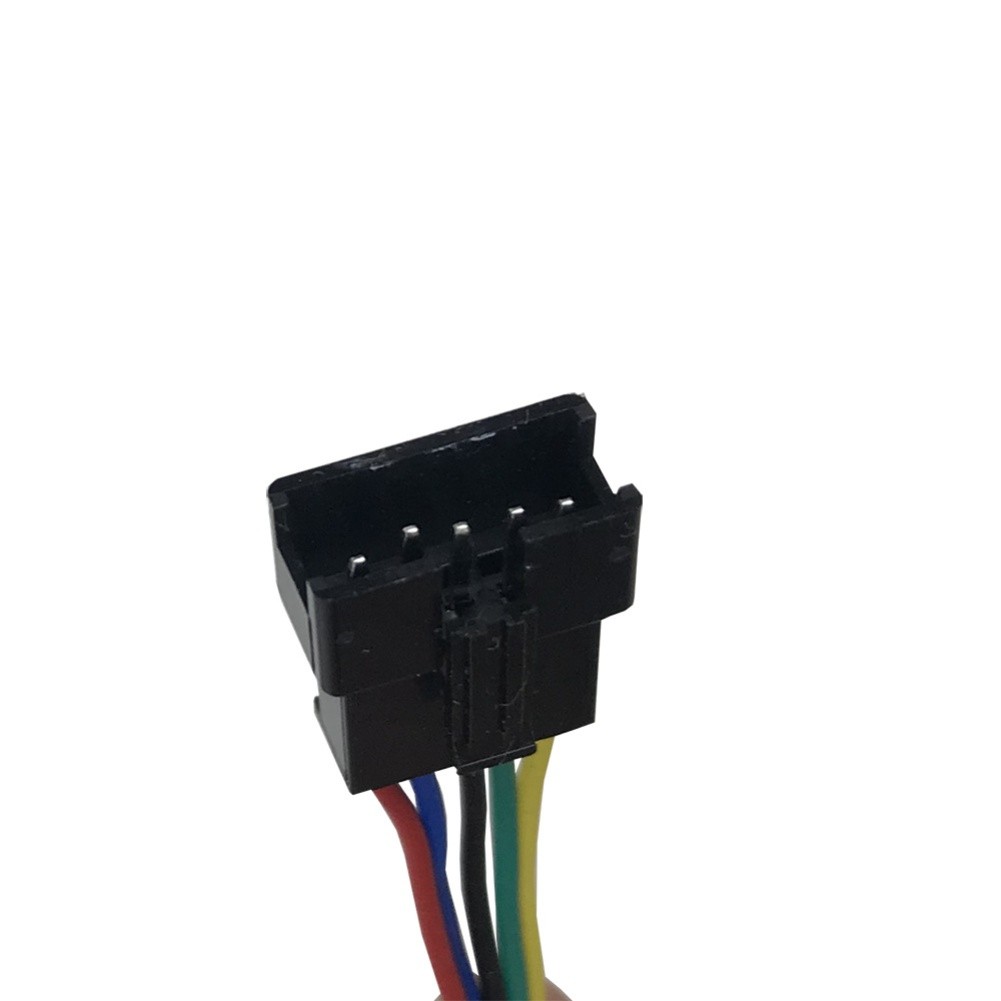

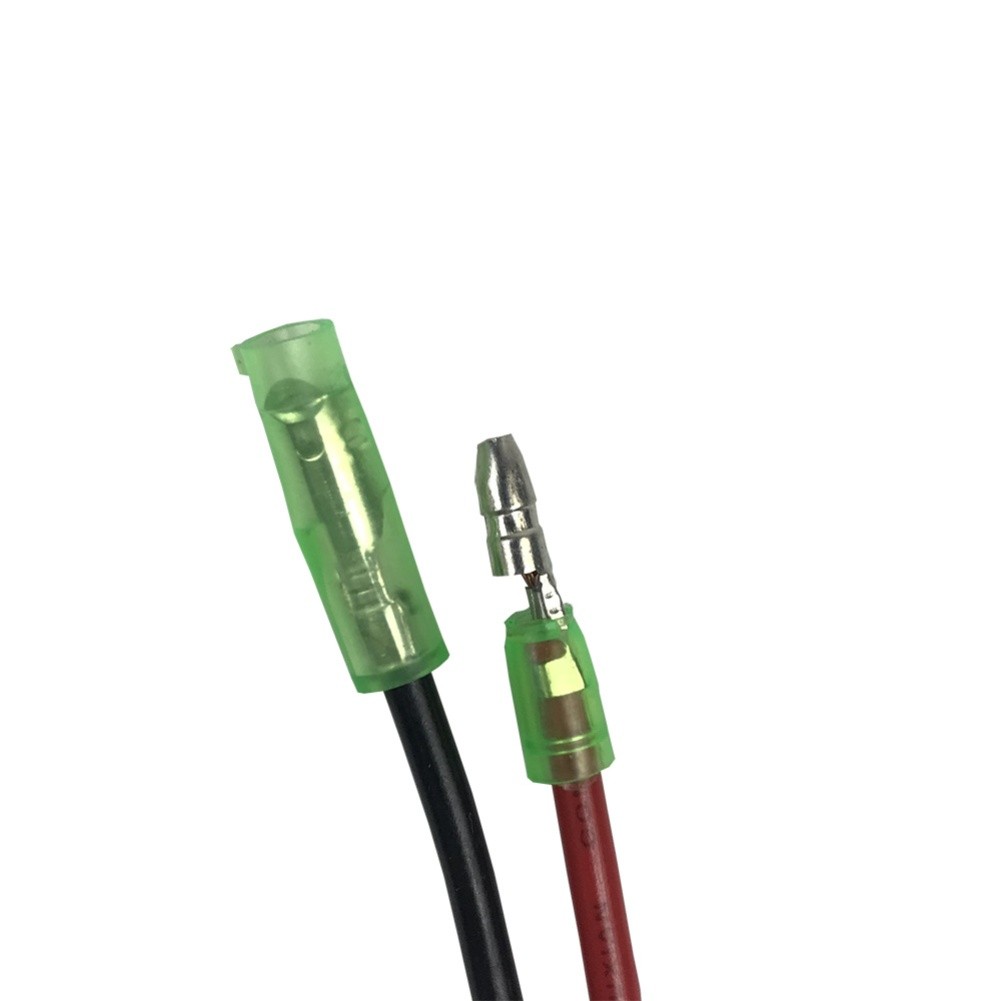

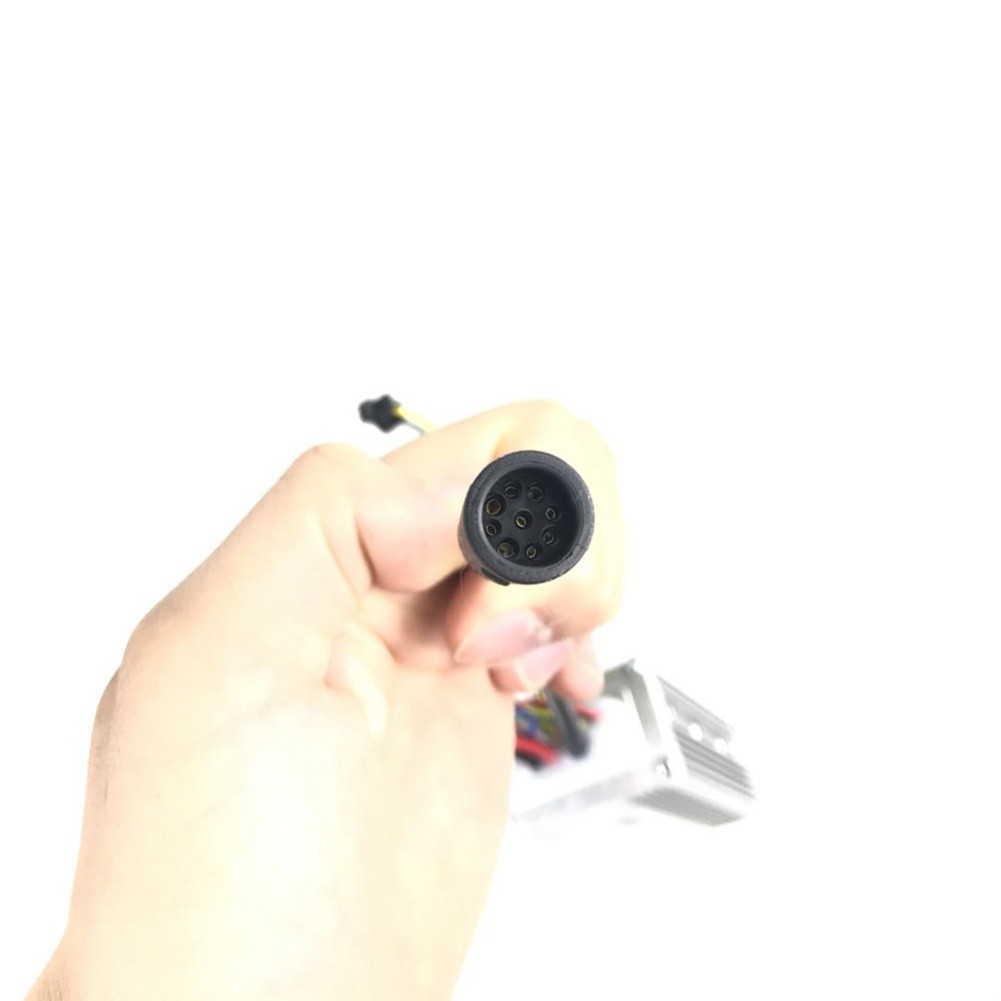

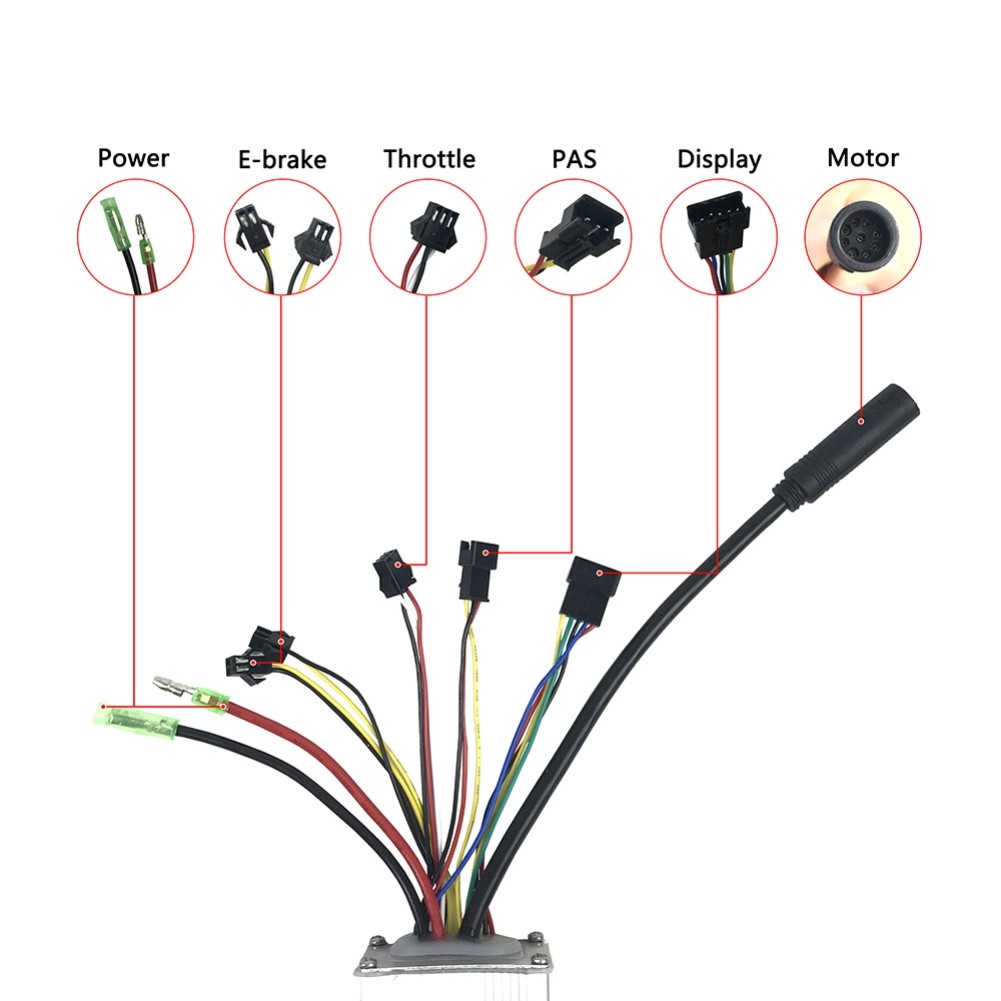

* The controller cables are connected to the following connections: Power,E-brake,PAS, Throttle, Motor,Display

* Compact and lightweight: Weighing only 210 g and measuring 83*50*30mm, this controller is compact, portable, easy to install and carry, making it ideal for e-bike enthusiasts.

* Communication protocol: Adapt to No. 2 communication protocol.‍JN Controller only applies to JN , please confirm whether you are using JN , such as JN display.


Specifications:

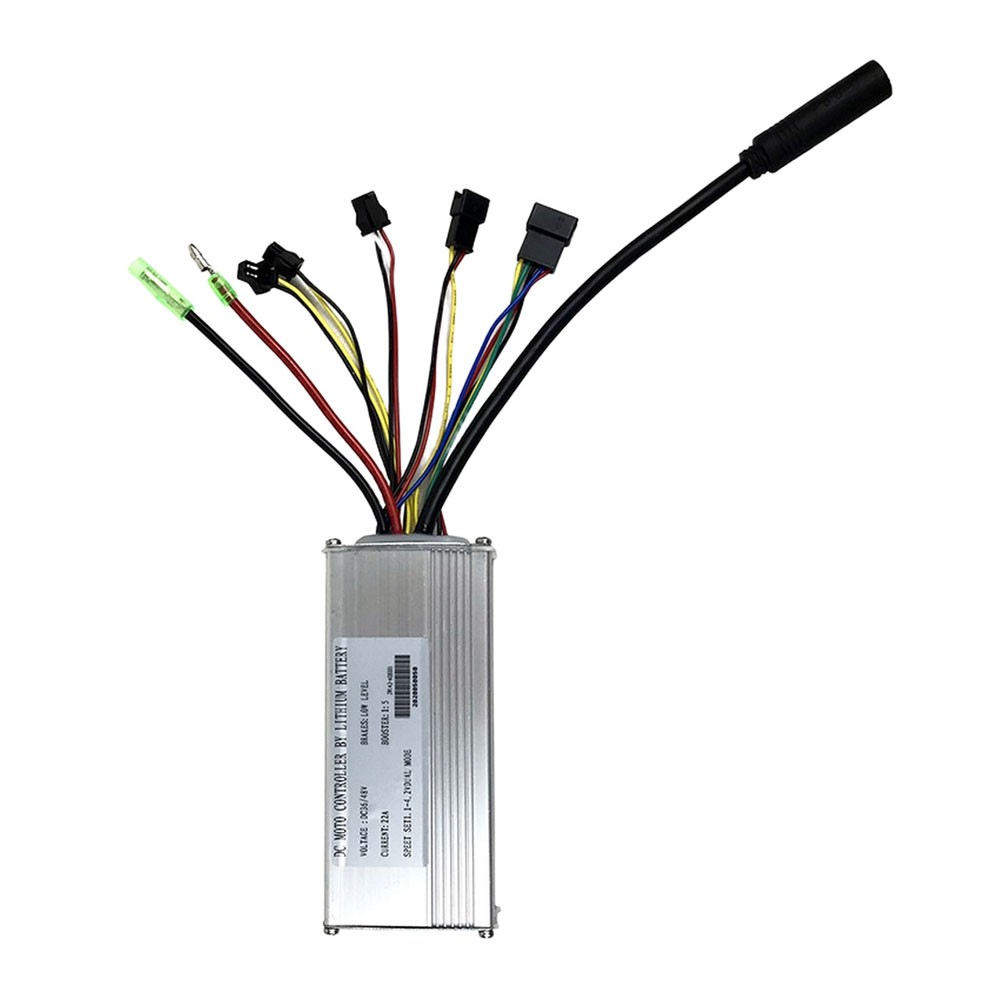

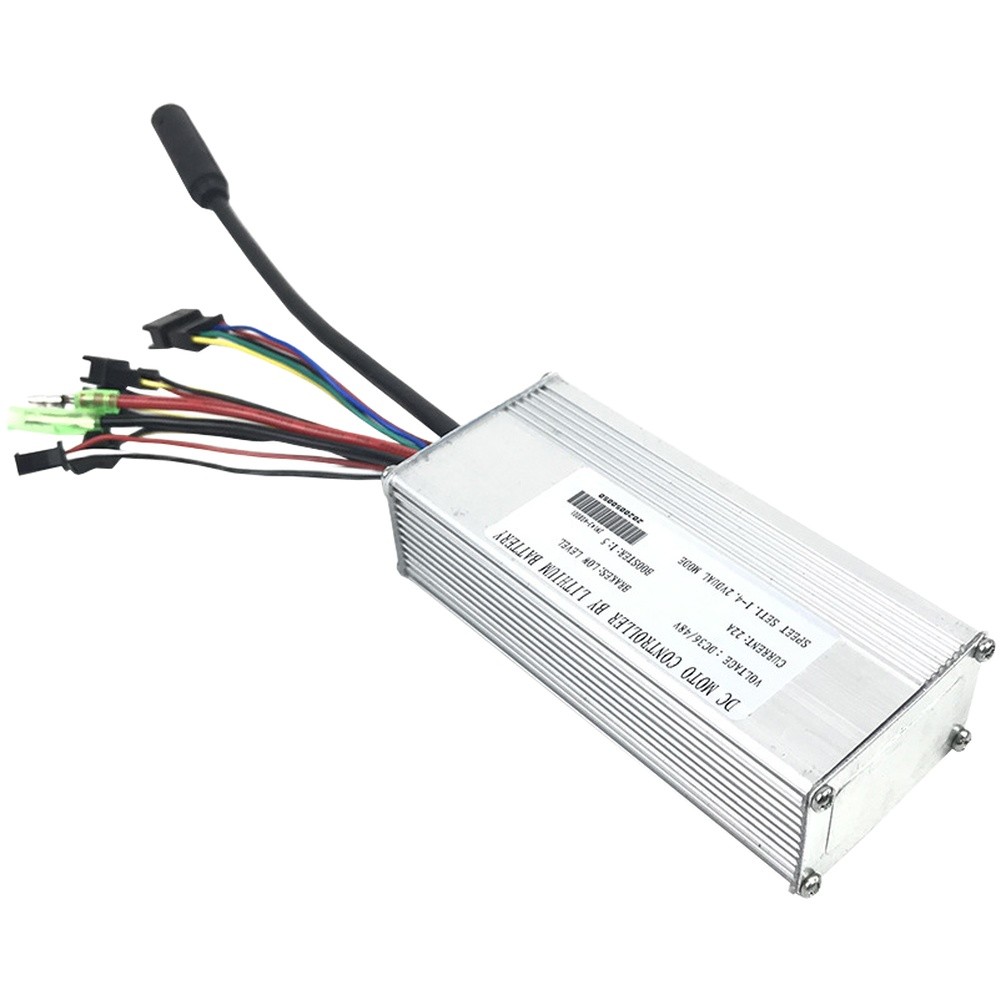

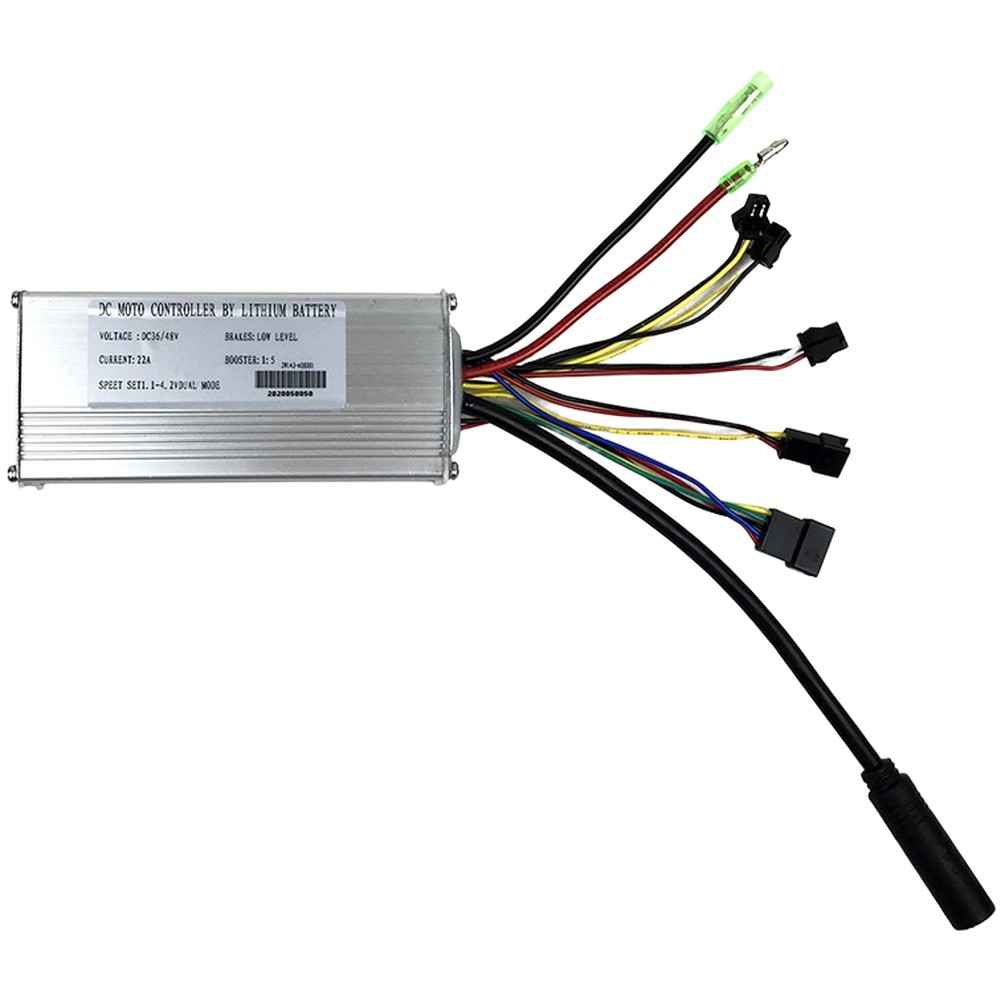

*Product Name:22A Square wave controller for a 500W motor

*Material:Aluminum+ Plastic

*Size:83*50*30mm(Approx.)

*Color:Sliver

*Weight:210g

*Maximum current: 22±1A

*Power: 500W

*Rated voltage: DC36V/48V

*Speed setting: 1-4.2V

*Brake input: low level

*Low voltage  for protection: DC30/40±0.5V


Package Content:

1 x Controller


Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

2. Please allow slight manual measurement deviation for the data.
