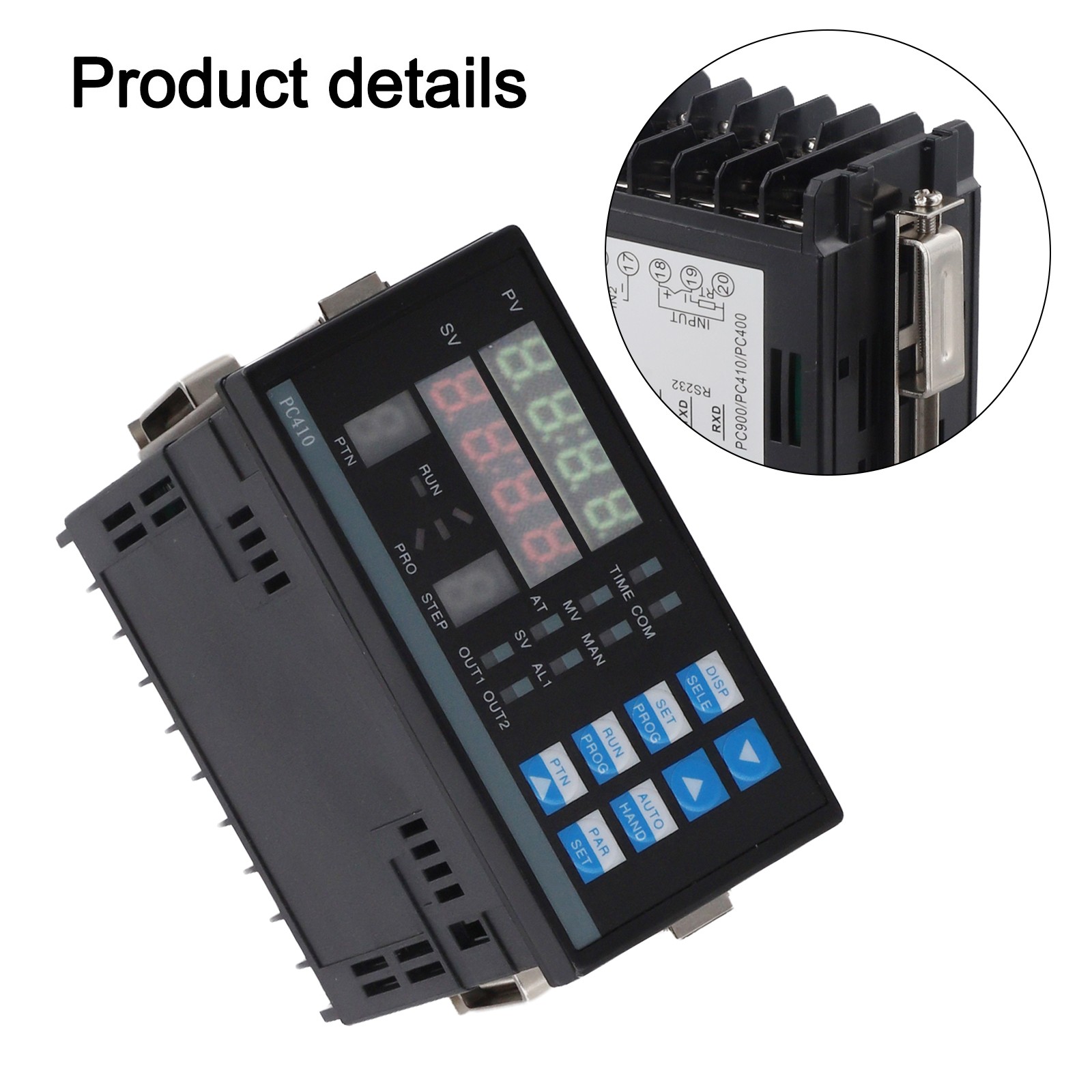

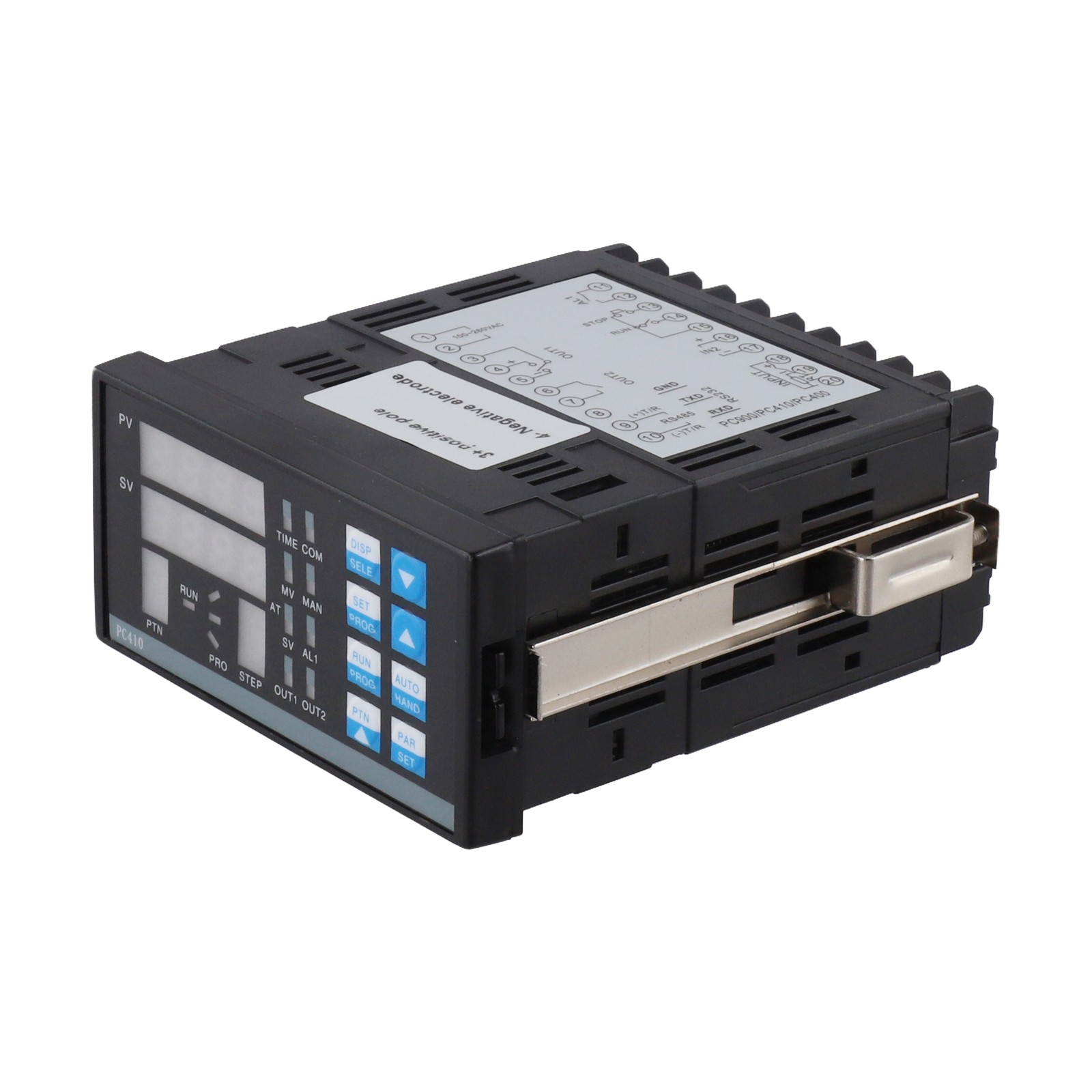

Soldering Station PC410 Temperature Control Panel with Multiple Outputs
DESCRIPTION

Features:

The PC410 series instrument has 10*8 segment temperature curves, segmented output power limit and time event output functions,

which are particularly suitable for use in occasions such as experimental electric furnaces or environmental experimental equipment that require multiple temperature control curves.

 It adopts advanced PID adjustment algorithm and PID self-tuning function, and has excellent control characteristics without overshoot and undershoot.

PC410 temperature control panel thermostat, suitable for BGA rework soldering station, with for RS232 communication module

for RS232 communication solid-state relay output K-type thermocouple output, thyristor zero-crossing trigger thyristor phase shift trigger


Specification：

Part name: Digital temperature controller

Model: PC410

Material:abs

Color: Black

Size: As shown

Application: Applicable to for BGA rework station welding machine parts

Accuracy: +-0.2%FS+1

Cycle: 125ms

Input:

Thermocouple: K

 for RTD: Pt100, Cu50

Line input: 0~20mA, 4~20mA, -10.0~50.0mV, 0~10V

Output:

Relay (maximum 250 for VAC, 3A)

20V/20mA, solid-state relay

Analog, 0~10mA, 4~20mA, 0~20mA, 0~5V, 1~5V, 0~10V

Curve control:Length: 8-segment program

Number of curves: 10

Cycle: 1-200T

Port: RS-232

Voltage: 85~264VAC, 45/60Hz

Working temperature: 0~50℃, humidity ≤8


Package content:

A: 1 *PC410 temperature control panel

B: PC410 temperature controller*1 SSR-10 DA relay +K-type thermocouple*1


Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
