DIY Peltier Cooler Kit with Double Fan for Thermoelectric Cooling DC 12V Power
DESCRIPTION

Features:

* A DIY Peltier cooler kit perfect for cooling small spaces during hot summer days.

* Space-saving, compact, and easily installable anywhere, this compact DIY Peltier cooler offers excellent cooling performance, is silent and vibration-free, and requires no refrigerantion.


Specifications:

Part Name: Cooler

Material: Aluminum

Color: As shown

Power Supply: DC 12V

Power Consumption: 144W (at 12V, power consumption is only approximately 70%).

Maximum Cooling Space: 10L (300 x 180 x 200mm).

Size: Approximately 7.87 x 4.72 x 3.74 inches

How to Install Wiring: (See below)

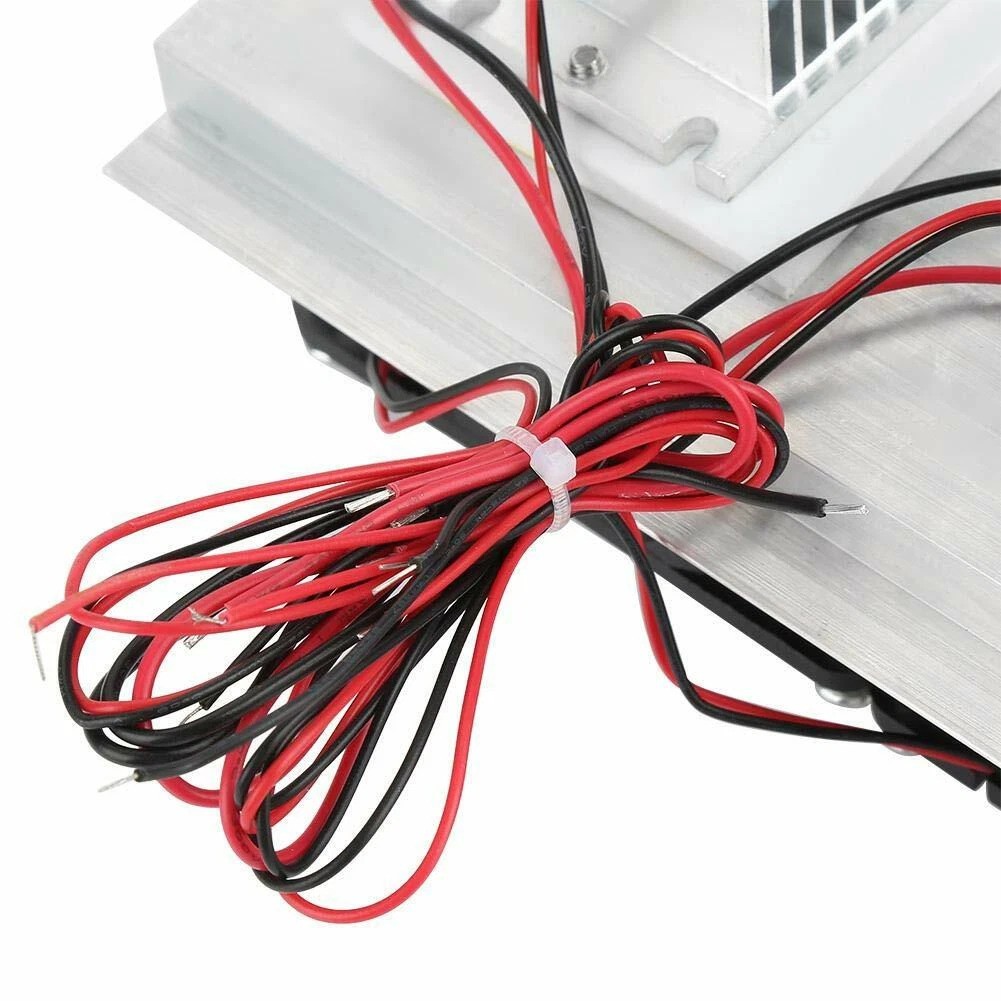

1. Our DIY Peltier cooler kit comes fully assembled. The TEC1-12706 semiconductor cooler is equipped with a cooling fan for optimal heat dissipation, so they should operate together. You don't need to disassemble the device to organize wiring, nor do you need a separate switch for each fan. 2. The device has a total of six wires. You can see three red wires (for the two fans and the TEC1-12706 cooling chip). You can these together and connect them to the positive terminal of a 12V battery. the three black wires together and connect them to the negative terminal of a 12V battery.

Notes: (see below)

1. The cooling volume of the DIY thermoelectric cooler should not exceed 10L (300*180*200mm).

2. The Peltier cooler can only cool a 10L refrigerator when the refrigerator is empty (no items placed inside). The cooling effect will be approximately 5-6 degrees Celsius lower than normal.

3. At 12V, the power output is only approximately 70%.

4. Reversing the positive and negative terminals will cause the cooling for surface to overheat.


Package Contents:

1 x Peltier Cooler Kit


Note：

1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

2.Please allow slight manual measurement deviation for the data.
