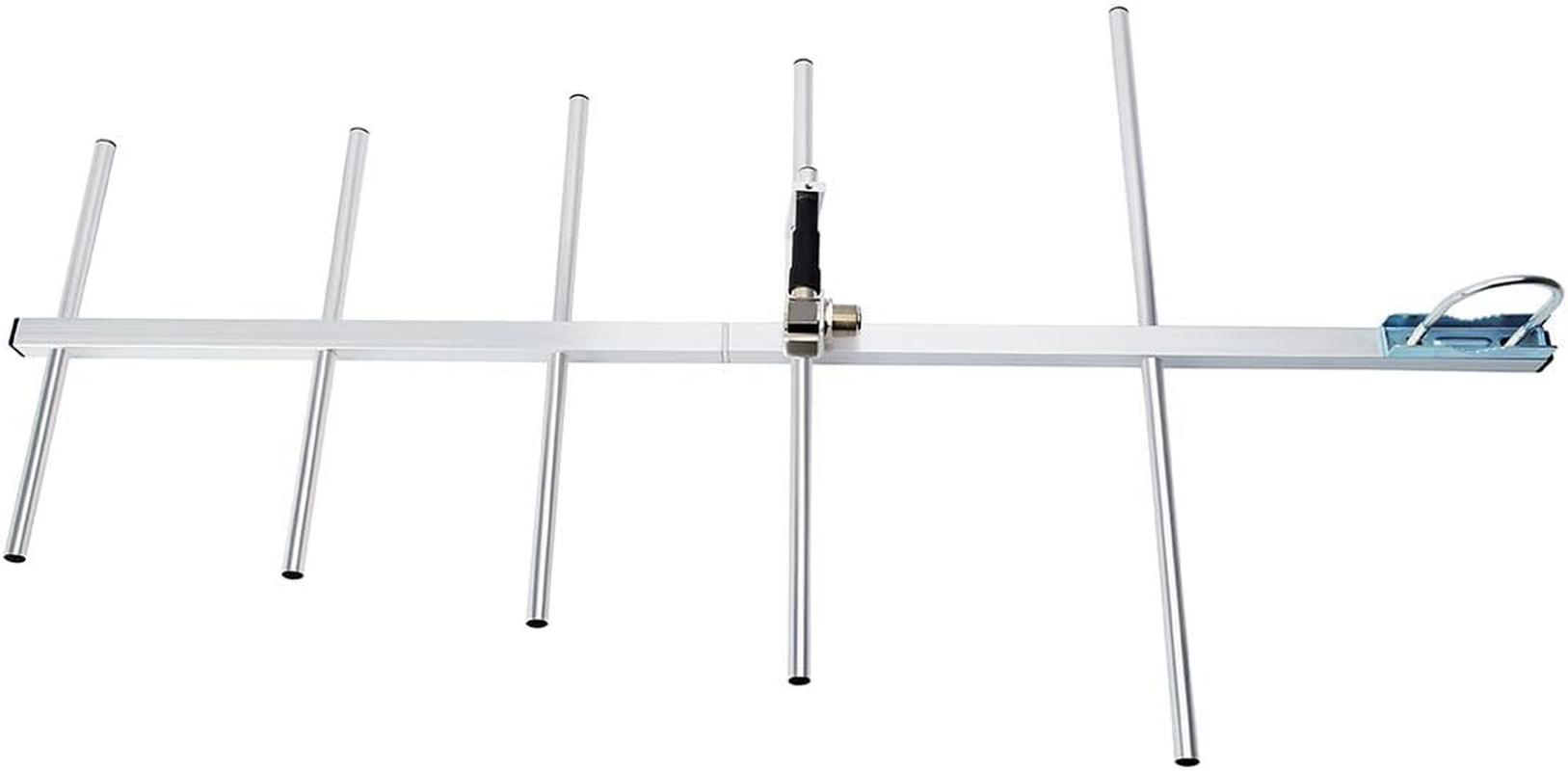

TWAYRDIO High Gain Yagi Antenna, UHF 70Cm 9Dbi Outdoor 100W 400-470Mhz GMRS Directional Yagi for Amateur Radio,Repeater System,433Mhz Device,Satellite Work,Police Scanner
Description
| Item model number | TWAYRDIO-YG05 |
| Item Weight | 14 ounces |
| Style | UHF 5 Elements |
| Number of Items | 1 |
| Antenna | Radio |
| Color | 400-470mhz 5 elements |
| Product Dimensions | 28.54"L x 11.02"W x 0.39"H |
| Package Dimensions | 17.63 x 2.44 x 2.44 inches |
| Maximum Range | 70 Miles |
| Number of Channels | 1 |
| Impedance | 50 Ohm |
| Brand | UAYESOK |
| Manufacturer | Quanzhou Hai Mao Wei Communication Co., Limited |
- [Directional YAGI antenna]Frequency: UHF 400-470MHz; Maximum Power Input-watts: 100W; Gain:9dBi(430MHz); Connector: SL16/UHF Female; Impedance: 50Ω; VSWR: less than 1.5; Bandwidth:20MHz; Front To Back Ratio: >15 dB
- 5 Elements; Weight:0.4Kg; Size:725mm*280mm; Rated wind velocity 60 m/s; Mounting hardware:Ø30～Ø40 mm; Polarization: Horizontal 3dB Beam Width: 58° ; Vertical 3dB Beam Width: 40°
- [Simple construction,Easy Tuning and Assembly]The surface is made of aluminum alloy,Antioxidant,make the antenna bright and clean,sturdy and durable,good environmental adaptability.Lightweight,High strength,Waterproof,Corrosion resistant.
- The body of the Yagi Antenna makes it highly resilient to outdoor use. Strong wind resistance,Rated wind velocity 60 m/s.Securely attached to the mounting surface with the U-Bracket.
- High gain benefit,great front to back ratio;Strong directionality.
- Yagi Antenna greatly increase the signal strength of your radio,strong anti-jamming,provides stable signal,hit your repeater easily,get long distance communication.
- Yagi Antenna Widely used in various directional divice:For Baofeng Motorola Yaesu Kenwood amateur 2 Way Radio;GMRS Repeater Systems;police scanner;433mhz radio system;data radio;satellite work,ISS (international Space Station)contact;Digital Radio.
Product description
5 elements Yagi uhf directional antenna
Yagi Antenna Widely used in various directional divice:For Baofeng Motorola Yaesu Kenwood amateur 2 Way Radio;GMRS Repeater Systems;police scanner;433mhz radio system;data radio;satellite work,ISS (international Space Station)contact;Digital Radio.
Higher quality material
The antenna is made of Aluminium alloy to be adapted to a variety of complex indoor and outdoor environments,provide long lasting product life,lightweight,compact,high strength and corrosion resistant.
Easy to carry and install
The body of the Yagi Antenna makes it highly resilient to outdoor use. Strong wind resistance,Rated wind velocity 60 m/s.The antenna can be securely attached to the mounting surface with the U-Bracket.
SL-16 FEMALE(UHF FEMALE) Connector
SL-16 FEMALE Connector is the same as SO239 Connector,The elongated design of the interface meet more installation requirements.
High gain benefit(9dBi)
Yagi antenna greatly increase the signal strength of your directional divice,improve communication quality. Suitable for radio enthusiasts with high requirements for communication quality and distance.
Packing inlcudes:
1*UHF Yagi antenna
1*U-Bracket
1*instruction(Not includes the radio and the cable)
UAYESOK Store: If you have any questions about the product, we'll be happy to serve you,We will reply to you within 24 hours.
Features:
- High gain
- Strong directionality
- Strong anti-jamming
- Realize long distance communication
- Simple construction and easy assembly and disassembly
Electrical AND Mechanical Specifications of 5 elements Yagi Antenna
| Frequency range | UHF 400-470MHz/70CM |
| Gain | 9dBi (430MHz) |
| Maximum Power Input-watts | 100 W |
| Impedance | 50Ω |
| VSWR | less than 1.5 |
| Connector | SL16 Female(UHF Female)/S0239 |
| Bandwidth | 20MHz |
| Horizontal 3dB Beam Width | 58° |
| Vertical 3dB Beam Width | 40° |
| Front To Back Ratio | >15 dB |
| Material | Aluminium alloy |
| Size | 725mm(L)*280mm(W)*10mm(H) |
| Weight | 0.4Kg |
| Mounting hardware | Ø30～Ø40 mm |
| Rated Wind Velocity | 60 m/s |
Note:
1. It is not for use on the 2meter band,CB band or wifi.
2. Never mount a vertically polarized yagi in the middle of the boom on a metal mast.
3. When receiving, when the vibrator is perpendicular to the ground, it is conducive to long-distance communication. If the vibrator is parallel to the ground, it will affect the gain and form an Angle with the ground, which is not conducive to long-distance communication.
4. The Yagi antenna is no need operates for a grounding in most cases. But you can ground antenna via the outer conductor of the connector and the cable, or through the mounting hardware, you can install a lightning surge protector between the Yagi and a device to prevent a lightning strike to the antenna from damaging your device and equipment.
Yagi antenna is composed of an active vibrator, a reflector and a number of director.A reflector longer than the active vibrator reflects energy.The director, which is shorter than the active vibrator,directs the energy.The reflectors and director on both sides of the active vibrator change the original bidirectional radiation into unidirectional radiation to improve gain of the antenna.Yagi antenna has a simple structure, high gain,is widely used in UHF/VHF frequency band.(5 Elements yagi is only work for UHF frequency) VHF Yagi: B08PSKNMDF
Questions 1: Is the SWR of the antenna to be less than 1.5?
Answer 1:
Antennas are rigorously tested by a comprehensive measuring instrument before the delivery, the SWR conforms to the technical parameters provided by the manufacturer (less than 1.5) within the frequency range of the antenna.But the test results of SWR are affected by many factors, such as test frequency, antenna installation mode and installation position, feeder line, test instrument and so on.Generally speaking, antennas can be used normally when SWR under 2.0.If your antenna's swr is too high,we will be happy to analyze and solve for you.
Questions 2: Is the antenna suitable for indoor or outdoor use?
Answer 2: It can be used both indoors and outdoors.It depends on what you use it for.
