AC 110-220V STC-1000
Features:
This mini Temperature Controller is an excellent and convenient multifunction device for controlling temperature in Aquariums. The stability of aquarium temperature is one of the crucial factors that contributes to the health and safety of your fish. By utilizing the temperature controller, you can provide an environment with optimal temperature for your fish. This advanced temperature controller can measure and control temperature from -50 to 90 °C.
This device is also suitable for Laboratories use and other temperature-controlled systems.
Mini and light weight design
Large and clear LCD display
Wide Temperature Range (-50-90 Deg.C)
Dual heating and cooling function
Automatic over temperature alarm
Control temperature by setting the temperature set value and the different value
Temperature Calibration
Refrigerating control output delay protection
Wiring diagram for installation included
Specifications:
Color:Black
Applications:Aquarium, Terrarium, Vivarium, Paludarium ,Chicken Incubator
Temperature Measuring Range: -50 - 90 Deg.C
Control temperature range: -50 - 90 Deg.C (adjustable)
Control temperature difference: 0.3 - 10 Deg.C (adjustable)
Resolution: 0.1 Deg.C
Accuracy: ± 1 Deg.C (-50 - 70 Deg.C)
Sensor: NTC sensor
Sensor error delay: 1 minute
Relay contact capacity (Heating): 10A (max) 250 V
Relay contact capacity (Cooling): 10 A (max) 250 V
Compressor delay protection time: 1 ~ 10 minutes (adjustable)
Operating Temperature: 0 - 60 Deg.C
Storage Temperature: -30 - 75 Deg.C
Operating Relative Humidity: 20 ~ 85 % (No condensation)
Alarm Output : Buzzer
Power Supply: 110~ 220V AC ± 10% , 50 / 60 Hz
Power consumption: < 3 W
Cable length: 1 M
Item dimensions: approx. 84*69*34 MM
Net weight:138g
Package Included:
1x Mini-Temperature Controller
This mini Temperature Controller is an excellent and convenient multifunction device for controlling temperature in Aquariums. The stability of aquarium temperature is one of the crucial factors that contributes to the health and safety of your fish. By utilizing the temperature controller, you can provide an environment with optimal temperature for your fish. This advanced temperature controller can measure and control temperature from -50 to 90 °C.
This device is also suitable for Laboratories use and other temperature-controlled systems.
Mini and light weight design
Large and clear LCD display
Wide Temperature Range (-50-90 Deg.C)
Dual heating and cooling function
Automatic over temperature alarm
Control temperature by setting the temperature set value and the different value
Temperature Calibration
Refrigerating control output delay protection
Wiring diagram for installation included
Specifications:
Color:Black
Applications:Aquarium, Terrarium, Vivarium, Paludarium ,Chicken Incubator
Temperature Measuring Range: -50 - 90 Deg.C
Control temperature range: -50 - 90 Deg.C (adjustable)
Control temperature difference: 0.3 - 10 Deg.C (adjustable)
Resolution: 0.1 Deg.C
Accuracy: ± 1 Deg.C (-50 - 70 Deg.C)
Sensor: NTC sensor
Sensor error delay: 1 minute
Relay contact capacity (Heating): 10A (max) 250 V
Relay contact capacity (Cooling): 10 A (max) 250 V
Compressor delay protection time: 1 ~ 10 minutes (adjustable)
Operating Temperature: 0 - 60 Deg.C
Storage Temperature: -30 - 75 Deg.C
Operating Relative Humidity: 20 ~ 85 % (No condensation)
Alarm Output : Buzzer
Power Supply: 110~ 220V AC ± 10% , 50 / 60 Hz
Power consumption: < 3 W
Cable length: 1 M
Item dimensions: approx. 84*69*34 MM
Net weight:138g
Package Included:
1x Mini-Temperature Controller

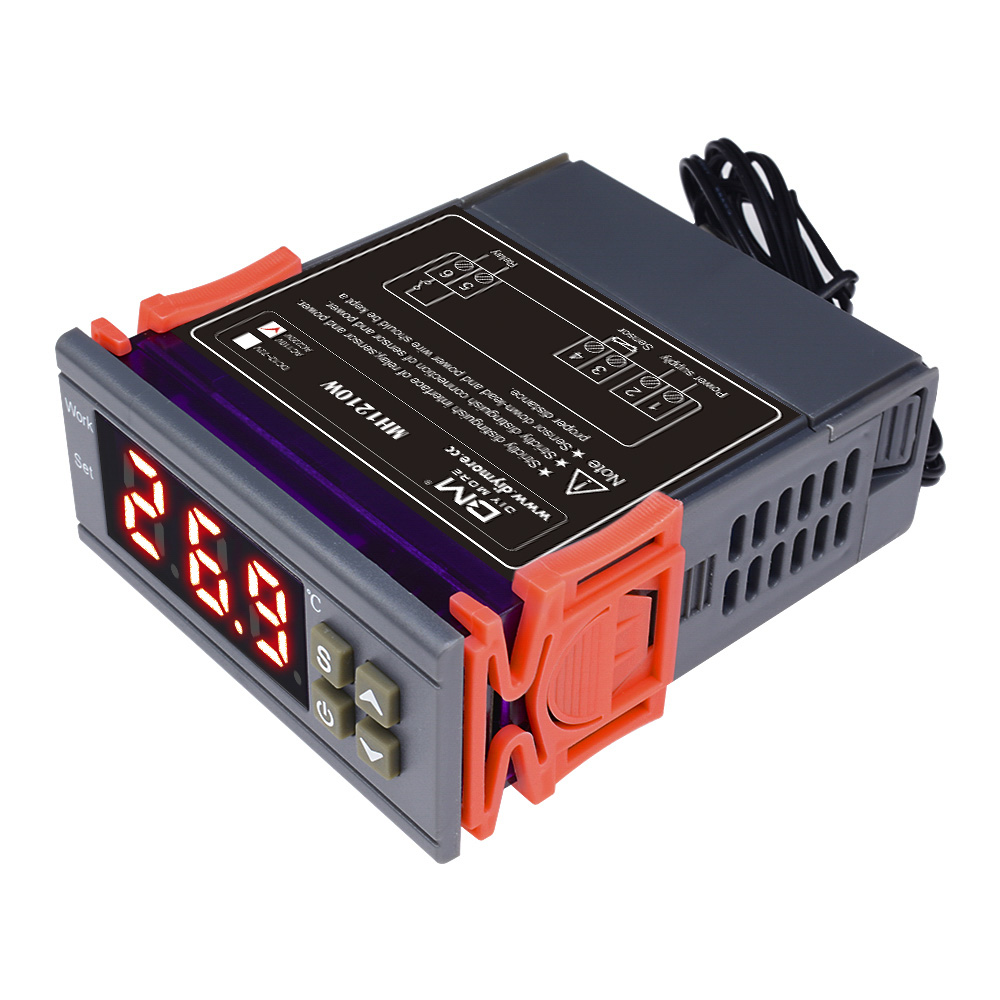

90~250V MH1210W
Features:
A mini temperature controller.
With large and clear LED display for better readability.
Wide temperature measuring range.
Heating and cooling control.
Temperature calibration function.
Delay protection function.
All parameters can be set to default setting after short circuit.
Can be used for domestic freezer, water tanks, refrigerator, industrial chiller, boiler, steamer, industrial equipments and other temperature-controlled systems.
A mini temperature controller.
With large and clear LED display for better readability.
Wide temperature measuring range.
Heating and cooling control.
Temperature calibration function.
Delay protection function.
All parameters can be set to default setting after short circuit.
Can be used for domestic freezer, water tanks, refrigerator, industrial chiller, boiler, steamer, industrial equipments and other temperature-controlled systems.
Specifications:
Working voltage: 90~250V±10%
Rated current: 10A
Power consumption: ≤3W
Measurement range: -50~110 Celsius degree
Measurement precision: 0.5 Celsius degree
Measurement error: ±0.3 Celsius degree
Control precision: 0.1 Celsius degree
Working temperature:‐20~70 Celsius degree
Temperature sensor: NTC 25 Celsius degree=10K B3435
Item size: 8.5*7.5*3.5cm / 3.4*3*1.4in
Item weight: 93g / 3oz
Package size: 11*8.5*4.3cm / 4.3*3.4*1.7in
Package weight: Approx. 125g / 4.4oz
Package Includes:
1 * Temperature Controller
1 * Temperature Sensor

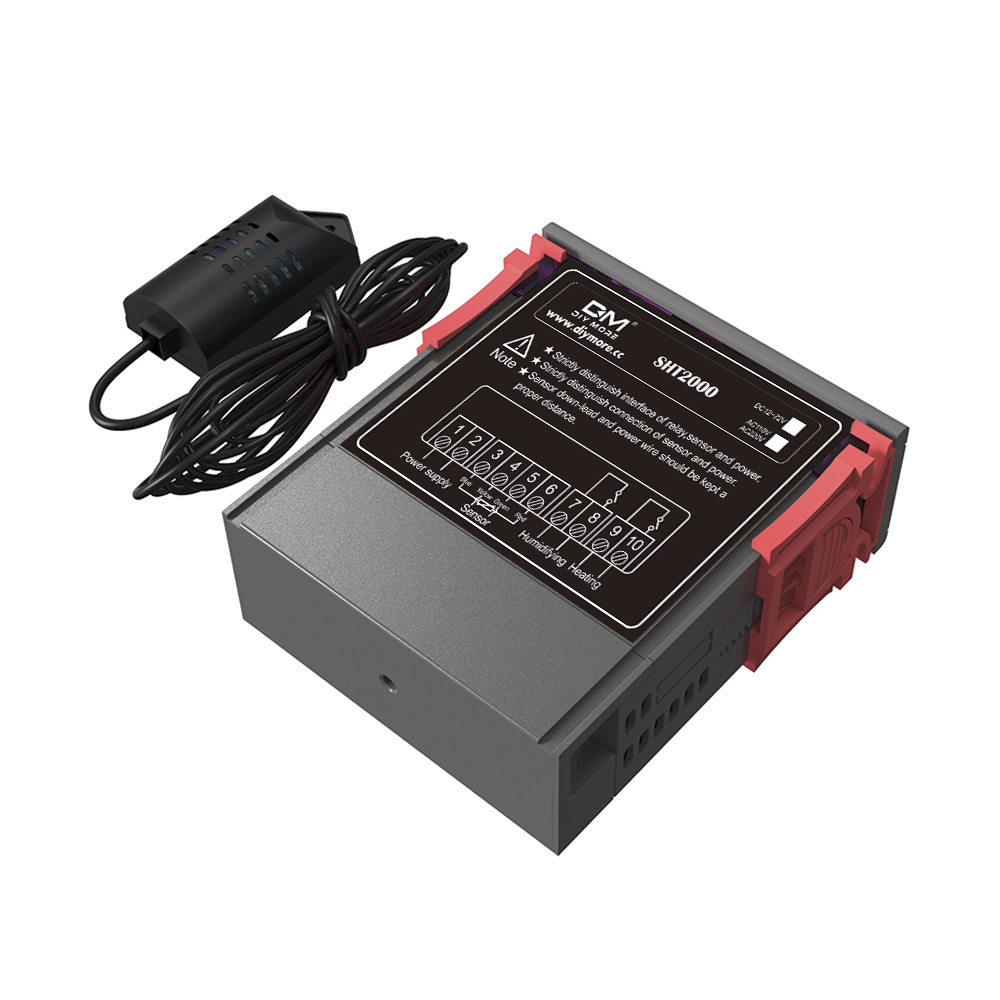

AC 110~230V SHT2000
Setting method: Start value <stop value (program automatically determines working mode is heating/humidifying mode)
Setting method: Start value > stop value (the program automatically determines the working mode is cooling/dehumidifying mode)
Heating/cooling mode setting
Setting mode: setting (starting temperature): Press and hold the ▲ button to start the temperature flashing. Use ▲▼ key to set the starting temperature value.
Setting (stop temperature): Press and hold the ▼ button to stop the temperature flashing. Use ▲▼ to set the stop temperature value.
Heating use case: control the water heater, heat to 65 ° C to stop, the temperature drops back to 50 ° C and start heating again
The first step: heating mode, starting temperature <stop temperature
Step 2: Press and hold the ▲ button to start the temperature flashing. Use ▲▼ to set the starting temperature to 50 °C.
Step 3: Press and hold the ▼ button to stop the temperature flashing. Set the stop temperature to 65 °C with ▲▼ keys, and the setting is completed!
Refrigeration use case: use in the farm, the fan is ventilated to 26 ° C to stop, the temperature is raised to 30 ° C and the ventilation is started again.
The first step: cooling mode, starting temperature > stop temperature
Step 2: Press and hold the ▲ button to start the temperature flashing. Use ▲▼ to set the starting temperature to 30 °C.
The third step: long press the ▼ button to stop the temperature flashing, set the stop temperature to 26 °C by ▲▼, the setting is completed!
Humidification/Dehumidification Mode Settings:
Setting (start humidity): Press and hold △ key to start the humidity value flashing. Set the humidity value by △ ▽ key. Set [Stop Humidity]: Press and hold △ key to stop the humidity value flashing, and set the humidity to stop by △ ▽ key value.
Humidification example: fresh supermarket humidification, control humidifier 50% RH began to humidify, humidified to 80% RH to stop humidification. Setup steps:
Step 1: Press and hold the △ button for 3 seconds to start the humidity value flashing, and set the starting humidity value to 50% RH.
Step 2: Press and hold the ▽ button for 3 seconds to stop the humidity value flashing. Set the value to 80% RH. After the setting is completed, the button will be operated for 5 seconds without returning to the normal display state.
Dehumidification example: workshop control exhaust dehumidification system, humidity 70% RH starts dehumidification, humidity 40% RH stops dehumidification
Setup steps:
Step 1: Press and hold the △ button for 3 seconds to start the humidity value flashing, and set the starting humidity value to 40% RH.
Step 2: Press and hold the ▽ button for 3 seconds to stop the humidity value flashing, set the value to 70% RH, the setting is completed, the button does not operate for 5 seconds, and automatically returns to the normal display state.
Setting method: Start value > stop value (the program automatically determines the working mode is cooling/dehumidifying mode)
Heating/cooling mode setting
Setting mode: setting (starting temperature): Press and hold the ▲ button to start the temperature flashing. Use ▲▼ key to set the starting temperature value.
Setting (stop temperature): Press and hold the ▼ button to stop the temperature flashing. Use ▲▼ to set the stop temperature value.
Heating use case: control the water heater, heat to 65 ° C to stop, the temperature drops back to 50 ° C and start heating again
The first step: heating mode, starting temperature <stop temperature
Step 2: Press and hold the ▲ button to start the temperature flashing. Use ▲▼ to set the starting temperature to 50 °C.
Step 3: Press and hold the ▼ button to stop the temperature flashing. Set the stop temperature to 65 °C with ▲▼ keys, and the setting is completed!
Refrigeration use case: use in the farm, the fan is ventilated to 26 ° C to stop, the temperature is raised to 30 ° C and the ventilation is started again.
The first step: cooling mode, starting temperature > stop temperature
Step 2: Press and hold the ▲ button to start the temperature flashing. Use ▲▼ to set the starting temperature to 30 °C.
The third step: long press the ▼ button to stop the temperature flashing, set the stop temperature to 26 °C by ▲▼, the setting is completed!
Humidification/Dehumidification Mode Settings:
Setting (start humidity): Press and hold △ key to start the humidity value flashing. Set the humidity value by △ ▽ key. Set [Stop Humidity]: Press and hold △ key to stop the humidity value flashing, and set the humidity to stop by △ ▽ key value.
Humidification example: fresh supermarket humidification, control humidifier 50% RH began to humidify, humidified to 80% RH to stop humidification. Setup steps:
Step 1: Press and hold the △ button for 3 seconds to start the humidity value flashing, and set the starting humidity value to 50% RH.
Step 2: Press and hold the ▽ button for 3 seconds to stop the humidity value flashing. Set the value to 80% RH. After the setting is completed, the button will be operated for 5 seconds without returning to the normal display state.
Dehumidification example: workshop control exhaust dehumidification system, humidity 70% RH starts dehumidification, humidity 40% RH stops dehumidification
Setup steps:
Step 1: Press and hold the △ button for 3 seconds to start the humidity value flashing, and set the starting humidity value to 40% RH.
Step 2: Press and hold the ▽ button for 3 seconds to stop the humidity value flashing, set the value to 70% RH, the setting is completed, the button does not operate for 5 seconds, and automatically returns to the normal display state.
Package Included:
1PCS*SHT2000 AC110~230V 10A Temperature Humidity Hygrometer Thermostat
1.5M NTC Probe
Features:
This temperature sensor is used in home air conditioning, car air conditioners, refrigerators, freezers, water heaters, drinking fountains, heaters, dishwashers, disinfection cabinets, washing machines, dryers, and in the low-temperature oven, incubators and other occasions.
This temperature sensor is used in home air conditioning, car air conditioners, refrigerators, freezers, water heaters, drinking fountains, heaters, dishwashers, disinfection cabinets, washing machines, dryers, and in the low-temperature oven, incubators and other occasions.
Specifications:
Measurement range: -30 to 110°C
Length of wire: 1.5m
Size of probe: 4 x 30 mm
Output: 2 wires
Type: NTC 10k±1% 3435
Package Included:
1 x NTC 3435 10K Ohm 1% Thermistor Temperature Sensor Cylinder Probe 1.5M Wire
