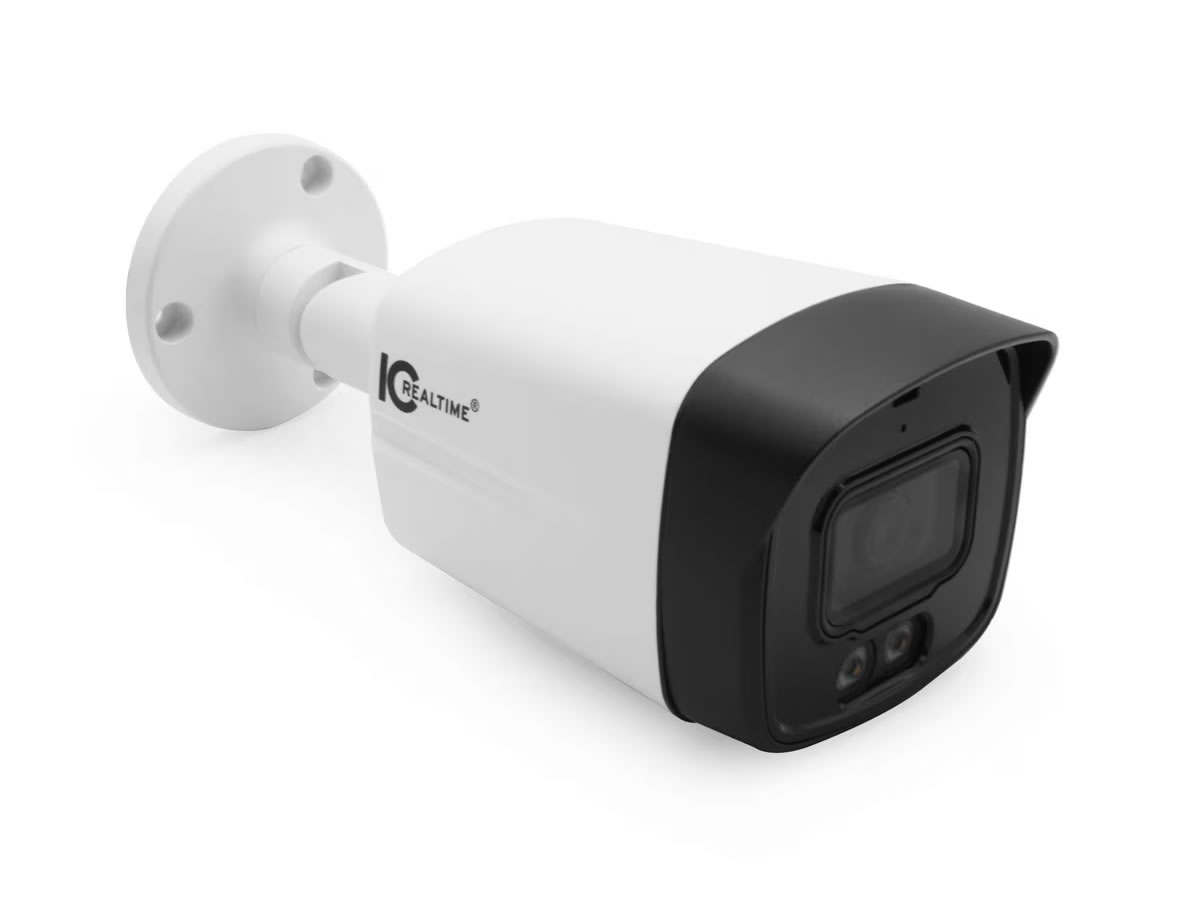

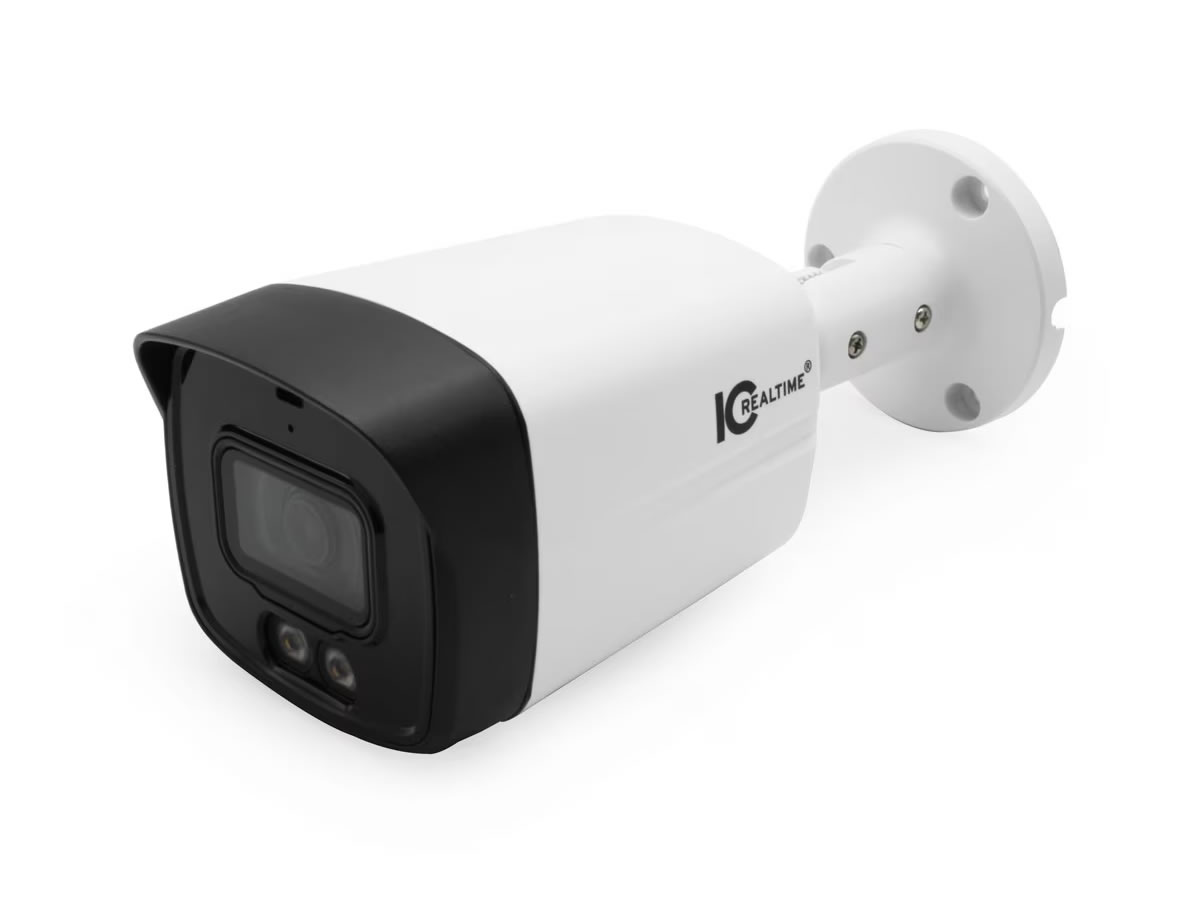

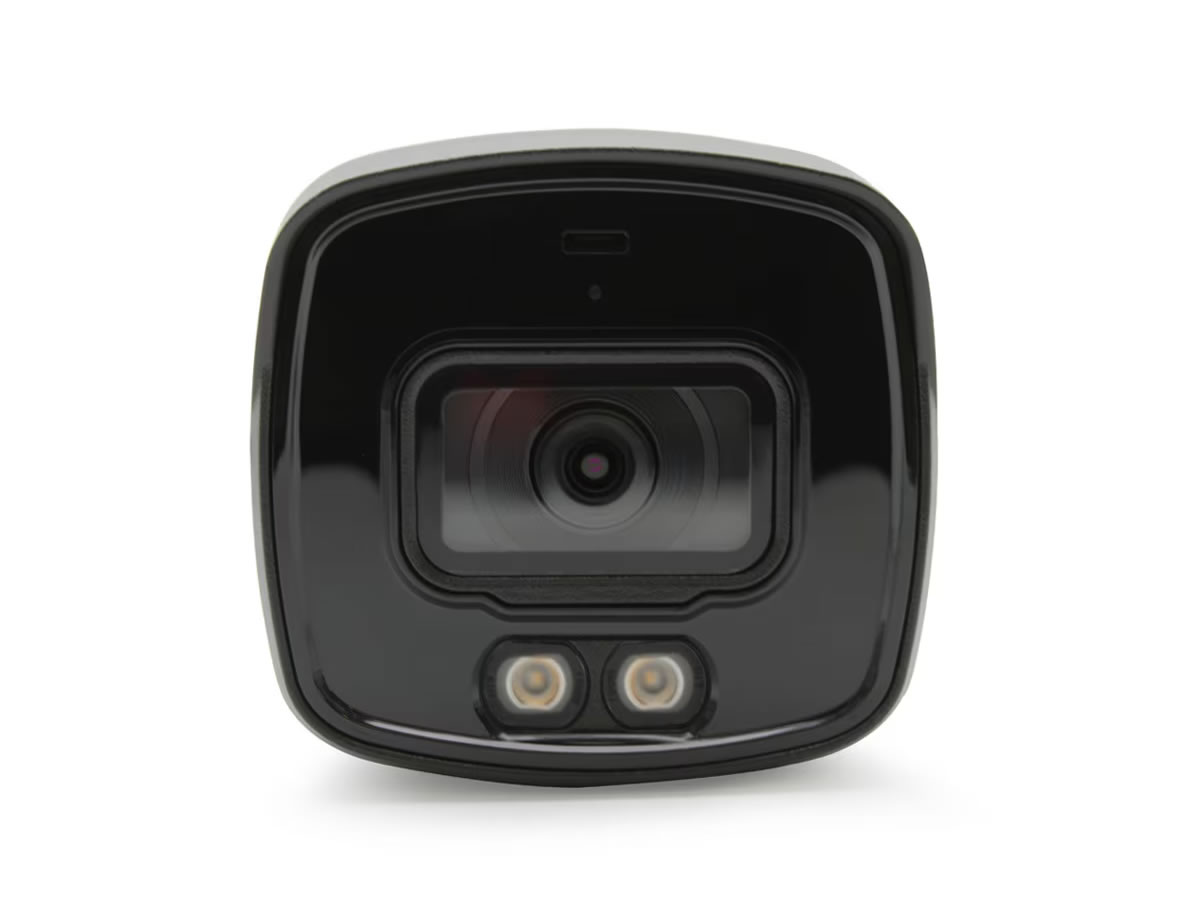

The HDEG-B80V-IRM1 is an 8MP 4K motorized varifocal bullet camera designed for professional coax surveillance systems. It delivers 3840 x 2160 resolution and a motorized 2.7 mm to 13.5 mm lens that provides field of view control from 114deg to 32deg. The camera is built for indoor and outdoor deployments and is IP67 rated for weather resistance. Key features include a high-resolution 8MP CMOS sensor, motorized varifocal lens, Smart IR illumination and 120 dB wide dynamic range. The camera supports multiple coax video formats including AVS, TVI, AHD and CVBS selectable via OSD. Auto focus and motorized zoom simplify setup and framing without physical lens adjustments. Performance specifications include 4K at 15 fps, multiple lower resolution modes, 120 dB WDR, HLC-Pro and Super Adapt image processing. Minimum illumination is 0.01 lux in color and 0.001 lux in black and white, and IR LEDs provide up to 196 ft illumination in total darkness. Digital features include 3D noise reduction and 4x digital zoom. Connectivity is provided through a single BNC video port that toggles AVS / TVI / AHD / CVBS formats and a built-in microphone for audio capture. Power is DC 12V with a ±30% tolerance and maximum consumption of 7.9W with IR active. The camera integrates with IC Realtime HDVR systems and supports monitoring via IC Now desktop and IC View+ mobile apps. The HDEG-B80V-IRM1 is suitable for perimeter monitoring, parking areas and facility entrances where long-range IR and 4K detail are required. The motorized varifocal lens and auto focus speed deployment in corridors, lots and building exteriors and eliminates the need for manual lens access. IP67 weatherproof construction and wide operating temperature range make it appropriate for varied climates. Installation is streamlined with motorized lens control, pan/tilt/rotation capability and a compact metal housing that mounts to walls or ceilings. The camera provides reliable 24/7 operation with image enhancements for challenging lighting and backed by IC Realtime seven year warranty and U.S.-based technical support. The HDEG-B80V-IRM1 combines long-range IR, 4K imaging and flexible lens control for demanding surveillance installations. Specifications: | Image Sensor | 8 Megapixel CMOS | | Effective Pixels | 3840 x 2160 8MP/4K | | Scanning System | Progressive | | Minimum Illumination | 0.01 lux at F1.5 Color 30 IRE | | Minimum Illumination | 0.001 lux at F1.5 B/W 30 IRE | | Minimum Illumination | 0 lux Illuminator on | | Illumination Distance | 196 ft 60 m | | Illumination On/Off Control | Auto / Manual | | Illumination LEDs | 2x IR LED | | Camera Illumination Type | IR | | Lens Type | Motorized Vari-focal | | Mount Type | ?14 | | Focal Length | 2.7 mm–13.5 mm | | Max. Aperture | F1.5 | | Angle of View | Horizontal 114deg–32deg | | Angle of View | Vertical 58deg–17deg | | Focus Control | Auto Focus | | Close Focus Distance | 4.27 ft 1.3 m | | DORI - Detect | 279 ft - 918 ft | | DORI - Observe | 918 ft- 367 ft | | DORI - Recognize | 56 ft- 183 ft | | DORI - Identify | 27 ft- 91ft | | Resolution | 4K 3840 x 2160; 5M 2880 x 1620; 4M 2560 x 1440; 1080p 1920 x 1080; 960H 960 x 576/960 x 480 | | Frame Rate | AVS NTSC 4K at 15 fps 5M at 25 fps 4M at 30 fps 1080p at 30 PAL 4K at 15 fps 5M at 25 fps 4M at 25 fps 1080p at 25 | | Frame Rate | AHD NTSC 4K at 15 fps PAL 4K at 15 fps | | Frame Rate | TVI NTSC 4K at 15 fps PAL 4K at 15 fps | | Frame Rate | CVBS NTSC 960H PAL 960H | | Day/Night | Auto ICR / Color / B/W | | Backlight Compensation | BLC; HLC-Pro; WDR | | White Balance | Auto; Area white balance | | Noise Reduction | 3D NR | | Digital Zoom | 4x | | WDR | 120 dB | | Video Interface | 1 BNC port | | Video output formats | AVS/ TVI/ AHD/ CVBS | | RS485 | N/A | | Audio I/O | Built-in Mic | | Alarm I/O | N/A | | Power Supply | DC 12V ±30% | | Power Consumption | Max 7.9W 12 VDC IR on | | Operating Conditions | -22 °F to +140 °F -30 °C to +60 °C; < 95% | | Storage Conditions | -22 °F to +140 °F -30 °C to +60 °C; < 95% | | Ingress Protection | IP67 | | Casing | Metal | | Dimensions | 3.56" × 3.55" × 8.25" 90.4 mm × 90.1 mm × 209.6 mm | | Gross Weight | 1.59 lb 0.72 kg | | Mounting Pan/Tilt/Rotation | Pan 0°–360° Tilt 0°–90° Rotation 0°–360° | | Smart IR | Yes 196 ft range | | Image Processing | HLC-Pro; Super Adapt | | Platform Compatibility | IC Now; IC View+ iOS Android | | Warranty | 7 year |
|
