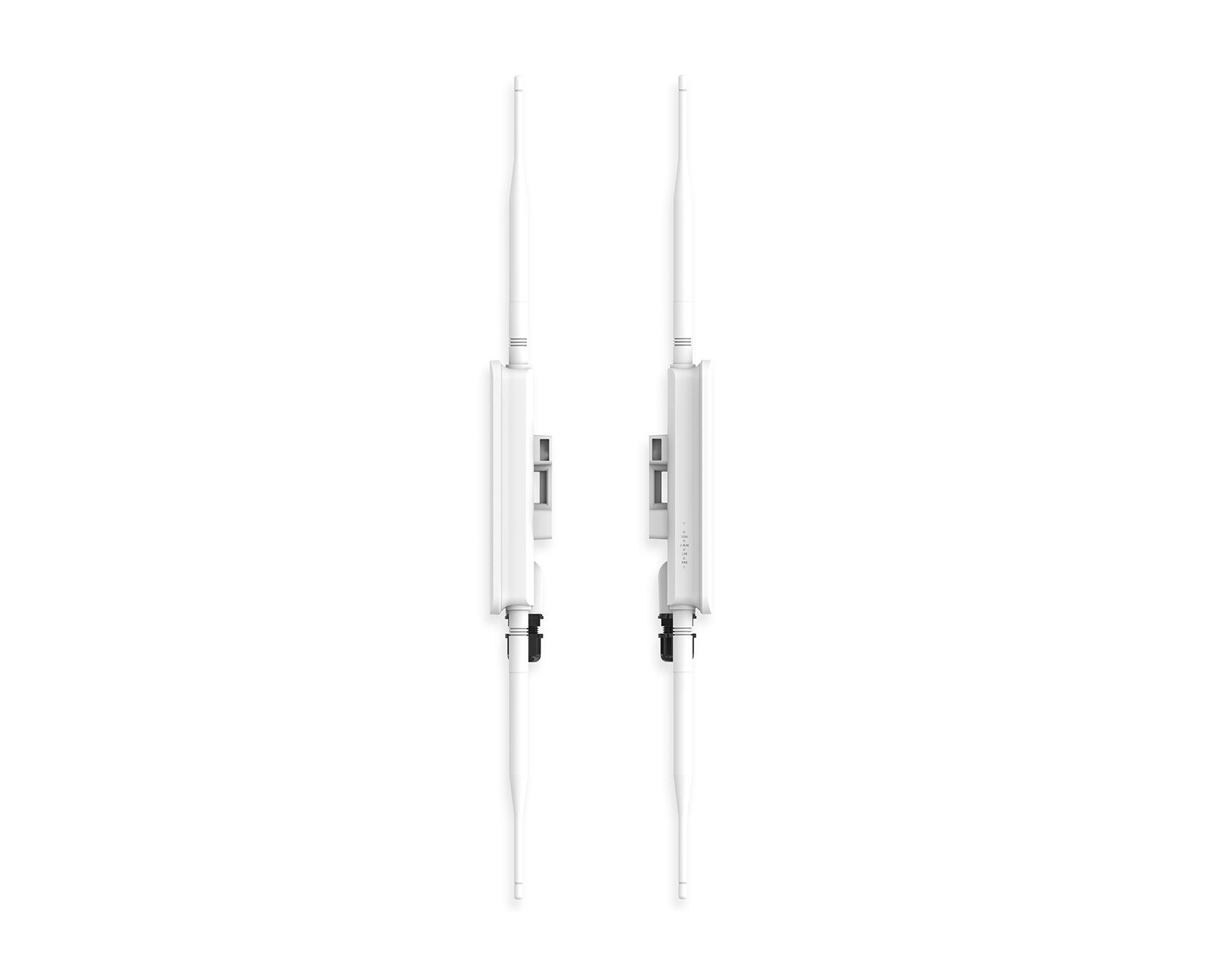

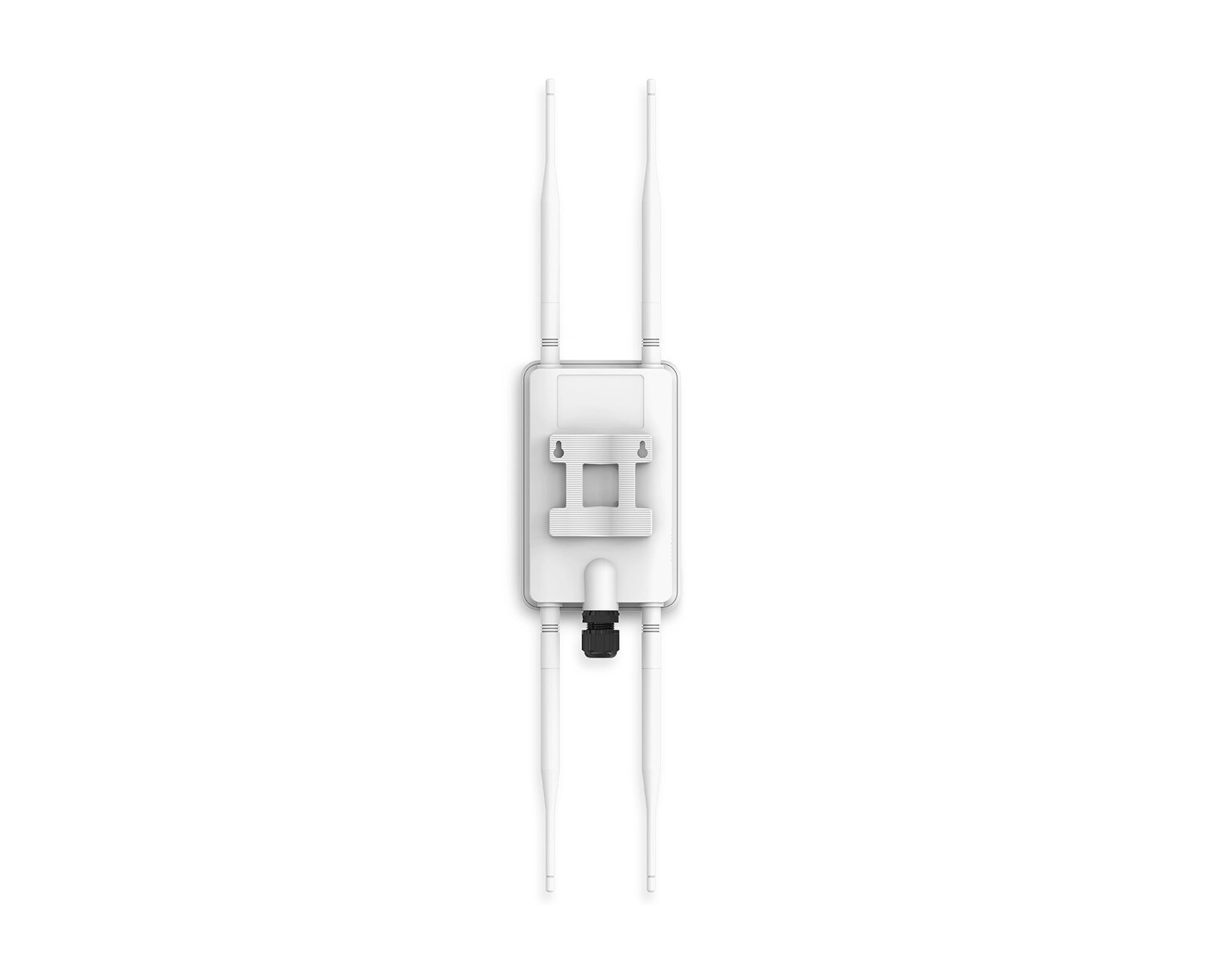

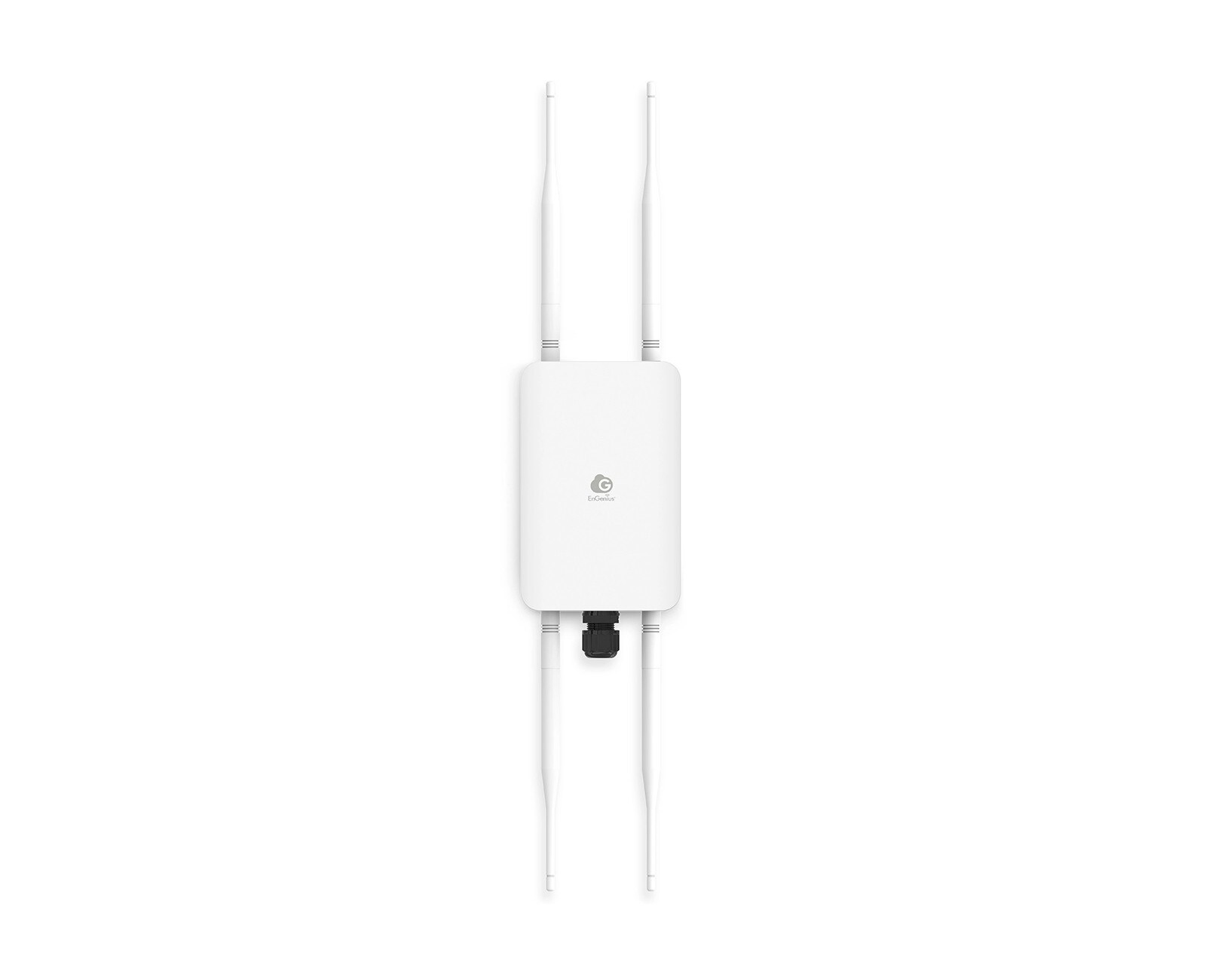

The ECW160 is a cloud managed outdoor wireless access point designed to deliver concurrent dual-band Wi-Fi connectivity in harsh environments. It supports 802.11ac Wave2 performance and MU-MIMO to serve multiple clients efficiently. The unit is IP67 rated for dust and water resistance to withstand outdoor deployments. This AP provides dual-radio 2.4 GHz and 5 GHz operation with maximum wireless data rates up to 400 Mbps on 2.4 GHz and 867 Mbps on 5 GHz. Key features include MU-MIMO, transmit beamforming, VHT80 support on 5 GHz and VHT40 on 2.4 GHz to increase throughput and client capacity. The enclosure supports detachable external omnidirectional antennas and a Gigabit Ethernet PoE port for flexible mounting. Technically, the ECW160 implements 2x2:2 radio chains and supports SU-MIMO and MU-MIMO spatial streams. Transmit power reaches up to 23 dBm per band and channelization supports VHT20/40/80 MHz on 802.11ac and HT20/40 MHz on 802.11n. Modulation formats include up to 256-QAM for higher data rates and packet aggregation options such as AMPDU and ASPDU are supported. Connectivity options include a single 10/100/1000 Mbps Ethernet port with 802.3af/at PoE compatibility or proprietary 54 V Active Ethernet. The AP supports 8 SSIDs per radio, 802.1q VLAN tagging, management VLANs, and RADIUS based enterprise authentication. Management is via EnGenius Cloud plus standard SNMP and SSH tunnel options for secure administration. The ECW160 is suited to outdoor Wi-Fi coverage, guest access, campus connectivity, and temporary event networks where weatherproofing and cloud management are required. It supports WPA2/WPA3 security modes, OWE, and enterprise suite B options to meet modern security requirements. Multiple SSIDs and client isolation features allow segmentation for public and private networks. Installation is simplified by PoE power and included pole and wall mounting hardware, plus detachable SMA antennas for alignment and replacement. The IP67-rated housing and operating temperature range from -20C to 60C provide resilience in varied climates. Firmware updates and cloud provisioning streamline deployment and ongoing maintenance. Specifications: | Product Highlights | Cloud Managed 11ac Wave2 2x2 IP67 MU-MIMO | | Cloud Managed 11ac Wave 2 2×2 Outdoor | Delivers higher speeds and user capacity | | Dual-radio 2x2 802.11ac/a/b/g/n | MU-MIMO, Beamforming | | Supports up-to | 867 Mbps 5 GHz, 400 Mbps 2.4 GHz | | IP67-Rated | Weatherproof, Dustproof | | GigE PoE-Compatible Port | 1 x 10/100/1000 Mbps | | Four Detachable Antennas | 4 x 5 dBi SMA | | Standards | IEEE 802.11b/g/n 2.4 GHz | | Standards | IEEE 802.11a/n/ac 5 GHz | | Antenna | 2 x 2.4 GHz: 6 dBi | | Antenna | 2 x 5 GHz: 6 dBi | | External Antenna Type | Omni-Directional SMA | | Physical Interface | 1 x 10/100/1000 Gigabit Ethernet Port | | LED Indicators | Power, LAN, 2.4 GHz, 5 GHz | | Power Source | 802.3af/at PoE, Proprietary 54V | | IEEE 802.11e Compliant Source | Yes | | Active Ethernet (PoE) | Supported | | Maximum Power Consumption | 12W | | Operating Frequency | Dual-Radio Concurrent 2.4 GHz & 5 GHz | | Operation Modes | Manage Mode: AP, AP Mesh | | Frequency Radio 2.4 GHz | 2400 MHz ~ 2472 MHz | | Frequency Radio 5 GHz | 5150 MHz ~ 5250 MHz, 5725 MHz ~ 5850 MHz | | Transmit Power | Up to 23 dBm 2.4 GHz, Up to 23 dBm 5 GHz | | Tx Beamforming (TxBF) | Supported | | Radio Chains/Spatial Stream | 2x2:2 | | SU-MIMO | 2 spatial streams SU-MIMO 400 Mbps 2.4 GHz, 867 Mbps 5 GHz | | MU-MIMO | 2 spatial streams MU-MIMO up to 867 Mbps 5 GHz | | Supported Data Rates 2.4 GHz | Max 400 Mbps | | Supported Data Rates 5 GHz | Max 867 Mbps | | 802.11b Rates | 1,2,5.5,11 Mbps | | 802.11a/g Rates | 6,9,12,18,36,48,54 Mbps | | 802.11n Rates | 6.5 to 300 Mbps MCS0-MCS15 | | 802.11ac Rates | 6.5 to 867 Mbps MCS0-MCS9 NSS1-2 | | Supported Radio Technologies | DSSS, OFDM, 2x2 MIMO | | Channelization | VHT20/40/80, HT20/40, VHT40 2.4 GHz | | Packet Aggregation | AMPDU, ASPDU | | Supported Modulation | BPSK,QPSK,16-QAM,64-QAM,256-QAM | | Multiple BSSID | 8 SSIDs per radio | | VLAN Tagging | 802.1q SSID-to-VLAN | | Cross-Band VLAN | Pass-Through | | Management VLAN | Supported | | Spanning Tree | 802.1d | | QoS | IEEE 802.11e | | WMM | Supported | | SNMP | v1,v2c,v3 | | MIB | I/II, Private MIB | | Wireless Security | OWE,WPA2 Personal,WPA3 Personal WPA3/WPA2 Mixed,WPA2 Enterprise,WPA3 Enterprise Suite B | | Hide SSID | Supported | | MAC Address Filtering | Up to 32 MACs per SSID | | Wireless STA Connected List | Supported | | SSH Tunnel | Supported | | Client Isolation | Supported | | Operating Temperature | -4°F ~ 140°F / -20°C ~ 60°C | | Storage Temperature | -40°F ~ 176°F / -40°C ~ 80°C | | Operating Humidity | 90% or less | | Storage Humidity | 90% or less | | Outdoor Rating | IP67 | | Weight | 0.65 lbs (295 g) | | Width | 4.37 in (111.2 mm) | | Length | 6.83 in (173.6 mm) | | Height | 1.19 in (30.29 mm) | | Package Contents | Access Point, Pole-Mounting Brackets, Wall-Mount Screws, 2 x 2.4 GHz 5 dBi SMA Antennas, 2 x 5 GHz 5 dBi SMA Antennas, Quick Installation Guide | | Warranty | 2 Year | | Certifications | CE, FCC, IC |
|
