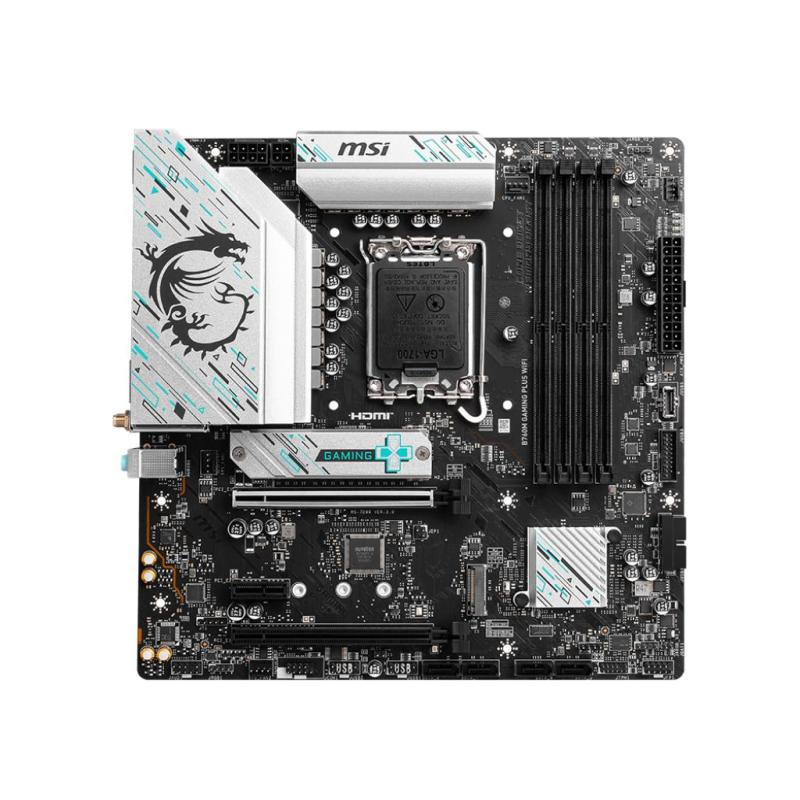

MSI B760M GAMING PLUS WIFI motherboard Intel B760 LGA 1700 micro ATX
B760M GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want it all.
LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
MSI B760M GAMING PLUS WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11ad, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
MSI B760M GAMING PLUS WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11ad, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
| Processore | |
| Produttore processore | Intel |
| Presa per processore | LGA 1700 |
| Processori compatibili | Intel® Celeron®, Intel® Pentium® Gold |
| Numero massimo processori SMP | 1 |
| Socket Processori supportati | LGA 1700 |
| Memoria | |
| Tipi di memoria supportati | DDR5-SDRAM |
| Numero di slot di memoria | 4 |
| tipo di slot di memoria | DIMM |
| Canali di memoria | Dual-channel |
| Non-ECC | Sì |
| Velocità di memoria supportate | 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz |
| Velocità di clock della memoria supportata (max) | 6800 MHz |
| RAM massima supportata | 192 GB |
| Controller di archiviazione | |
| Interfacce dell'unità di archiviazione supportate | M.2, SATA III |
| Supporto RAID | Sì |
| Livelli RAID | 0, 1, 5, 10 |
| I/O interni | |
| Connettori USB 2.0 | 4 |
| Connettori USB 3.2 Gen 1 (3.1 Gen 1) | 4 |
| Connettori USB 3.2 Gen 2 (3.1 Gen 2) | 1 |
| Numero di connettori SATA III | 4 |
| Connettore pannello audio frontale | Sì |
| Connettore del pannello anteriore | Sì |
| Connettore ATX (24-PIN) | Sì |
| Connettore ventola CPU | Sì |
| Connettore TPM | Sì |
| Connettore LED RGB | Sì |
| Pannello posteriore porte I/O | |
| Quantità porte USB 2.0 | 2 |
| Quantità di porte USB 3.2 Gen 1 (3.1 Gen 1) di tipo A | 2 |
| Quantità di porte USB 3.2 Gen 2 (3.1 Gen 2) di tipo A | 2 |
| Quantità porte Ethernet LAN (RJ-45) | 1 |
| Quantità porte HDMI | 2 |
| Versione HDMI | 2.1 |
| Quantità DisplayPorts | 2 |
| versione DisplayPort | 1.4 |
| Collegamento in rete | |
| Collegamento ethernet LAN | Sì |
| Tipo di interfaccia Ethernet | 2.5 Gigabit Ethernet |
| Wi-Fi | Sì |
| Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Standard Wi-Fi | 802.11a, 802.11ad, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Bluetooth | Sì |
| Versione Bluetooth | 5.3 |
| Caratteristiche | |
| Componente per | PC |
| Fattore di forma scheda madre | micro ATX |
| Famiglia di chipset per scheda madre | Intel |
| Chipset scheda madre | Intel B760 |
| Chip audio | Realtek ALC897 |
| Sistema audio | 7.1 canali |
| Tipologia alimentazione | ATX |
| Sistema operativo Windows supportato | Windows 10, Windows 11 |
| Slot espansione | |
| Slot PCI Express x1 (Gen 3.x) | 2 |
| BIOS | |
| Tipo BIOS | UEFI AMI |
| Dimensione memoria BIOS | 256 Mbit |
| Versione ACPI | 6.4 |
| Jumper di azzeramento CMOS | Sì |
| Versione System management BIOS (SMBIOS) | 3.5 |
| Dimensioni e peso | |
| Larghezza | 243,8 mm |
| Profondità | 243,8 mm |
