Item specifics

Condition: New

Brand: Unbranded

Bearing: 5pcs Bearings

Type: machine tools

Maximum Power: 1.5KW 2HP

Rotating Speed: 3000--8000rpm

Operating Speed: 3000--8000rpm

Maximum Torque: 2HP

Weight: 10kg

Item description from the seller

BT30 Max. 3000~8000rpm. Power Head Power Unit 1500W 1.5KW 2hp Machine Tool Spindle Head for Boring Milling Cutting Machine

1. Shipping list

1PC	BT30(165) Power Head

2. Specifications

Model	BT30(165)-1	BT30(165)-2	BT30(165)-3	BT30(165)-4	BT30(165)-5	BT30(165)-6
Overall size	260x95x95mm	260x95x95mm	260x95x95mm	260x95x95mm	260x95x95mm	260x95x95mm

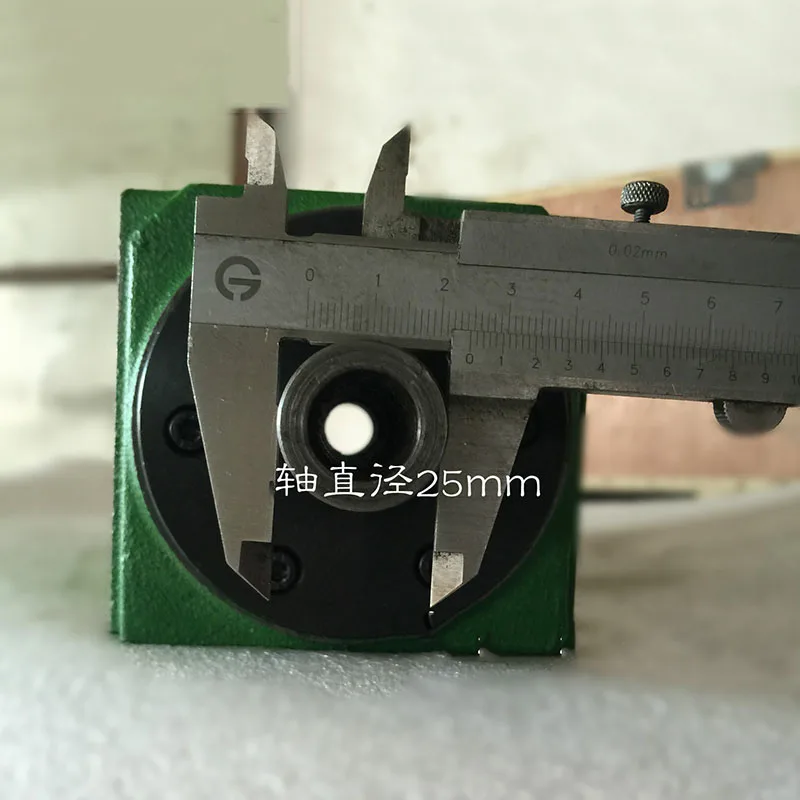

Axle head size	25x50mm	25x50mm	25x50mm	25x50mm	25x50mm	25x50mm
Central height	48mm	48mm	48mm	48mm	48mm	48mm
Run-out	0.01mm	0.01mm	0.01mm	0.01mm	0.01mm	0.01mm
Speed	3000rpm	3000rpm	6000~8000rpm	6000~8000rpm	5000~6000rpm	5000~6000rpm
Rising Temperature	within 25 Degree Celsius	within 25 Degree Celsius	within 25 Degree Celsius	within 25 Degree Celsius	within 25 Degree Celsius	within 25 Degree Celsius
Spindle Material	20CrmnTi, carburizing heat treatment	20CrmnTi, carburizing heat treatment	20CrmnTi, carburizing heat treatment	20CrmnTi, carburizing heat treatment	20CrmnTi, carburizing heat treatment	20CrmnTi, carburizing heat treatment
Bearing	60071, 70072, 6006*2	60071, 70072, 6006*2	60071, 70072, 6006*2	60071, 70072, 6006*2	60071, 70072, 6006*2	60071, 70072, 6006*2
application	Drilling Cutting Machine	Drilling Cutting Machine	Drilling Cutting Machine	Drilling Cutting Machine	Boring Milling Cutting Machine	Boring Milling Cutting Machine
waterproof	N	Y	N	Y	N	Y

3.Advantage
(1) Higher precision, better stability and smoother operation.

(2) Adopting Japanese technology, double waterproof design structure, isolating cutting fluid and dust in production and processing, ensuring the good condition of the spindle head in actual work.( Waterproof function is only available on some models)

(3) The main shaft housing is cast in high-tough cast iron. After manual and natural double aging treatment, it is wear-resistant and not easily deformed.

4. Benefits for you

(1) Using better manufacturing technology, bring you a higher quality and more perfect experience.

(2) Excellent service, a variety of models to meet your needs.

5. Application area

This series of power heads is mainly suitable for drilling, boring and other work occasions.

6. Technical Support

All Products from the factory will be provided for one year warranty after sales and lifetime technical support.

7. Dimension

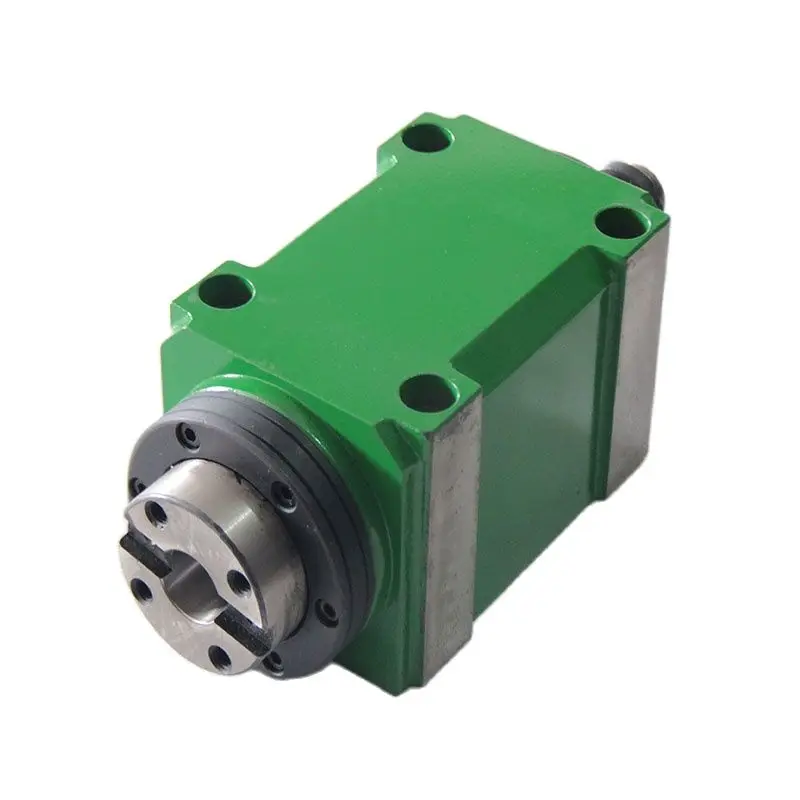

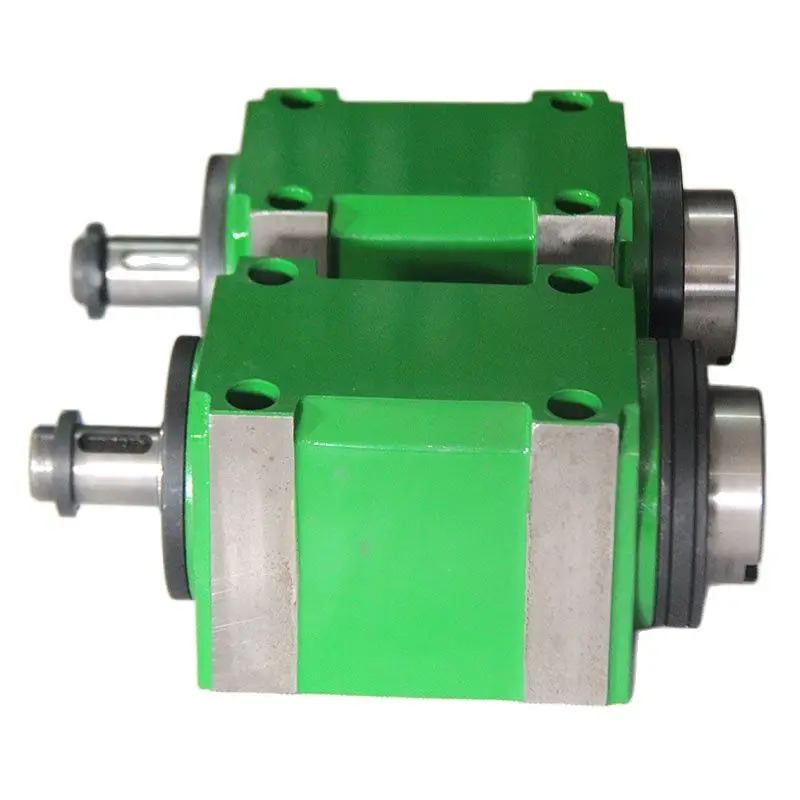

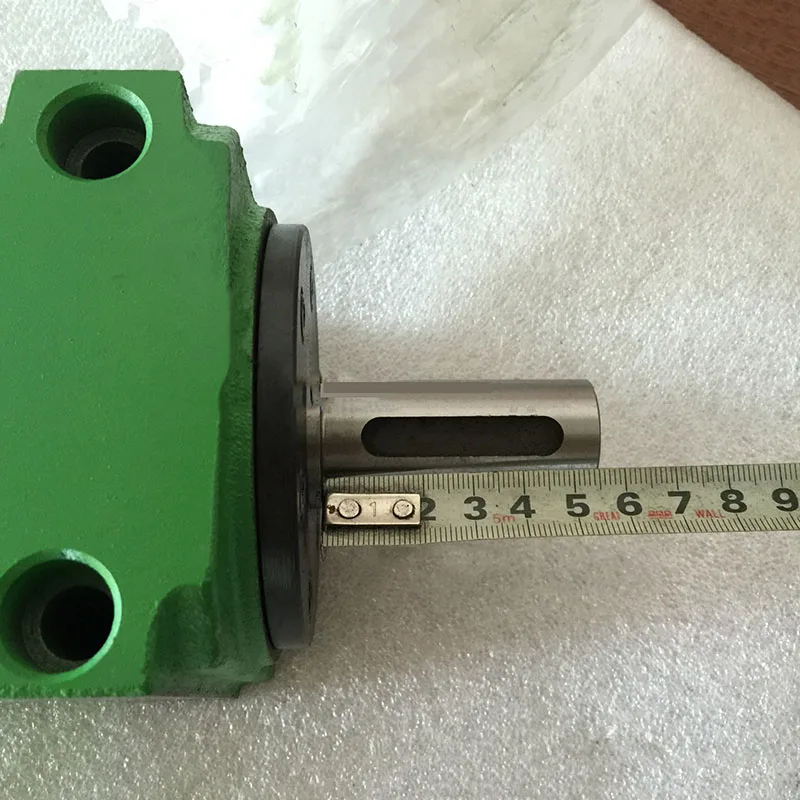

8. Real Photo Show
