Product Details:

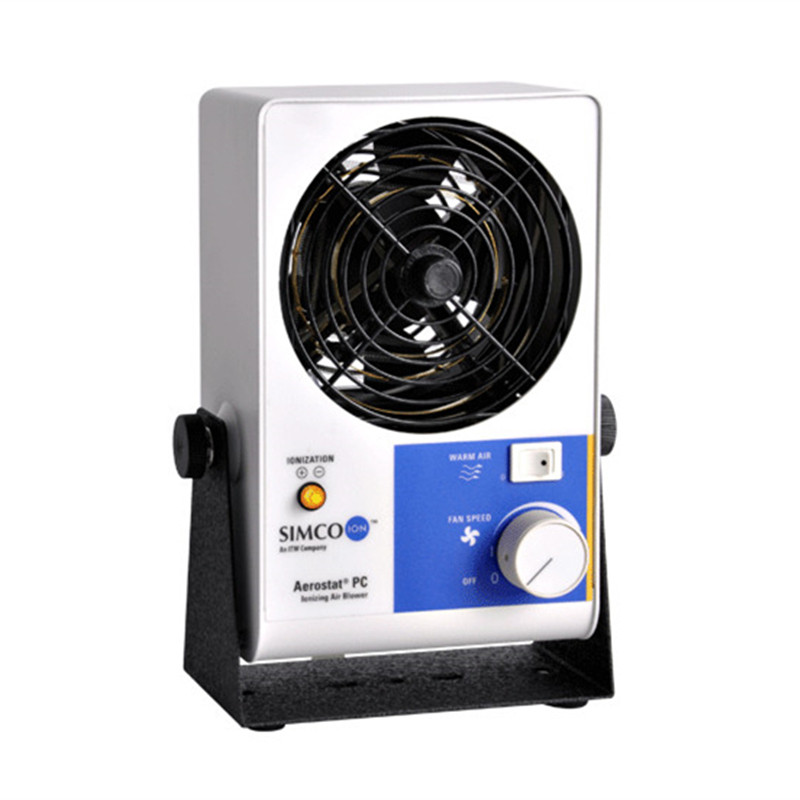

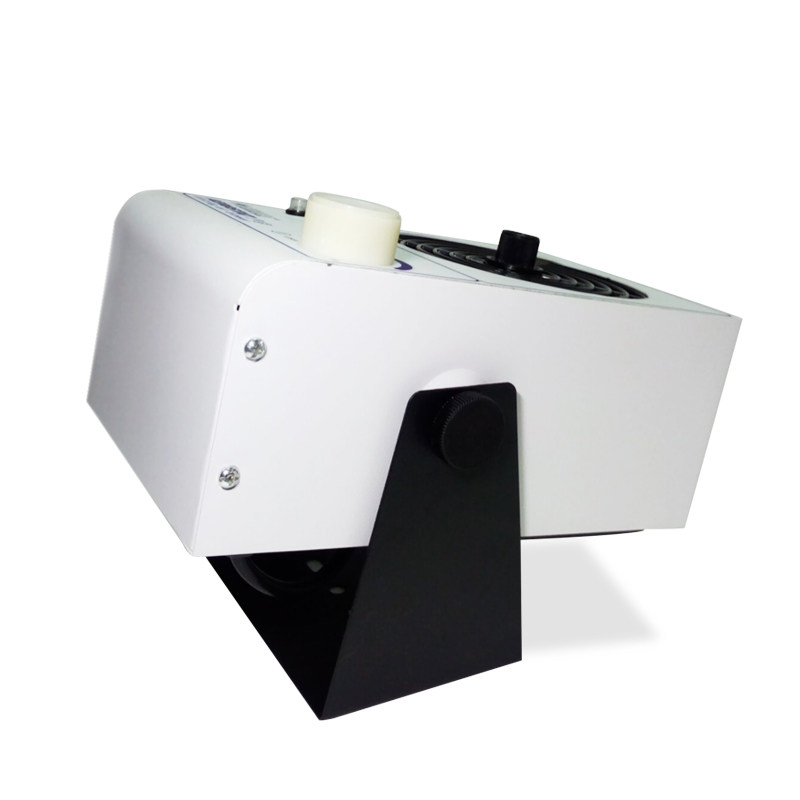

PC desktop ionizing fan desktop ionizing fan can be a wide range of targets or not easy to access the region of the electrostatic charge. It is characterized by fast static electricity, ion wind coverage area, with ion needle cleaner, ion generation indicator, continuously adjustable wind speed, built-in fan and high-voltage power supply, ion balancing voltage of 0V ± 10 V. Installation method: desktop, hanging type. It is the ideal static electricity for precision electronic products, electronic assembly, pharmaceutical manufacturing assembly line, printing, packaging and molding of fine products
Technical parameters:

Operating Voltage(操作电压)

110V/60Hz or 220V/50Hz

Current Consumption(消耗电流)

0.25A or 0.12A

Operating Temperature(操作温度)

0-50℃

Air Coverage(气流面积)

40cm×60cm

Size(外型尺寸)(含支架)

190mm(L) ×85mm(W) ×240mm(H)

Weight(重量)

2.8kg

Air Volume(风量)

45~110CFM

Ion Balance(离子平衡)

0V±10V



Decay Test Conditions (测试条件)

Operating Voltage (操作电压)：110V/220V  Testing Voltage(测试电压)：1KV to 100V

Temperature（环境温度）：22℃

Distance（距离）



300mm

600mm

900mm

Decay time(中和时间)

Positive(正)

1.2s

2.5s

4.0s

Nefative(负)

1.2s

2.4s

3.9s

     Note: 1, test data to ME268A static tester results shall prevail.
            2, the test data will be due to the test of the ambient air temperature and humidity and change




Carton packaging
