Application:

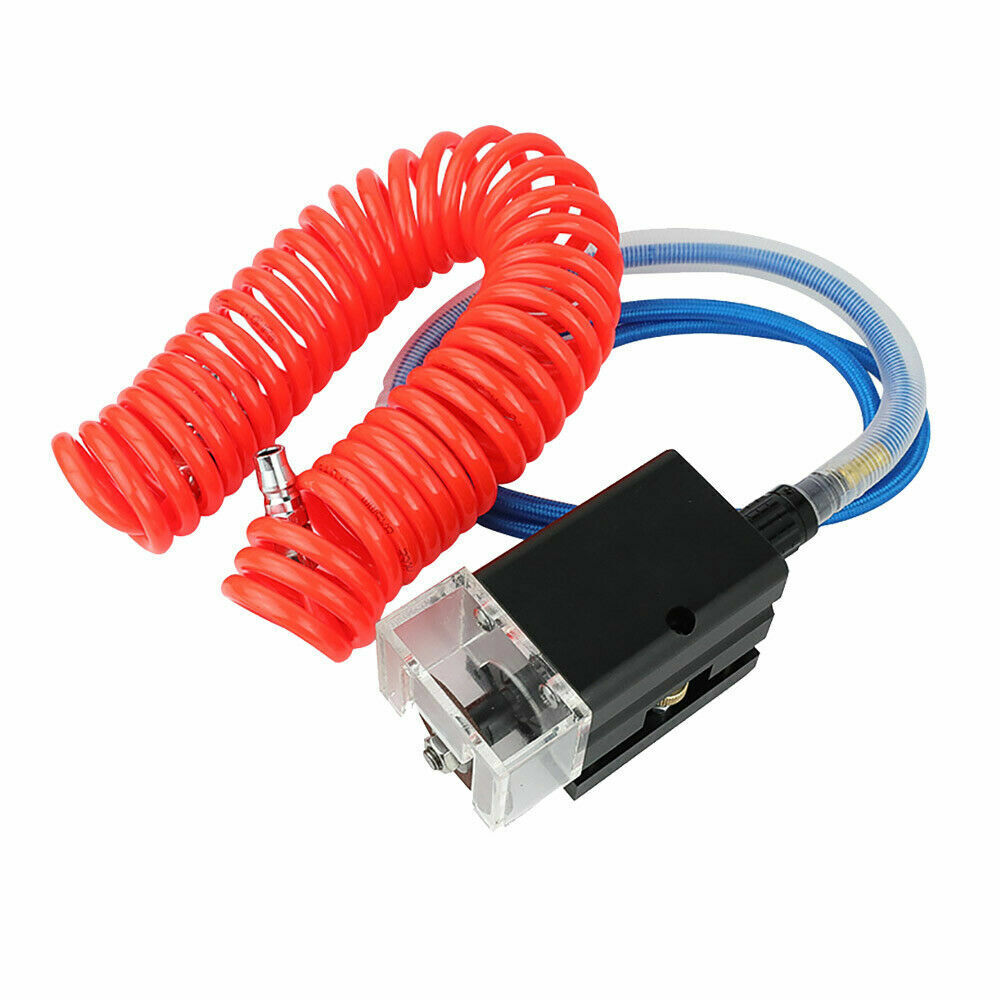

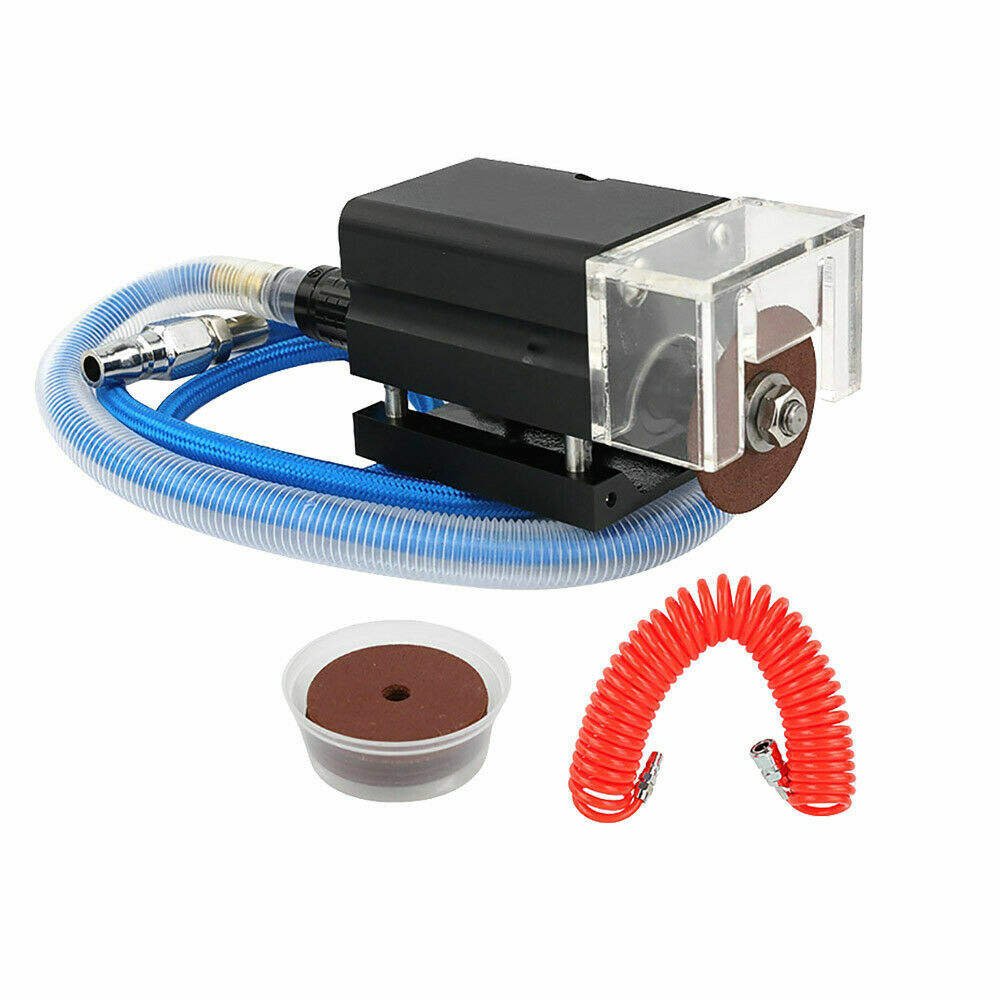

Hand Operation Die cutting Pneumatic Nick Grinder
The device is special designed for grinding "nick "with various widths and depths in solid board/ corrugated board cutting die.
Hand Operation Die cutting Pneumatic Nick Grinder
The device is special designed for grinding "nick "with various widths and depths in solid board/ corrugated board cutting die.
| Model | Die Cutting Nick Grinder |
| Speed | 30000rmp |
| Working type | Pneumatic |
| Air Flow | 8 CFM |
| Working pressure | 0.6-0.5MPA |
| Air Tube Length | 1.27m |
| Weight | 1kg |

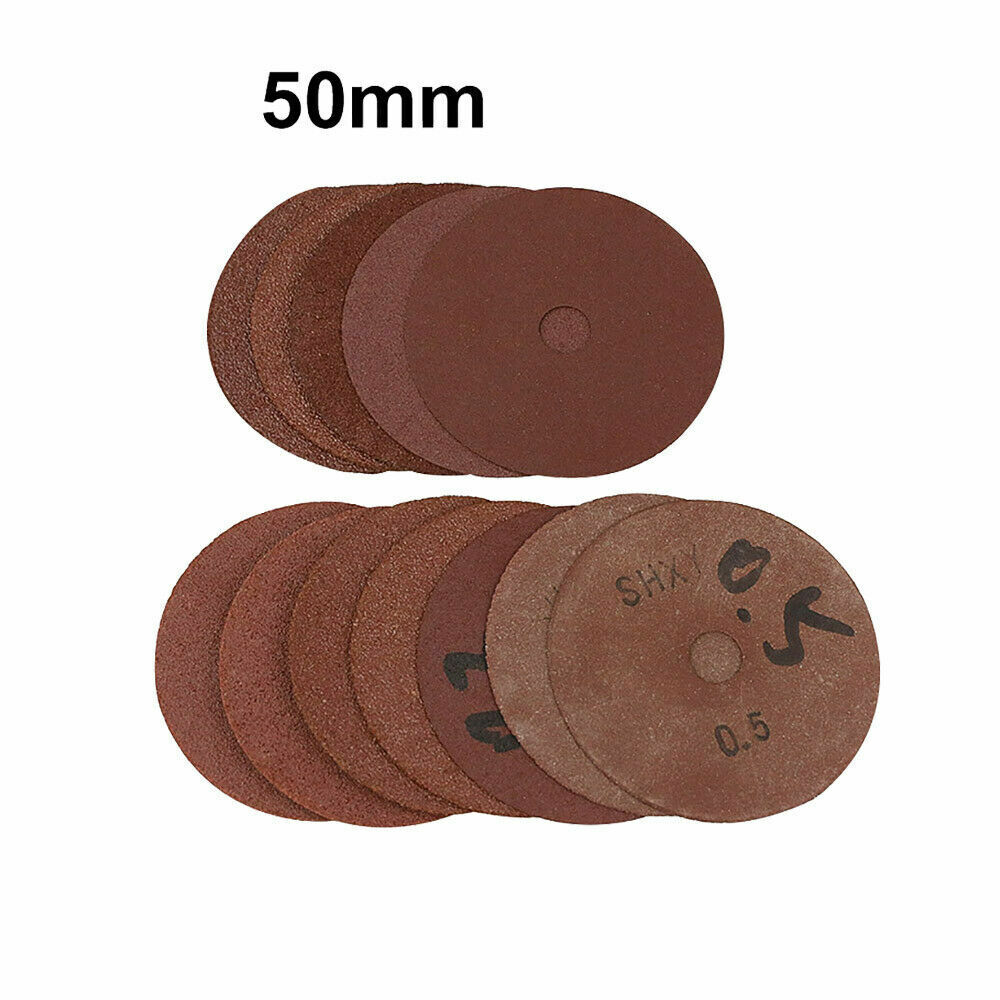

| Grinding wheel | 0.2mm, 0.3mm, 0.5mm, 1.0mm, 1.2mm, 2.0mm |
Features:

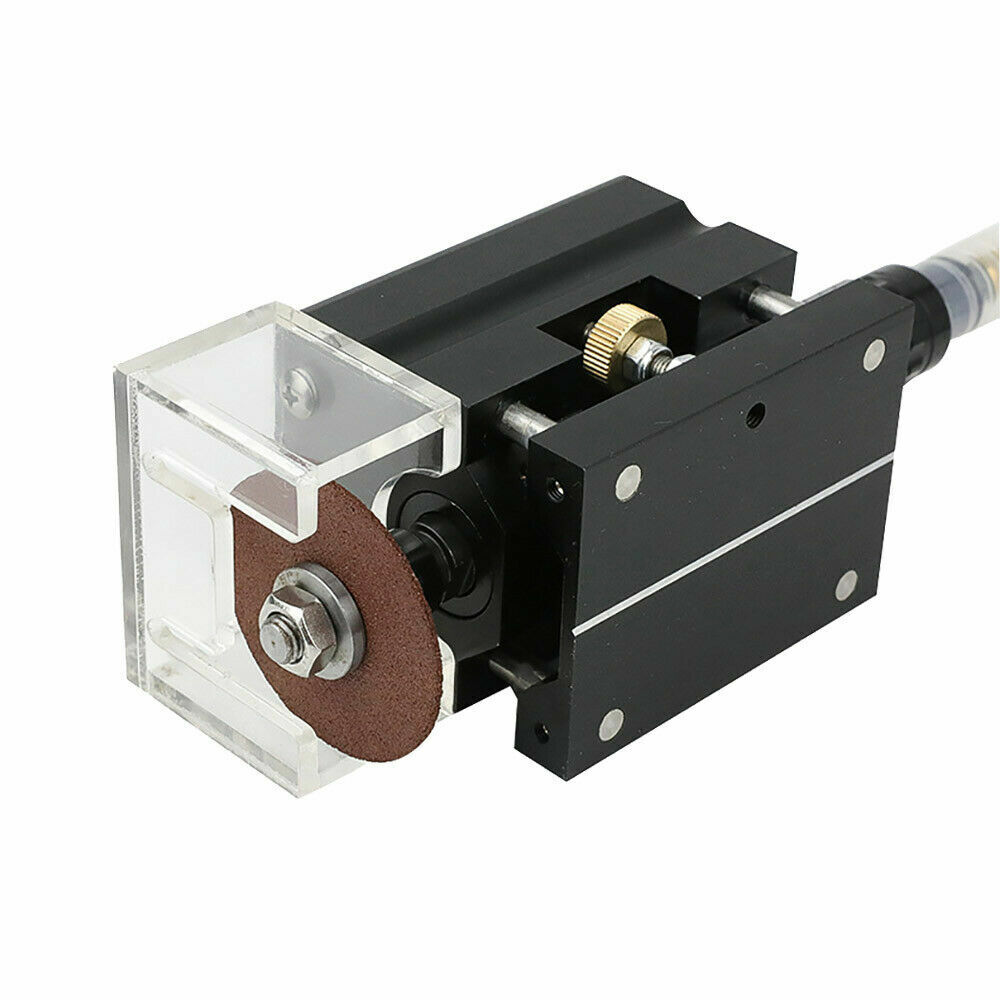

- Different depth of nicks can be obtained by adjusting the control screw
- The depth of nick should be determined by cutting-dies, otherwise, will cause abnormal wear on the grinding wheel.

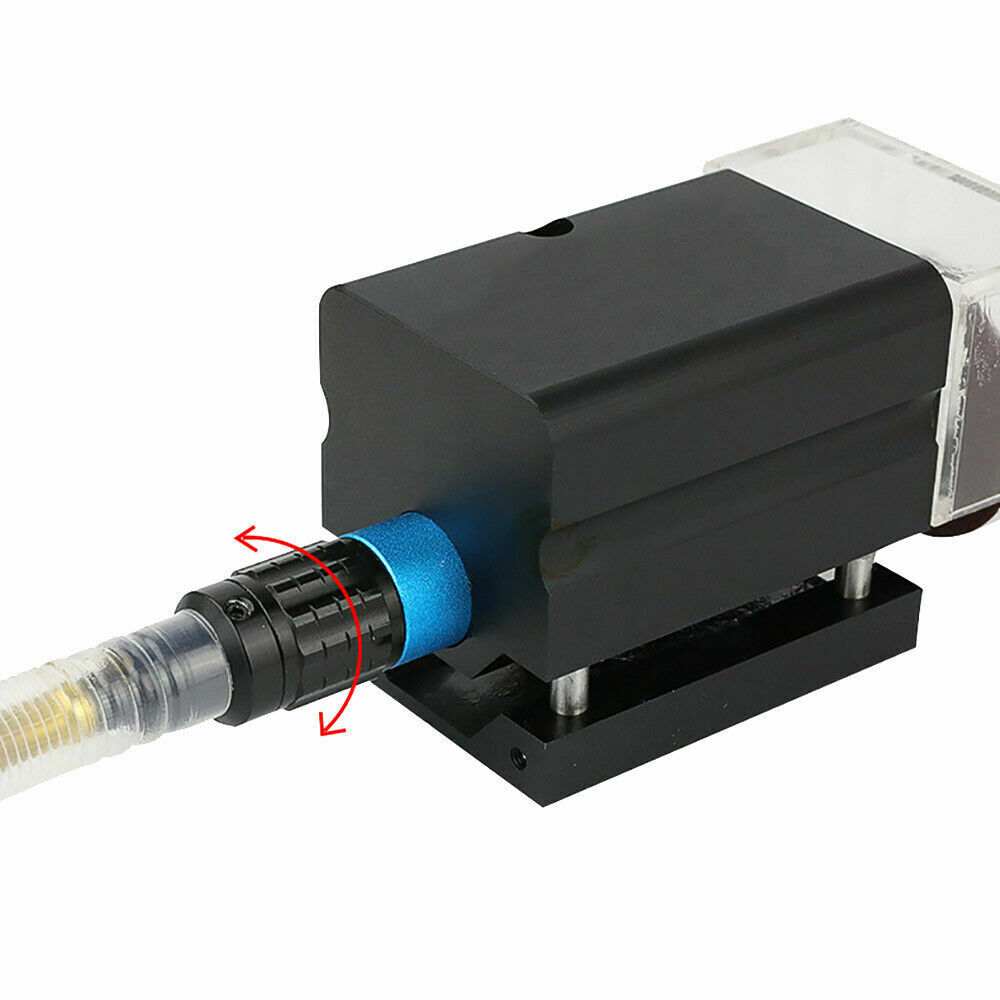

- The switch on the tail of the device can control the speed of motor, and it can control the motor start or stop as well.
- When grinding nicks, use locating-device to position the machine on the top of cutting rules, then press the grinding wheel towards the blade of cutting rules stably and quickly.
