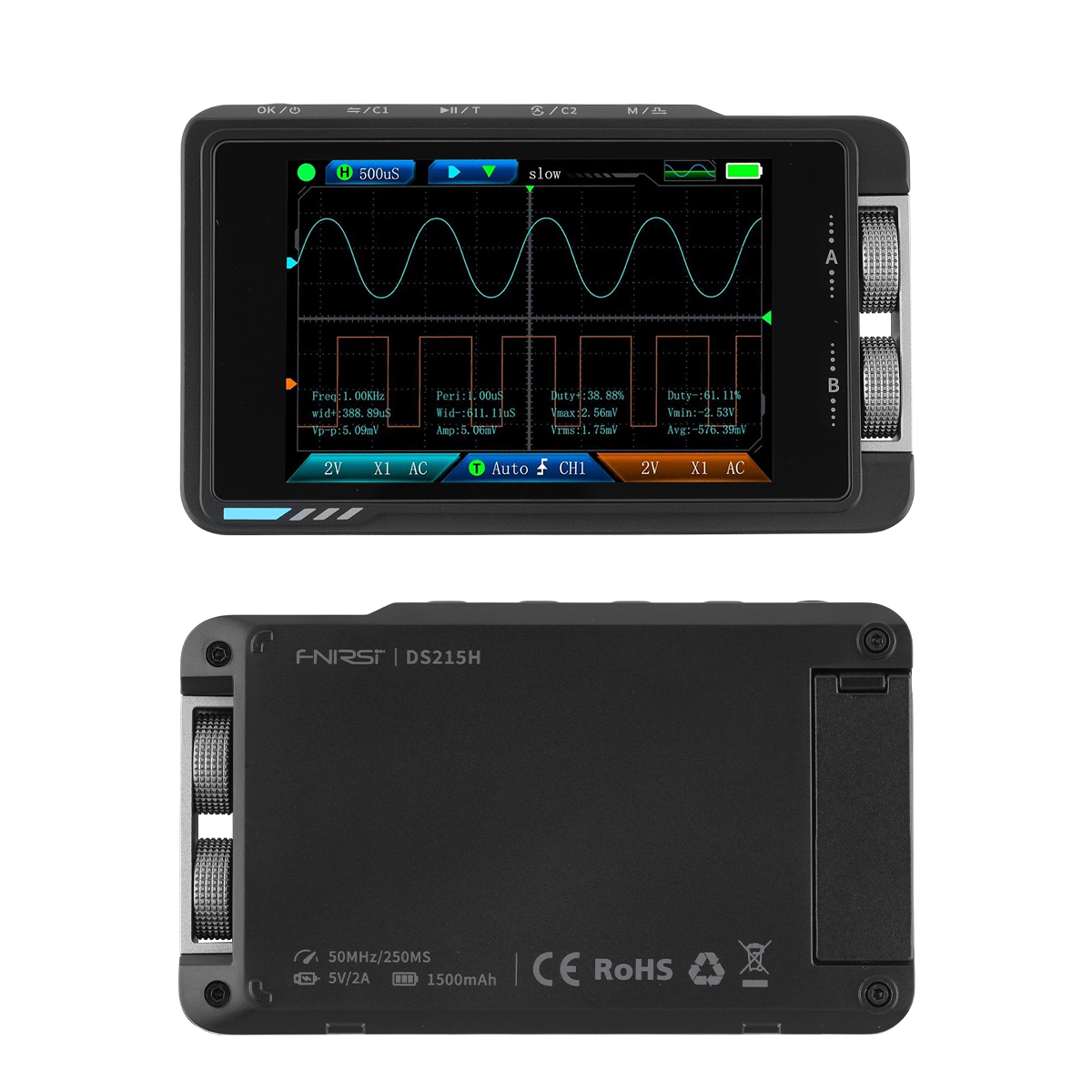

Product Description

-DS215H is a comprehensive and practical 2-in-1 dual-channel digital test instrument, specially designed for maintenance and R&D industries.


Main features:

-High-precision measurement: FNIRSI-DS215H provides high-precision sampling rate up to 250MS/s and 50MHz analog bandwidth, ensuring accurate measurement in various applications.


-Wide voltage protection: Support peak voltage measurement up to ±400V, and provide reliable and safe performance in high voltage environment.


—Waveform storage: the device supports saving and viewing screenshots, making data analysis more convenient and efficient.


-Signal generator function: it has 13 waveform outputs, the frequency range is 0-50KHz, and it can be adjusted by 1Hz step. The output parameters, including frequency, amplitude and duty cycle, are completely adjustable to meet various needs.

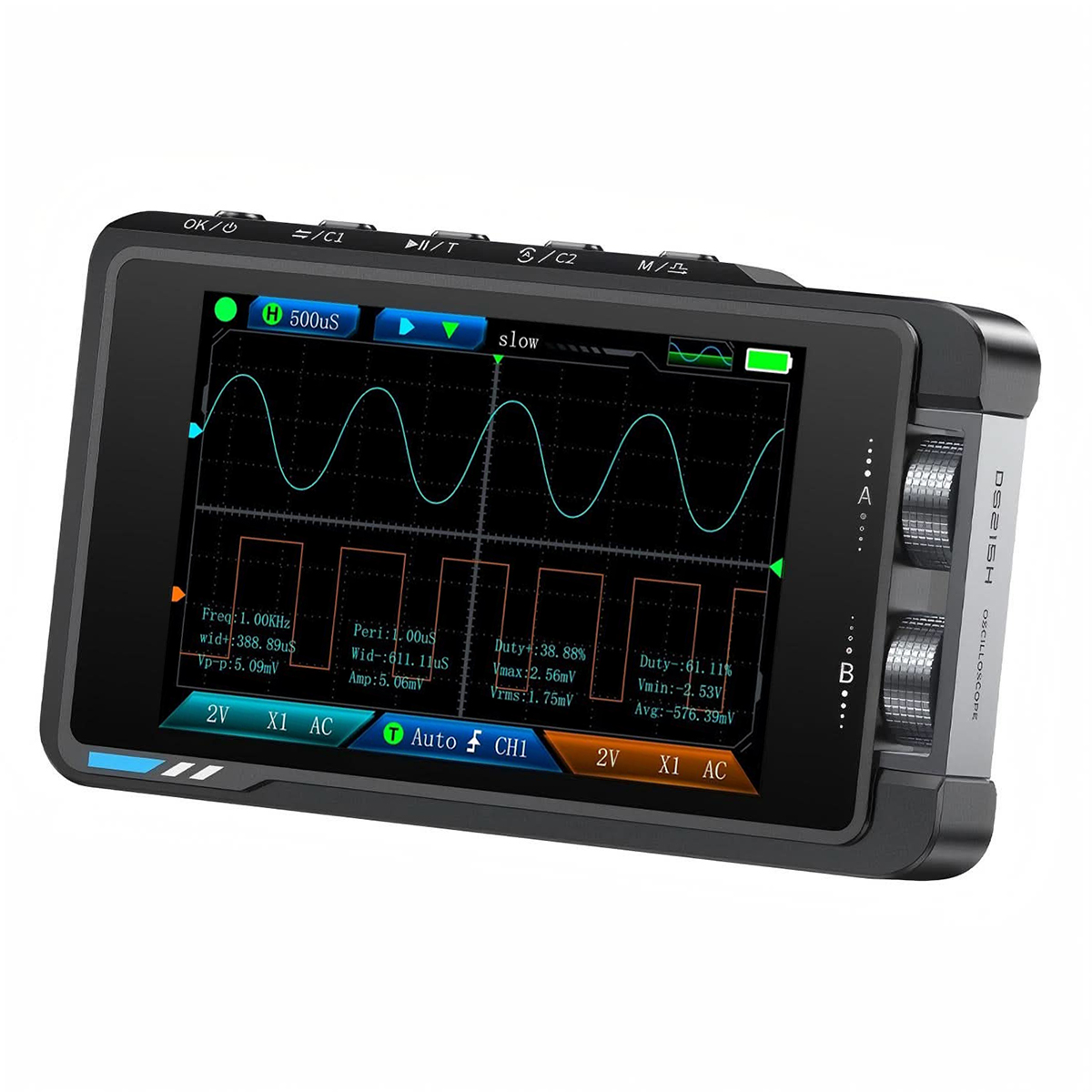

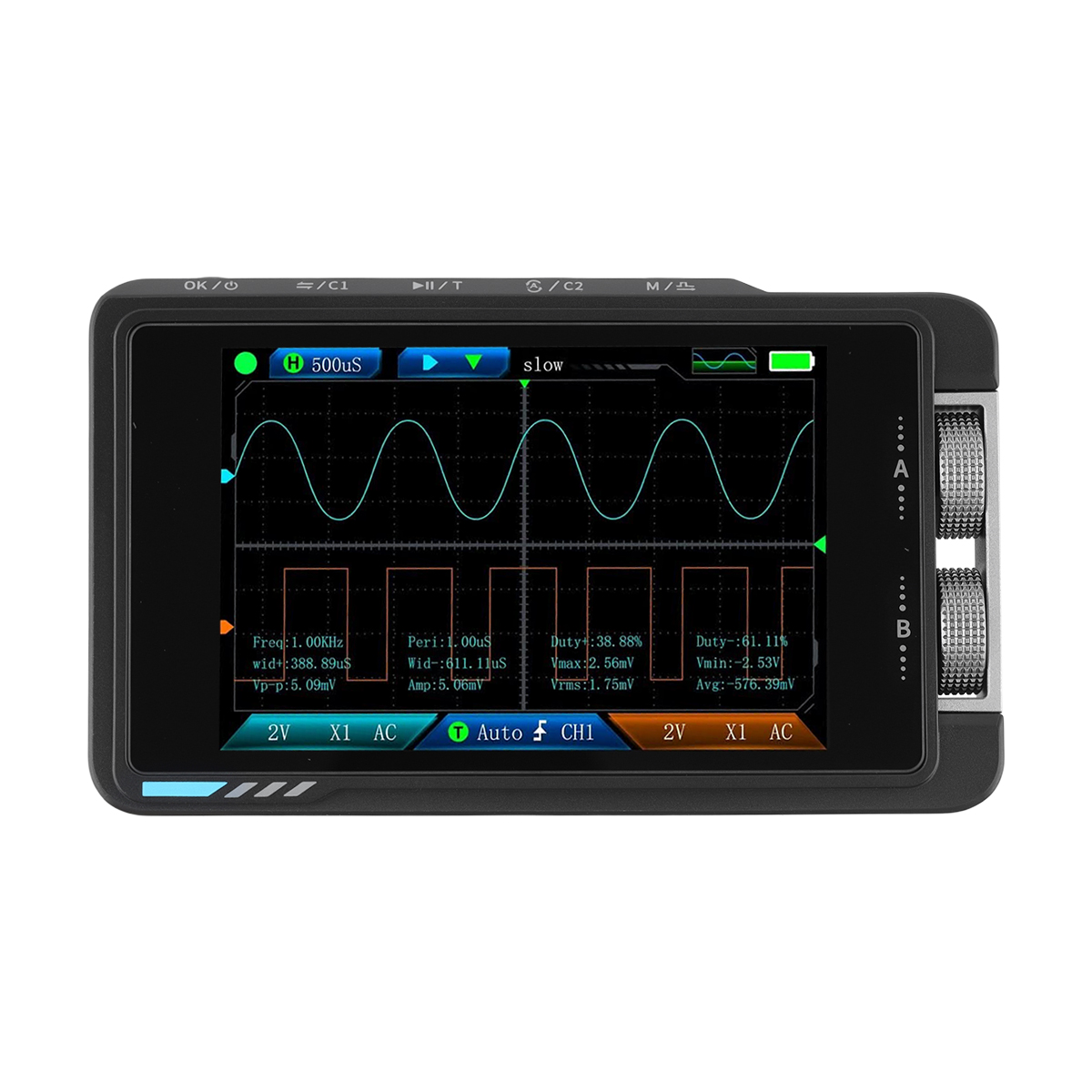

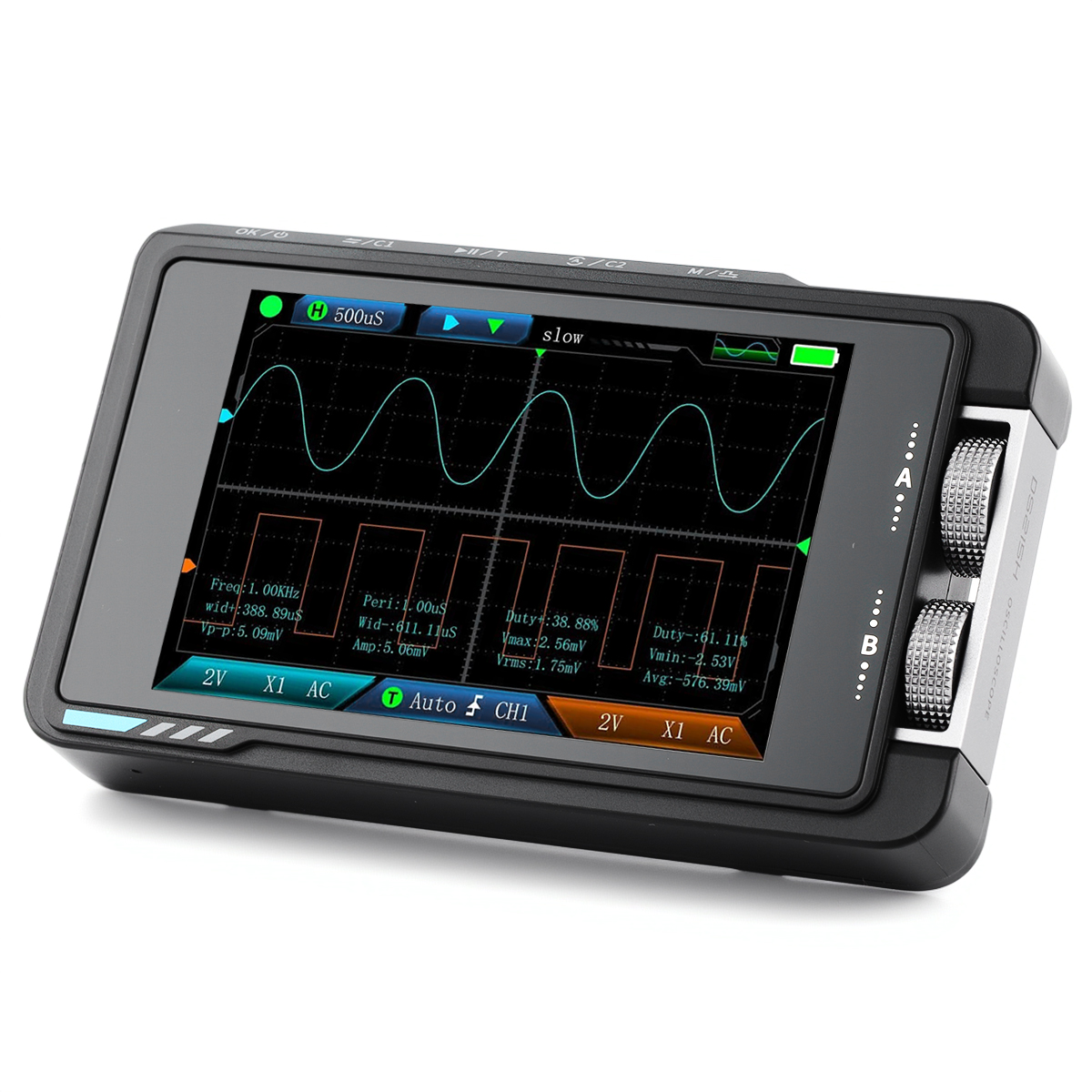

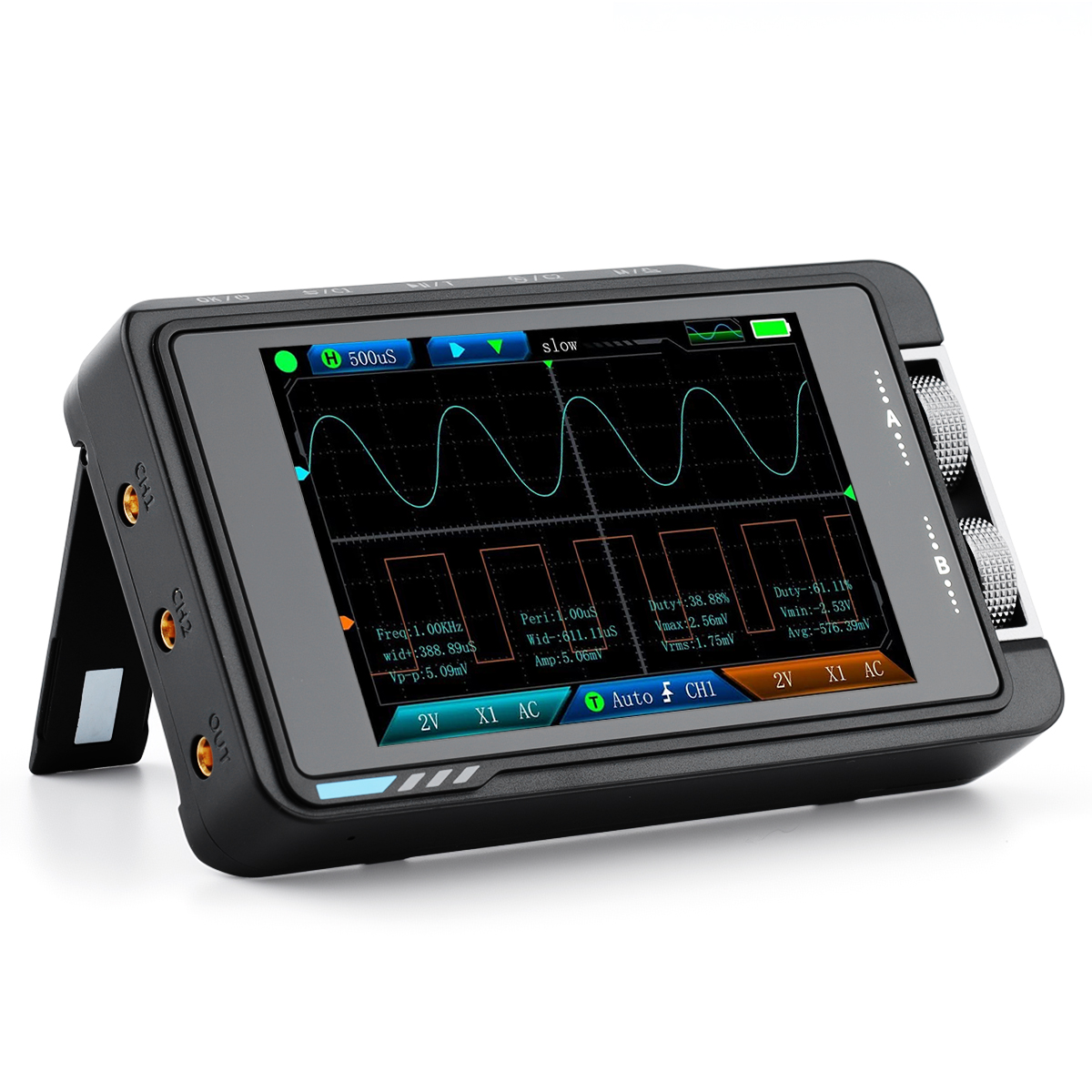

-Portable design: the device is equipped with a 3.5-inch display screen (480×320 resolution), and the vision is clear and intuitive. Its compact and lightweight design makes it very suitable for mobile use.


-Long battery life: powered by a 1500mAh rechargeable lithium battery, it supports continuous operation for up to 4 hours, ensuring lasting performance during travel.


-Ideal choice for professionals: FNIRSI-DS215H aims to provide powerful and flexible functions and provide users with portable and efficient tools for maintenance, research and development and testing tasks.



Basic parameters:

-Display: 3.5-inch IPS high-definition color screen

-Backlight: adjustable brightness

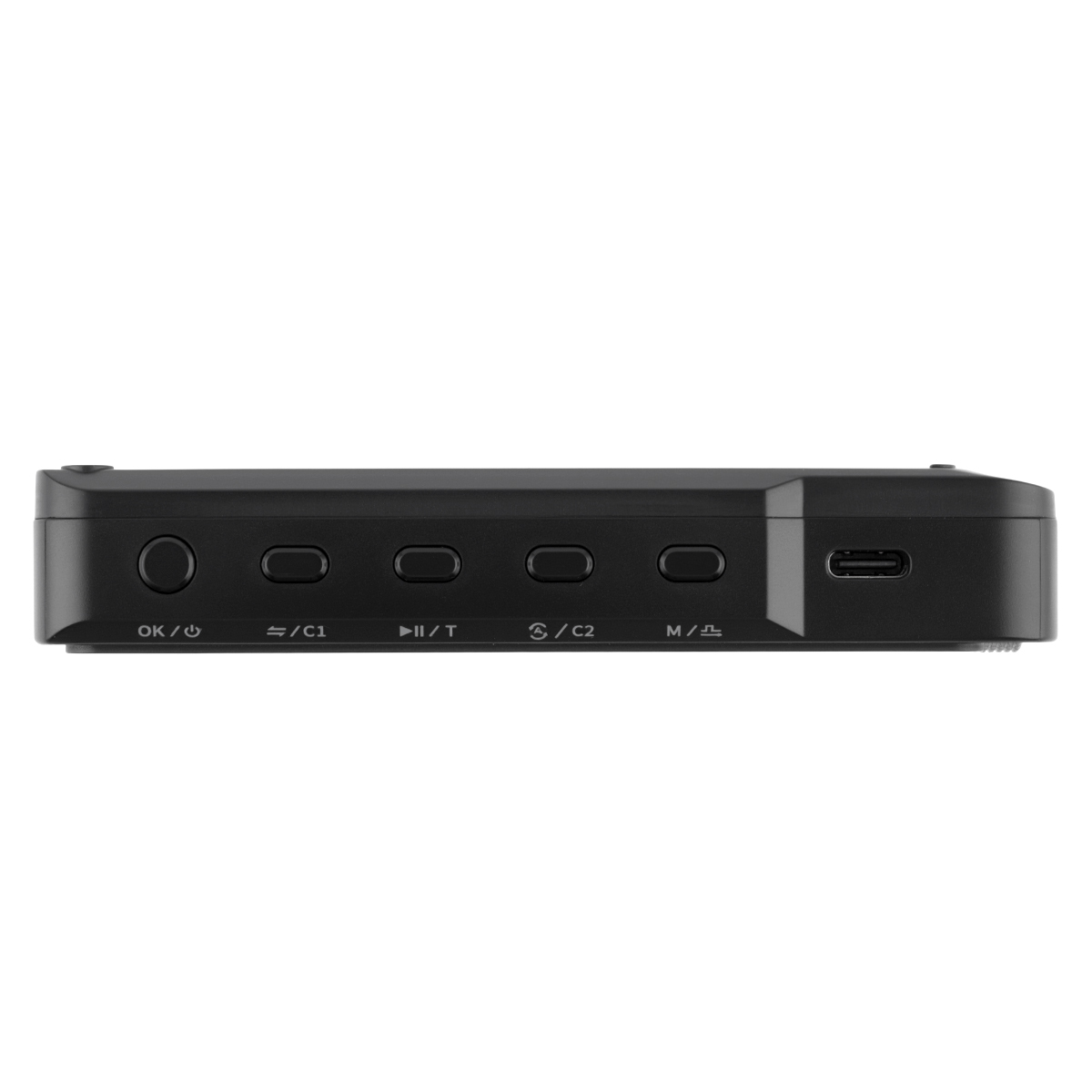

-Power supply: TYPE-C (5V/1A)

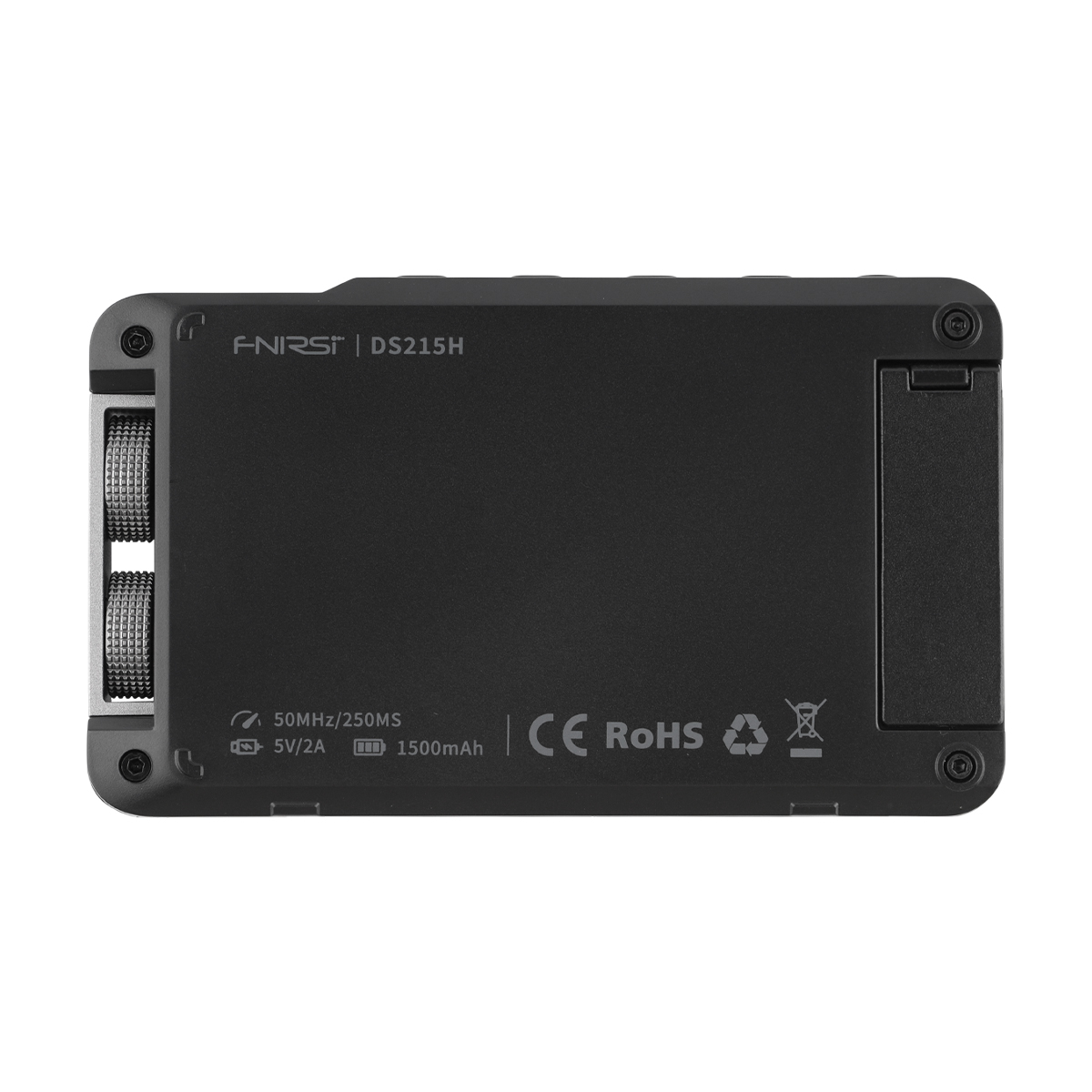

-Battery: 1500mAh

-Language: English, NN, E, Spanish, Portuguese Commercial Bank, German, I e-

-Product size: about 66 x 110 x 19.5mm

-Bare weight: about 138g


Oscilloscope parameters:

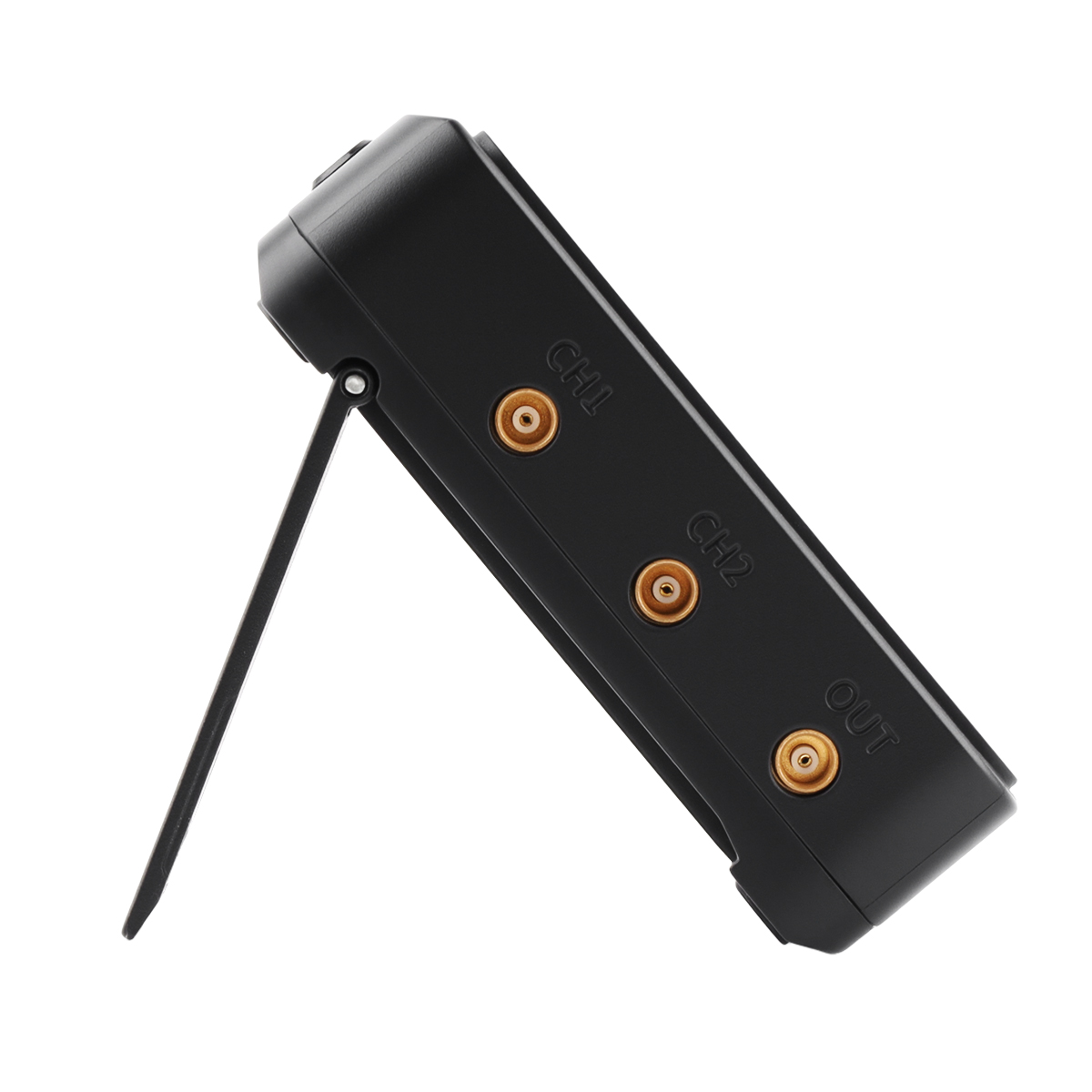

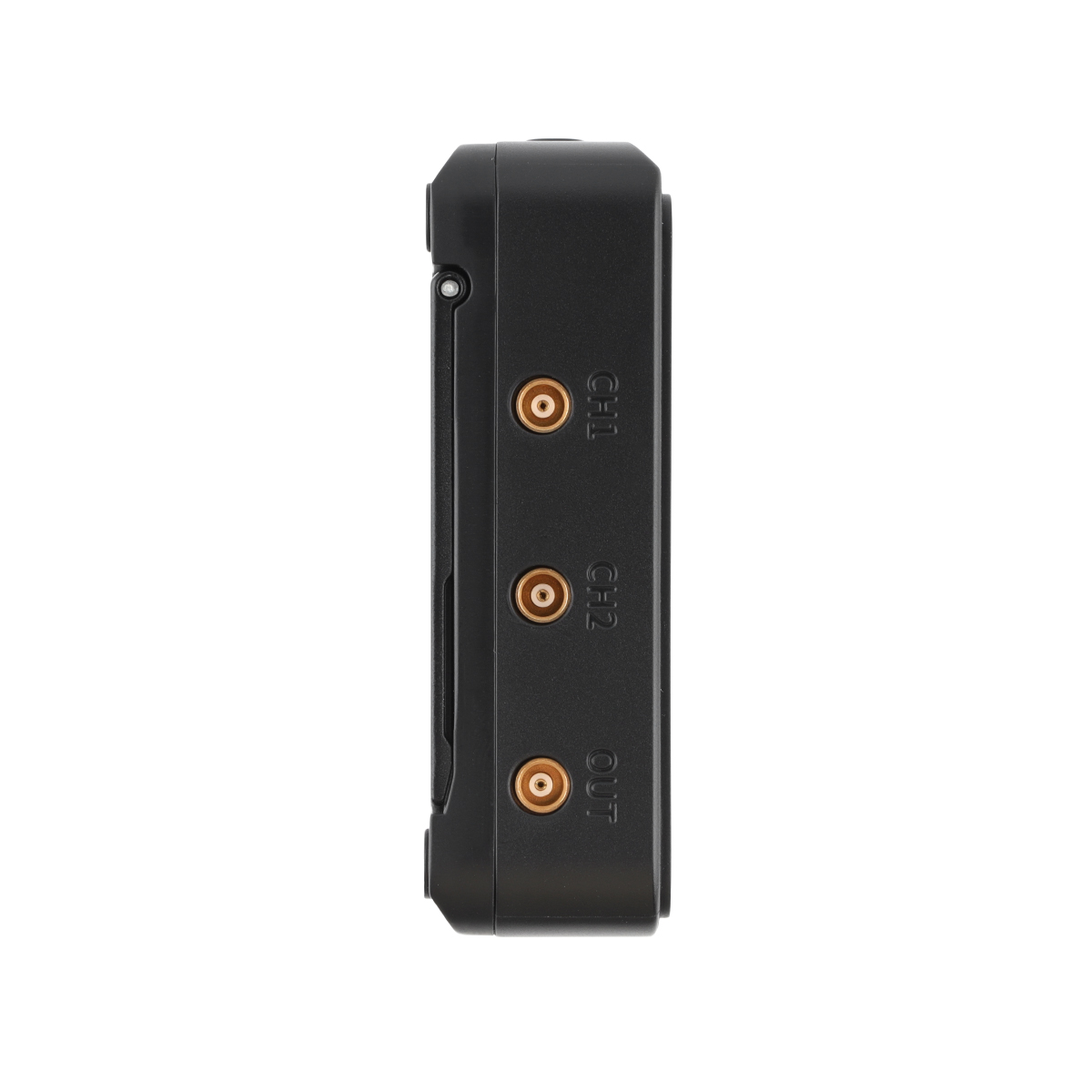

-Channel: Dual channel

-Bandwidth: 50MHz

-Real-time sampling rate: 250MSa/s

-Storage space: 14M

-Time reference range: 20ns/div ~ 20s/div.

-vertical sensitivity: 10mV/div-10V/div

-waveform display mode: YT/XY/scroll.

-Vertical resolution: 8 bits

-Input impedance: 1ΜΩ

-measurement data: period, frequency, Vpp, max, min, avg, RMS, amp, duty cycle and pulse width.

-Attenuation coefficient of probe: 1x/10x

-input coupling: AC/DC

-Trigger type: rising edge/falling edge

-Peak voltage: ±400V

-trigger level range: 8 squares (positive and negative)

-Trigger mode: automatic/normal/single trigger.


Signal generator:

-Output waveform: supports multiple waveform outputs.

-Waveform frequency: 0-50kHz

-Square wave duty ratio: 0 ~ 100%

-Waveform amplitude: 0.1V-3.0V

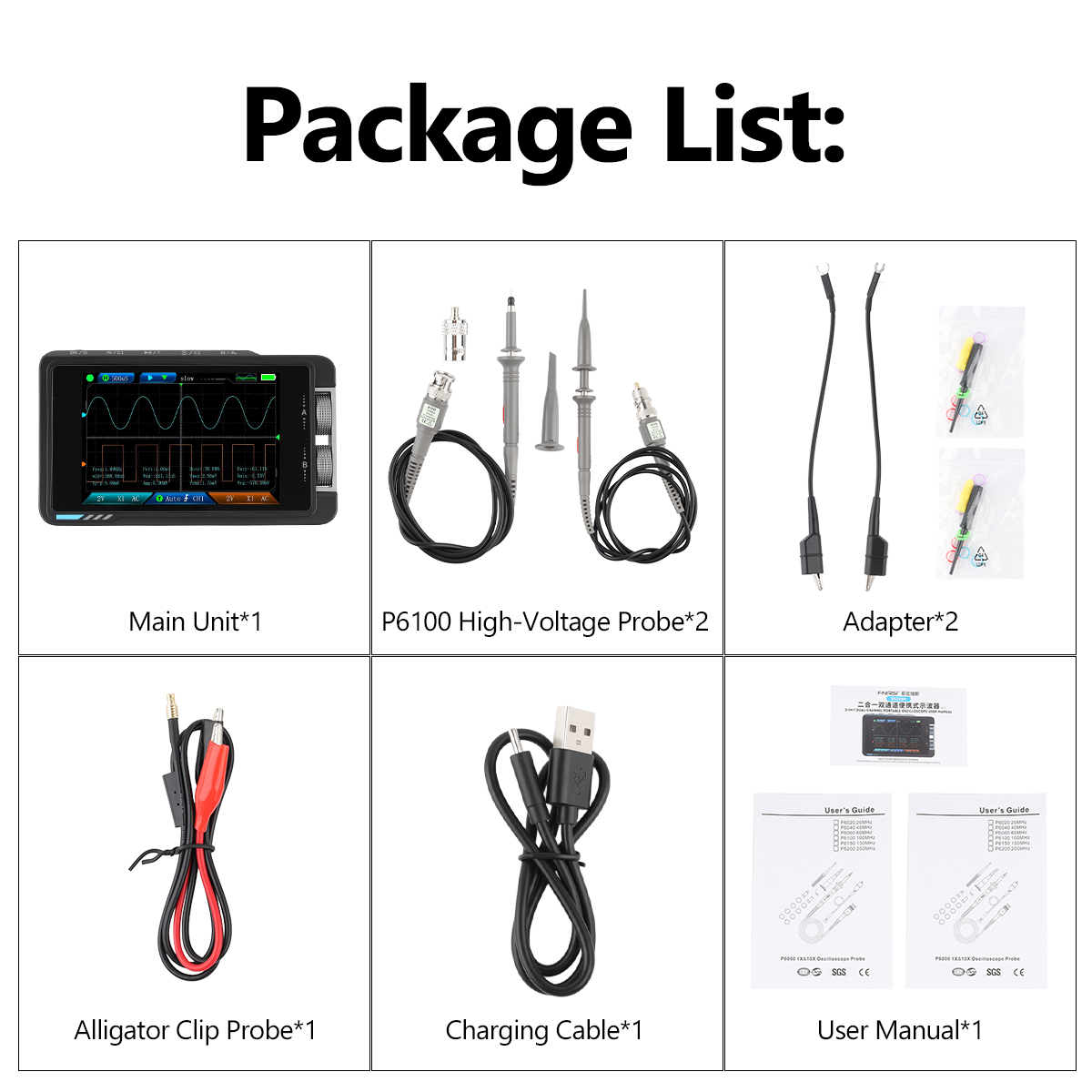

The package includes:

Host *1

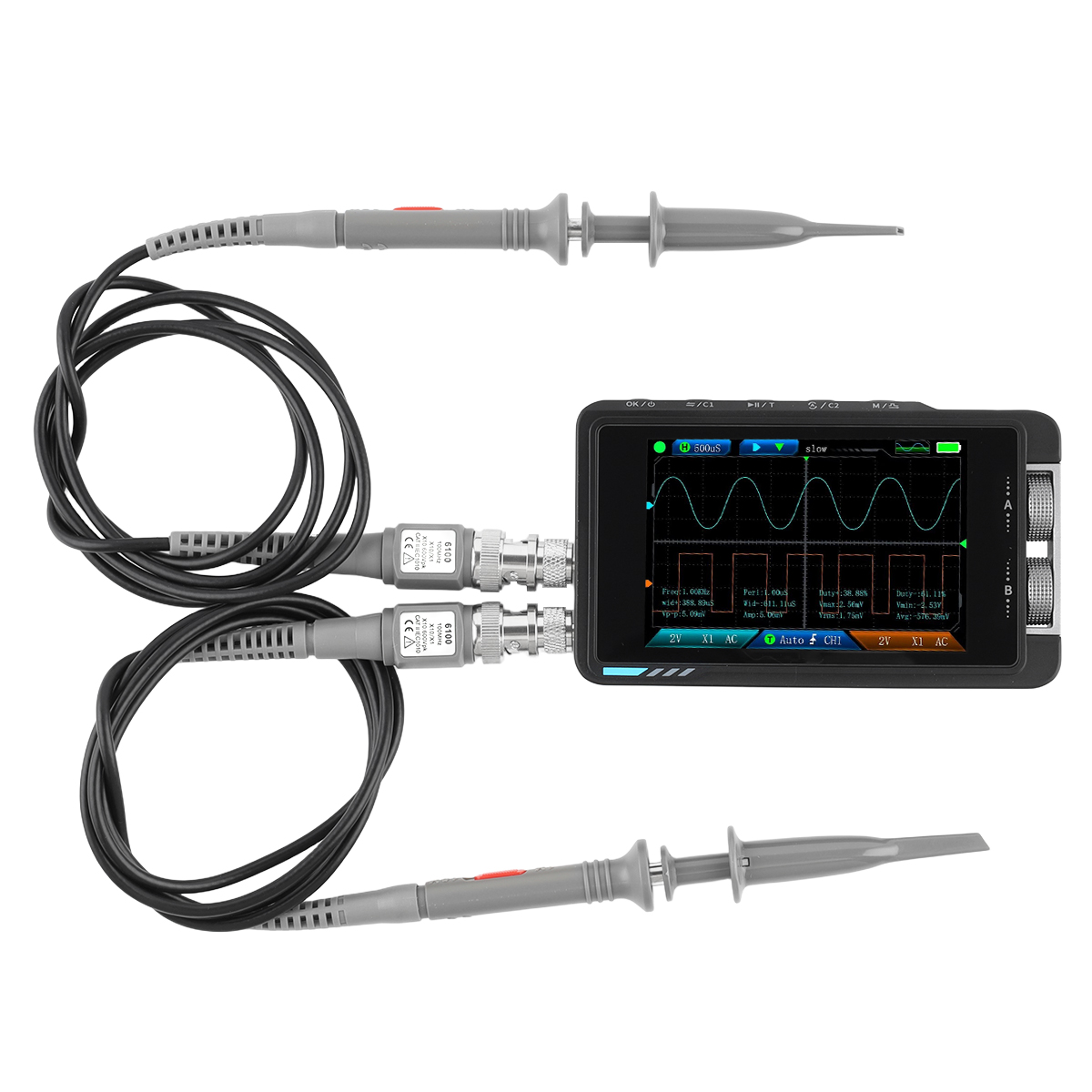

P6100 high pressure probe *2

Adapter *2

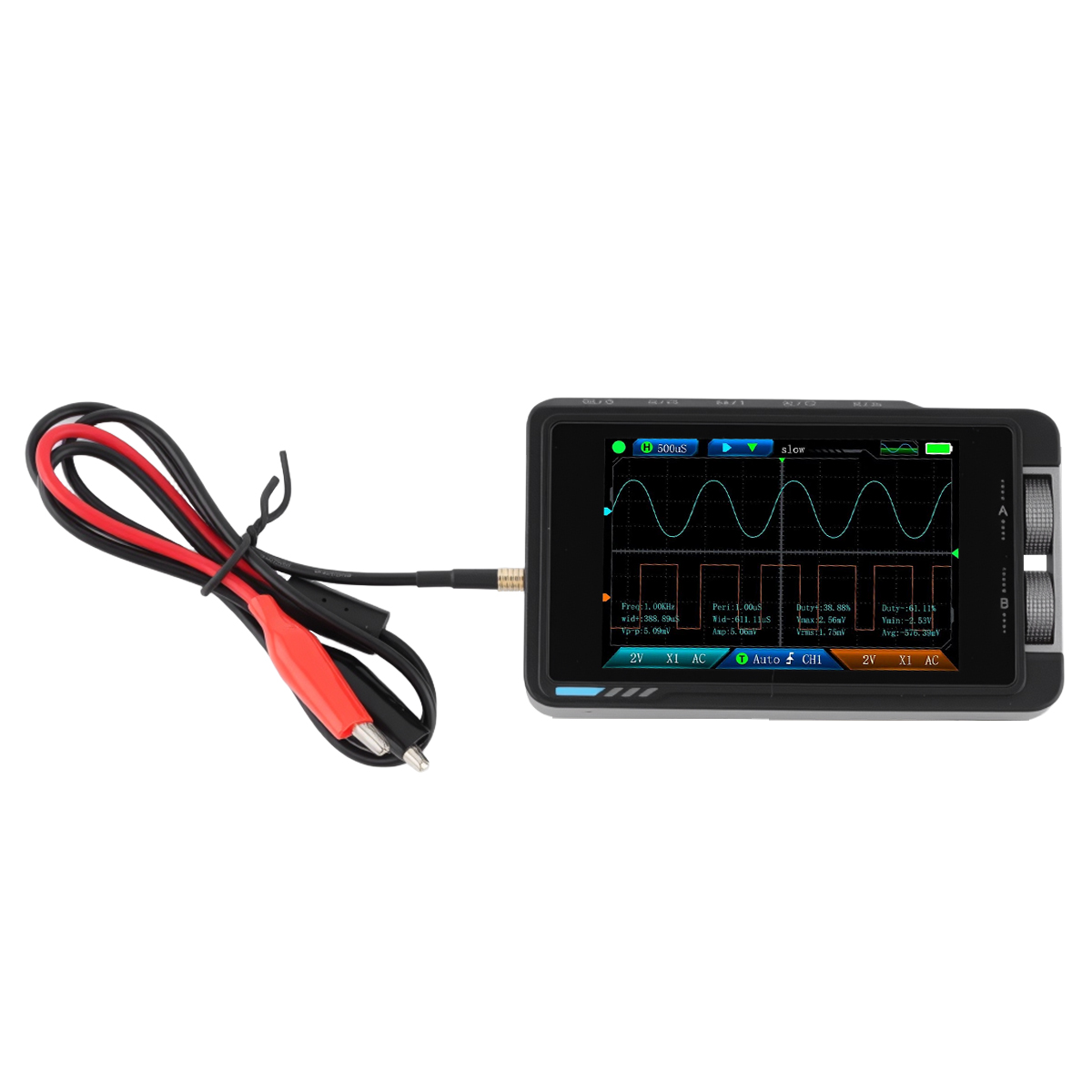

Crocodile clip probe *1

Charging line *1

User Manual *1
