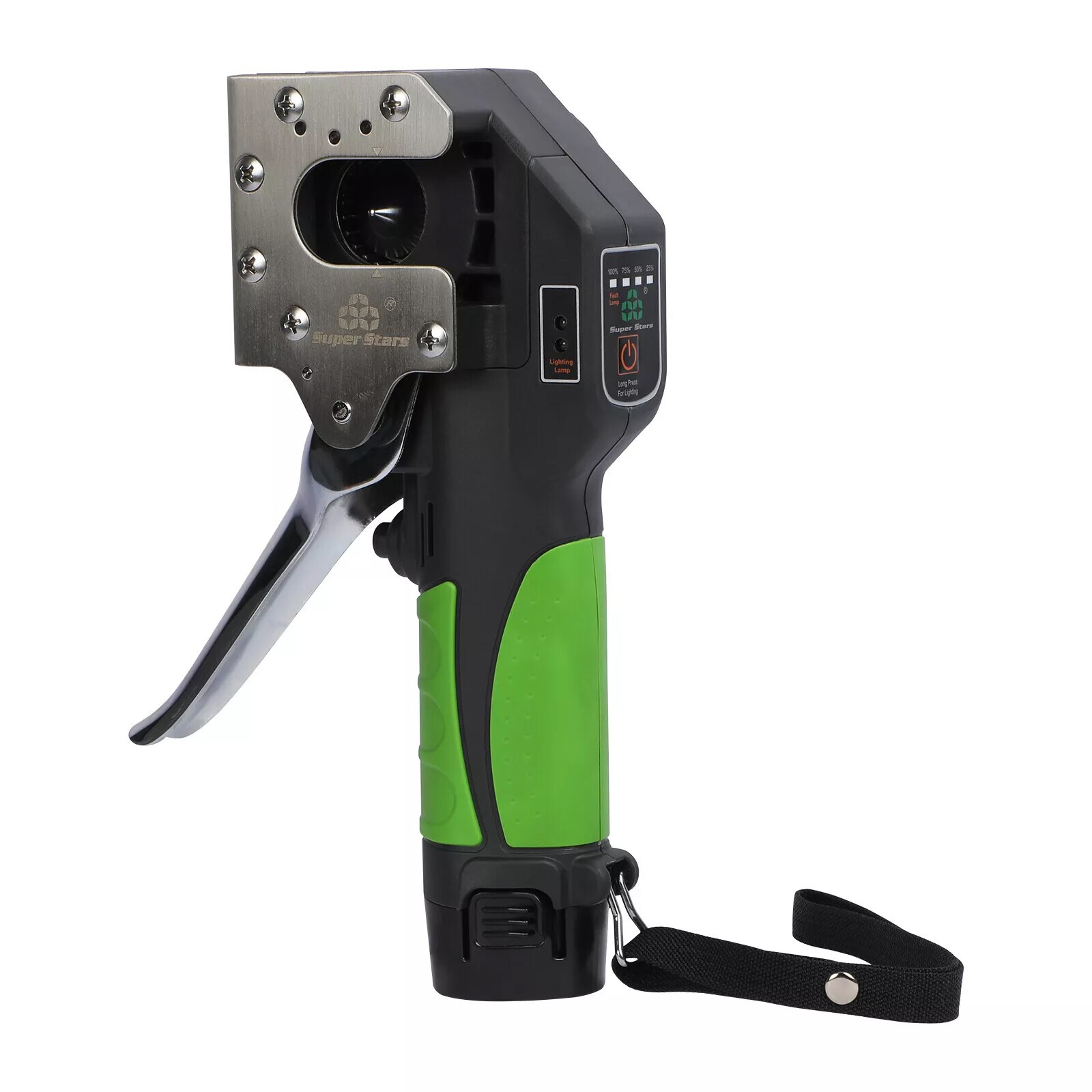

This Electric Flaring Tool can fast and perfect flaring to a standard 45° HAVC pipes. You don't have to take the time and effort to finish rough, non-standard pipes with manual pipe flaring tools.

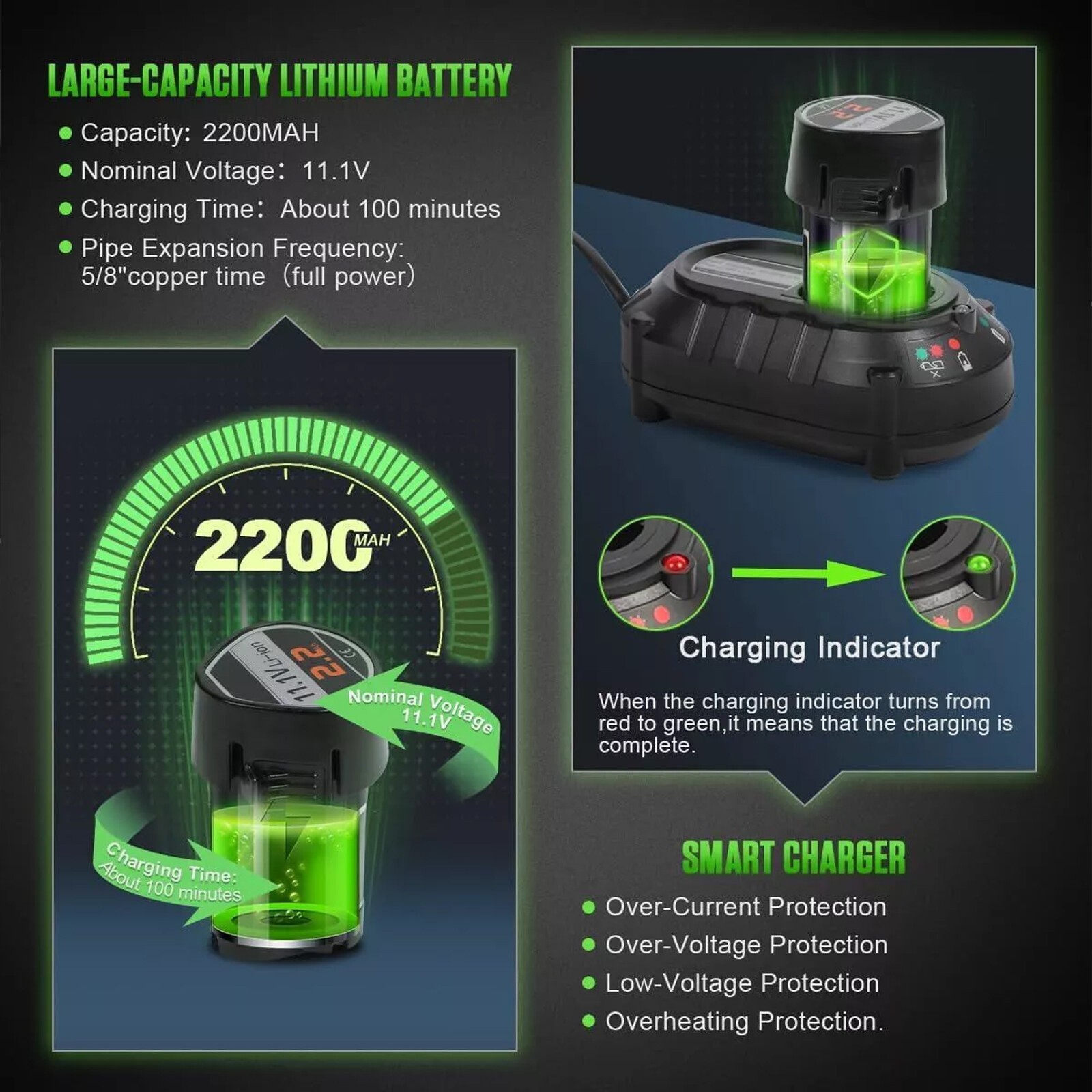

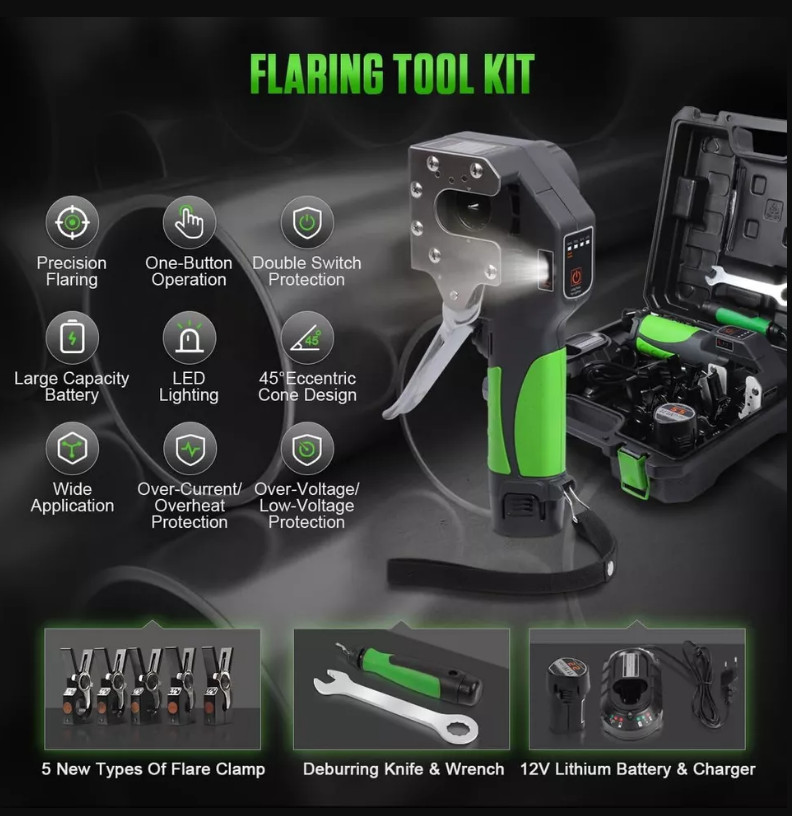

POWERFUL BATTERY
This Electric Flaring Tool comes with a rechargeable lithium battery with a capacity of 2200 mAh (about 5/8" copper 135 time at full power) and a charger.
Working voltage 11.1 V, charger output voltage DC 12 V, output current 1.5 A, input power 22 W.
Charging indicator lamp: Displaying the charging status of the battery pack.

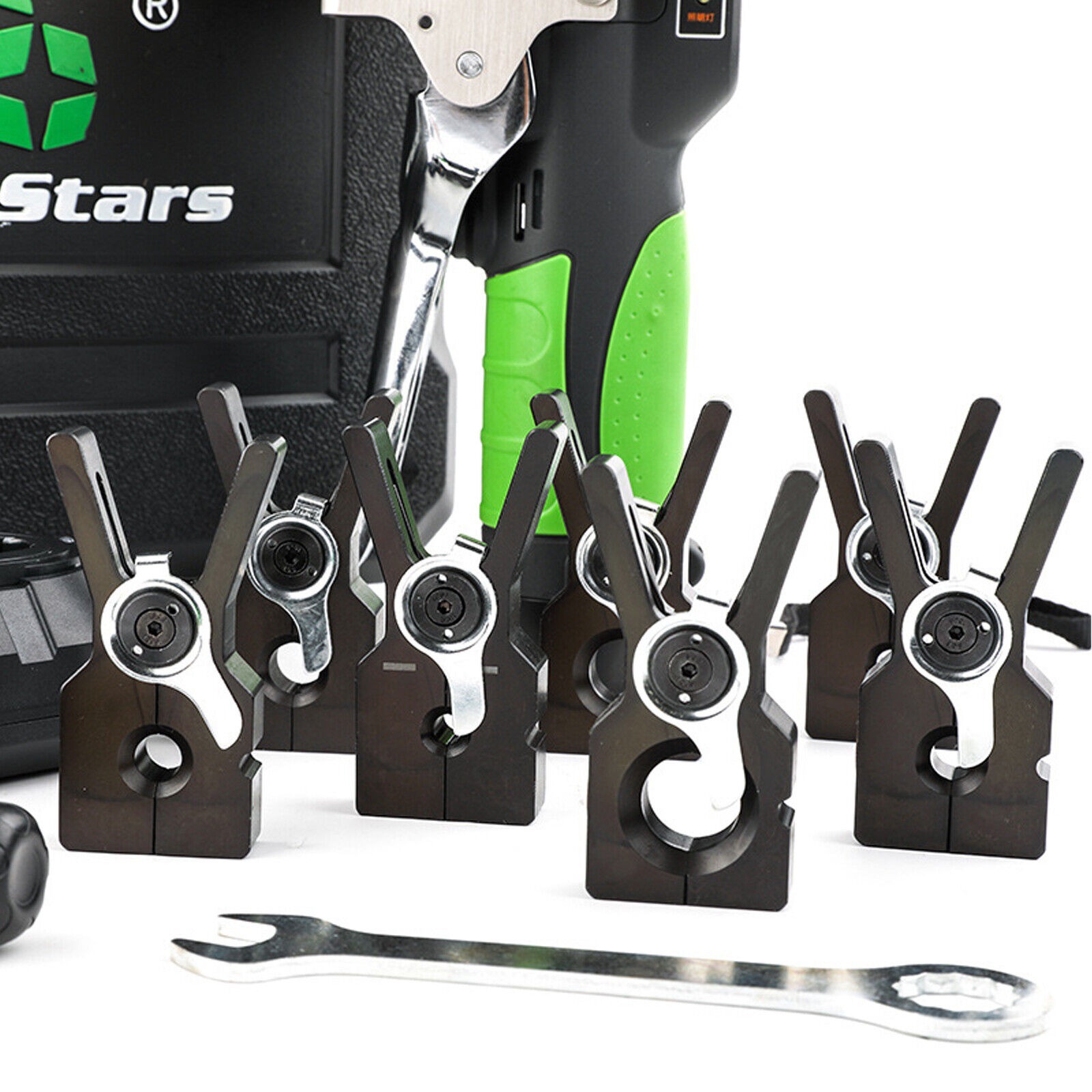

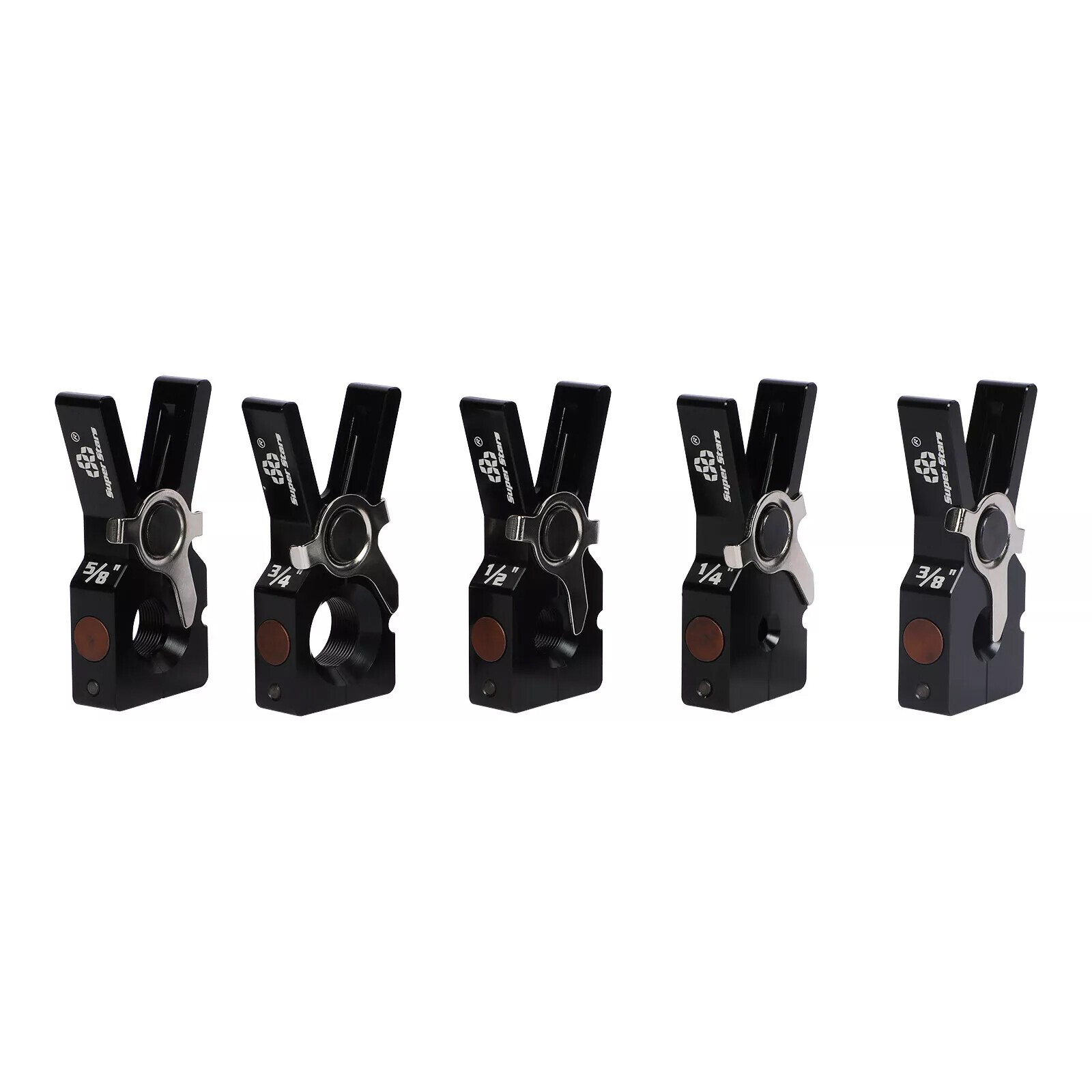

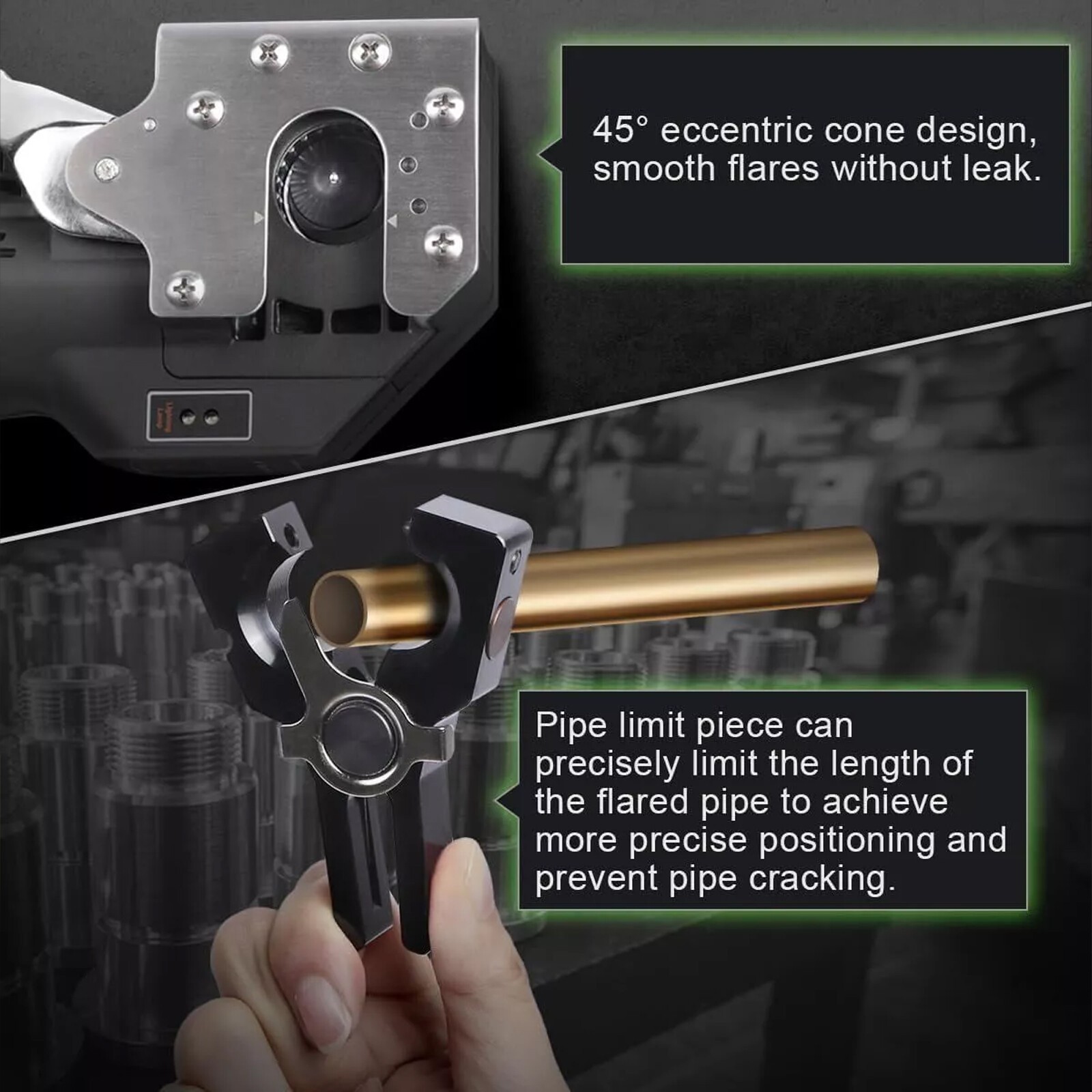

5 Sizes Pipe Limit Clamp
5 SAE Sizes - 1/4", 3/8", 1/2", 5/8", 3/4"

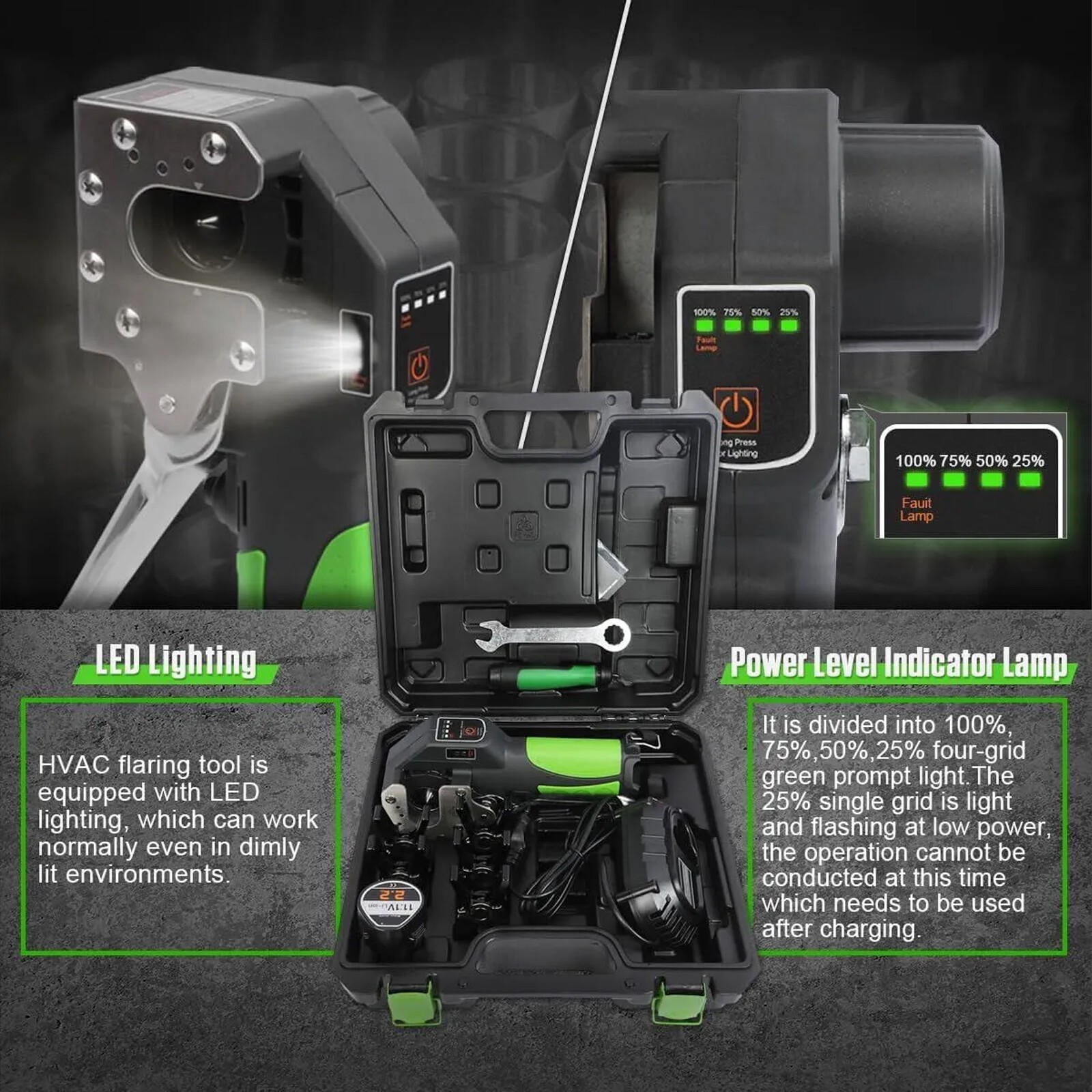

Lighting lamp: For auxiliary lighting, initially turned off state
Lighting switch:
1 ) Press on the lighting key, turn on the power indicator lamp;
2) Turn on the key 3s, Lighting on
Power level indicator lamp: It is divided into 100%, 75%, 50%, 25% Four-grid green prompt light. "100%" all on; "75%" three-grid light"; "50%" two-grid light; "25%" one-grid light"; The 25% " single grid is light and flashing at low power, the operation cannot be conducted at this time, which needs to be used after charging.
Fault lamp: Displaying the fault status (the first indicator on the left);According to the number of times the fault light on, light off and flashes, you can initially determine the fault. Please operate correctly according to the fault indicated in the manual.
Warmly Tips：
Do not put the clamp without copper pipe into the machine, which may cause damage to the clamp and the machine;
It is forbidden to open the wrench during operation to prevent the machine from getting stuck;
If the start switch is triggered by mistake in non-working state, the machine will reset automatically;
If adjust the locking structure excessively, It will be difficult to press the handle. Please adjust the outer hexagon eccentric shaft in the opposite direction until the handle is pressed normally;
If the electric flaring tool does not work, please refer to the manual to restore the operation.
