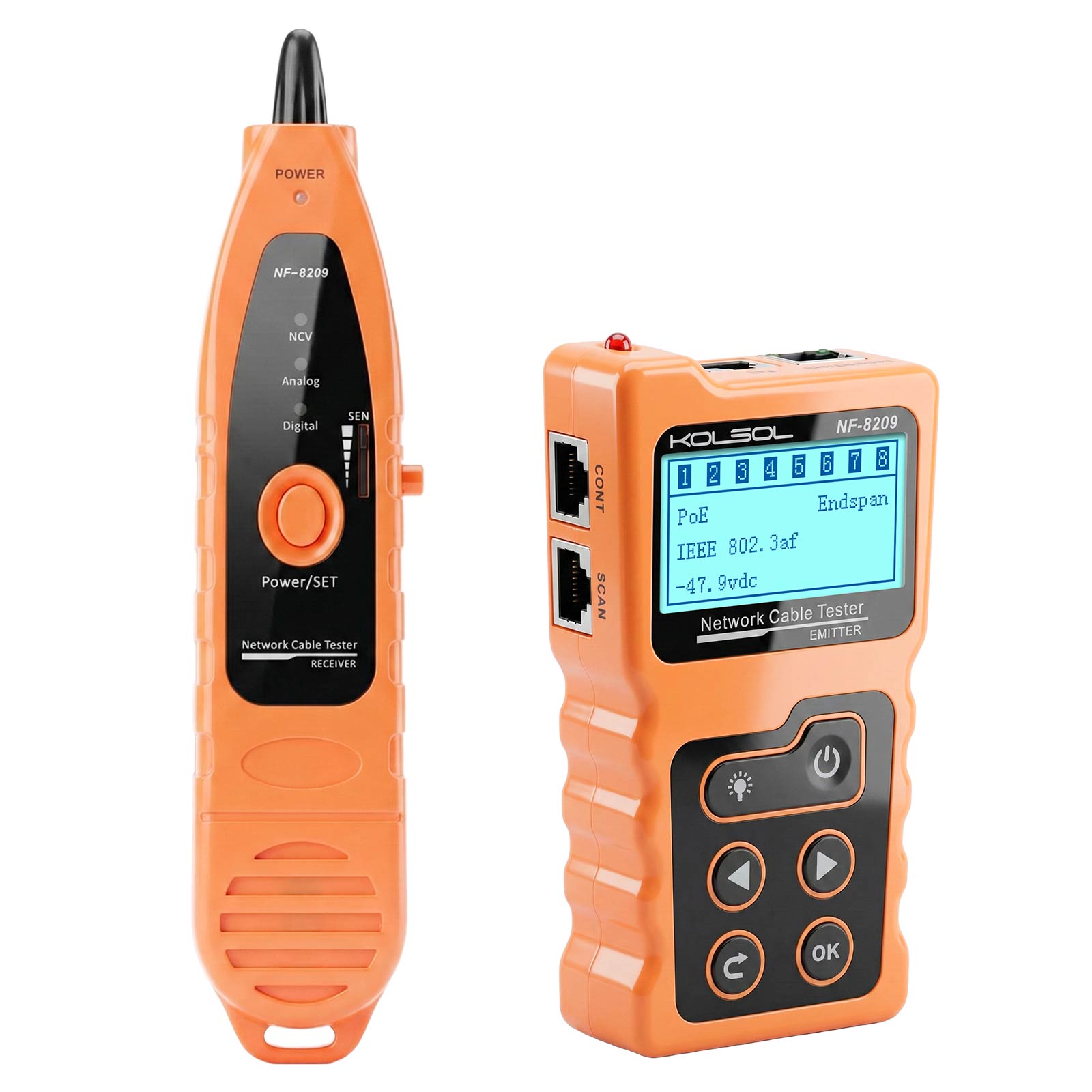

KOLSOL NF-8209 LCD Display Measure Length Lan Cable POE Wire Checker Cat5 Cat6 Lan Test Network Tool Scan Cable Wiremap Tester

NF-8209 is a new generation to offer AC filter and analog signaling all in one network toner and probe. It has three modes for options to track cable like AC filter mode, analog mode and PoE mode. That means it’s equipped with the most powerful cable location technologies for any work environment. Also, it includes cable length measurement,cable faults testing,PoE testing, hub blink and NCV function,all these makes it a must-tool for cabling engineers.

【Digital cable scanning】NF-8209 is a new generation to offer AC filter and analog signaling all in one network toner and probe. It has three modes for options to track cable like AC filter mode, analog mode and PoE mode.

【Fault distance location】Measure cable length and locate fault distance accurately for lan cable. the range is 200m.That means it's equipped with the most powerful cable location technologies for any work environment.

【Multi Function】It includes cable length measurement , cable faults testing, PoE testing, hub blink and NCV function, all these makes it a must-tool for cabling engineers.

【PoE information testing & Hub blink】 identify which pins are providing power and detect how much voltage, identify which the type of PSE (at/af standard).Locate network port by the flashing port light on Hub / Switch. Available to 10M/100M Hub/ switch.

【Cable continuity testing & NCV】Test physical status for STP, UTP lan cable. Detect AC voltage presence (50V-1000V).

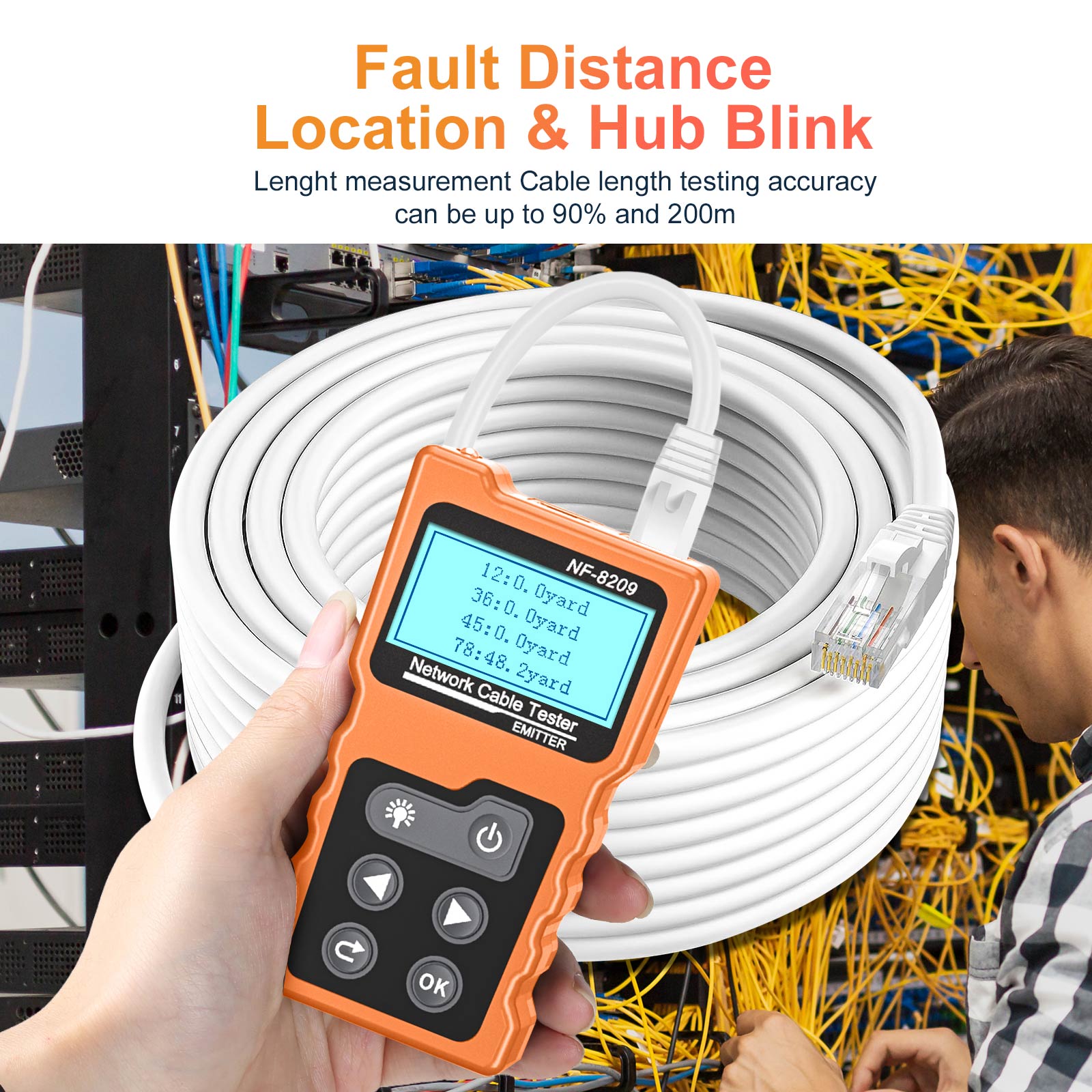

Fault distance location and length measurement

Using TDR techonology and 98% accuracy.
The range should be 2.5m~120m for high accuracy.

Digital Cable Scan

Three scan modes:Digital/Analog/PoE Swtich AC filter to tone trace cable easily

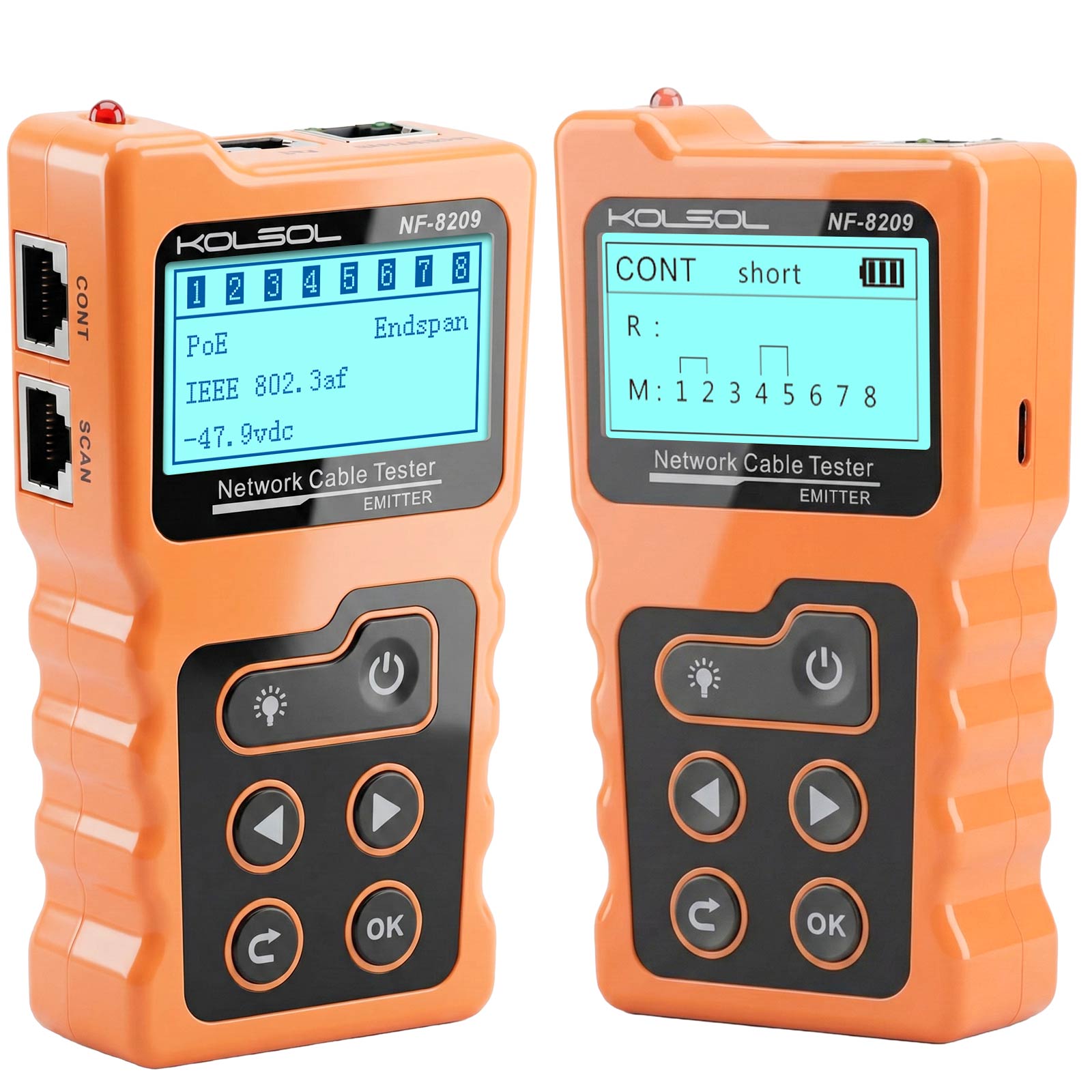

PoE Testing

Test the PoE information such as POE voltage, power supply polarity, power supply mode and the type of PSE(af or at standard).

Port Flash

Hub blink for locating network port by the flashing port light on a server/switch/hub/router port.Another easy way to locate lan cable by eyes.
The device can tell you the connected switch's information, such as its speed (10M/100M/1000M), transmitting modes (FDX: full duplex / HDX: half duplex), Protocol (Auto-Nego / Non-Auto-Nego).

Continuity Testing

Test open, short, cross,split pairs.
Cable types:Cat5e,Cat6,Cat6a, Cat7.(UTP & STP).

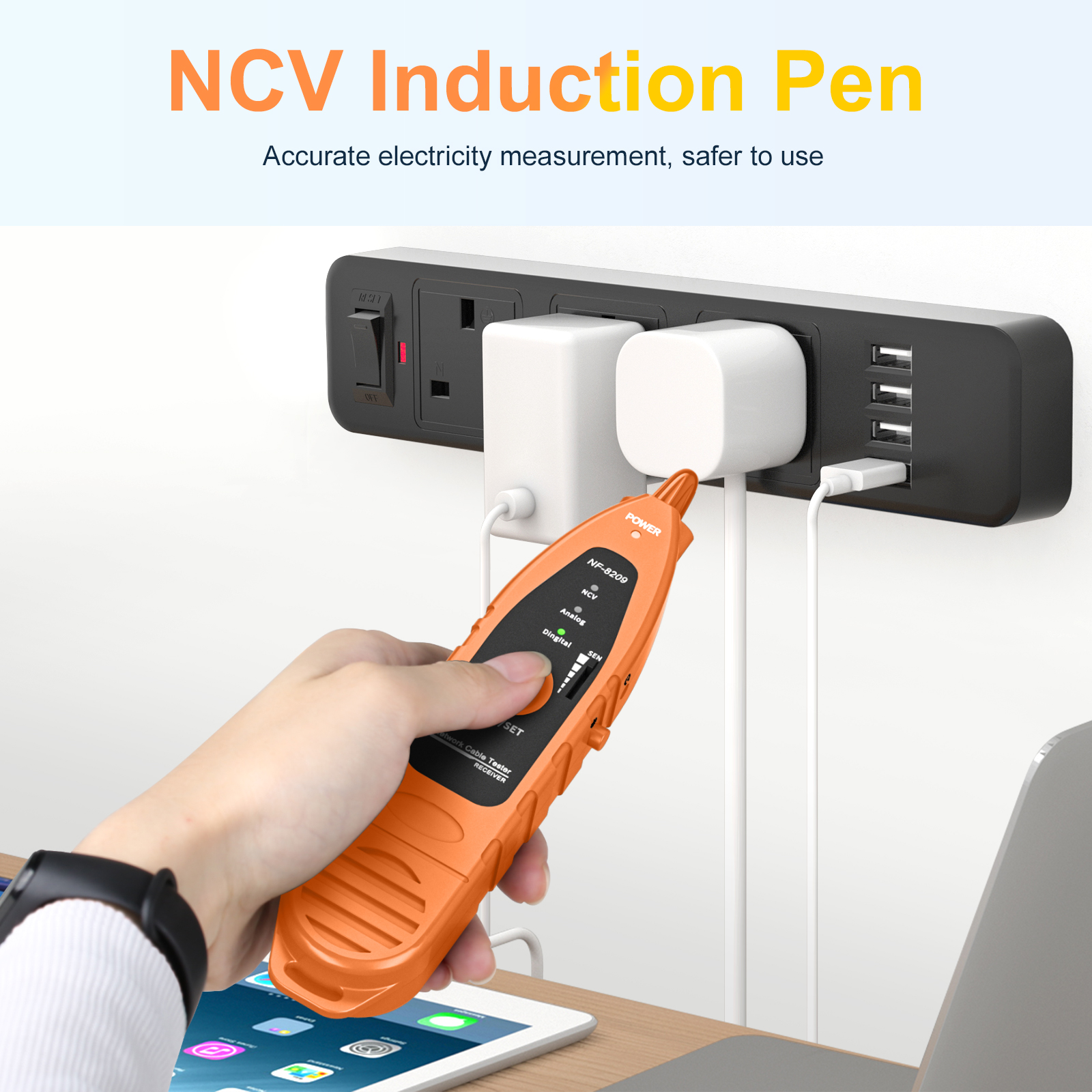

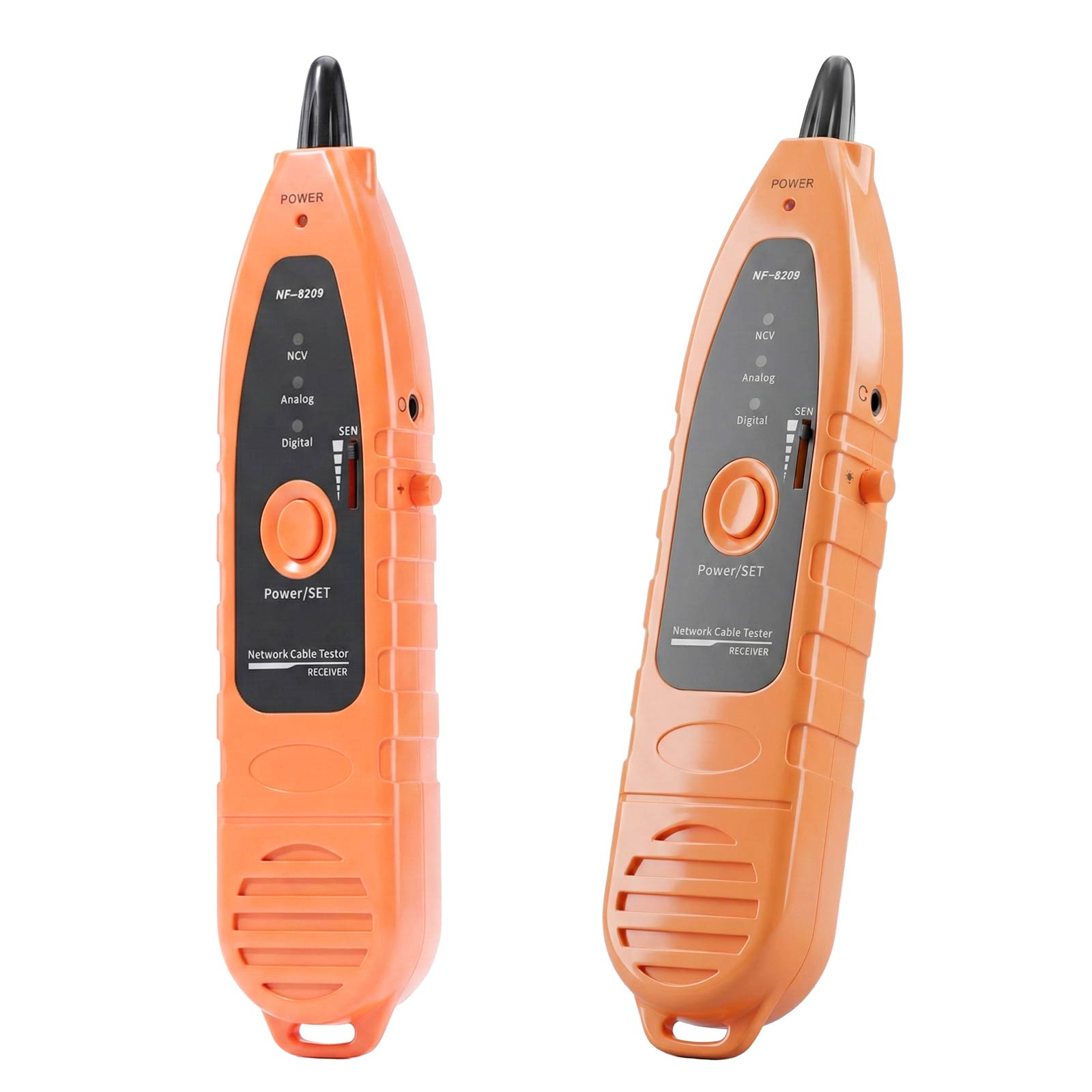

NCV Induction Pen

Receiver can also be used as voltage detector.
Accurate electricity measurement, Non-contact and safer to use.

Specification:

Transmitter	Wiremap	Cable type	CAT5e, CAT6, CAT6a (STP & UTP)
		Test with switch directly	Yes
		Max range	600m
	Length	Cable type	CAT5e, CAT6, CAT6a (STP & UTP)
		Test range	2.5m~120m
		Accuracy	±1.6m
		Breakage location	Yes
	Scan	Cable type	CAT5e, CAT6, CAT6a (STP & UTP)
		Max. signal voltage	8Vp-p
		Frequency	130KHz
		AC filter	Yes
		Max range	600m
	POE	Test range	DC 5~60V standard / non-standard PoE switch
		Voltage display	Yes
		PSE type	IEEE 802.3af/at
	LCD display		128*64 Dot-matrix with backlight
	Power supply		AAA*3(Not included)
	Low battary warning		2.7V
	Auto-off time		15min、30min、60min、OFF
	Max working current		<150mA
Receiver	Sentivity adjustable		Yes
	AC Voltage detecting		Yes
	Lamp		Yes
	Battary type		9V*1
	Low battary warning		6± 0.5V
	Max working current		<100mA
Remote	Wiremap Port		RJ45

Is_customized:Yes

Brand Name : KOLSOL

Model Number : NF-8209

Place of Origin : Shenzhen.China

Main Function : Detecting PoE voltage, PSE standards Power supply modes, Scan & Test lan cables

Test Type : CAT5e, CAT6, CAT6a (STP & UTP)

Other Function : NCV & Lamp

Warranty : 1 Year

Please note ：Batteries are not included in the package

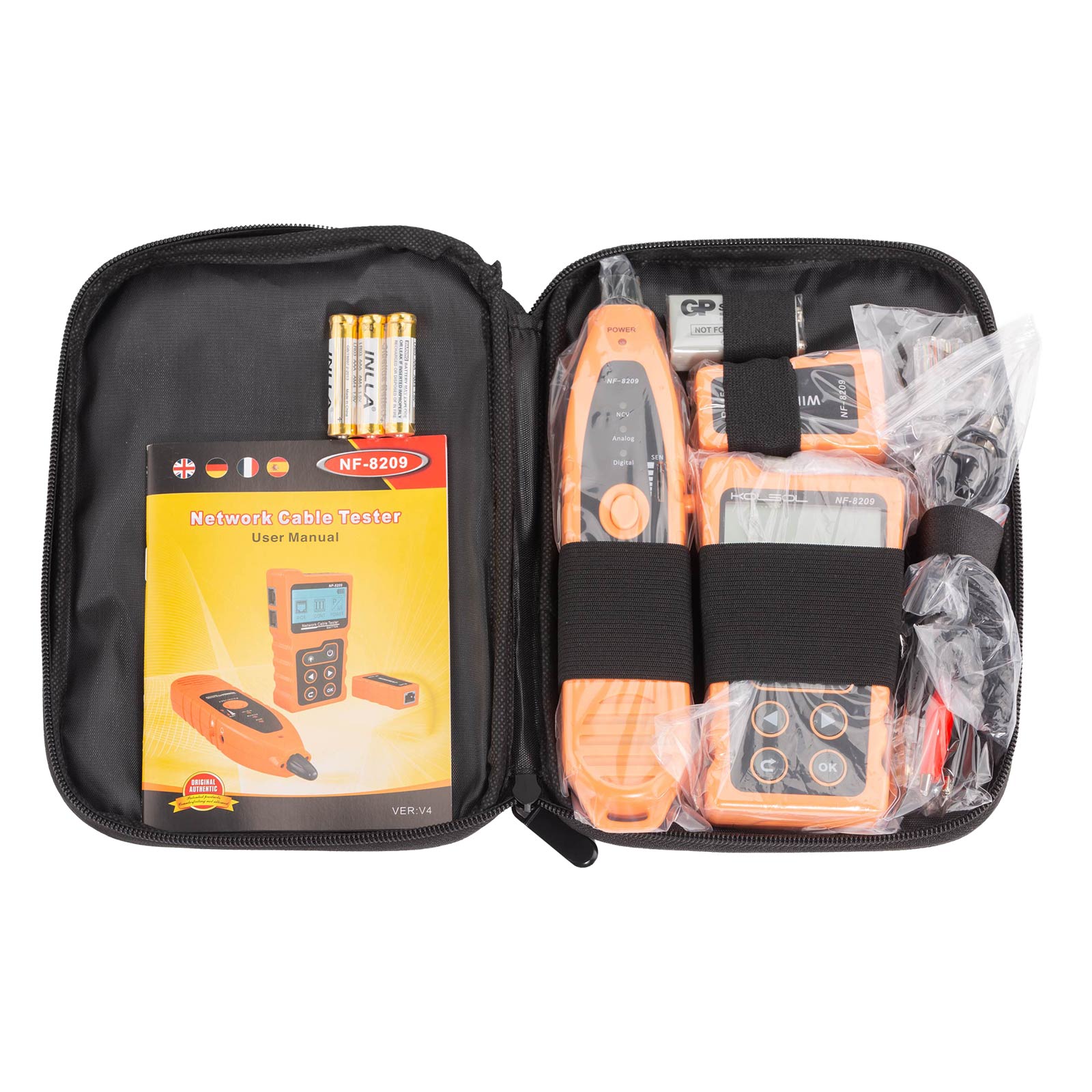

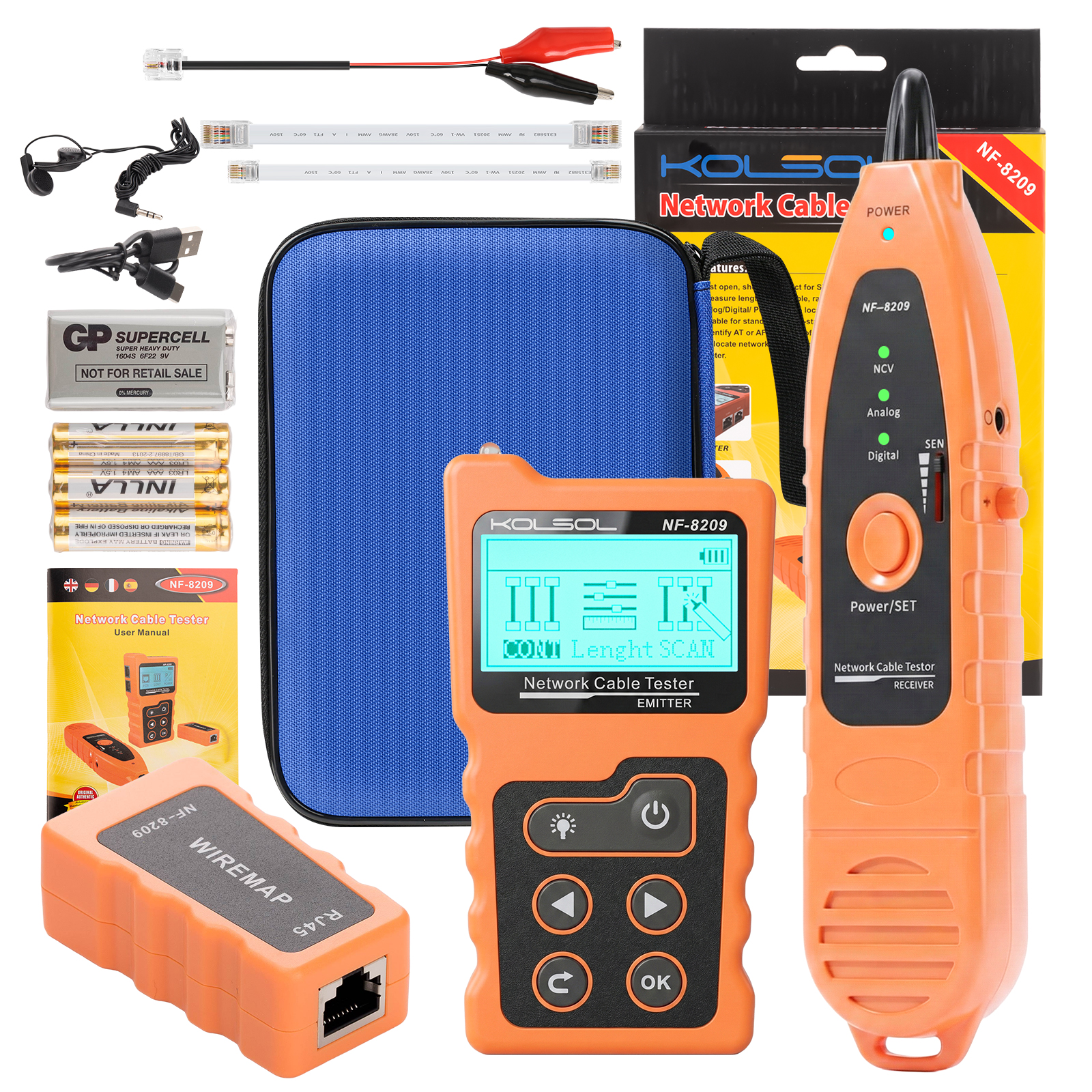

Package includes:

1pc x emitter

1pc x receiver

1pc x RJ45 wiremap

1pc x type-c cable

1pc x earphone

2pcs x network cables

1pc x RJ45 to alligator clips
3pcs x 1.5V batteries
1pc x 9V battery

1pc x bag
1pc x manual
