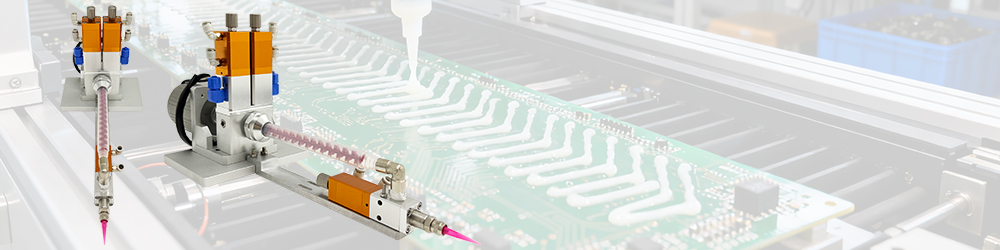

Electric Anti-drip Mixing Valve

Electric Anti-drip Mixing Valve AB Double Liquid Dispensing Valve 110V

TECHTONGDA®

ITEM DESCRIPTION
Crafted with high-quality stainless steel and aluminum alloy materials using precision CNC lathe machining. Features exquisite structure, high precision, wear and corrosion resistance, and long service life.
Precision dispensing operation with quick response to backward suction. Ensures even discharge, no dripping, and prevents glue drawing.
Air compression driven with fluid sealing structure. Reduces sealing piece replacement, enables efficient operation, saves costs, minimizes loss, and allows convenient maintenance.

Professional valve for uniform mixing of double liquids and efficient, accurate dispensing. Anti-drip structural design prevents environmental pollution. Saves time and labor while improving dispensing efficiency. Applications include electronic packaging, precision adhesion, new energy manufacturing, medical equipment, and automotive electronics.

ITEM PARAMETERS
Parameter Specification
Model QLH-105F
Voltage AC110V/60Hz
Type Double-acting air cylinder backward suction
Air Cylinder Double-acting air cylinder
Main Material Stainless steel + POM + aluminum alloy anodizing
Operation Viscosity 1-1,000,000 cps
Minimum Output Amount 0.01 ml
Feeding Pressure < 300 kg
Feeding Inlet Size 1/8'' npt(f)
Operating Speed < 600/min
Output Pressure Adjusting Range 0-0.06 MPa
Product Size 44 × 15 × 18 cm (17.3 × 5.9 × 7.1 inches)
Net Weight 3.2 kg (7.1 LBS)

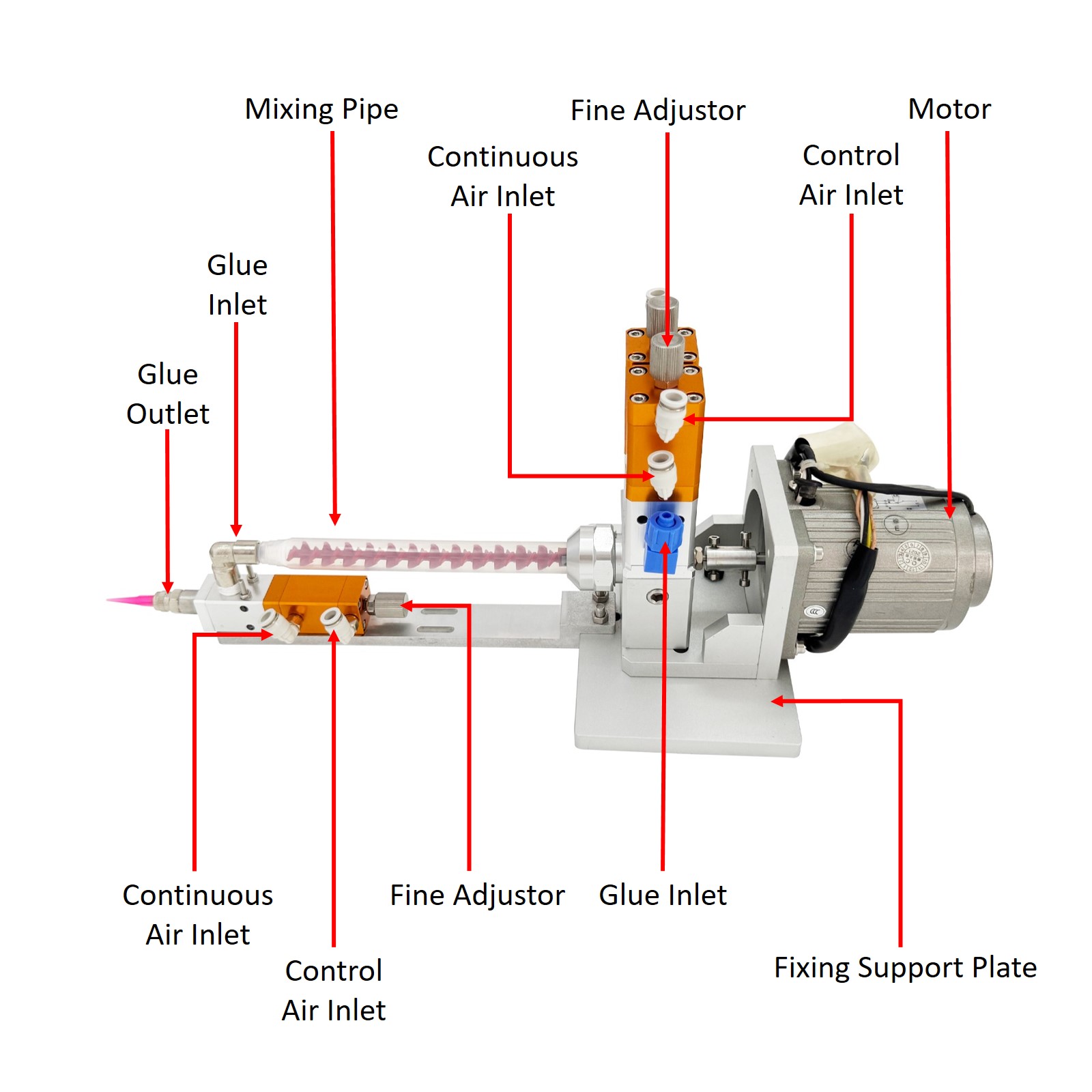

Valve Details
ITEM MAINTENANCE & PRECAUTIONS
  • Operation Monitoring: Monitor valve opening/closing indication and valve stem running during operation. Stop machine immediately if abnormal indications or noises occur.
  • Stroke Control: After initial setup of stroke and over-torque controller, monitor stroke control. Manually stop if machine doesn't halt at position limits.
  • Close in Place: For full closure, stop electric valve before complete closure and use micro motion to finalize positioning.
  • Power Management: Disconnect power supply after successful operation completion.
  • Special Operation:
    • Multi-valve Operation: Follow proper sequence according to production requirements.
    • Ball valves, gate valves, globe valves, and butterfly valves are for full open/close only - not for regulation.
  • Maintenance Safety: Always disconnect power before cleaning or inspection.
ITEM DETAILS
Uniform Dispensing

Uniform dispensing, free of drip leakage, high controllability of dispensing operation and waste reduction.

Real-time Mixing

Real-time sufficient mixing of double liquid, good stirring effect, high mixing uniformity.

Double Channel Control

Double channel independent control, high mixing precision and stability, adapt to multiple proportions.

High-quality Motor

High-quality motor, stable operation, provide stable driving force, high durability and long service life.

Speed Regulation

Dispensing speed regulation and control are quick and convenient, and connection is easy.

Fixing and Support

Good fixing and supporting effect, high reliability and practicability, firm and durable.

ITEM OPERATING INSTRUCTION

A. Preparation Before Operation

  • Read the instruction manual thoroughly before operation.
  • Inspect valve appearance for damage or moisture. Do not operate if issues detected.
  • Confirm medium flow direction and valve opening/closing indicators.
  • For devices idle for 3+ months: Check clutch, ensure handle in manual position, verify motor insulation, steering, and electrical circuits.

B. Starting and Running

  • Connect external power supply, activate power switch (indicator light illuminates).
  • Mode Selection:
    • Local Control: Switch to RUN position, motor activates. Adjust speed via SPEED CONTROL knob.
  • Execute Operation: Press ON/OFF button to activate valve. Automatic stop at full open/close positions.
  • Parameter Adjustment: Set discharge volume as required (minimum 0.01ml).

C. Operation Completion

  • Reset: Return speed control knob to minimum, set timer to zero (if applicable), deactivate power switch, disconnect power.
  • Cleaning: Thoroughly clean mixing rod; ensure no moisture or residue remains.
Included Items
ITEM INCLUDED (057189)
1 x Electric Anti-drip Dispensing Valve 110V
