Description:
1. Hydraulic manual crimping machine is compact and easy to move.
2. The manual pump operation of buckle pressure mode can flow operation, which is suitable for use without power supply.

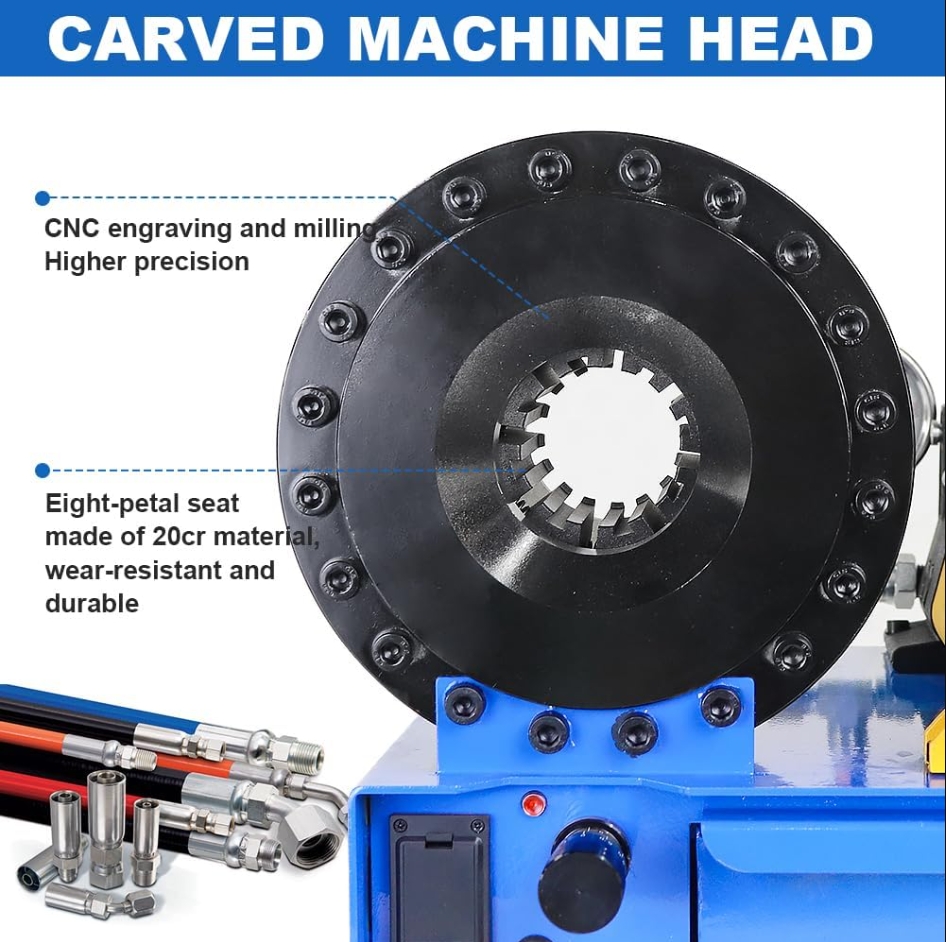

3. Adopt the dedicated die steel material and unique heat treatment process.
4. Limit valve,rotary positioning, scaleadjustment,high precision,used toadjust the shrinkage.
5. Hydraulic gauge real-time display the pressure to avoid pressure overload.
6. Euipped with 7 set of dies mould, convenient to remove and install dies.
Parameters:
Type: Manual hydraulic hose crimper machine
Operation mode: manual
Crimping range: 6-25mm
Crimping inner diameter : 1/8-1inch
System pressure: 31.5MPa
Buckle pressure : 5600KN

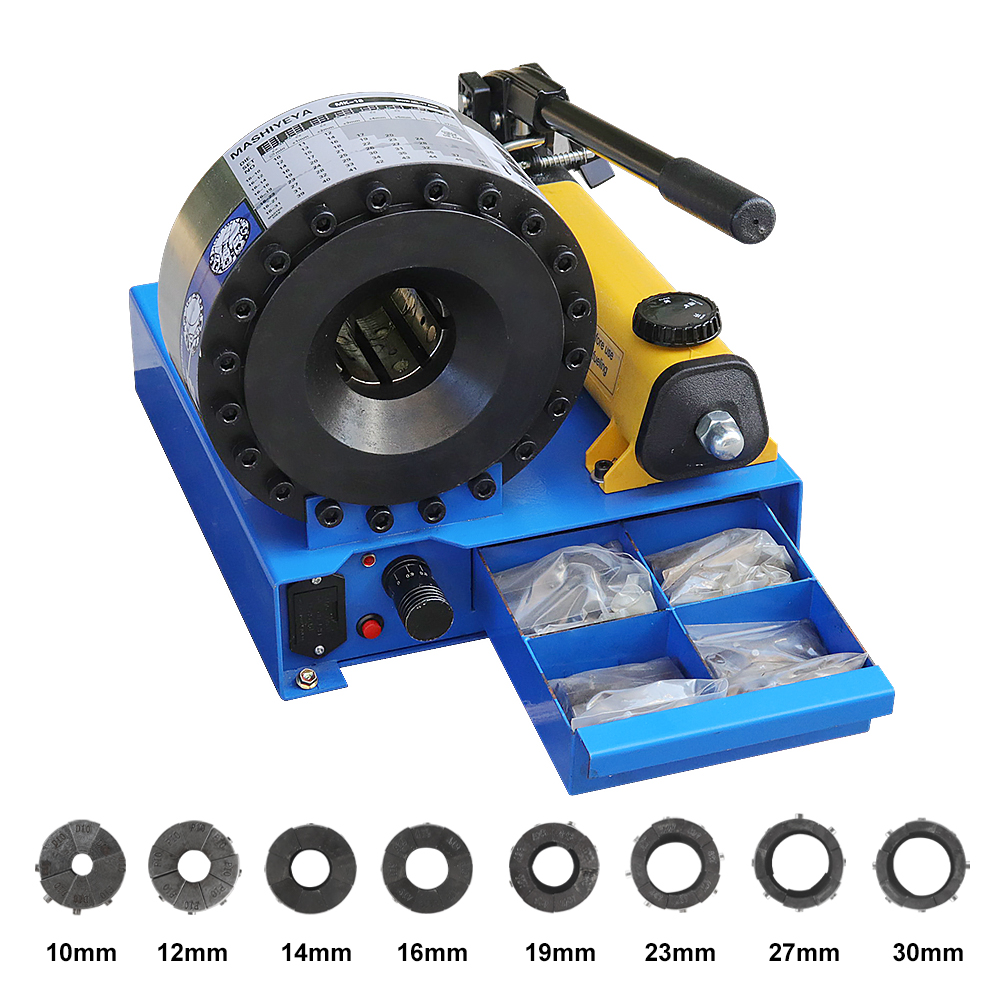

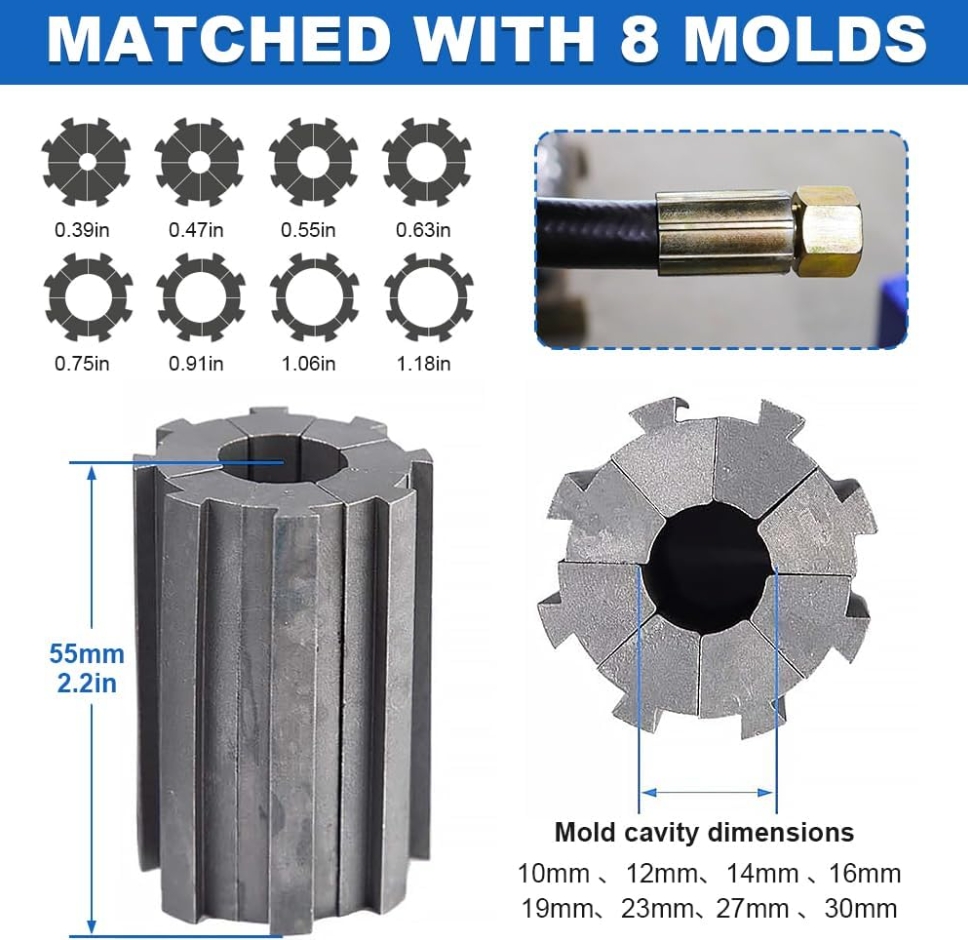

Number of molds :8 sets (10mm, 12mm，14mm, 16mm, 19mm, 23mm, 27mm, 31mm)
Mold Hose I.D：3mm，6mm，8mm，10mm，13mm，16mm，19mm，25mm
Mold Length：60mm
Weight: 31KG
