Electric Worm Gear Slewing Drive DC24V

Electric Worm Gear Slewing Drive DC24V

INTSUPERMAI®
ITEM DESCRIPTION
Integrated Worm Gear Mechanism
Operates on DC 24V power with integrated worm gear mechanism for precise motion control.
Self-Locking Capability
Features self-locking capability, compact structure, and smooth operation.
Rotary Motion Conversion
Converts motor's rotary motion into low-speed, high-torque output drive for precise angular slewing.
Application Versatility
Suitable for solar tracking systems, automated rotary platforms, medical equipment, and industrial valve control.
ITEM PARAMETERS

Rotary Reducer Performance

Parameter Value
Rated Speed 1.028rpm
Rated Torque 320KN.m
Reduction Ratio 71:1
Transmission Accuracy 0.2°
Transmission Efficiency ≈40%
Ambient Temperature -20~+80℃
Holding Torque 10.4 KN.m
Static Axial Load (Coa) 133 kN
Static Radial Load (Cor) 53 kN
Dynamic Axial Load (Ca) 32 kN
Dynamic Radial Load (Cr) 28 kN
Tilting Moment Torque (Com) 13.5 KN.m
Package Size 22.0"*15.3"*6.7" (56cm*39cm*17cm)
Net Weight / Gross Weight 54.4lbs(24.7kg) / 56.4lbs(25.6kg)

Planetary Gear Motor Performance Parameters (24/730/12L)

Parameter Value
Rated Voltage 24 VDC
Rated Speed 73rpm
Rated Torque 12N.m
Rated Current 7.3 A
Protection Rating IP65
Ambient Temperature -40~+80℃
ITEM PRECAUTIONS
Important Safety Information
  • During transportation, ensure the rotary reducer packaging box is positioned in the specified orientation and avoid collisions.
  • When handling, wear work gloves and operate with caution.
  • Rotary reducers feature threaded holes on both inner and outer rings for safe lifting and transportation using hoisting equipment.
  • During storage, maintain the specified orientation of the rotary reducer packaging box.
  • Store in a closed room to prevent moisture exposure.
  • Within sealed packaging, surface corrosion and rust protection can be maintained for approximately 5 months.
  • For longer storage periods, implement special protective measures.
  • Approximately 100 hours after initial assembly, retighten all bolts to the specified torque.
  • This inspection should be performed annually.
  • Under special operating conditions, the frequency of inspections may be reduced.
  • If any bolts are found loose, immediately replace all bolts, nuts, and washers.
ITEM DETAILS
Grease Nipple
Grease Nipple

High-temperature grease is pressurized and injected via a specialized grease gun, enabling lubricant to overcome tight meshing resistance of the worm gear pair, continuously replenish gear friction surfaces with grease, reducing transmission noise, minimizing wear, and extending equipment service life.

All-Copper Coil DC Motor
All-Copper Coil DC Motor

Utilizes high-conductivity copper windings, offering low resistance, reduced heat generation, and high energy efficiency. Operates on safe 24V DC power supply to deliver smooth starting torque and precise speed control for the worm gear system.

Sealing Ring
Sealing Ring

Features high elasticity and aging resistance, conforming to dynamic gaps between shaft system and housing. Multi-lip structure blocks intrusion of external dust and moisture while preventing internal grease leakage.

ITEM INSTALLATION INSTRUCTION
  • Clean the mounting bracket to remove welding spatter, zinc residue, and other contaminants.
  • Secure the bracket to the slewing reducer with bolts. Flat washers and spring washers must be installed under the bolt heads.
  • The slewing reducer shall be installed in a no-load state.

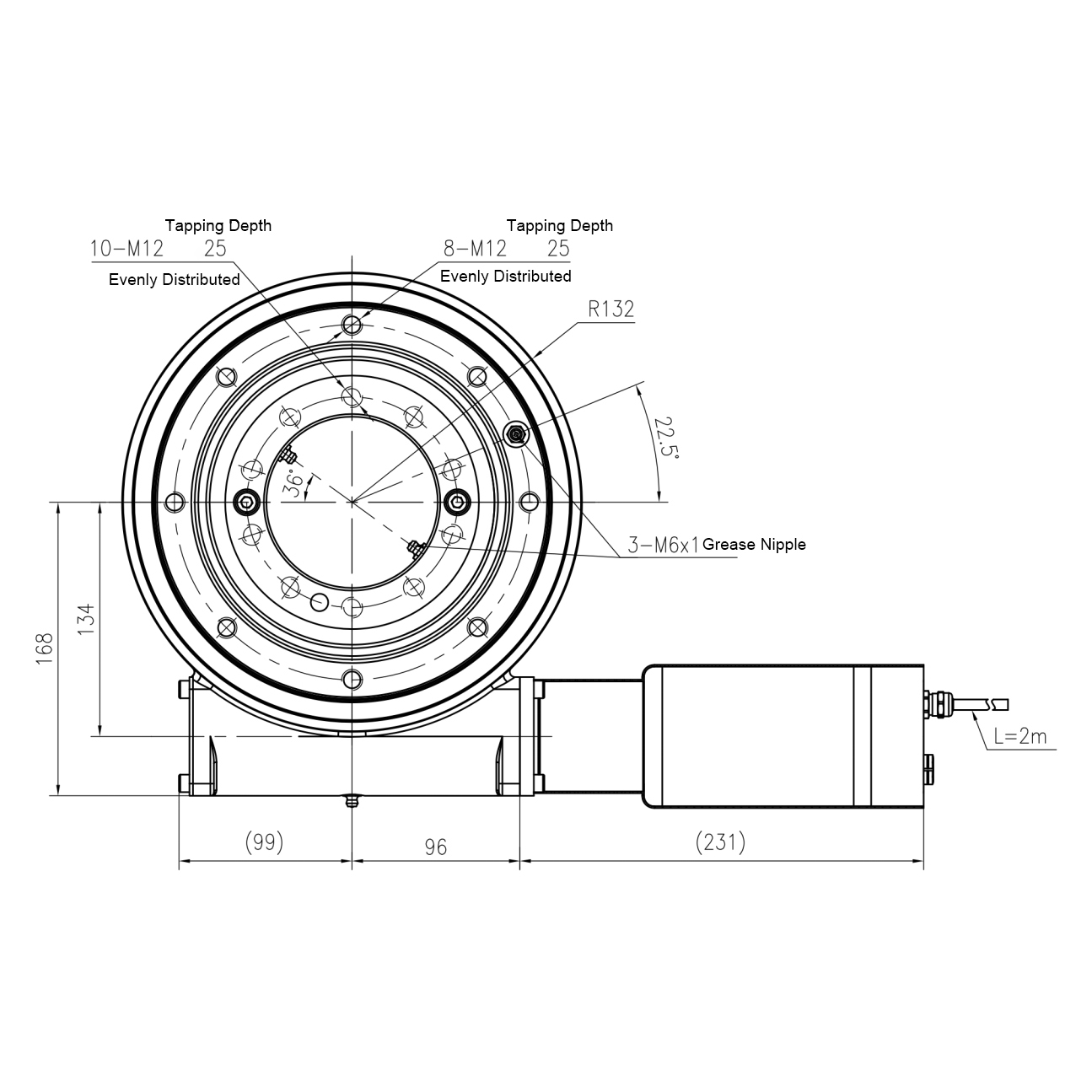

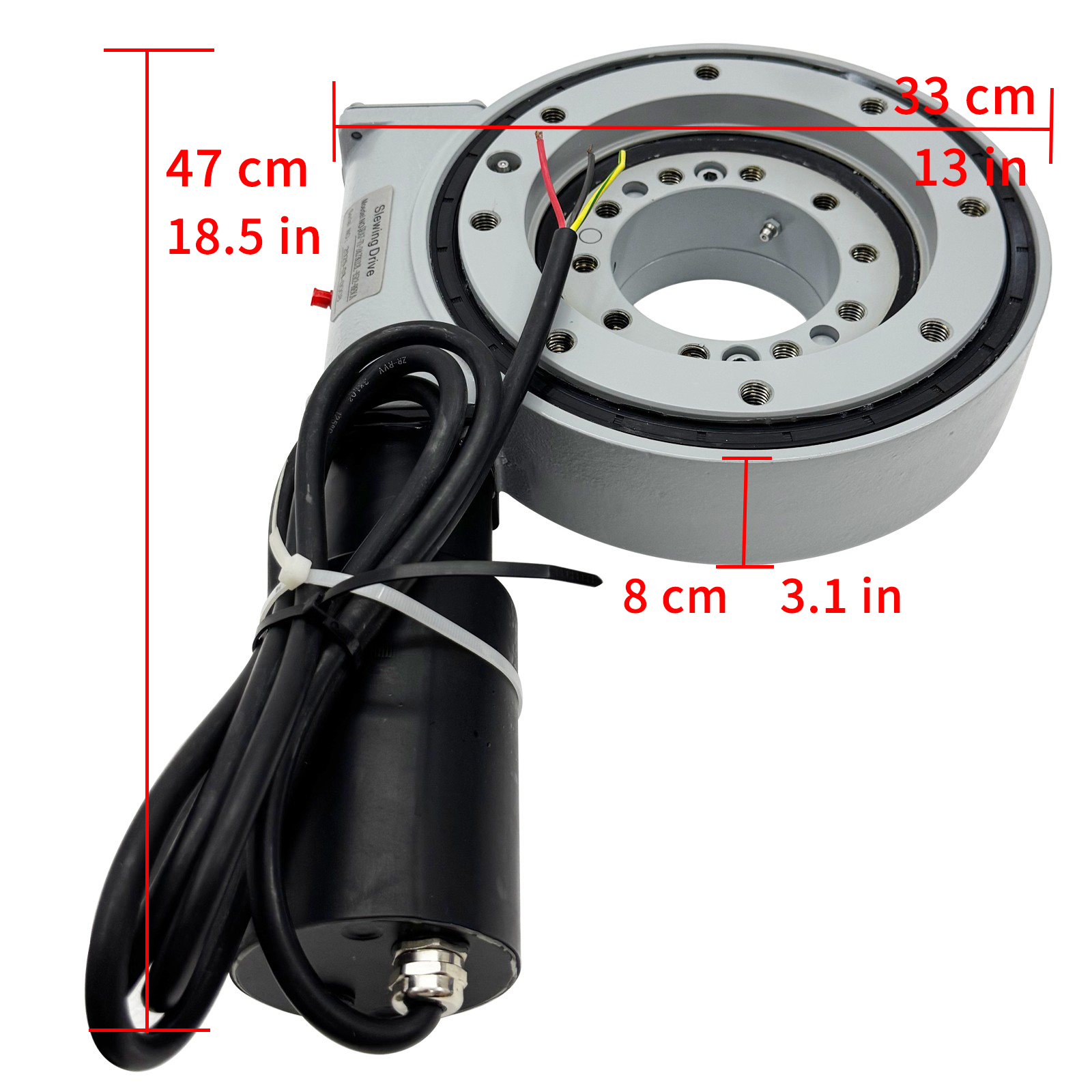

Installation Diagram 1 Installation Diagram 2 Installation Diagram 3
ITEM INCLUDED (057142)
Component Quantity
Electric Worm Gear Slewing Drive DC24V 1
AC Motor Speed Controller 1
