Introduction:

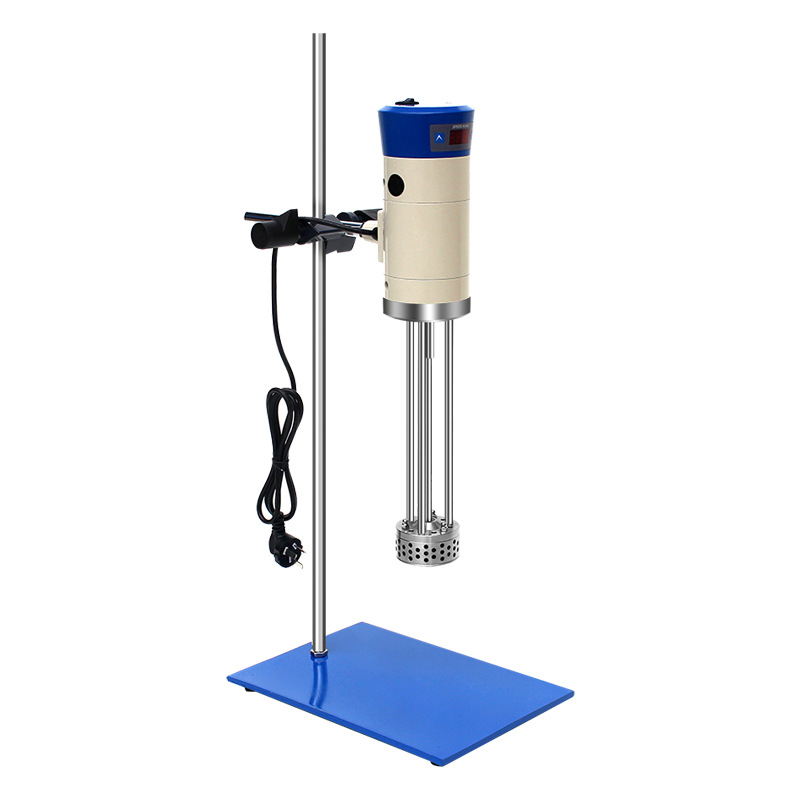

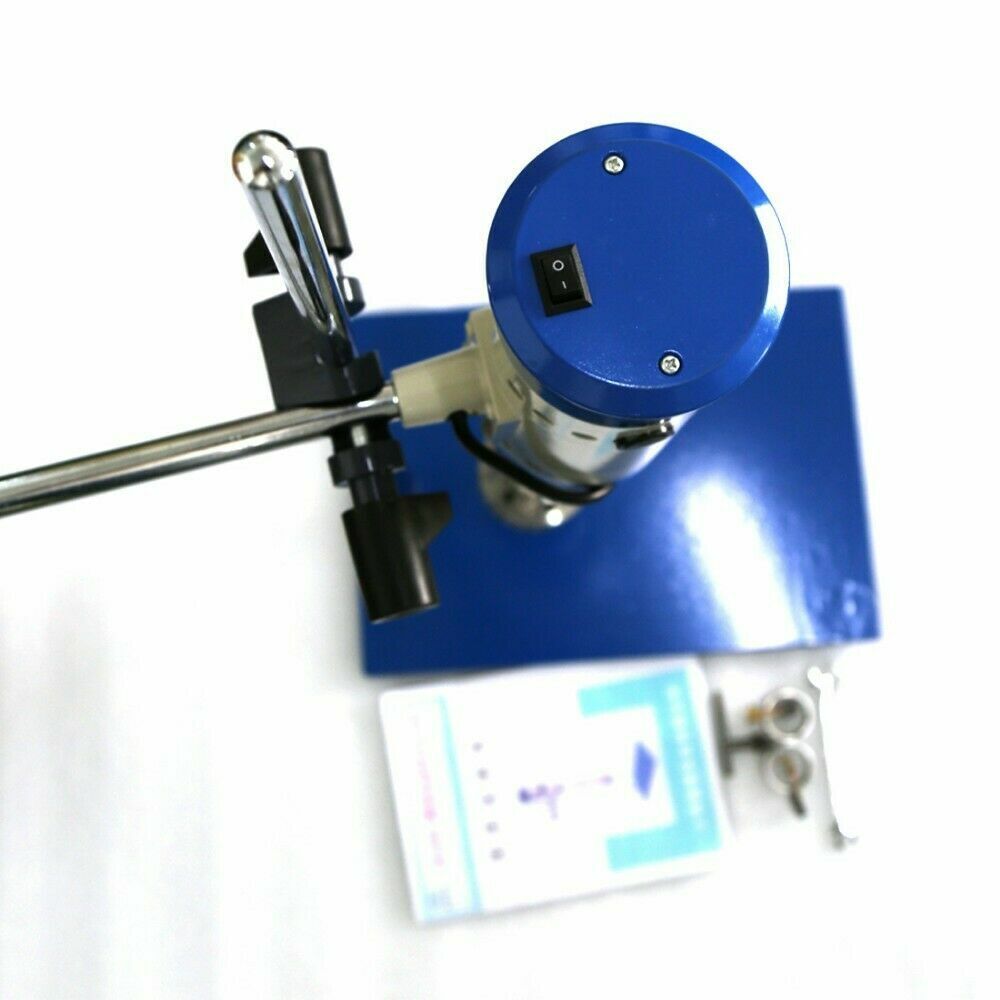

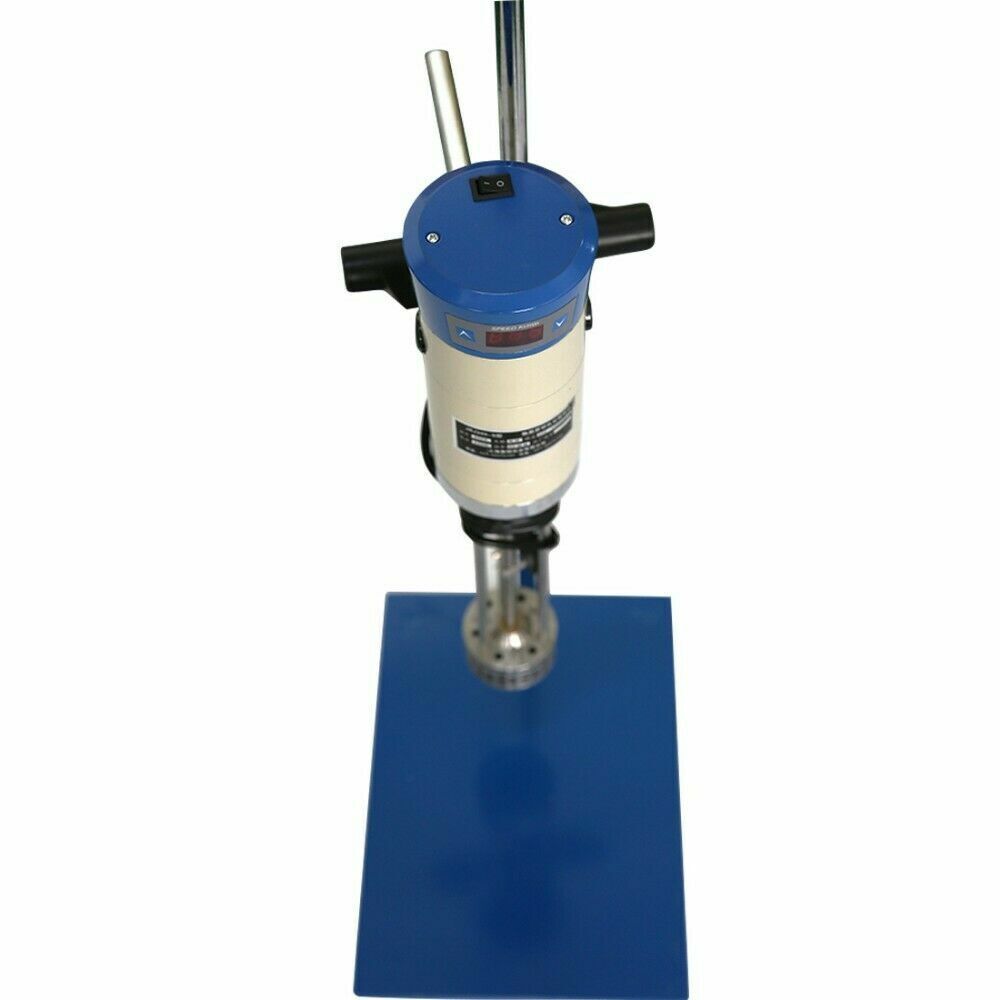

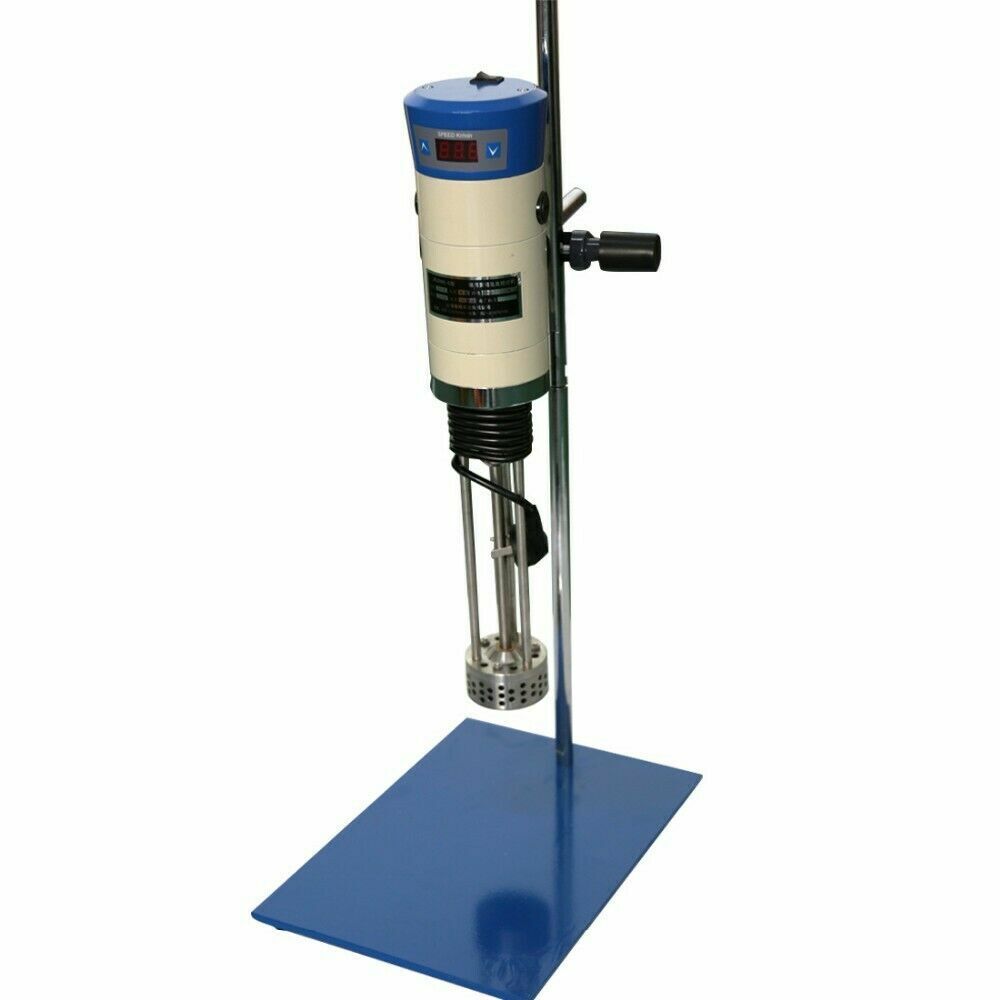

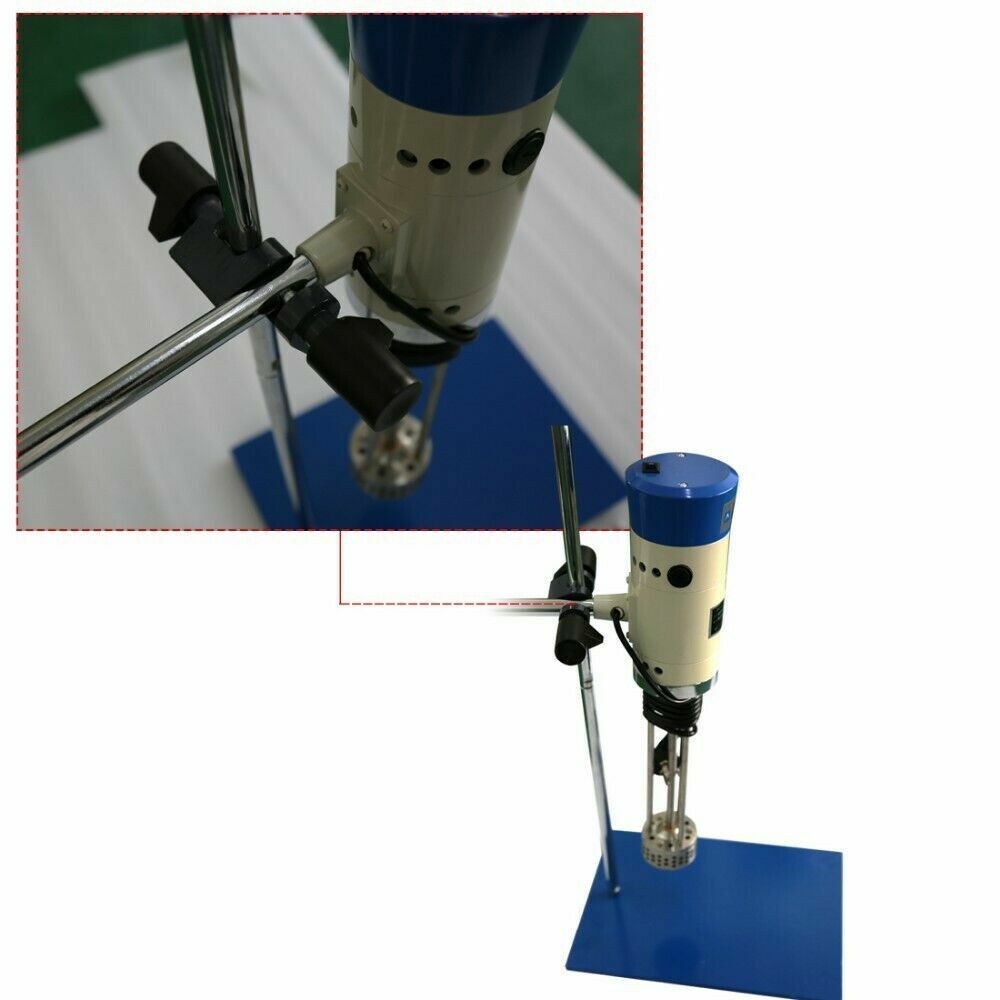

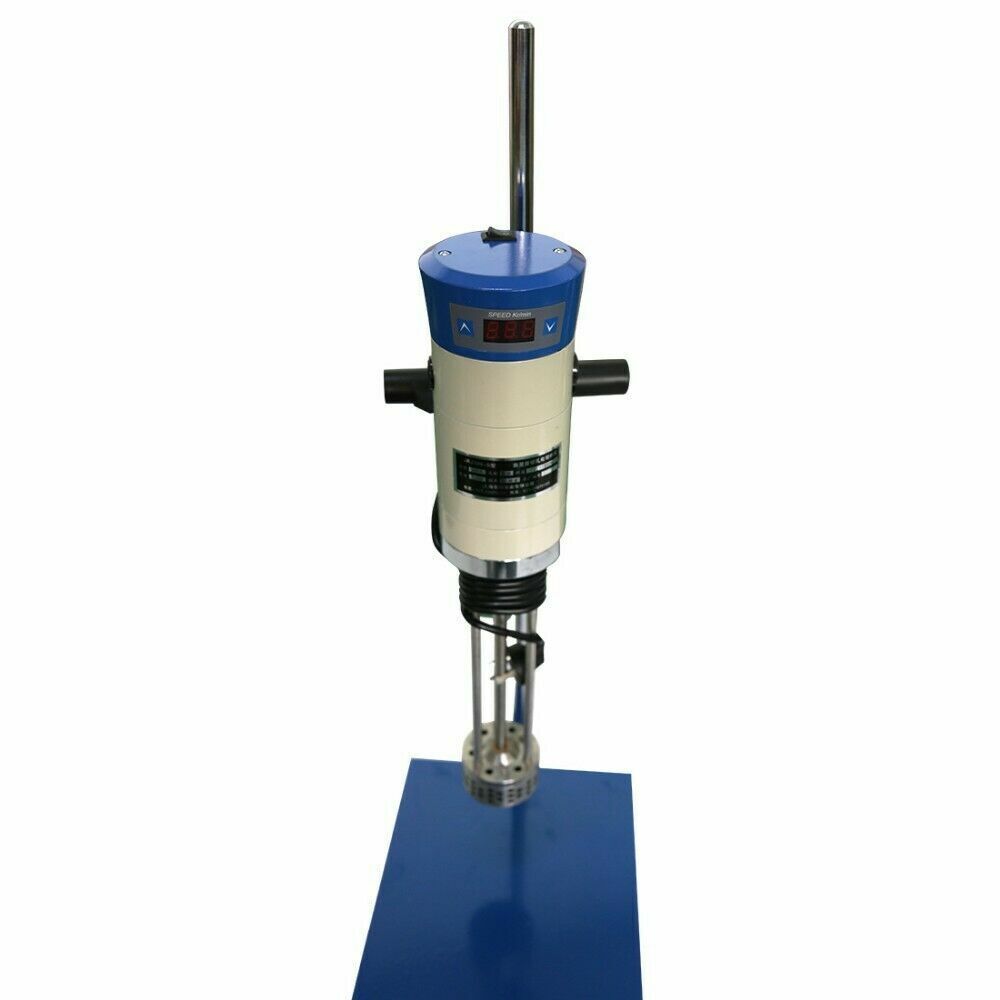

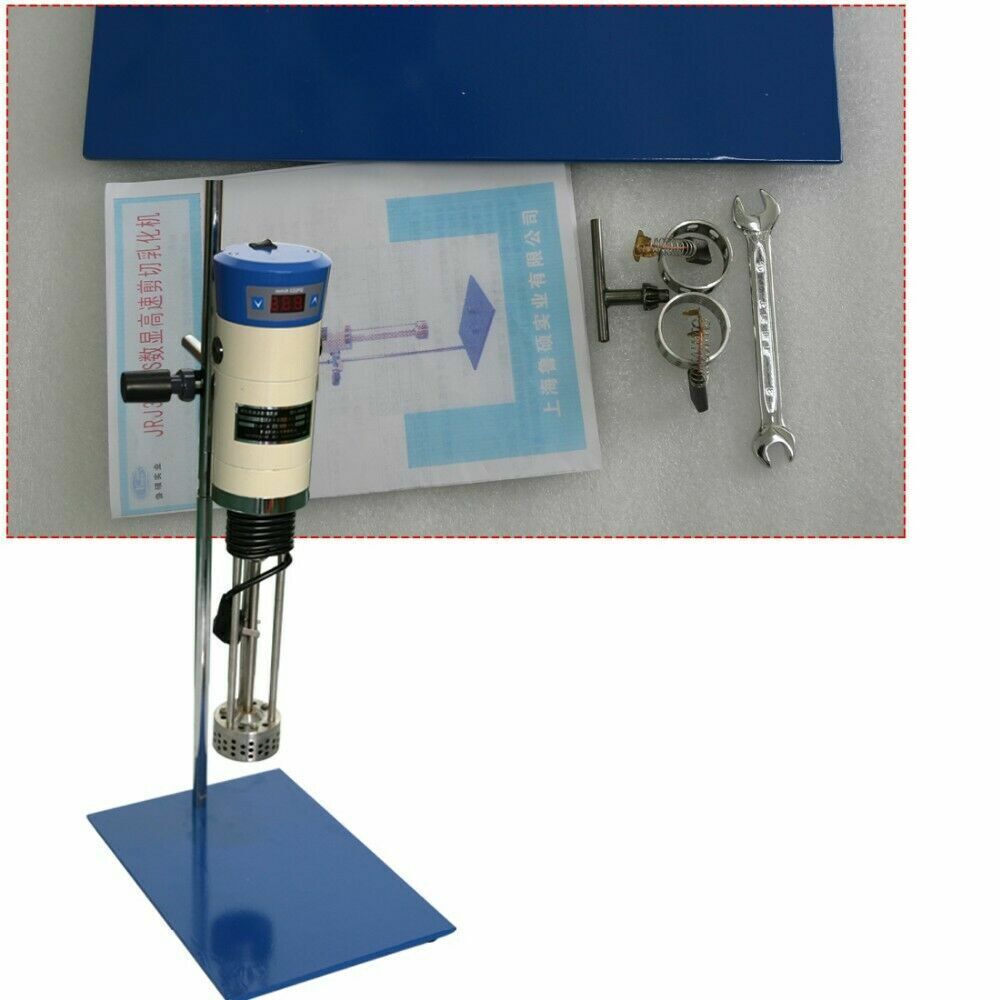

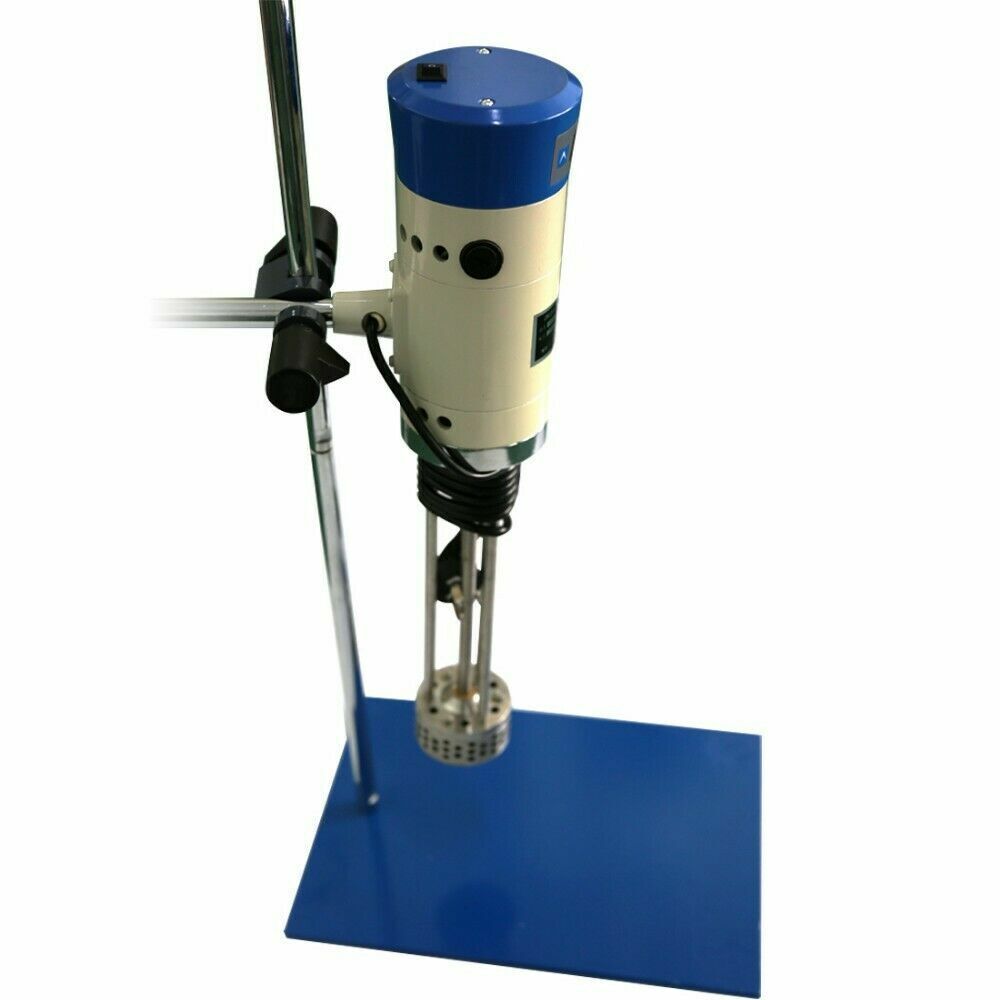

RJ300-S Digital shear emulsification mixer applies to the mixing, emulsification of biology , physics , chemistry, cosmetics and health care products as well as food and other liquid/solid powder scattered, uniform and organization besides, it also applies to plasma cells mashing and experiment slurrying. It is an ideal laboratory equipment which could apply to scientific research, product development, quality control and production process of scientific research institutions, colleges and universities, epidemic prevention and product manufacturing.

The product enjoys novel design concept, reasonable and compact structure as well as advanced manufacturing process Drive motor use high-density die casting aluminum alloy chassis miniature motor, big power, high speed, safe and reliable. Operation controller adapt to  numerical control technology which makes speed regulation easy, the data display operation state, provide the guarantee for acquiring experimental data; Homogeneous work with scattered head high quality stainless steel refining corrosion resistant properties is good; the configuration of the swap stator make it easy and flexible to tear and assemble. Due to the unique structure of the mixing head, it ensures that the work of the rotor head in motor high-speed drive, have high velocity rotation, produce powerful liquid shear force and the high frequency of severe mechanical effect, the experimental fluid material is absorpt from the bottom of the container and have a strong mixing in rotor area and hit each other because of the strength produced by stator hole through centrifugal force, stator could make the flow stable, to prevent so much medium rotation, even in a small room, it can also play its high efficiency which is one thousand times high than common stirrer. Cooperate with precision of the rotor and stator shearing each other under the centrifugal force. In the situation, the material enduring as high as tens of thousands of times of tearing, shearing and blending every minute so as to achieve the scattered, homogeneous effect. Different specifications of work head configuration is designed for meeting the different needs of the design. It covers a wide range of application such as crushing, emulsification, uniform, polymerization, suspension, dissolve and stirring.

The aluminum metal shell:

Ensure that the permanent use of mechanical precision

To ensure continuous use of electrical properties

To ensure stable operation, low noise

Digital control with variable speed:

Any experimental speed is alternative

Experimental data acquisition is Intuitionistic and reliable

Mixing work head:

Good corrosion resistant performance, high mixing efficiency

Multiple configuration of stator expands the scope of application

Open frame:

Wide selectivity of medium containers

Offset mixing is simple

Basic specifications:

Power: AC 220 V   50 Hz

Input power: 510 W

Out power: 300 W

Rotation: 200~11000 r/min

Mixing work head diameter: Φ70 mm

Work head stator configuration: 5 mm2,20 mm2,50 mm2

Productivity: 0.5L-20L

Overall dimension: 250×350×720 mm
